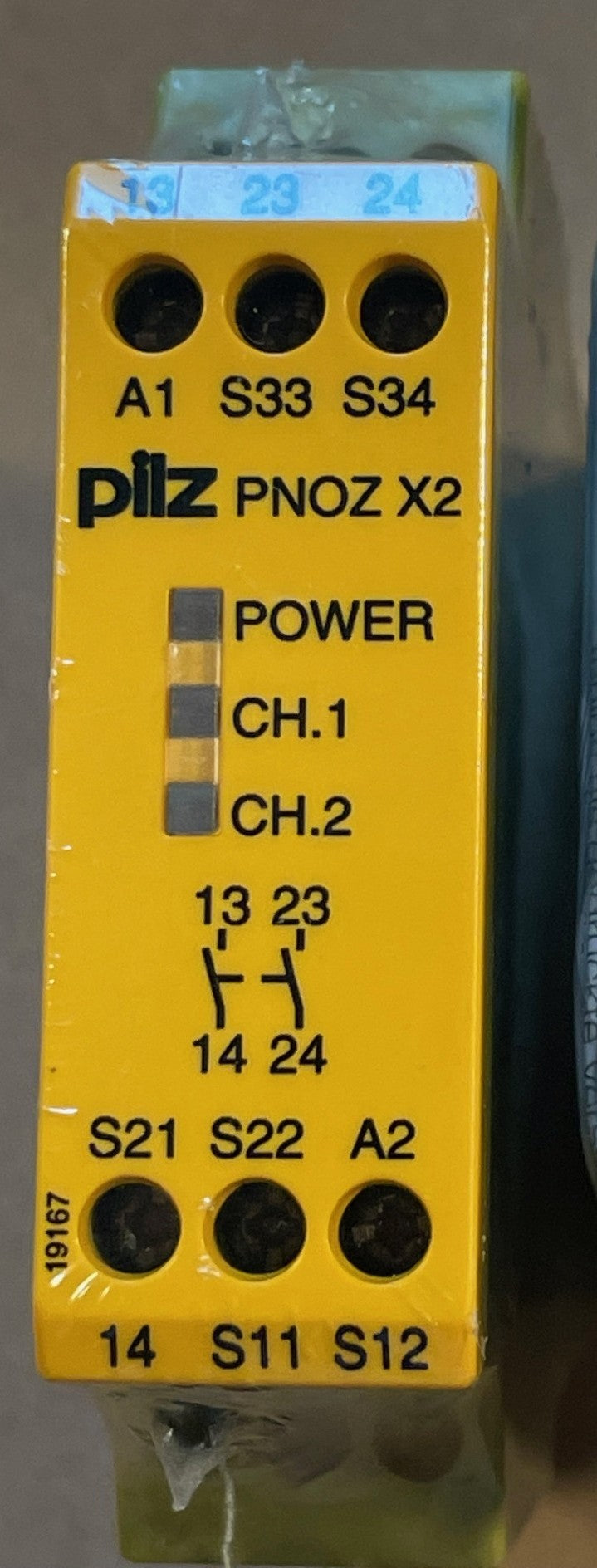

Genuine Pilz PNOZ X2 safety relay, part number 774303, designed for safety-related monitoring functions in industrial machinery and automation systems.
This unit is new and has never been used. It may show minor storage or handling marks from long-term stock, but it has not been installed or operated.
The PNOZ X2 is a compact standalone safety relay for monitoring applications such as emergency stop circuits, safety gates, protective doors and limit switches. Pilz specifies the 774303 version with 24 V AC/DC supply, two normally open safety contacts, monitored start and integrated screw terminals.
Technical specifications:
Manufacturer: Pilz
Series: PNOZ X
Model: PNOZ X2
Part number / ID No.: 774303
Supply voltage: 24 V AC/DC
Supply frequency: 50–60 Hz
Power consumption AC: 4.5 VA
Power consumption DC: 2 W
Safety outputs: 2 × normally open (2 N/O)
Inputs: 2
Start function: Monitored start
Connection type: Integrated screw terminals
Width: 22.5 mm
Height: approx. 87 mm
Depth: approx. 121 mm

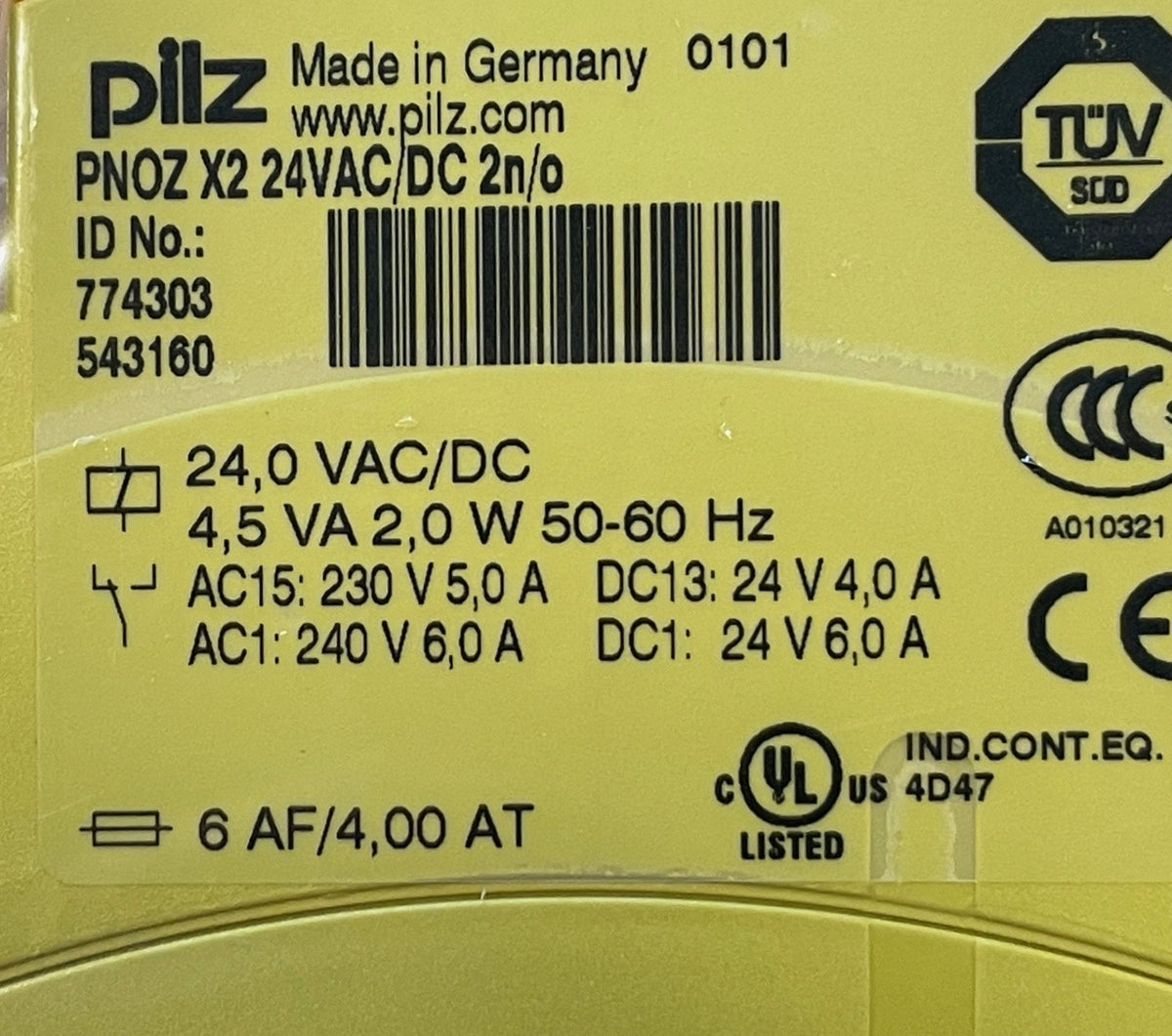

AC-1 contact rating: 240 VAC / 6 A
AC-15 contact rating: 230 VAC / 5 A
DC-1 contact rating: 24 VDC / 6 A
DC-13 contact rating: 24 VDC / 4 A
DIN-rail mounting

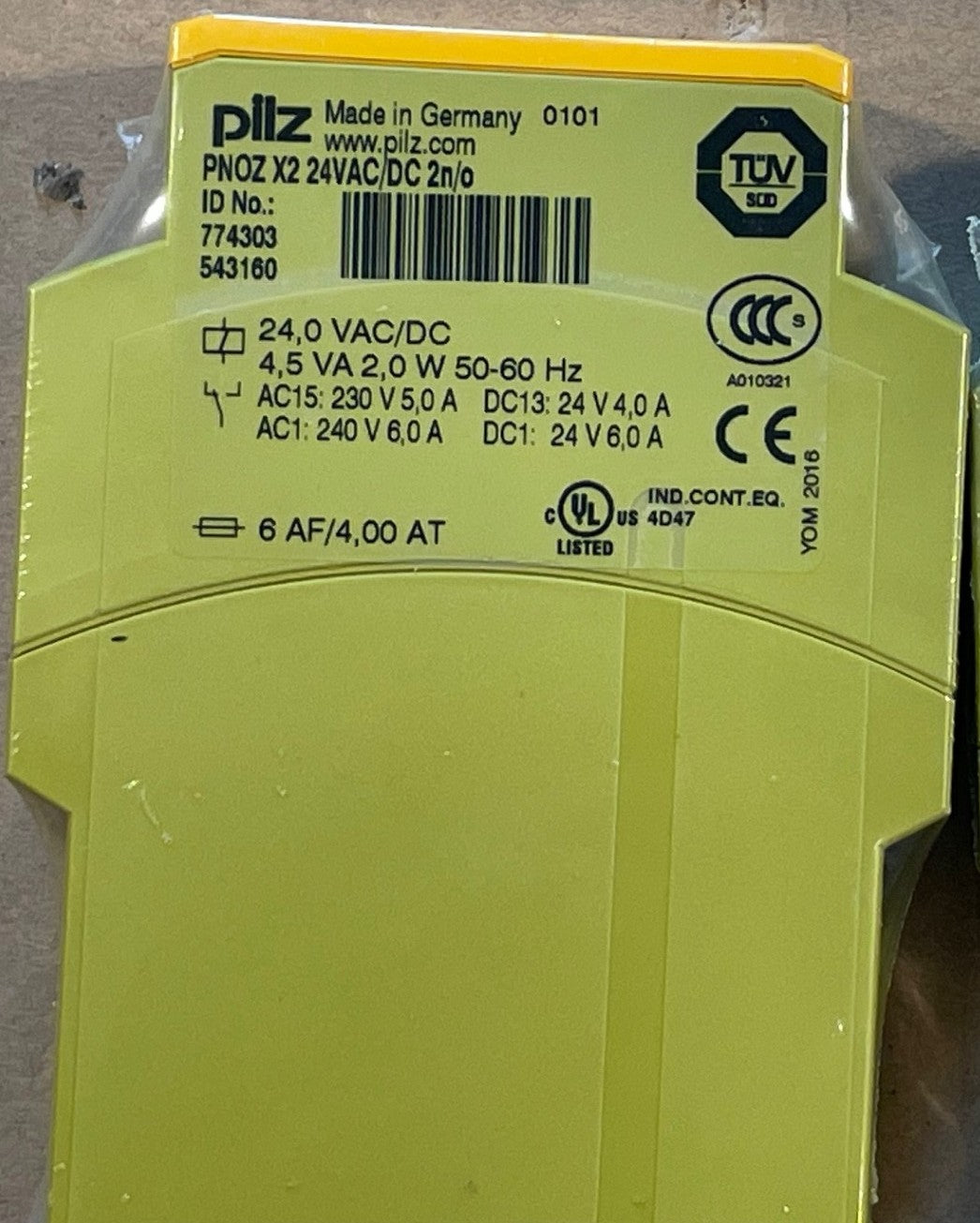

TÜV, CE and cULus approvals shown on the unit
Manufactured in Germany
Pilz lists the relay for one- or two-channel safety circuits, including operation with or without detection of shorts across contacts.
Typical applications include:
Emergency-stop monitoring, safety door and guard monitoring, machine safety circuits, replacement of failed PNOZ X2 modules and maintenance of existing Pilz-based safety systems.
For buyers searching by exact spare-part number, this is the genuine Pilz 774303 / PNOZ X2 24VAC/DC 2n/o version.
Condition:
New / unused.

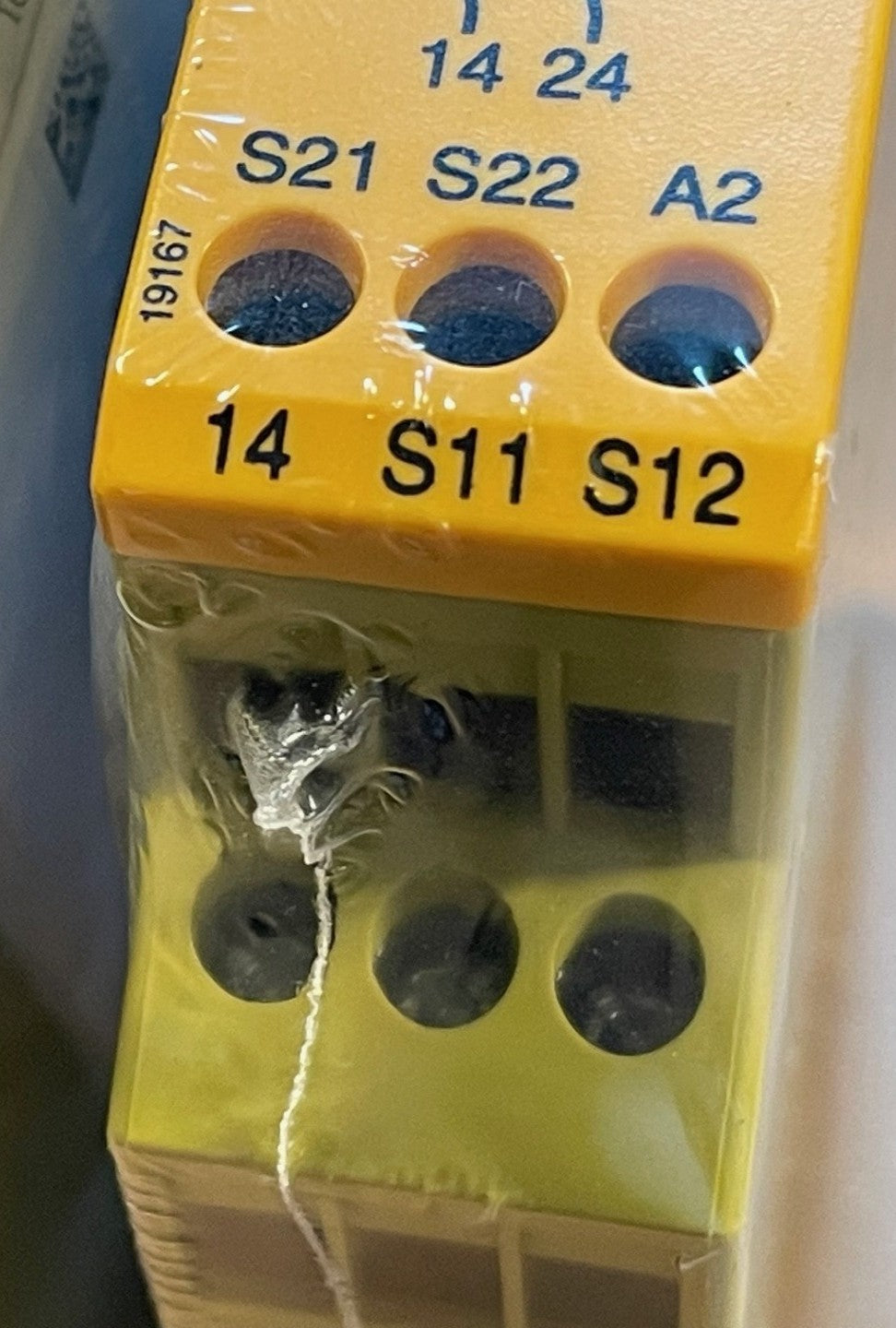

Never installed or operated. Please refer to the photographs for the exact cosmetic condition and configuration of the unit supplied.
