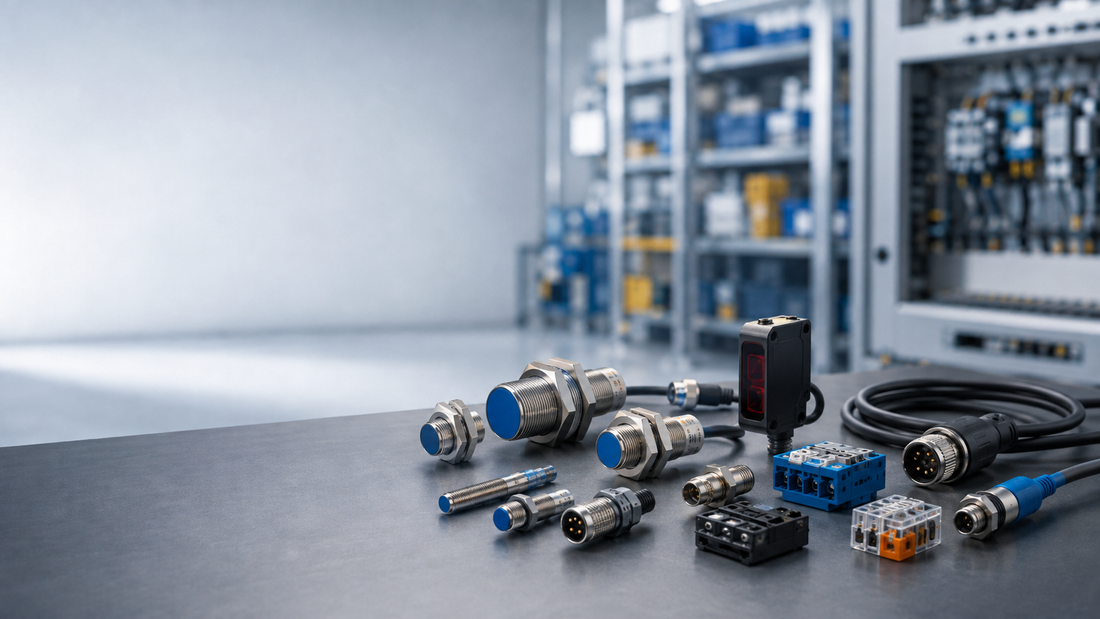

How to Replace an Industrial Sensor Without Ordering the Wrong Part

SEO Title: How to Replace an Industrial Sensor Without Ordering the Wrong Part

Meta Description: Replacing an industrial sensor? Learn which specifications to check before buying a proximity sensor, photoelectric sensor, pressure sensor or other automation component.

Excerpt: Industrial sensors can look almost identical while having very different electrical and mechanical specifications. This guide explains what to check before ordering a replacement and how to avoid costly compatibility mistakes.

A failed industrial sensor can create a surprisingly large problem.

The component itself may be small, inexpensive and easy to replace physically. Yet a production line can remain stopped because the replacement sensor that arrived yesterday does not work with the machine.

It may have the wrong output type.

The connector may be different.

The sensing distance may not match.

Or the new sensor may require a different supply voltage.

This is a common challenge when maintaining older machinery, especially when the original sensor is no longer readily available.

Before ordering a replacement, it is therefore worth spending a few minutes checking the specifications properly.

Start With the Exact Manufacturer Part Number

The easiest and safest solution is usually to find the exact same sensor.

Look at the nameplate or marking on the existing unit and record the complete manufacturer part number.

For example, manufacturers such as:

• SICK
• ifm
• Pepperl+Fuchs
• Balluff
• Omron
• Banner
• Festo
• Turck

often have many sensor variants that look almost identical.

One letter or digit in the part number can indicate a completely different electrical configuration.

If the exact sensor is still available, replacing like-for-like is normally the lowest-risk option.

If it has been discontinued, the specifications become more important.

Check the Sensor Type

First determine exactly what type of sensor you are replacing.

Common industrial sensor types include:

• inductive proximity sensors
• capacitive proximity sensors
• photoelectric sensors
• ultrasonic sensors
• pressure sensors
• temperature sensors
• level sensors
• magnetic sensors
• safety sensors

Two sensors with similar housings may operate according to completely different principles.

An inductive sensor, for example, generally detects metal objects.

A capacitive sensor may detect metal as well as plastics, liquids or other materials.

Replacing one with the other simply because the dimensions match is unlikely to end well.

PNP or NPN Output?

This is one of the most important details when replacing DC proximity and photoelectric sensors.

Many industrial sensors use either a PNP or NPN transistor output.

They are not automatically interchangeable.

In simplified terms:

• PNP sensors switch the positive supply voltage to the input.
• NPN sensors switch towards 0 V.

The PLC input module or control circuit must be compatible with the sensor output.

If the original sensor is PNP, replacing it with an NPN model can result in a system that simply does not detect the signal.

Always check the datasheet or markings on the original sensor.

Normally Open or Normally Closed?

Another small specification that can cause a big headache is the switching function.

Sensors may be configured as:

• Normally Open (NO)
• Normally Closed (NC)
• complementary output
• configurable output

A sensor can therefore fit perfectly, have the correct voltage and even use the same connector while still behaving opposite to the original device.

In some systems this may be corrected in the PLC program.

In others, replacing the sensor with the correct switching configuration is much simpler.

Check the Supply Voltage

Most modern industrial proximity sensors operate on 10–30 V DC, but this should never be assumed.

Older systems may use different voltages, and some sensors are designed for AC operation.

Check the original specification carefully.

Typical markings may include:

10–30 VDC

or

20–250 VAC

Connecting the wrong sensor can result in anything from a non-functioning machine to a damaged sensor.

Sensing Distance Matters

Two inductive sensors can have exactly the same thread size while having very different sensing distances.

For example, an M18 sensor may have a nominal sensing range of:

• 5 mm
• 8 mm
• 10 mm
• 12 mm

depending on the design.

If the replacement sensor has a shorter sensing distance, the machine may not reliably detect the target.

A longer sensing distance is not automatically better either.

It could cause the sensor to detect nearby metal structures that the original sensor ignored.

Whenever possible, match the sensing range of the original part.

Flush or Non-Flush Mounting

Inductive proximity sensors often come in two mounting designs.

Flush / shielded sensors can typically be installed with the sensing face level with surrounding metal.

Non-flush / unshielded sensors generally require free space around the sensing face.

This difference affects both sensing distance and installation.

Using a non-flush sensor in an installation designed for a flush model may result in false triggering or reduced performance.

The datasheet should clearly state the required mounting method.

Check the Physical Dimensions

Mechanical compatibility is just as important as electrical compatibility.

Check:

• thread size
• sensor length
• body diameter
• mounting arrangement
• connector orientation
• cable exit
• available installation space

Common cylindrical sensor sizes include M8, M12, M18 and M30.

But even two M18 sensors can differ significantly in total body length.

A replacement that is 20 mm longer may not physically fit inside the machine.

Cable or Connector?

Industrial sensors are commonly supplied either with a fixed cable or a connector.

M8 and M12 connectors are particularly common.

If the machine already uses a moulded sensor cable, choosing a replacement with the same connector type can make the job much easier.

However, do not assume all M12 connectors have the same pin configuration.

Check the wiring diagram.

Typical sensor connections include:

• brown: supply +
• blue: 0 V
• black: switching output
• white: secondary output or function

This convention is common, but the manufacturer documentation should always be checked before installation.

Photoelectric Sensors Require Additional Checks

Replacing a photoelectric sensor can require more information than simply checking voltage and output.

You may also need to identify the sensing principle.

Examples include:

• through-beam
• retro-reflective
• diffuse reflection
• background suppression

A retro-reflective sensor normally works with a reflector.

A through-beam system uses a separate transmitter and receiver.

A diffuse sensor detects light reflected directly from the target object.

These systems may look similar but are not directly interchangeable.

Range, light source, target colour and environmental conditions can also affect performance.

Environmental Conditions Matter

Sensors used in industrial environments may be exposed to:

• water
• oil
• dust
• vibration
• cleaning chemicals
• temperature changes
• outdoor conditions

Check the IP rating of the original sensor.

For example:

• IP65
• IP67
• IP68
• IP69K

A general-purpose sensor may work electrically while being unsuitable for the actual environment.

This becomes particularly important in food production, washdown areas and outdoor machinery.

When the Original Sensor Is Discontinued

If the exact model is no longer manufactured, start by looking for unused old stock or a suitable used original sensor.

This can be attractive when the machine is old and changing specifications would require additional work.

If the original cannot be sourced, compare possible replacements systematically.

Create a simple checklist:

Specification	Original Sensor	Replacement
Sensor type	Inductive	Inductive
Supply	10–30 VDC	10–30 VDC
Output	PNP	PNP
Switching	NO	NO
Sensing range	8 mm	8 mm
Thread	M18	M18
Connector	M12	M12
Mounting	Flush	Flush
IP rating	IP67	IP67

If all critical parameters match, the replacement is much more likely to work correctly.

Do Not Throw the Failed Sensor Away Too Quickly

A damaged sensor can still be useful even if it no longer functions.

Keep it until the replacement has been identified and tested.

The old sensor provides:

• the original part number
• mechanical dimensions
• connector type
• cable length
• mounting information
• visual reference

A clear photo of the sensor and its label can also make it much easier for a supplier to help identify an alternative.

Finding Replacement Industrial Sensors

KLJ Trading stocks a changing selection of industrial sensors and automation components from manufacturers including SICK, ifm, Pepperl+Fuchs, Omron, Banner, Festo and others.

The fastest way to find a replacement is normally to search for the exact manufacturer part number on kljtrading.com.

If the sensor is not listed, contact us with:

• manufacturer
• full part number
• required quantity
• photo of the label if available
• information about the application

We can check current stock and whether a suitable alternative may be available.

Five Minutes of Checking Can Prevent Days of Frustration

Industrial sensors are often simple devices.

Selecting the correct replacement is not always simple.

A sensor that looks identical can have a different output, range, connector or mounting requirement.

That is why the safest approach is to work from the exact part number first and specifications second.

A few minutes spent checking the details before ordering can save a lot more time when the machine needs to get back into production.
