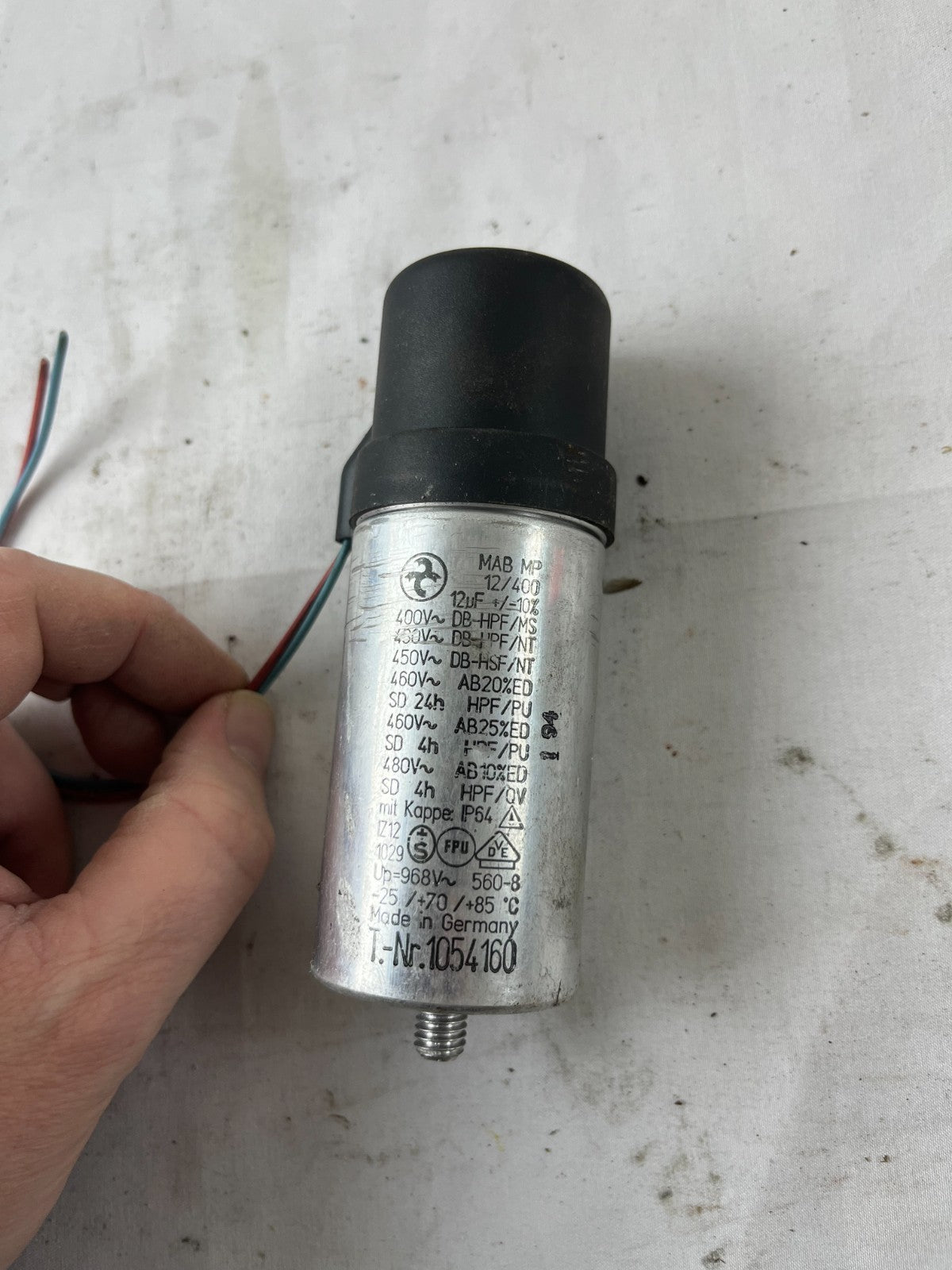

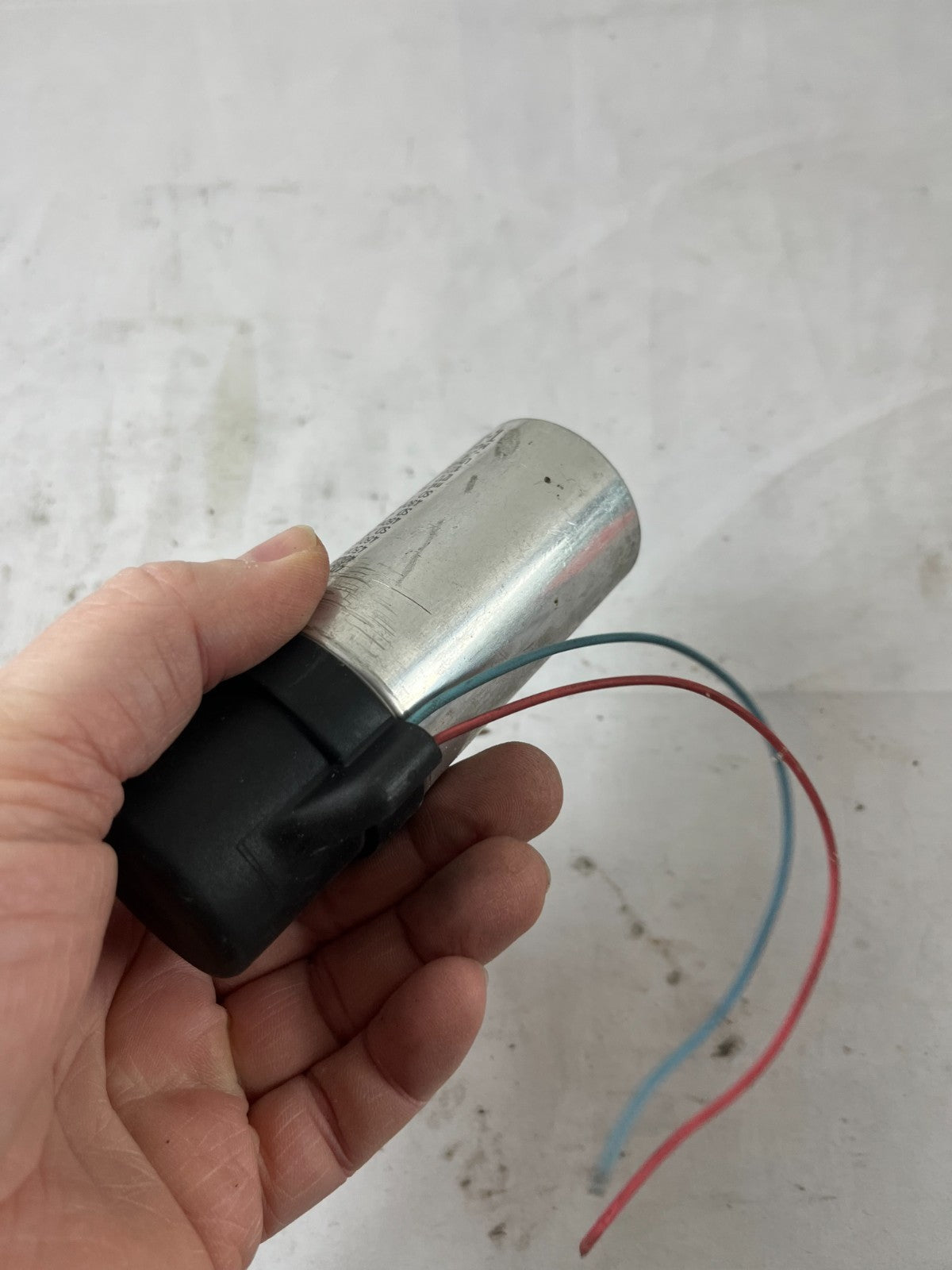

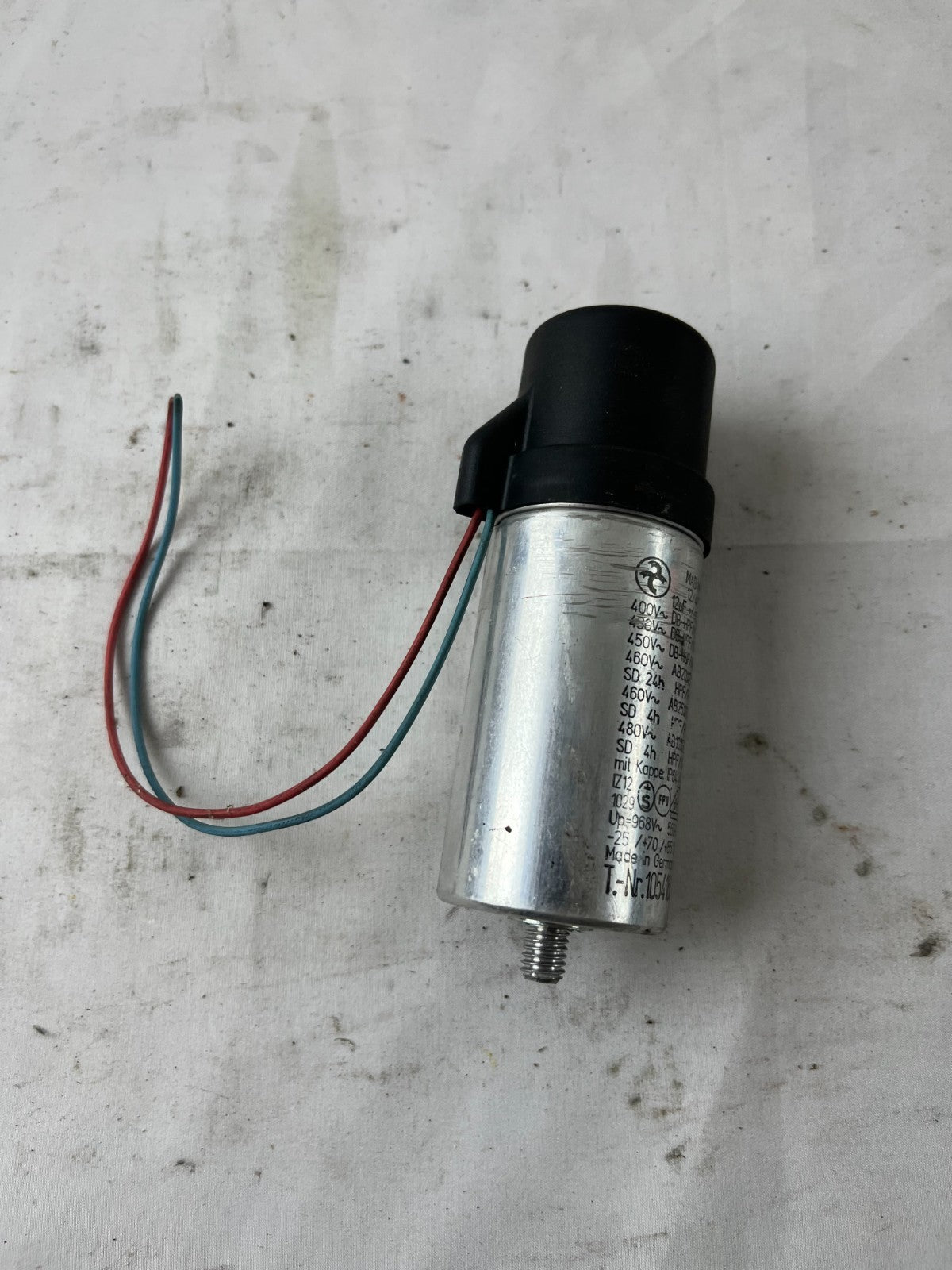

MAB MP 12/400 12µF 400–480V Motor Run Capacitor Made in Germany Used

Single MAB MP 12/400 metal can motor capacitor, 12 µF, rated around 400–480 V AC, in good working used condition. This German‑made run/starting capacitor is suitable for various AC motors and industrial equipment where a 12 µF / 400 V class capacitor is required.

Item details

• Brand: MAB / Hydra‑type (Made in Germany, as marked on can).

• Model: MP 12/400.

• Capacitance: 12 µF ±10%.

• Voltage class: DB HPF/MS / HPF/NT, markings for 400–480 V AC operation (see full text on can in photos).

• Temperature range: −25 °C to +70/+85 °C (marked −25/70/+85 °C area – see photos).

• Duty: Suitable for motor run / start applications (continuous and intermittent DB/AB duty).

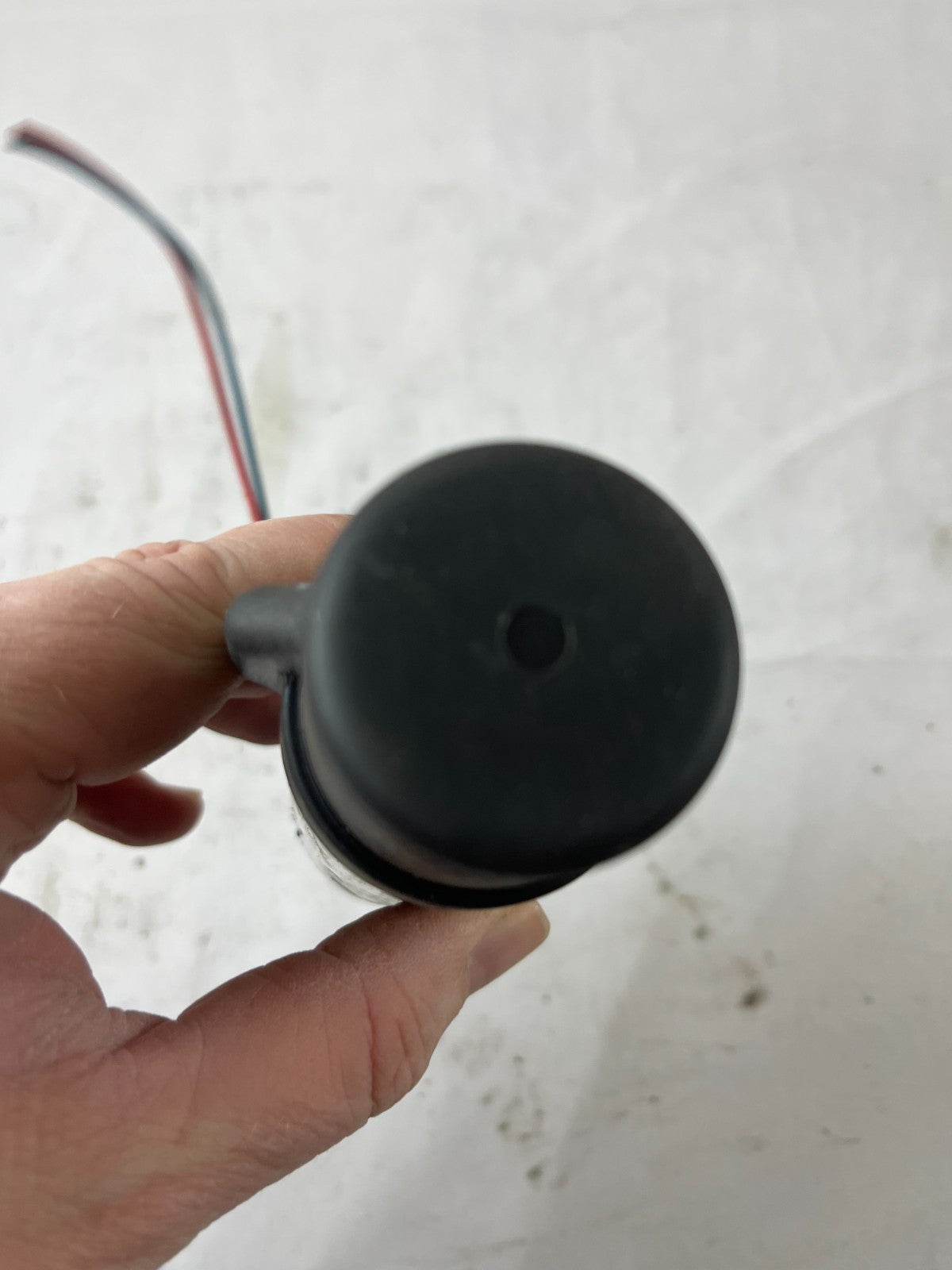

• Housing: Cylindrical aluminium can with black plastic top and two‑core cable leads.

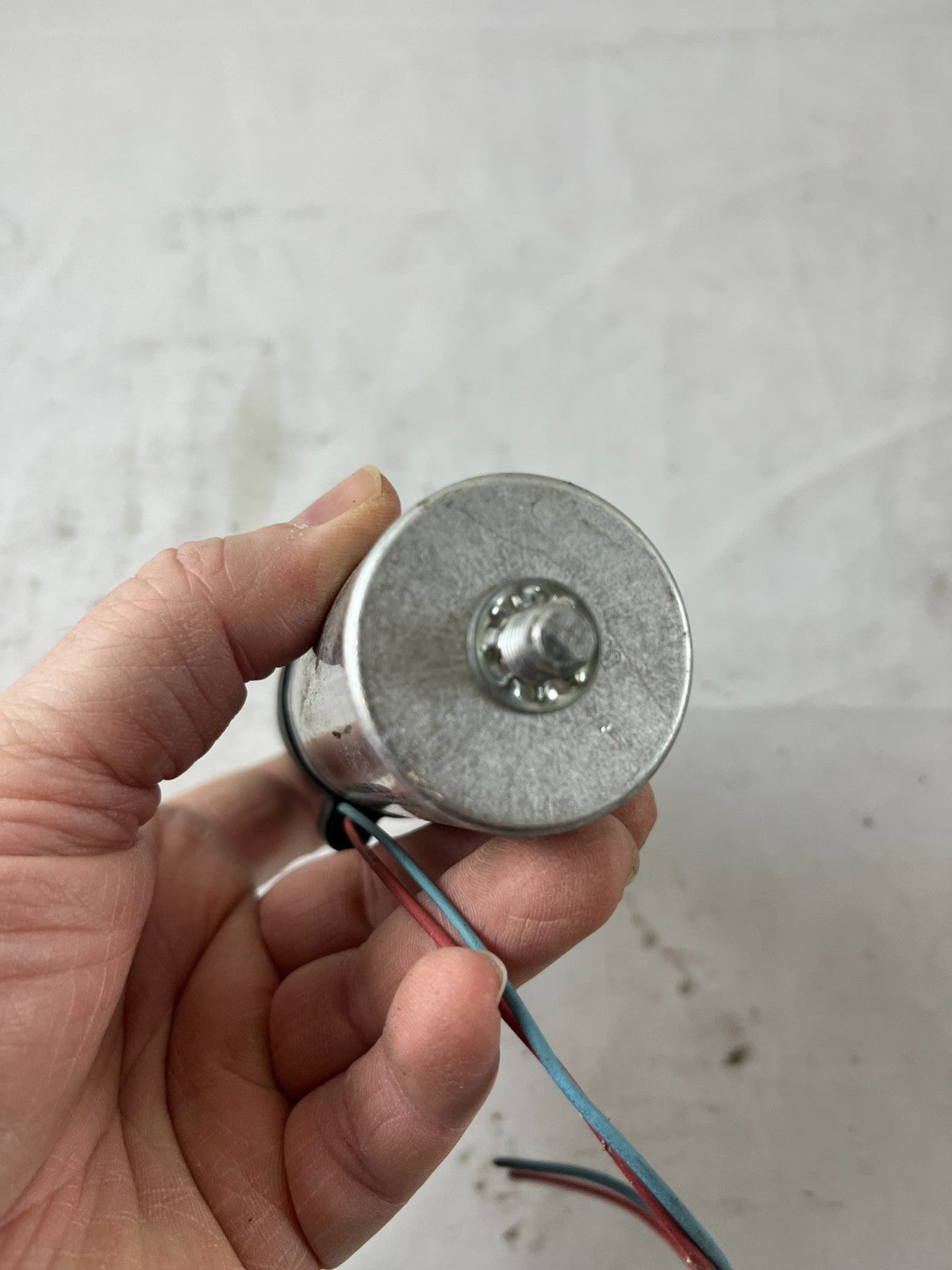

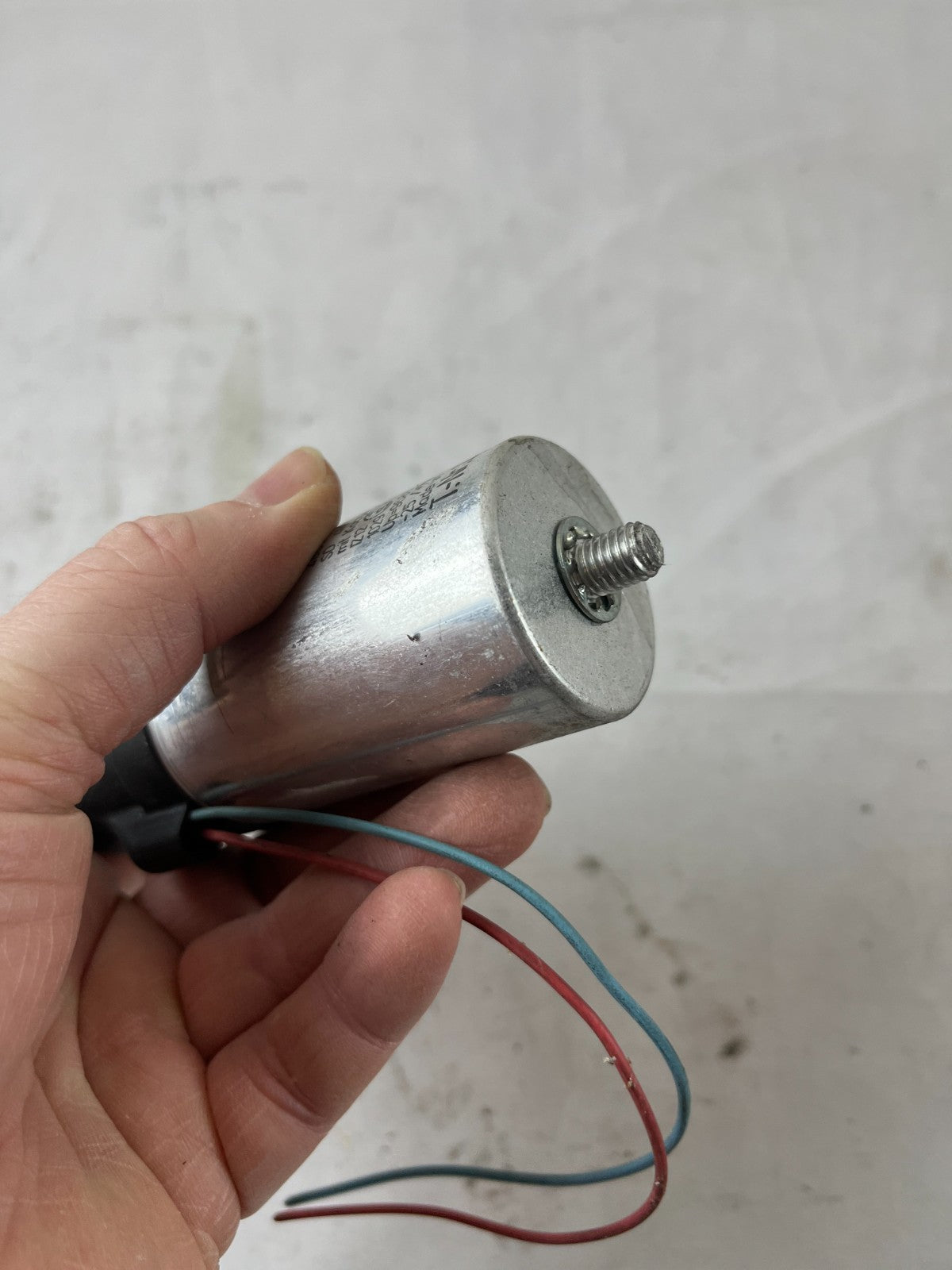

• Mounting: Threaded stud on bottom (approx. M8) for bracket or panel mounting.

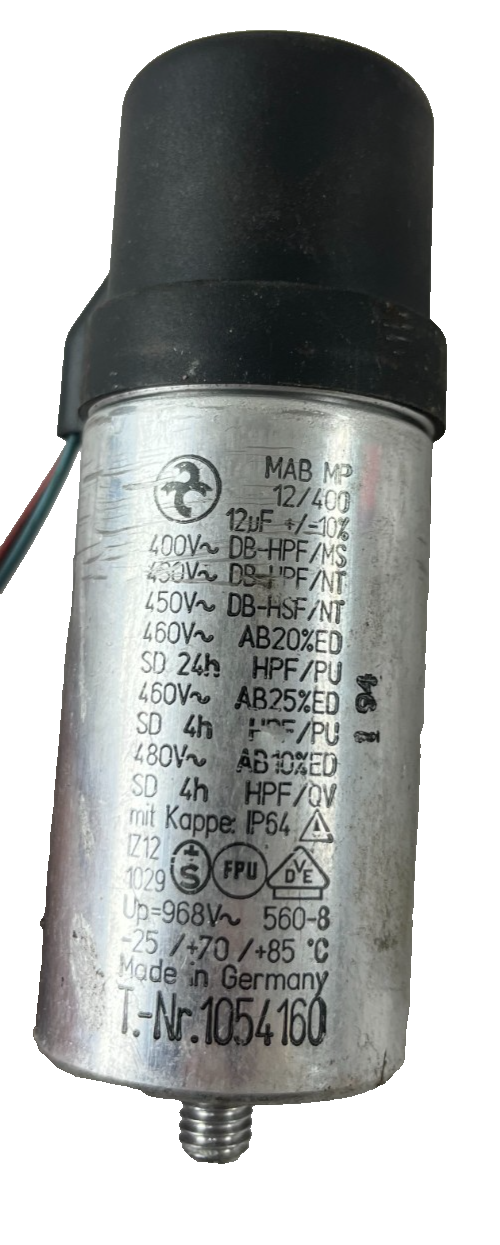

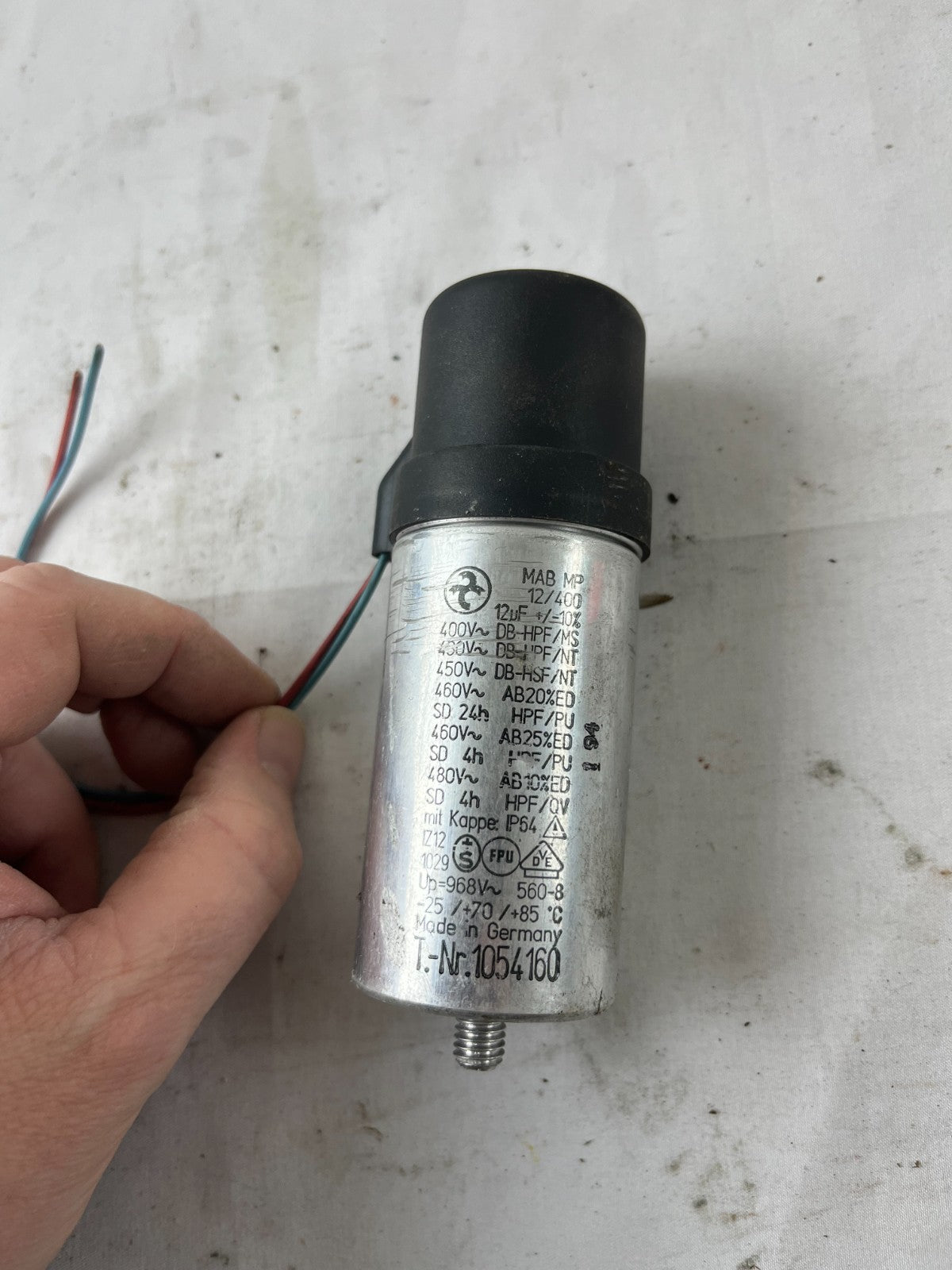

• Markings: Multiple approval logos and safety symbols; full technical data printed on the can.

Condition

• Used, removed in good working condition from operating equipment.

• Cosmetic wear: scratches, marks and discoloration on aluminium can and plastic head from service and handling.

• Two‑core cable leads with cut ends; insulation shows normal age but appears intact.

• No visible dents, bulging or leakage; printing remains readable – check photos carefully.

Notes

• Listing is for one capacitor exactly as shown in the photos.

• Parameters (capacitance, voltage and physical size) should be checked against your original capacitor to ensure compatibility.
