Genuine ABB ACS380-040N-09A4-4 machinery drive / variable frequency drive (VFD) for industrial motor control and machine automation applications.
This unit is used, tested and fully functional. It shows normal cosmetic signs from previous industrial use, but has been checked and is working correctly.
The ABB ACS380 series is designed specifically for machinery applications where compact size, straightforward commissioning and reliable motor control are required. The ACS380-040N-09A4-4 is a three-phase 400/480 V AC drive with a nominal motor rating of 4 kW at 400 V and nominal output current of 9.4 A. ABB also specifies the model for up to 5 hp light-duty use at 480 V.
The drive is supplied in the compact R1 frame size with IP20 / UL Open Type protection and integrated keypad/display for local setup, monitoring and operation. It is suitable for pumps, conveyors, packaging machinery, material handling systems, fans, mixers and other industrial motor-driven equipment.
Technical specifications:
-
Manufacturer: ABB
-
Series: ACS380
-
Model / type code: ACS380-040N-09A4-4
- Product type: Machinery drive / variable frequency drive / frequency inverter
-
Input voltage: 3-phase 400/480 VAC
-
Input frequency: 50/60 Hz
-
Output voltage: 3-phase, up to input voltage
-
Output frequency: 0–599 Hz
-
Nominal output current: 9.4 A @ 400 V / 7.6 A @ 480 V
-
Light-duty output current: 8.9 A @ 400 V / 7.6 A @ 480 V
-
Heavy-duty output current: 7.2 A @ 400 V / 4.8 A @ 480 V
-
Nominal IEC motor power: 4 kW
-
UL light-duty motor rating: 5 hp
-
Heavy-duty motor rating: approximately 3 kW / 3 hp
-
Frame size: R1
-
Protection class: IP20
- Cooling: Air cooled
-
Efficiency class: IE2
- Integrated operator panel / keypad
- Dynamic braking capability
- Designed for industrial machinery applications
ABB lists the exact ACS380-040N-09A4-4 as a 4 kW, 9.4 A, 400 V machinery drive.
Configuration note:
The “N” configuration is the base ACS380 variant without an installed fieldbus or additional I/O module. Buyers should therefore verify required communication and I/O options for their particular installation before ordering.
Condition:
Used and tested.

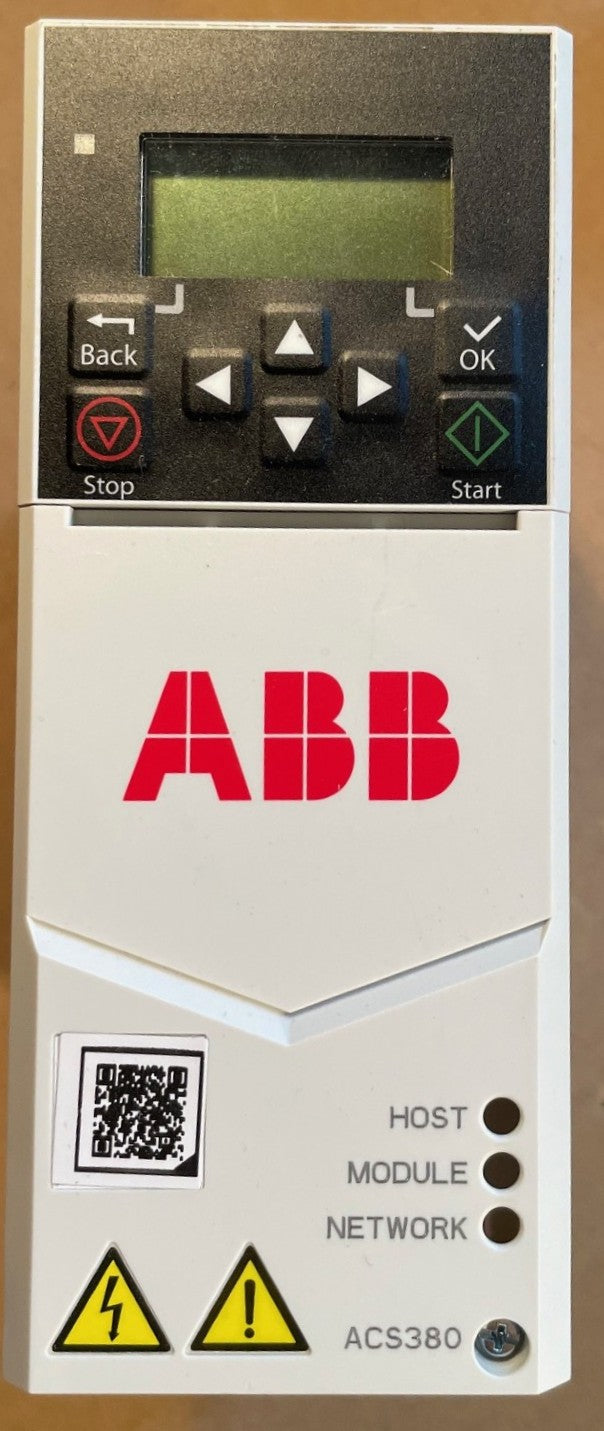

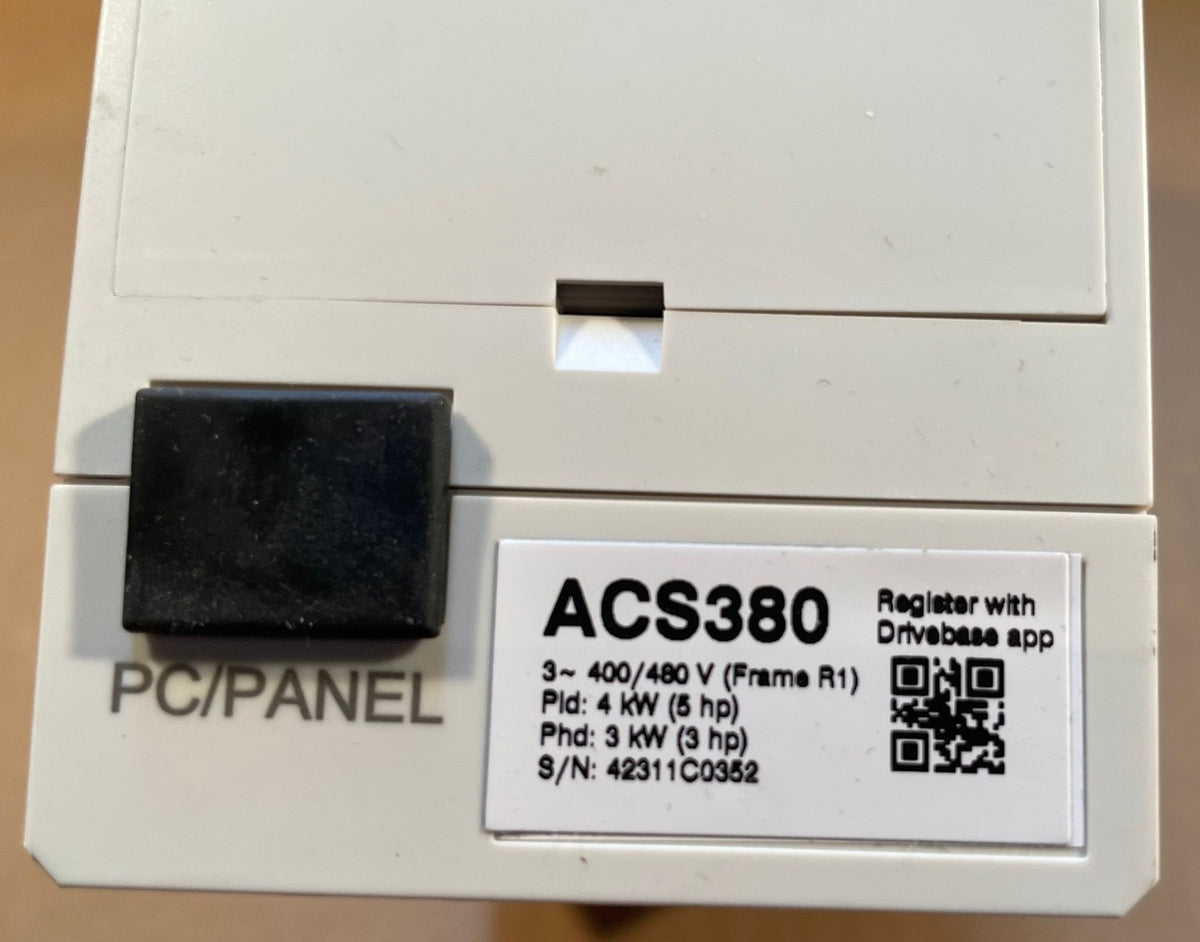

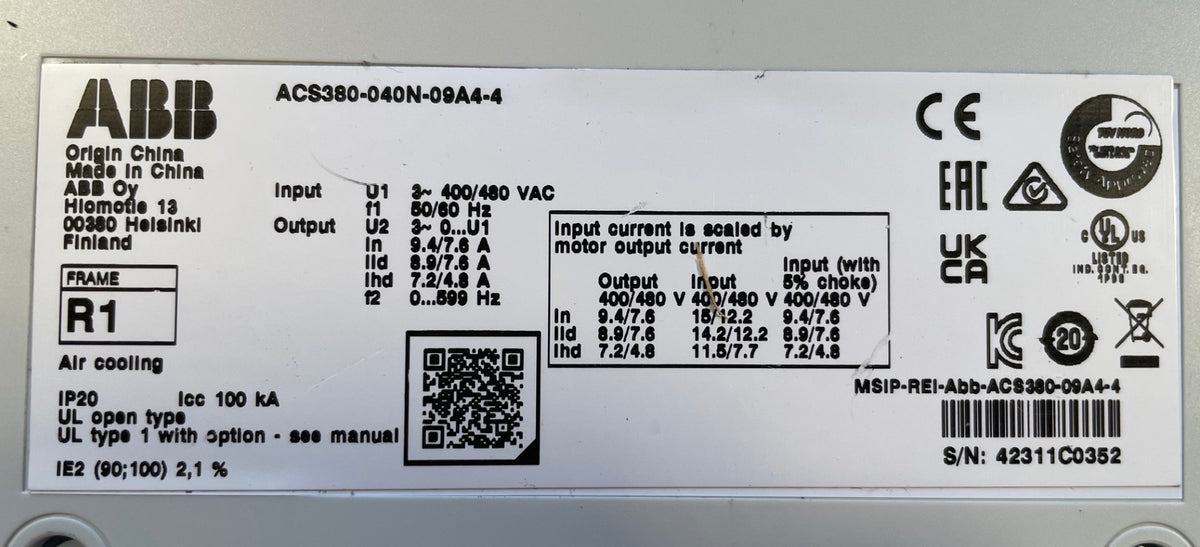

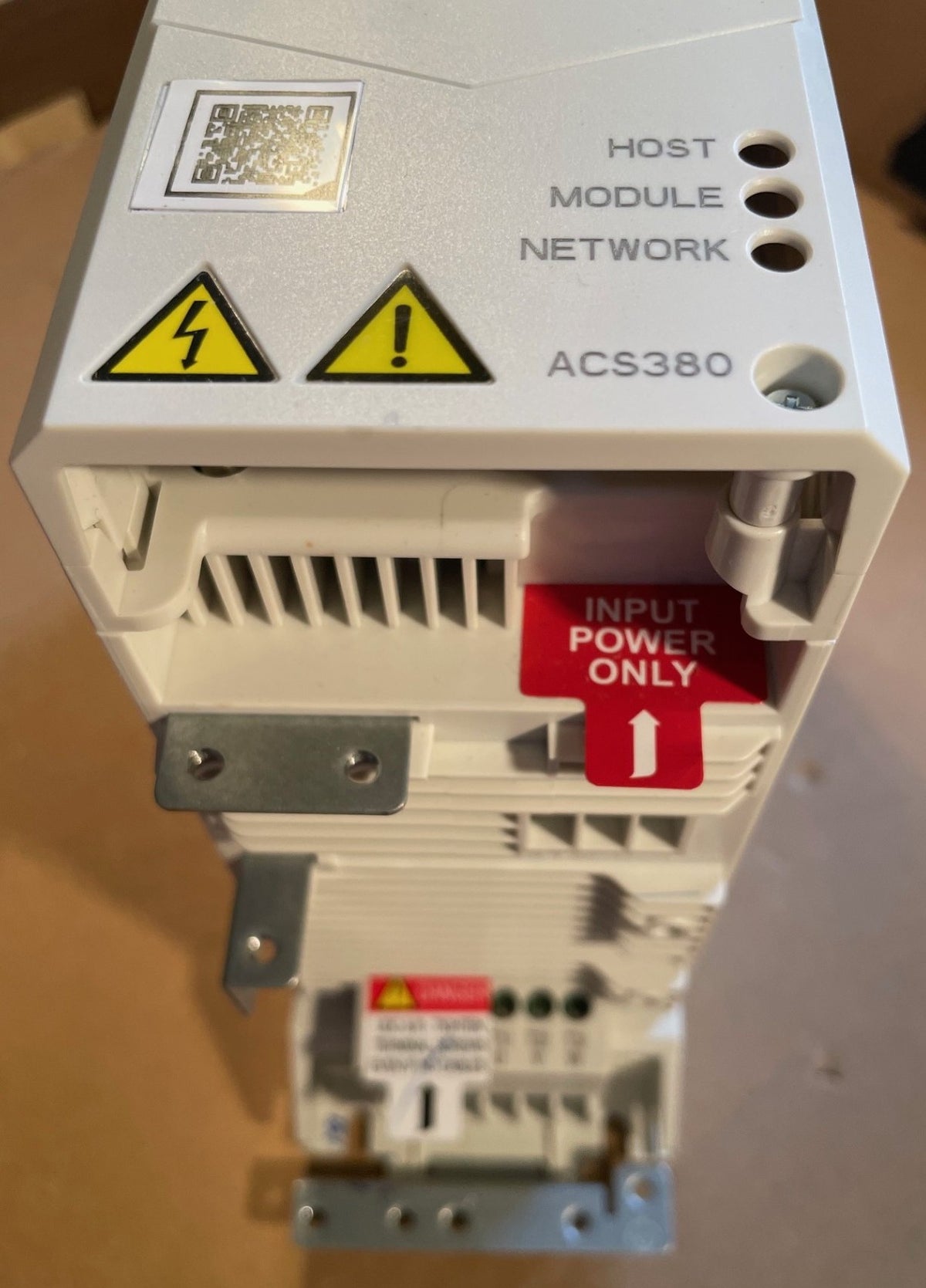

The drive has been function tested and is working correctly. Normal cosmetic signs of previous industrial use may be present. The photographs show the actual unit supplied.
Typical applications:
Suitable for replacement, maintenance and machine-building applications including:
- Conveyor systems
- Packaging machines
- Pumps and fans
- Material handling equipment
- Production machinery
- Mixers and process equipment
- OEM automation systems
- Industrial motor speed control
For search compatibility, this unit may also be searched as ACS380040N09A44, ACS380 09A4, ABB 4kW inverter, ABB machinery drive, ABB VFD 400V, ABB frequency converter or ACS380 5HP drive.
