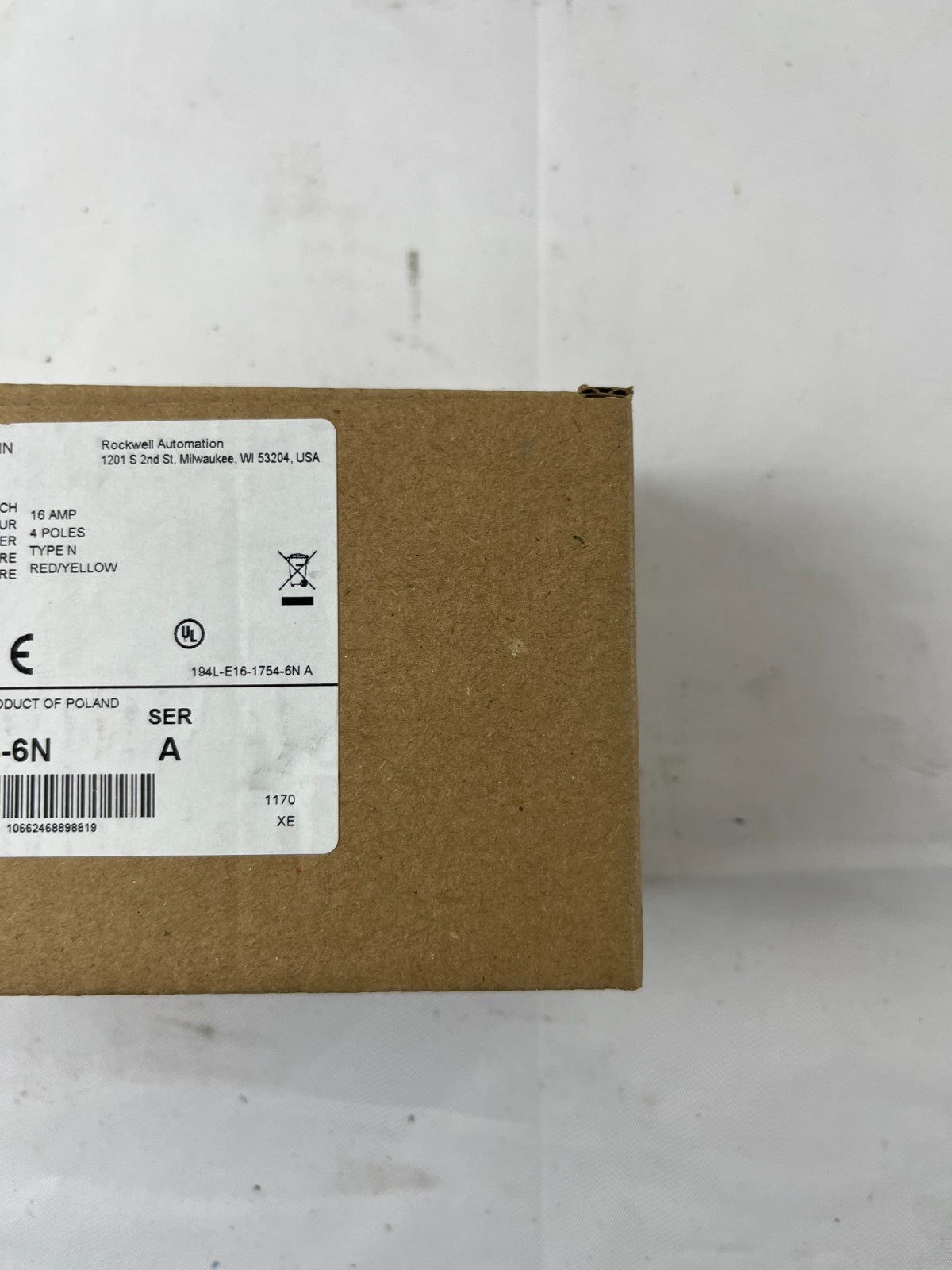

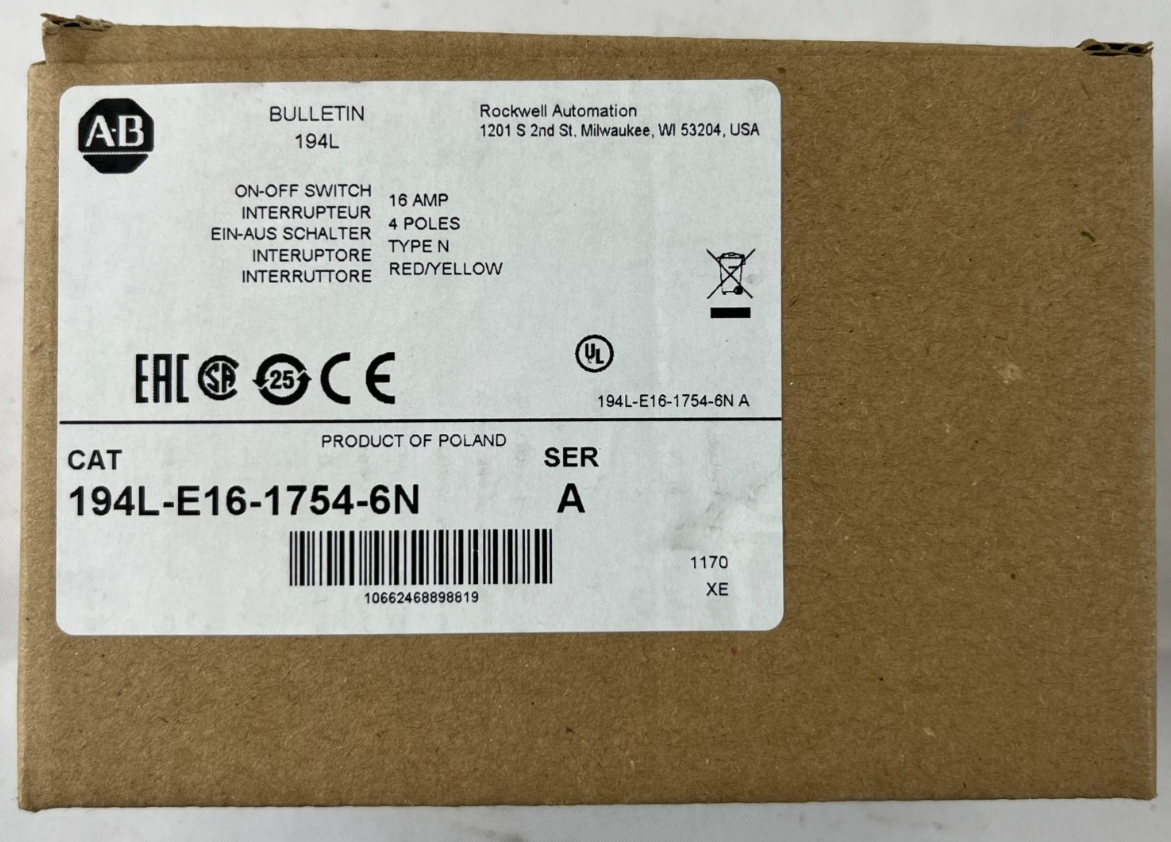

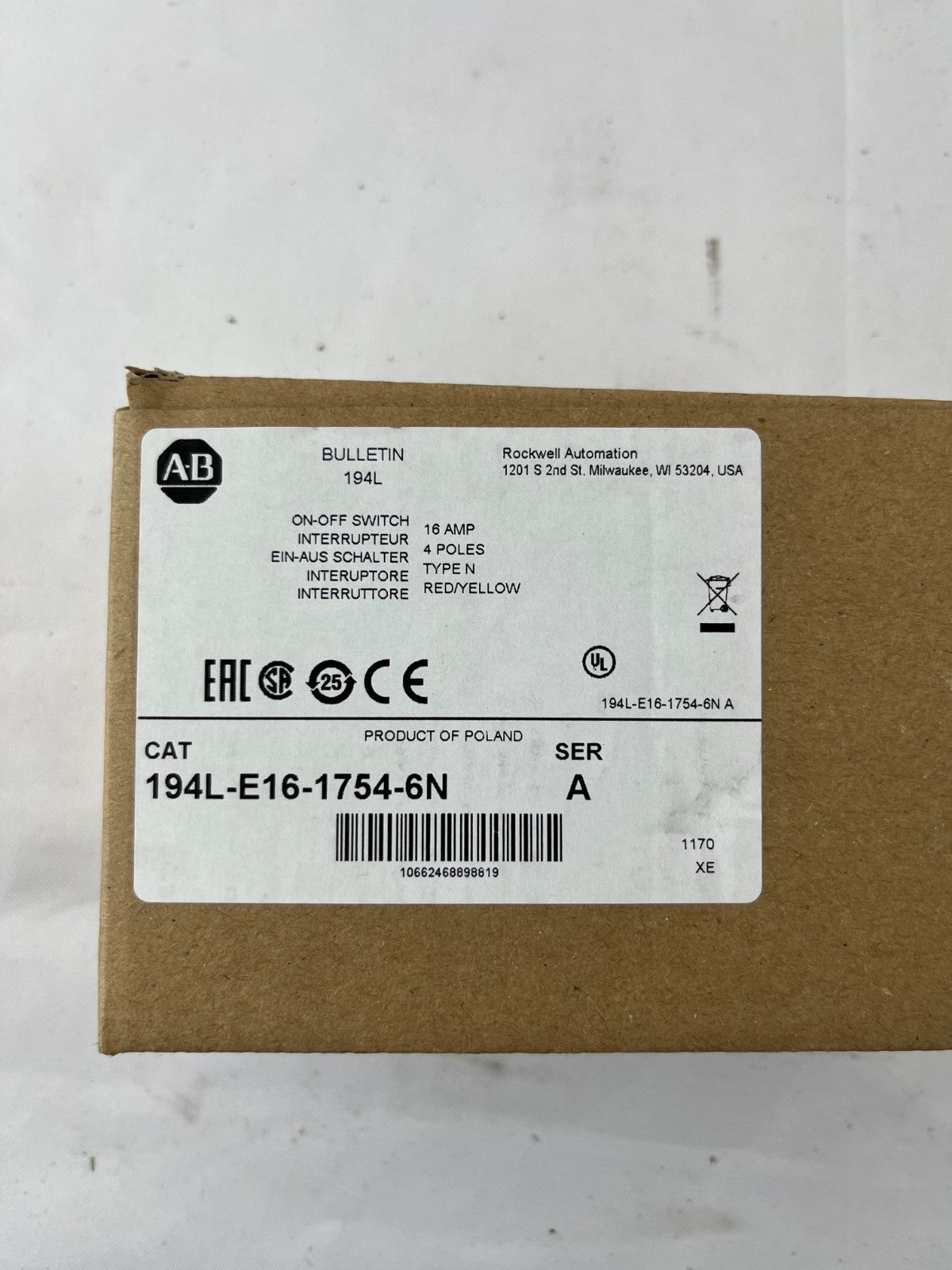

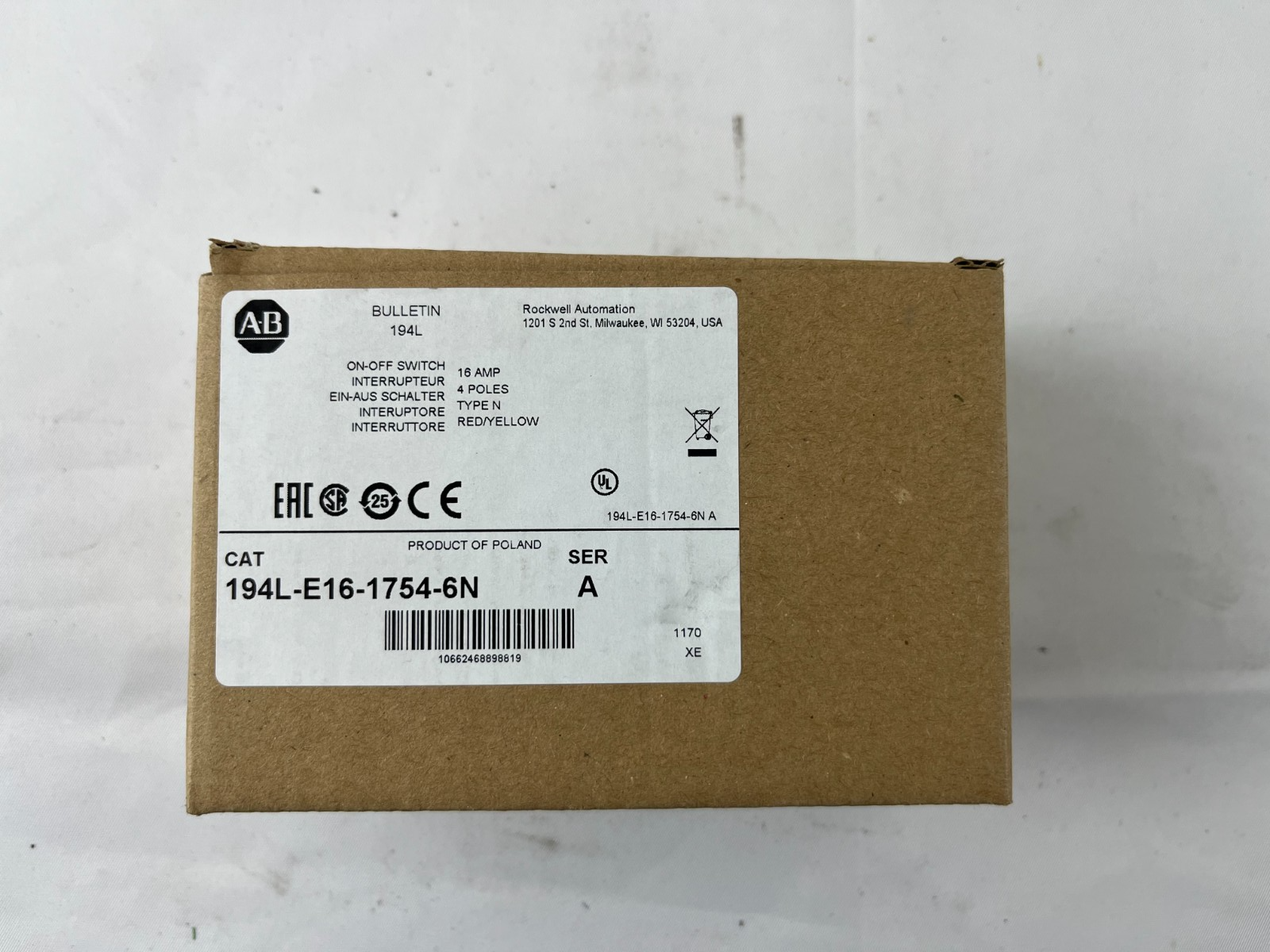

Catalog Number: 194L-E16-1754-6N
-
Manufacturer: Allen-Bradley / Rockwell Automation
-
Series: A
-
Lot Code: 1170 XE
-
Bulletin: 194L
-
Type: ON-OFF Switch / Emergency Stop Switch
-
Poles: 4-pole (4 poles)
-
Contact Configuration: OFF-ON 90° rotation
-
Rated Current (Ith): 16A
-
Voltage Rating: Up to 690V AC
-
Switching Capacity:
-
16A suitable for switching off-load (AC-20) above 660V
-
9.6A @ 240V (similar to AC-3) per UL/CSA
-
Various ratings for 3-phase and DC applications
-

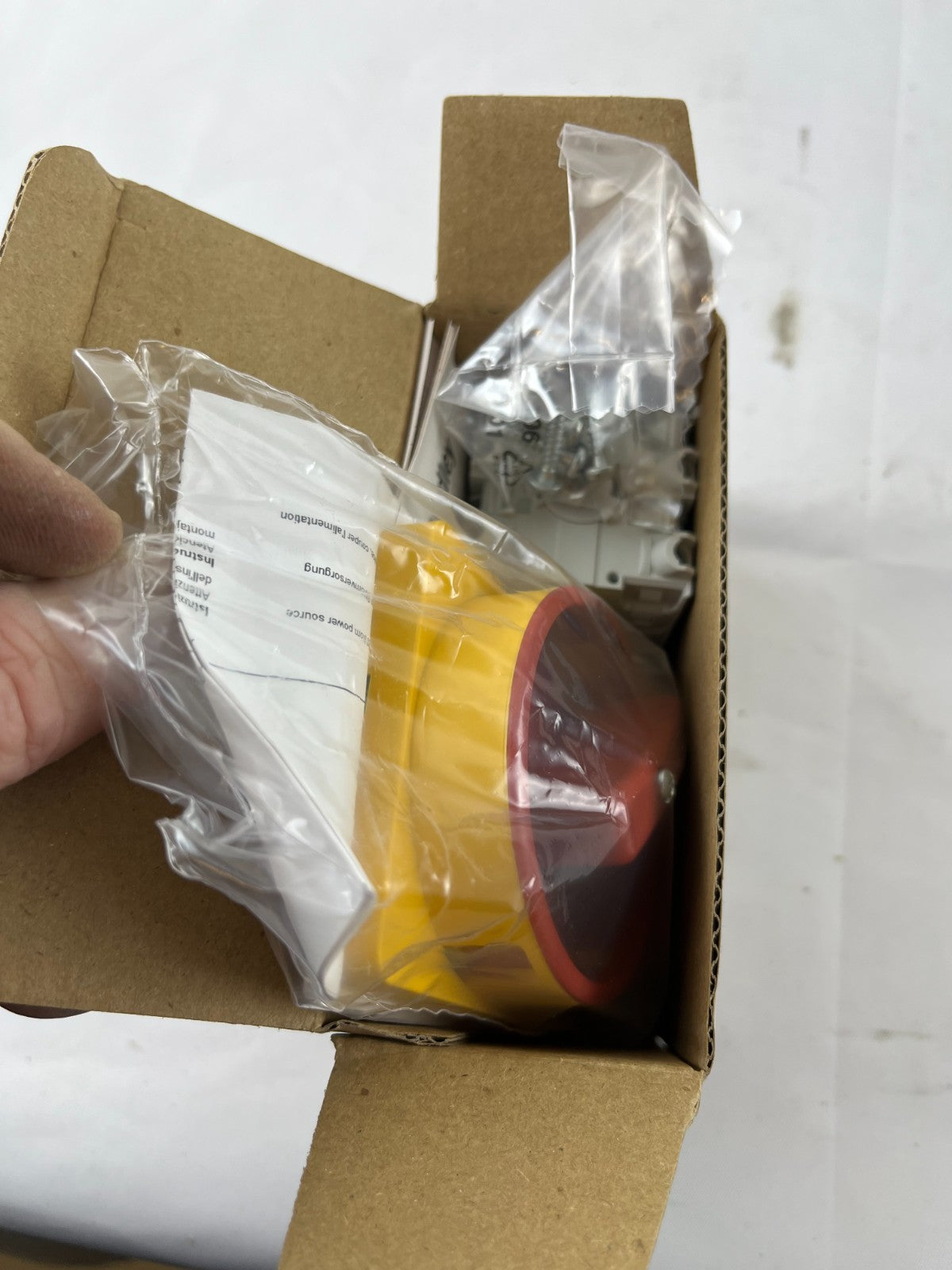

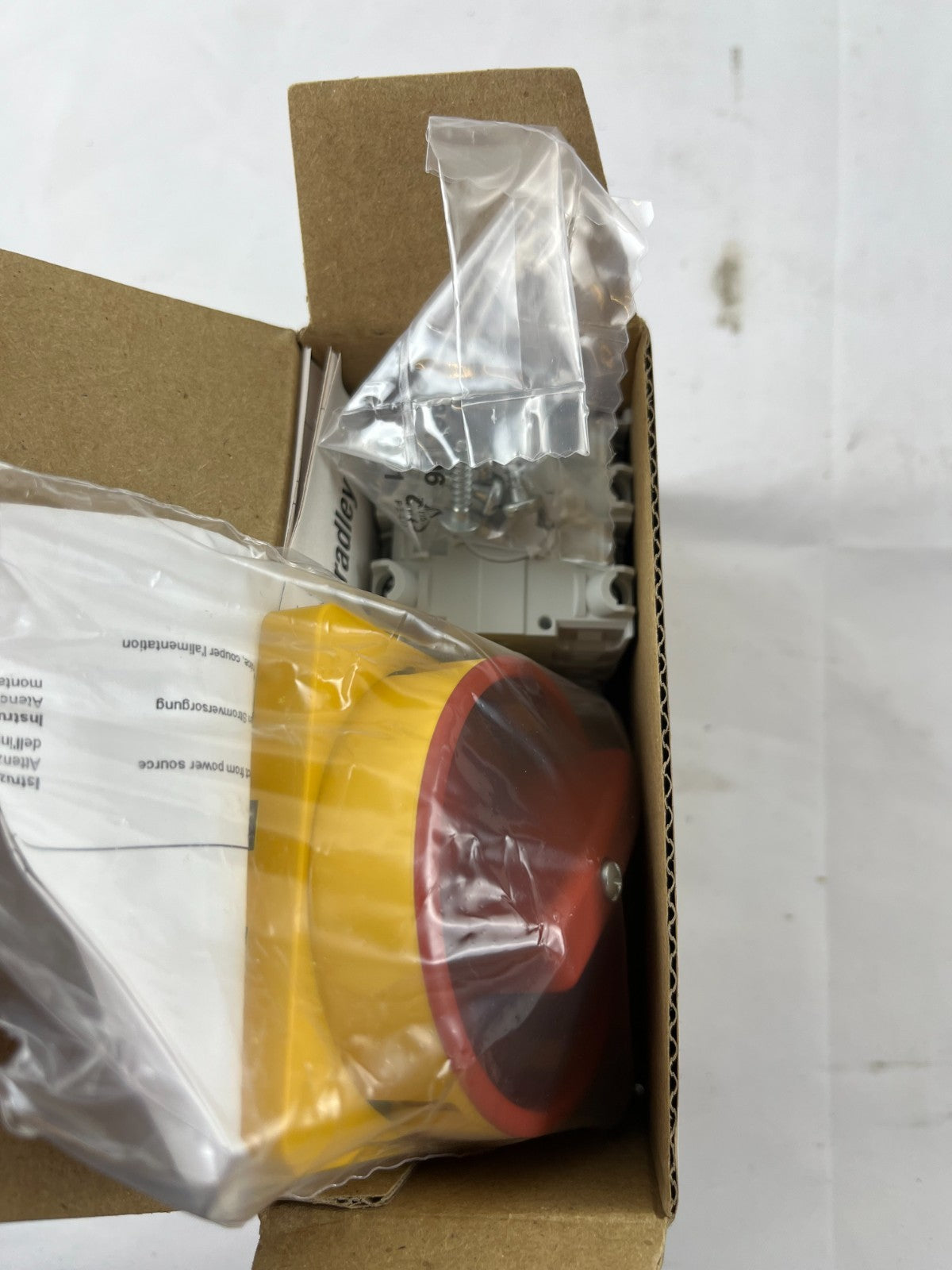

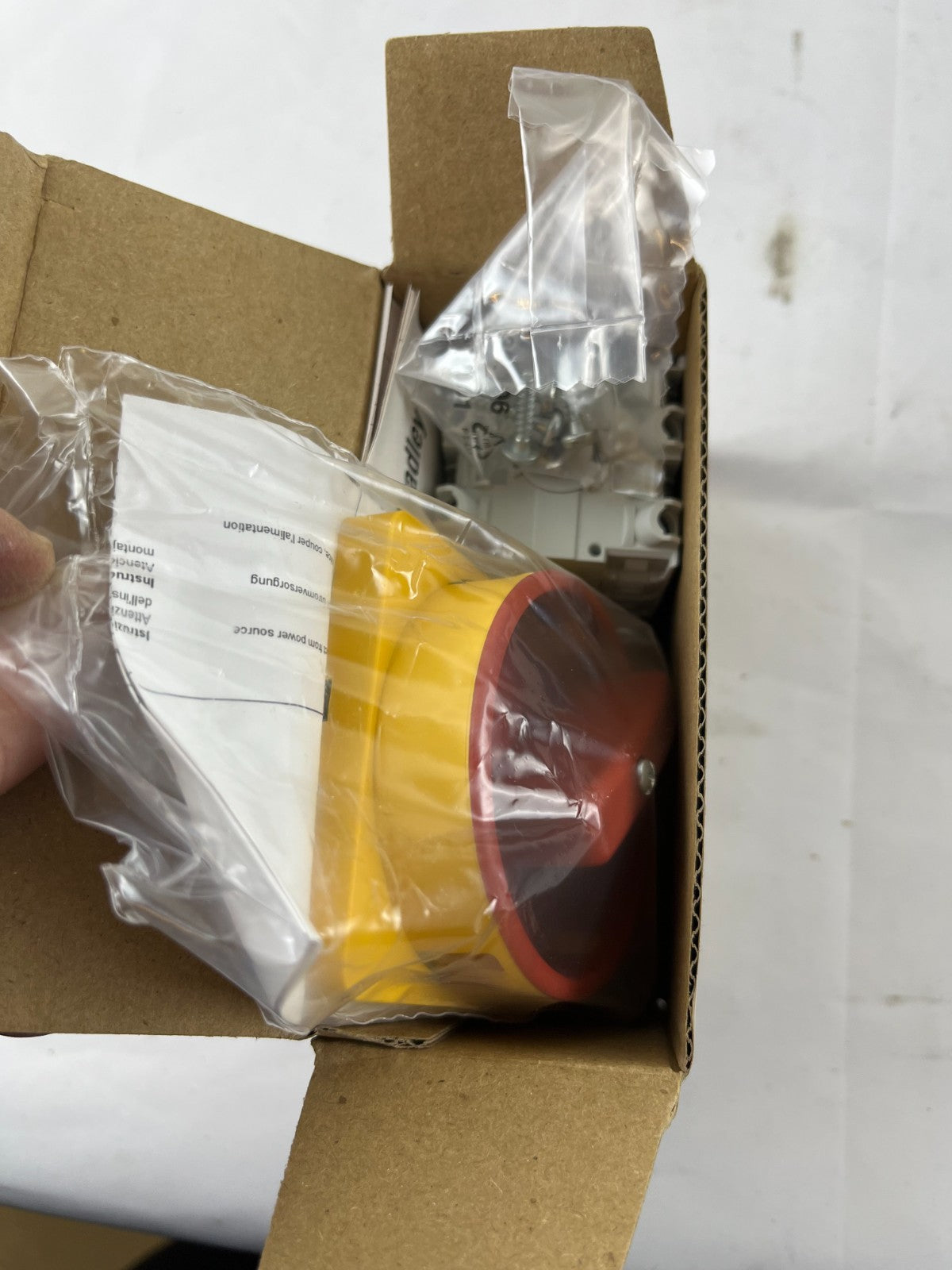

Actuator: Type N Red/Yellow emergency actuator included
-
Mounting: Front/Door mounting
-
Standards: IEC compliant, UL, CSA certified
-
Certifications: CE, EAC, CSA, UL listed
-
Country of Origin: Made in Poland
-
Emergency Stop Function: Designed for main switches and emergency off applications
-
High Flexibility: Adaptable, time- and space-saving design
-
4-Pole Configuration: Provides simultaneous switching of all four poles for complete circuit isolation
-
Red/Yellow Actuator: Highly visible Type N emergency stop actuator for safety-critical applications
-
90-Degree Operation: Simple quarter-turn operation from OFF to ON
-
Industrial Grade: Bulletin 194L series represents Allen-Bradley's robust industrial switching solution
-
Wide Voltage Range: Suitable for applications up to 690V AC
-
Panel/Door Mount: Designed for front panel or door mounting installations
The Allen-Bradley Bulletin 194L series control and load switches are recognized globally for reliability in industrial control applications. The 4-pole configuration ensures complete isolation across all phases plus neutral, essential for safety-critical applications. The Type N red/yellow actuator provides clear visual indication and meets emergency stop switch requirements. Perfect for machine control panels, emergency stop stations, main disconnect applications, motor control centers, and industrial equipment requiring reliable load switching.
