Aventics 0498322409 Solenoid Valve Coil 230V AC 13VA Form A DIN 43650 Germany

Aventics 0498322409 Solenoid Valve Coil 230V AC 13VA Form A DIN 43650 Germany

- Shipping includes tracking info worldwide. Klaus KLJ Trading

• Brand & Product Information

  • Manufacturer: Aventics (Emerson/Rexroth Group)

  • Part Number: 0498322409

  • Model: CO1-Form A-230AC-16.0VA-30mm

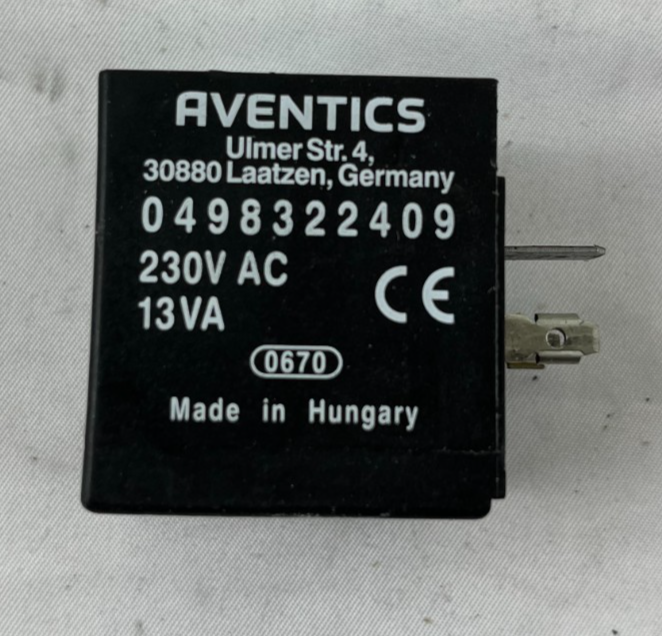

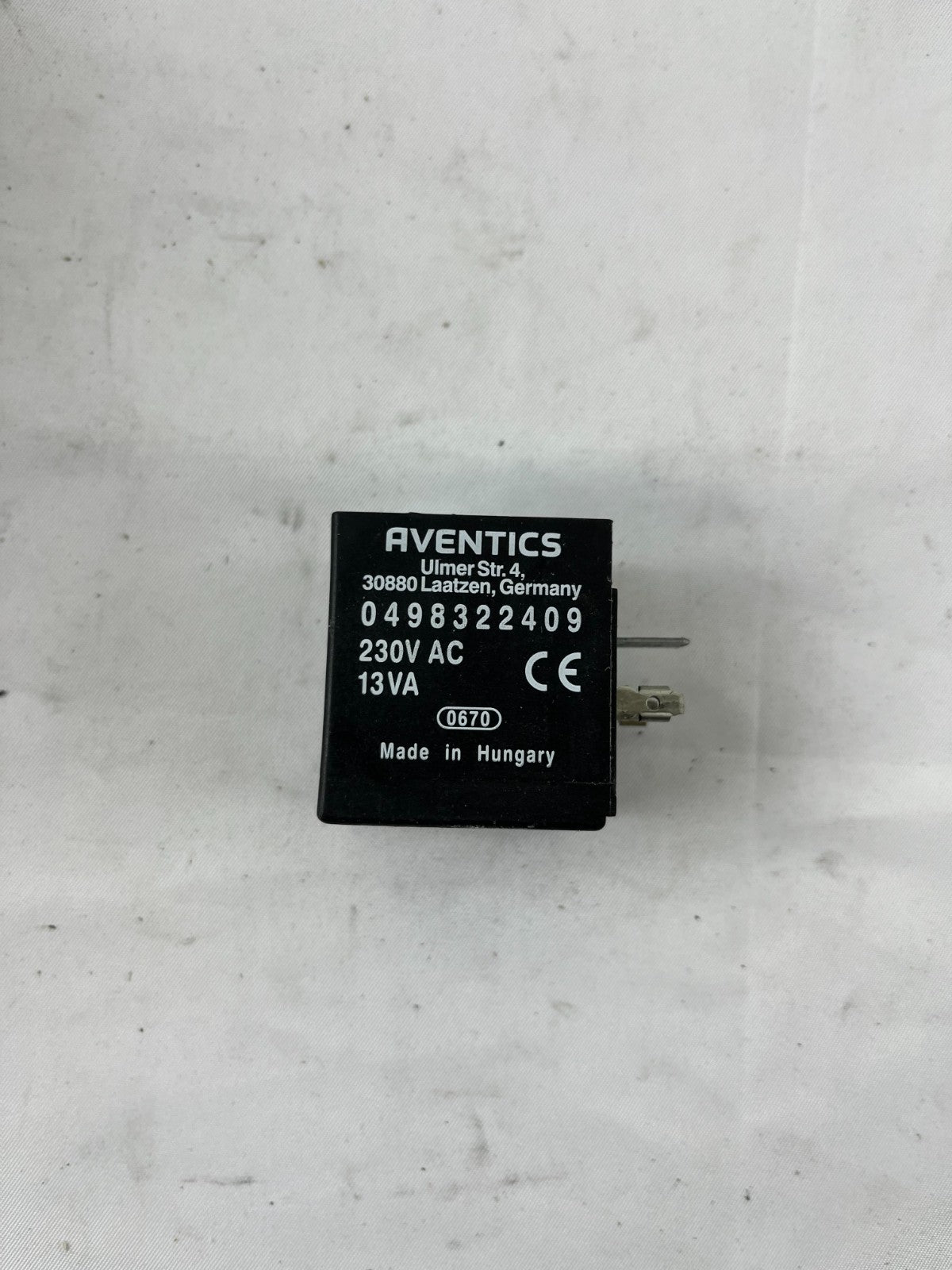

  • Company Address: Ulmer Str. 4, 30880 Laatzen, Germany

  • Made in Hungary

  • CE marked for European compliance

  • Certification mark: 0670 notified body

  • Condition: Used, good working condition

• Technical Specifications

  • Rated Voltage: 230V AC

  • Frequency: 50 Hz (also compatible with 60 Hz)

  • Voltage Tolerance: Typically ±10 percent

  • Power Consumption: 13VA (label) / 16VA (specification)

  • Duty Cycle: ED 100 percent (continuous operation)

  • Compatibility Index: 33 (Aventics designation)

  • Insulation Class: H (180°C maximum temperature)

• Mechanical Specifications

  • Connector Standard: EN 175301-803, Form A (ISO 4400)

  • Coil Size: 30mm (DIN 43650 size 30)

  • Core Diameter: 13mm (13.2mm typical)

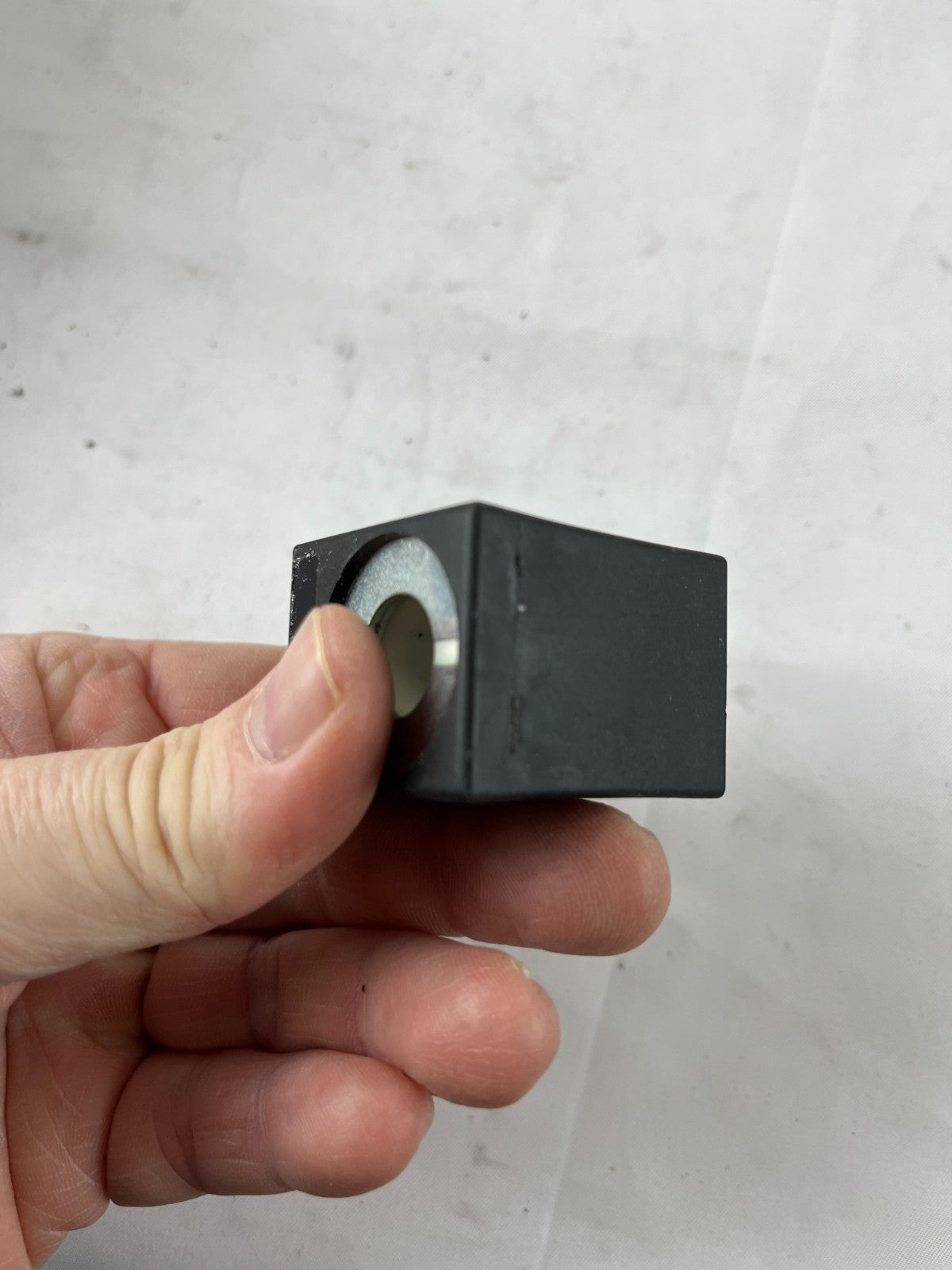

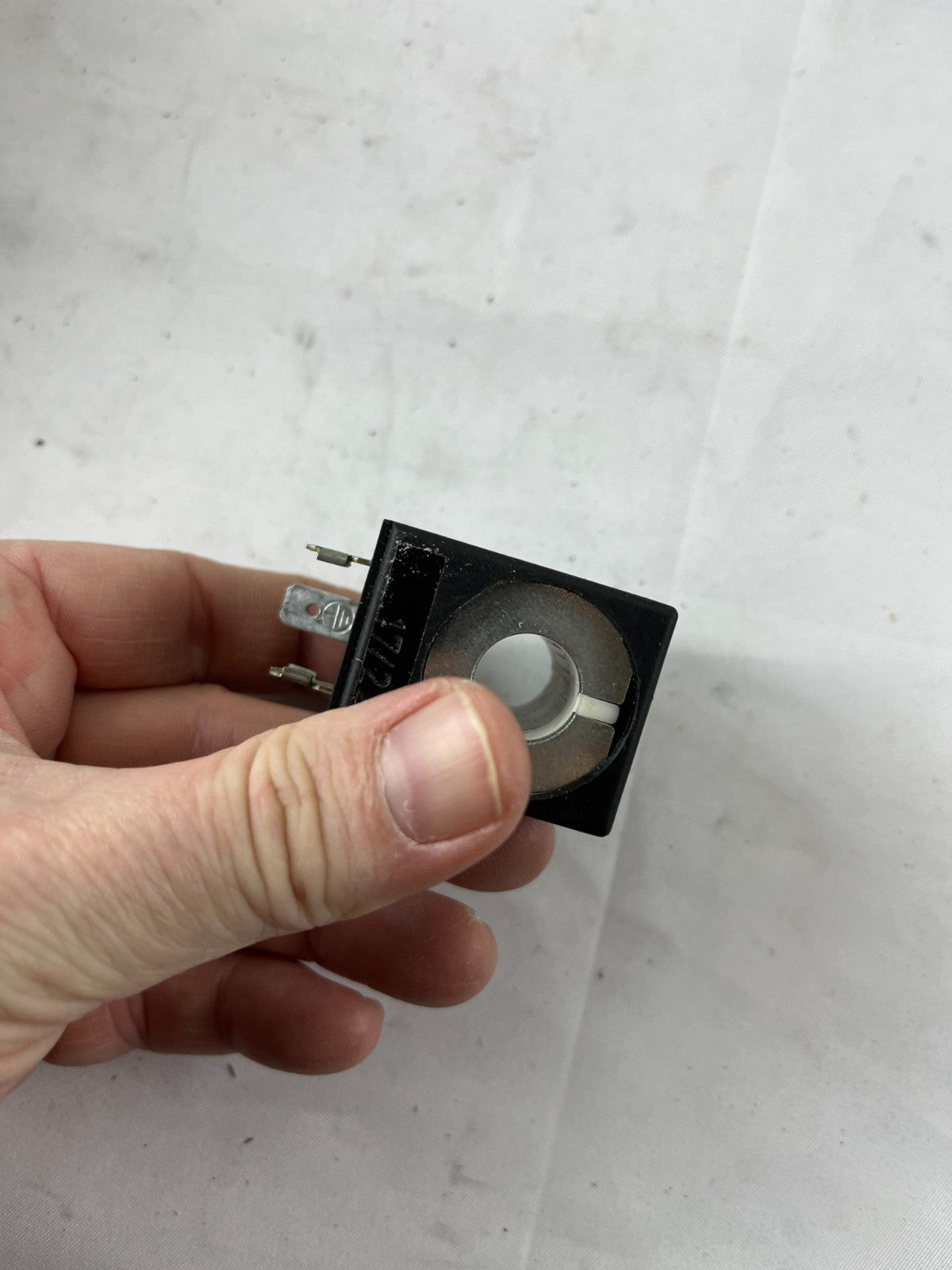

  • Central Hole: Approximately 13-14mm for valve core insertion

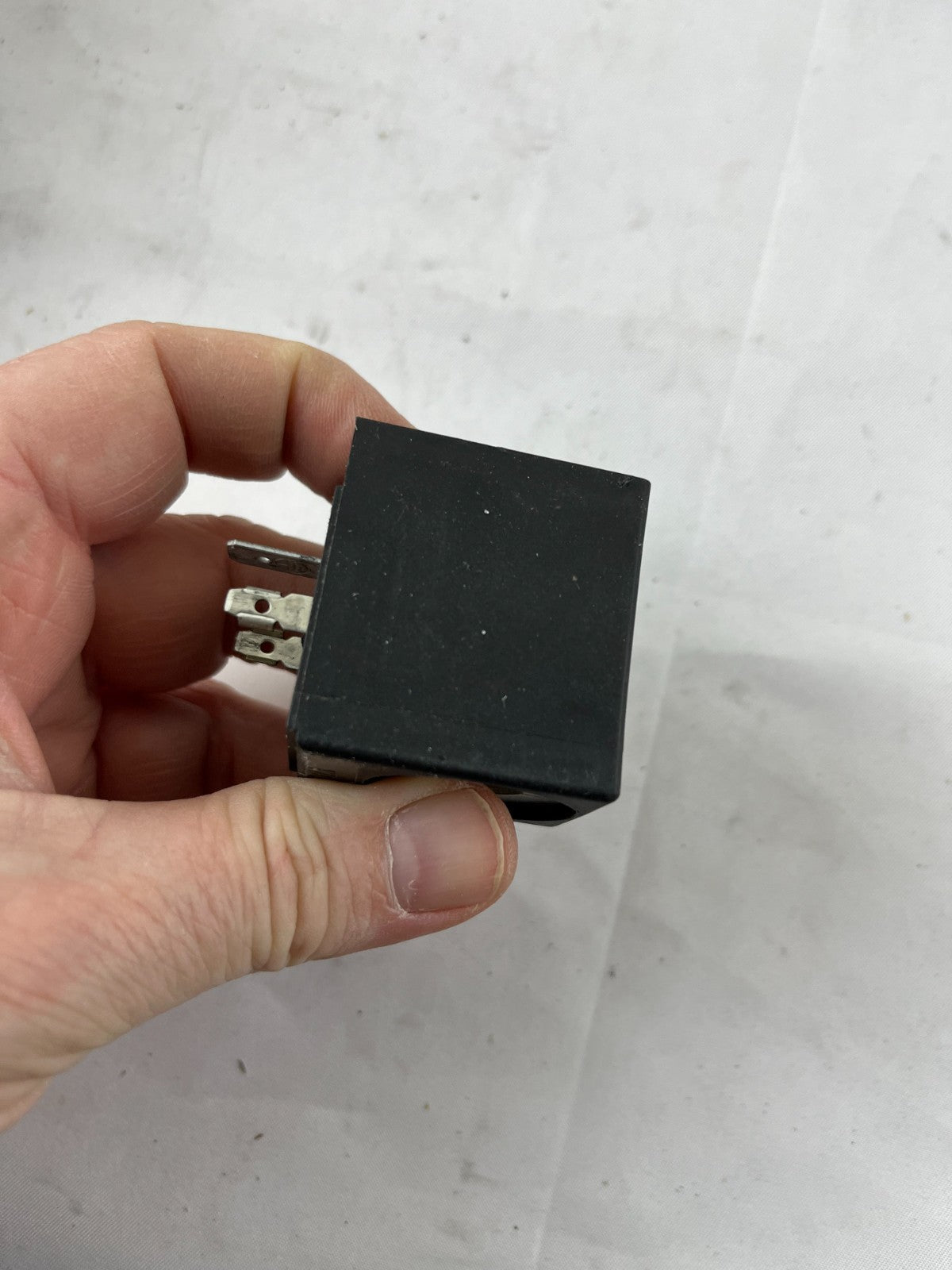

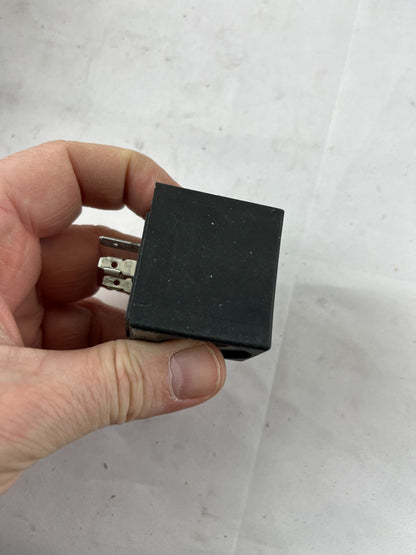

  • Housing Material: Black thermoplastic (polyamide)

  • Mounting: Square face with two mounting holes

• Electrical Connection

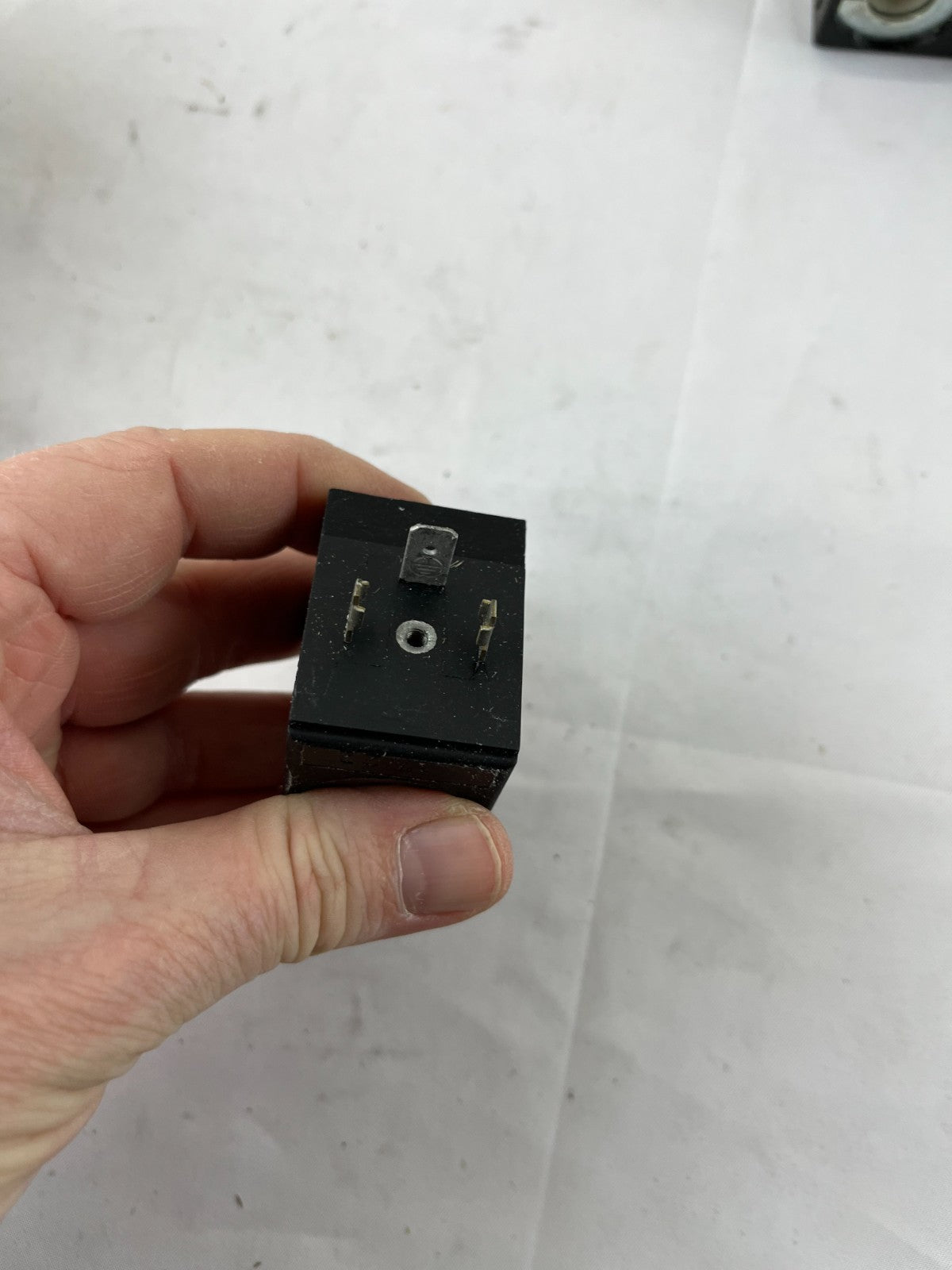

  • Connection Type: DIN 43650 Form A spade terminals

  • Pin Spacing: 18mm (Form A standard)

  • Contact Area: 27 x 27 mm square footprint

  • Terminal Type: Blade contacts for plug connector

  • Coil Design: Encapsulated copper windings

• Environmental Specifications

  • Protection Rating: IP65 when mated with proper connector

  • Operating Temperature: -10 to +50 degrees Celsius typical

  • Storage Temperature: -25 to +70 degrees Celsius

  • Maximum Coil Temperature at ED100: 70 degrees Celsius ambient

  • Humidity: Up to 95 percent non-condensing

• Features & Applications

  • Standard Form A coil for Aventics/Rexroth pneumatic valves

  • 230V AC voltage suitable for European industrial applications

  • 100 percent duty cycle allows continuous energization

  • Low power consumption (13-16VA) reduces heat generation

  • DIN 43650 standard ensures wide compatibility

  • Plug-in design allows easy field replacement without tools

• Compatibility

  • Compatible with Aventics Series 580, 581, TC, CD series valves

  • Works with Rexroth directional control valves with 13mm cores

  • Suitable for Bosch Rexroth pneumatic valve manifolds

  • Universal fit for Form A (18mm) valve connector systems

  • Interchangeable with similar coils from Festo, Parker, ASCO, Norgren

• Typical Applications

  • Pneumatic directional control valves (3/2, 5/2, 5/3 configurations)

  • Valve islands and manifold systems

  • Industrial automation and machine control

  • Material handling and conveyor systems

  • Packaging machinery

  • Automotive manufacturing

  • Food processing equipment

  • Press and injection molding machines

• Additional Information

  • Direct replacement for worn or damaged valve coils

  • Field-replaceable design reduces downtime

  • Tested and verified working condition

  • Original Aventics quality and reliability

  • Compatible with standard valve connectors

  • No LED indicator (standard coil only)
