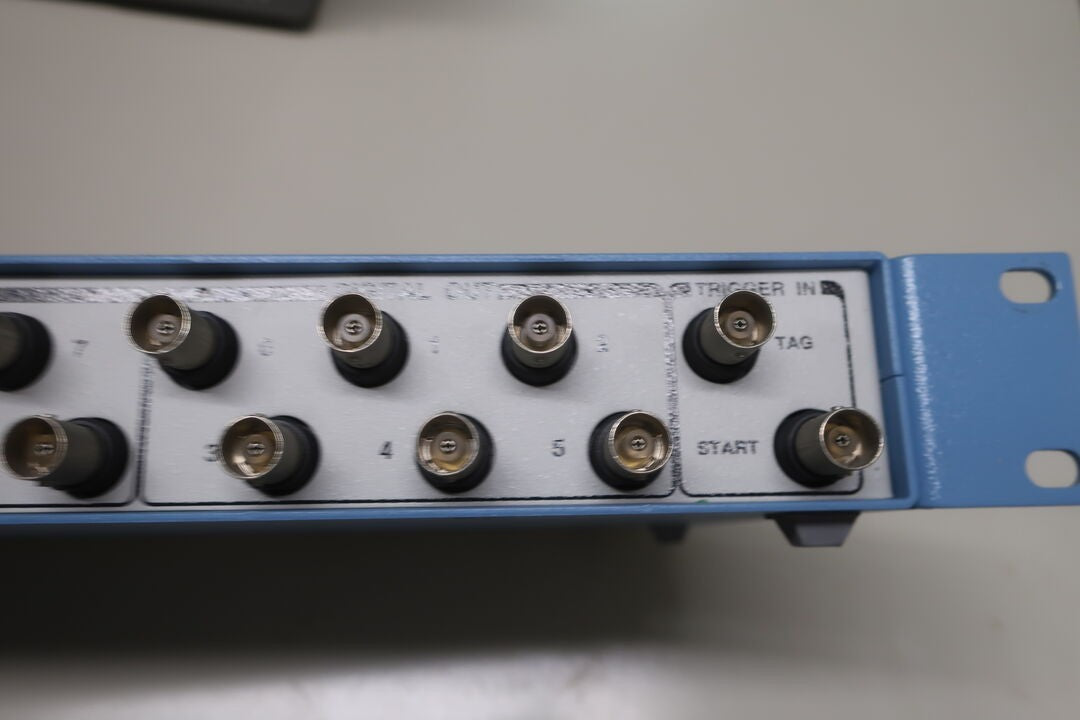

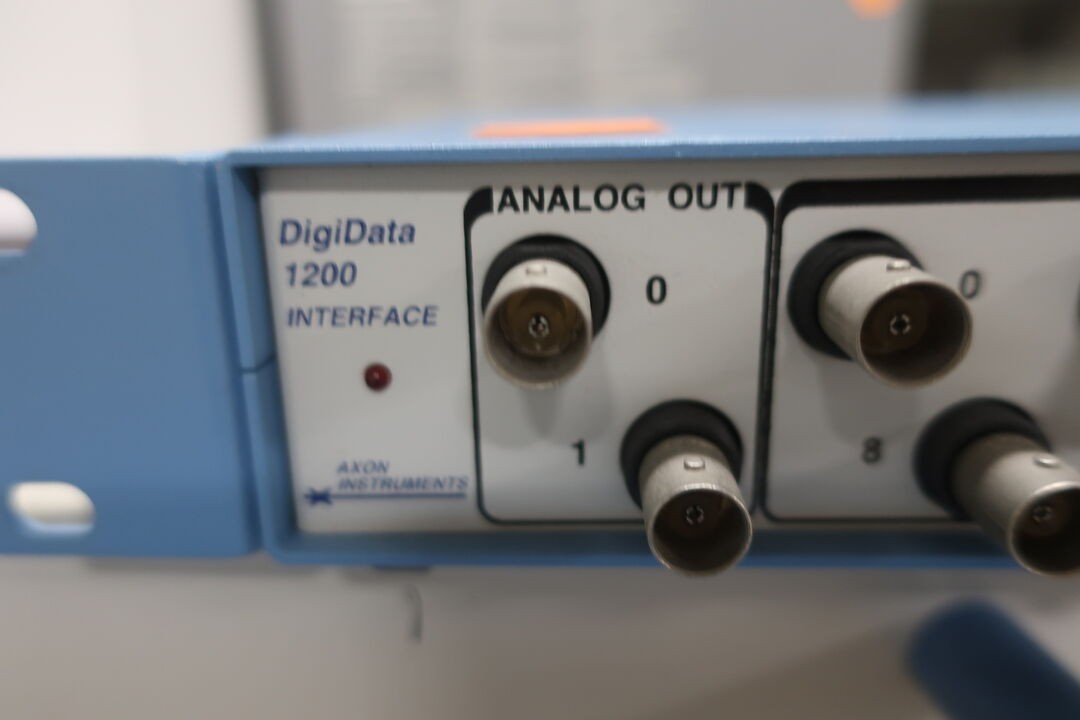

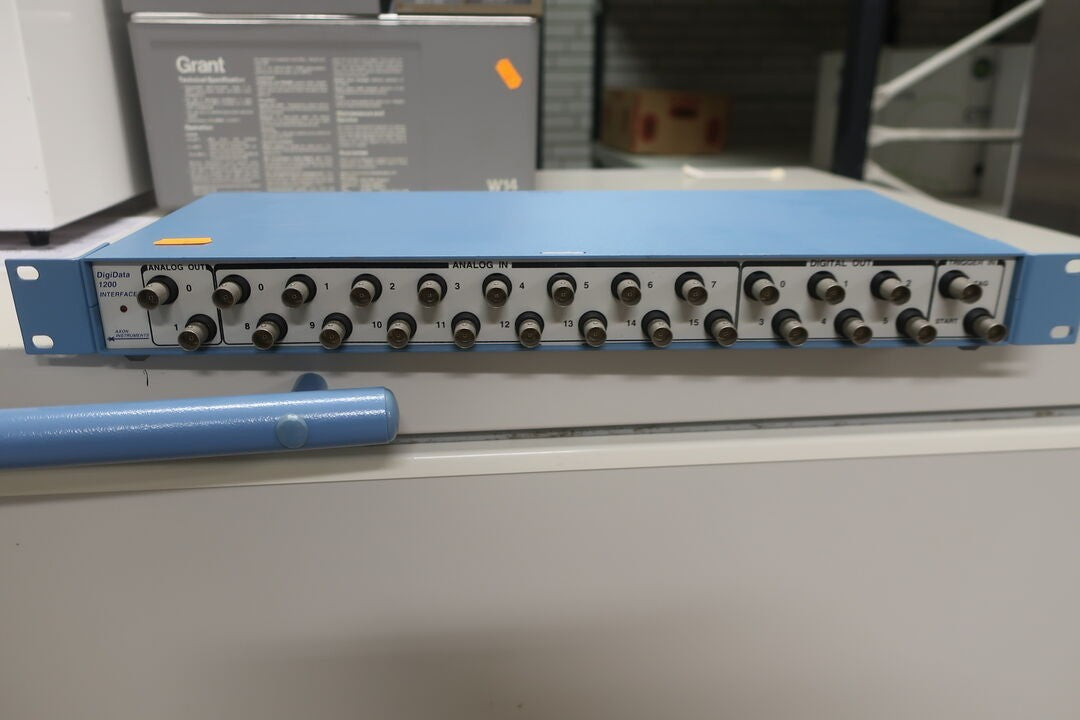

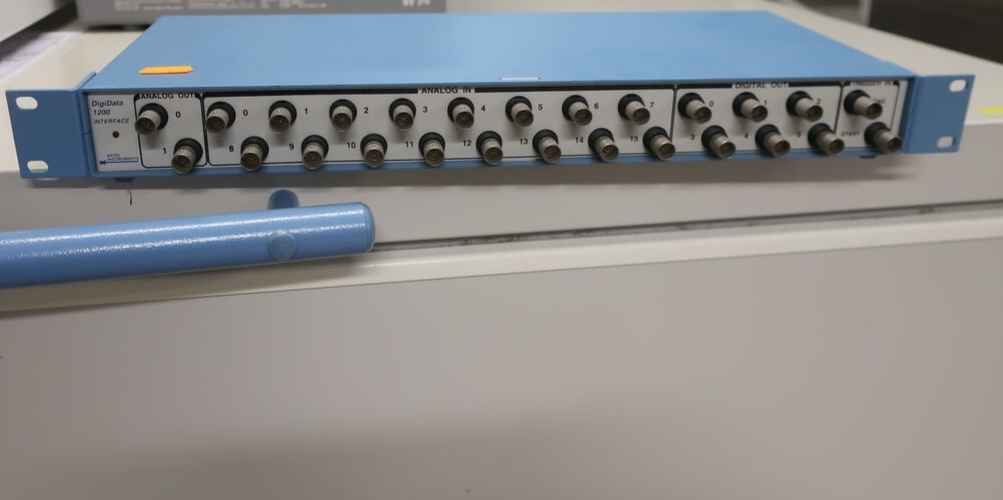

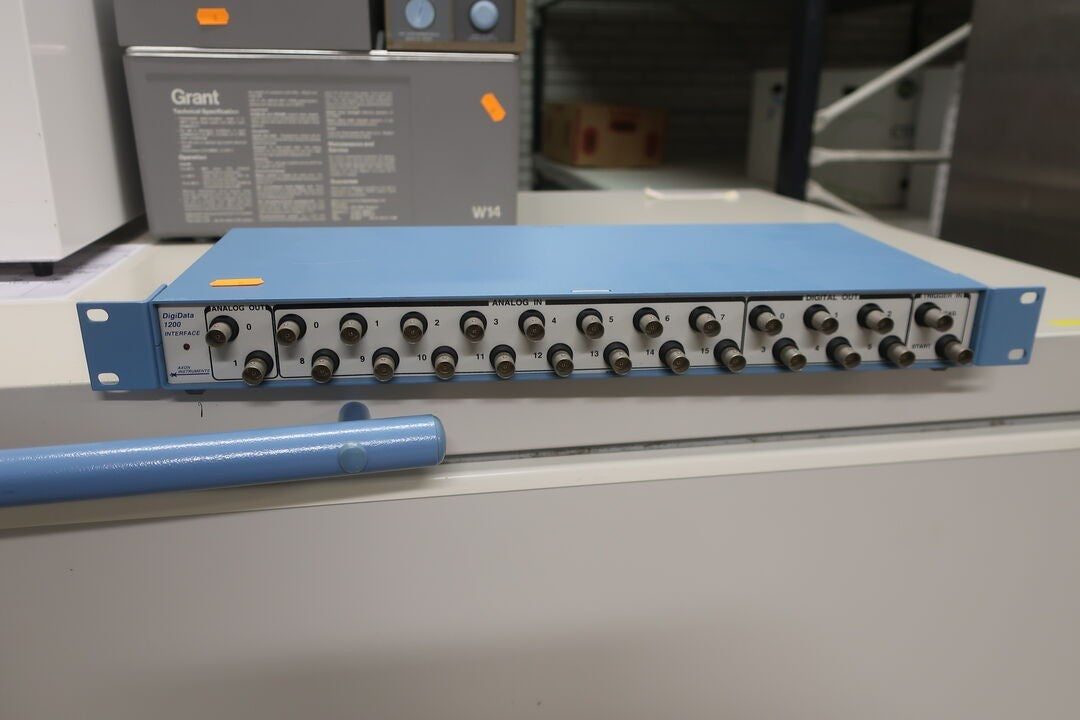

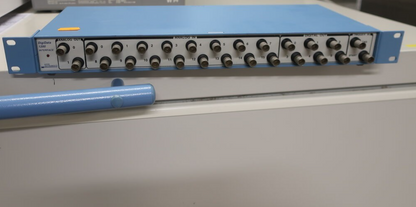

Axon Instruments DigiData 1200 Data Acquisition Interface 32ch BNC Rackmount

All the best /Klaus

This listing features an Axon Instruments DigiData 1200 Data Acquisition Interface, a well-regarded solution for laboratory research requiring precise data acquisition, analog/digital I/O, and signal processing. The DigiData 1200 supports up to 32 single-ended analog inputs, ideal for neurophysiology, electrophysiology, and other scientific experimentation. The unit comes in a rackmount chassis with BNC connectors for robust connectivity, and is compatible with classic pCLAMP and Axon software platforms.

Technical Specifications:

• Brand: Axon Instruments (Molecular Devices)

• Model: DigiData 1200

• Analog Inputs: 32 channels, BNC

• Analog Outputs: 2 channels, BNC, ±10.24V

• Digital I/O: 8 digital in, 8 digital out, plus synchronous outputs

• Sampling Rate: Up to 333 kHz, 12-bit

• Input Resolution: 5 mV (gain 1) to 625 µV (gain 8)

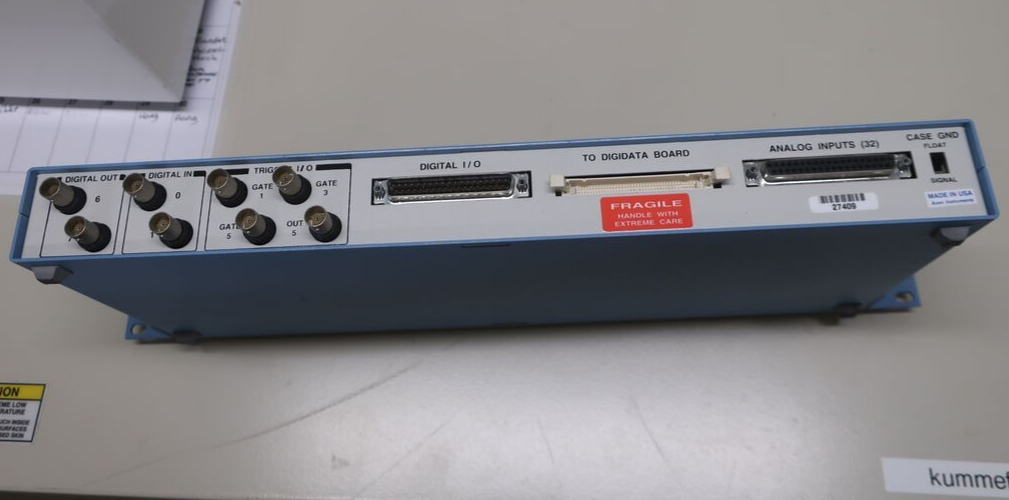

• Connectivity: Rackmount with rear I/O connectors; ribbon/d-sub for PC

• Software: Compatible with pCLAMP, AxoTape, AxoBASIC, WinWCP (legacy)

• Power: Standard AC input

Main Features:

• High channel count for simultaneous multi-signal recording

• DAC and digital controls for stimulus generation and synchronization

• Integrates directly with Axon amplifiers and signal conditioners

• Reliable, industry-standard instrument for multi-channel data acquisition

Background / Collector Information:
Originally designed for Windows/DOS research environments, the DigiData 1200 is a benchmark tool still in use for legacy and some current setups within neurobiology and electrophysiology labs. The unit is in tested working condition with typical minor wear from professional use. Ideal for those maintaining older scientific systems or requiring proven high-throughput analog/digital recording capability.

Condition: Used, tested, good working order. Sold as shown, standard wear for age, drivers/software not included.
