Beckhoff EL2008 EtherCAT I/O terminal, an 8‑channel 24V DC digital output module rated 0.5A per channel, brand new and never used in the original Beckhoff I/O Series packaging. This module switches 24V DC loads such as solenoids, relays and indicator lamps in EtherCAT‑based automation systems.
-
Brand: Beckhoff
-
Series: EtherCAT I/O Series
-
Model: EL2008
-
MPN: EL2008
-
Type: EtherCAT digital output terminal
-
Number of outputs: 8 digital outputs
-
Nominal voltage: 24 V DC (‑15% / +20%)
-
Max. output current: 0.5 A per channel, short‑circuit proof
-
Load types: ohmic, inductive, lamp loads supported
-
Isolation: 500 V between E‑bus and field potential
-
E‑bus current consumption: typ. 110 mA
-
Format: 12 x 100 x 68 mm IP20 DIN‑rail terminal
-
Approvals: CE, UL, ATEX, IECEx, marine approvals etc. (see datasheet for full list)
-
For wiring diagrams and diagnostics LEDs, see Beckhoff EL2008 documentation.
-
New old stock; terminal has never been installed or powered.
-

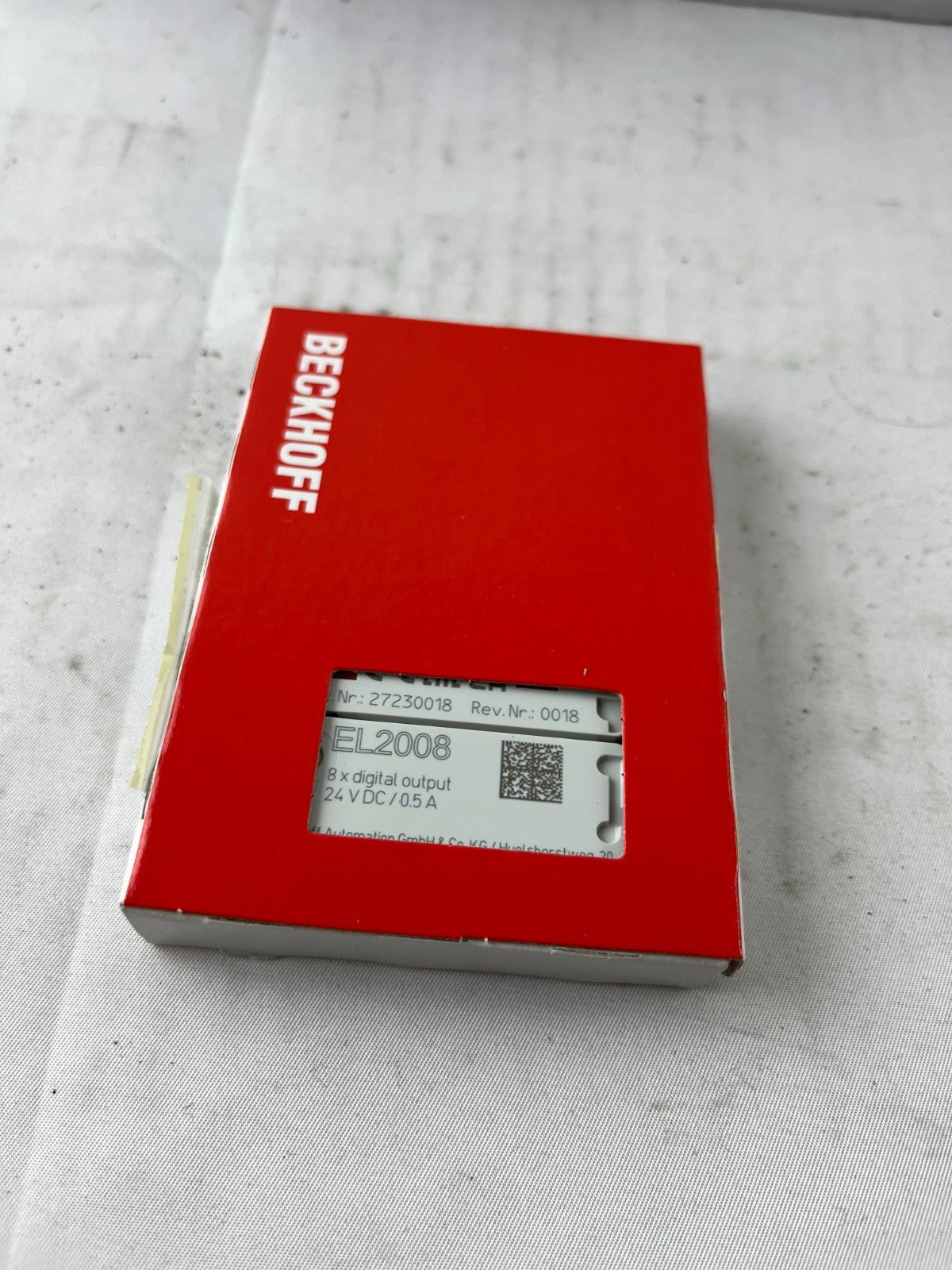

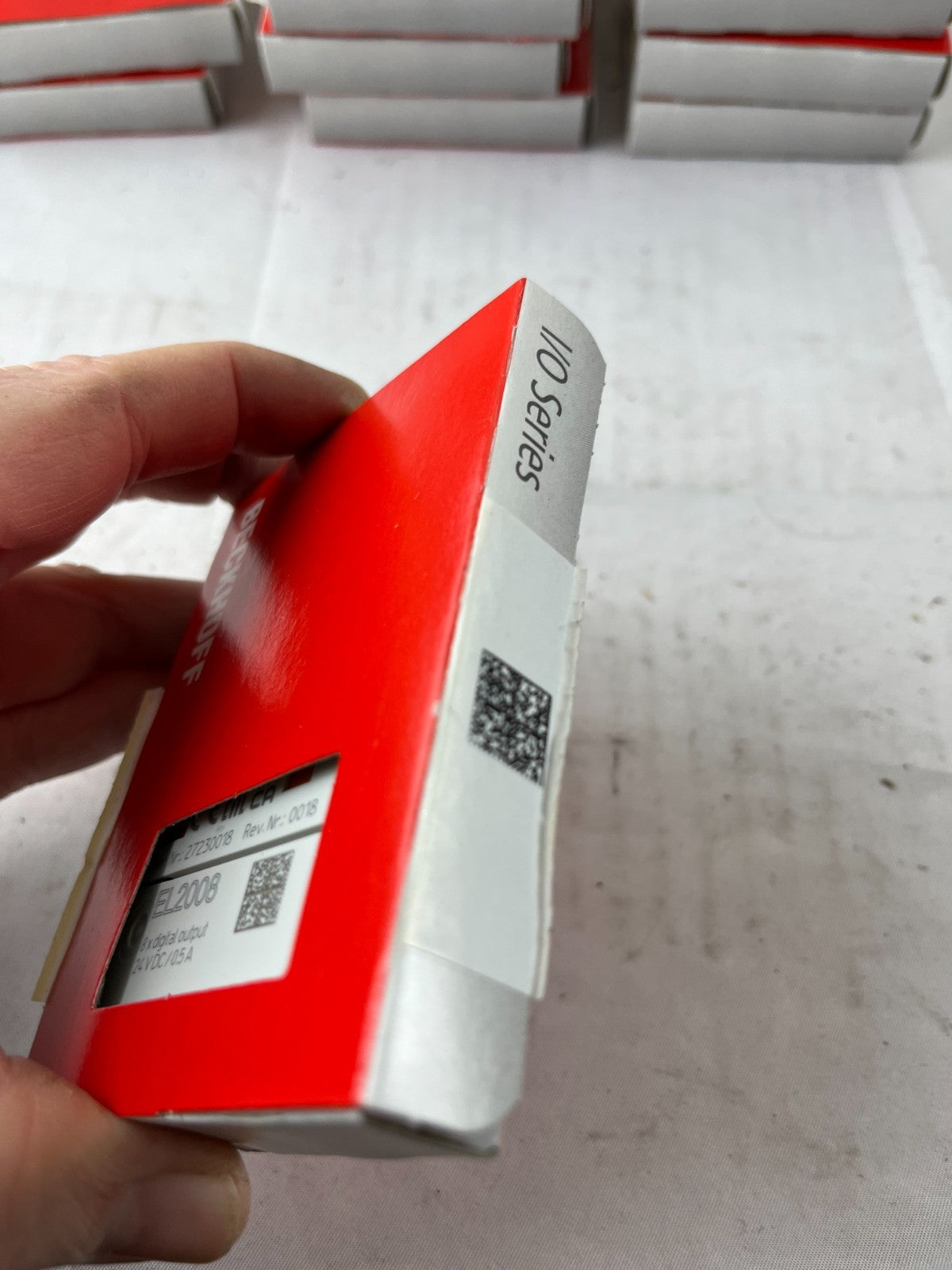

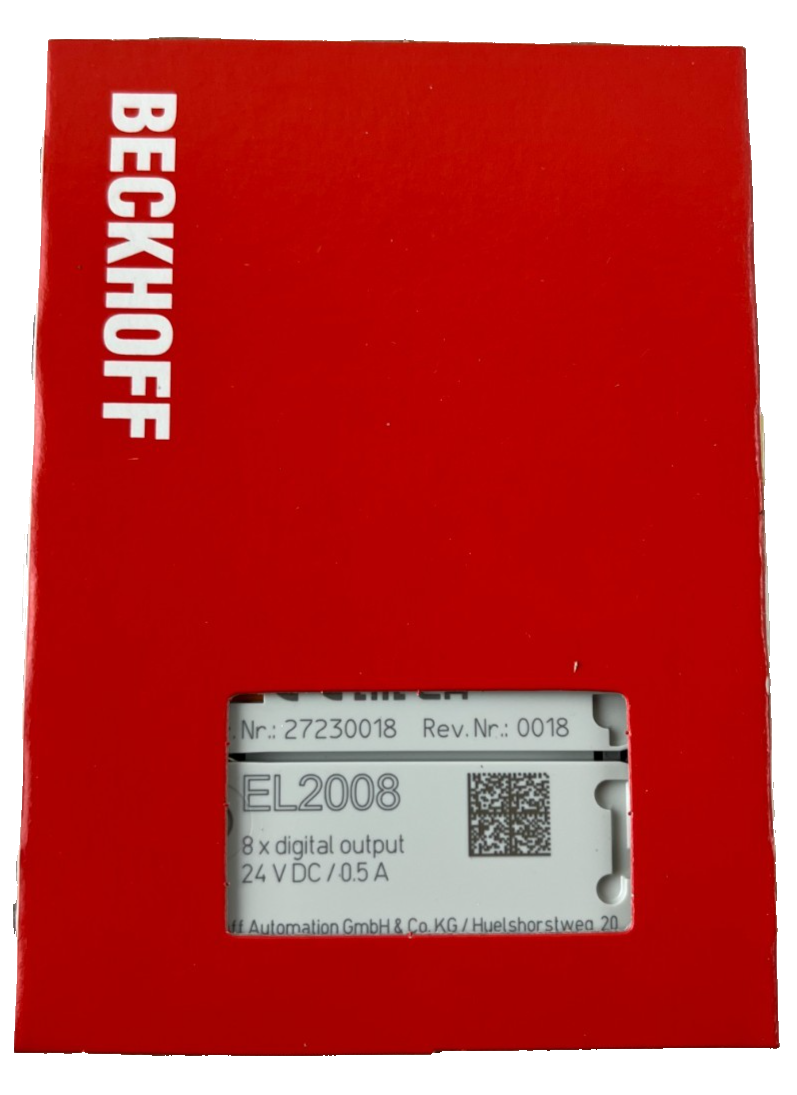

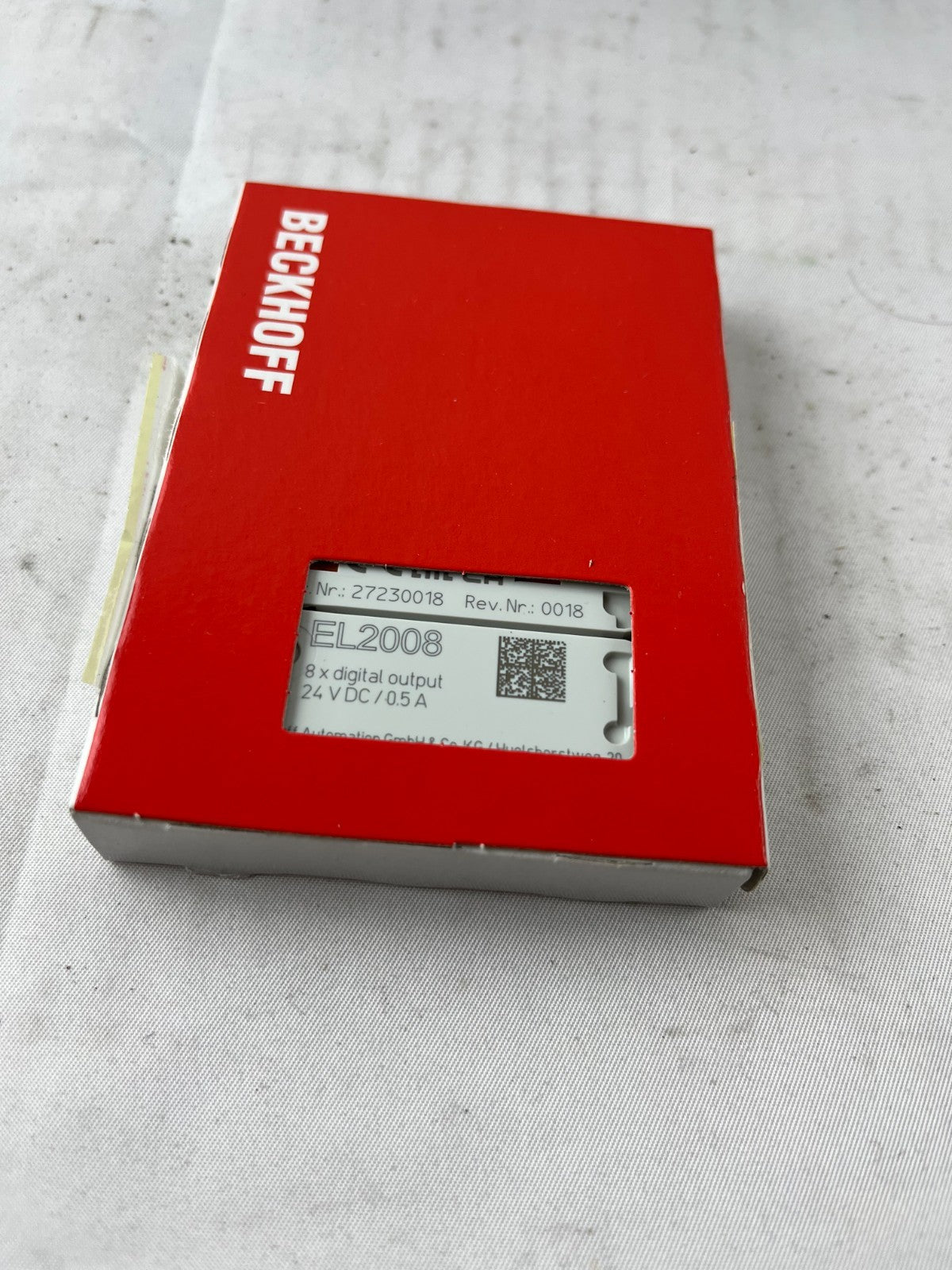

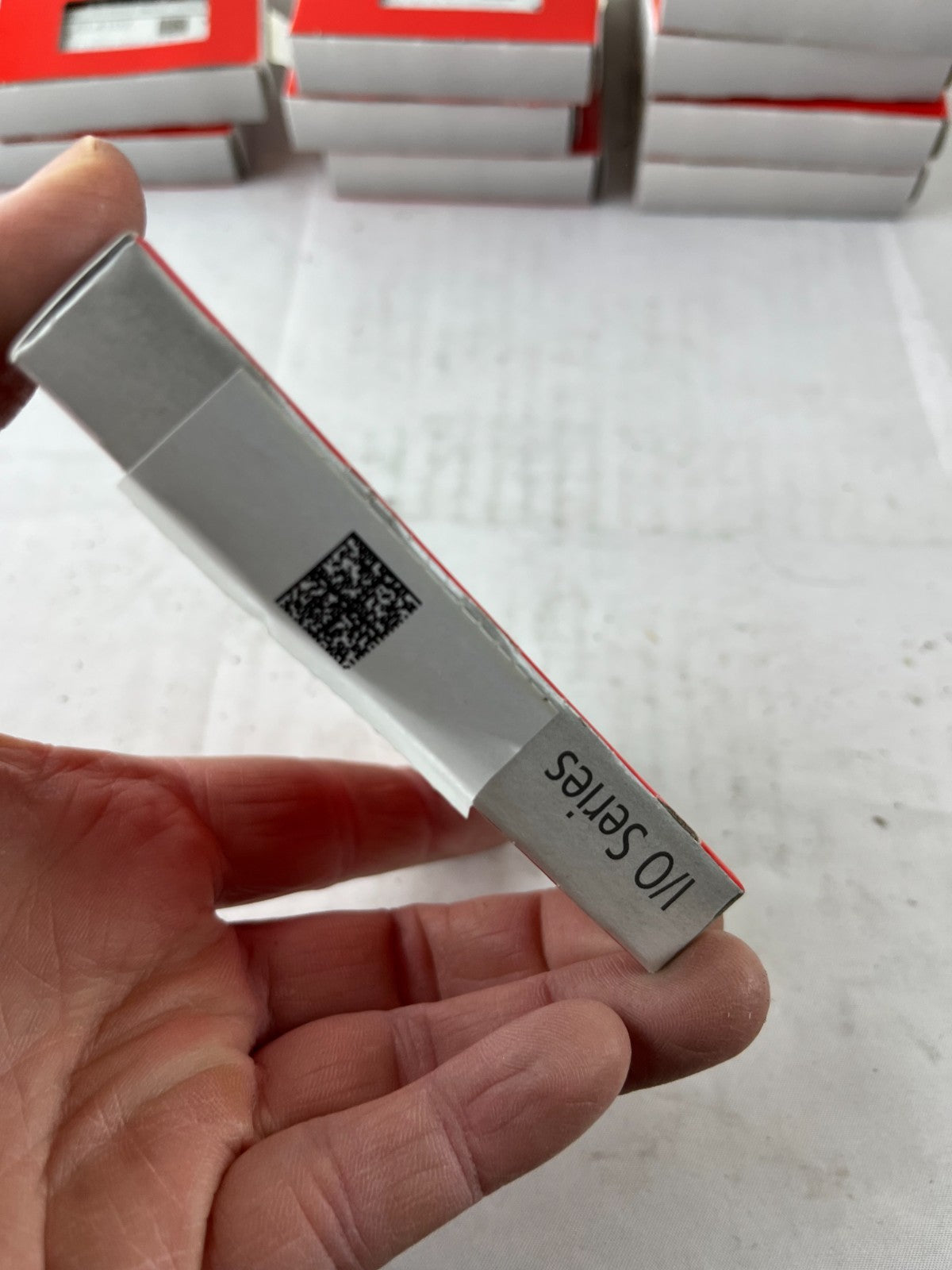

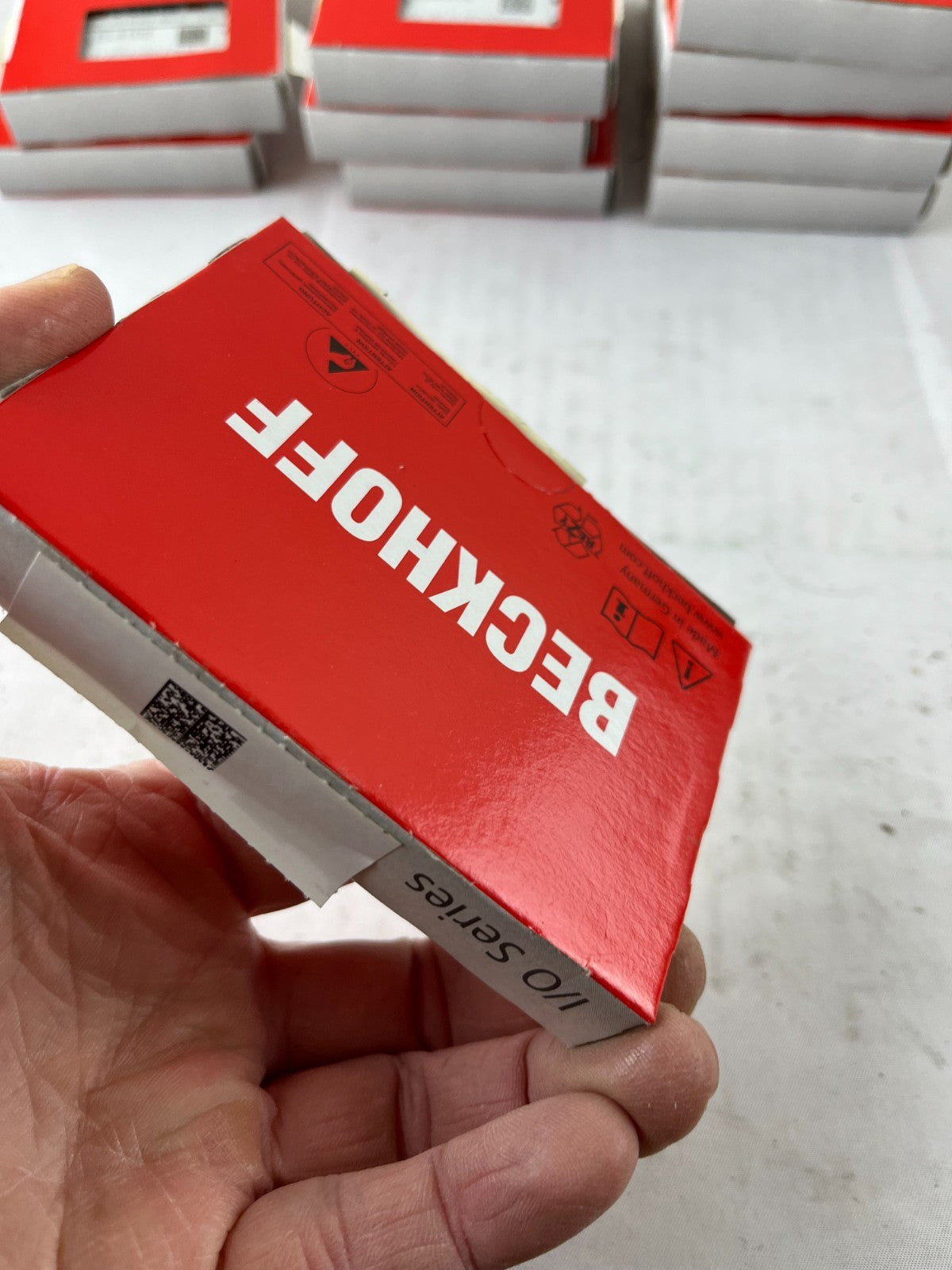

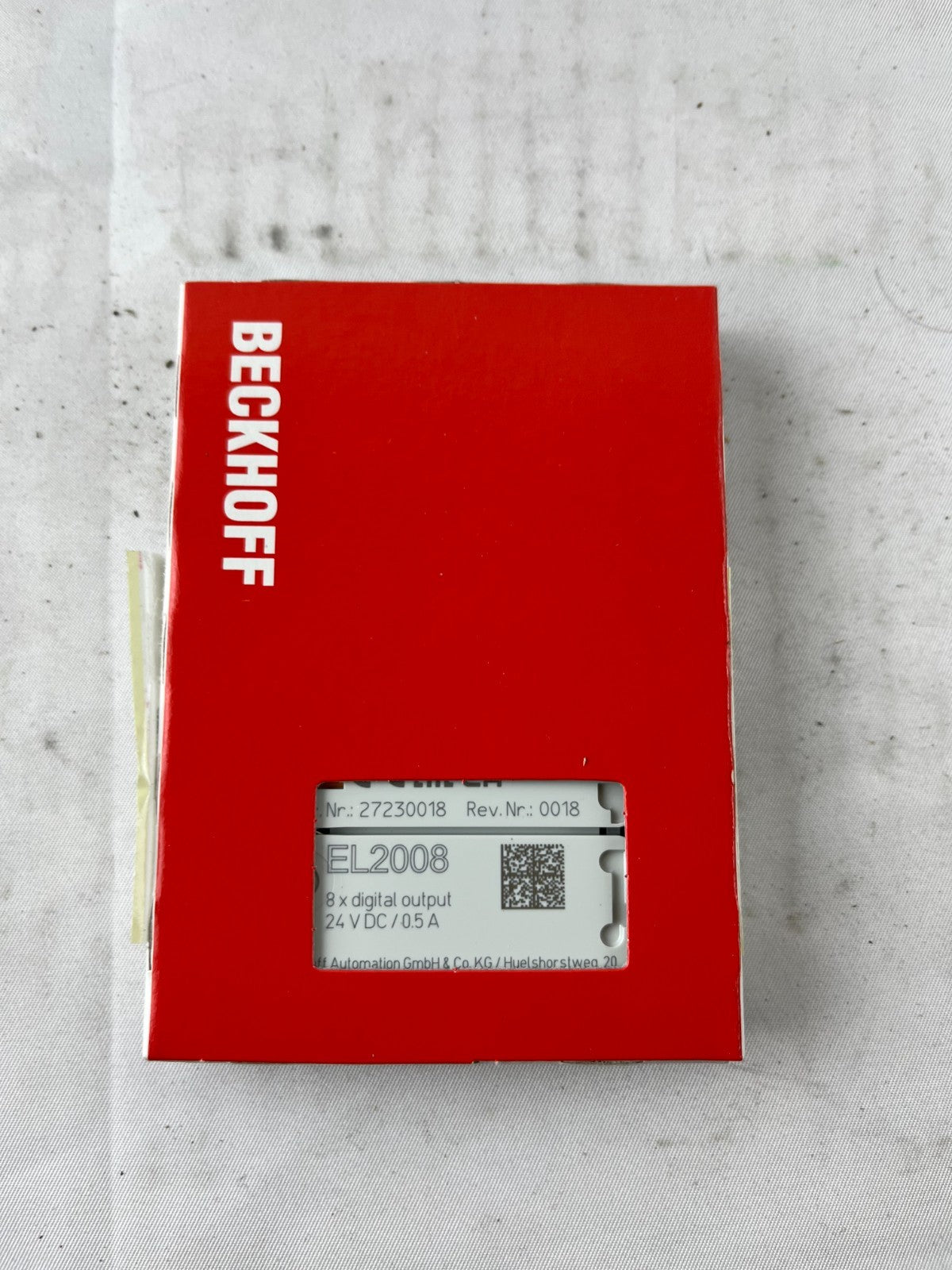

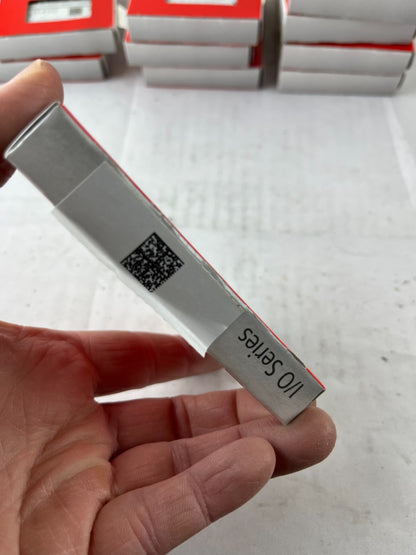

Original Beckhoff red I/O Series box present; carton shows slight shelf wear and edge creasing from storage.
-
Module remains in factory cut‑out behind viewing window; not removed for testing.
-
No printed manual included; technical documentation is available online from Beckhoff.
-
Standard 8‑channel 24V DC output terminal for EtherCAT, ideal as a direct spare or expansion output bank for EK1100 or CX controllers.
-
Buyer should verify required output current (0.5A/channel) and compatibility with existing EtherCAT topology and safety approvals before purchase.
