Beckhoff EL3314 EtherCAT analog input terminal, 4‑channel thermocouple input module with 16‑bit resolution and wire break detection, brand new and never used in the original Beckhoff I/O Series packaging. This terminal allows direct connection of up to four thermocouples for precise temperature measurement in EtherCAT‑based automation systems.
-
Brand: Beckhoff
-
Series: EtherCAT I/O Series
-
Model: EL3314
-
MPN: EL3314
-
Type: EtherCAT analog input terminal for thermocouples
-
Number of inputs: 4 thermocouple inputs (2‑wire connection)
-
Supported thermocouple types: B, C, E, J, K, L, N, R, S, T, U (default K)
-
Resolution: 16 bit; display configurable in °C or µV steps
-
Input filter limit frequency: typ. 1 kHz
-
Conversion time: approx. 2.5 s down to 10 ms depending on configuration (default ~250 ms)
-
Additional function: mV measurement (±30/±60/±75 mV)
-
Special features: channel‑by‑channel wire break detection, internal cold junction compensation, optional external cold junction, adjustable firmware filter
-
Electrical isolation: 500 V between E‑bus and signal voltage
-
E‑bus current consumption: typ. 200 mA
-
Housing: standard 12 x 100 x 68 mm IP20 DIN‑rail terminal
-
Approvals: CE, UL, ATEX, IECEx, cFMus (see datasheet for details and ratings)
-
For wiring details and full specs, refer to Beckhoff EL3314 documentation.
-
New old stock; terminal has never been installed or powered.
-

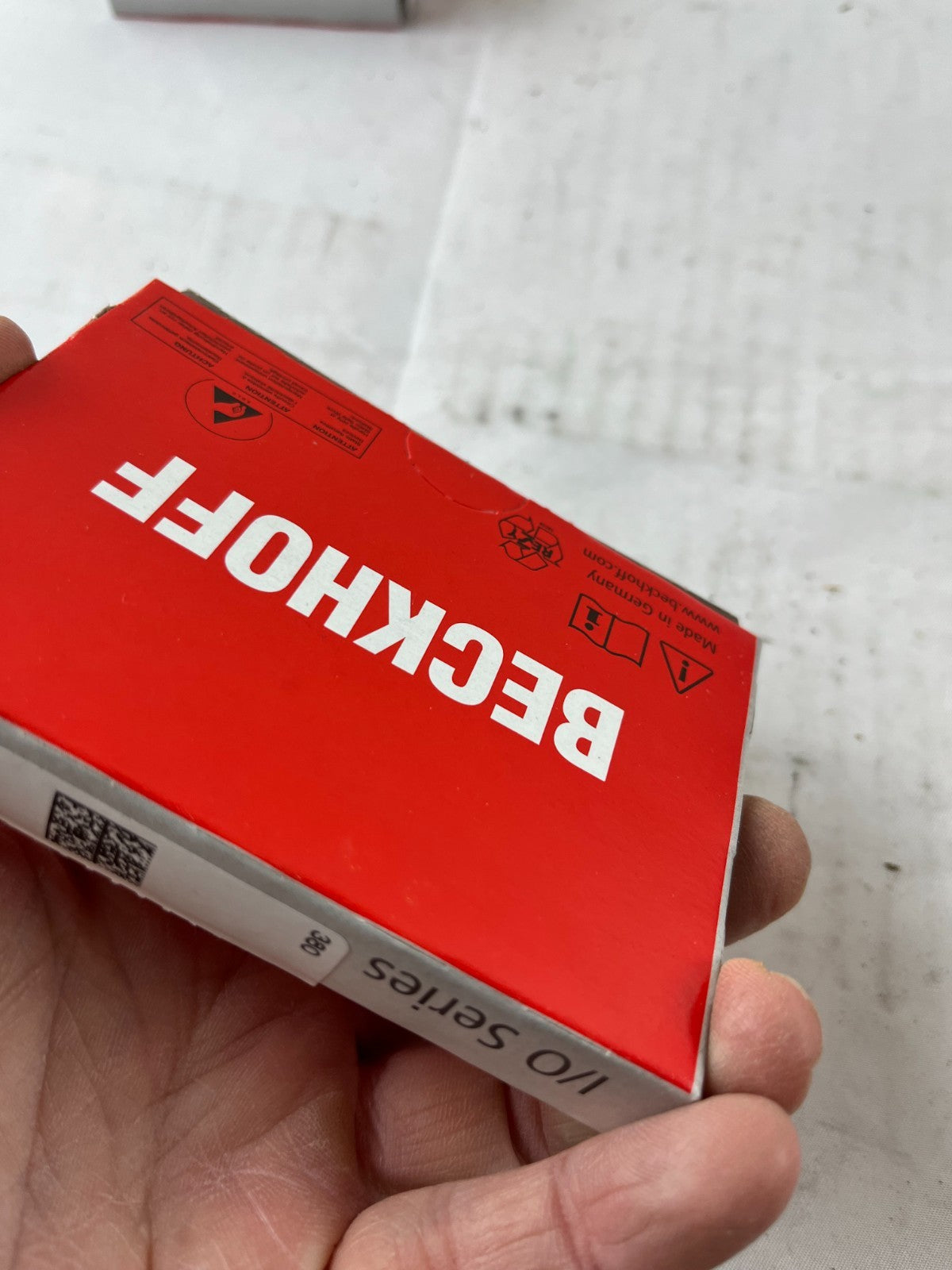

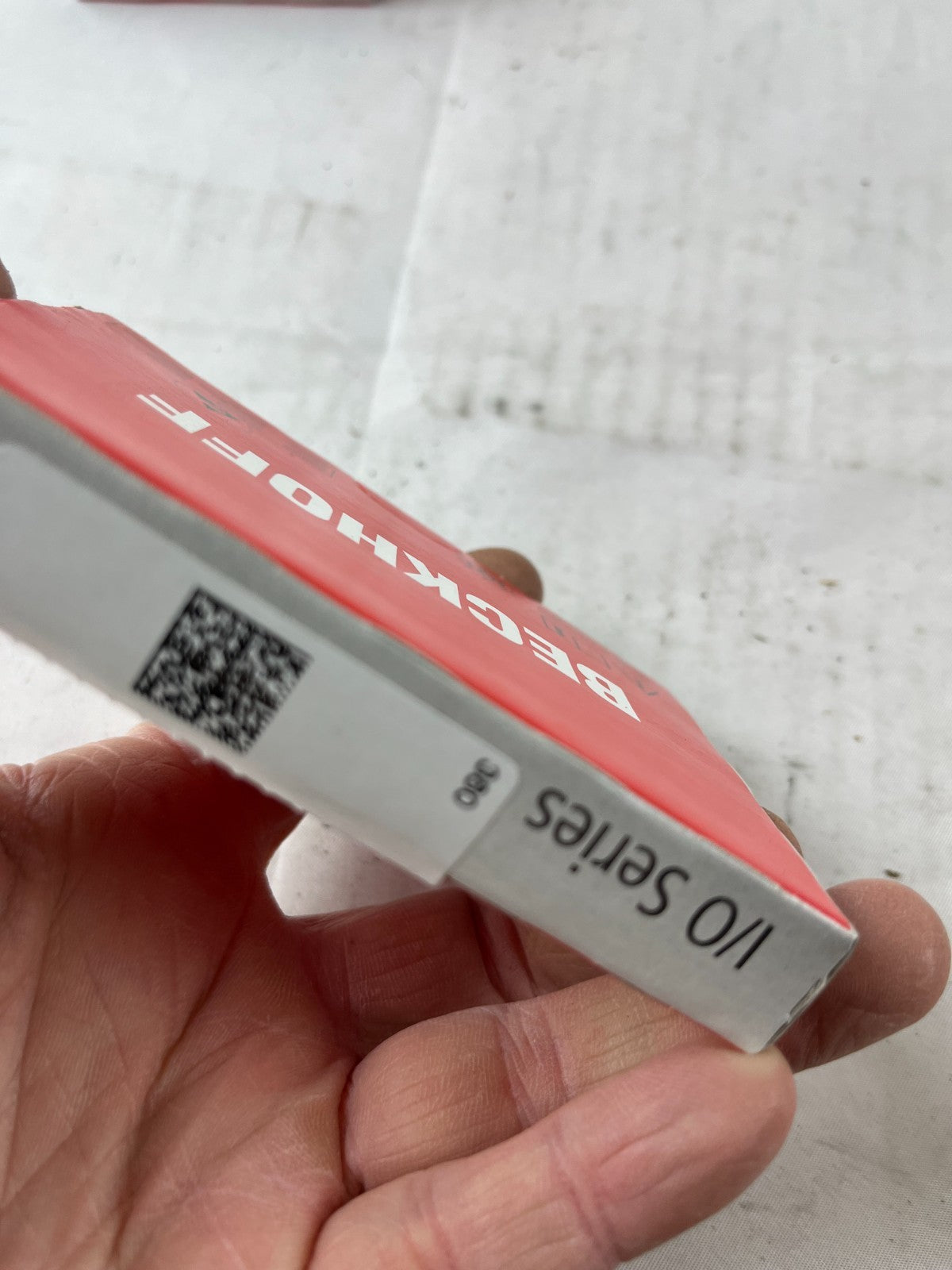

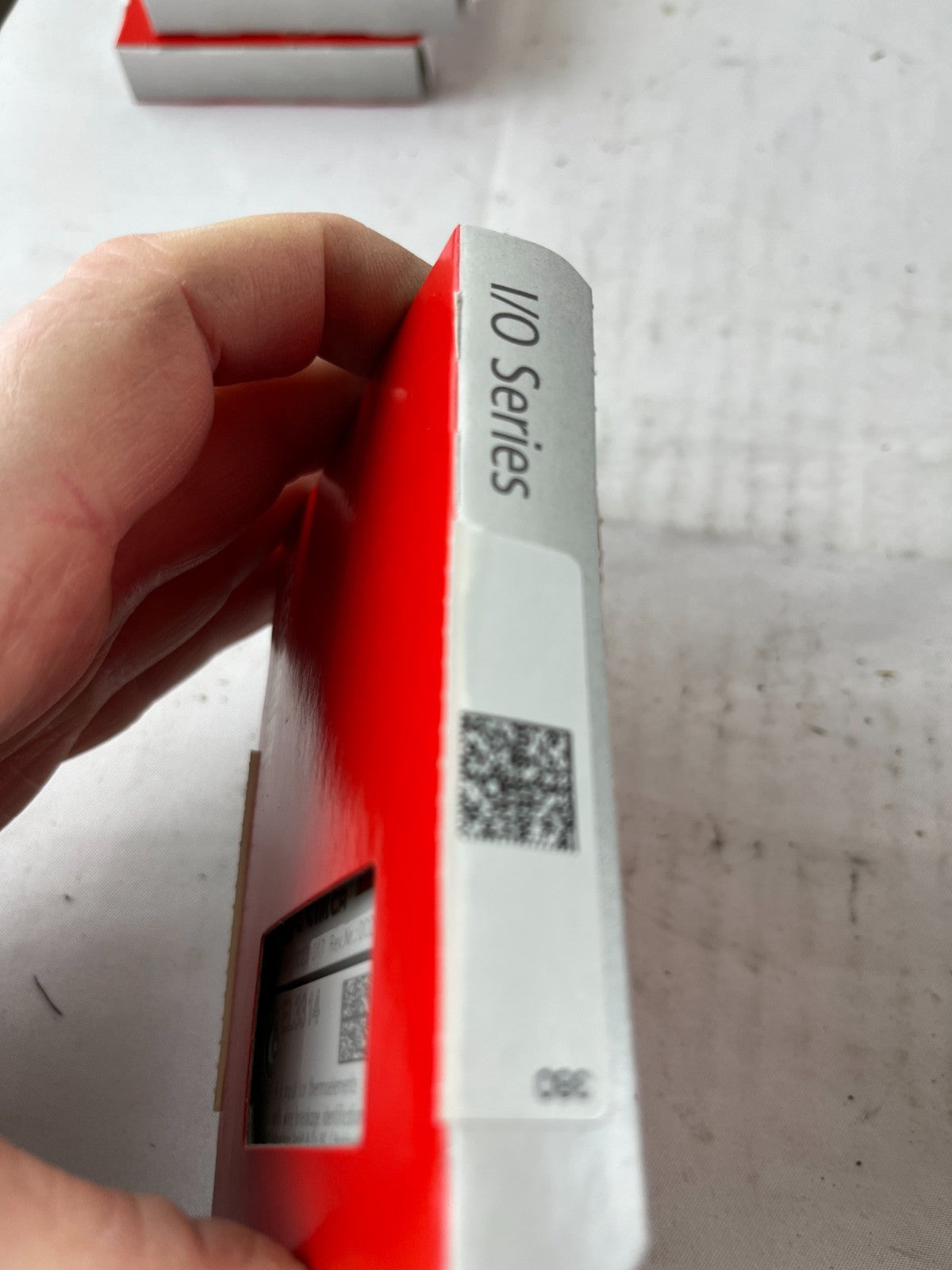

Original Beckhoff red I/O Series box present; carton shows minor shelf wear and edge creasing from storage.
-

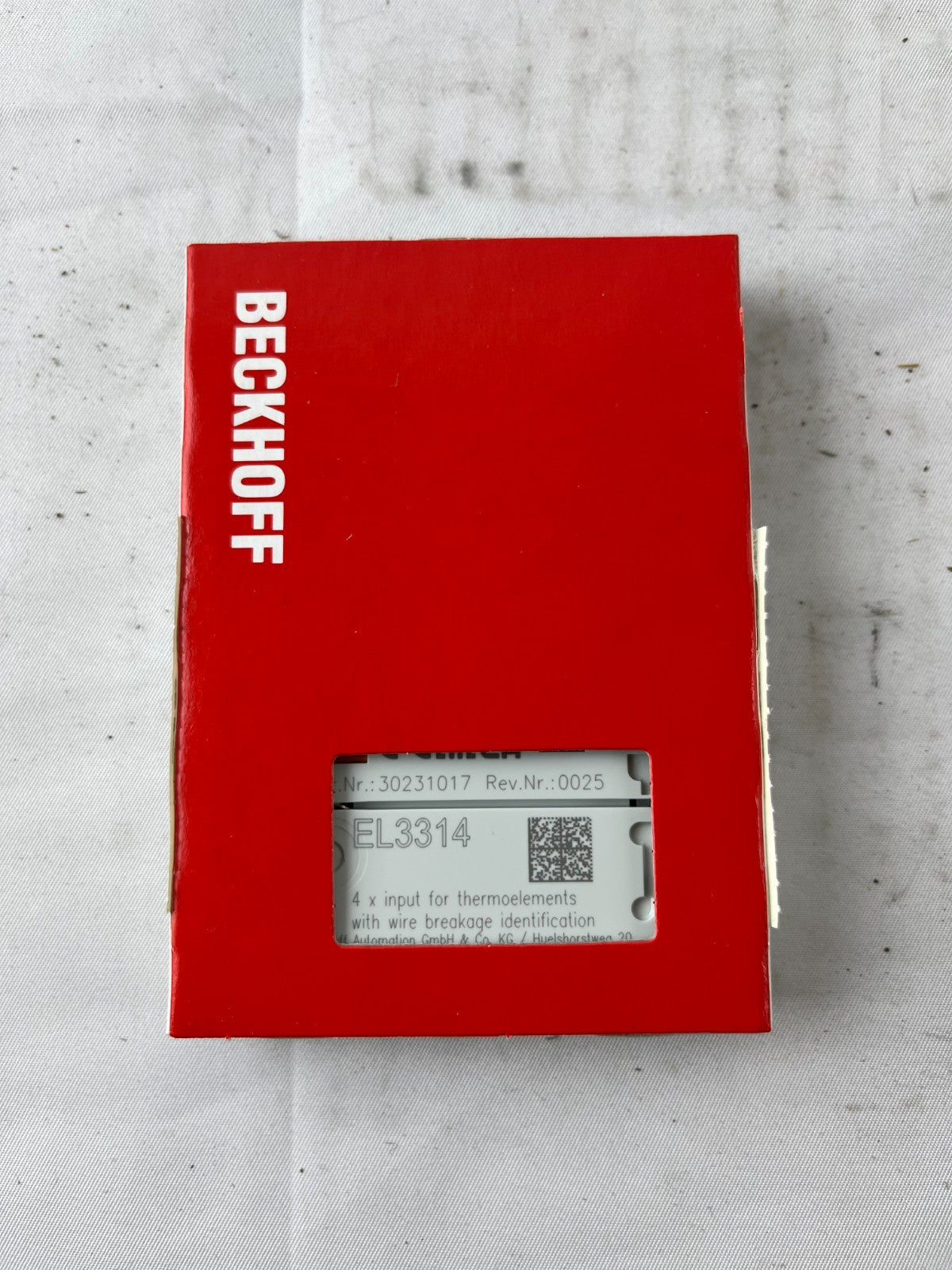

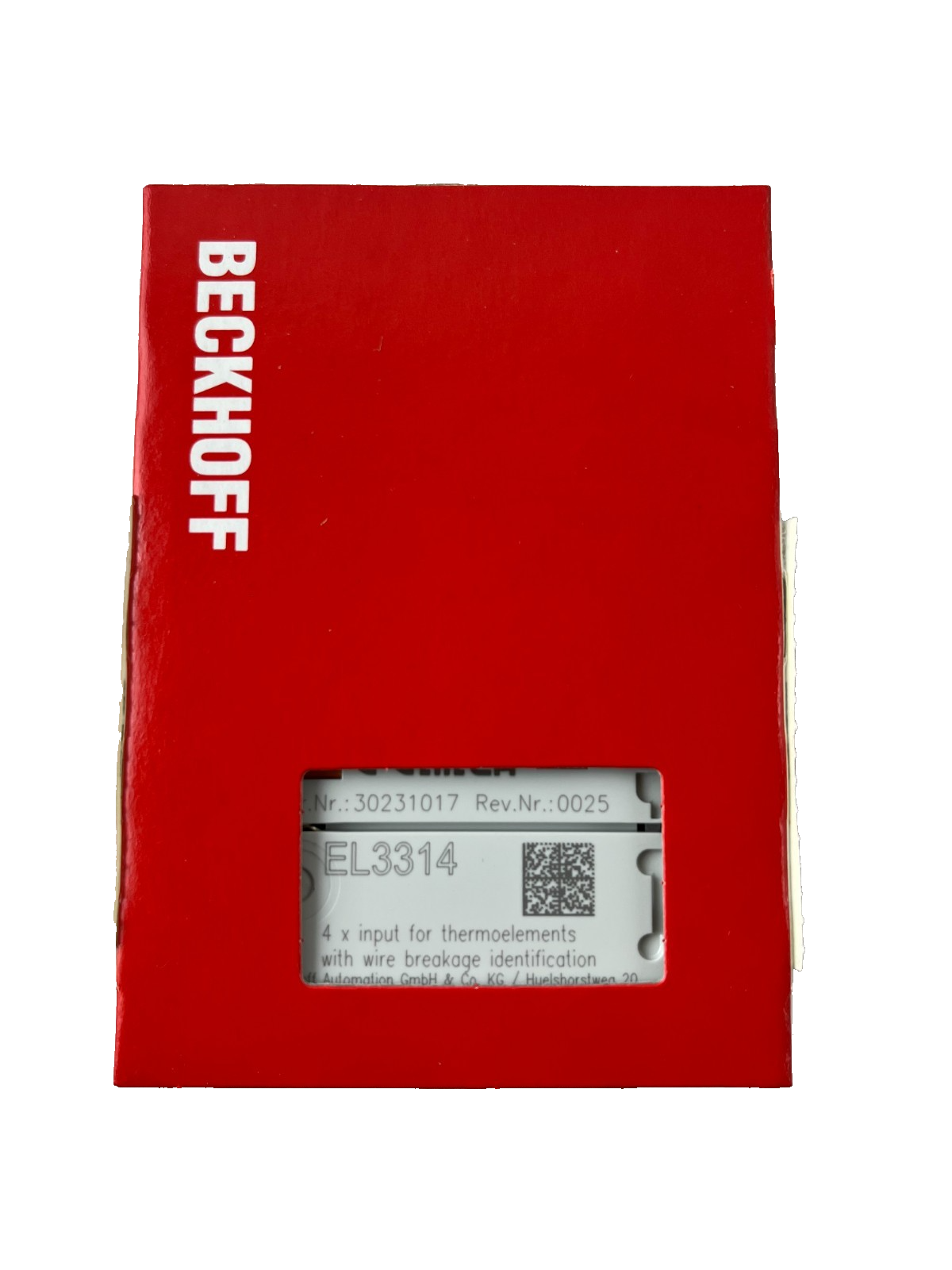

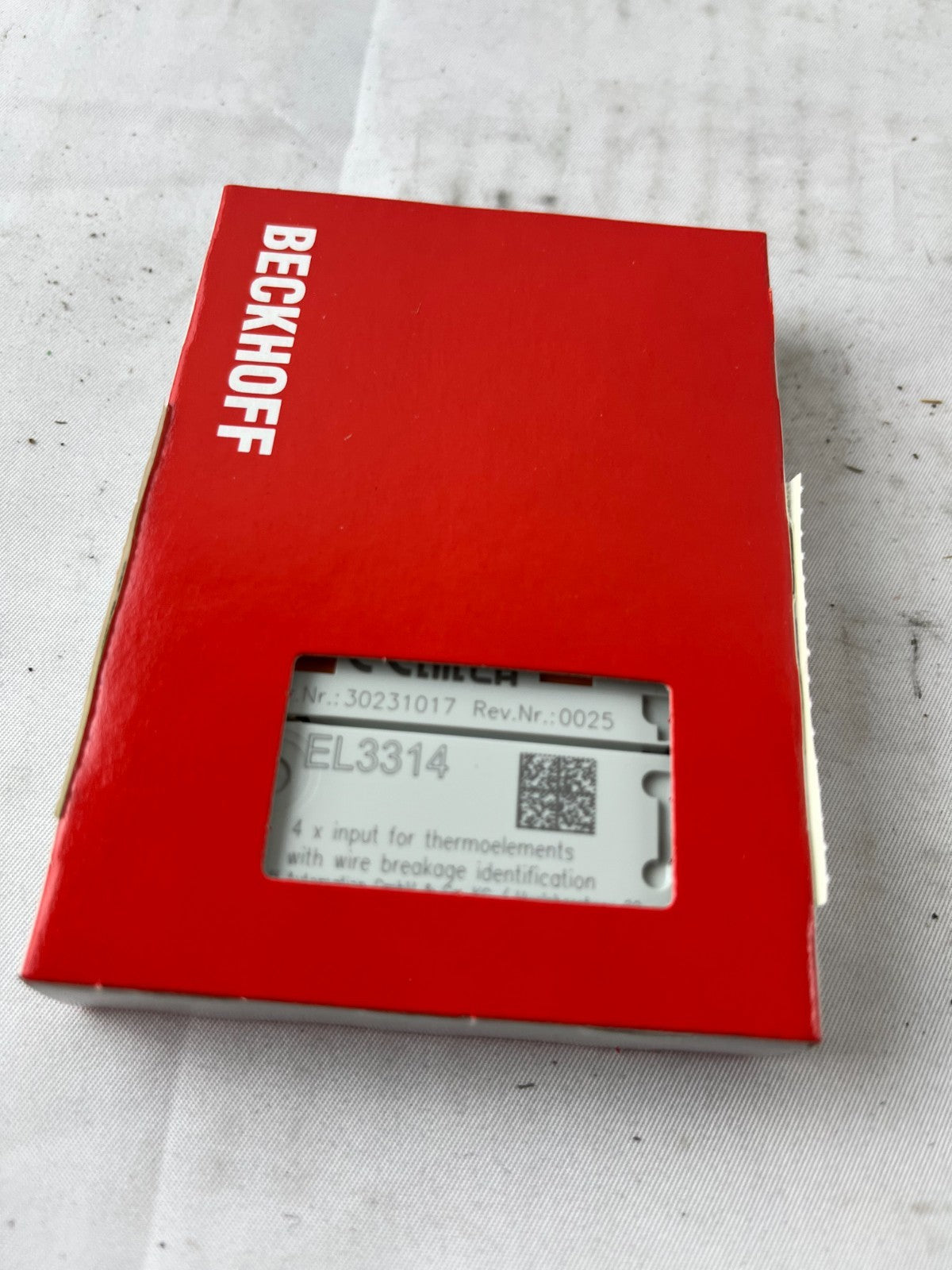

Module remains seated in factory window cut‑out, not removed for testing.
-
No printed manual included; technical documentation is available from Beckhoff online.
-
Suitable as a precision thermocouple input module for temperature monitoring and control in EtherCAT systems using EK1100 or Beckhoff embedded controllers.
-
Buyer should verify required thermocouple type and temperature range, and ensure EtherCAT configuration supports EL3314 terminals.
