Beckhoff EL4132 EtherCAT I/O terminal, a 2‑channel ±10 V analog output module with 16‑bit resolution, brand new and never used in the original Beckhoff I/O Series packaging. This terminal provides high‑precision voltage outputs for EtherCAT‑based control systems and is suitable as a spare or expansion module.
-
Brand: Beckhoff
-
Series: EtherCAT I/O Series
-
Model: EL4132
-
MPN: EL4132
-
Type: EtherCAT analog output terminal
-
Number of outputs: 2 analog voltage outputs
-
Output range: -10…+10 V (short‑circuit proof)
-
Resolution: 16 bit including sign
-
Load: > 5 kΩ per channel
-
Power supply: via EtherCAT E‑bus, typ. ~170–210 mA
-
Isolation: 500 V between E‑bus and signal voltage
-
Form factor: 12 mm wide IP20 DIN‑rail terminal (standard EL housing)
-
Approvals: CE, UL, ATEX, IECEx (see Beckhoff data sheet for full details)
-
For full technical data and wiring, refer to Beckhoff EL4132 documentation.
-
New old stock; terminal has never been put into service.
-

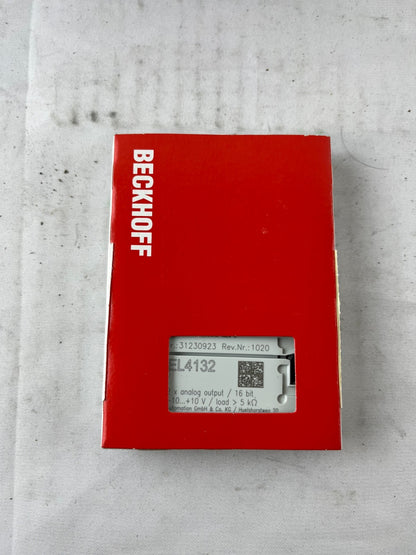

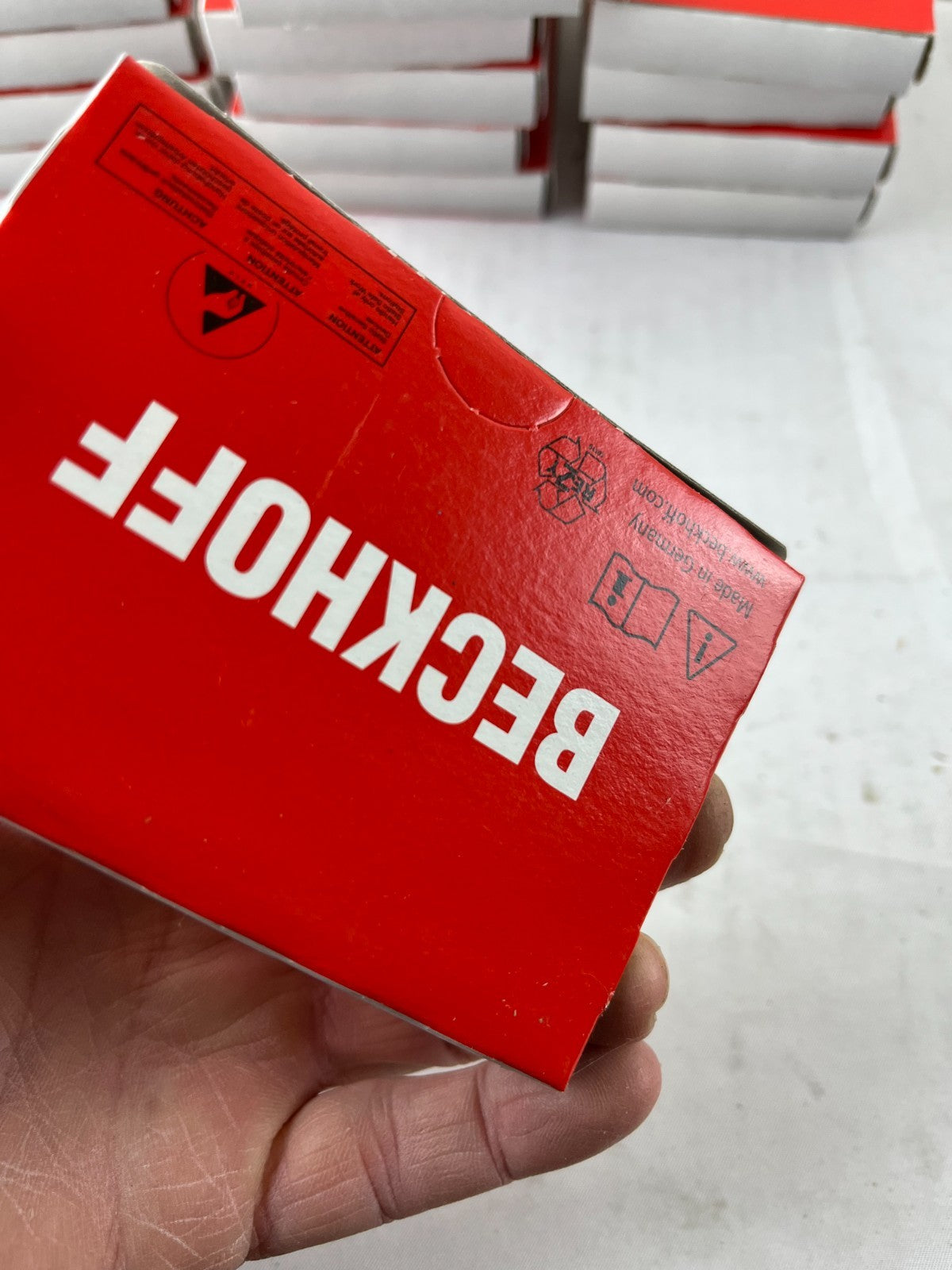

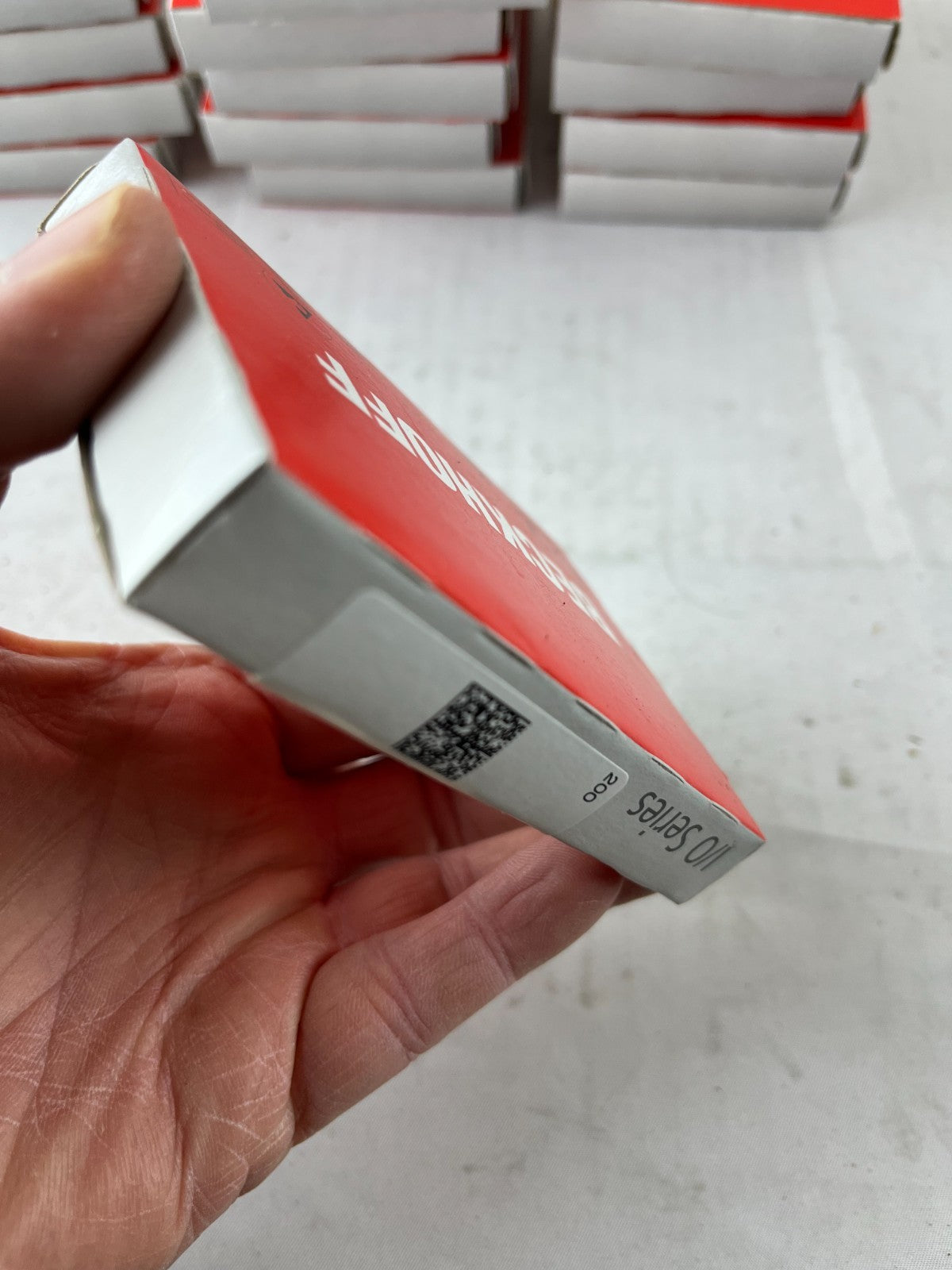

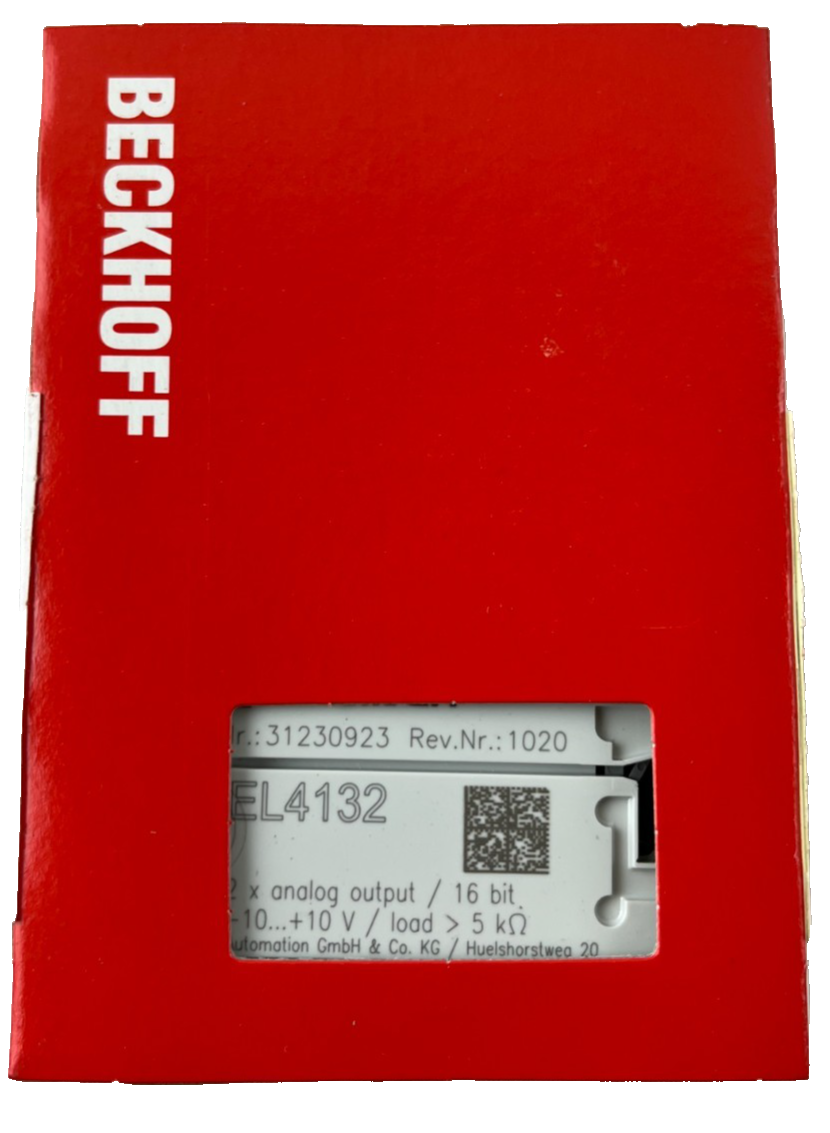

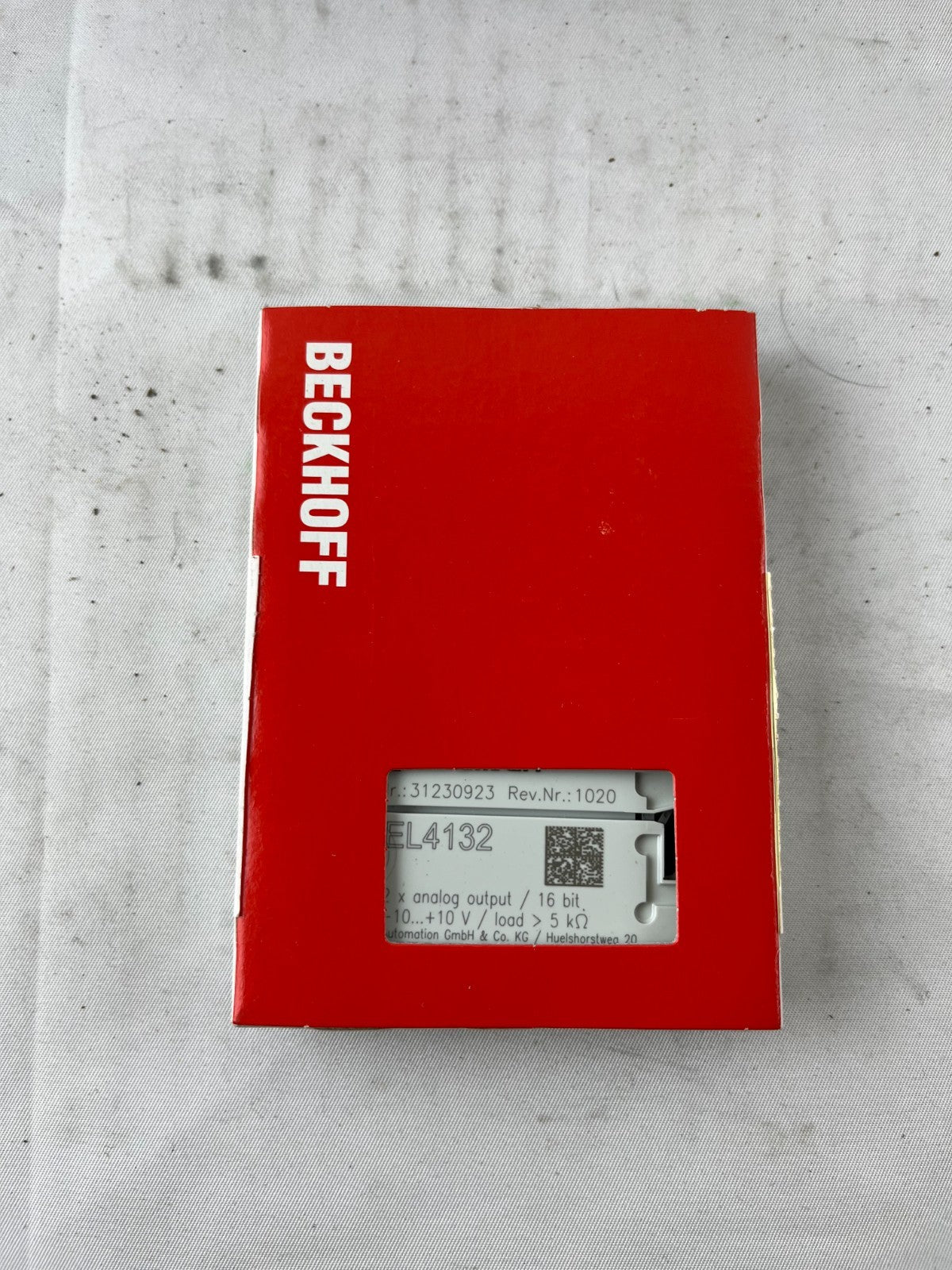

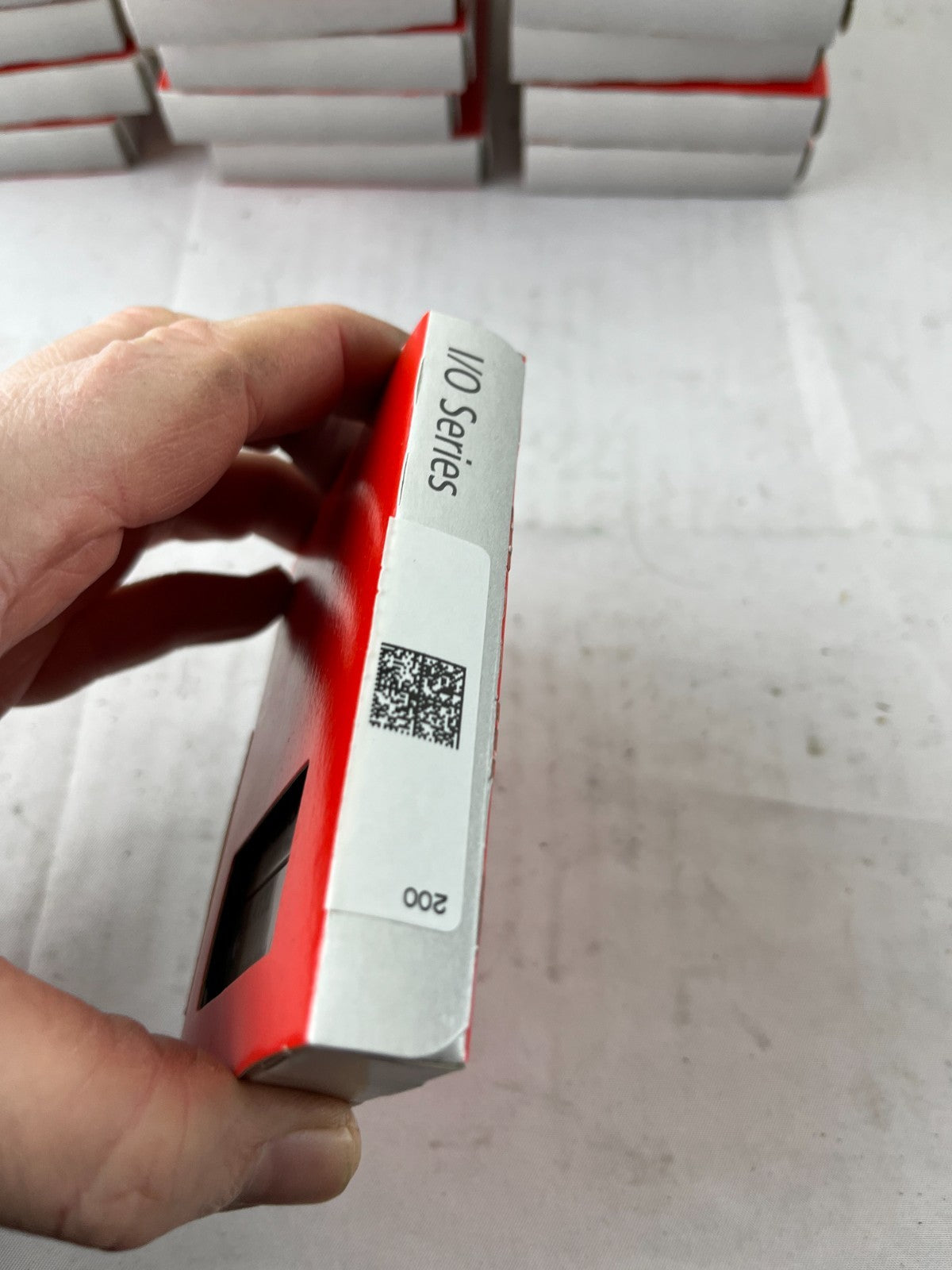

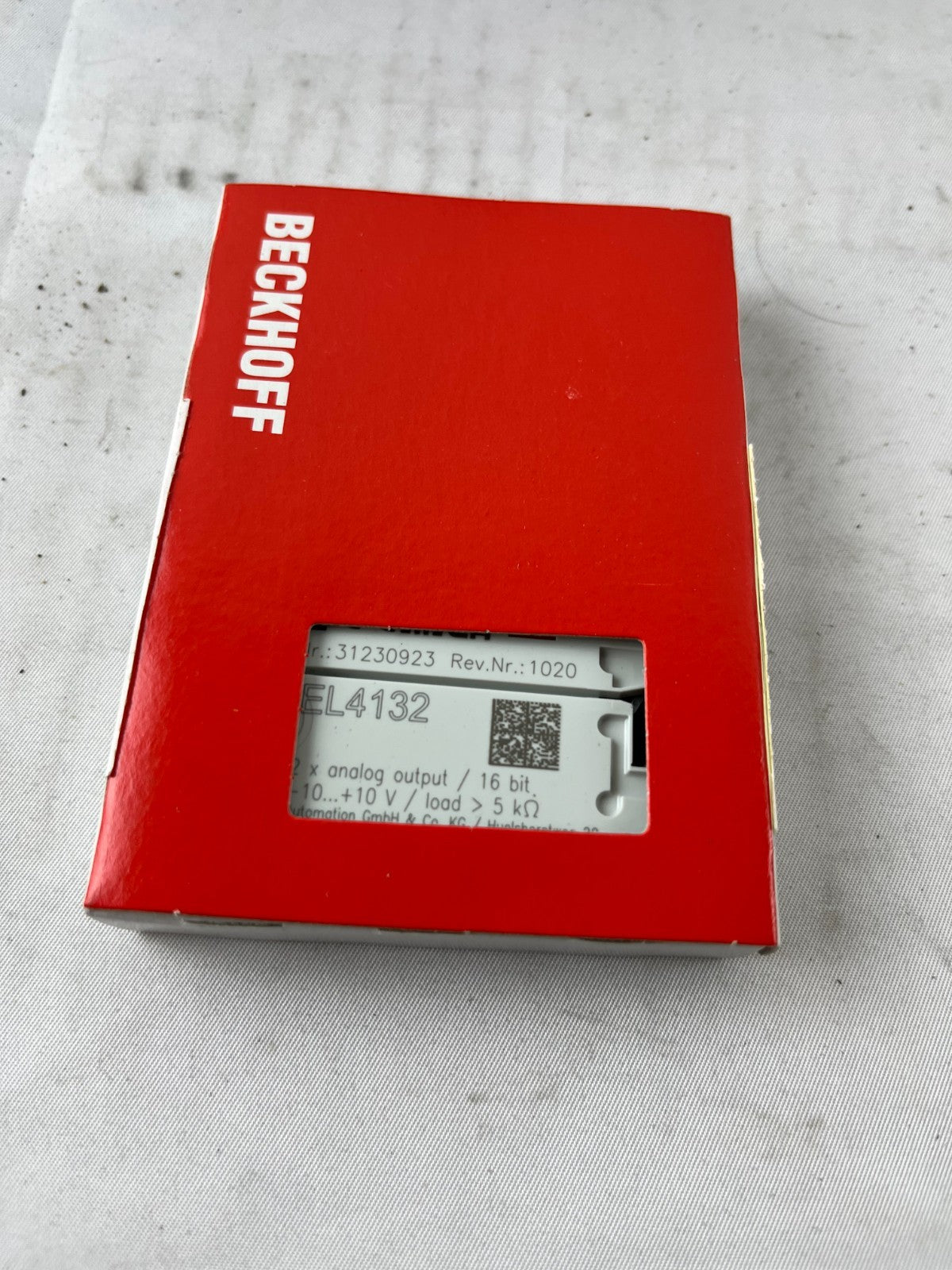

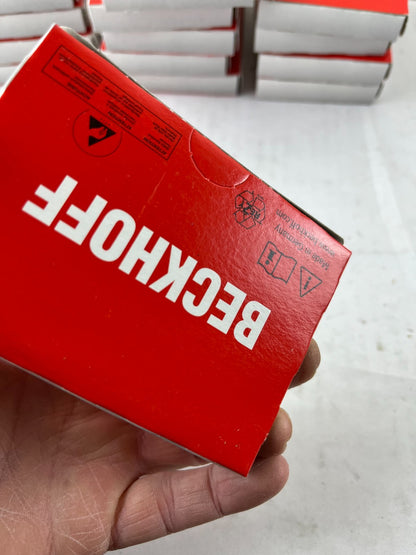

Original Beckhoff red I/O Series box present; box may show minor shelf wear, small marks and label residues from storage.
-
Module is still seated in its factory packaging cut‑out and has not been removed for testing or installation.
-
No printed manual included; documentation is available from Beckhoff online.
-
Standard Beckhoff analog output for EtherCAT systems, ideal as a drop‑in replacement or for adding two ±10 V outputs to existing EK1100 or CX‑based I/O stations.
-
Buyer should confirm compatibility with existing EtherCAT configuration and required output voltage range before purchase.
