Bosch Rexroth 1824210183 Solenoid Coil 24V DC 2.7W CO1 Form A NEW Box Hungary

Bosch Rexroth 1824210183 Solenoid Coil 24V DC 2.7W CO1 Form A NEW Box Hungary

- Shipping includes tracking info worldwide. Klaus KLJ Trading

• Brand & Model

  • Manufacturer: Bosch Rexroth Aventics, Hungary

  • Part Number: 1824210183 (also written as 1-824-210-183)

  • Legacy Part Numbers: 1824210223, 9180789

  • Product Type: CO1 Form A solenoid coil

  • Condition: New in original box, never used, fully functional

  • Made in Hungary

  • Status: Discontinued by manufacturer

• Technical Specifications

  • Operating voltage: 24V DC

  • Power consumption: 2.7W

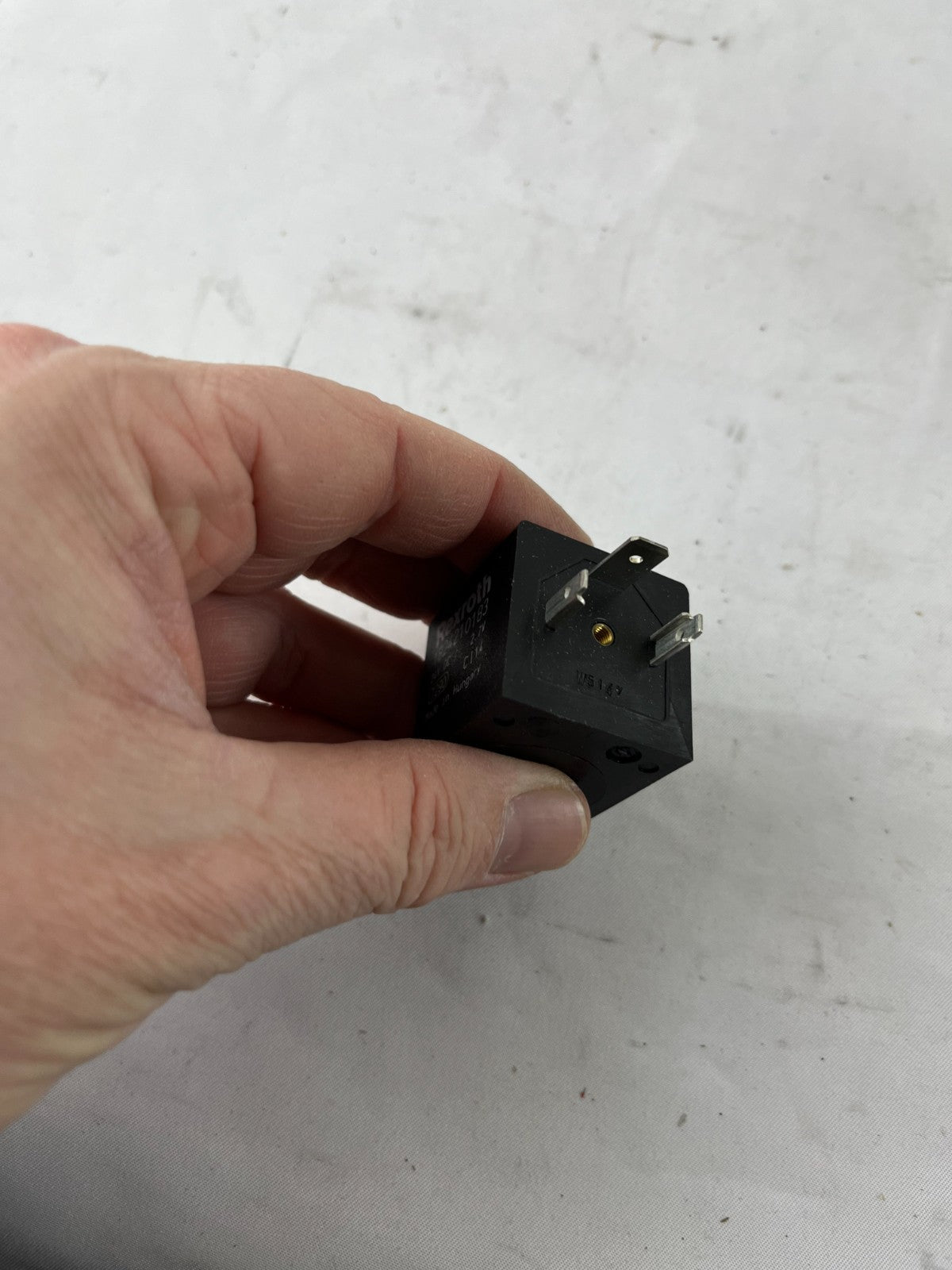

  • Connection type: 3-pin male connector

  • Coil length: 30mm

  • Coil form: CO1 Form A standard

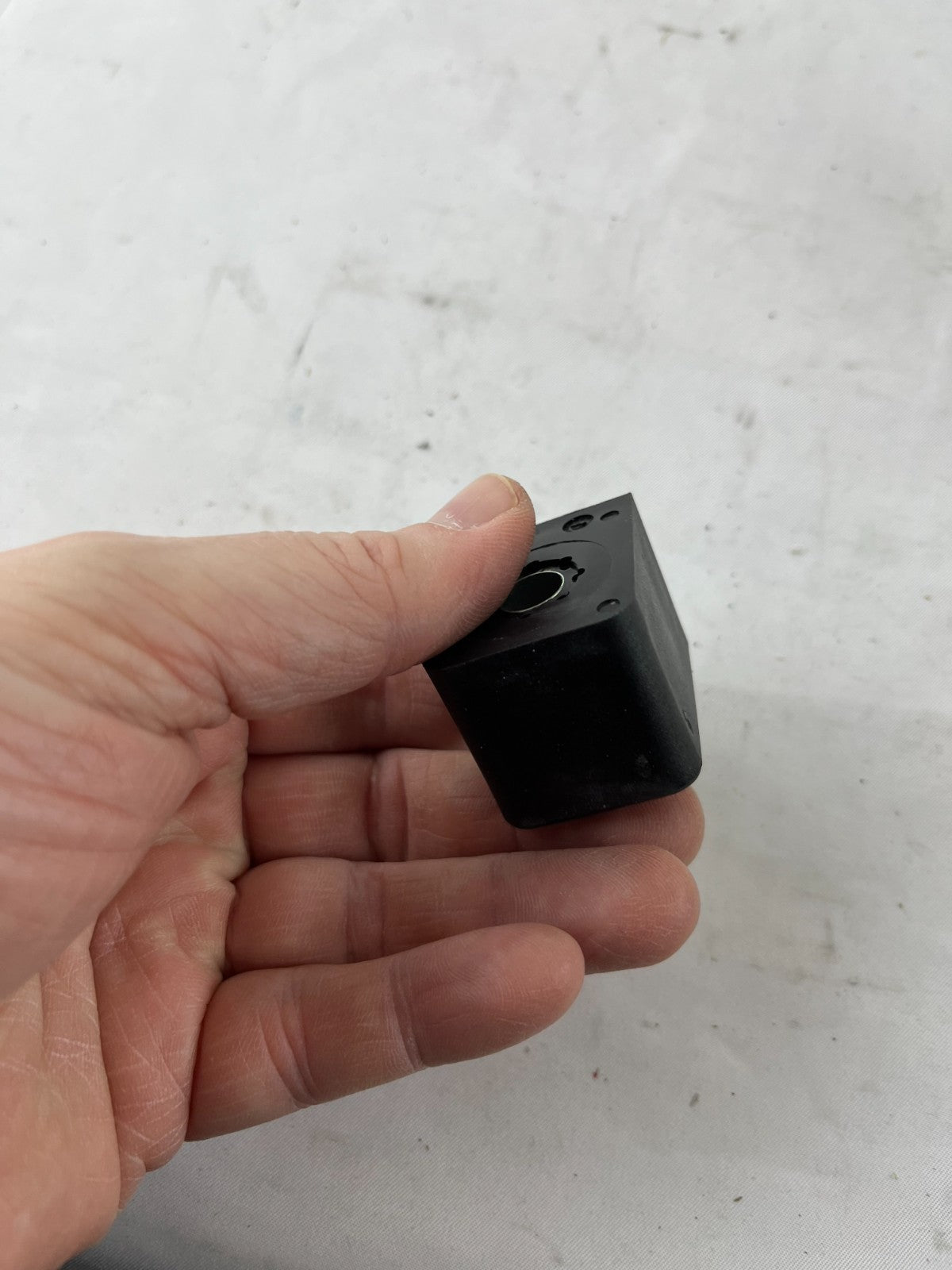

  • Coil bore diameter: 7290 (size code)

  • Insulation class: C114

  • Operating temperature: -10°C to +60°C

• Electrical Characteristics

  • Current draw: Approximately 112 mA at 24V DC

  • Resistance: Approximately 214 ohms

  • Duty cycle: 100 percent continuous

  • Response time: Less than 20 milliseconds

  • Protection rating: IP65 when properly installed on valve

  • Voltage tolerance: Plus or minus 10 percent

• Physical Construction

  • Housing material: Black thermoplastic molded housing

  • Contact material: Gold-plated copper pins

  • Mounting: Push-on mounting onto valve body

  • Weight: Approximately 50 grams

  • Locking mechanism: Integrated spring clips for secure attachment

• Compatibility

  • Compatible with Rexroth Aventics pneumatic directional control valves

  • Suitable for 5/2-way, 5/3-way, and 3/2-way solenoid valves

  • Works with Series CD01, CD02, CD03 valve bodies

  • Standard Rexroth CO1 mounting interface

  • Universal replacement for similar 24V DC Rexroth coils

• Features & Applications

  • Low power consumption reduces heat generation and energy costs

  • Compact 30mm length fits space-constrained installations

  • Fast switching time enables responsive pneumatic control

  • Ideal for factory automation, packaging machinery, assembly lines

  • Suitable for material handling, pick-and-place systems, clamping applications

  • Common in automotive manufacturing, food processing, pharmaceutical production

• Additional Information

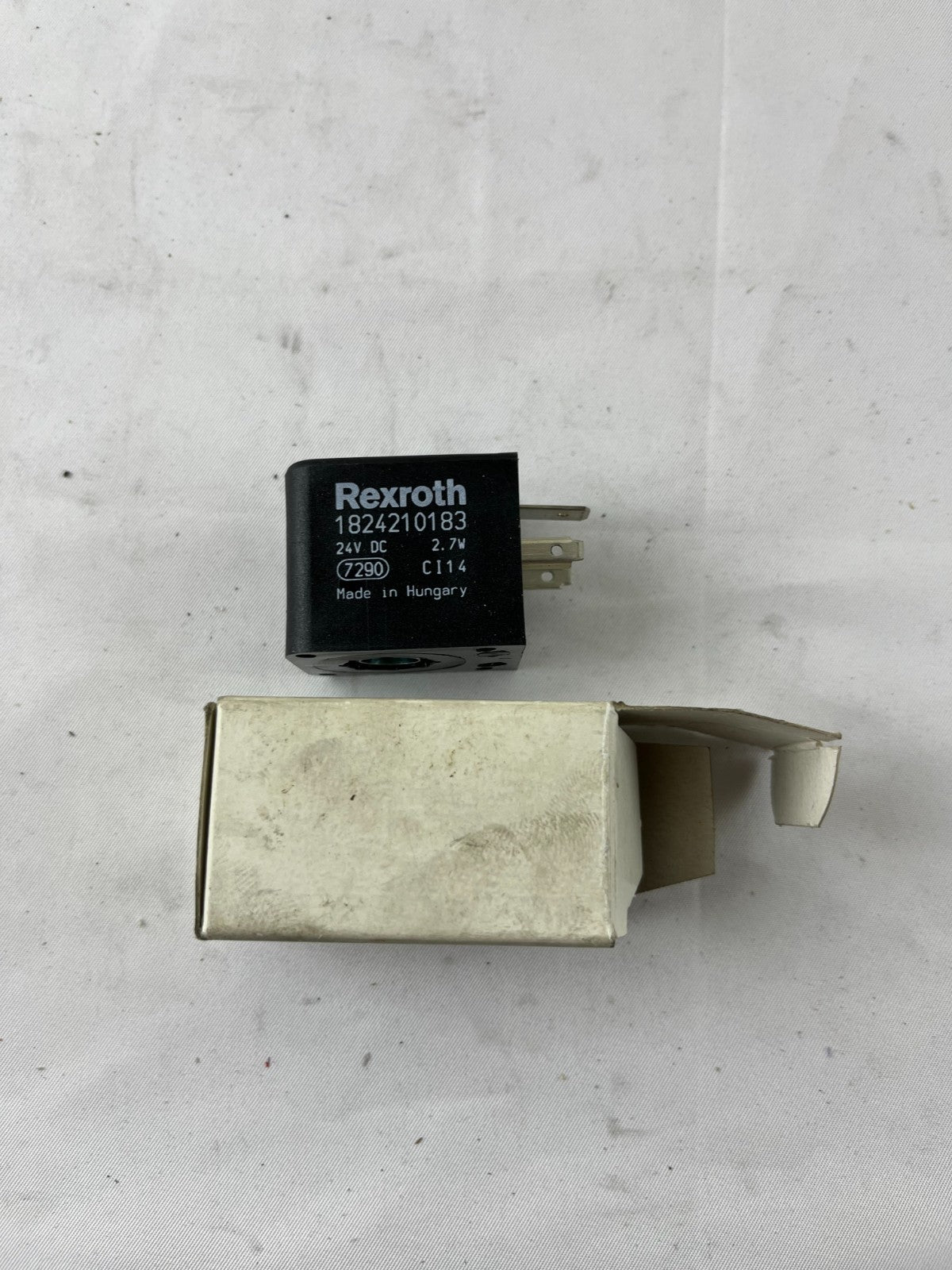

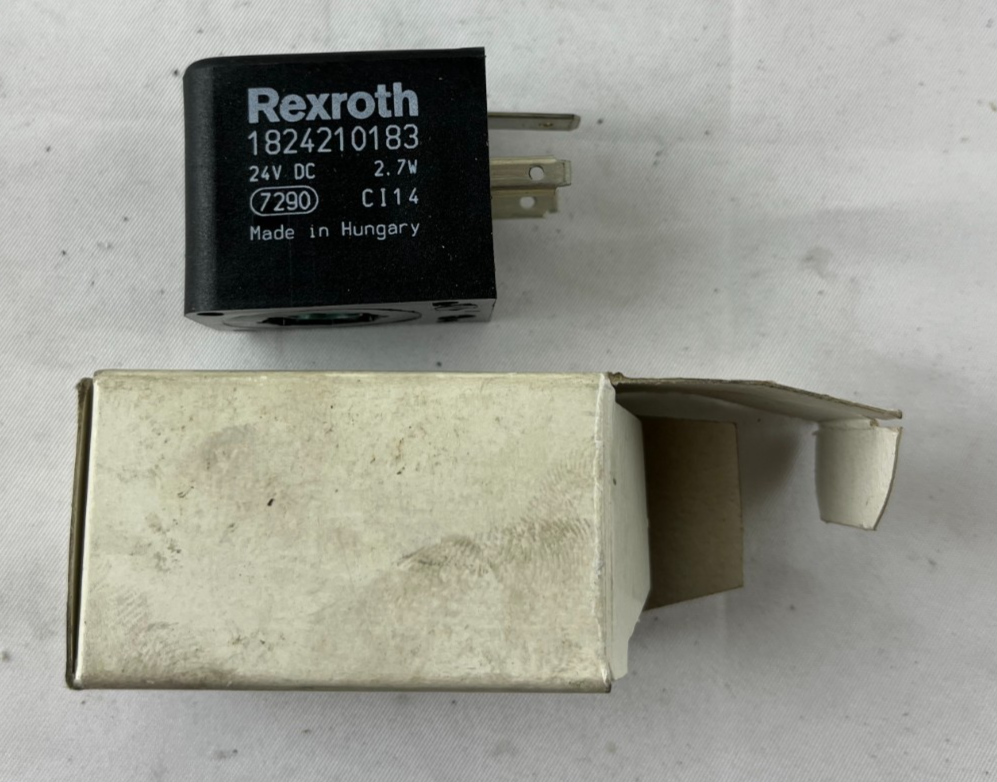

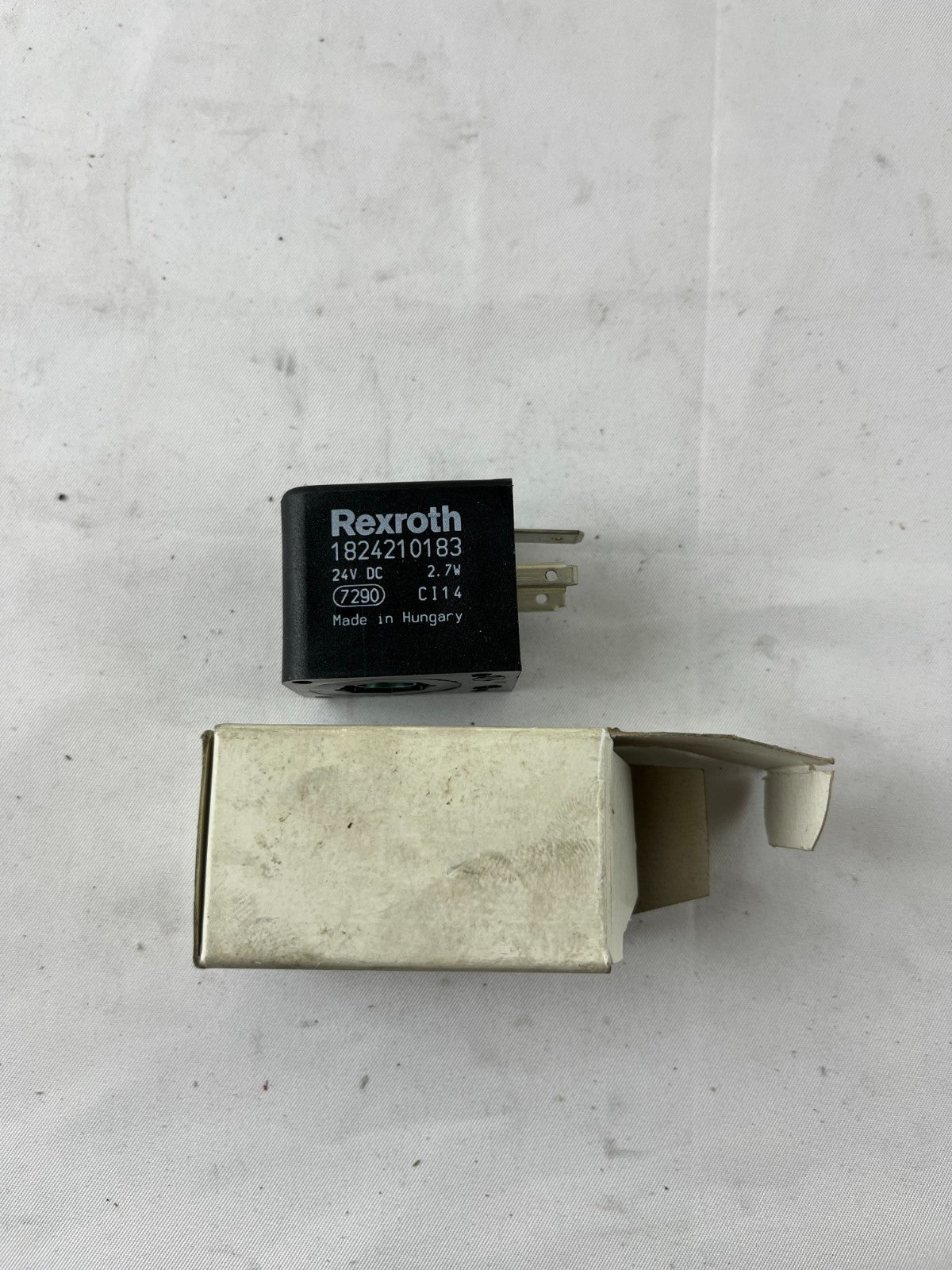

  • Original Bosch Rexroth factory packaging included

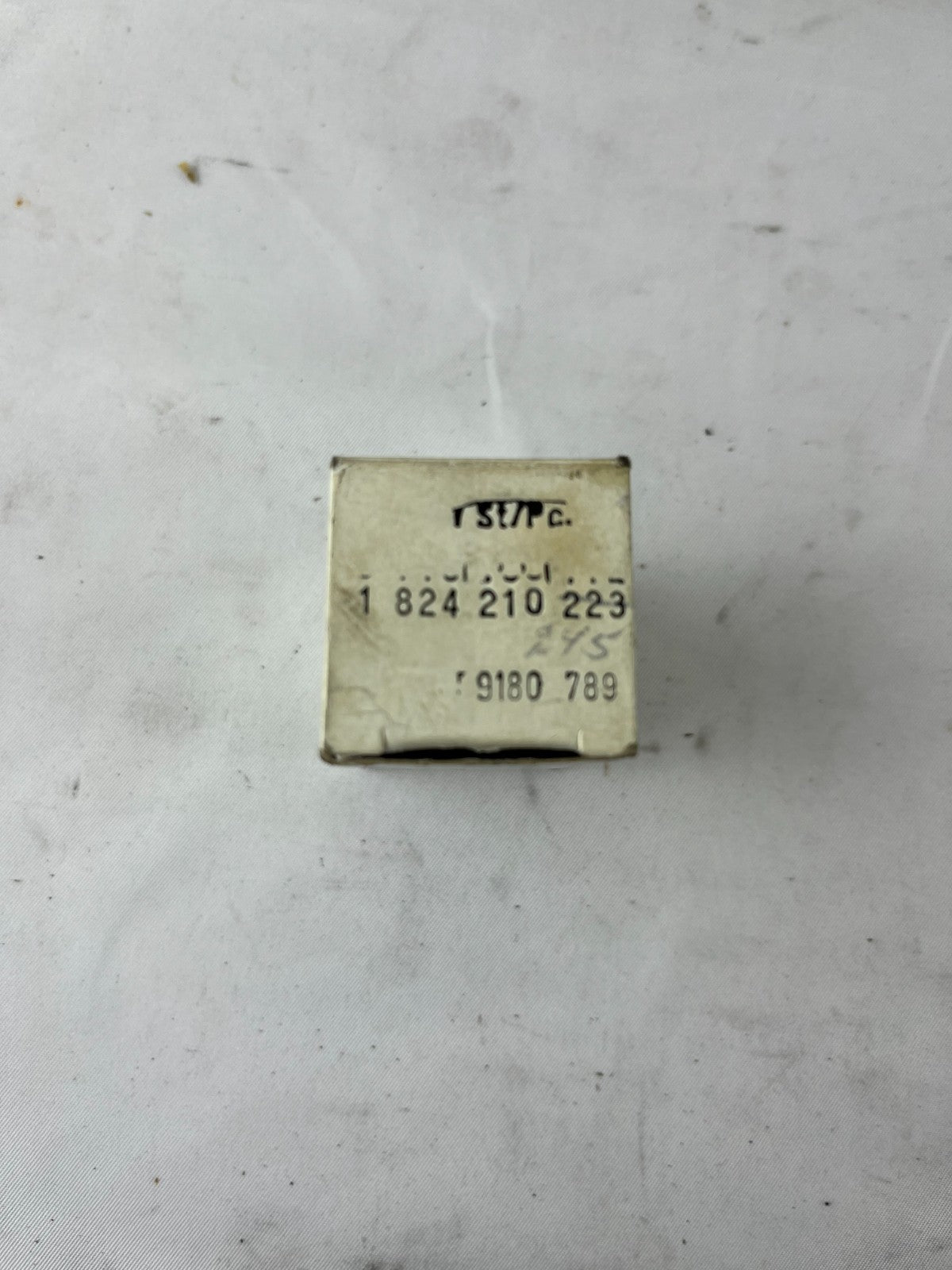

  • Part label shows legacy numbering system for cross-reference

  • No tools required for installation, simple push-on mounting

  • Can be energized in any mounting orientation

  • Compatible with both AC and DC control systems via appropriate interface

  • RoHS compliant, lead-free construction
