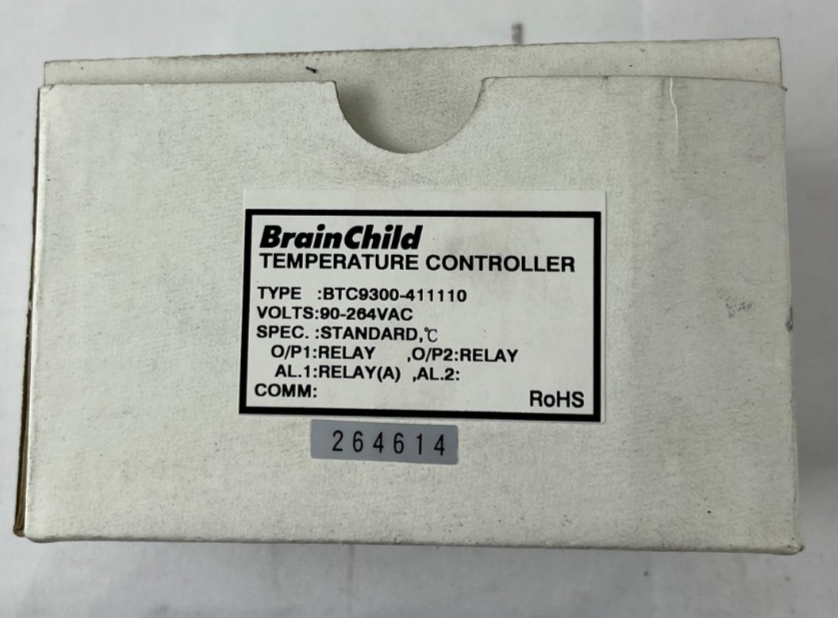

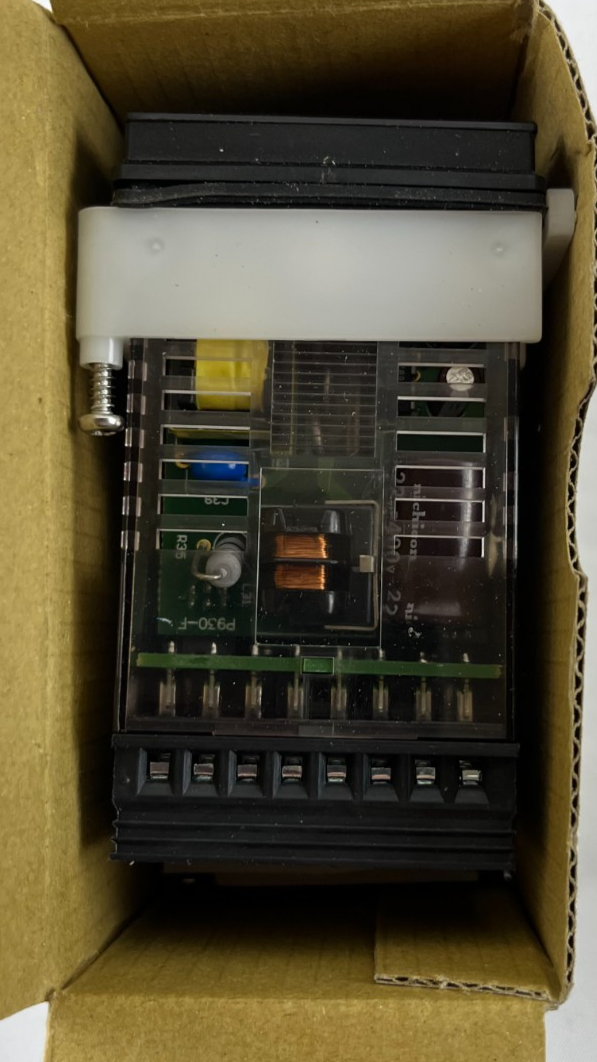

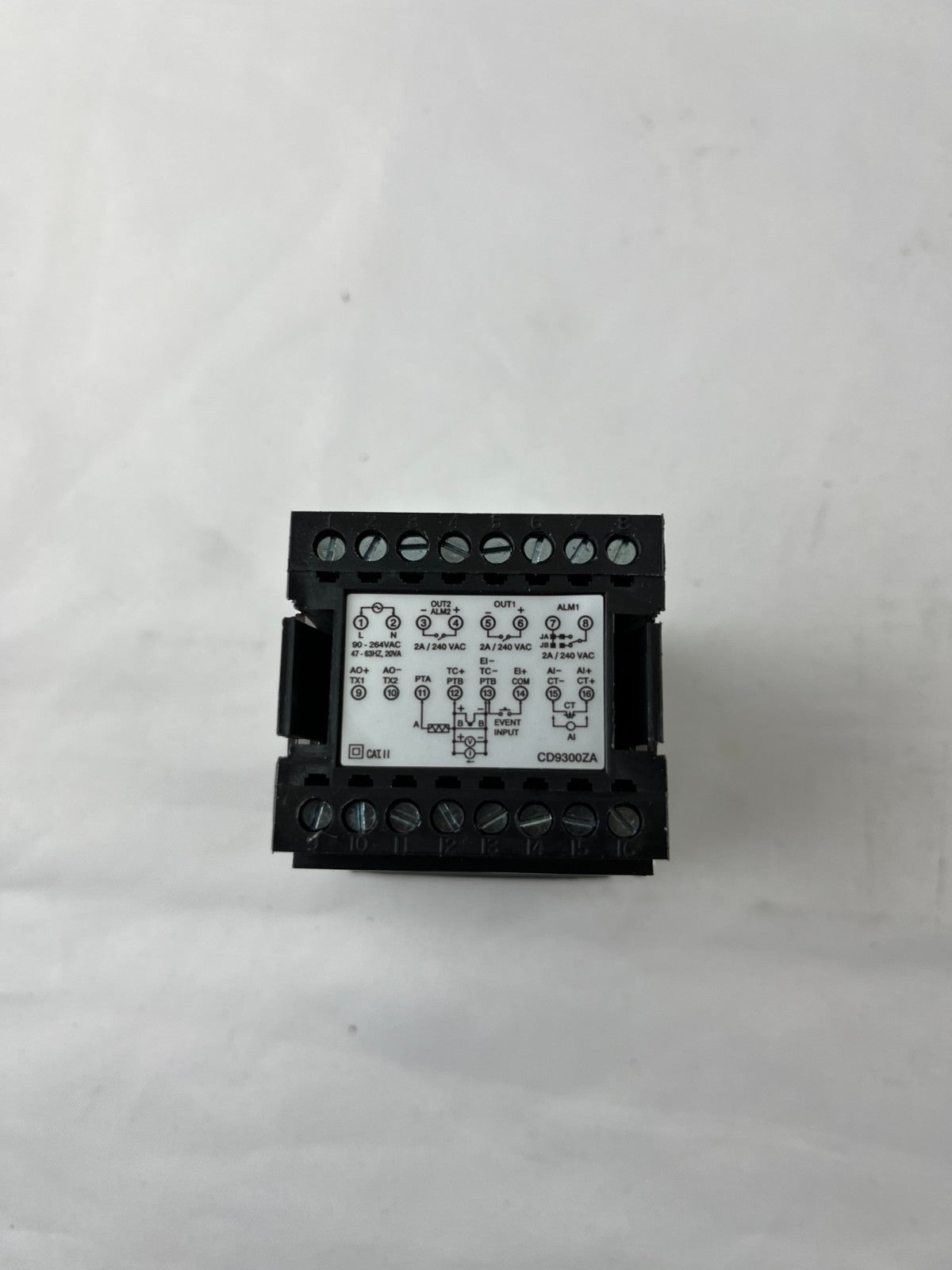

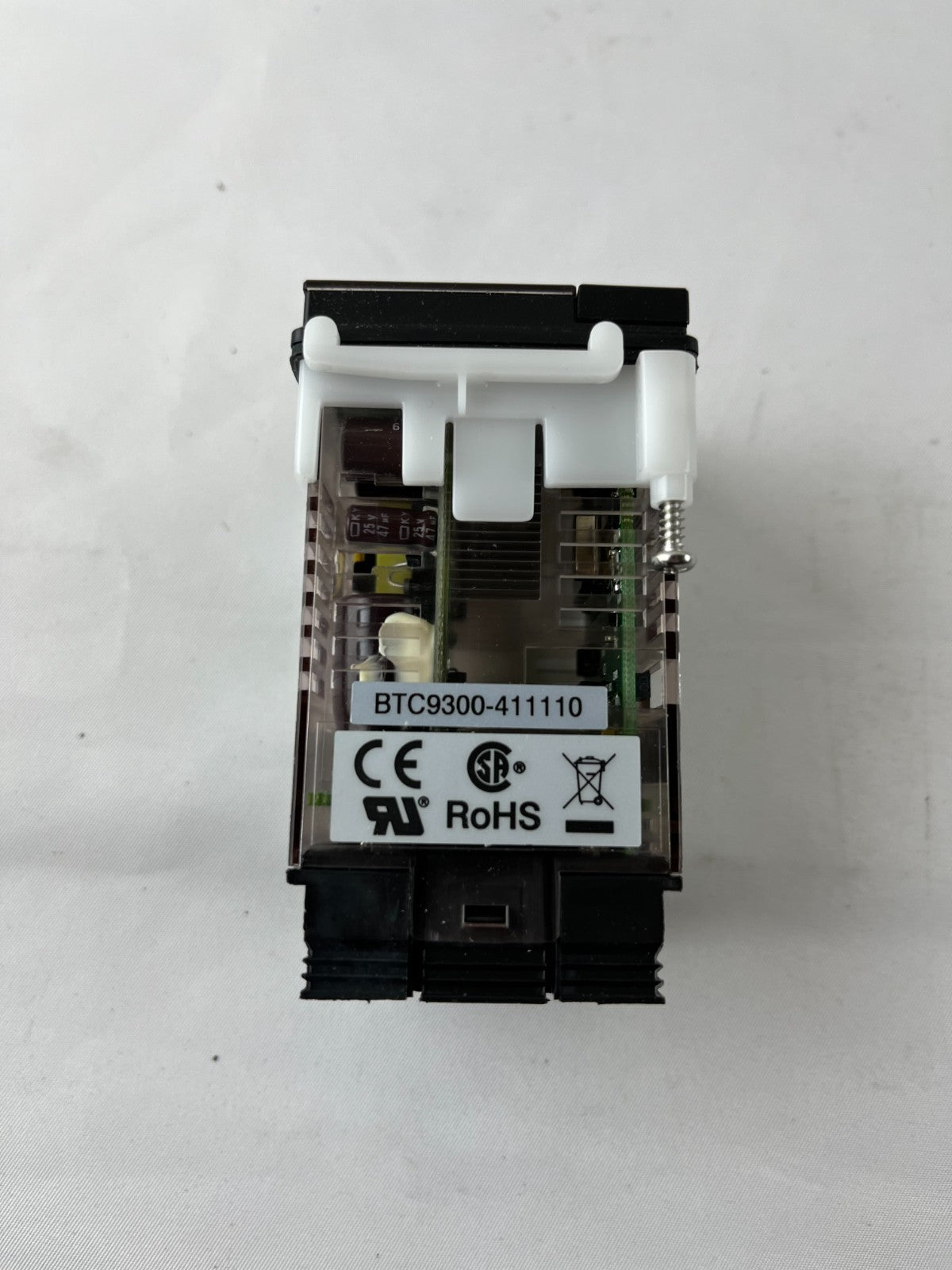

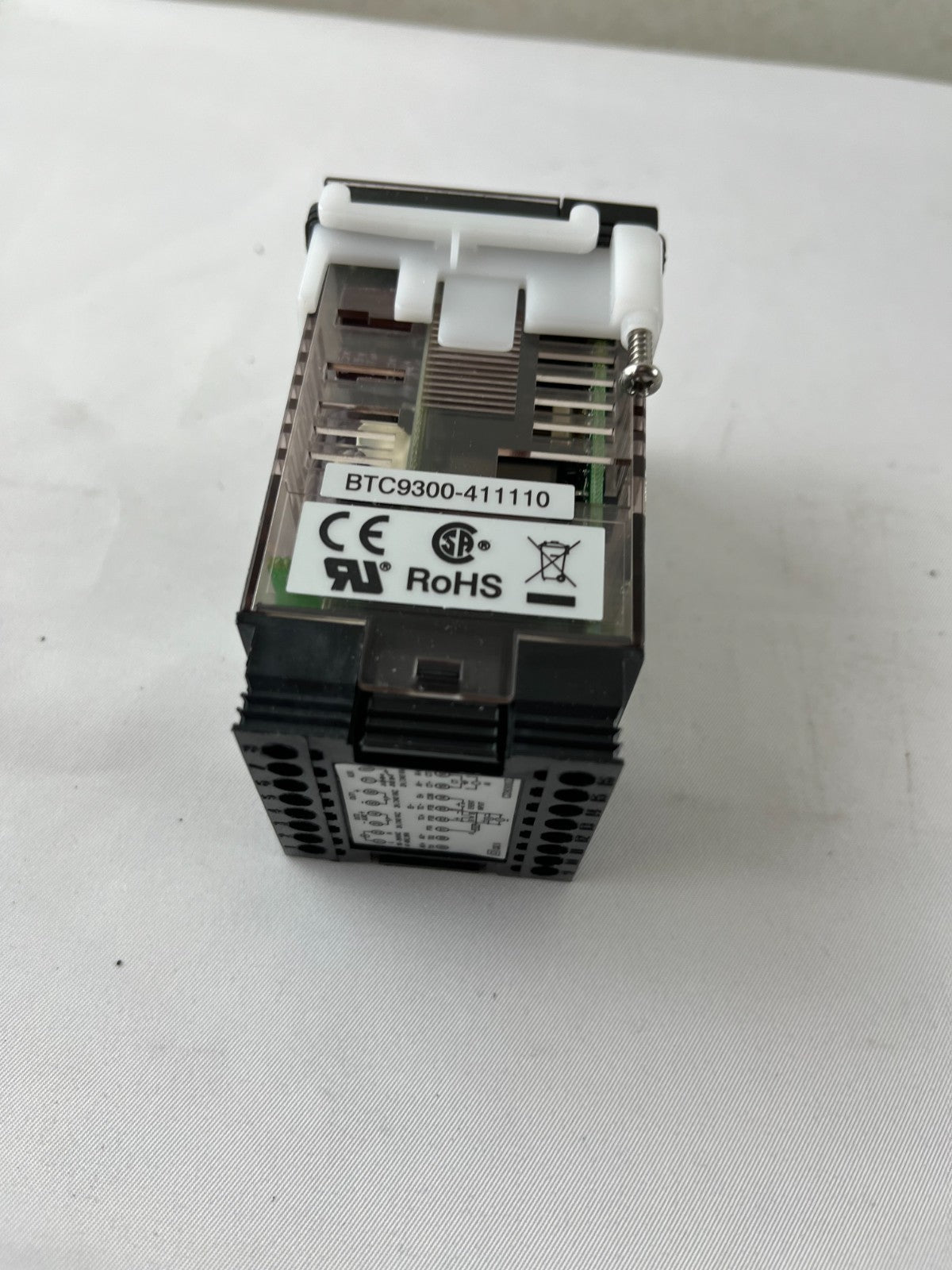

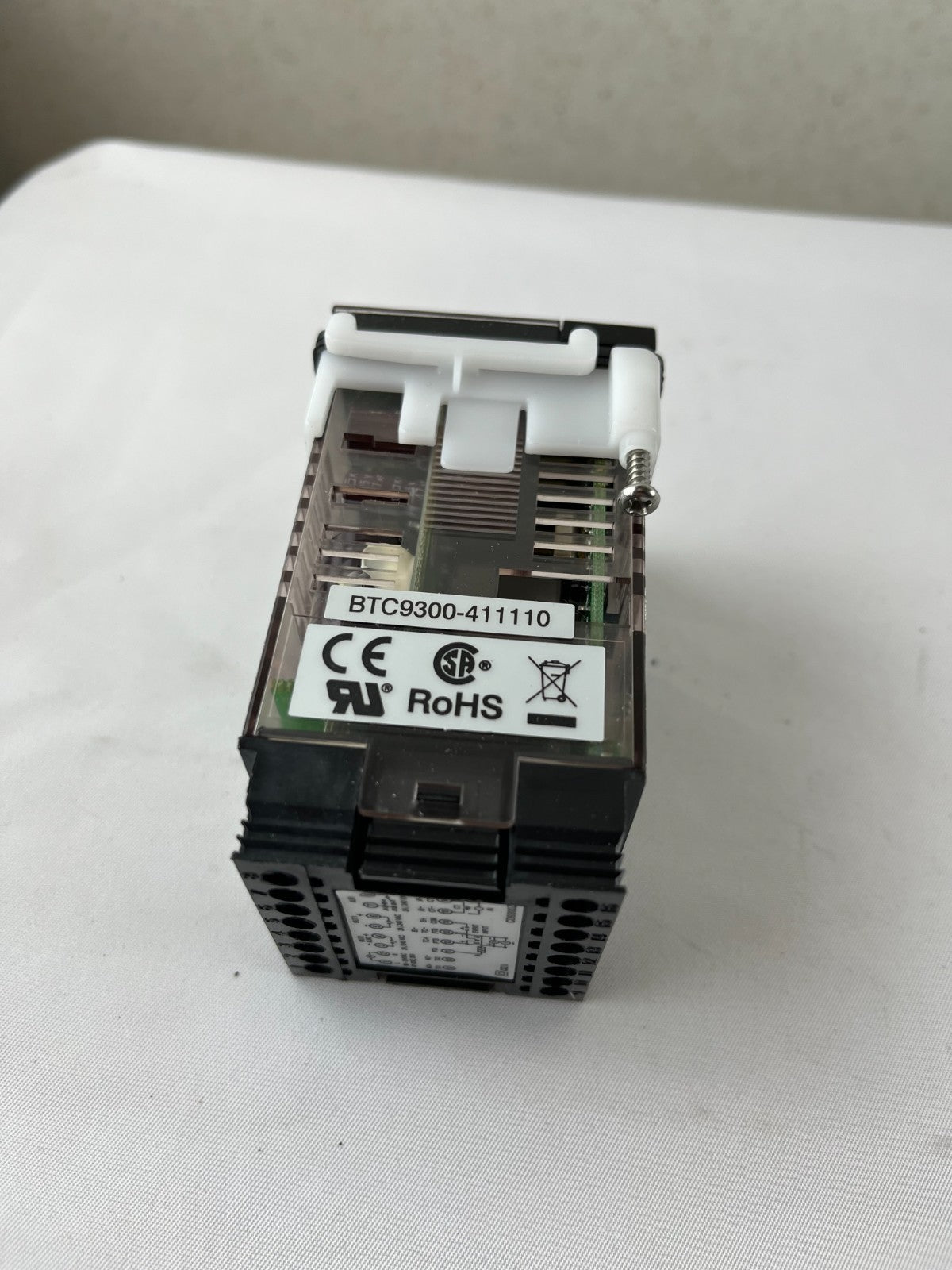

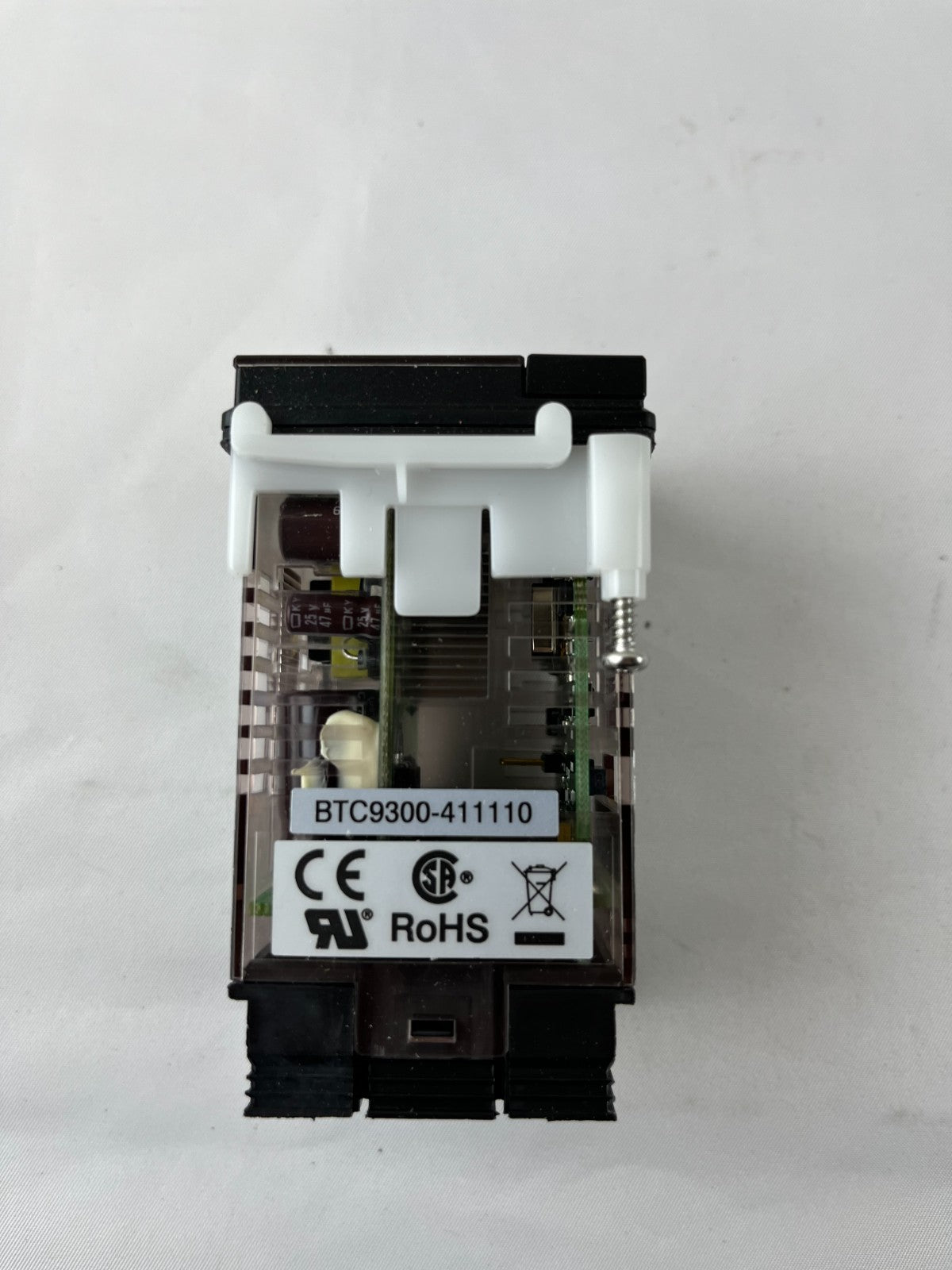

Model: BTC9300-411110 (BTC-9300)
-
Serial Number: 264614
-
Panel Size: 48 × 48 mm (50.7 × 50.7 mm overall, 1/16 DIN)
-

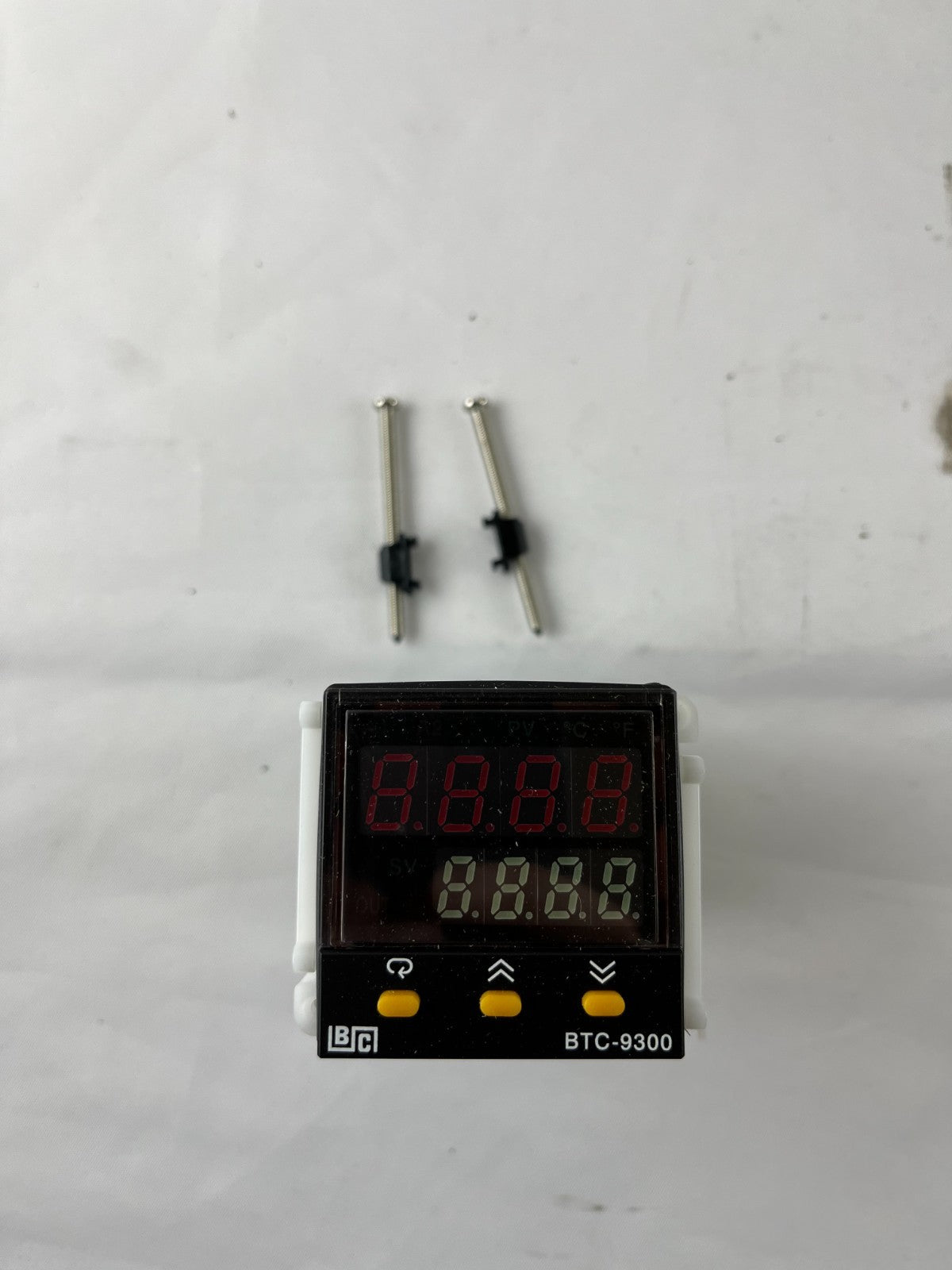

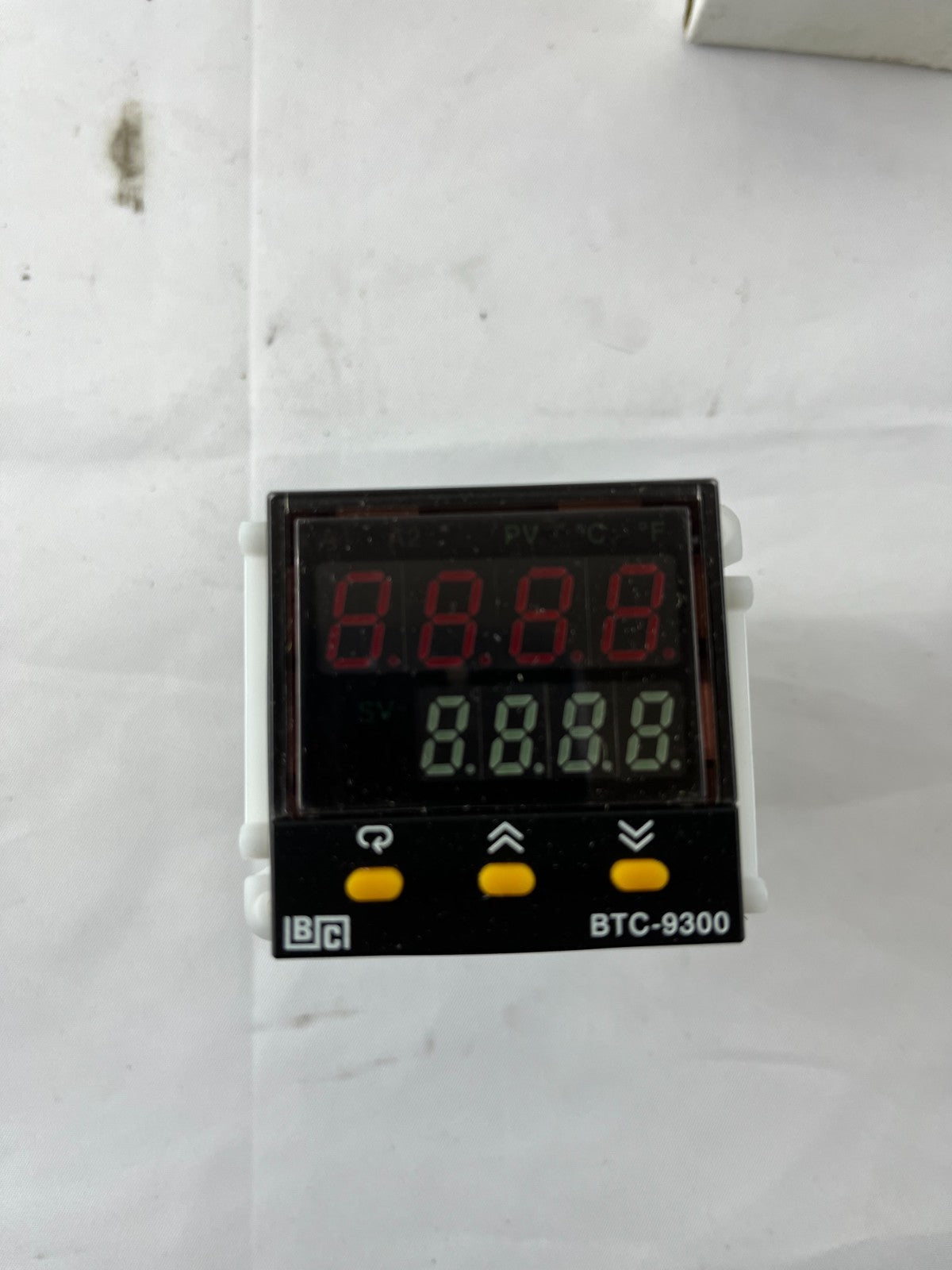

Display: Dual 4-digit LED (Upper: 0.4" / 10mm red, Lower: 0.31" / 8mm green)
-
Input Types: Universal programmable - Thermocouple (J/K/T/E/B/R/S/N/L/TXK), RTD (Pt100 2 or 3-wire), Process (0-20mA, 4-20mA, 0-1V, 0-5V, 1-5V, 0-10V, 0-60mV)
-
Temperature Range: User configurable depending on sensor type
-
Power Supply: 90-264 VAC, 50/60 Hz, less than 5 VA
-
A/D Conversion: 18-bit high-resolution input
-
Sampling Rate: 5 times per second
-
Control Mode: Fuzzy + PID microprocessor-based with auto-tuning and self-tuning
-
Control Output 1 (O/P1): Relay output (SPDT, 3A @ 250 VAC) for heating/cooling control
-
Control Output 2 (O/P2): Relay output (SPDT, 3A @ 250 VAC) for secondary control
-
Alarm Output (AL.1): Relay (A) output for alarm function
-
AL.2: Second alarm capability
-
PID Parameters: Proportional band 0-500°C, Integral 0-1000 sec, Derivative 0-360 sec
-
Cycle Time: 0.1-100 seconds programmable
-
Panel Depth: 88.5 mm (75 mm behind panel)
-
Panel Cutout: 45 × 45 mm
-
Operating Temperature: -10°C to 50°C
-
Front Panel Protection: NEMA 4X (IP65)
-
Weight: 150 grams
-
Special Features: Ramp/soak profiling, heater break alarm, sensor break protection, bumpless transfer, sleep mode, pump control, hardware lockout, differential control, soft-start ramp and dwell timer
-
Certifications: UL 61010C-1, CSA, CE, RoHS
-
Country of Origin: Made in Taiwan
This advanced Fuzzy + PID controller combines intelligent fuzzy logic with traditional PID control for superior performance. The fuzzy logic technology enables the process to reach setpoint in the shortest time with minimum overshoot during power-up or load disturbances. The high-speed 5x per second sampling rate ensures precise control. The auto-tuning function automatically determines optimal PID parameters. Perfect for industrial heating, plastics processing, packaging, food processing, laboratory equipment, and process control applications requiring precise temperature management.
