Carlo Gavazzi PMB01DM24 Multifunction Timer 24-240VAC/DC 0.1s-100h DIN 11-Pin

Carlo Gavazzi PMB01DM24 Multifunction Timer 24-240VAC/DC 0.1s-100h DIN 11-Pin

- Shipping includes tracking info worldwide. Klaus KLJ Trading

Carlo Gavazzi PMB01DM24 multifunction timer with three rotary dial controls for function selection, time range, and time setting, operating on 24-240V AC/DC supply. This versatile timer provides 7 selectable timing functions with adjustable time ranges from 0.1 seconds to 100 hours.​​

What's Included

• 1x Carlo Gavazzi PMB01DM24 Multifunction Timer module

Key Specifications

• Model: PMB01DM24​

• Type: Multifunction Timer (7 functions)​​

• Supply Voltage: 24-240V AC/DC, 50-60Hz​​

• Time Range: 0.1 seconds to 100 hours​​

• Functions: Op (delay on operate), In (interval), Io (interval on trigger), Id (double interval), Dr (delay on release), R (recycler ON first), Rb (recycler OFF first)​

• Output: 8A DPDT relay (2 changeover contacts)​

• Contact Rating: AC 1: 8A @ 250VAC, DC 12: 3A @ 24VDC​​

• Mounting: 11-pin plug-in base (octal socket)​​

• Power Consumption: 1.5W DC, 4VA AC​

• Protection: IP20​​

• Certifications: CE, CSA, UL​​

• Dimensions: 80mm H x 94mm W x 36mm D​

• Serial Number: Sn:5199Q100C0202​

• Manufacturer: Carlo Gavazzi​

Condition Notes

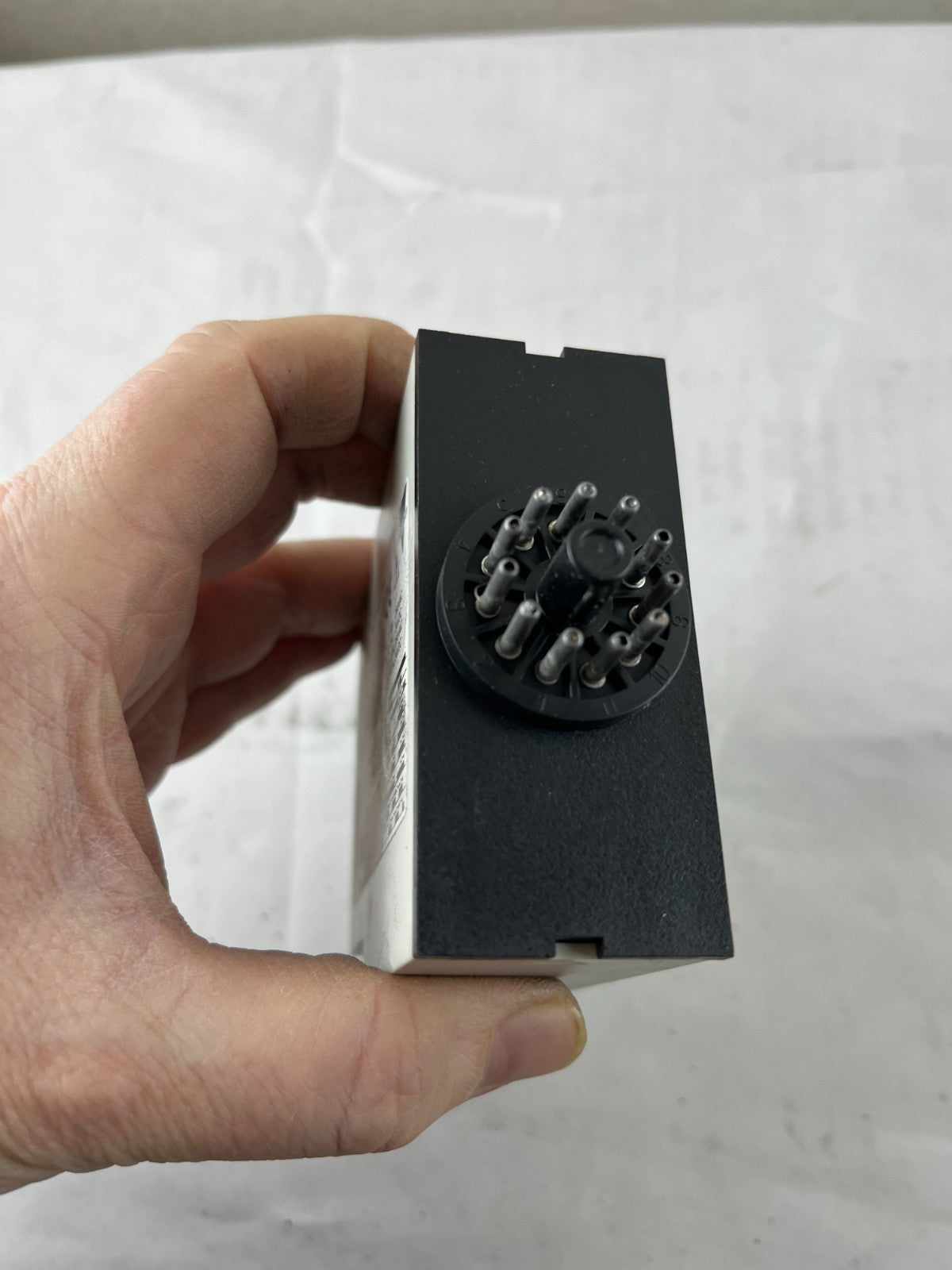

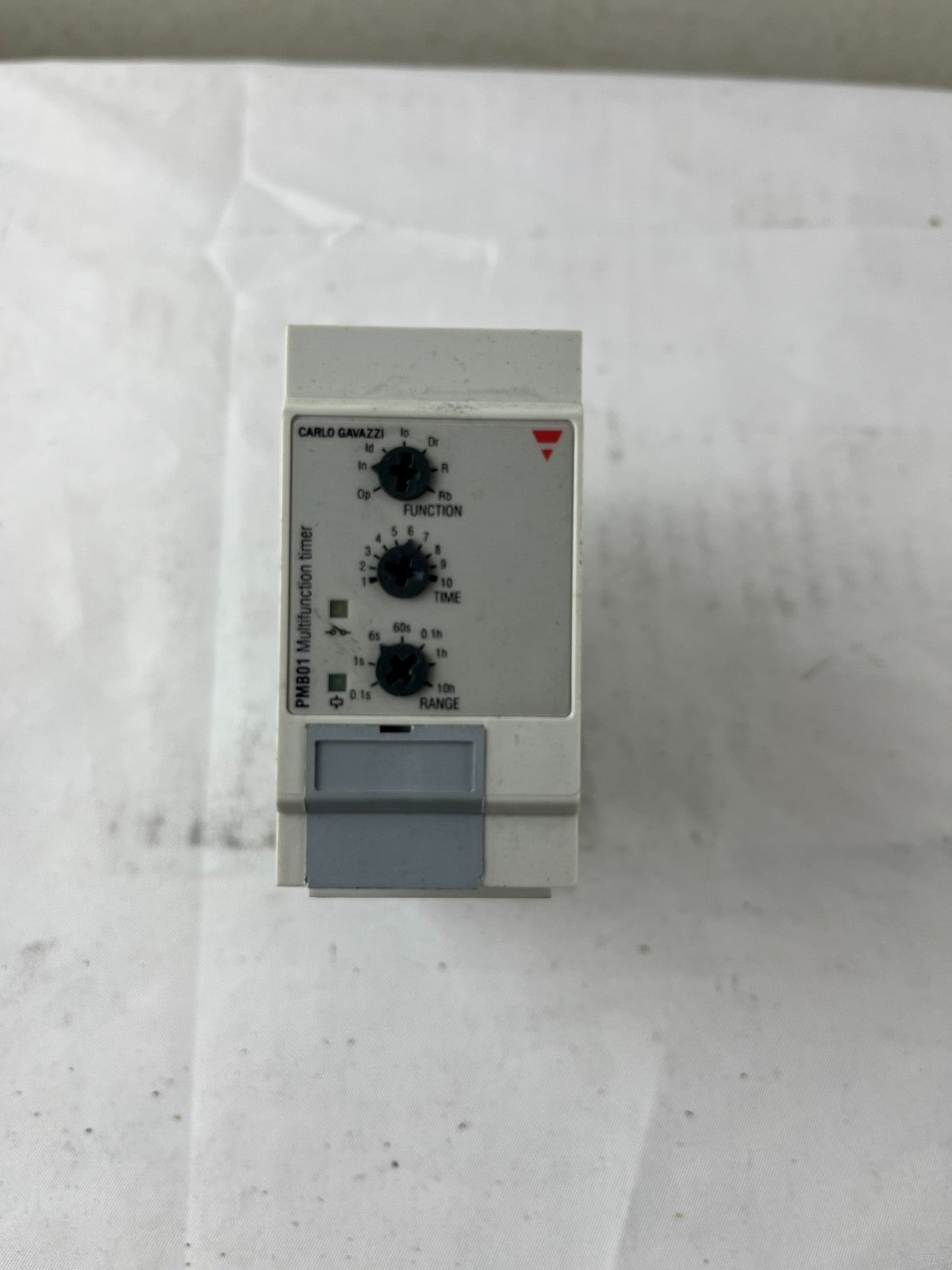

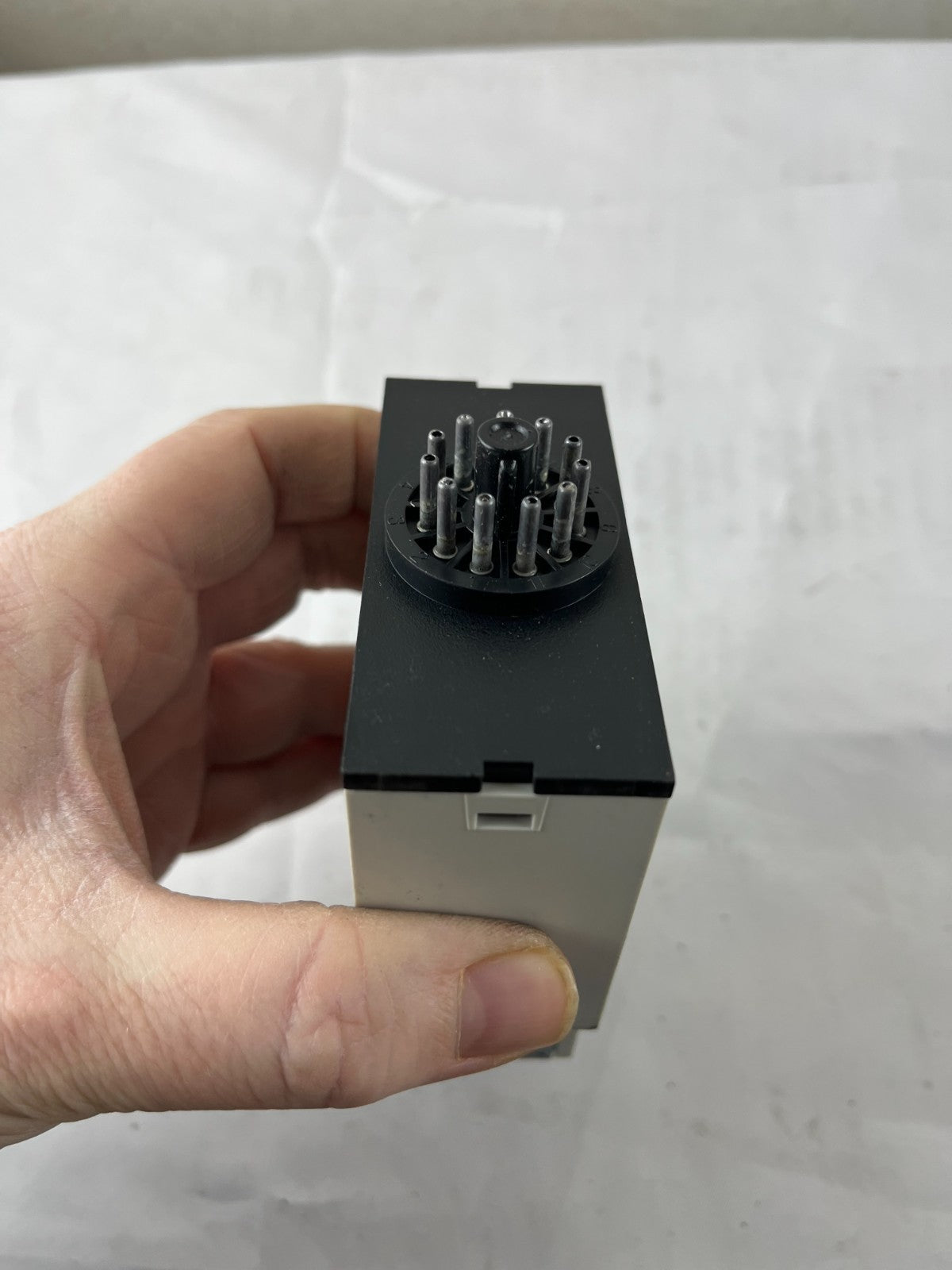

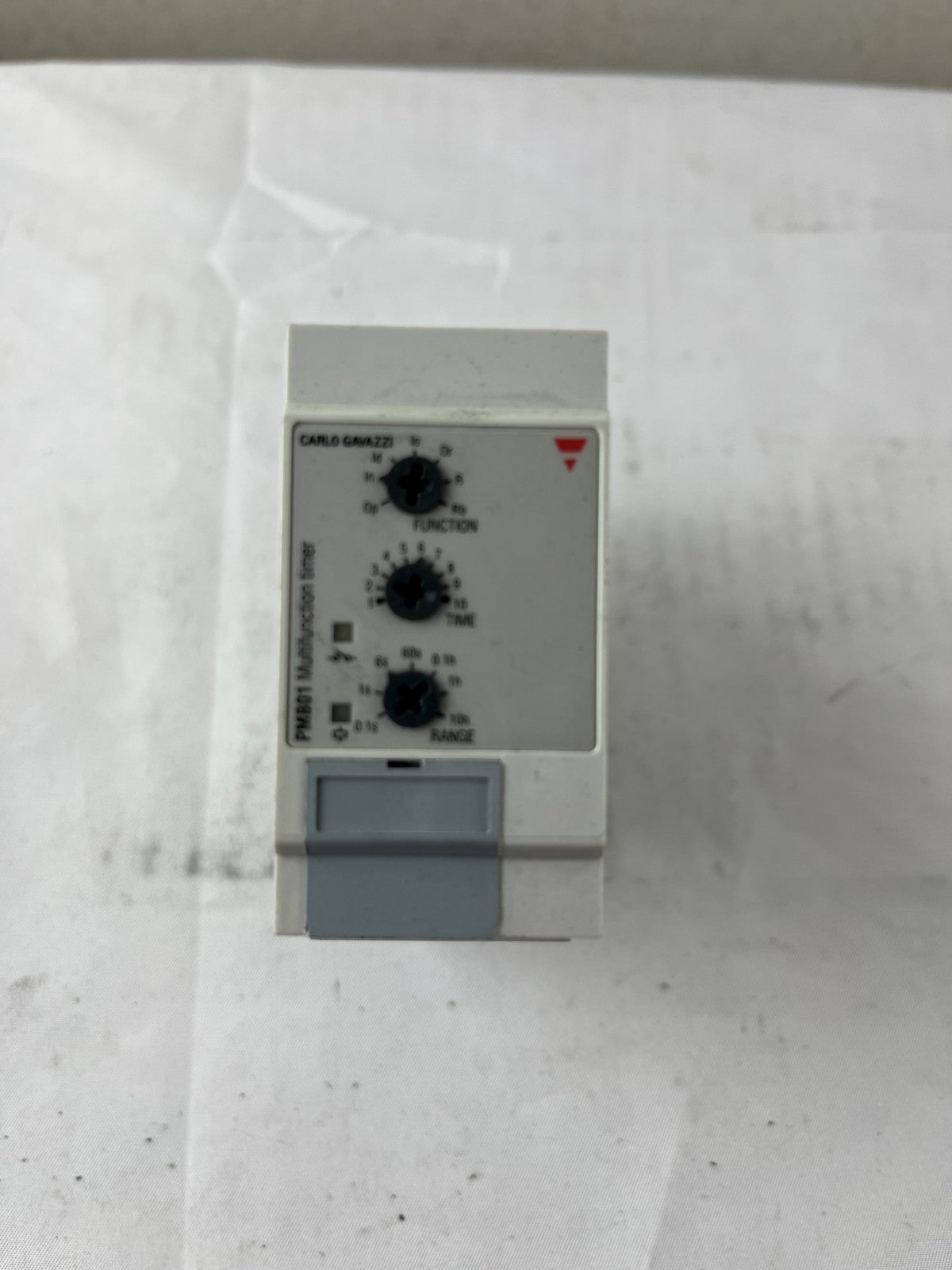

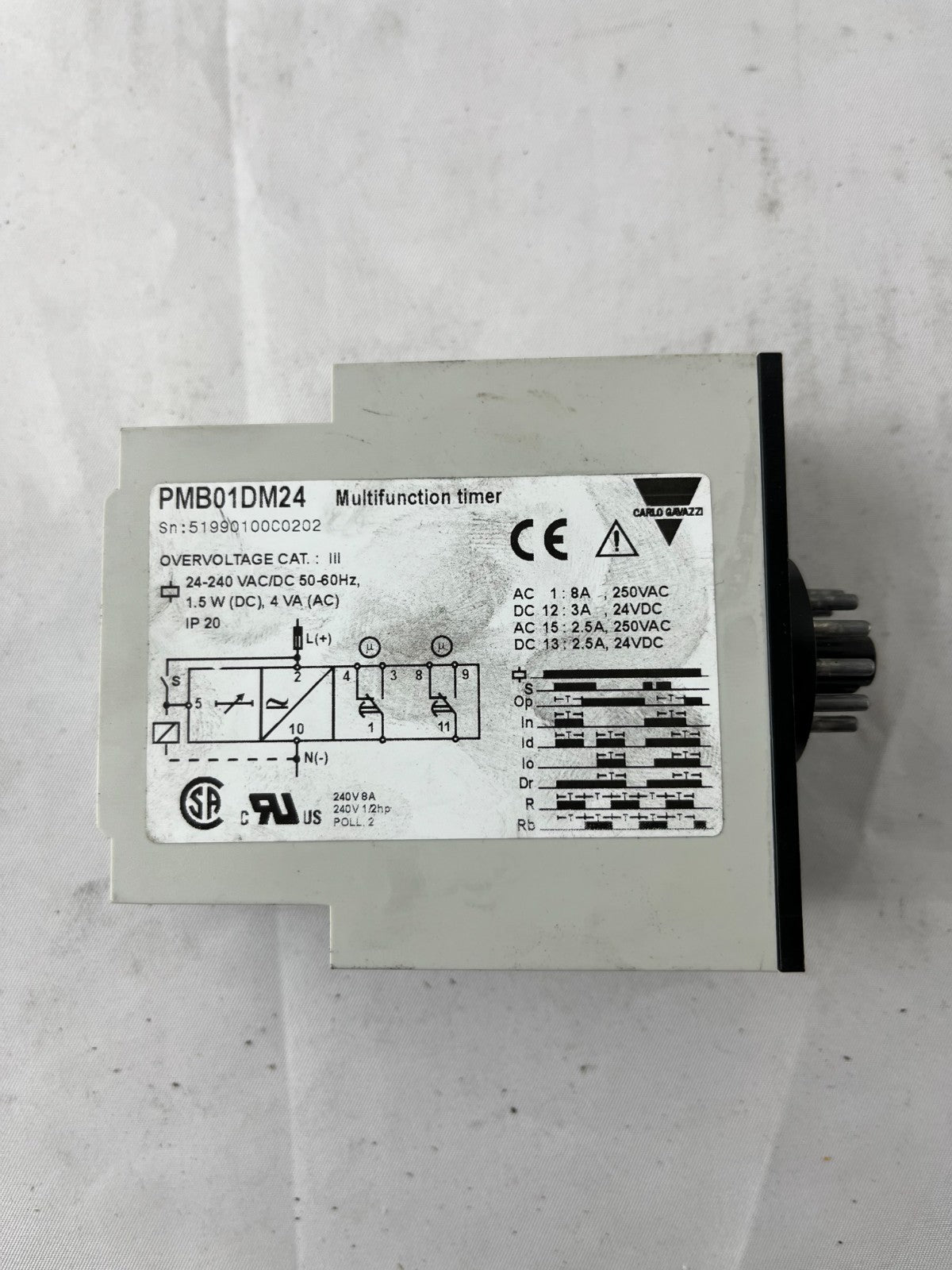

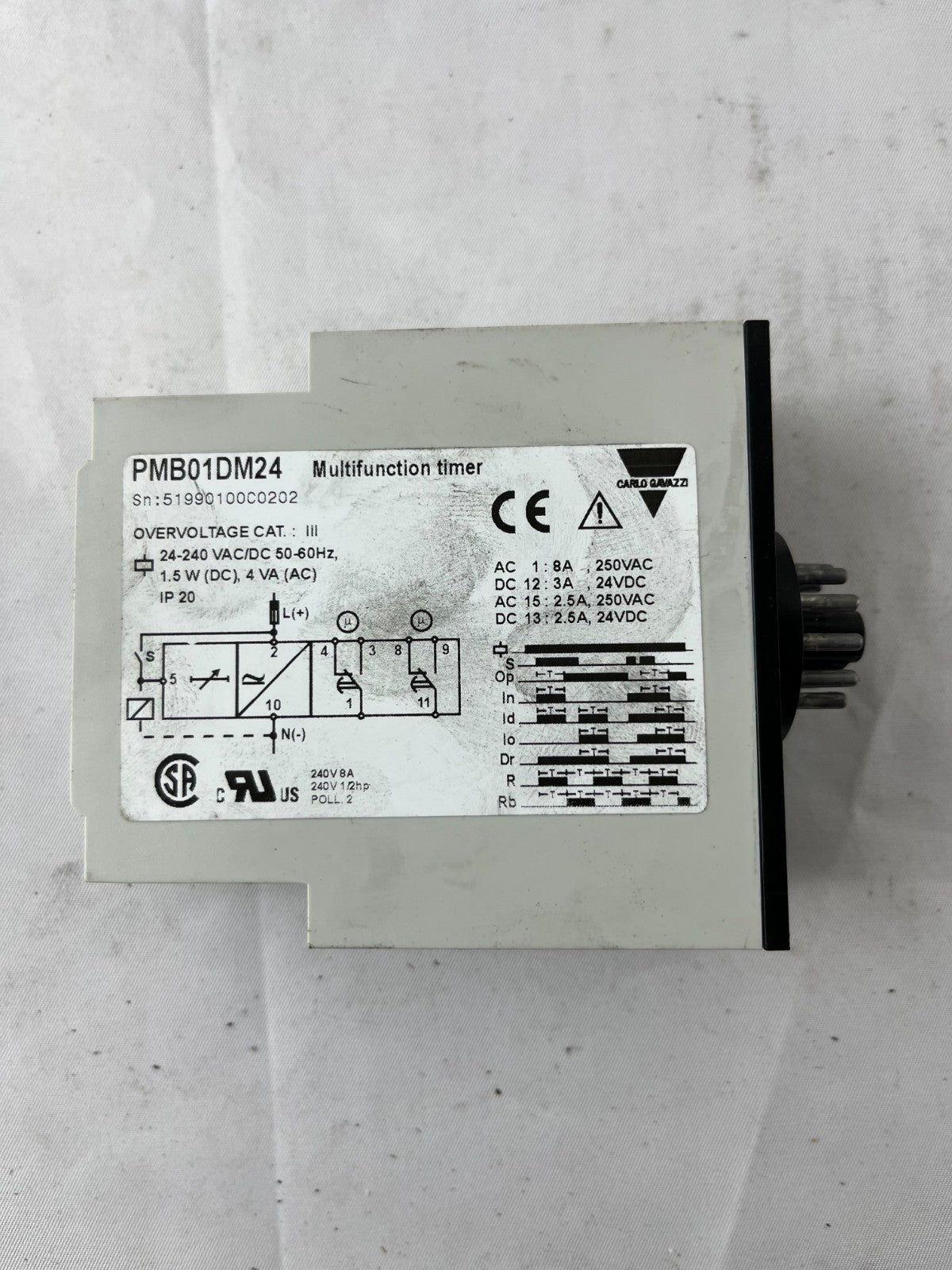

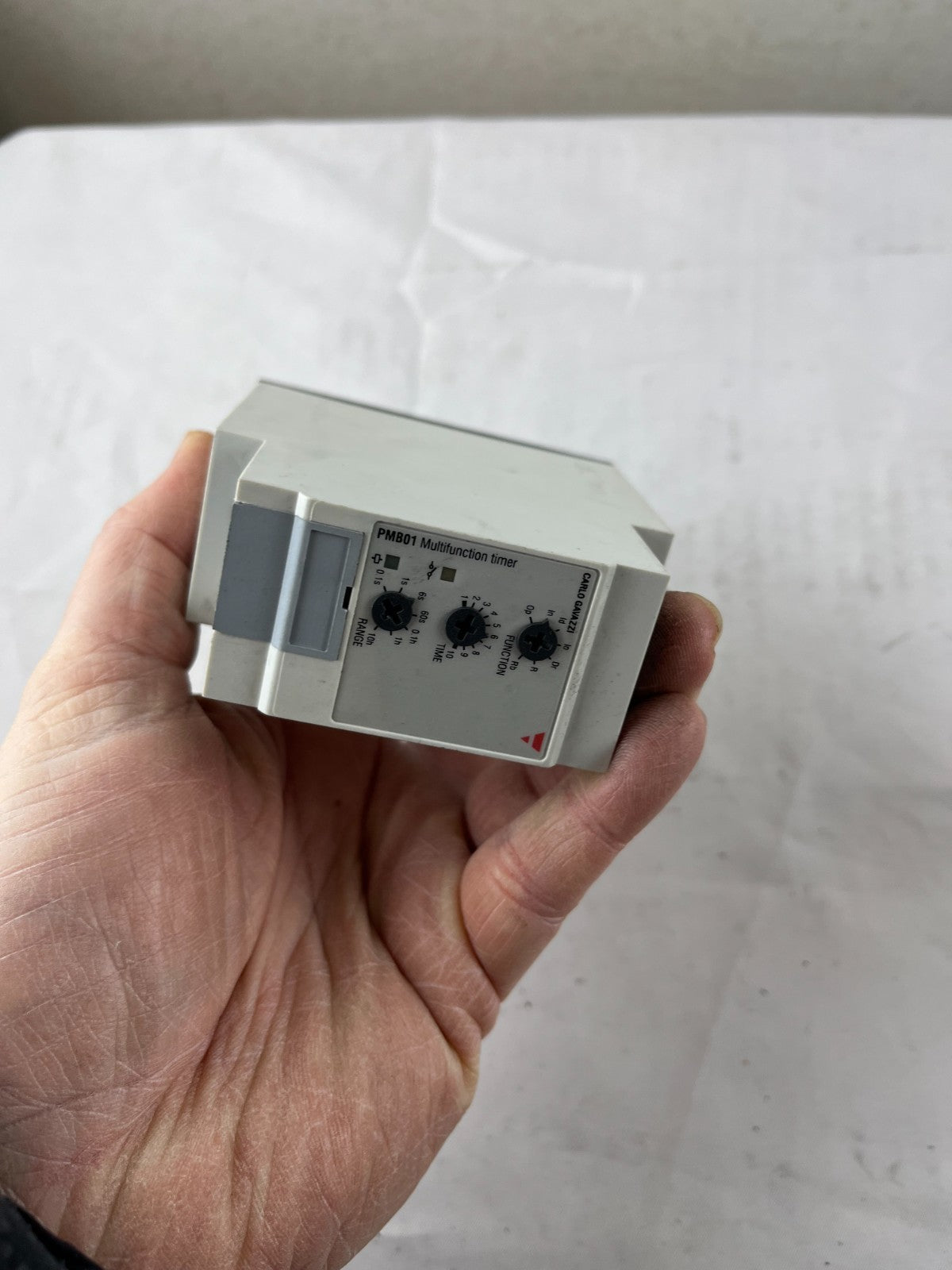

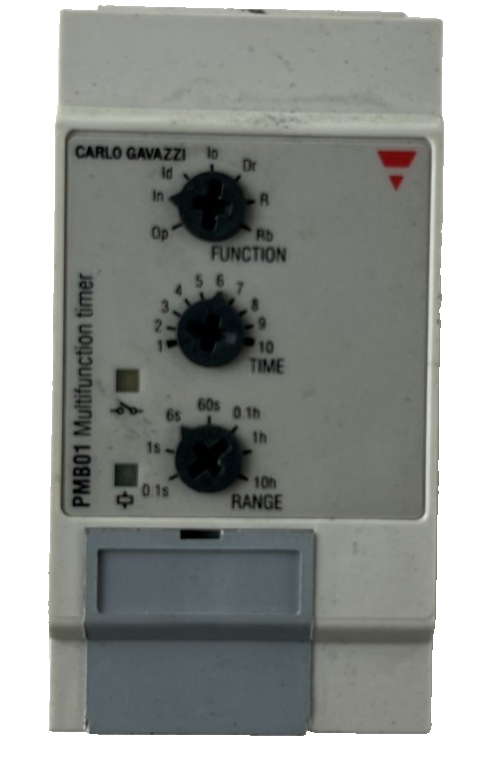

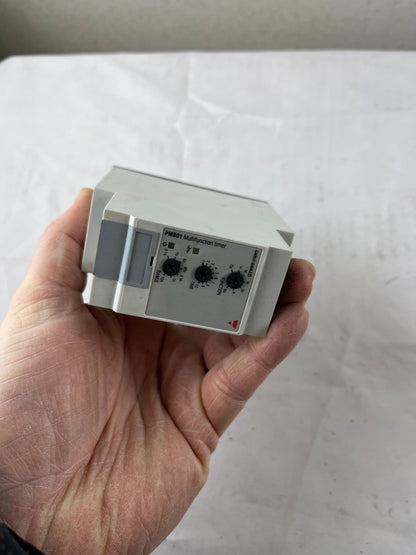

Used condition in very clean white/gray housing. Front panel is in excellent cosmetic condition with minimal wear. Three rotary dials appear fully functional: top dial for FUNCTION selection, middle dial for TIME setting, bottom dial for RANGE selection. LED indicator window visible on front. Carlo Gavazzi branding and red triangle logo clearly visible. Rear shows complete specification label with wiring diagram, ratings, and timing function charts. All 11 pins appear straight and intact.​

Applications

Designed for versatile industrial timing control with universal voltage compatibility. Ideal for motor control, sequential equipment operation, lighting control, HVAC systems, pump cycling, conveyor timing, and general automation. The multi-voltage capability (24-240V AC/DC) makes this suitable for virtually any control panel worldwide. Seven selectable functions cover all common timing modes including delay, interval, and recycling operations. Wide time range (0.1s to 100 hours) handles both rapid and extended timing applications
