Carlo Gavazzi S 110 166 724 Combi Timer Automatic Start 24V DC Used

Good used Electromatic S‑System S 110 166 724 combi timer, automatic start type, 24 V DC supply, removed in working condition from industrial equipment. Ideal as a plug‑in replacement timer relay for machinery or marine control panels.

What’s included

• 1 × Electromatic / Carlo Gavazzi S 110 166 724 combi timer module (as shown)

• No 11‑pin base, wiring, or manuals included

Key specifications

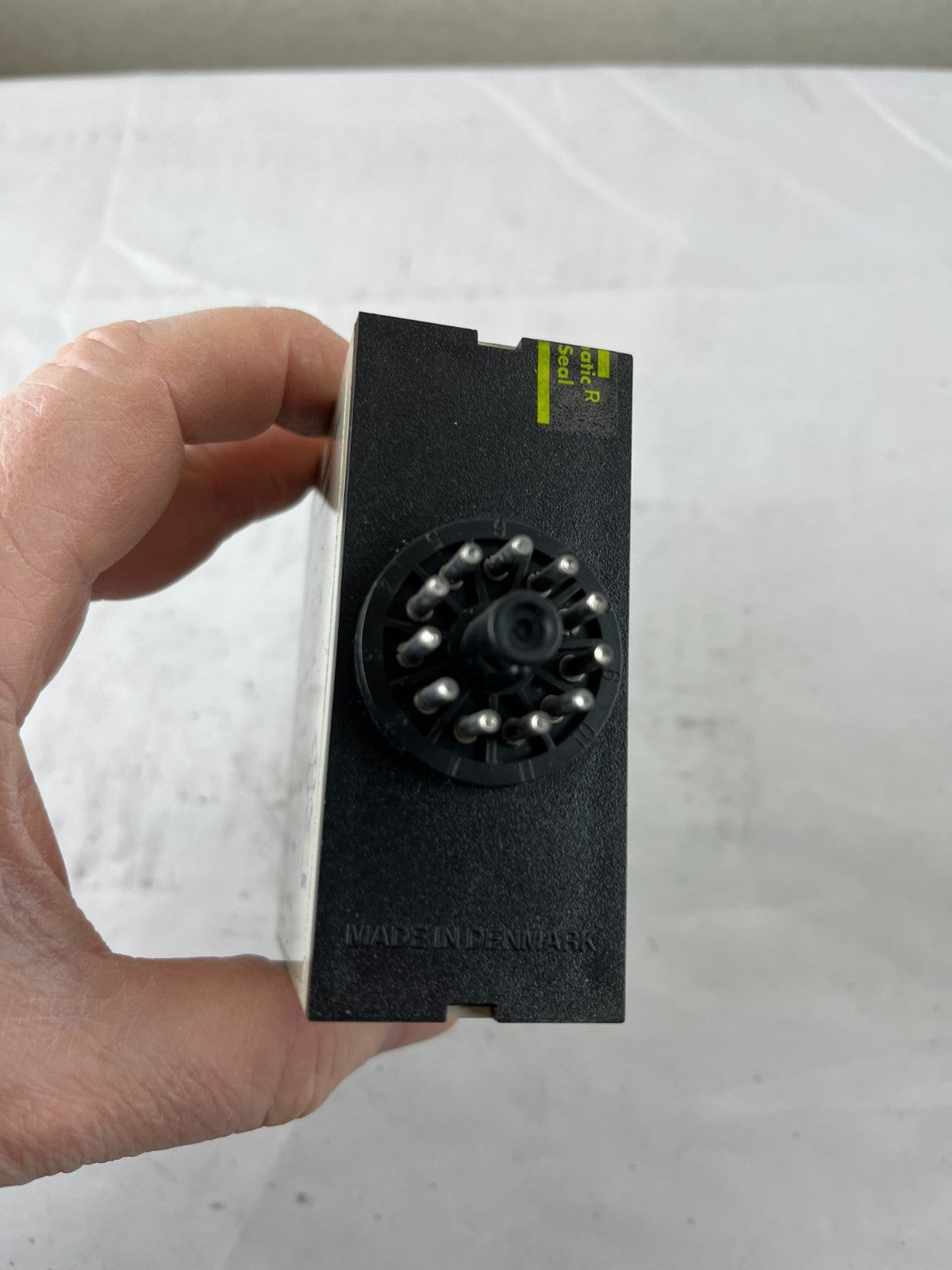

• Brand: Electromatic S‑System (Carlo Gavazzi Group), made in Denmark (label “Made in Denmark” on housing)

• Model: S 110 166 724, combi timer, automatic start

• Supply: 24 V DC (20–28 V DC), approx. 2 W consumption

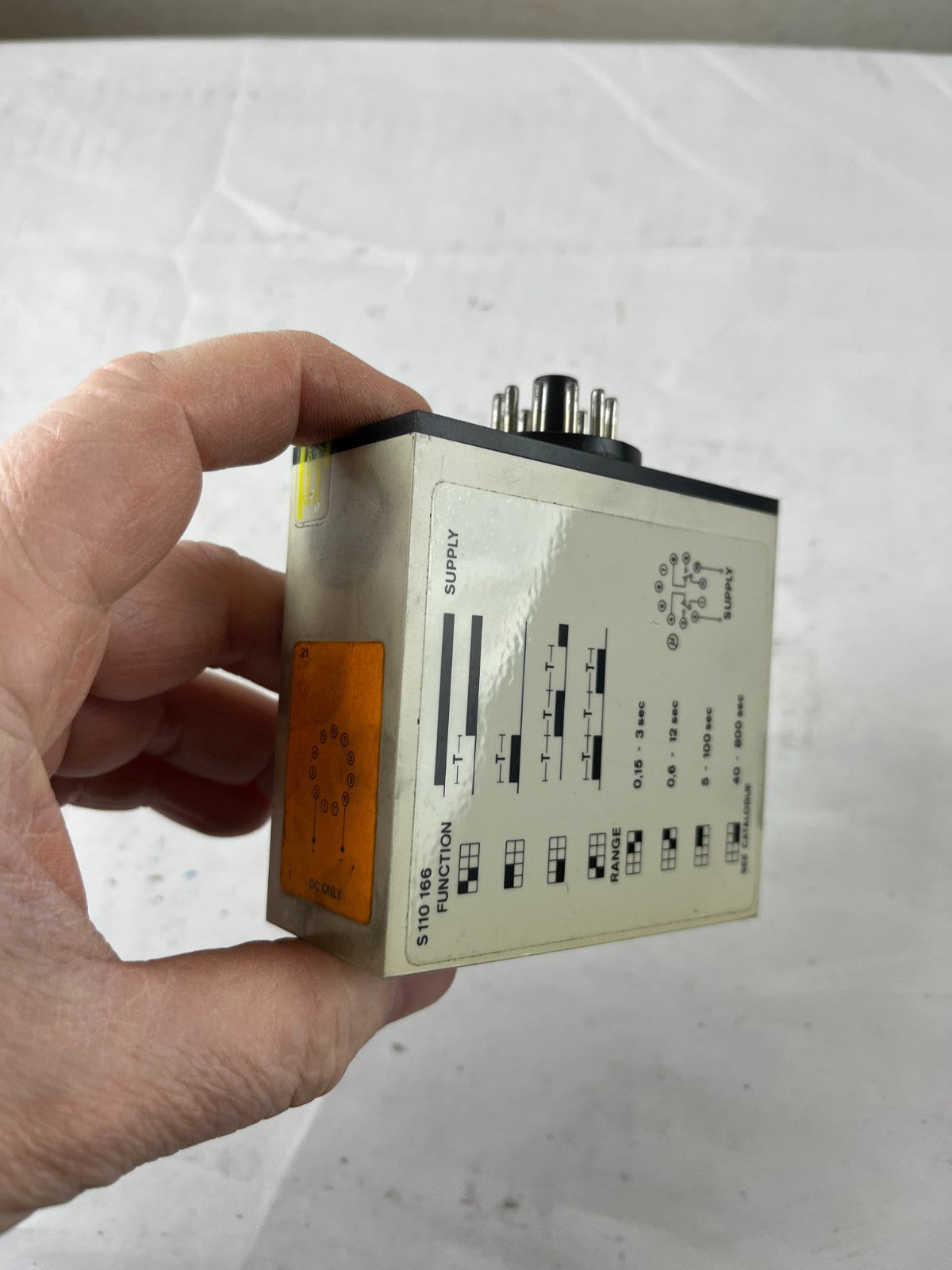

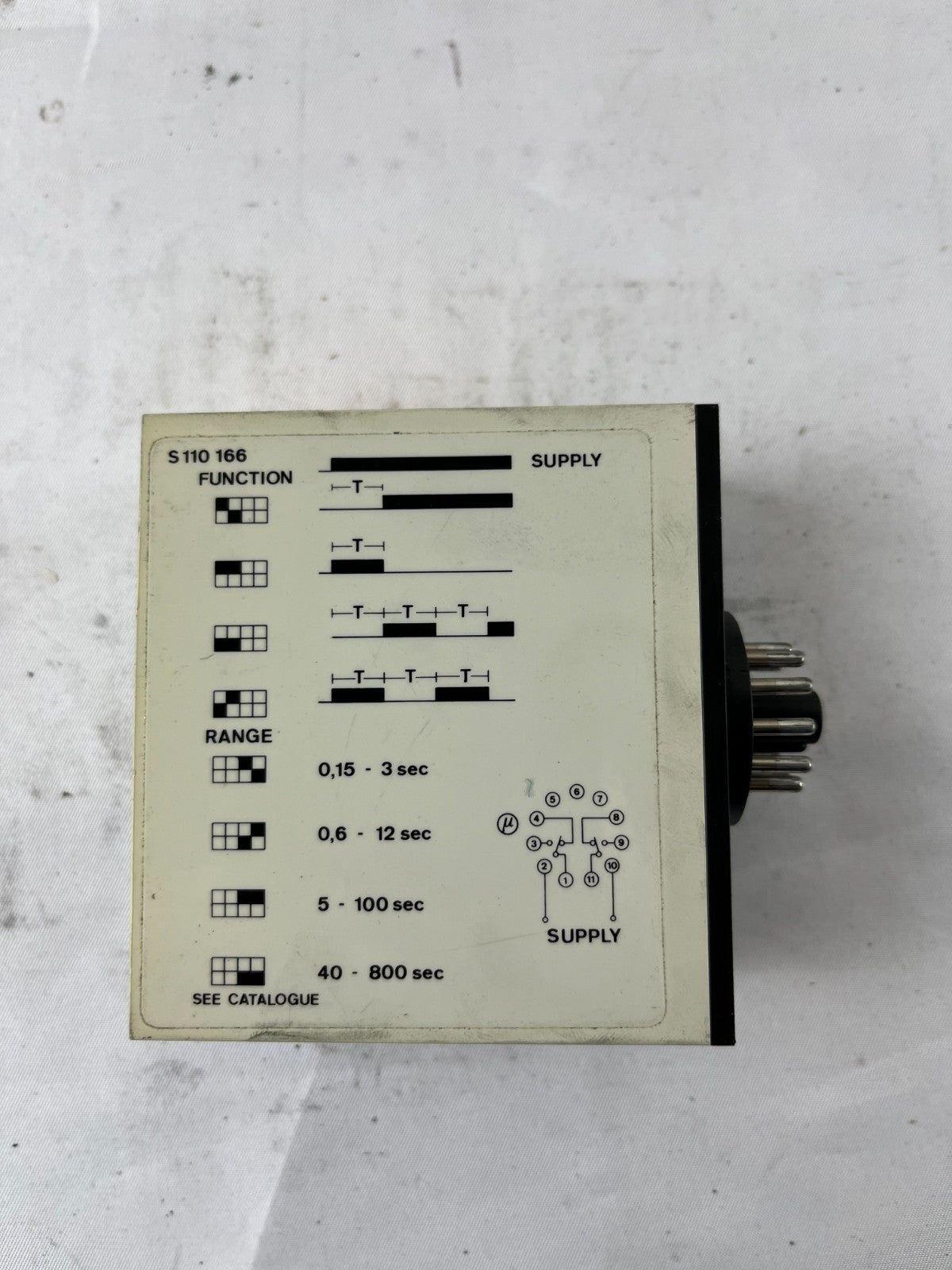

• Time ranges (selectable): 0.15–3 s, 0.6–12 s, 5–100 s, 40–800 s (shown on side label)

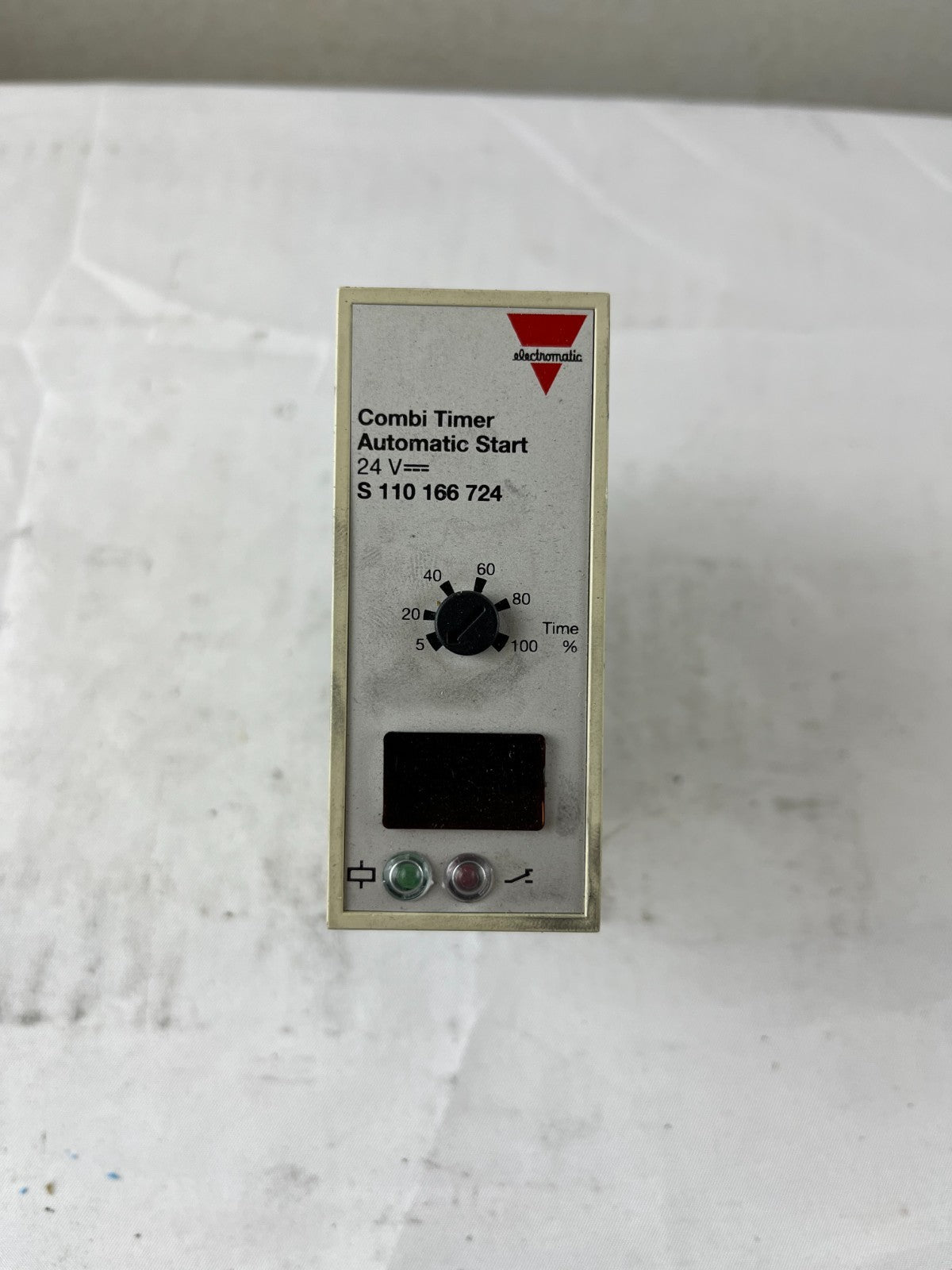

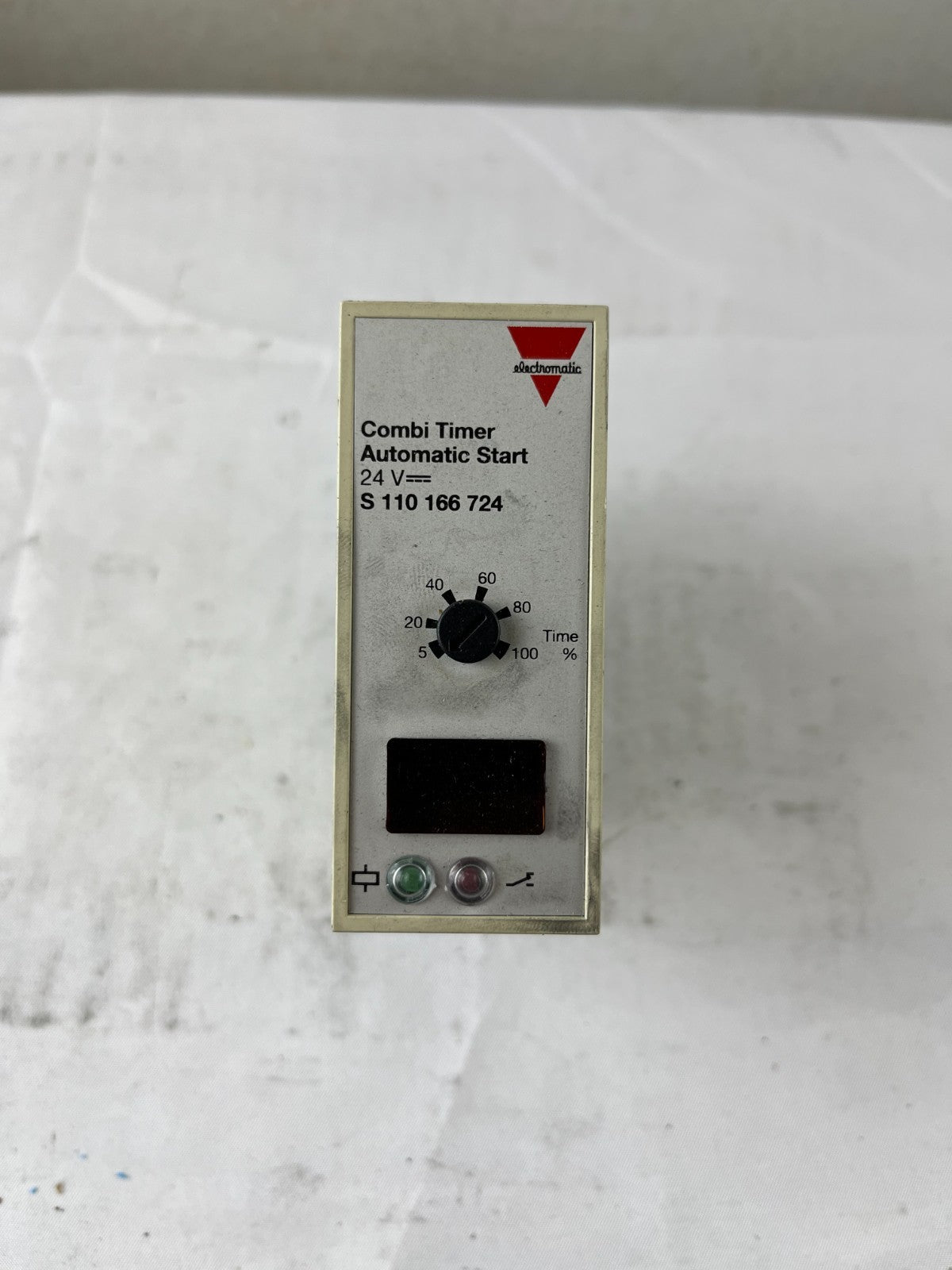

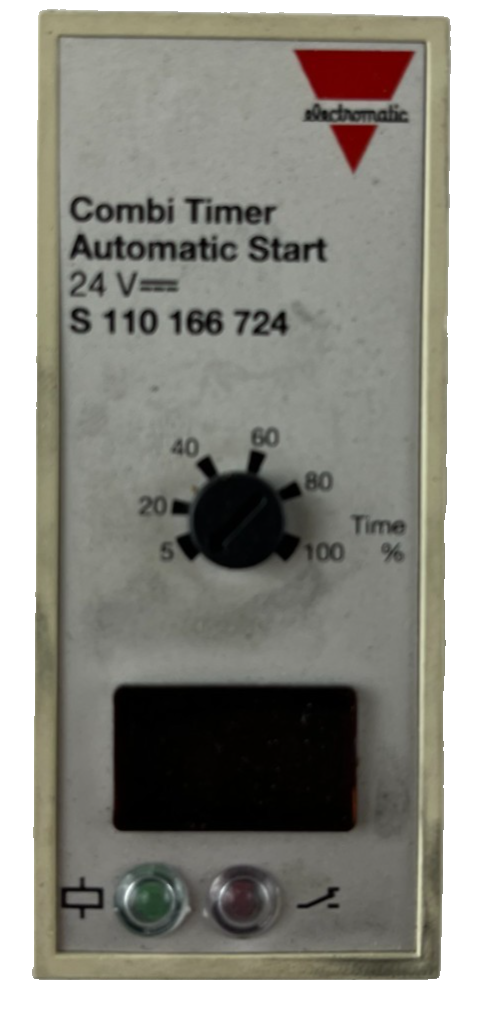

• Time setting: Front knob 5–100% of selected range with percentage scale window

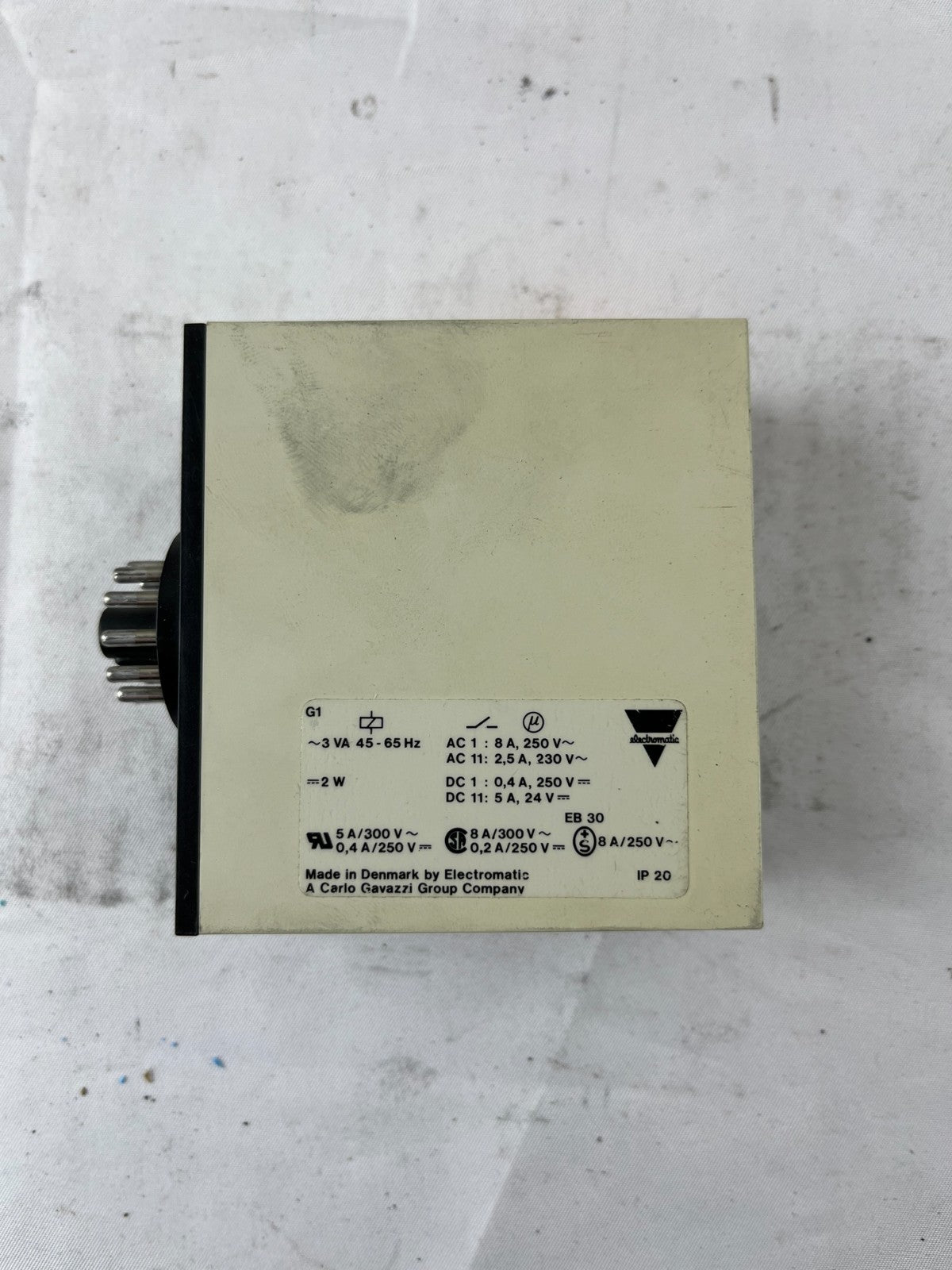

• Output: DPDT relay, rated AC1 8 A 250 V, AC11 2.5 A 230 V, DC1 0.4 A 250 V, DC11 5 A 24 V (as per rating label)

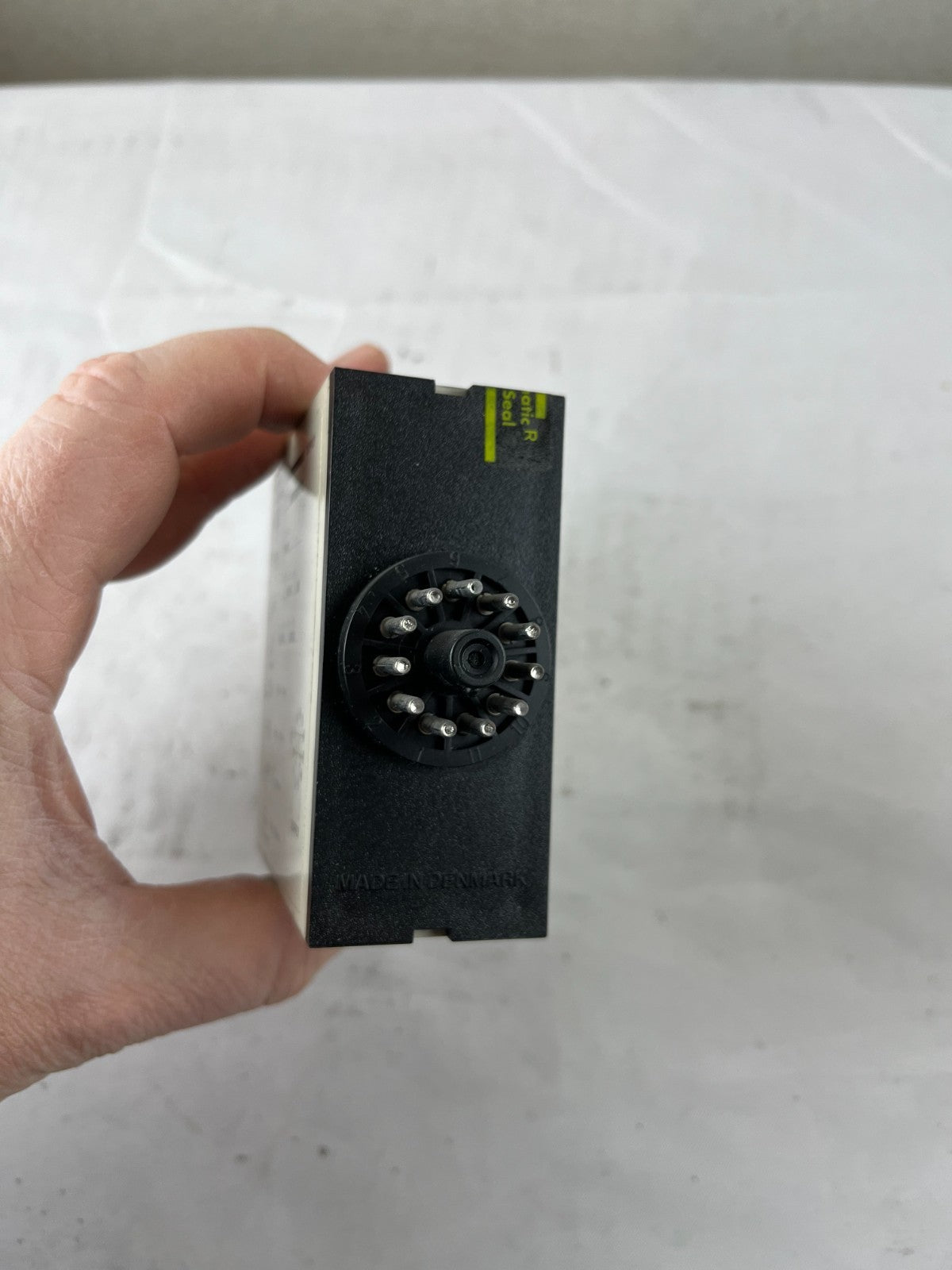

• Mounting: 11‑pin circular plug‑in base, IP20 enclosure

Condition notes

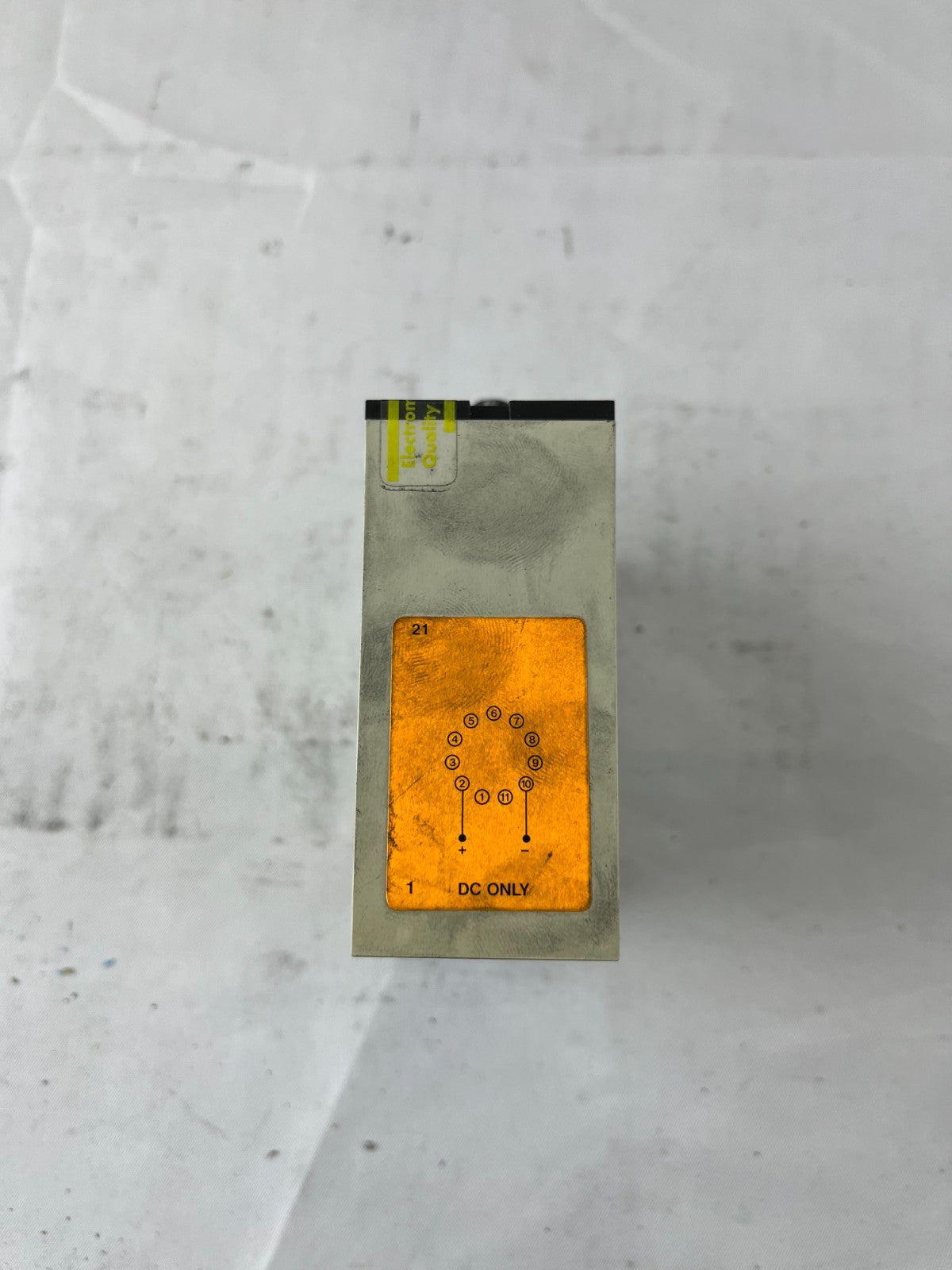

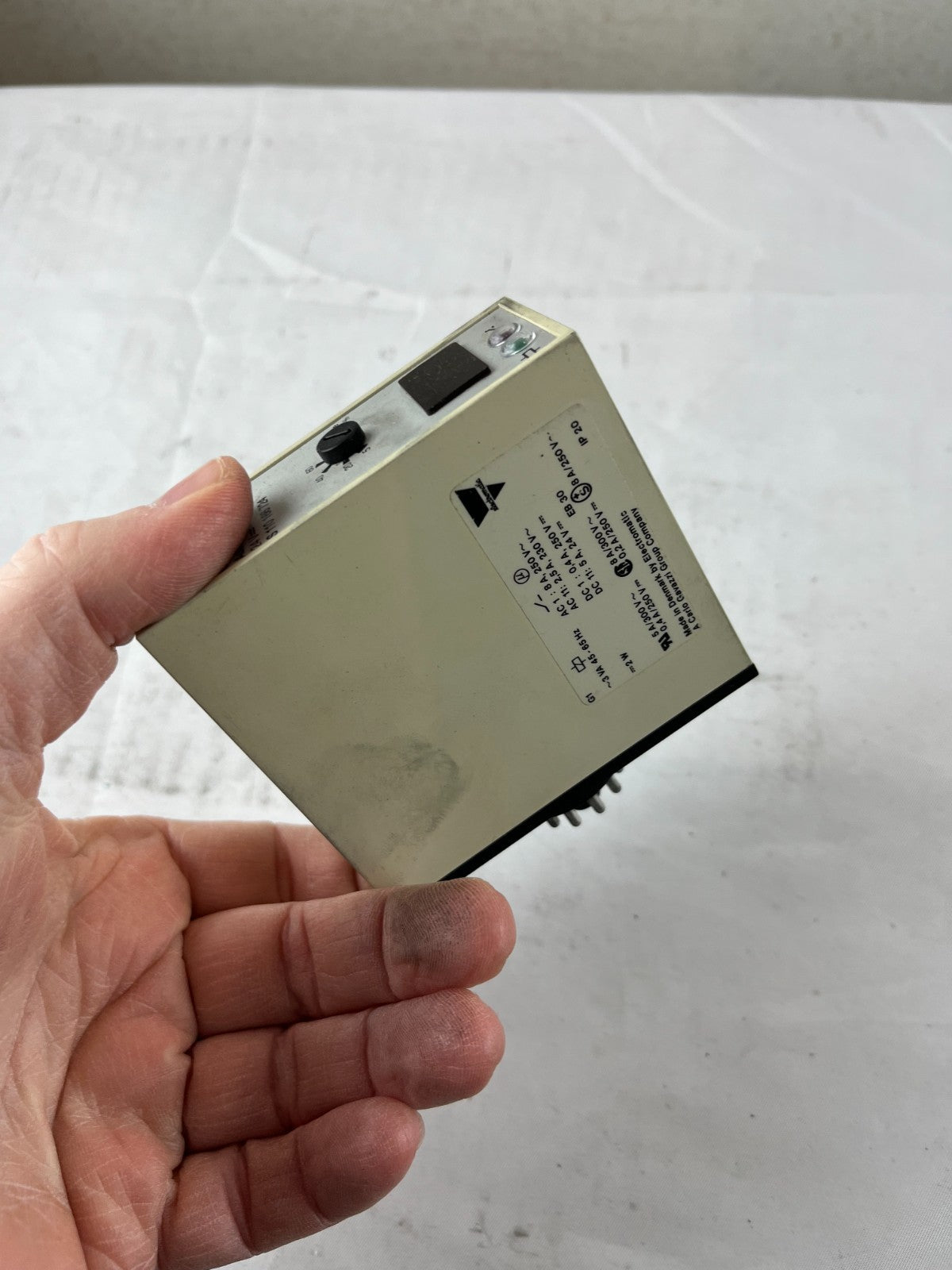

Unit is in good used condition with typical cosmetic wear from service: discoloration to the front bezel, light scratches and fingerprints on the housing, and some marks on the labels, but all text and diagrams remain readable (see photos). Pins are straight with light storage oxidation only, and there are no visible cracks or broken plastic parts. Timer was removed from a functioning system and is sold as a working used module
