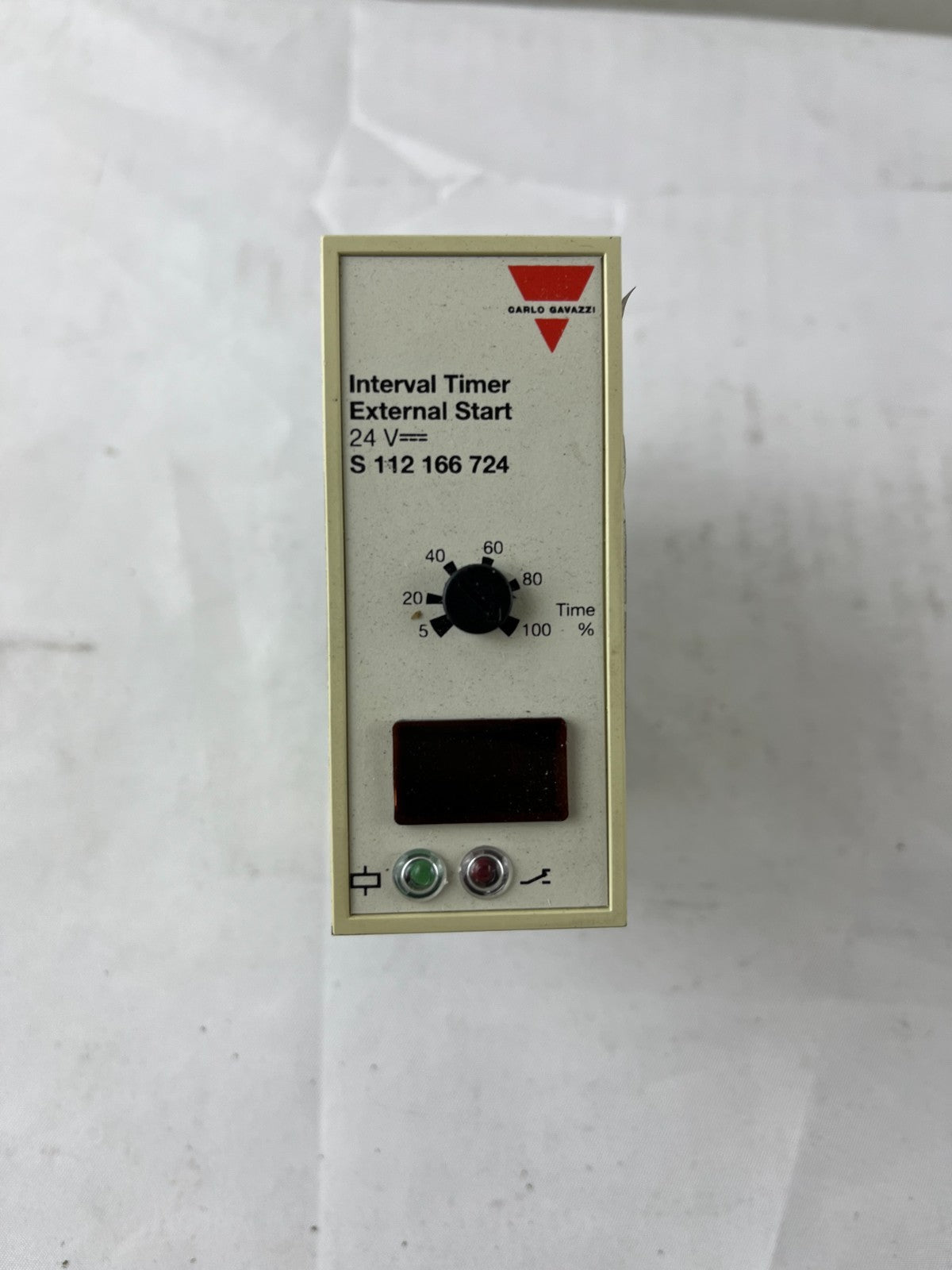

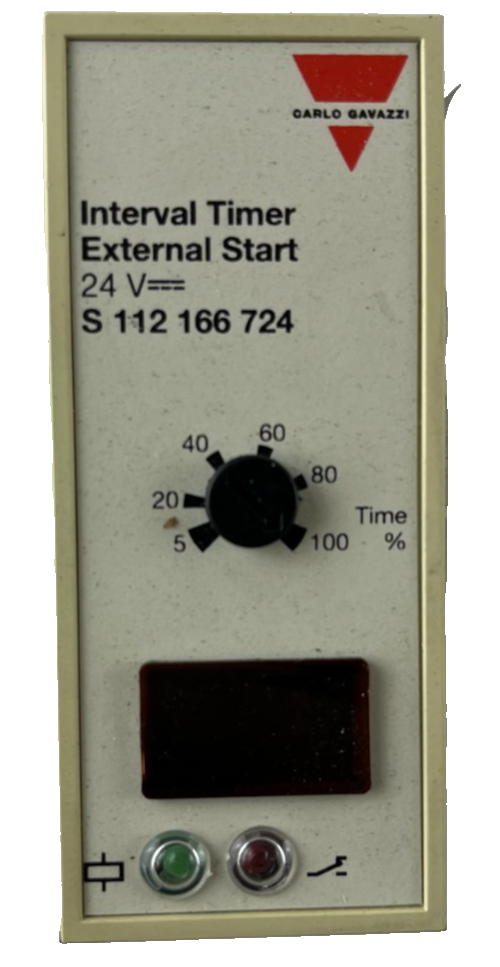

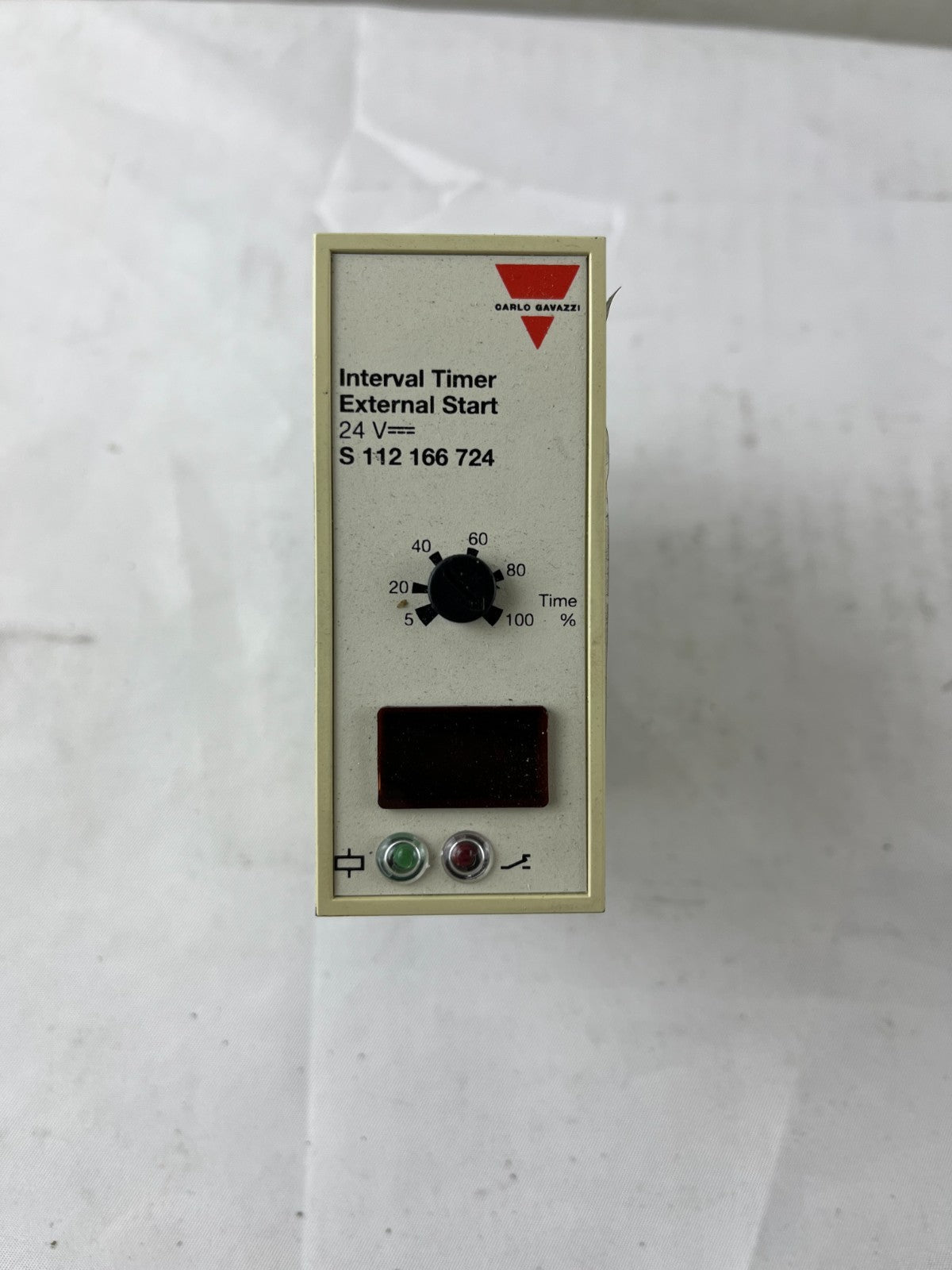

Carlo Gavazzi S112 166 724 interval timer with external start function, featuring front-mounted digital display window and percentage-based time adjustment dial. This plug-in timer operates at 24V supply with adjustable timing control from 5-100%.
-
1x Carlo Gavazzi S112 166 724 Interval Timer module
-
Model: S112 166 724
-
Type: Interval Timer, External Start
-
Supply Voltage: 24V DC/AC
-
Time Adjustment: 5-100% dial (percentage-based)
-
Time Ranges: Multiple selectable ranges - 0.15-3sec, 0.6-12sec, 5-100sec, 40-800sec
-
Display: Digital window with LED indicators
-
Mounting: 11-pin plug-in base (octal socket)
-
Power Consumption: ~3VA
-

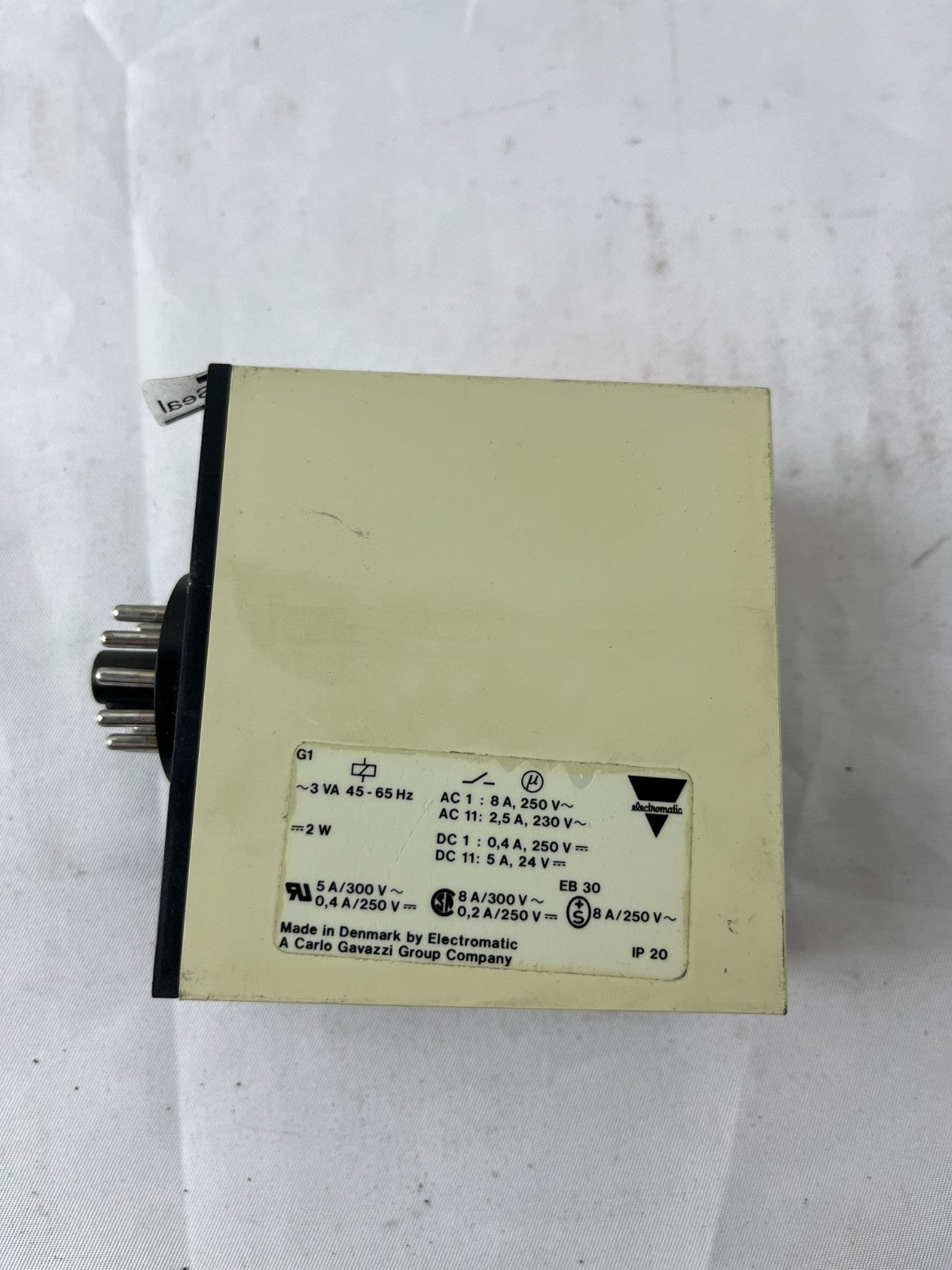

Contact Rating: AC1: 8A/250V, AC11: 2.5A/230V, DC1: 0.4A
-
Manufacturer: Carlo Gavazzi - Made in Denmark

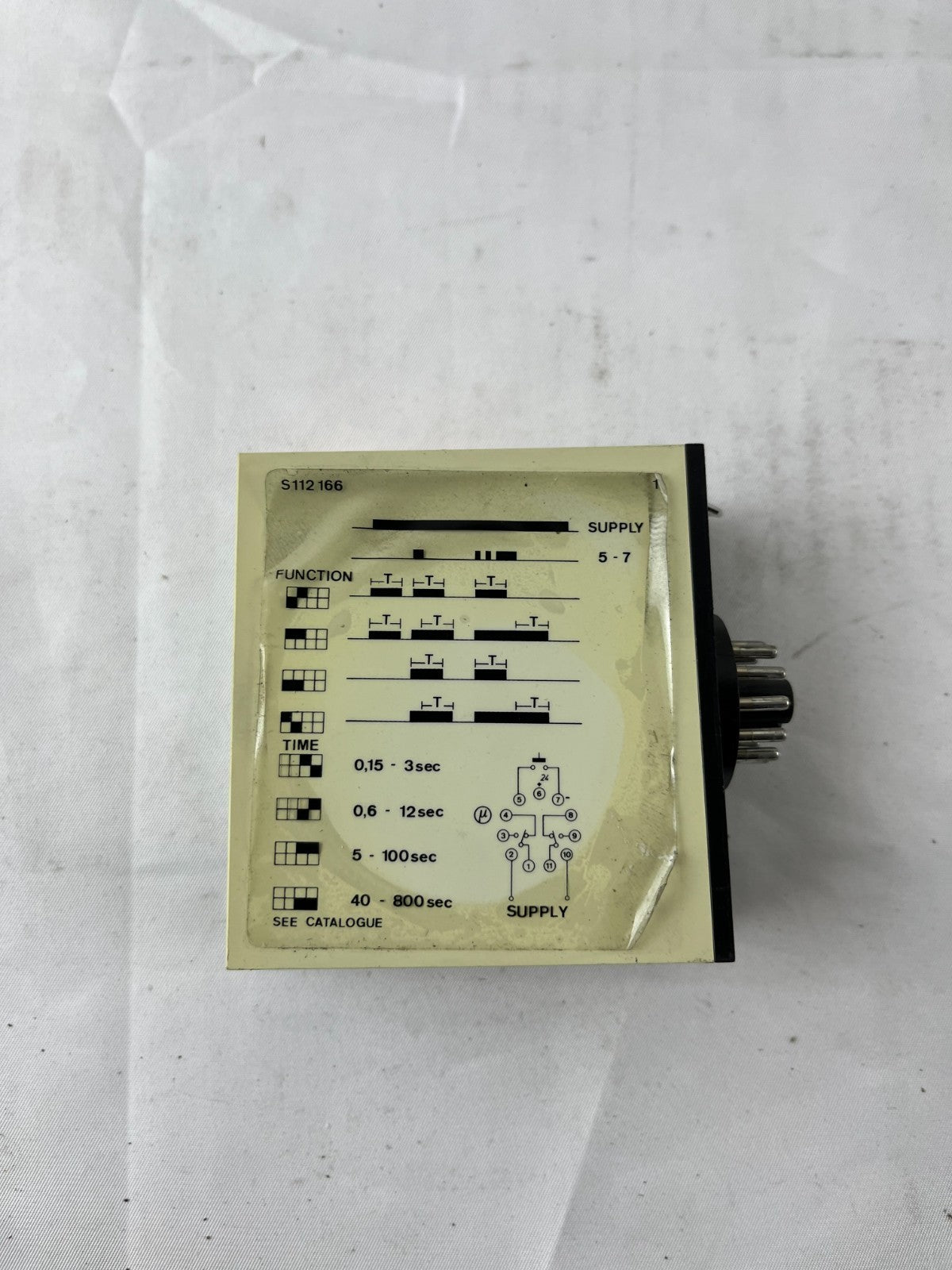

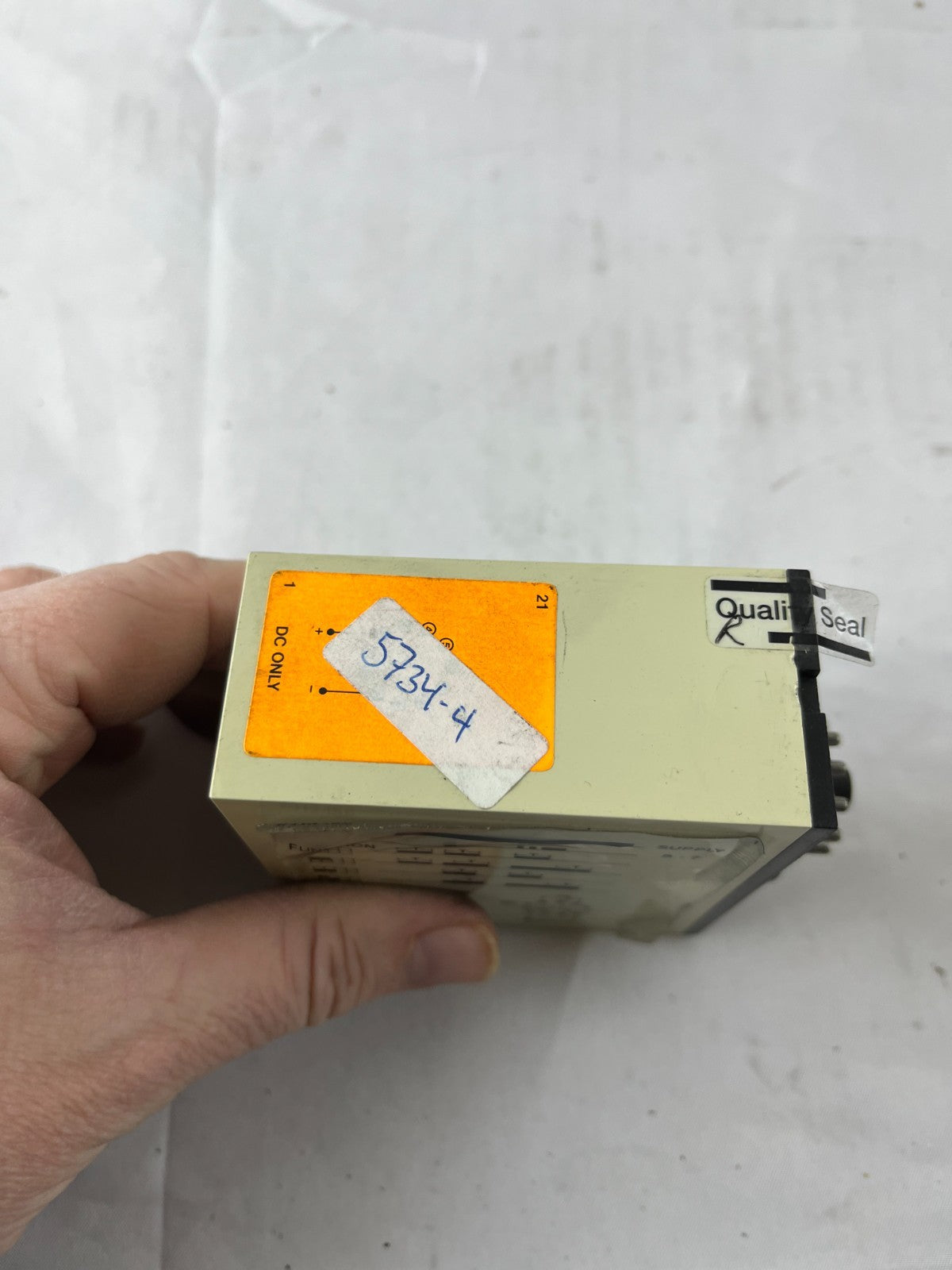

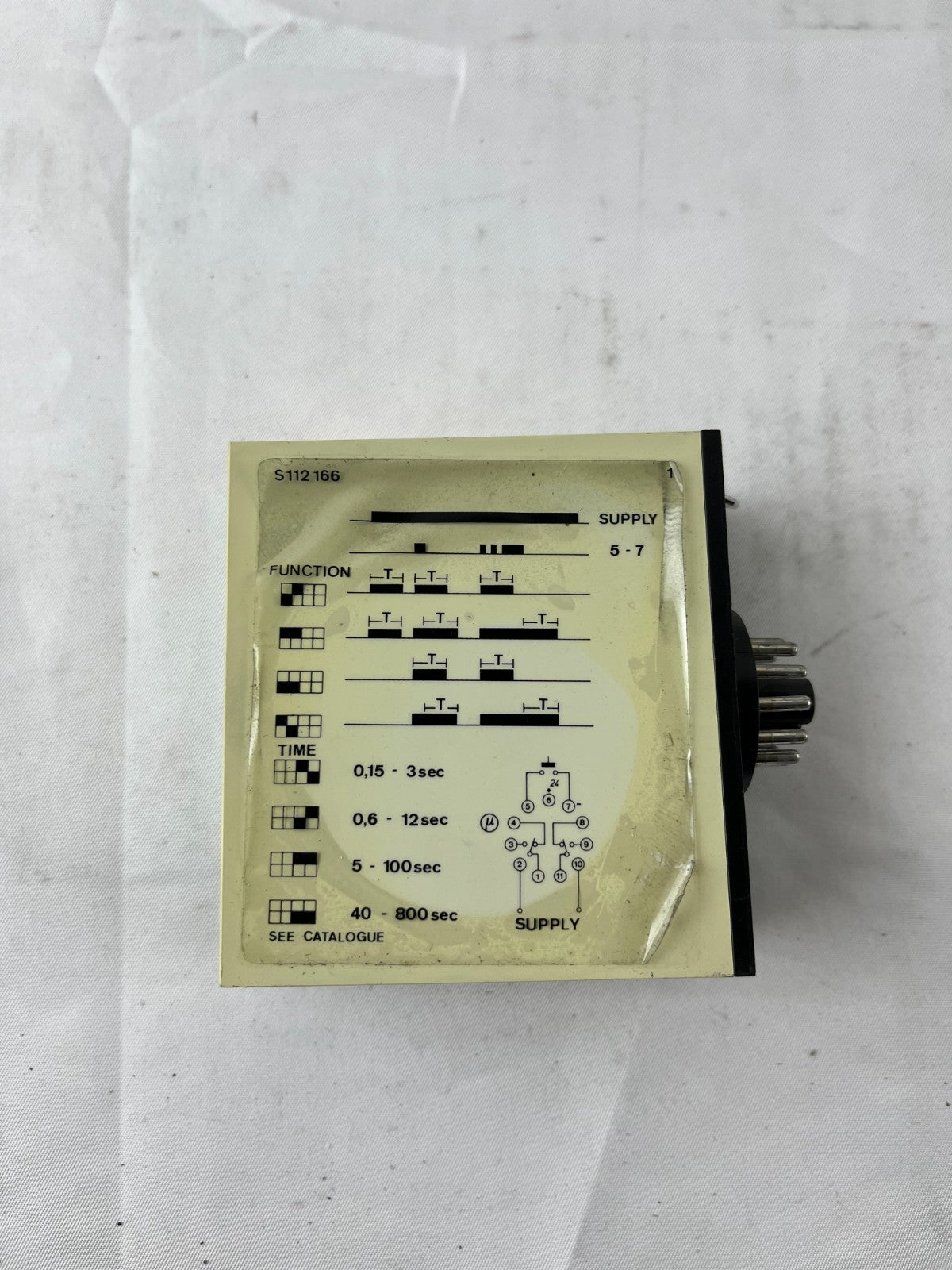

Used condition with visible wear to the beige housing and some surface scratching. Front panel shows minor discoloration around the display window and control dial. The rear "MADE IN DENMARK" marking is clearly visible on the black base. Complete wiring diagram label on back shows multiple timing functions and pin configuration. All 11 pins appear intact with no visible damage.
Designed for industrial automation requiring interval timing with external trigger start in control panels and manufacturing equipment. Common applications include sequential operation control, process timing, and automated machinery cycles where external signal initiation is required.
