Celduc SUL867070 Solid State Relay 35A 24‑510VAC 3.5‑32VDC DIN Rail w/ Heatsink

Celduc SUL867070 Solid State Relay 35A 24‑510VAC 3.5‑32VDC DIN Rail w/ Heatsink New

- Shipping includes tracking info worldwide. Klaus KLJ Trading

Brand: Celduc Relais.

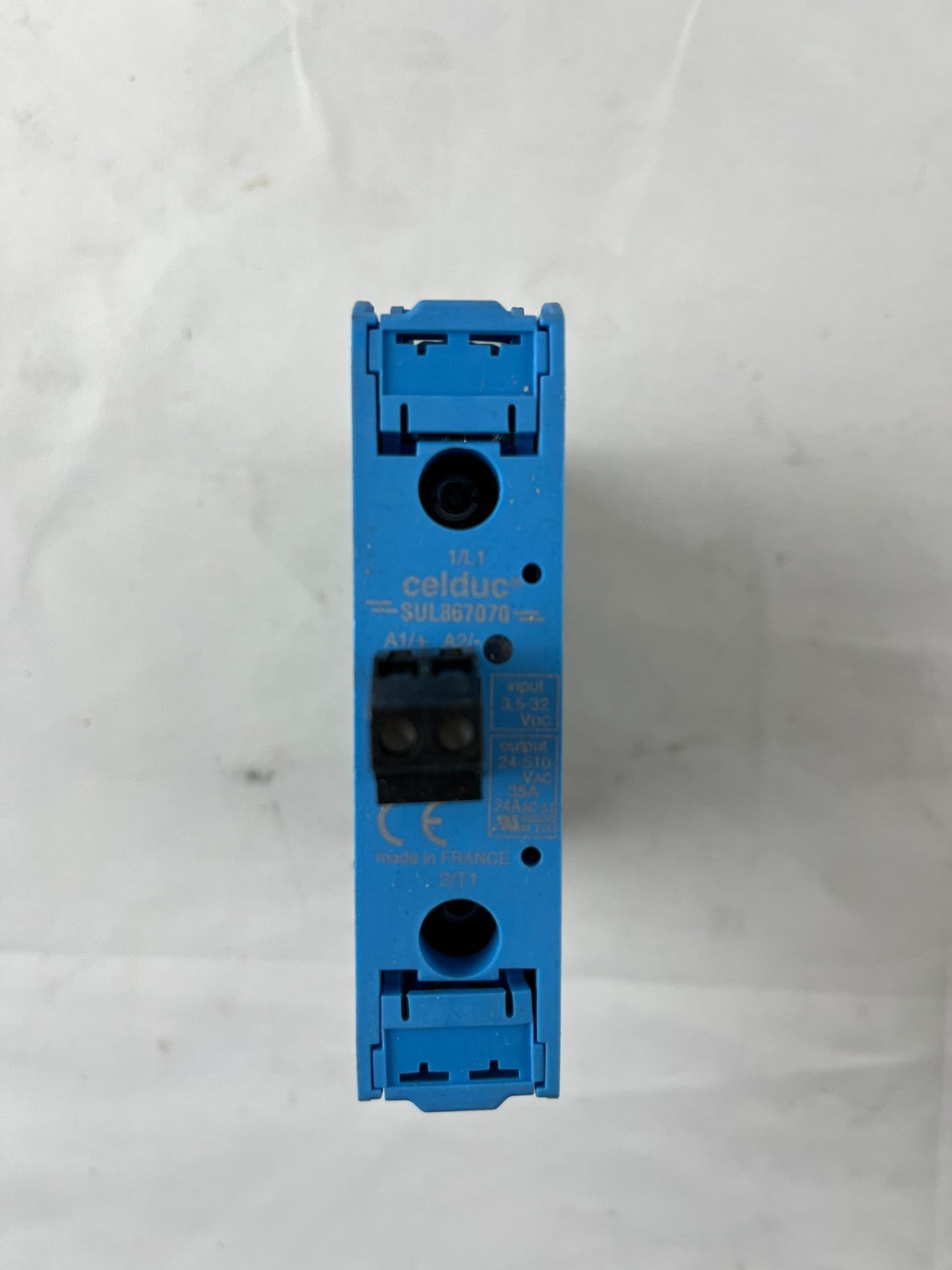

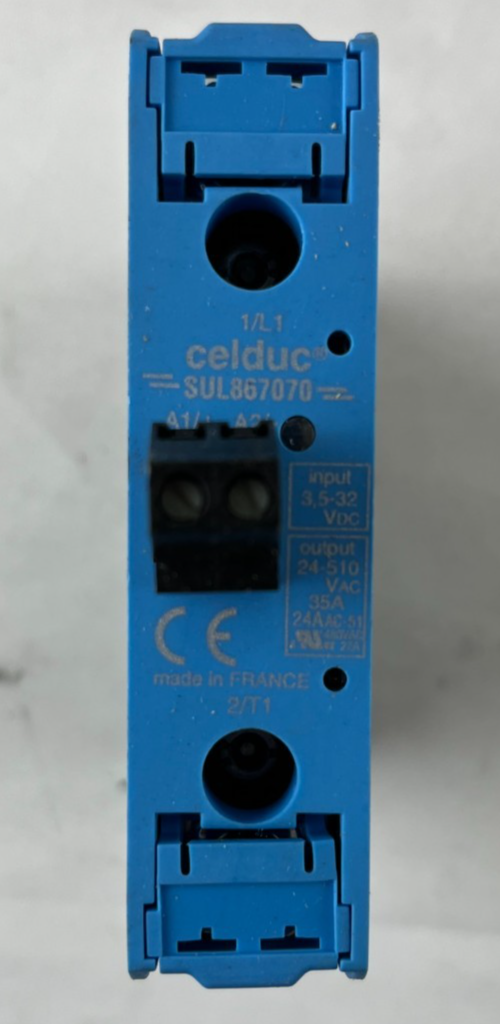

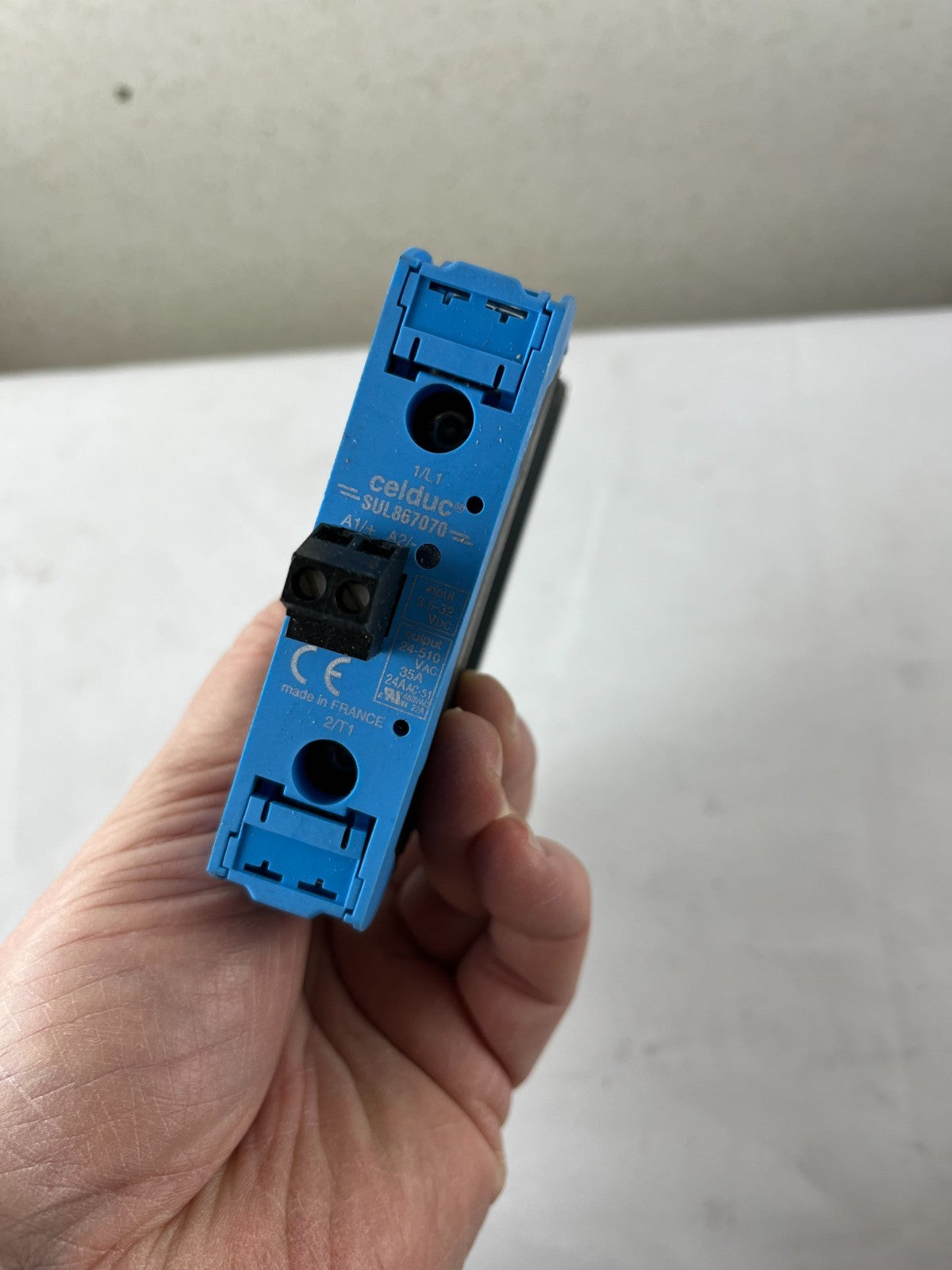

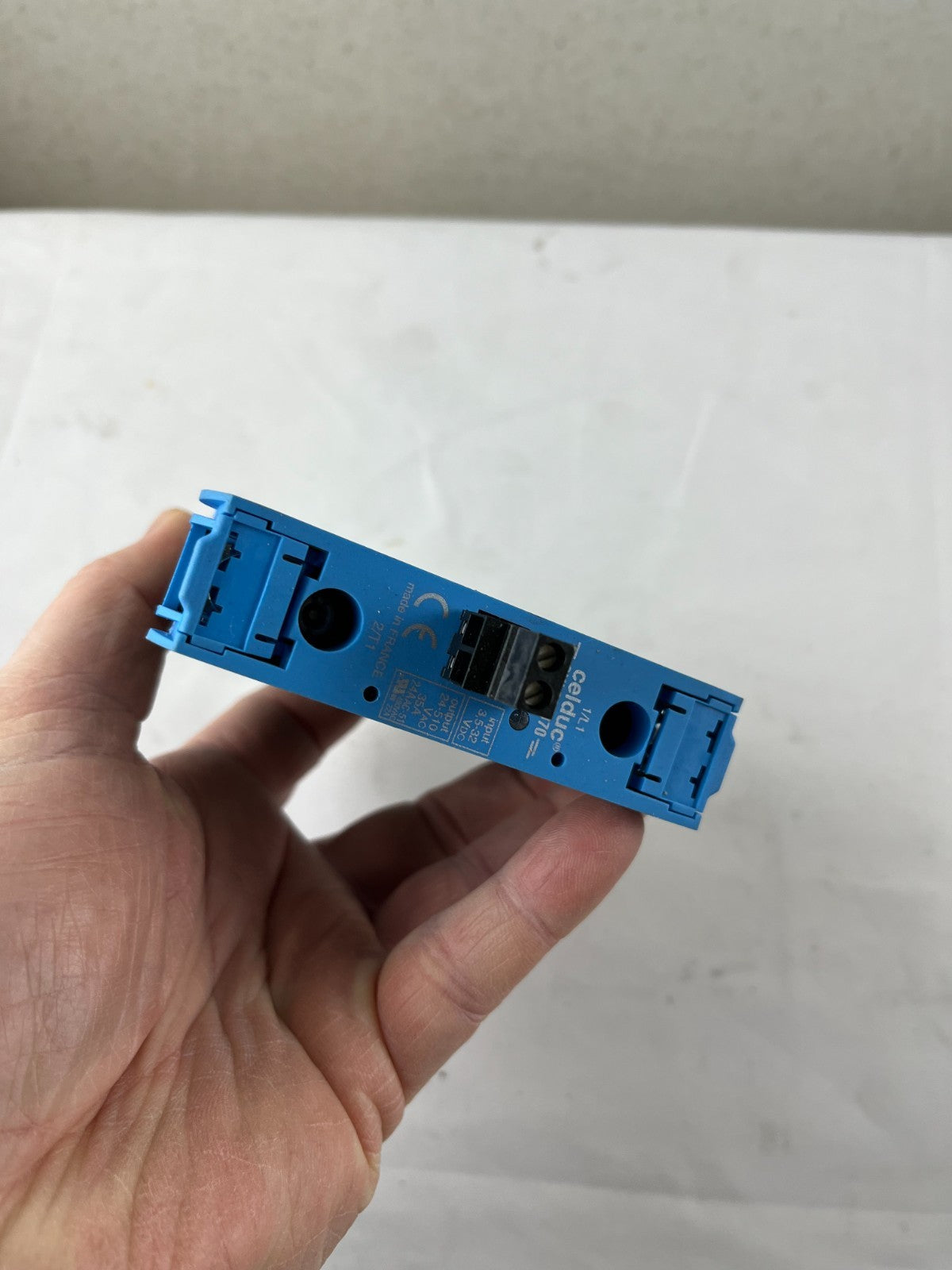

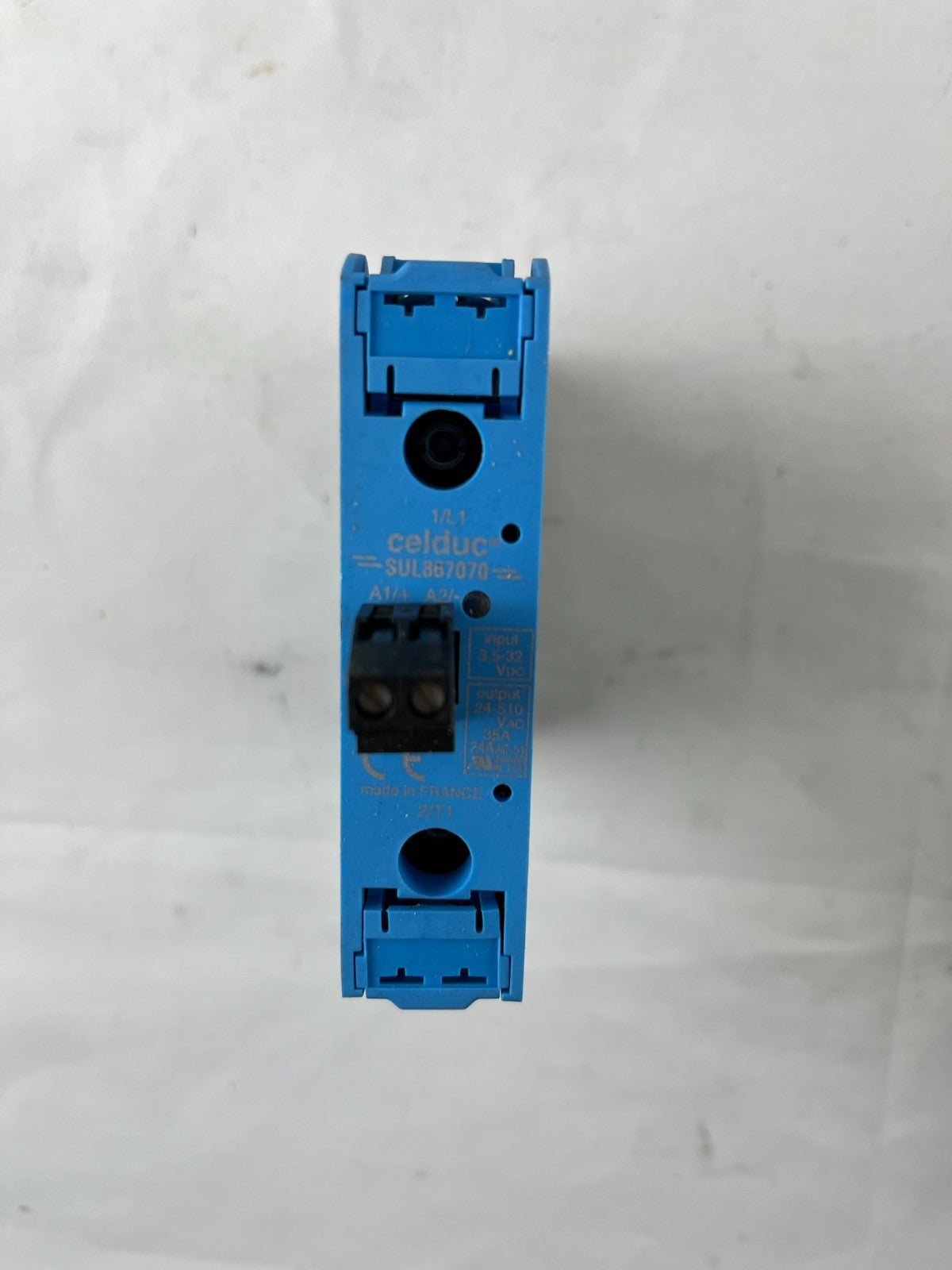

Model: SUL867070 single‑phase solid state relay with integrated heatsink, DIN‑rail mount housing.

Condition: New never used surplus, taken from storage; no wiring marks on terminals and heatsink is clean with only minor shelf wear. Item will be shipped securely packed, relay only as shown (no original box, manuals or accessories unless pictured).

Technical specifications (from manufacturer data):

• Relay type: Solid state relay / solid state power contactor, 1‑phase, SPST‑NO (1 Form A).

• Control (input) voltage: 3.5–32 VDC with LED status indication and input over‑voltage protection.

• Load (output) voltage: 24–510 VAC (often specified up to 600 VAC in some catalogs).

• Rated load current: 35 A continuous at 40 °C ambient (higher short‑term / surge capability).

• Switching type: Zero‑cross (zero voltage) switching for reduced EMC and inrush.

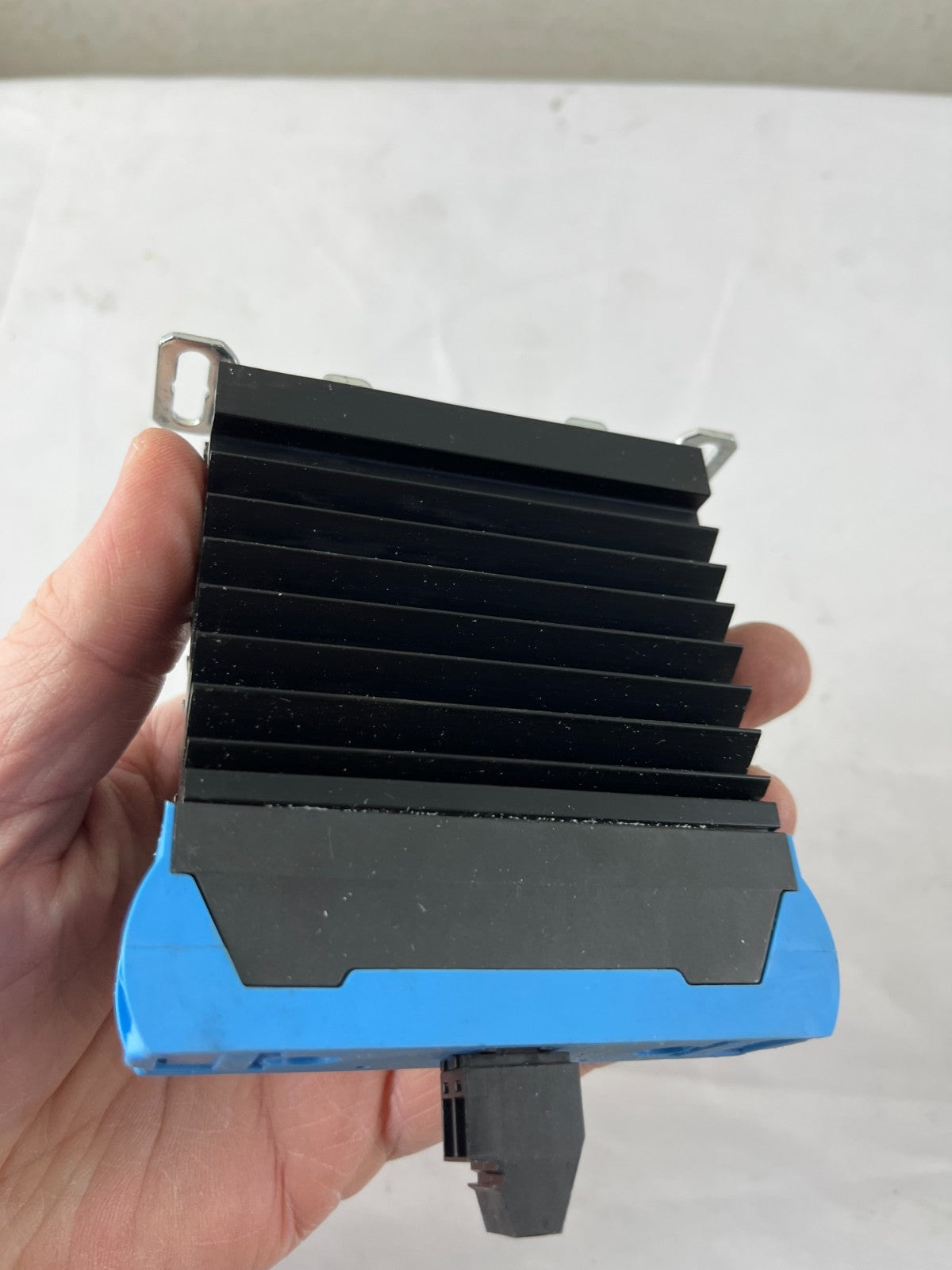

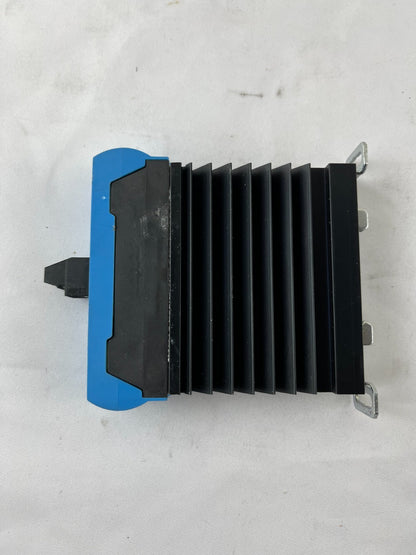

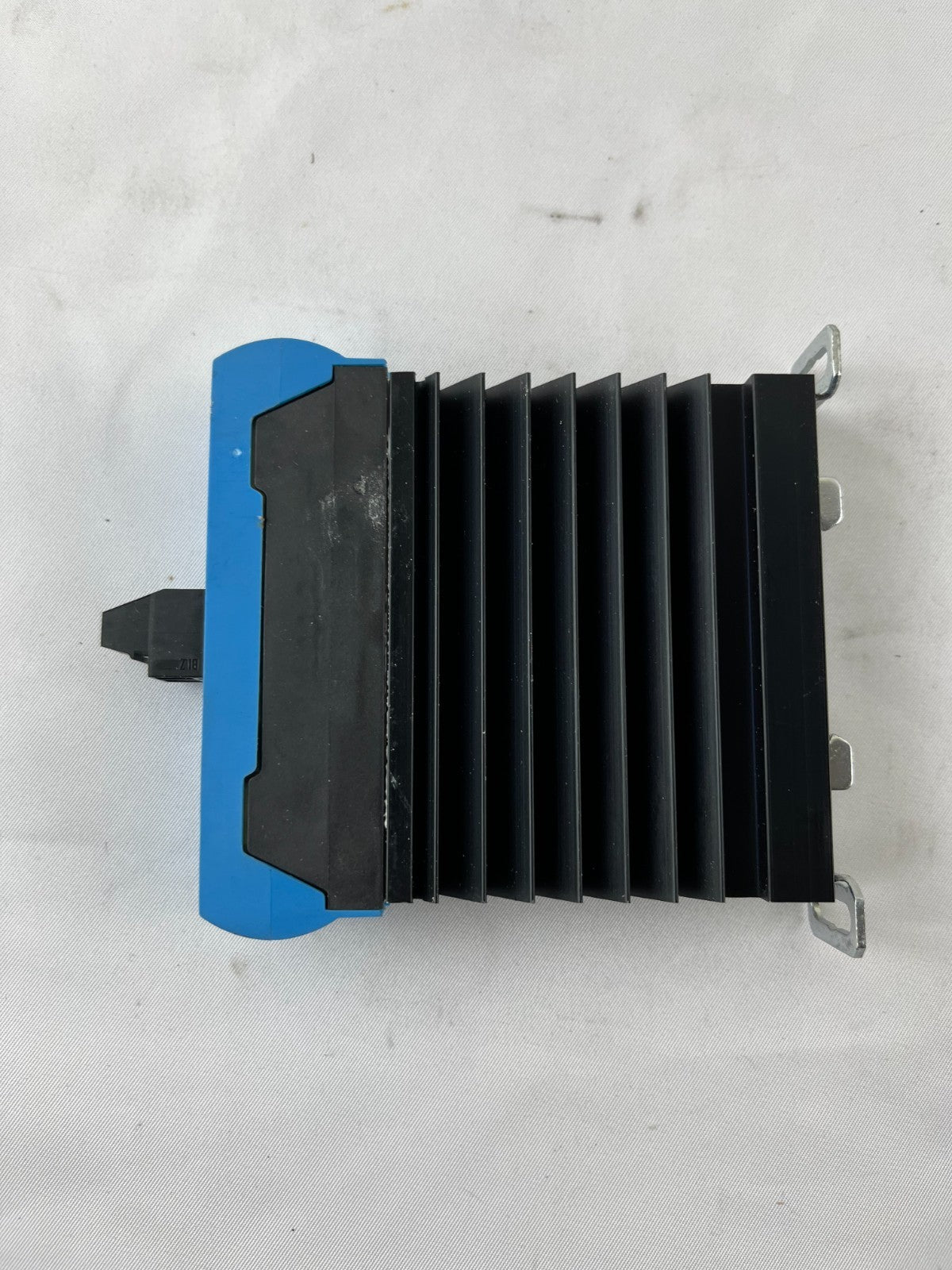

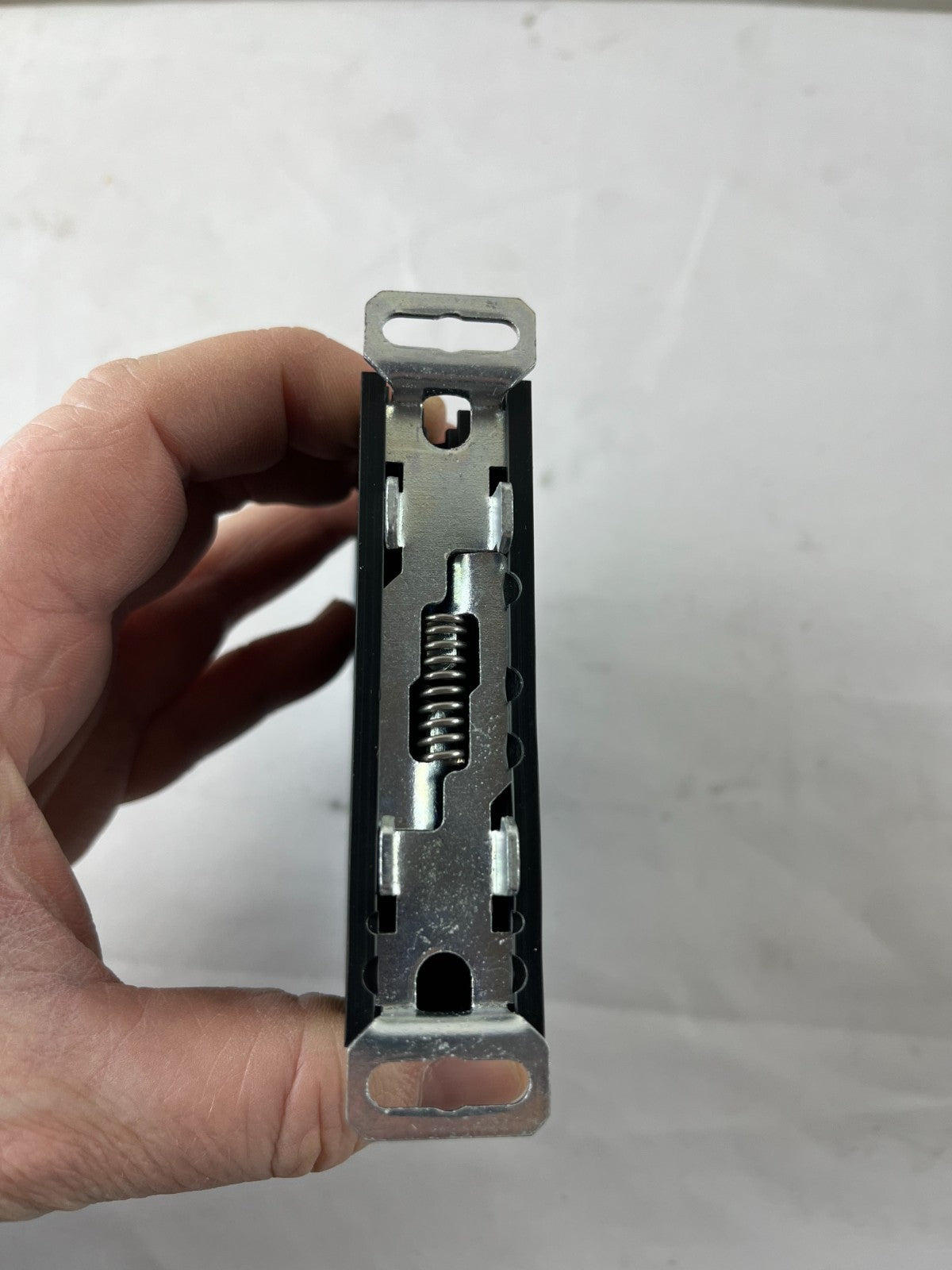

• Mounting: 22.5 mm wide DIN‑rail mount with integrated black finned heatsink and spring mounting clips.

• Protection / approvals: VDR protection, CE and cURus approvals, IP20 touch‑safe housing with removable terminal covers.

Main features and applications:

• Compact 22.5 mm wide module saves space in control cabinets while still handling up to 35 A for heaters, motors and other AC loads with power factor ≥ 0.5.

• Zero‑cross switching and SCR output technology provide long service life and low maintenance compared to electromechanical contactors, ideal for resistive heating, motor control, solenoids and inductive loads.

Background / usage notes:
Celduc SUL8‑series relays are widely used in industrial automation, plastics machinery, packaging equipment and HVAC systems as reliable solid state contactors. When replacing an existing relay, always verify coil/control voltage, load voltage and current, wiring scheme and panel cooling to ensure compatibility.
