Comac RC10 Current Relay NEW 0.4-6A 230VAC Denmark Made Level Hysteresis Delay

Brand NEW Comac RC10 current monitoring relay - never installed or used. This Danish-manufactured universal current relay features 4 measuring ranges, adjustable setpoint/hysteresis/delay controls, and monitors both AC and DC currents for industrial automation applications.

What's Included

• 1x Comac RC10 Current Relay (brand new, never used)

Key Specifications

• Model: RC10 Universal Current Monitoring Relay

• Measuring ranges: 0.4-6 mA, 4-60 mA, 40-600 mA, 0.4-6 A

• Supply voltage: 230 VAC ±10%, 50/60Hz (40-70Hz)

• Isolation voltage: 3.75 kV (supply-input-output)

• Relay output: 1-pole, 8A 250VAC resistive load

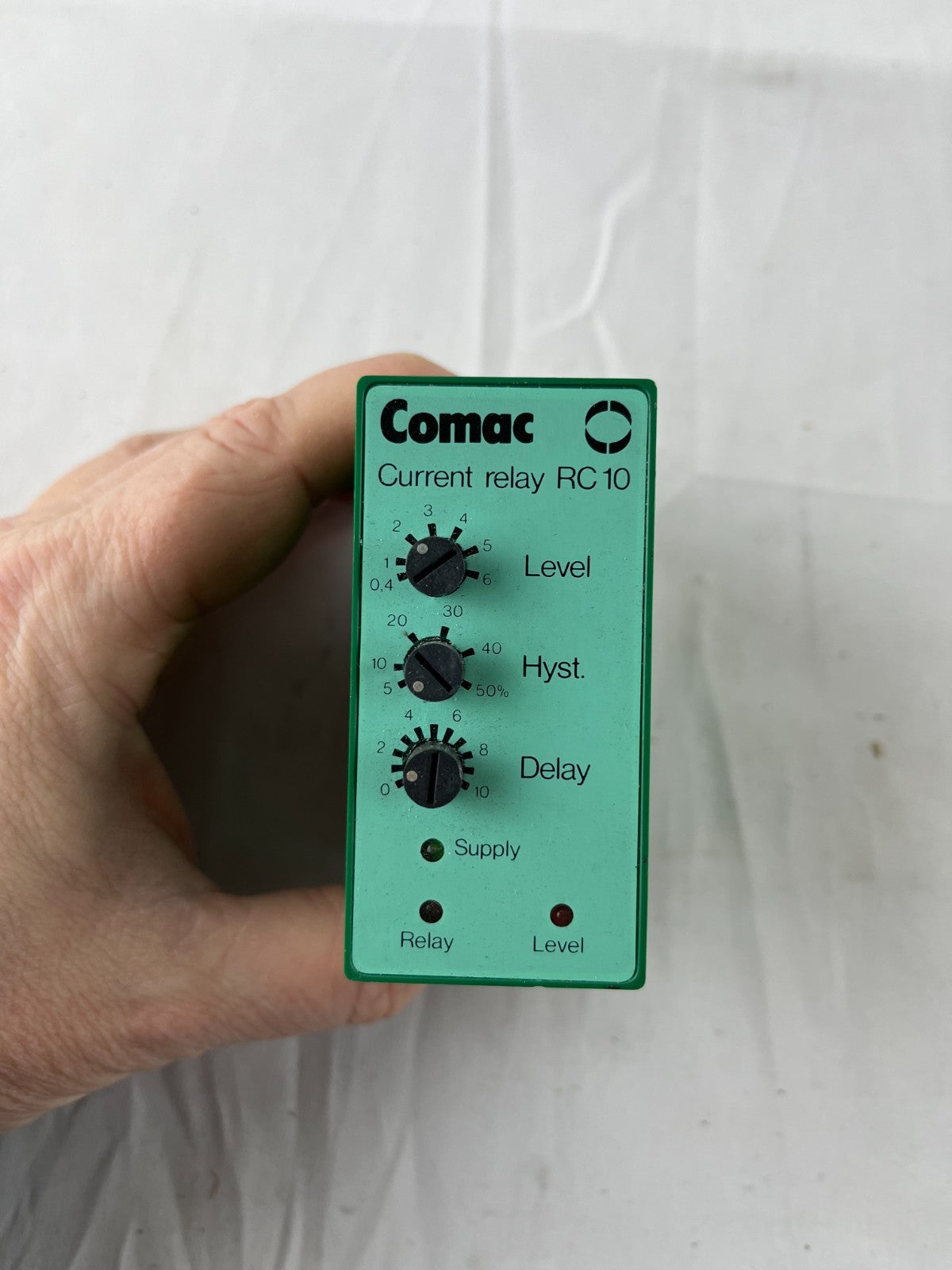

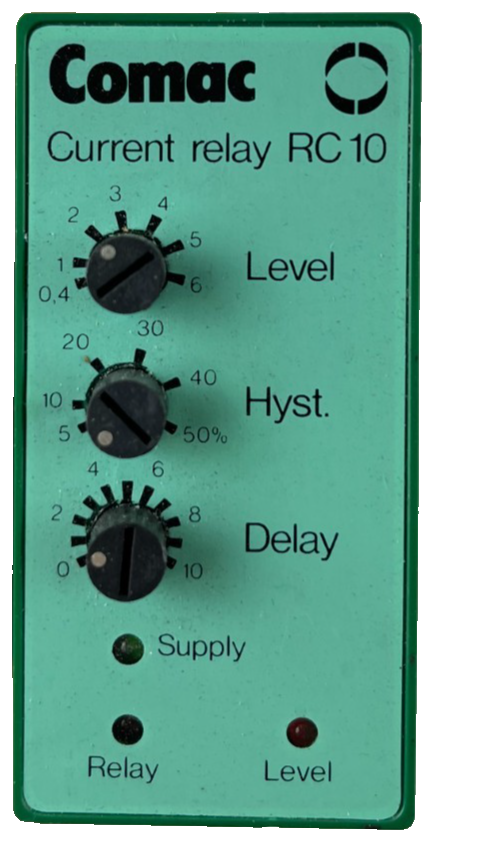

• Adjustments: Level (0.4-6 scale), Hysteresis (5-50%), Time delay (0-10 sec)

• Indicators: Green LED (supply), Red LED (relay active), Red LED (setpoint exceeded)

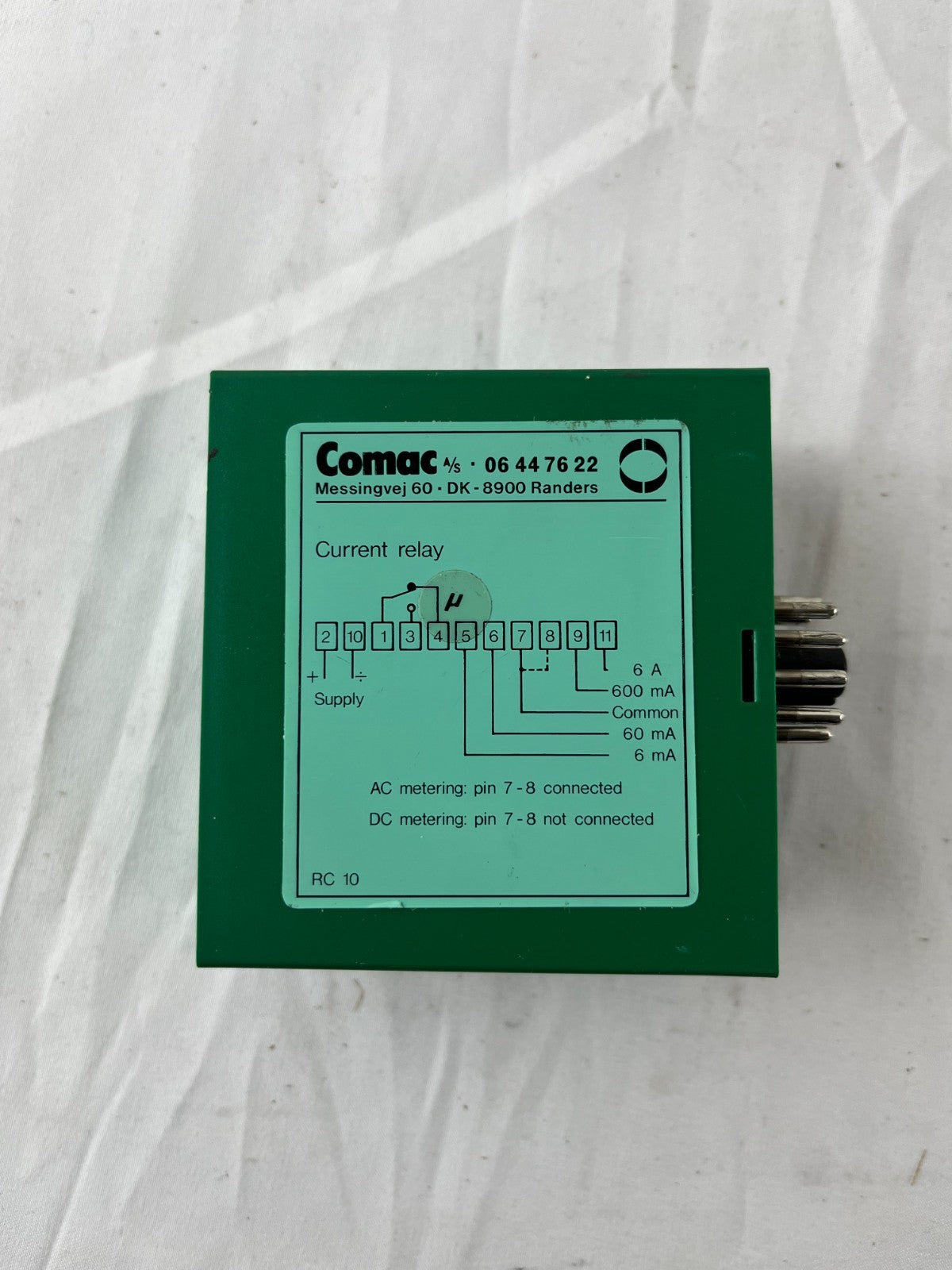

• Monitoring modes: AC/DC selectable (terminal 7-8 connection)

• Operating temp: -20°C to +60°C

• Accuracy: 5% of scale

• Origin: Made in Denmark (Comadan A/S, Randers)

Condition Notes

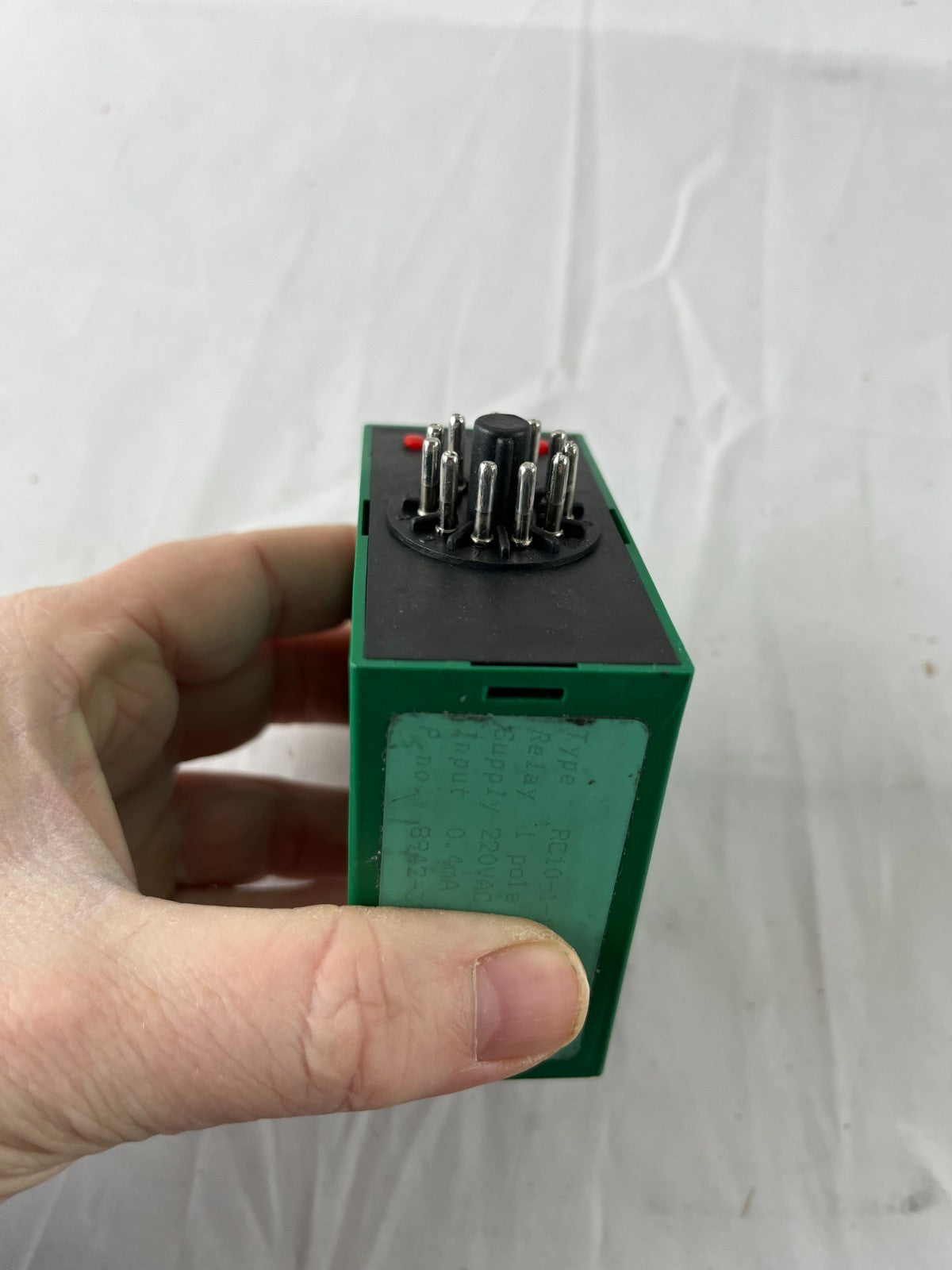

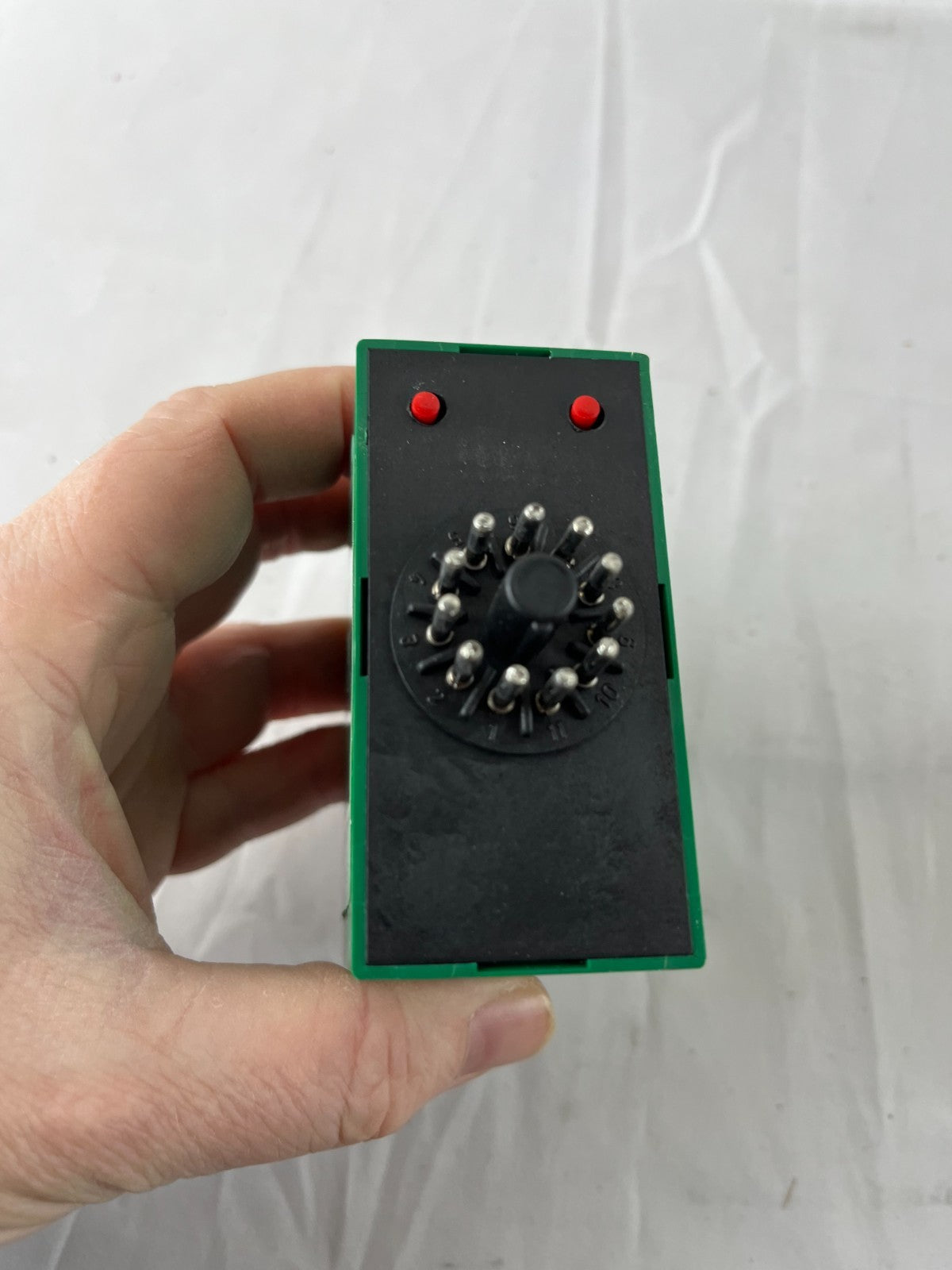

Brand new, never installed or used. Unit shows pristine condition with clean turquoise/green housing, all three adjustment potentiometers unused at factory settings, indicator LEDs intact, 11-pin base terminals free from connection marks. No installation wear - factory fresh condition.

Applications

Motor current monitoring, pump protection, load detection, over/under current protection, industrial process control, and automation systems requiring precise current threshold switching.
