Eaton ETR4-69-A Timer Relay 24-240VAC/DC 0.05s-100h Multi Function Used

Eaton ETR4-69-A multifunction timer relay designed for flexible timing control in industrial automation systems. DIN rail mount unit with adjustable range, time, and function settings, removed from a working installation and in good used condition.

Item details

• Brand: Eaton

• Model: ETR4-69-A (XTTR6A100H69B)

• Type: Multifunction timer relay

• Supply voltage: 24–240 VAC (50/60 Hz) / 24–240 VDC

• Time range: 0.05 seconds to 100 hours (adjustable via range selector)

• Functions: Multiple timing modes (see front selector and label diagrams)

• Output: 1 changeover contact (15–16–18)

• Rated current:

  • AC-15: 3A

  • AC-14: 3A

• Thermal current (Ith): 6A

• Rated voltage: up to 240V (control), 400V max (see label)

• Standards: IEC 60947, IEC 60255

• Mounting: DIN rail

• Indicators: LED status indicators (power/relay)

• Country of manufacture: not explicitly stated (see label)

Condition

• Used, pulled from working equipment

• Visible surface wear and dirt from use

• Adjustment dials intact and functional

• Terminals in good condition

• No original packaging

Notes

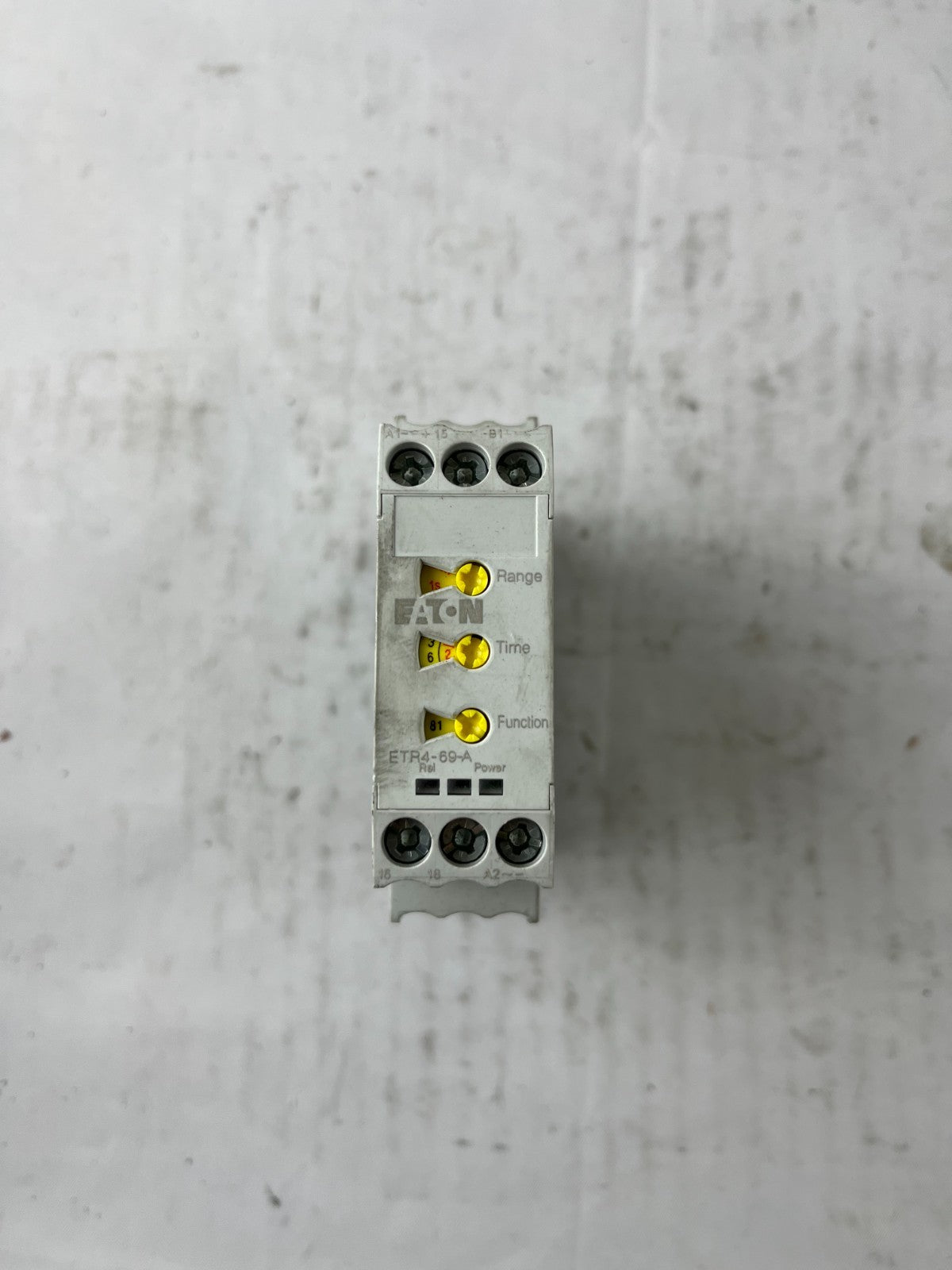

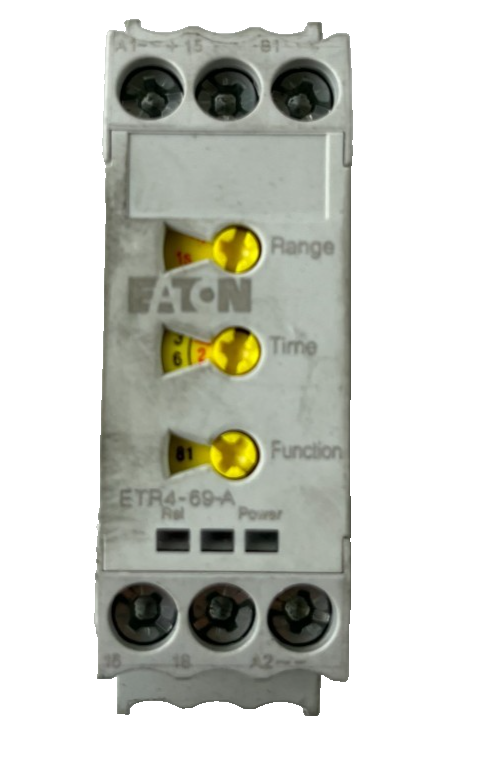

• Fully adjustable via front dials (range, time, function)

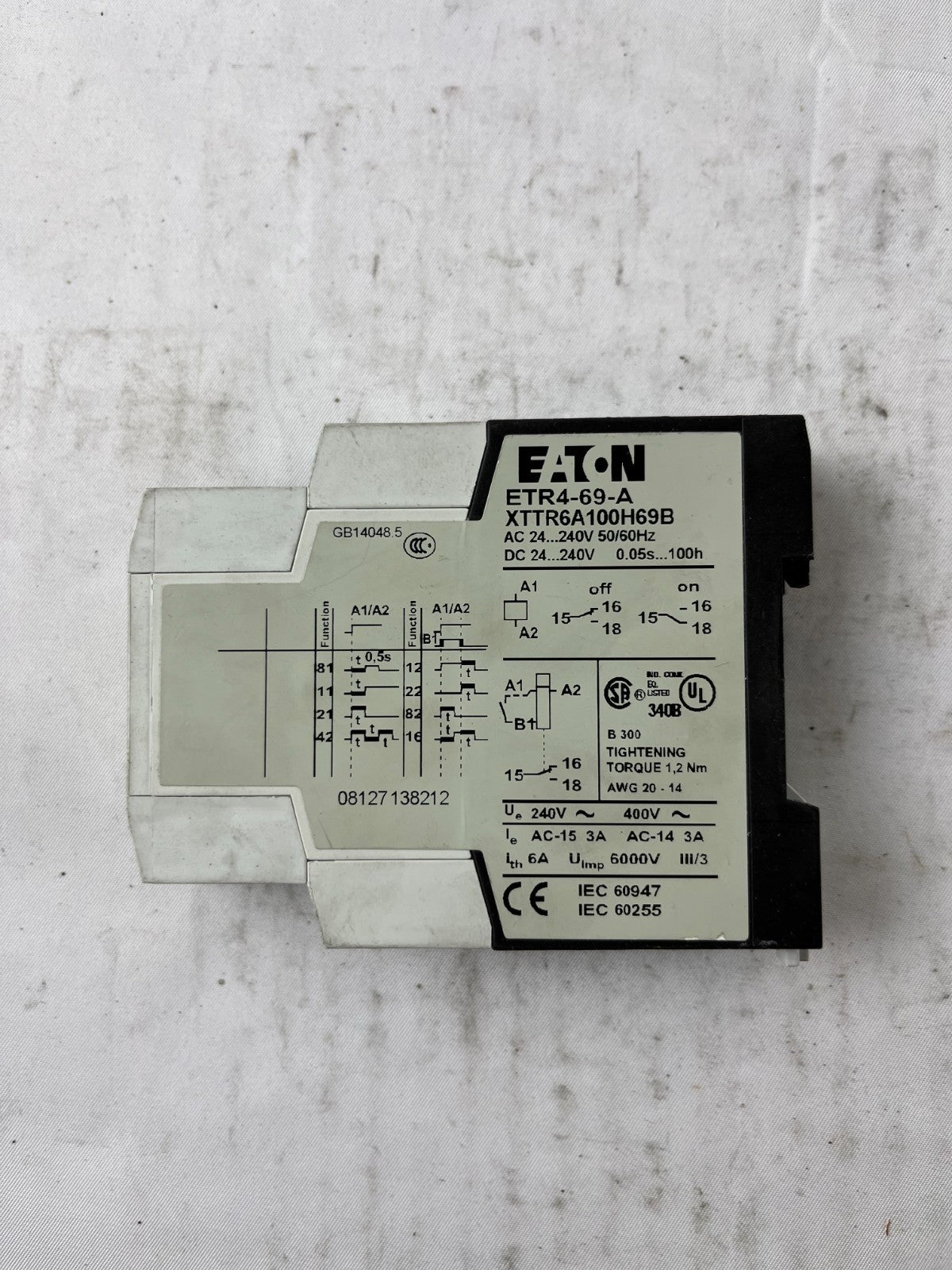

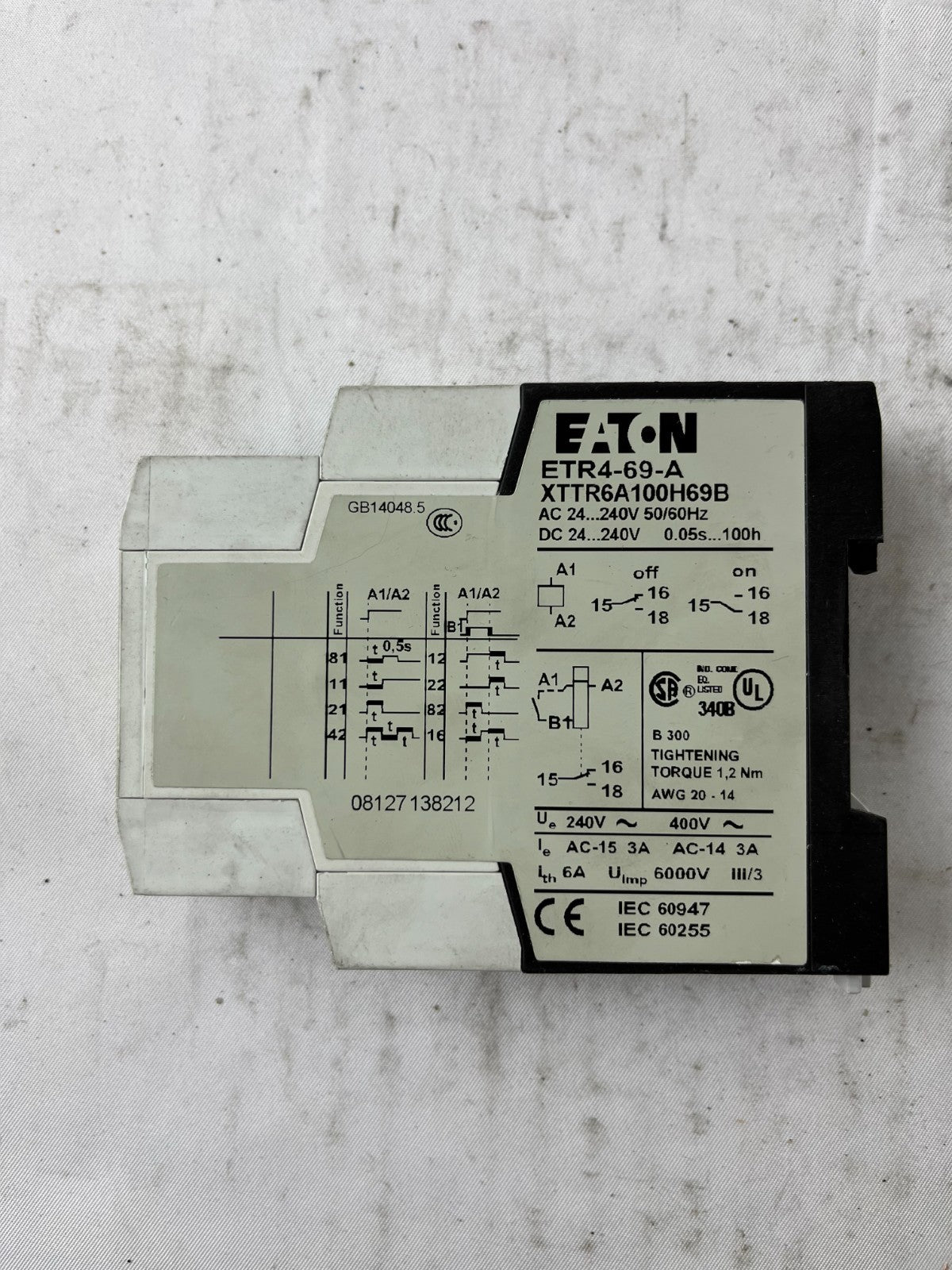

• Clear wiring diagrams printed on housing

• See photos for exact configuration and specifications

• Suitable for control panels, sequencing, delay switching, and automation tasks
