Eaton ETR4-69-A XTTR6A100H69B Multifunction Timer Relay 24–240V AC/DC Spare

Shipping includes tracking info worldwide. Best regards Klaus KLJ Trading.

Eaton ETR4-69-A (XTTR6A100H69B) analogue multifunction timing relay with wide 24–240 V AC/DC supply range and 0.05 s to 100 h adjustable time range, in good used working condition.
Suitable for DIN-rail mounted control panels requiring flexible timing functions and a single changeover relay output.

Item details

• Brand: Eaton Moeller series

• Model: ETR4-69-A (catalog no. 031891, alt. XTTR6A100H69B)

• Type: Multifunction timing relay, analogue time setting

• Supply voltage: AC 24–240 V 50/60 Hz and DC 24–240 V (universal input)

• Time range: 0.05 seconds to 100 hours, 10 selectable ranges

• Output contacts: 1 changeover relay (SPDT), rated approx. 3 A AC-15 at 240 V

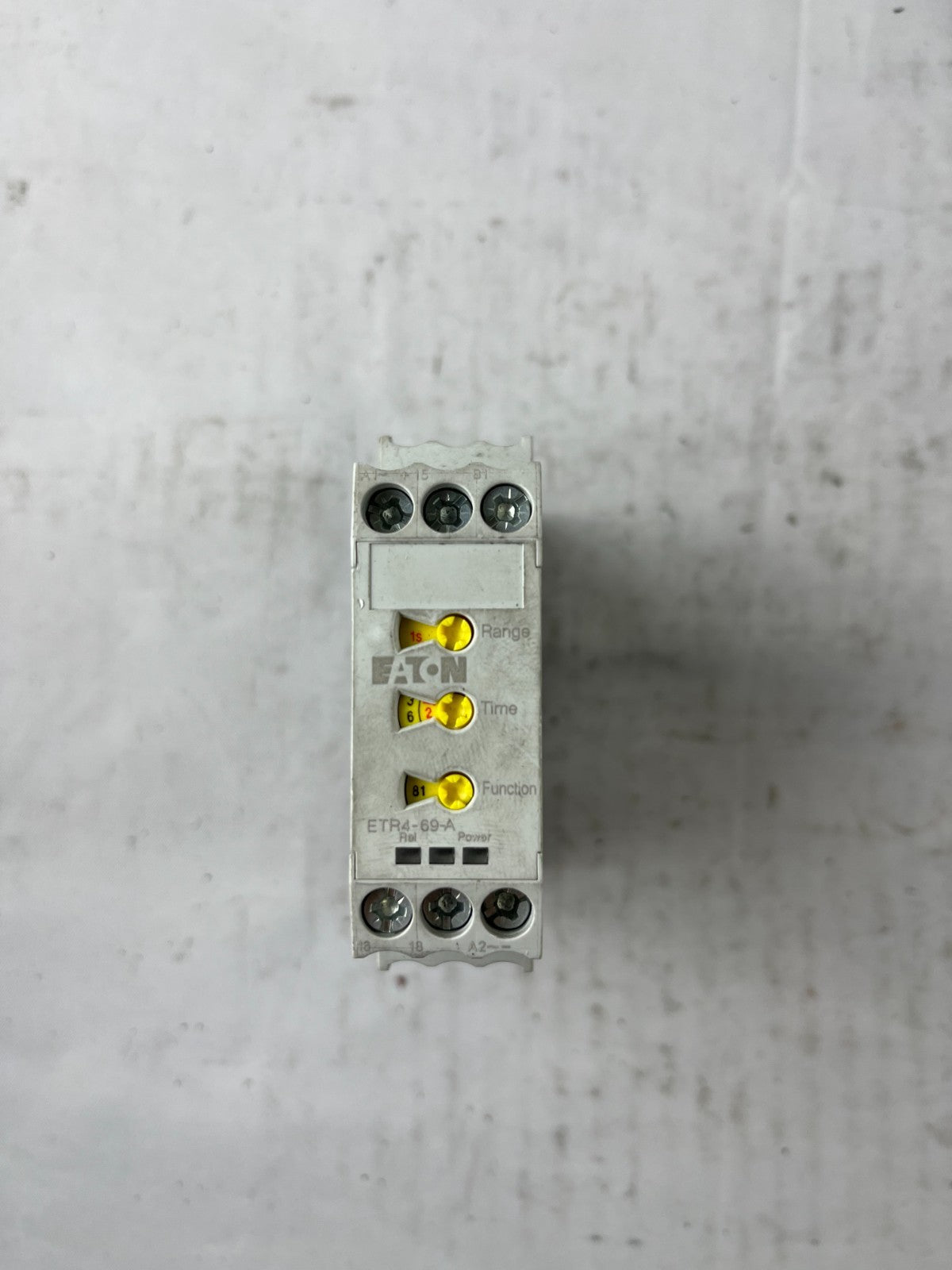

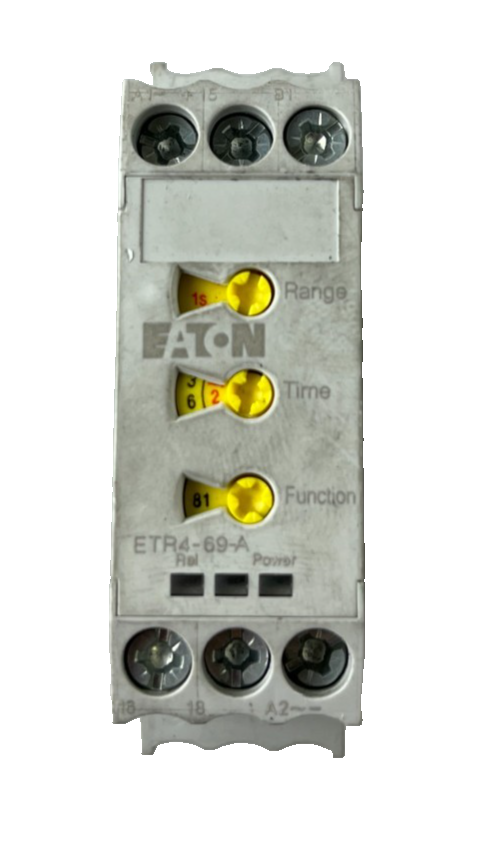

• Mounting: DIN rail module, screw terminals, front rotary knobs for range, time and function

• Approvals/standards: CE marked, UL Listed, CSA, IEC 60947, IEC 60255 (per label and datasheet)

• Typical applications: Contactor control systems, delay-on / delay-off and other timing functions in industrial automation.

Condition

• Used, good working condition with normal signs of previous installation.

• Light cosmetic scuffs/marks on housing from handling and storage; no major cracks or damage observed.

• Screw terminals show typical screwdriver/wiring marks but are intact and usable.

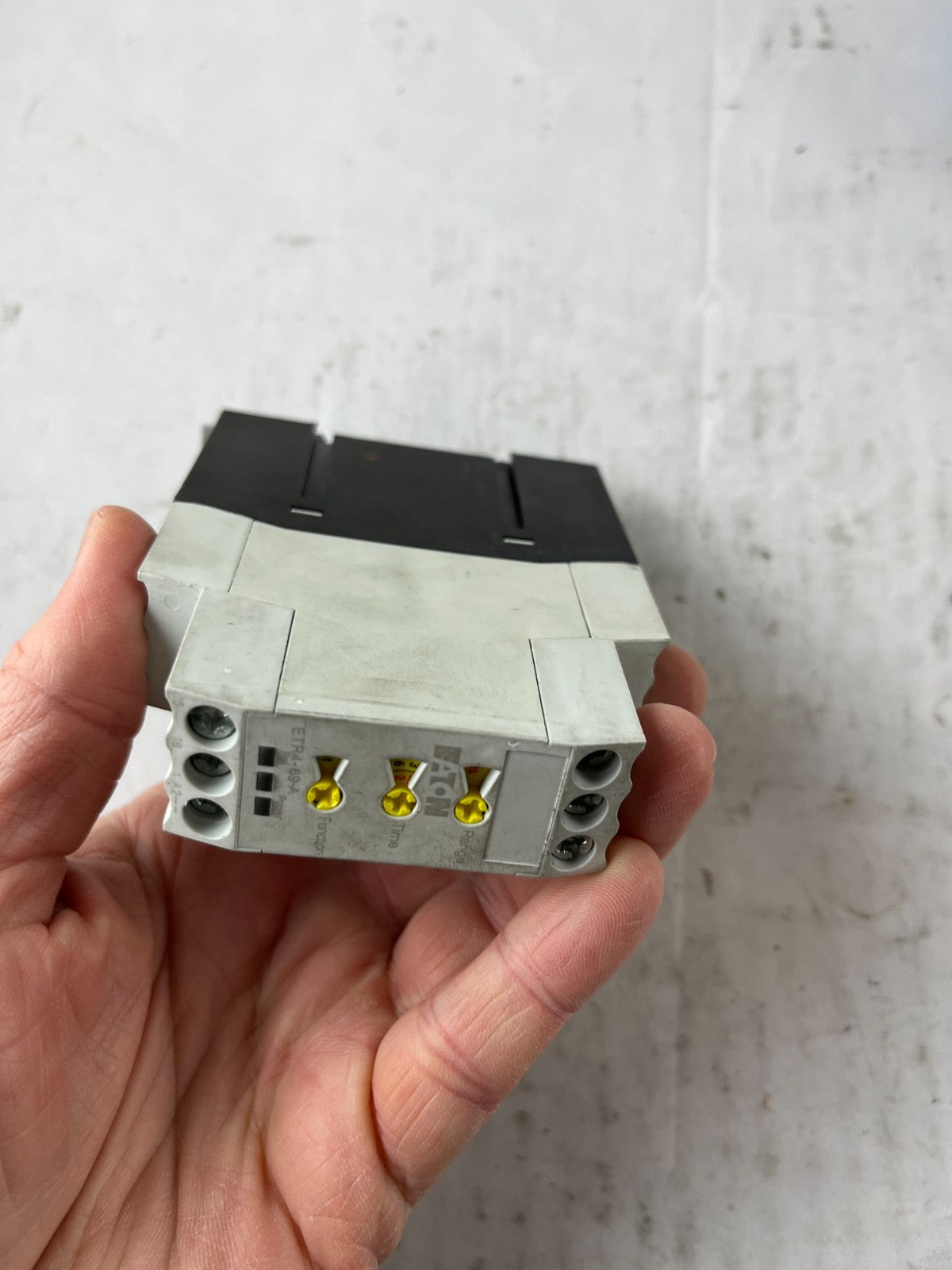

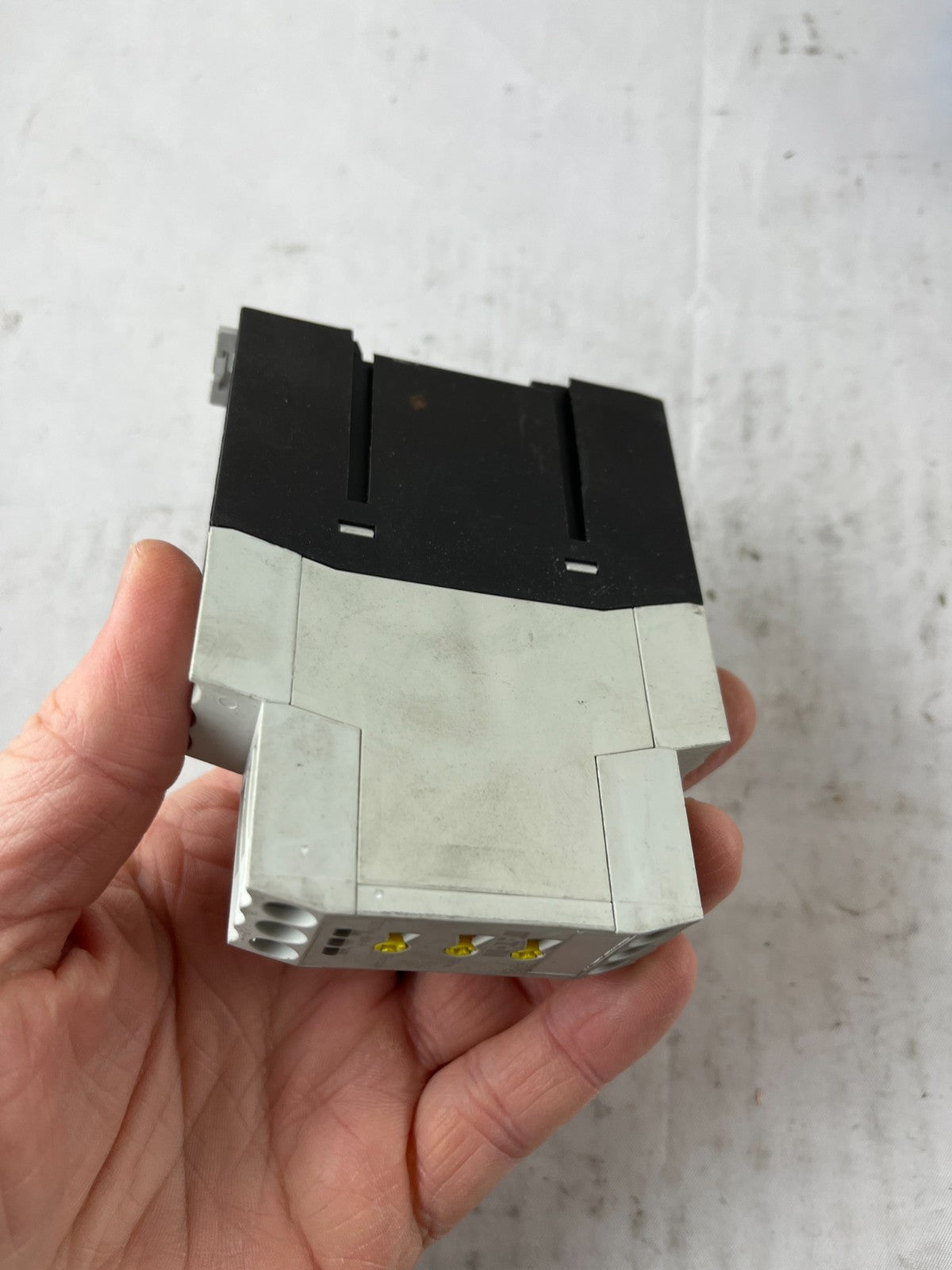

• Supplied without original box, manual or accessories; relay module only as shown in photos.

Notes

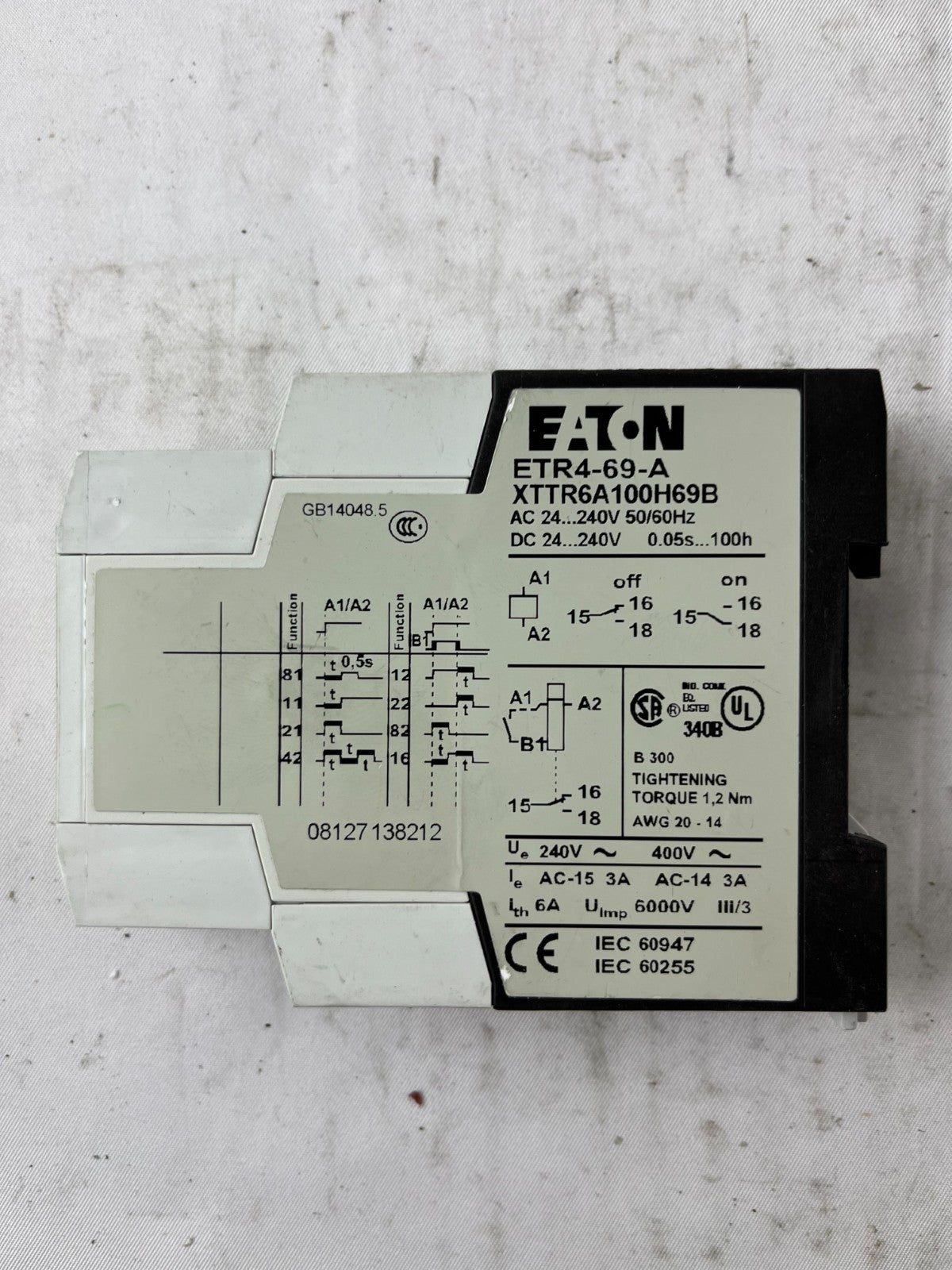

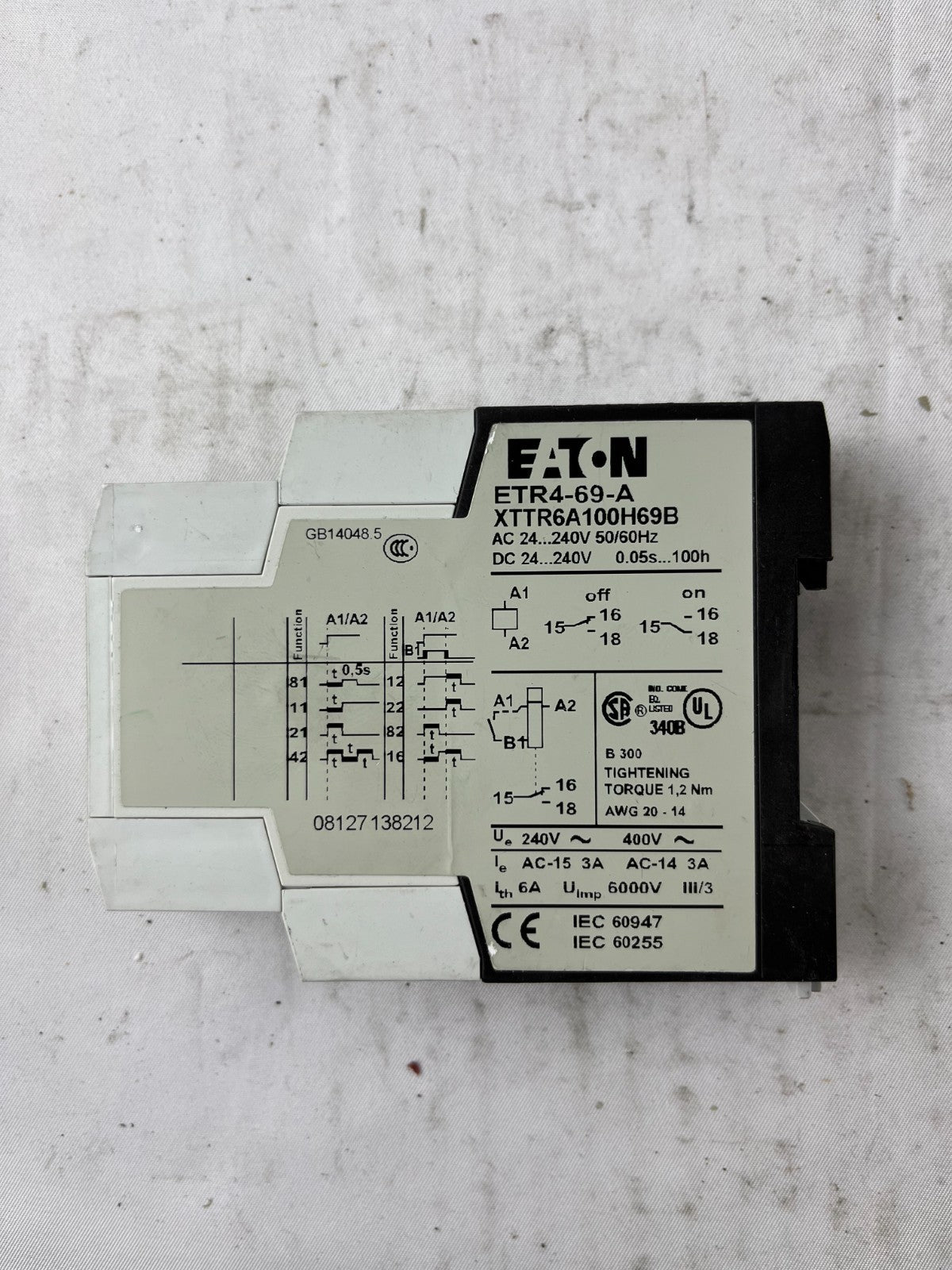

• Front label shows wiring diagram, contact layout and function symbols; please review photos to confirm the timing functions match your requirement.

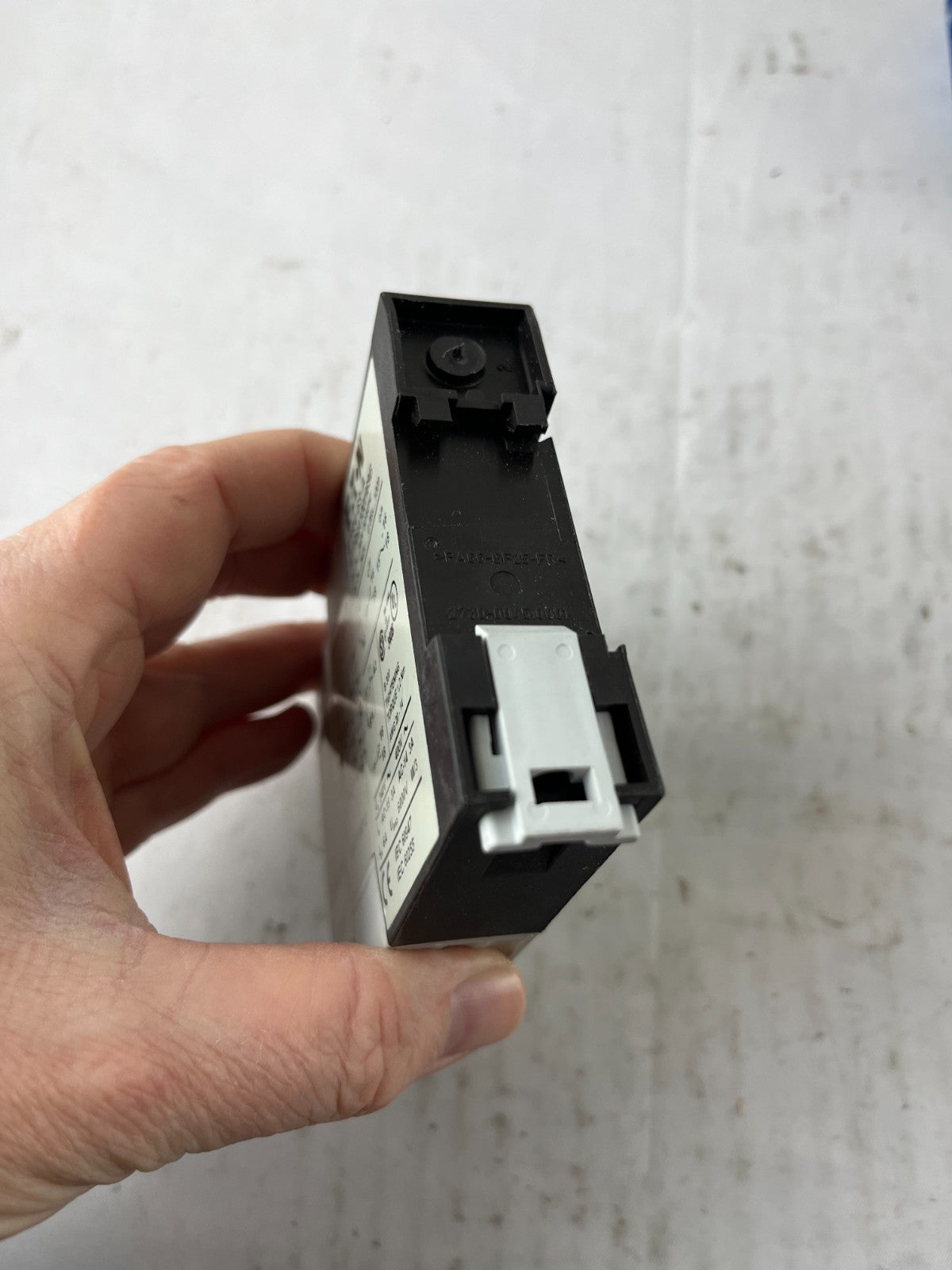

• Compatible with standard 35 mm DIN rail mounting in control panels.

• For full technical data, see Eaton datasheet for ETR4-69-A / XTTR6A100H69B
