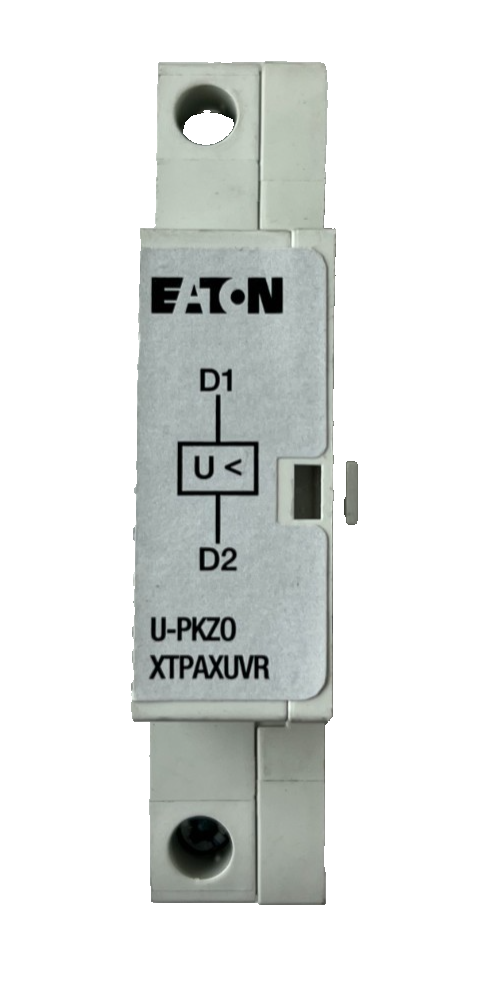

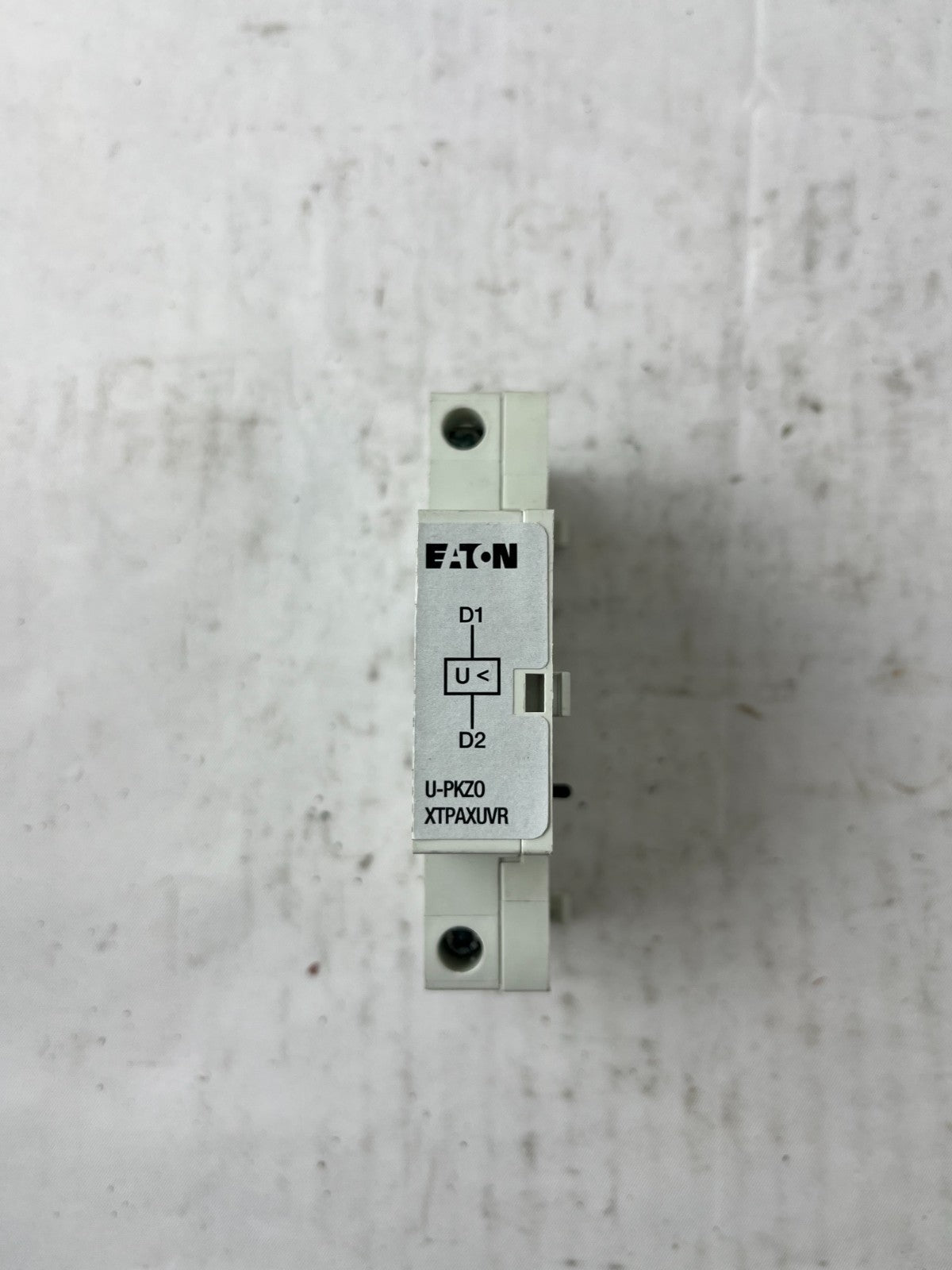

Eaton U-PKZ0 XTPAXUVR Undervoltage Release 230–240V AC Used

Eaton U-PKZ0 / XTPAXUVR undervoltage release module for PKZ0 and XT series motor protection circuit breakers, in good working used condition.
Designed to mount on the left side of the breaker and trip the motor protection device if the control voltage drops below a safe level.

Item details

• Brand: Eaton (Moeller series)

• Model: U-PKZ0 / XTPAXUVR

• Type: Undervoltage release accessory for motor protection circuit breakers

• Voltage rating: 230 V 50 Hz / 240 V 60 Hz AC (per label “230V 50Hz 240V 60Hz”)

• Compatible with: PKZ0(4), PKE and XT motor protective circuit breakers (mounted on left side of breaker)

• Standards/approvals: IEC/EN 60947-2 and IEC/EN 60947-4-1, CE, UL Listed, CSA (markings on label)

• Wire size: AWG 18–16, tightening torque 1.2 Nm / 10.6 lb·in (per label)

• Country of manufacture: Made in Germany (printed on label)

Condition

• Used, good working condition with typical signs of previous installation.

• Light cosmetic scuffs and discoloration on housing from handling and storage; no cracks or obvious damage noted.

• Screw terminals intact and previously wired; heads show normal use marks.

• No original packaging or documentation included; module only as shown in the photos.

Notes

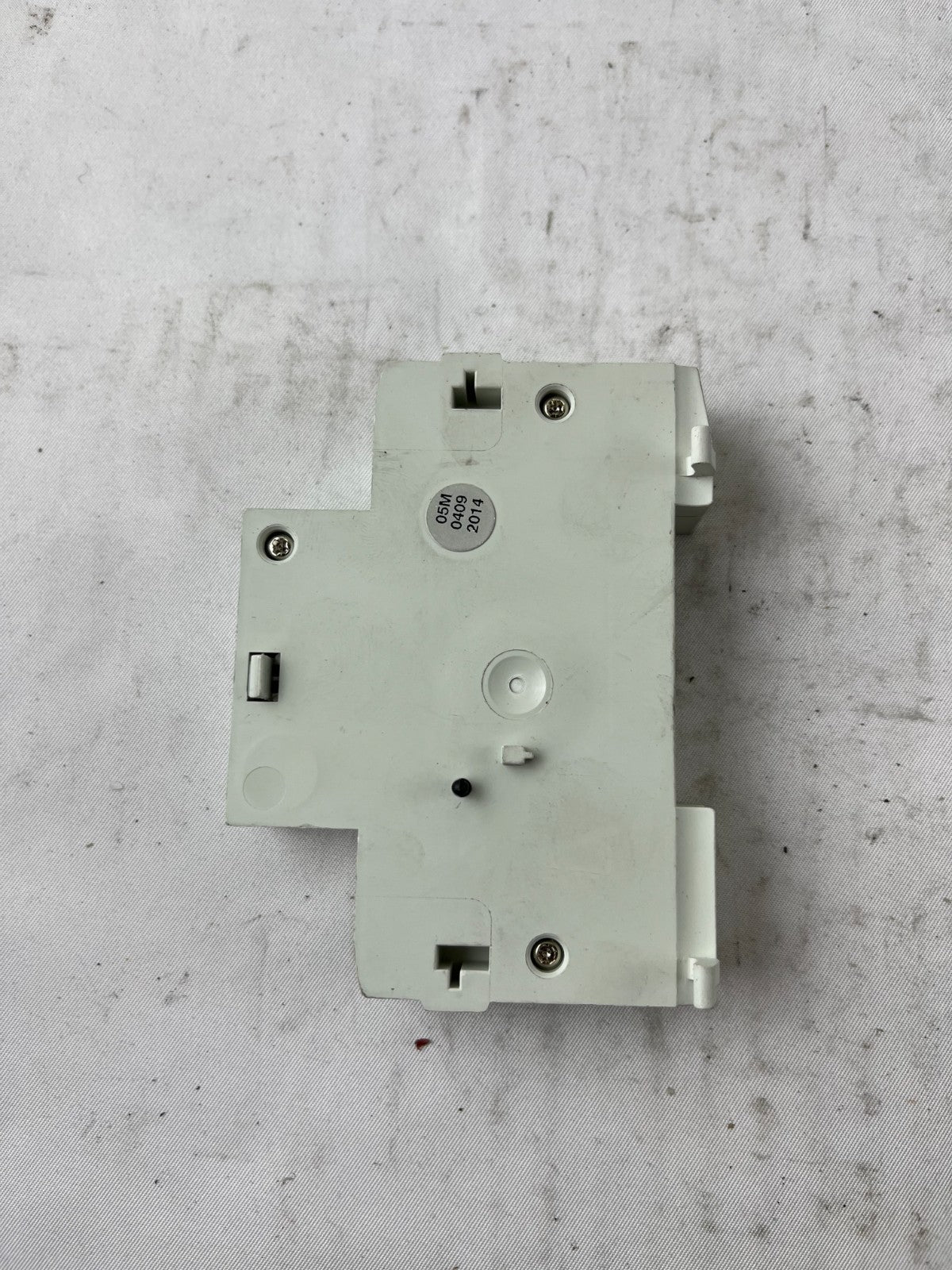

• Marked date code sticker (approx. 2014) on the rear housing, indicating production/inspection year.

• Please verify compatibility with your specific PKZ0 / XT breaker model and control voltage before purchasing.

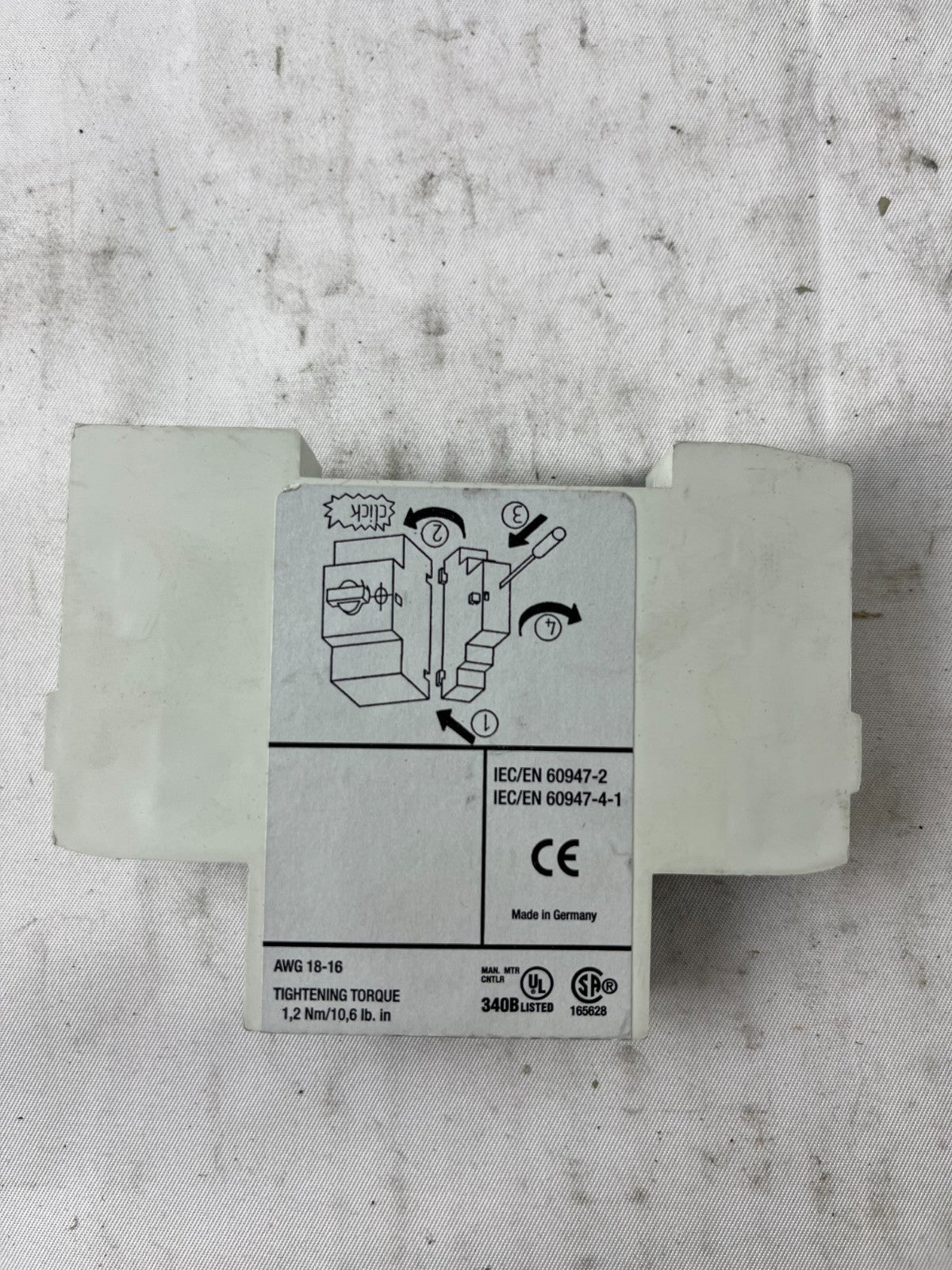

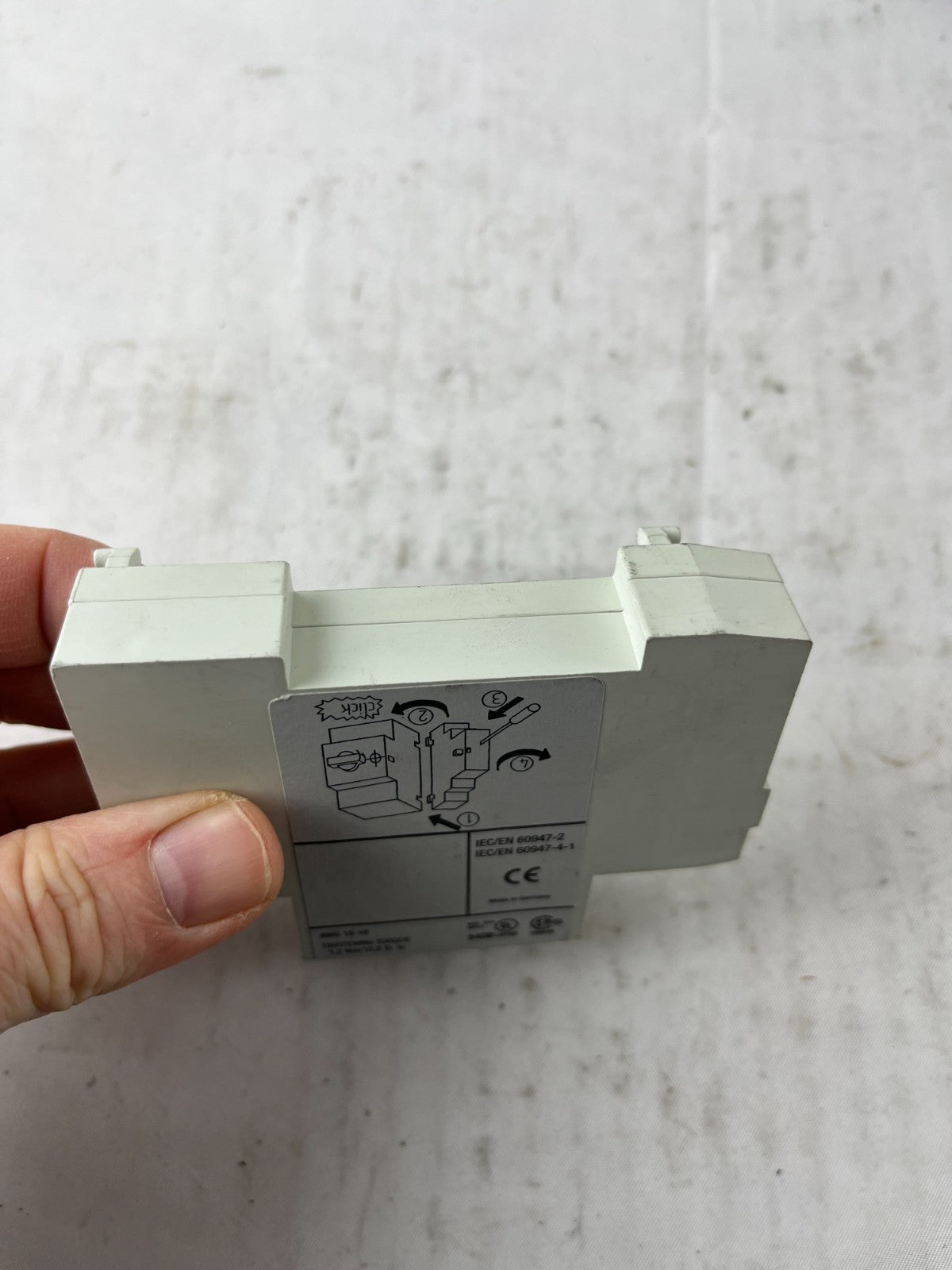

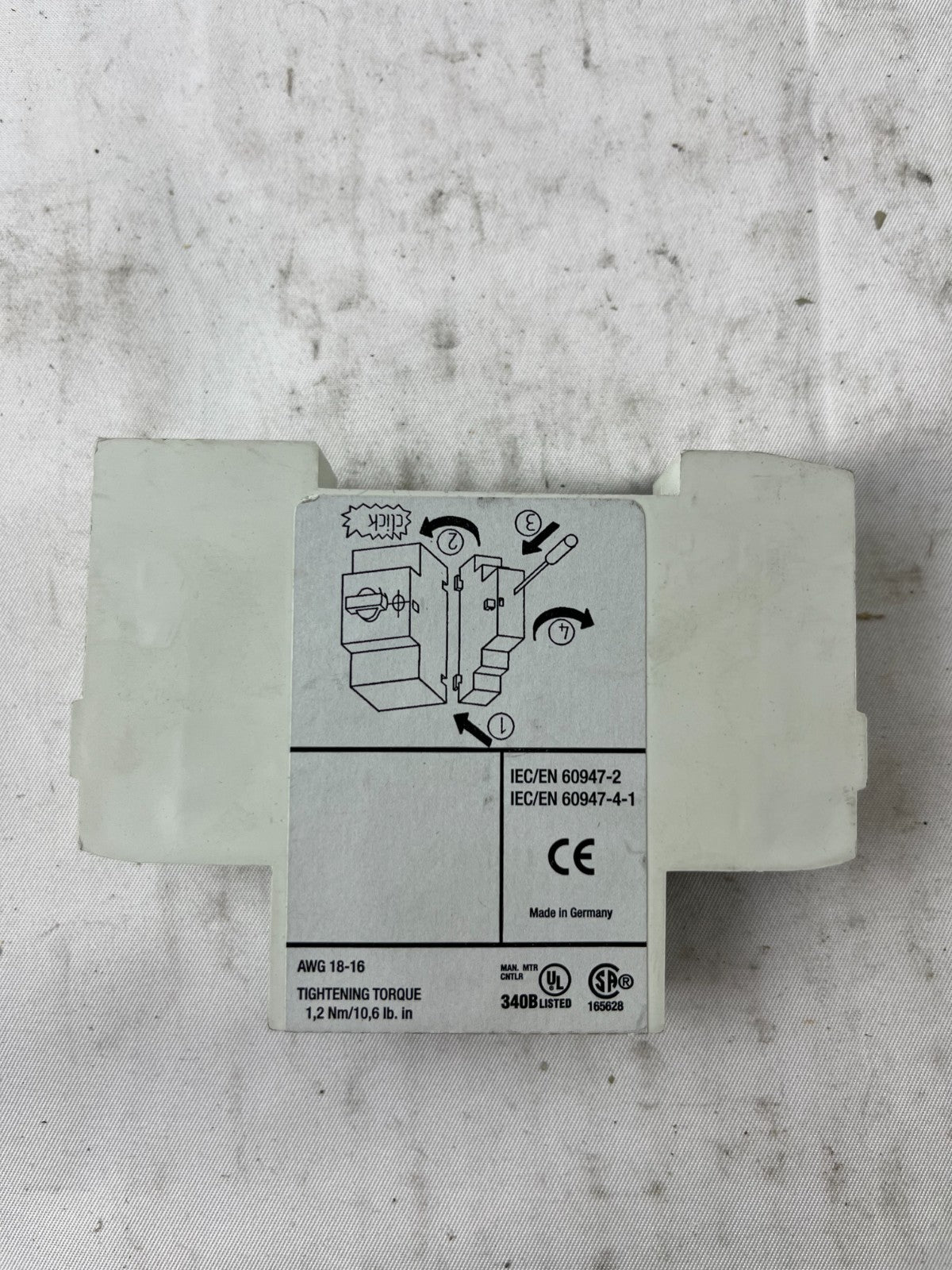

• See all photos for label details, wiring diagram and mechanical condition.
