EcoPower PSU 242 Industrial Power Supply - 230VAC to 24VDC 2.5A - DIN Rail Mount

Shipping includes tracking info worldwide. Best regards Klaus KLJ Trading

Robust industrial-grade AC/DC power supply for automation and control applications

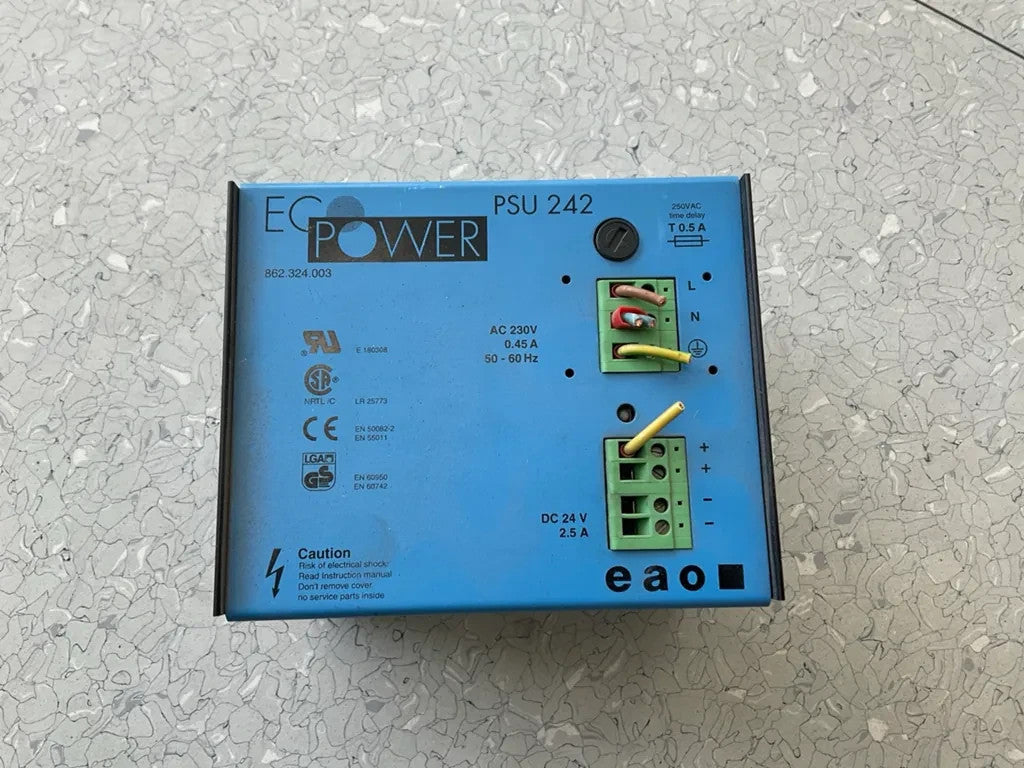

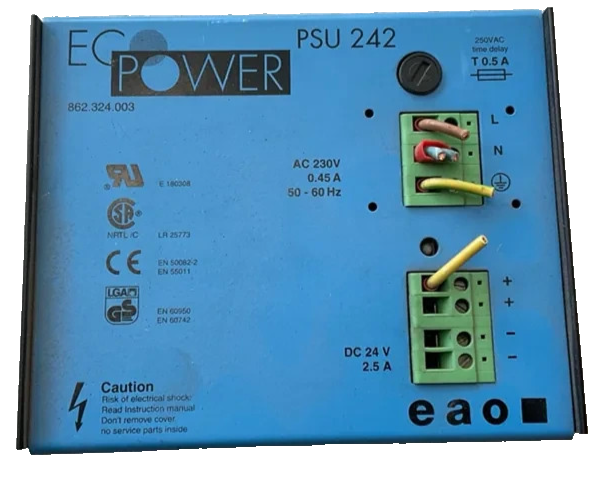

This listing features an EcoPower PSU 242 (Part No. 862.324.003) industrial power supply unit, designed for demanding industrial environments. Manufactured by APS/EAO, this compact and reliable power supply converts standard AC mains to regulated 24V DC output.

Technical Specifications

• Part Number: 862.324.003

• Model: PSU 242

• Input Voltage: AC 230V (207-253 VAC), 50-60 Hz

• Input Fuse: T 0.5 A (slow-blow 500 mAT)

• Output Voltage: DC 24V ±1%

• Output Current: 2.5 A

• Output Power: 60W

• Dimensions: 125 x 109 x 96 mm (W x H x D)

• Weight: 2.4 kg

• Protection: IP20

• Mounting: Screw-mount or optional DIN rail adapter

Certifications & Standards

• CE marked

• UL certified (File No. E 180208)

• CSA certified

• EN 50082-2, EN 55011 compliant

• EN 60950, EN 60742 compliant

Features & Applications

The EcoPower PSU 242 is engineered for high reliability and long service life in industrial applications:

• Lightning-protected input for enhanced durability

• Suitable for high peak loads

• SELV output with slow-blow fuse for overload and short-circuit protection

• Increased noise immunity for harsh environments

• Robust aluminum housing with protection against accidental contact

• Low temperature increase (max. +20°C)

Ideal for industrial automation, PLC systems, control panels, instrumentation, and process control equipment.

Condition

Used - Good Condition - This power supply appears to be in clean, functional condition with minimal wear. The housing shows the unit was previously installed but remains in excellent cosmetic condition.

What's Included

• 1x EcoPower PSU 242 Power Supply Unit (862.324.003)

Installation

This unit can be screw-mounted or installed on DIN rail with an optional adapter (not included). Terminal blocks accept wire connections for both AC input (L/N) and DC output (+/-)
