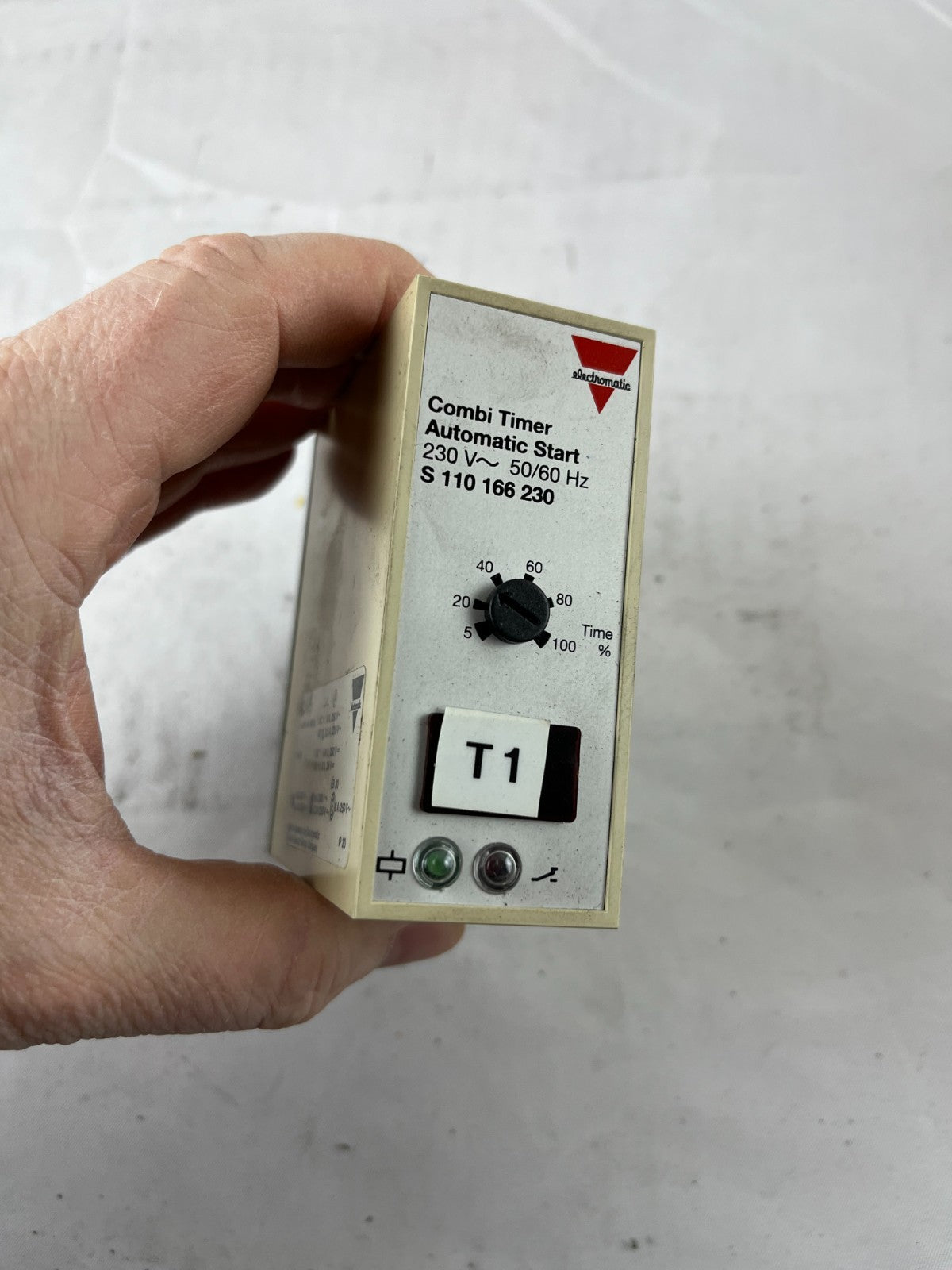

Electromatic S110 166 230 Combi Timer Automatic Start 230VAC 11‑Pin USED

Name: Electromatic S110 166 230 Combi Timer Automatic Start 230VAC 11‑Pin USED
Brand: Electromatic
SKU: Garage Reol 1G Kasse 14
Price: 225.00 DKK
Availability: InStock

225,00 DKK

Sale Sold out

Taxes included. Shipping calculated at checkout.

3 in stock

Electromatic S110 166 230 Combi Timer Automatic Start 230VAC 11‑Pin Multi‑Function Used

Key Specs

Model: S 110 166 230 Combi Timer Automatic Start, S‑System plug‑in timer.
Supply: 195–265 V AC (nominal 230 V), 50/60 Hz, approx. 3 VA / 2 W.

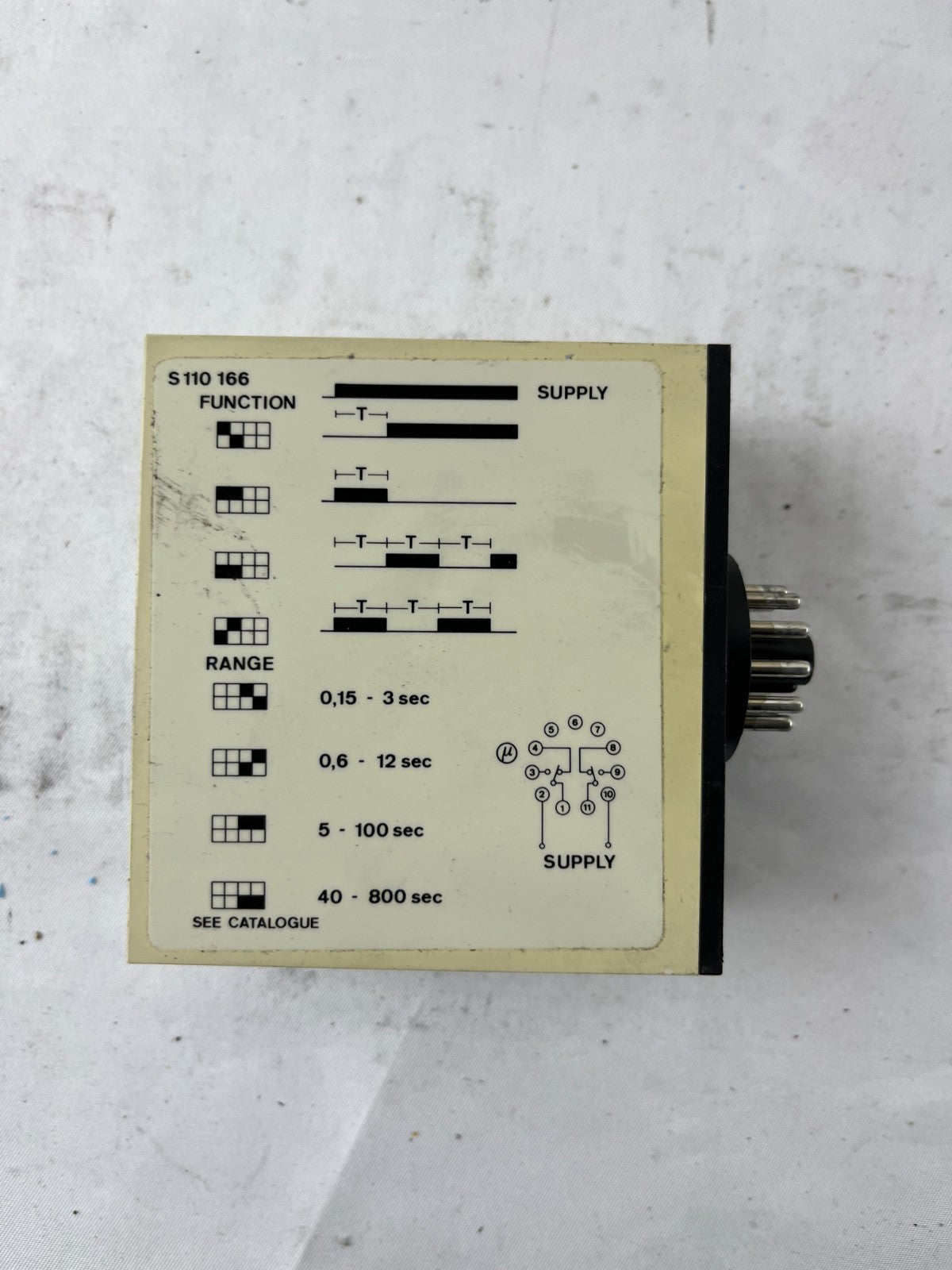

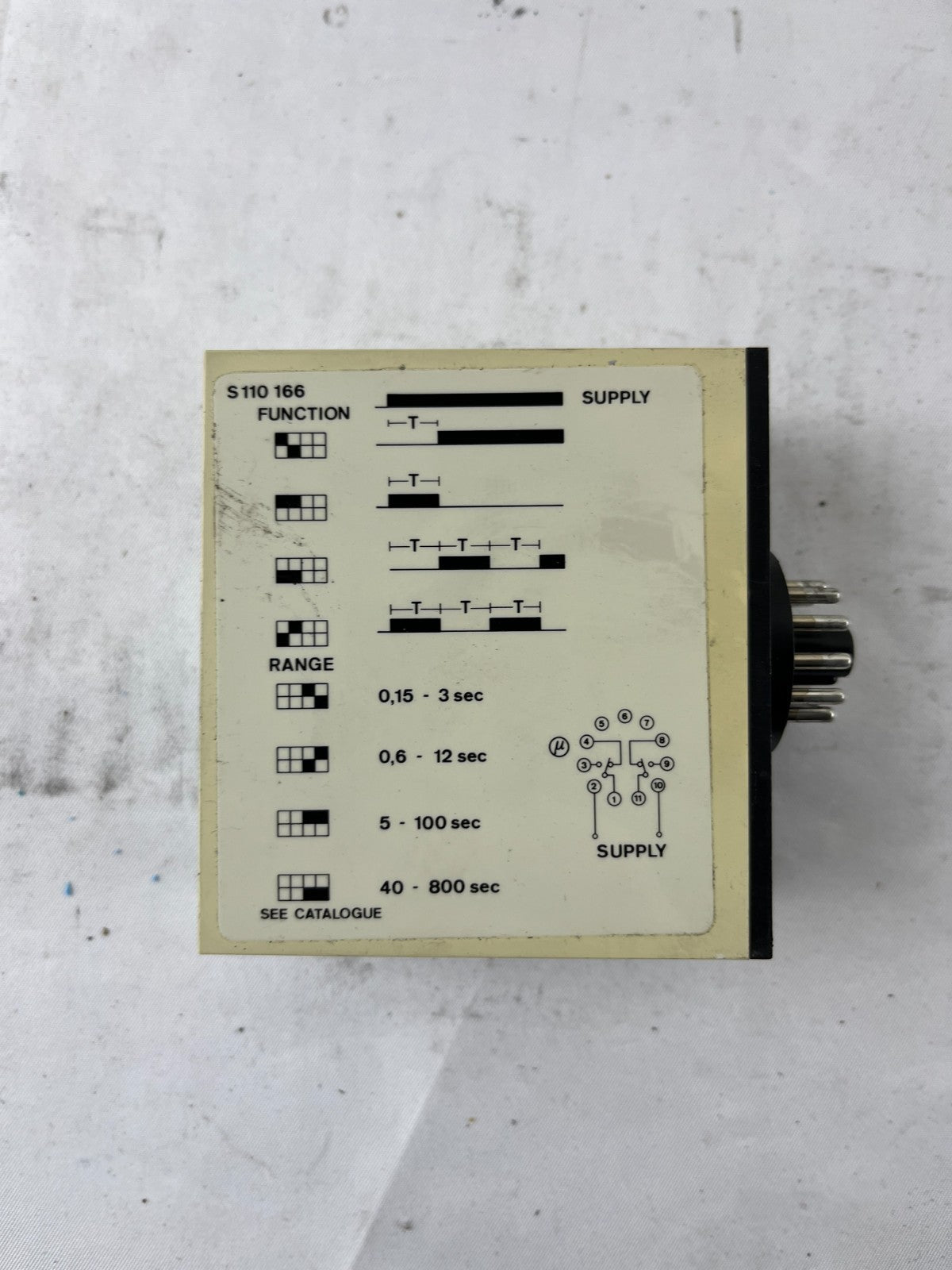

Functions: Multiple timing modes selectable by side DIP switches (delay on, interval, recycler, etc.), see function chart on side label.

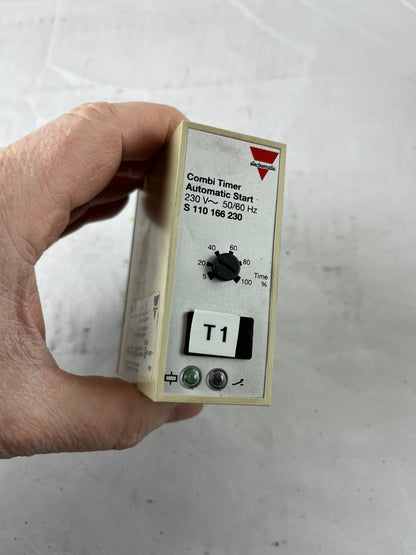

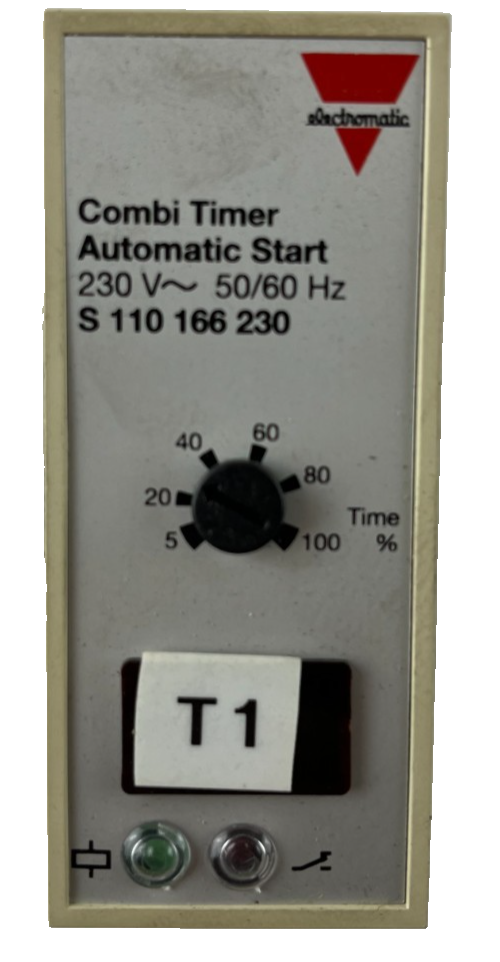

Time ranges: 0.15–3 s, 0.6–12 s, 5–100 s, and 40–800 s; front knob sets 5–100% of selected range.

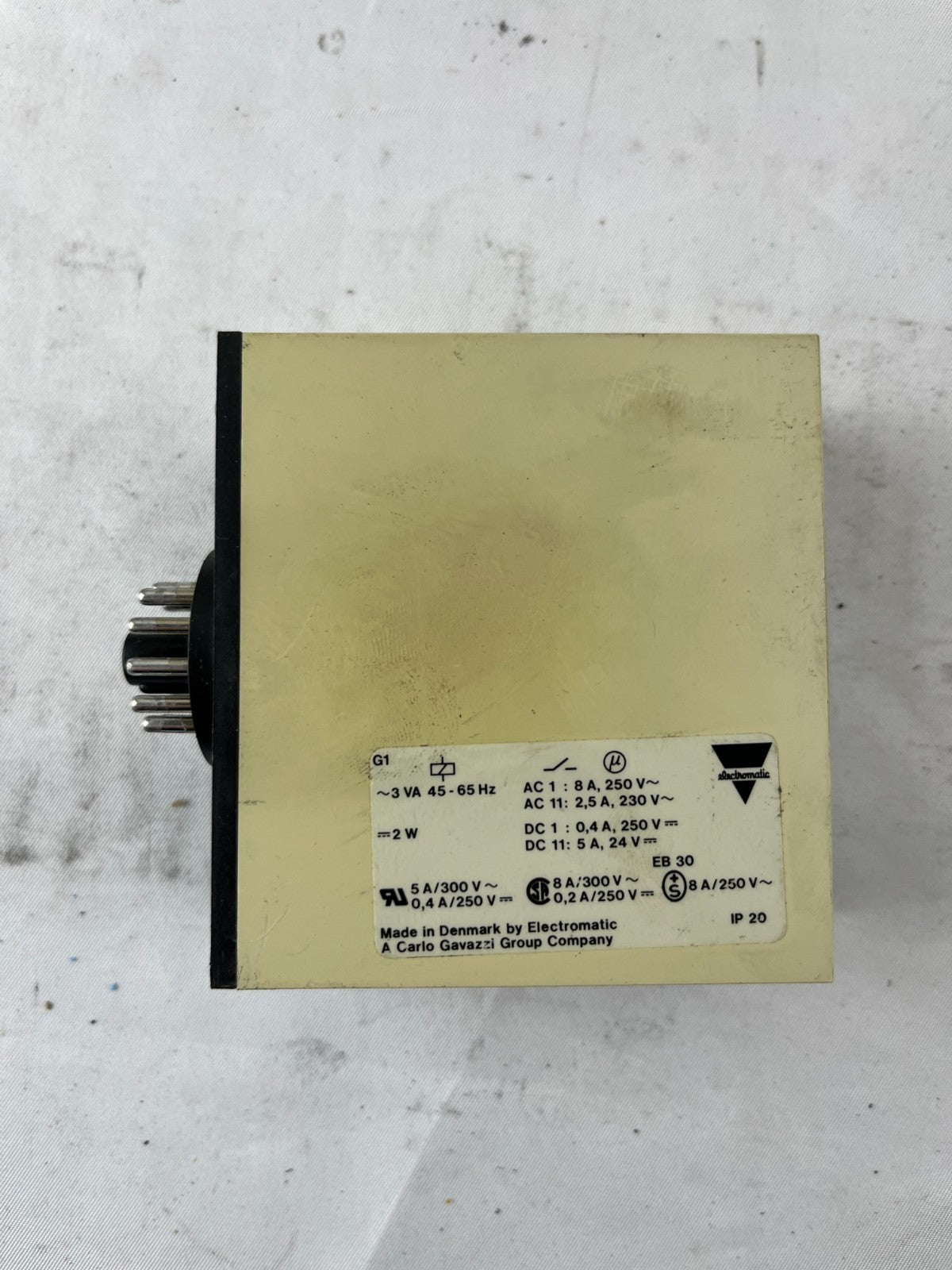

Contacts: DPDT relay, AC‑1 rating 8 A at 250 V AC, AC‑11 2.5 A at 230 V AC; DC ratings up to 0.4 A at 250 V DC / 5 A at 24 V DC.

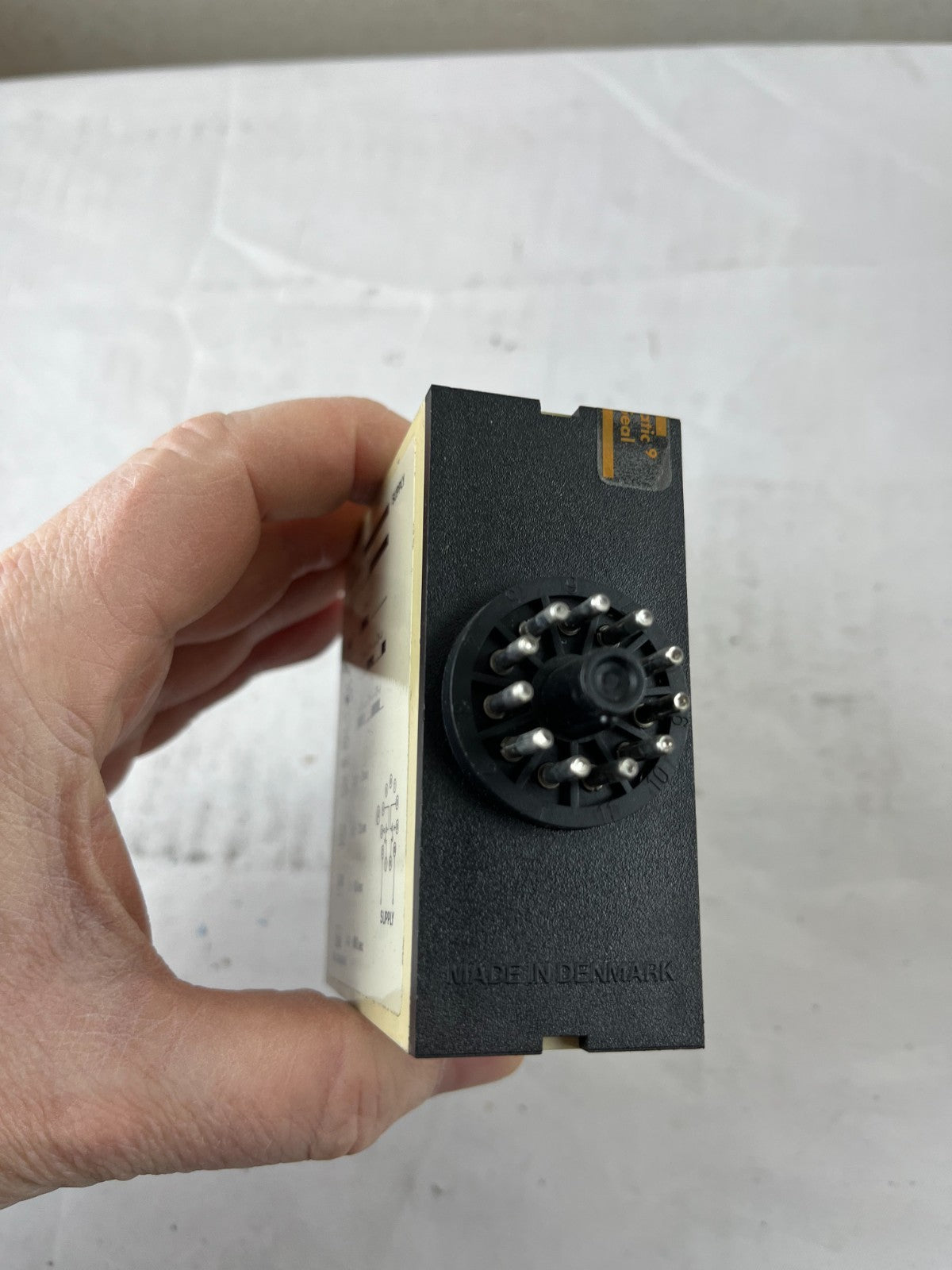

Mounting: 11‑pin plug‑in base (socket not included), IP20 housing.

Condition (Used – Good)

Tested for correct timing and relay operation; both LEDs (power and output) function, and time percentage knob turns smoothly.
Cosmetic discoloration and minor scuffs from service, but labels are readable and pins are straight/clean
