Electromatic SA 105 024 Time Delay Relay 24VAC 0.8-18 Sec Delay On Operate

Electromatic SA 105 024 Time Delay Relay 24VAC 0.8-18 Sec Delay On Operate

- Shipping includes tracking info worldwide. Klaus KLJ Trading

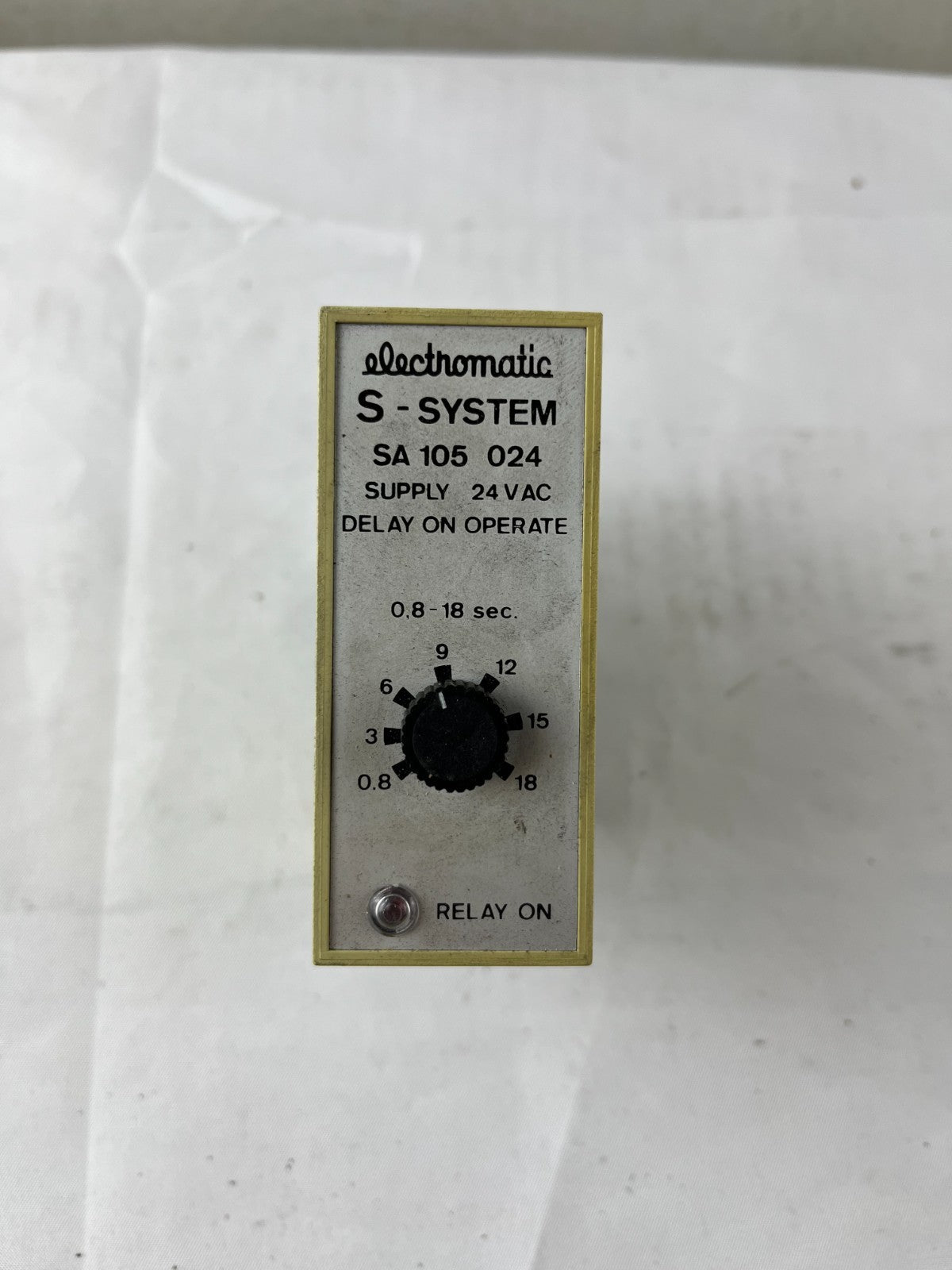

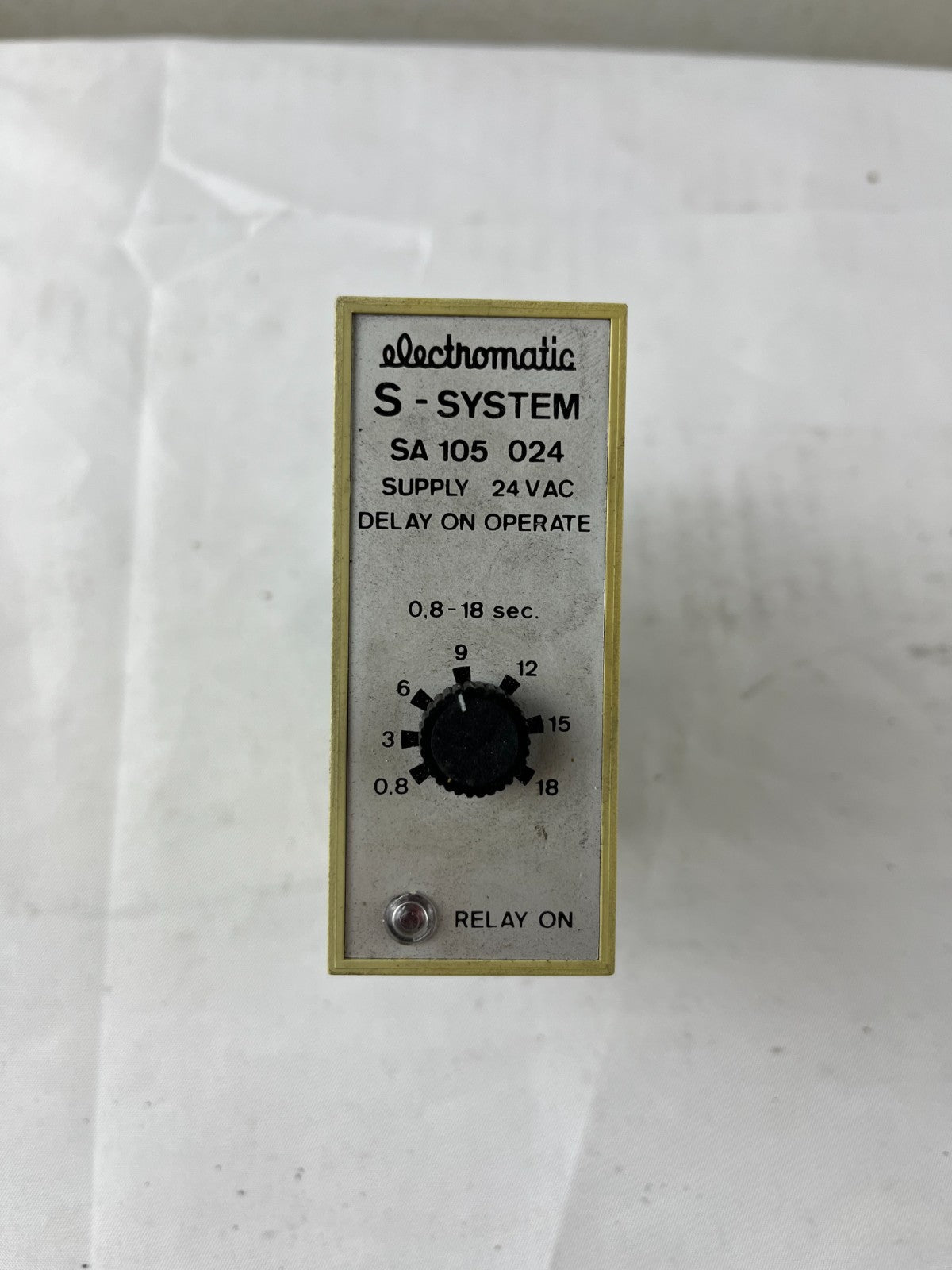

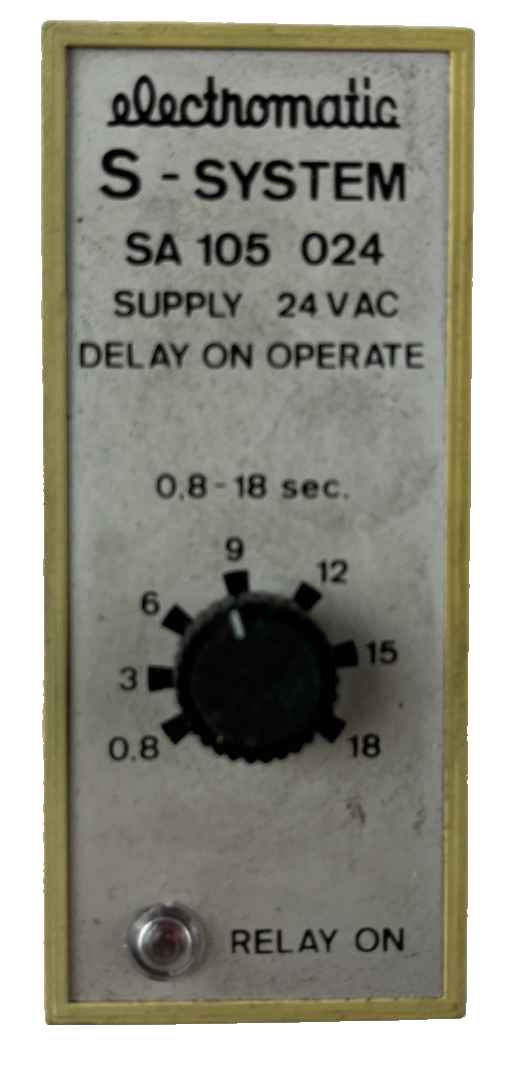

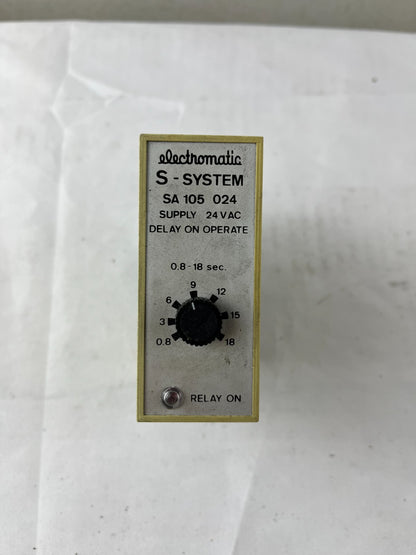

Electromatic S-System SA 105 024 time delay relay with adjustable delay on operate function, operating at 24VAC supply. This plugin-style relay features rotary dial adjustment for delay timing from 0.8 to 18 seconds.​​

What's Included

• 1x Electromatic SA 105 024 Time Delay Relay module

Key Specifications

• Model: SA 105 024

• Type: Delay On Operate relay​

• Supply Voltage: 24 VAC​​

• Delay Range: 0.8 - 18 seconds (adjustable)​

• Mounting: 11-pin plug-in base (octal socket)​

• Weight: Approximately 190 grams​

• Manufacturer: Electromatic (Carlo Gavazzi brand)​

Condition Notes

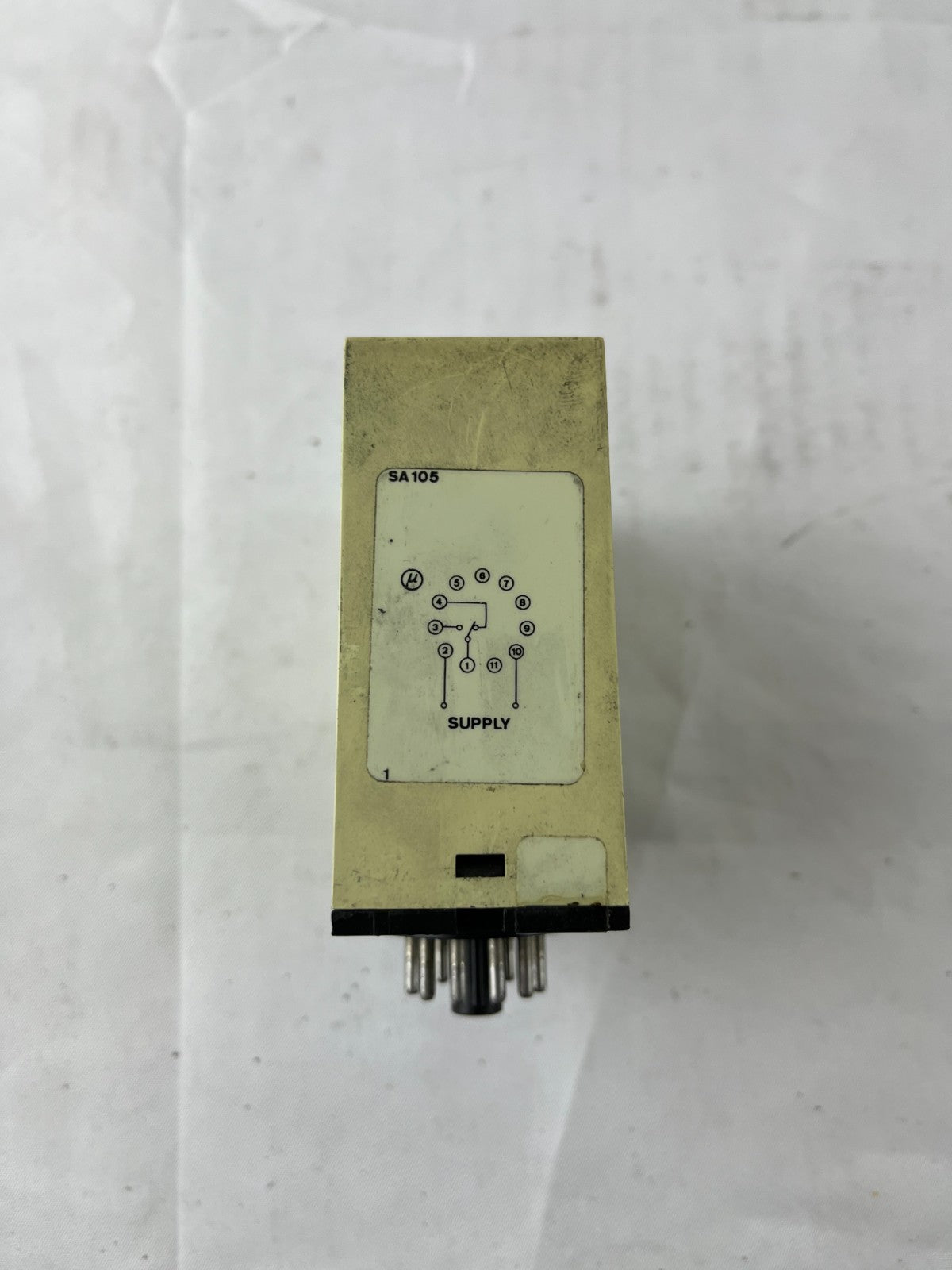

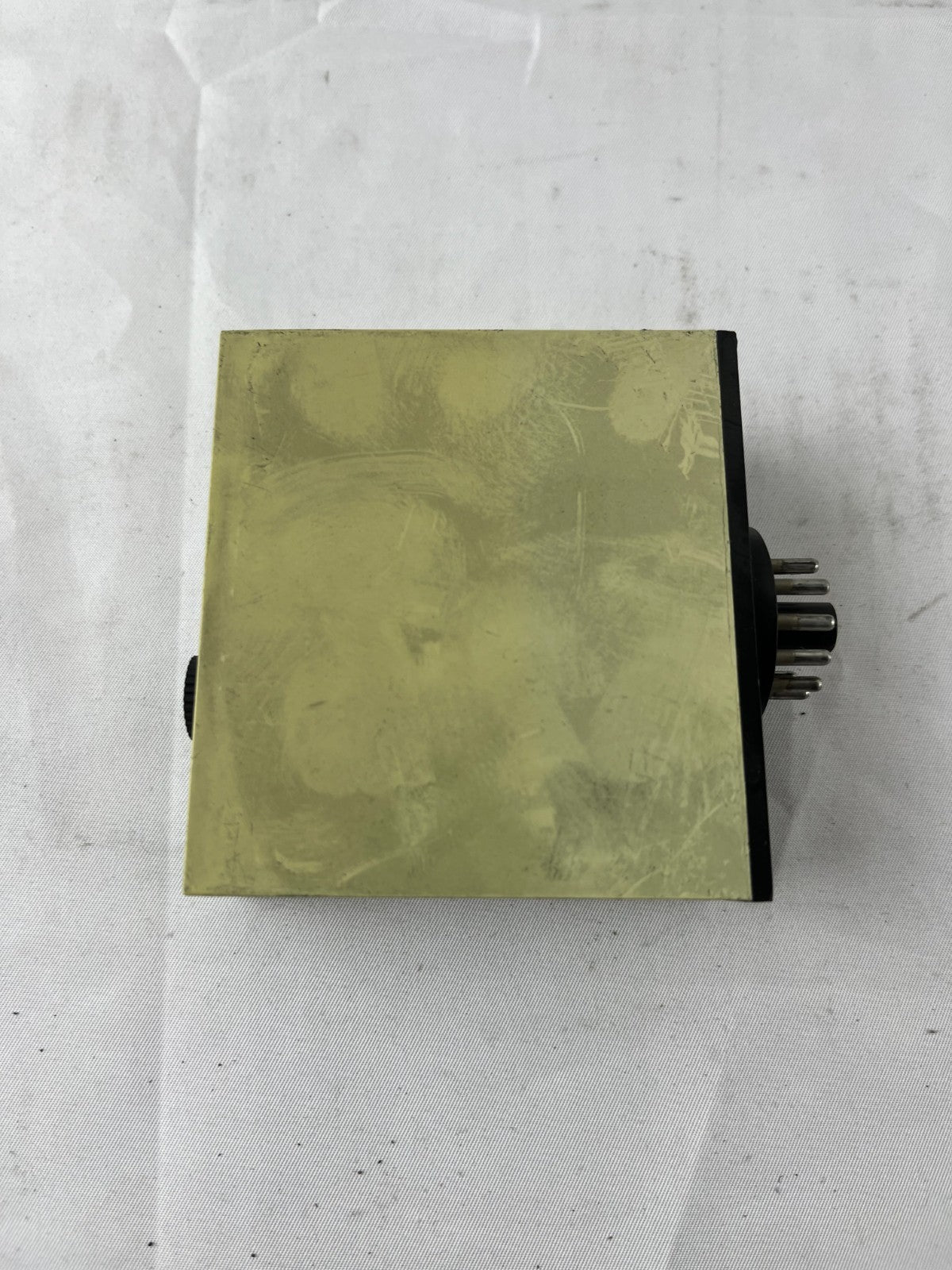

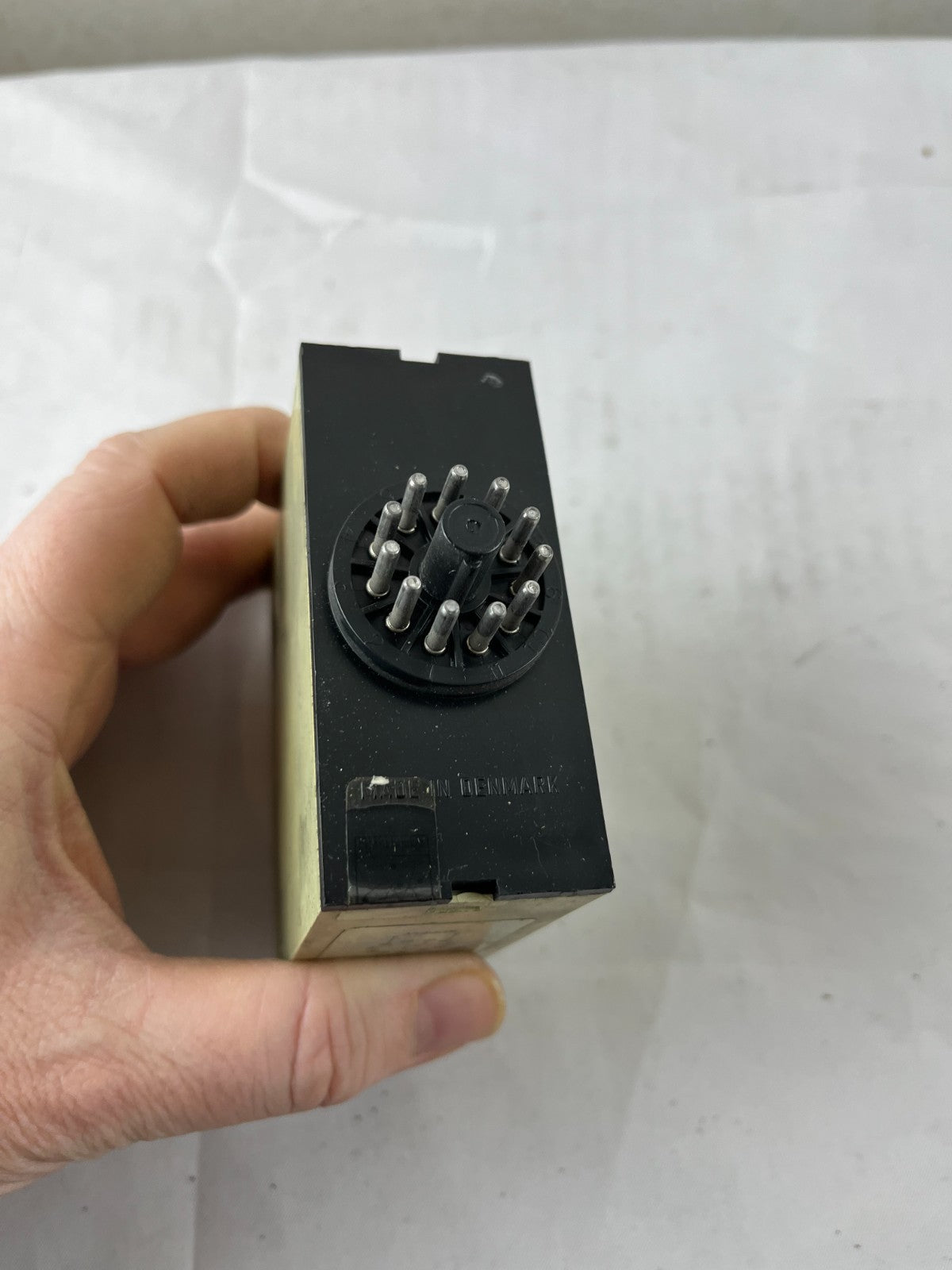

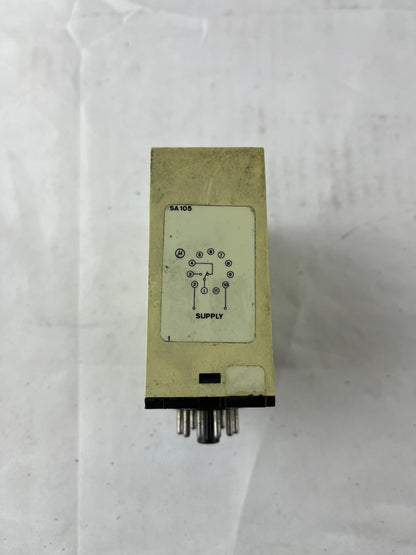

Used condition with visible wear and aging to the beige plastic housing. Front label shows minor scratching and discoloration consistent with industrial use. The rear shows the wiring diagram label marked "SA105" with "MADE IN DENMARK" text visible on the back housing. All pins appear intact and functional.​

Applications

Ideal for industrial automation timing control applications requiring delay on operate functionality in 24VAC control circuits. Commonly used in HVAC systems, motor control panels, and process automation equipment.

Safety Note

Installation should be performed by qualified electrical personnel familiar with industrial control systems and safety standards.
