FESTO SMEO-1-LED-24-K5-B Sensor NEW Magnetic Reed 24V 5m Cable 151672 Sealed

FESTO SMEO-1-LED-24-K5-B Sensor NEW Magnetic Reed 24V 5m Cable 151672 Sealed

- Shipping includes tracking info worldwide. Klaus KLJ Trading

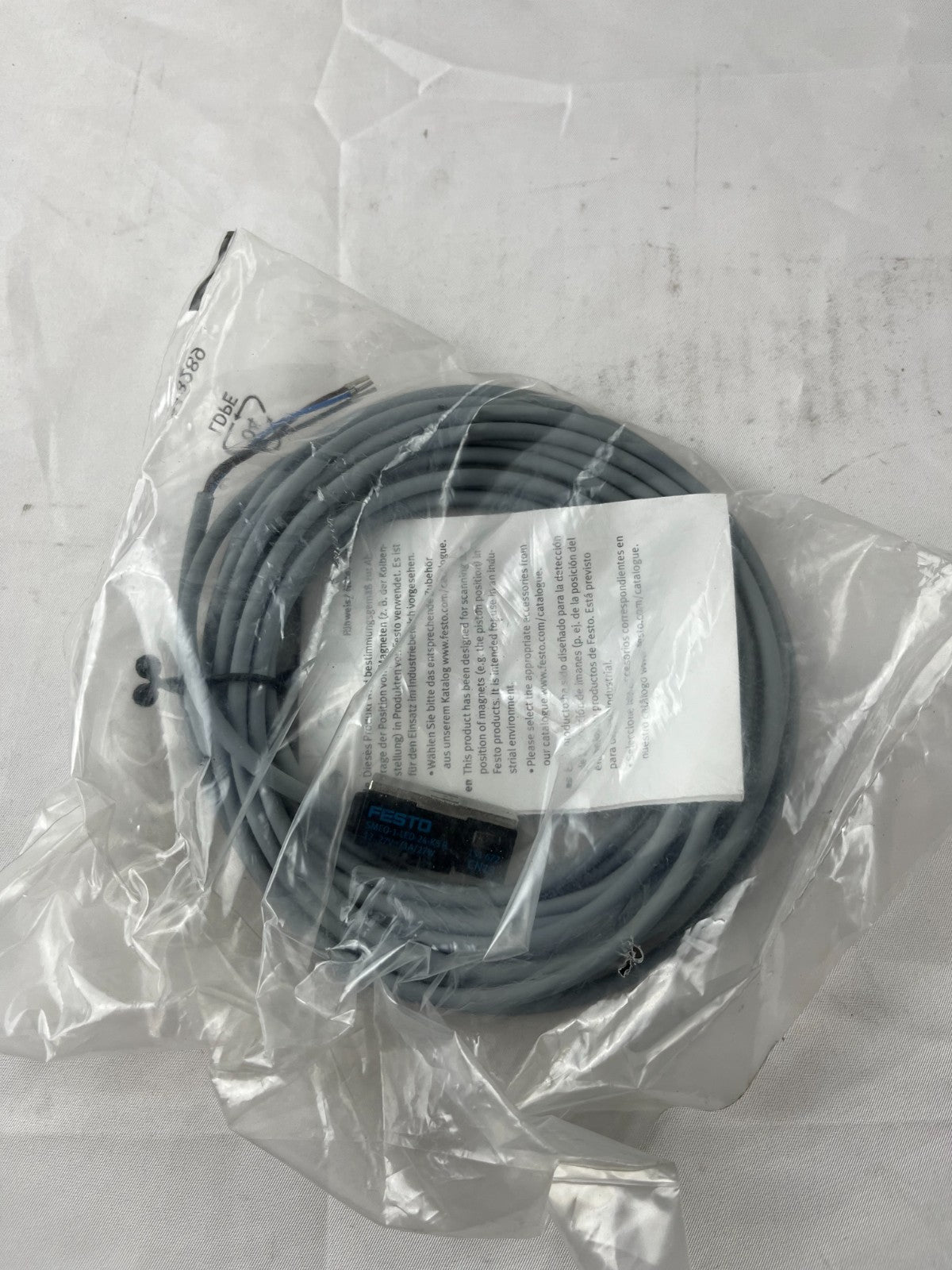

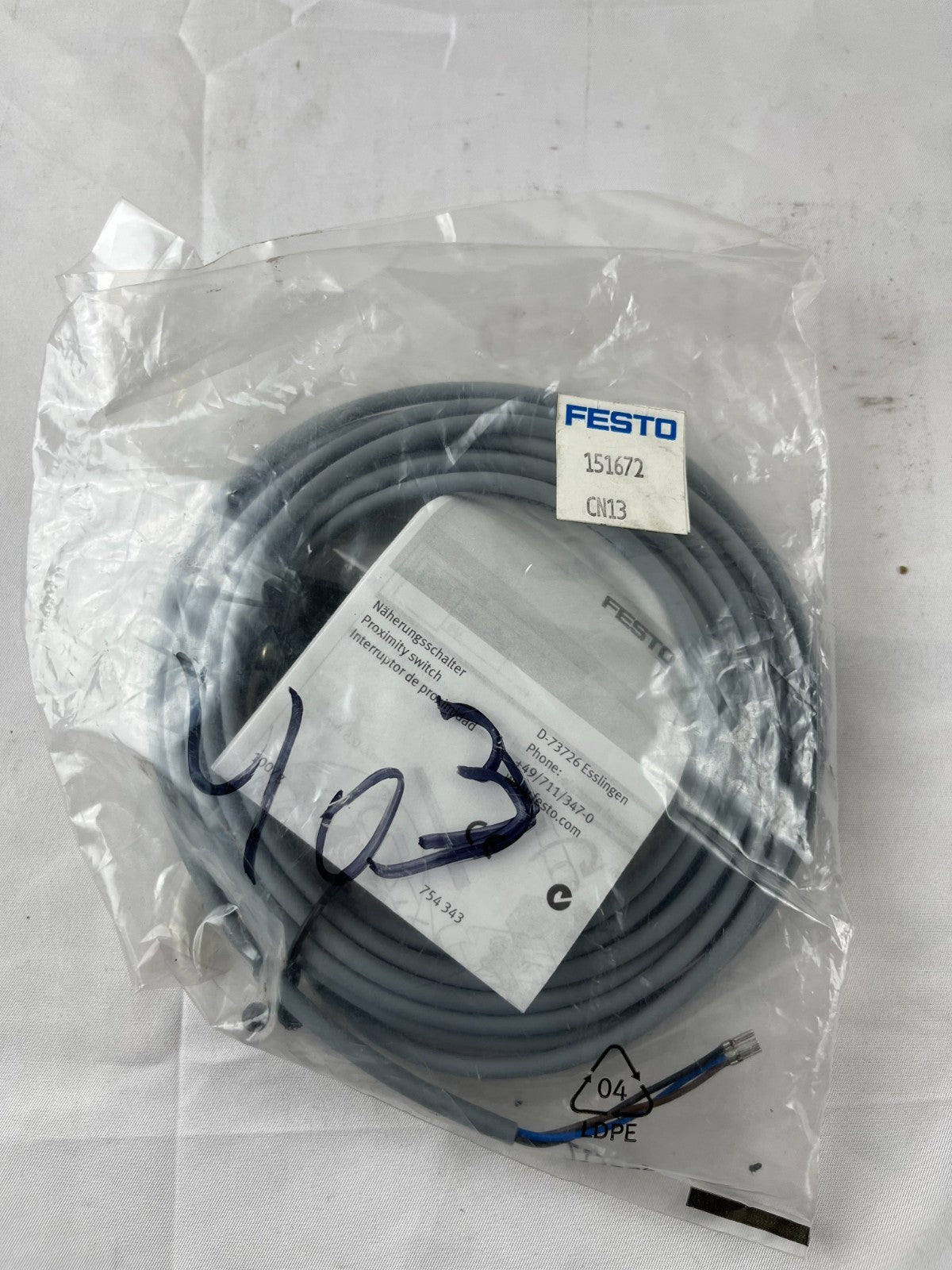

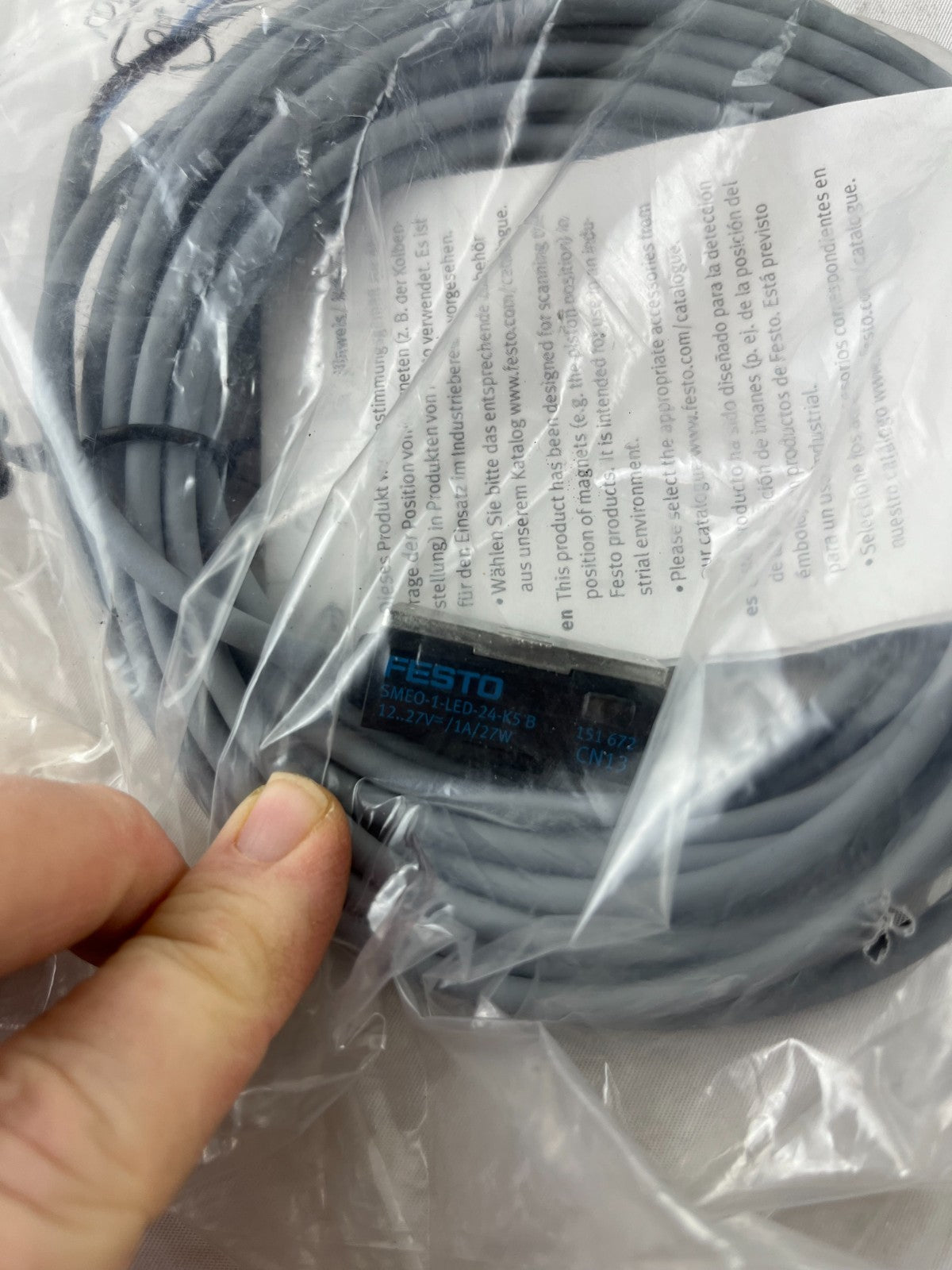

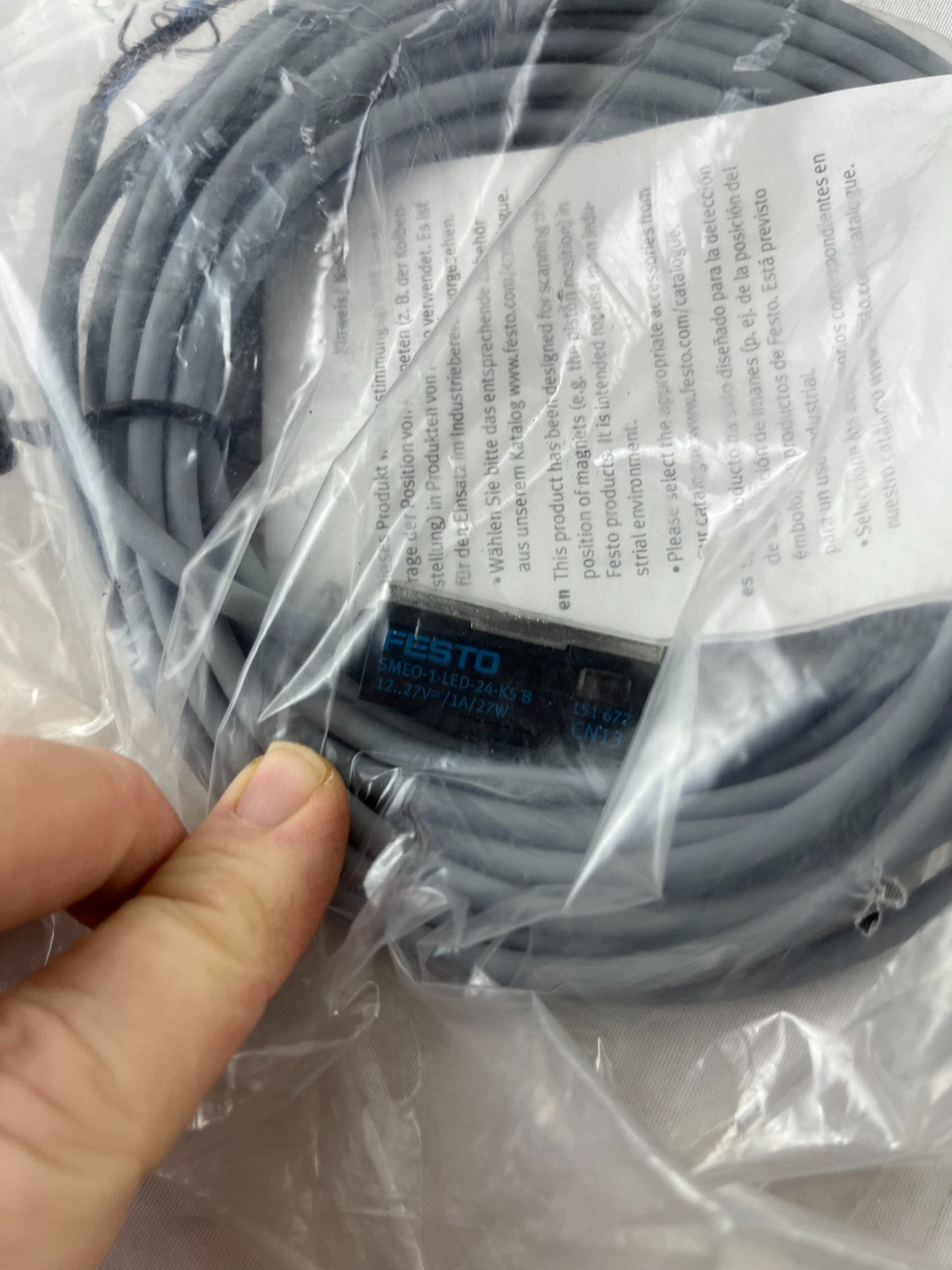

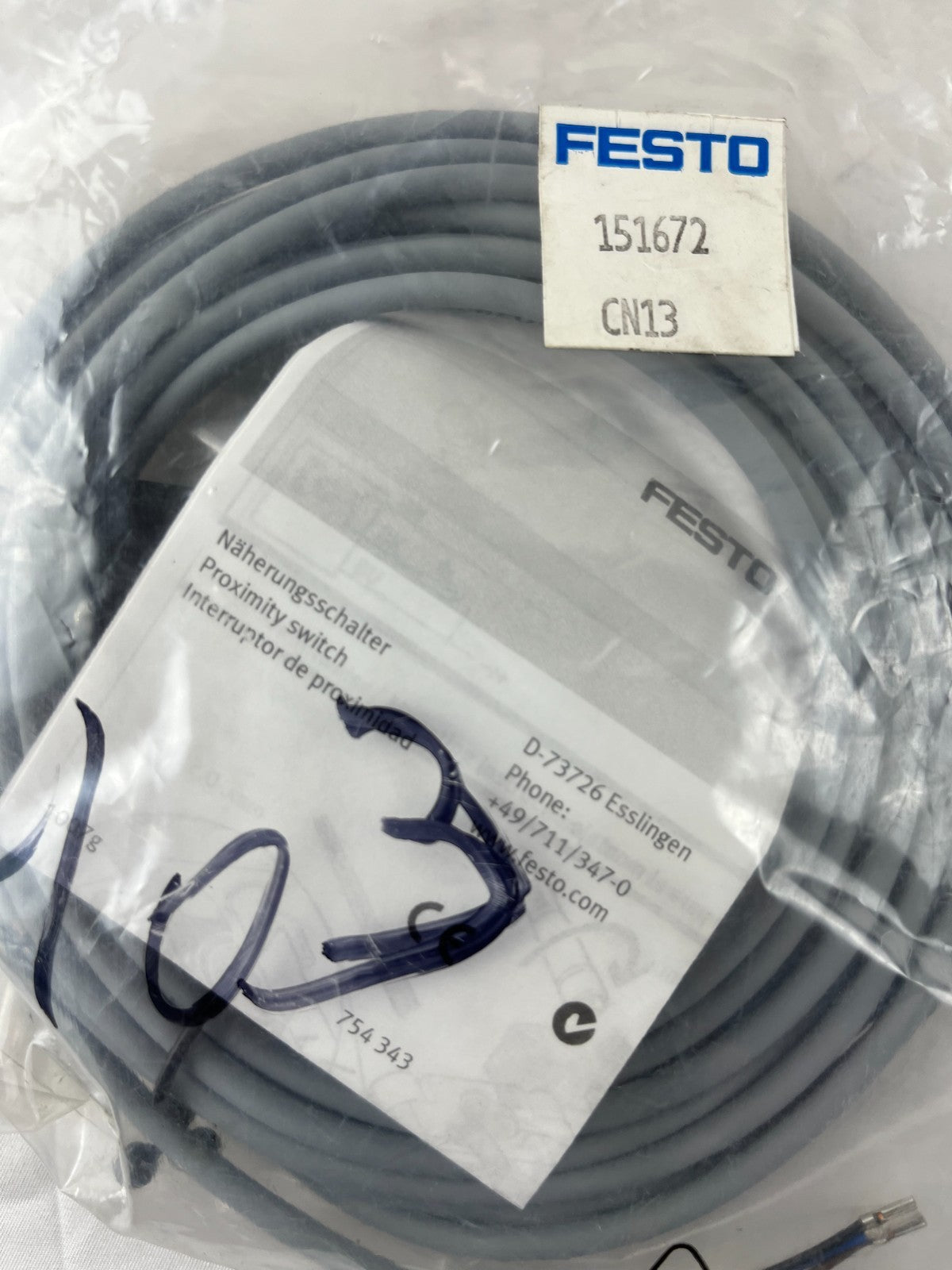

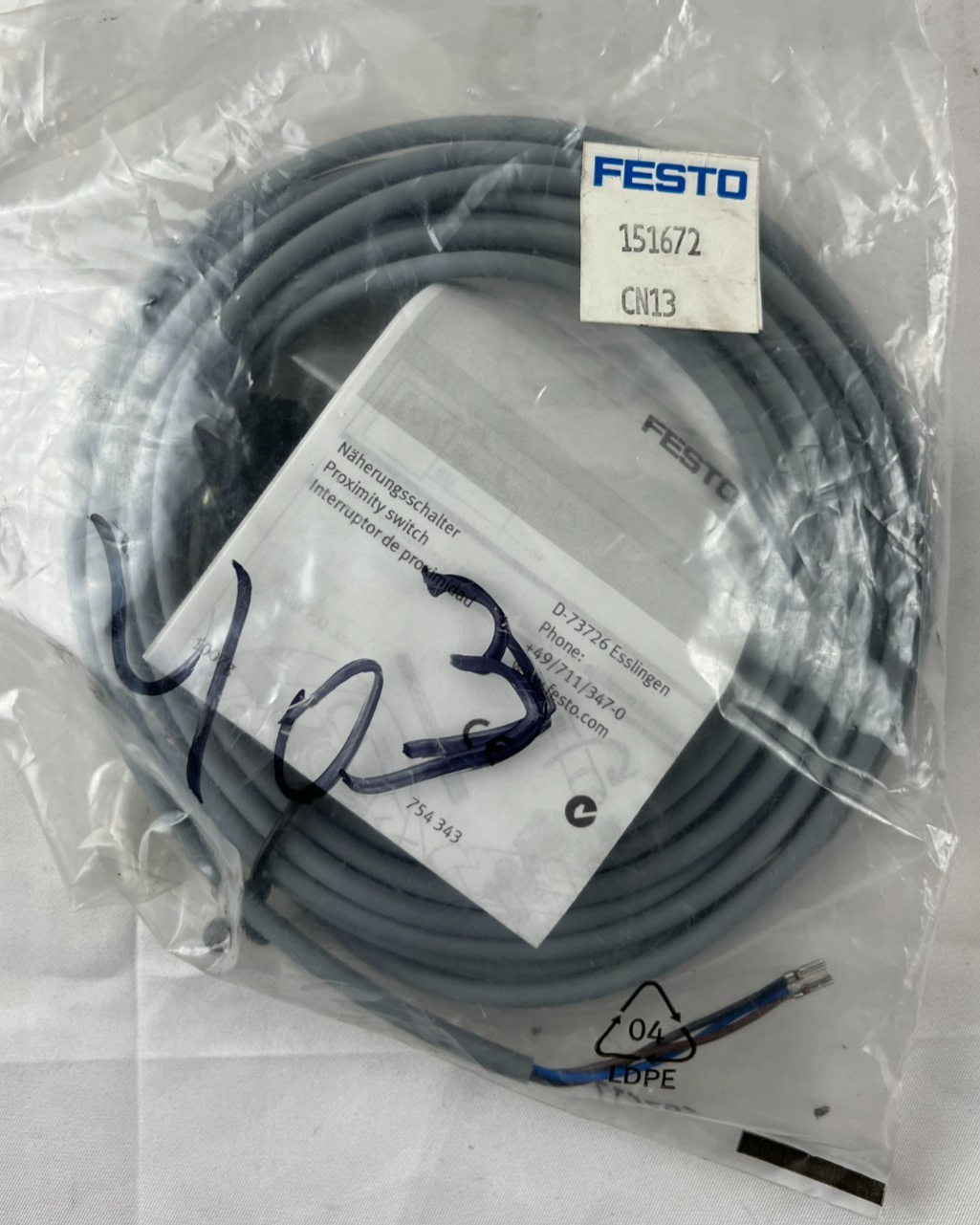

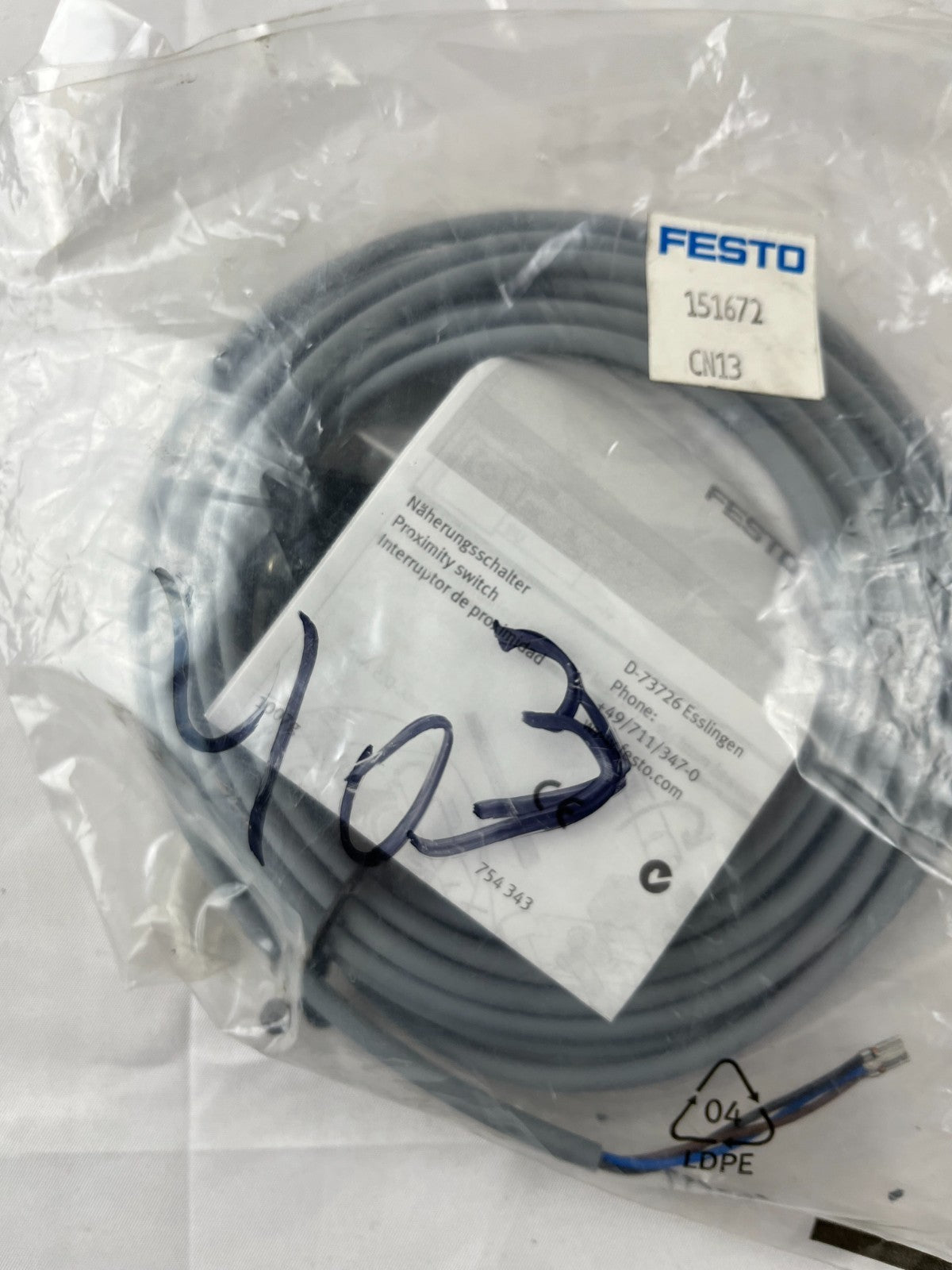

FESTO SMEO-1-LED-24-K5-B magnetic reed proximity sensor (part 151672, order code CN13), brand new sealed in factory packaging with 5m cable and LED status indicator. This German-engineered sensor features compact block design, 5m gray TPE-U (PUR) cable with open end, LED indicator for switching status, bipolar N/O contact, 500 Hz switching frequency, and IP67 protection for reliable magnetic position sensing in pneumatic cylinder automation, material handling systems, packaging machinery, and assembly applications. Perfect for FESTO system integrators, automation builders, or maintenance departments needing quality long-cable proximity sensors for industrial automation projects.​​

What's Included

• 1x FESTO SMEO-1-LED-24-K5-B magnetic reed proximity sensor (sealed in original packaging)​​

• 5m gray cable coiled with open end termination​​

• Sensor body with blue FESTO branding visible​

• Multilingual installation guide visible on packaging​

• Factory-sealed condition with all markings intact​

• Part number 151672​​

• Order code CN13​

• Product number 754343​

• FESTO headquarters location: D-73726 Esslingen​​

• CE marked, RCM compliance, UKCA marking​

FESTO SMEO-1-LED-24-K5-B Sensor Specifications

• Manufacturer: FESTO SE & Co. KG, Esslingen, Germany​​

• Series: SMEO-1 magnetic reed proximity sensors​

• Part number: SMEO-1-LED-24-K5-B (151672)​​

• Design: Block design​

• Measured variable: Position​

• Measuring principle: Magnetic reed​

• Switching output: Contacting, bipolar​

• Switching element function: N/O contact (normally open)​

• Switch-on time: 0.5ms​

• Max. switching frequency: 500 Hz​

• Max. output current: 1 A​

• Max. switching capacity AC: 27 VA​

• Max. switching capacity DC: 27 W​

• Operational voltage range AC: 12-27 V​

• Operational voltage range DC: 12-27 V​

• Short circuit protection: Not available​

• Reverse polarity protection: No​

• Repetition accuracy: 0.2mm​

• Electrical connection: 3-wire cable with open end​

• Connection outlet orientation: In-line​

• Cable length: 5m​​

• Cable sheath color: Gray​​

• Cable sheath material: TPE-U (PUR)​

• Status indicator: Yellow LED (switching status)​

• Mounting: With accessories​

• Mounting position: Optional​

• Product weight: 130g​

• Housing color: Black​

• Housing material: Epoxy resin, reinforced PET, steel​

• Ambient temperature: -20°C to +70°C​

• Ambient temperature with moving cable: -5°C to +70°C​

• Protection class: IP67​

• Certifications: CE marked (EU EMC Directive, EU RoHS Directive), RCM trademark, UKCA marking (UK EMC, UK RoHS)​

• RoHS compliant: Yes​

• LABS (PWIS) conformity: VDMA24364-B2-L​

Condition Notes

Brand new, never used, factory sealed in original FESTO packaging. Sensor remains in unopened condition with intact seal, multilingual installation guide, and all labeling visible. Perfect new-in-package condition for demanding industrial automation applications.​

Applications

Essential for magnetic position detection in pneumatic cylinder automation, material handling systems, packaging machinery, assembly automation, and robotics. Magnetic reed technology provides reliable, wear-free position feedback for pneumatic cylinders and magnetic actuation applications. Fast 0.5ms switching time and 500 Hz frequency enable high-speed applications. High 1A output current capability allows direct control of various loads. Long 5m cable provides installation flexibility for remote mounting. Compact block design fits tight spaces.​​​​​​​​
