FineTek SE3800CCRG1000 Rotary Paddle Level Switch 240V 3/4" IP65 NEW Sealed

FineTek SE3800CCRG1000 Rotary Paddle Level Switch 240V 3/4" IP65 NEW Sealed

- Shipping includes tracking info worldwide. Klaus KLJ Trading

FineTek SE3800CCRG1000 rotary paddle level switch - brand new sealed in original box for solid and powder level detection in tanks, bins, and hoppers. This compact industrial-grade switch features IP65 protection and 3/4" process connection for reliable level control applications.​​

What's Included

• FineTek SE3800CCRG1000 rotary paddle switch​​

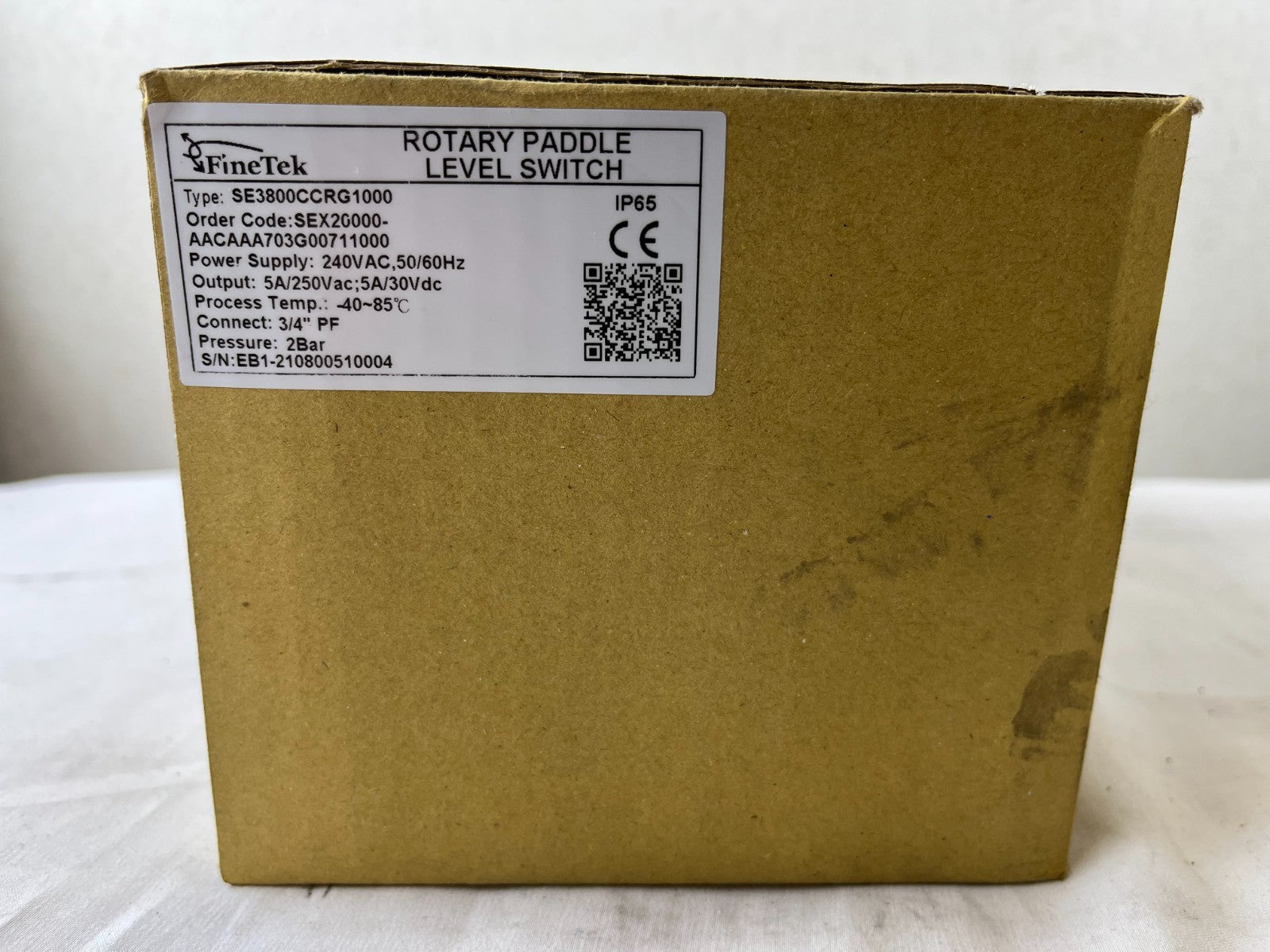

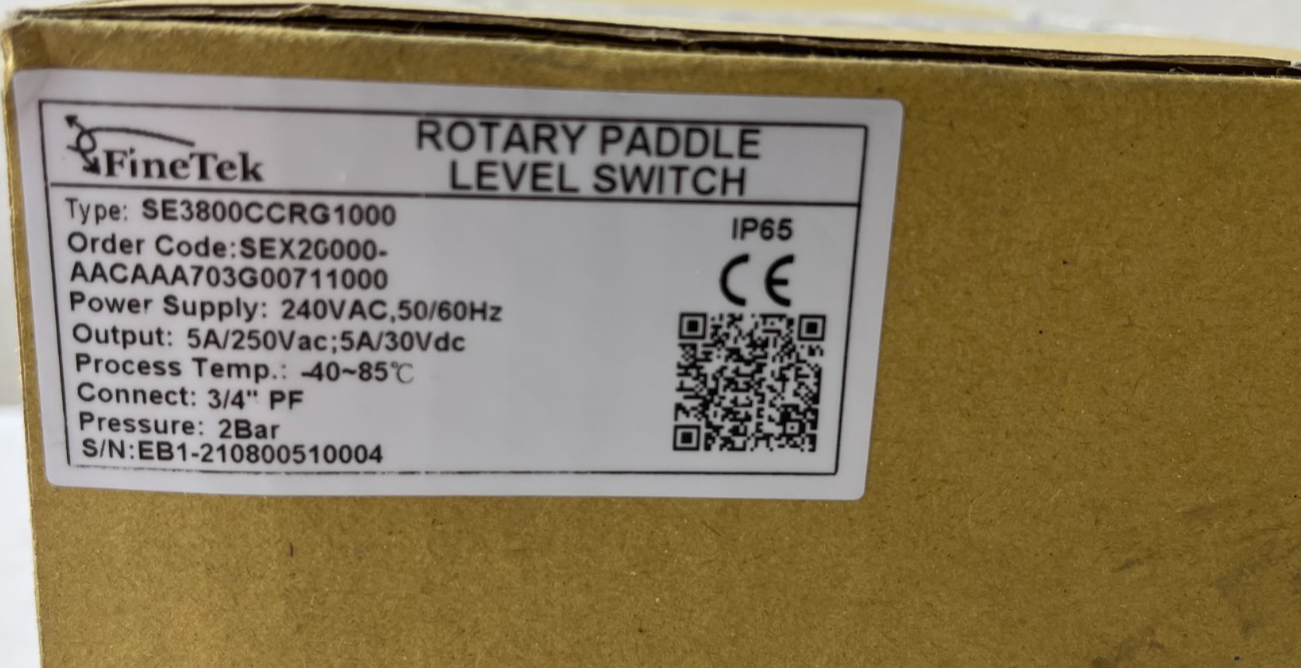

• Factory sealed in original box​

• Order code: SEX20000-AACAAA703G00711000​

• S/N: EB1-210800510004​

• Wiring cable with color-coded leads​

Specifications

• Model: SE3800CCRG1000​​

• Series: SE3800 Mini rotary paddle level switch​

• Power supply: 240V AC, 50/60Hz​​

• Output: SPDT 5A/250Vac, 5A/30Vdc​​

• Process temperature: -40°C to +85°C​​

• Process connection: 3/4" PF (pipe thread)​​

• Pressure rating: 2 Bar​​

• Protection: IP65​​

• Rotary speed: 1 RPM​​

• Paddle material: PC (polycarbonate)​

• Certification: CE marked​

• Manufacturer: FineTek (Taiwan)​

Operation Principle

During normal operation without material present, a synchronous motor rotates the paddle at 1 RPM. When the paddle is obstructed by solid or powdery material, the motor stalls and triggers the SPDT relay output for alarm or control signaling. When material drops below the paddle level, the motor automatically resets to initial state.​​

Condition Notes

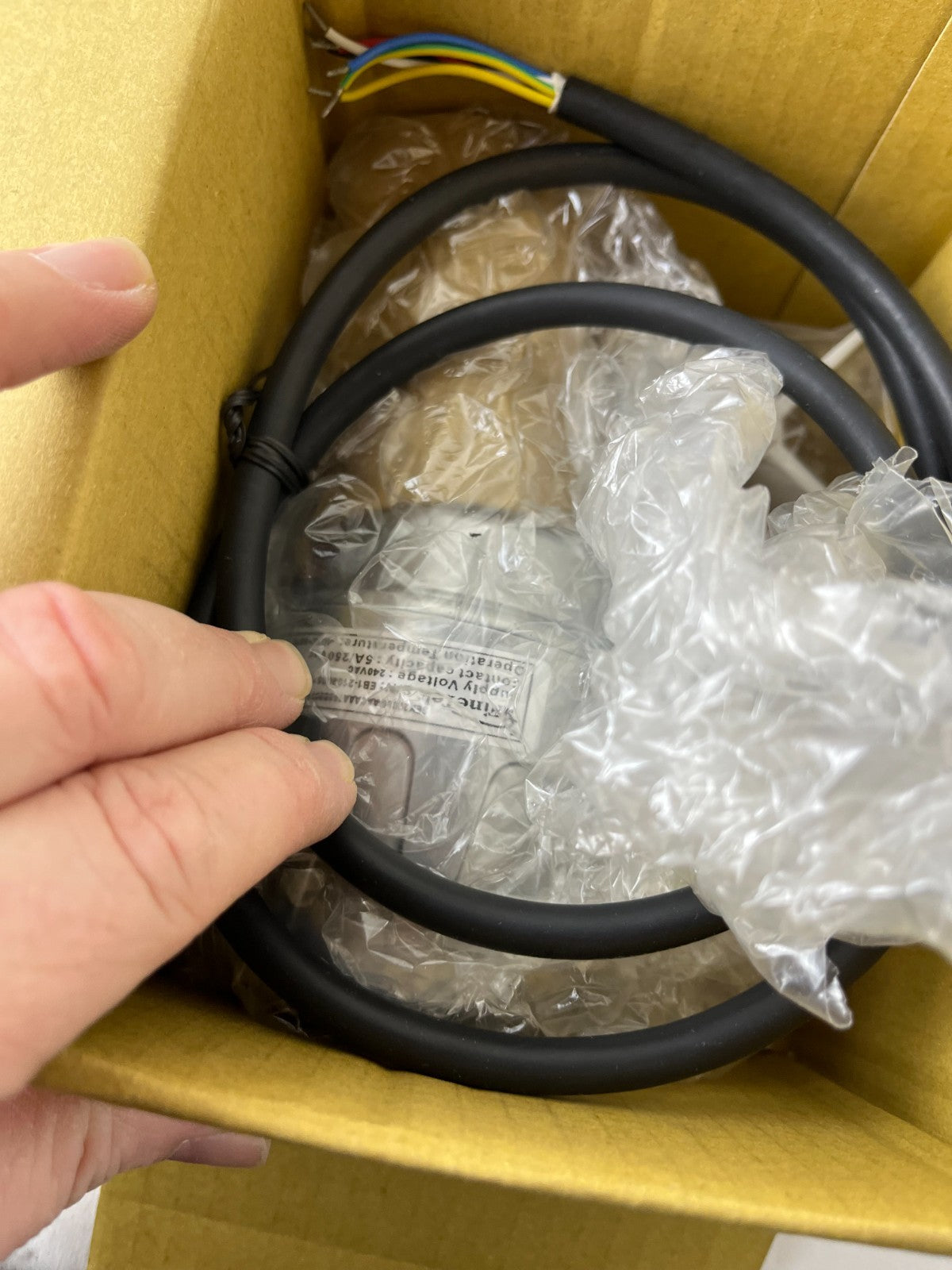

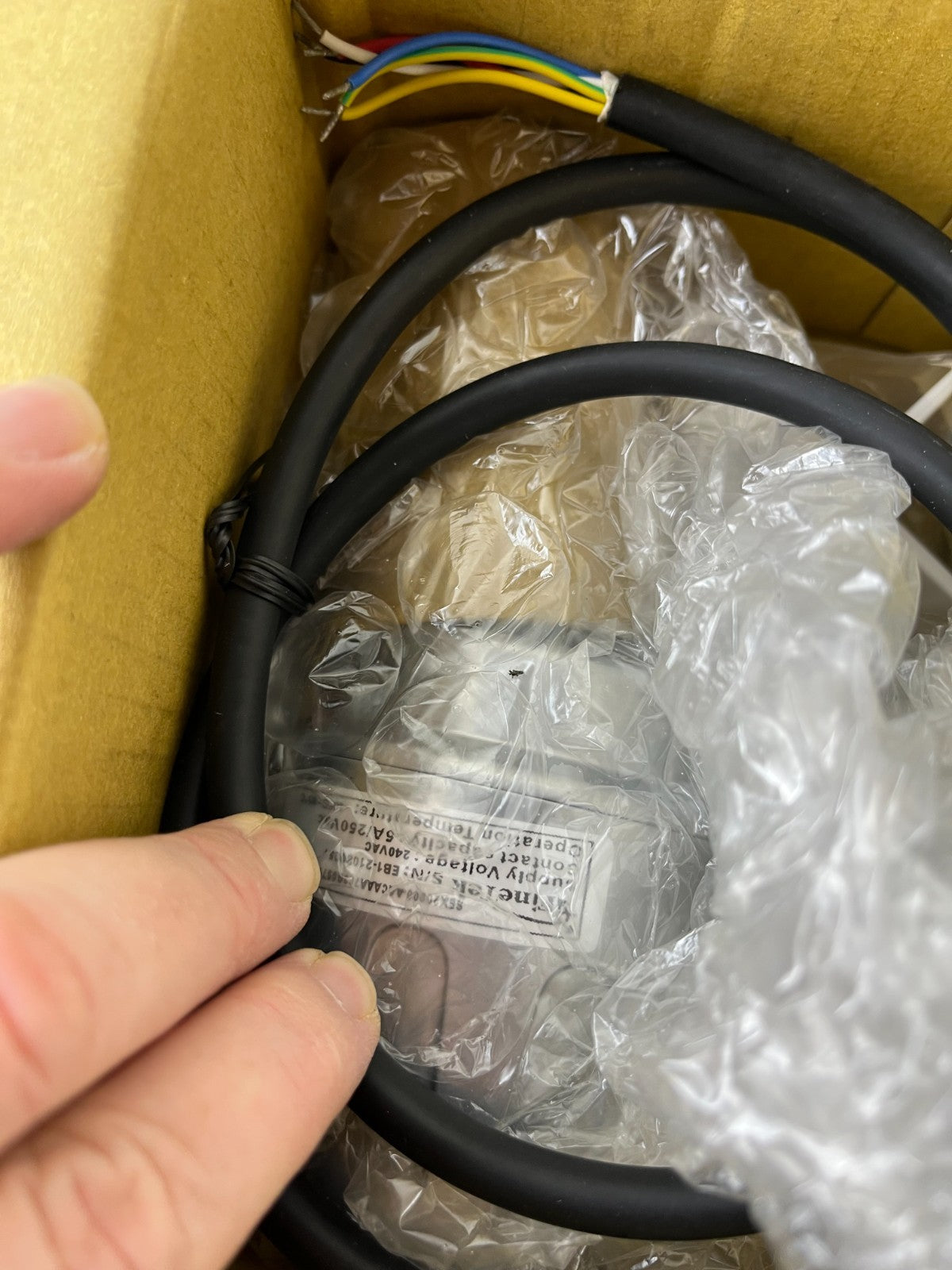

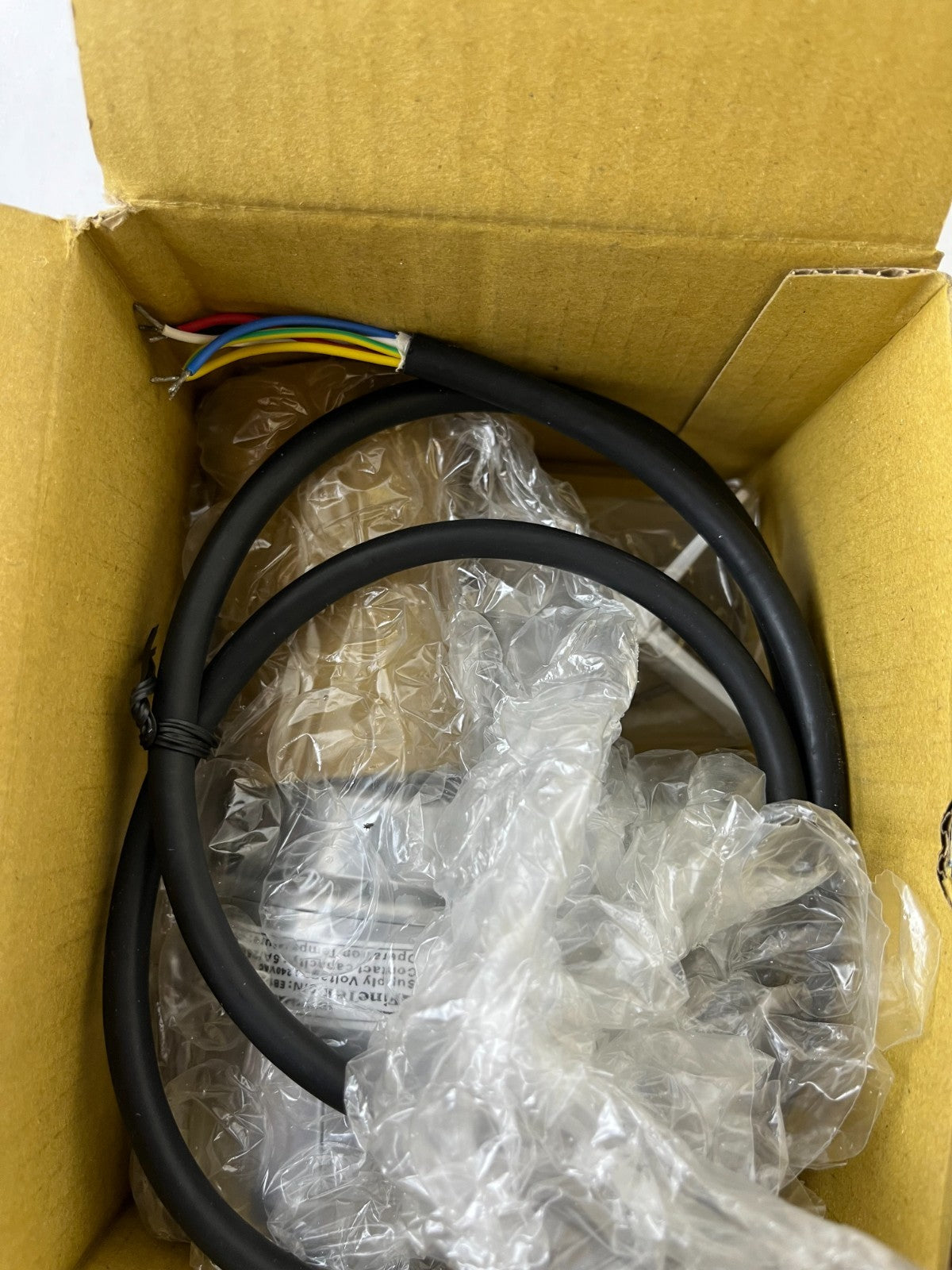

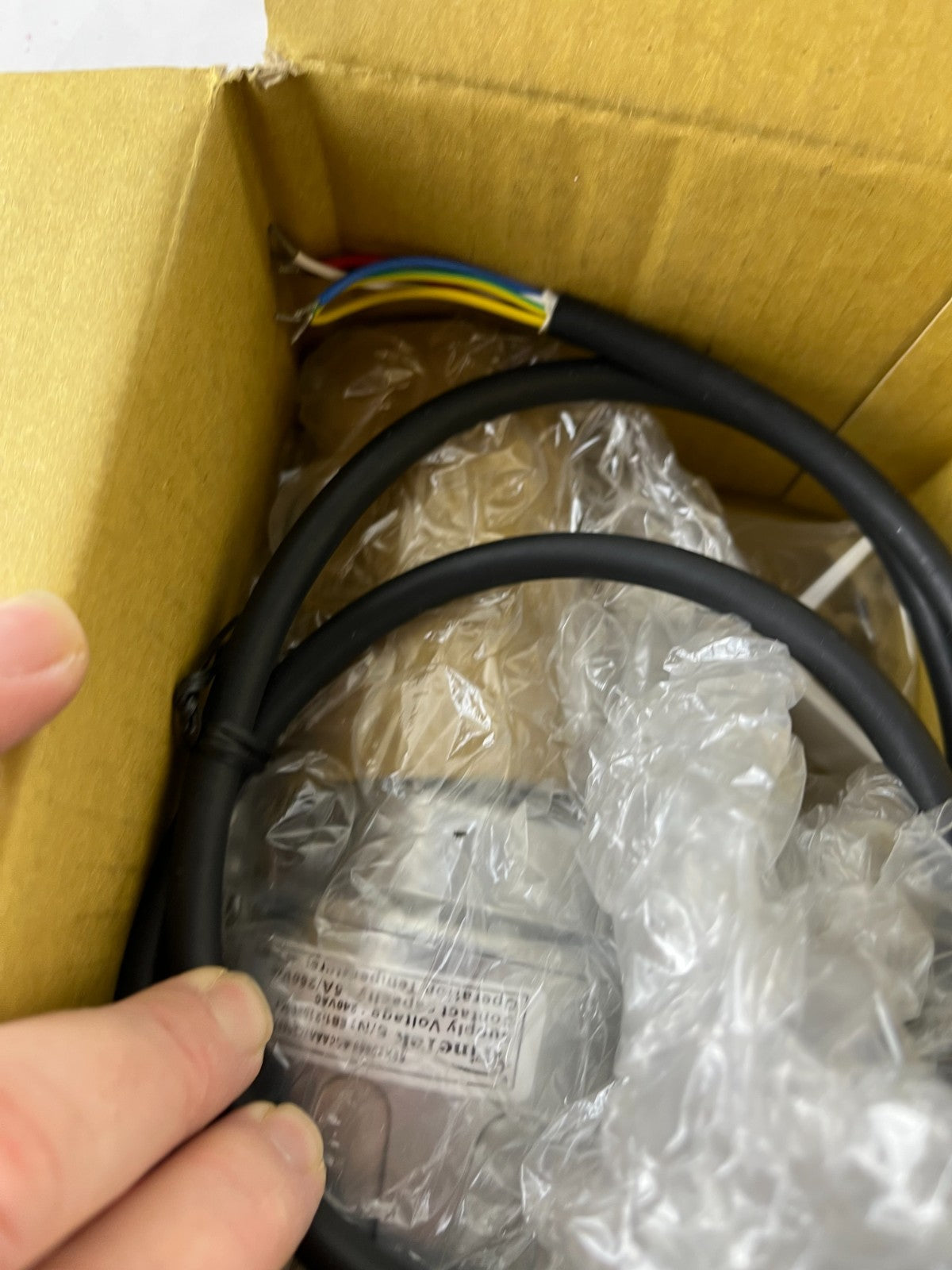

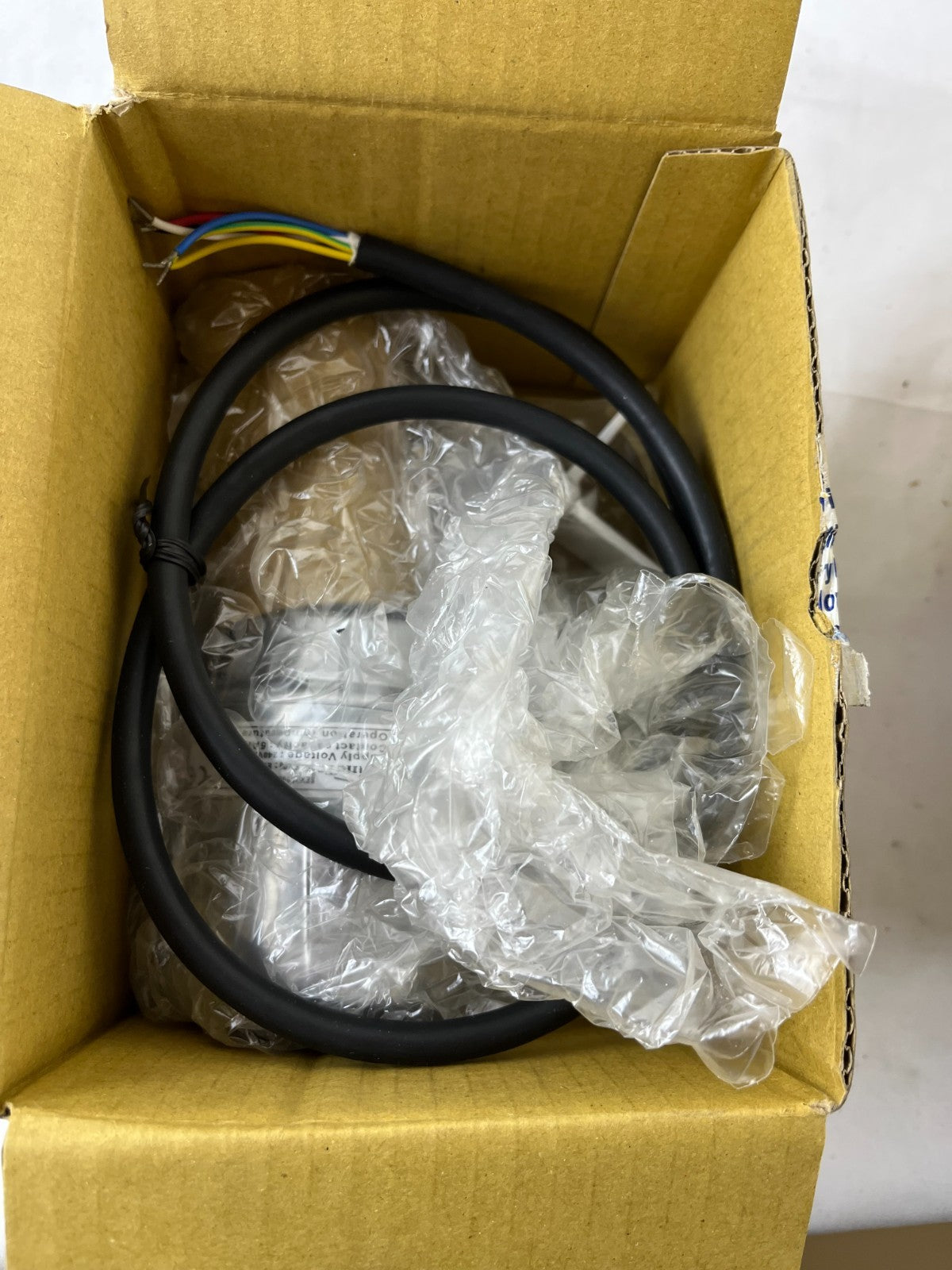

Brand new sealed unit, never installed. Factory packaging intact with protective wrapping. Complete with pre-wired cable featuring color-coded leads (blue, brown, yellow/green visible). This SE3800 series represents FineTek's compact, low-cost solution for reliable solid level detection in small to medium tanks.​

Applications

Grain silos, cement bins, powder hoppers, food processing tanks, chemical storage, plastic pellet containers, and general bulk solid level control in industrial environments
