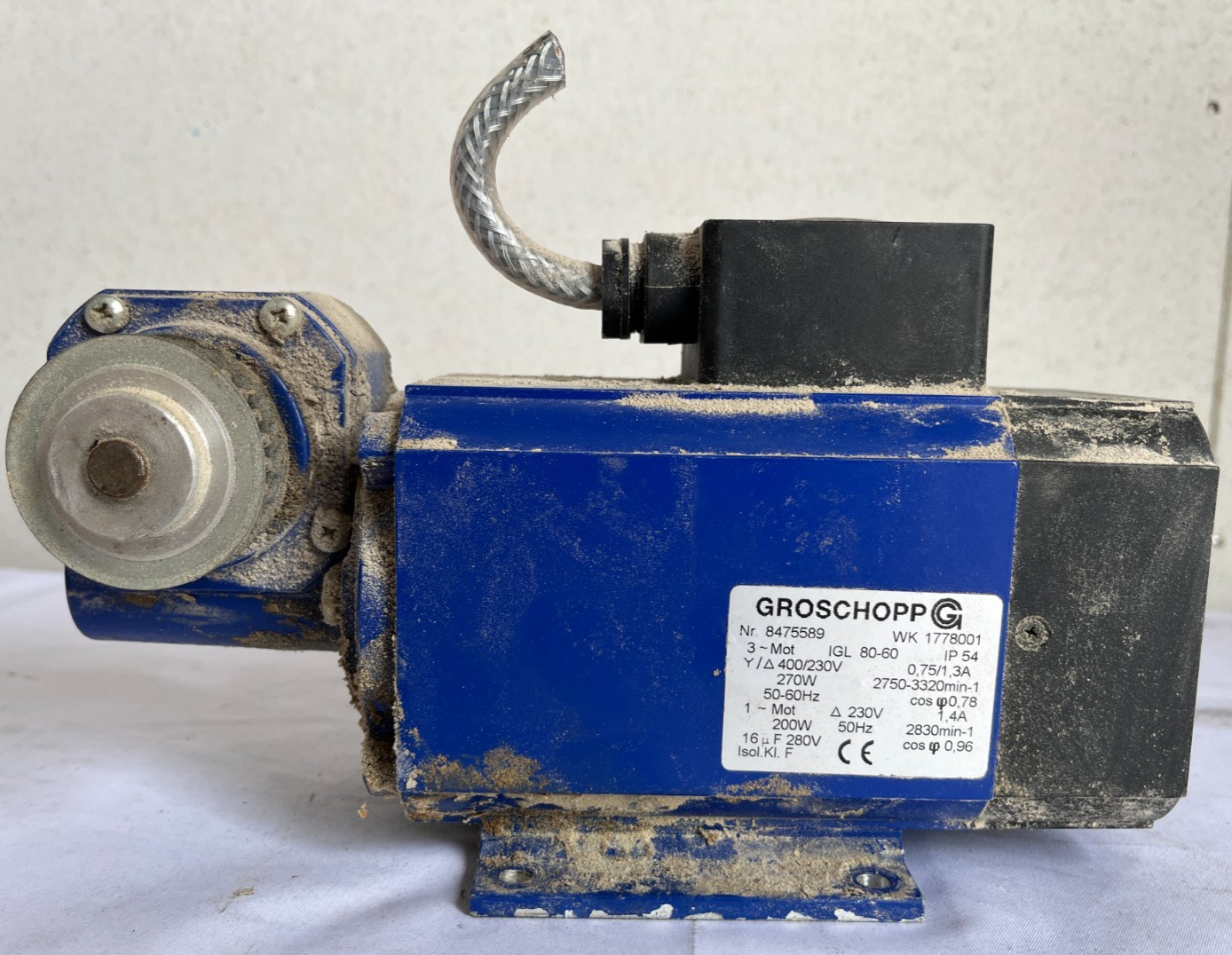

Groschopp IGL 80‑60 is an AC induction gear motor suitable for industrial drives such as conveyors, pumps and machinery. This unit is used, removed from a working installation, and shows heavy dust and cosmetic wear but runs fine.
Brand: Groschopp
Motor type: IGL 80‑60 AC induction gear motor (nameplate “3~ Mot IGL 80‑60”)

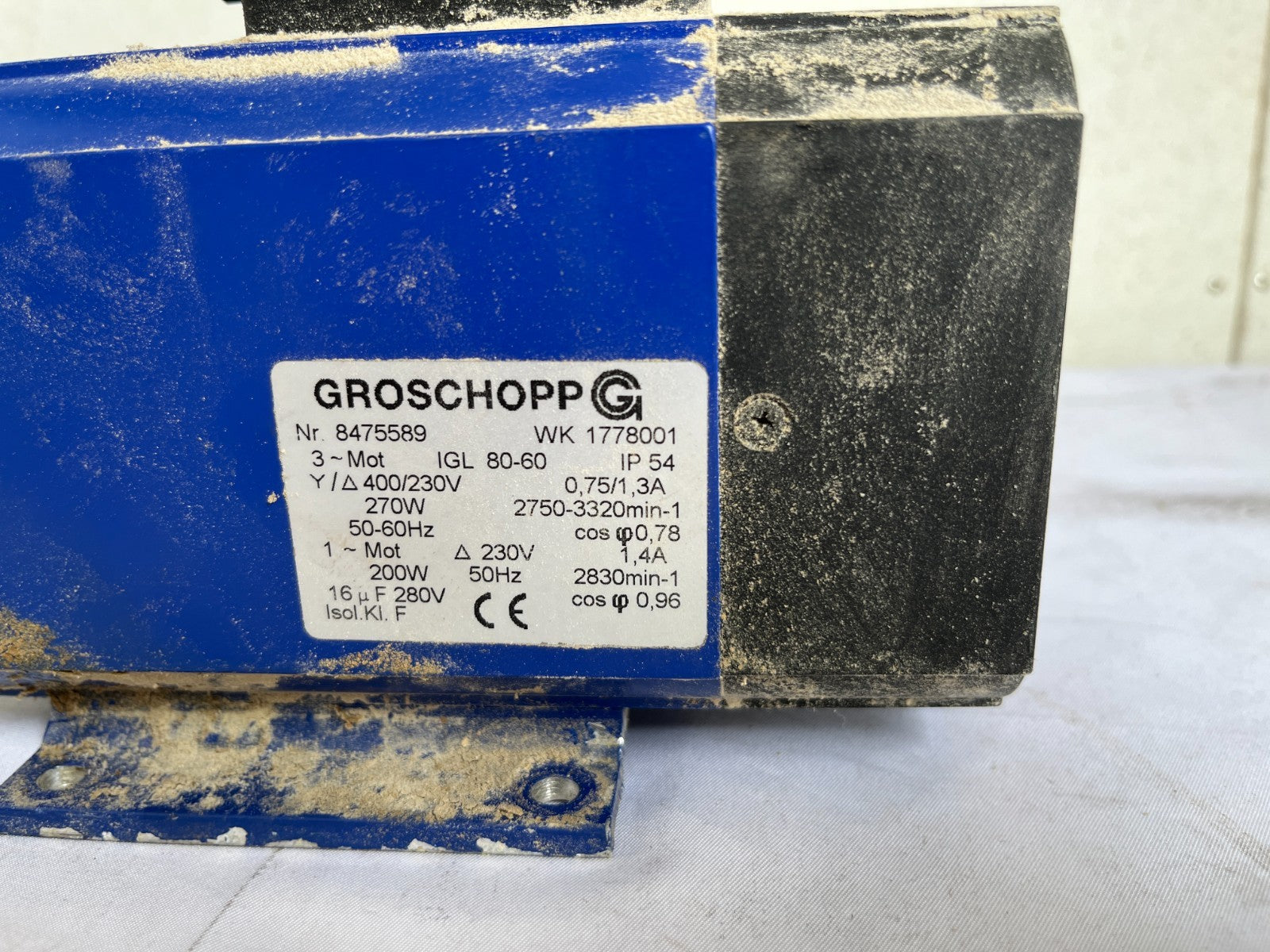

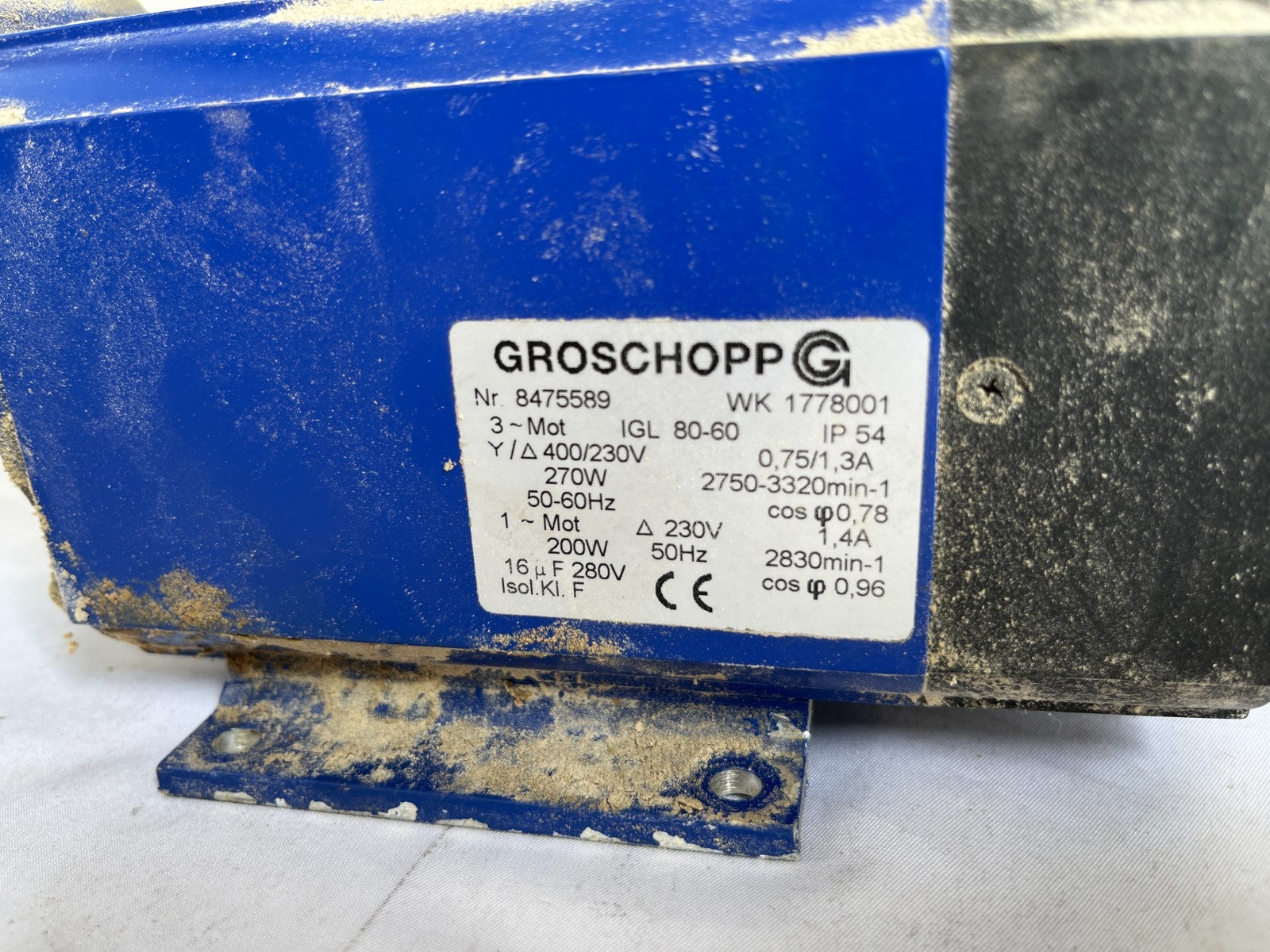

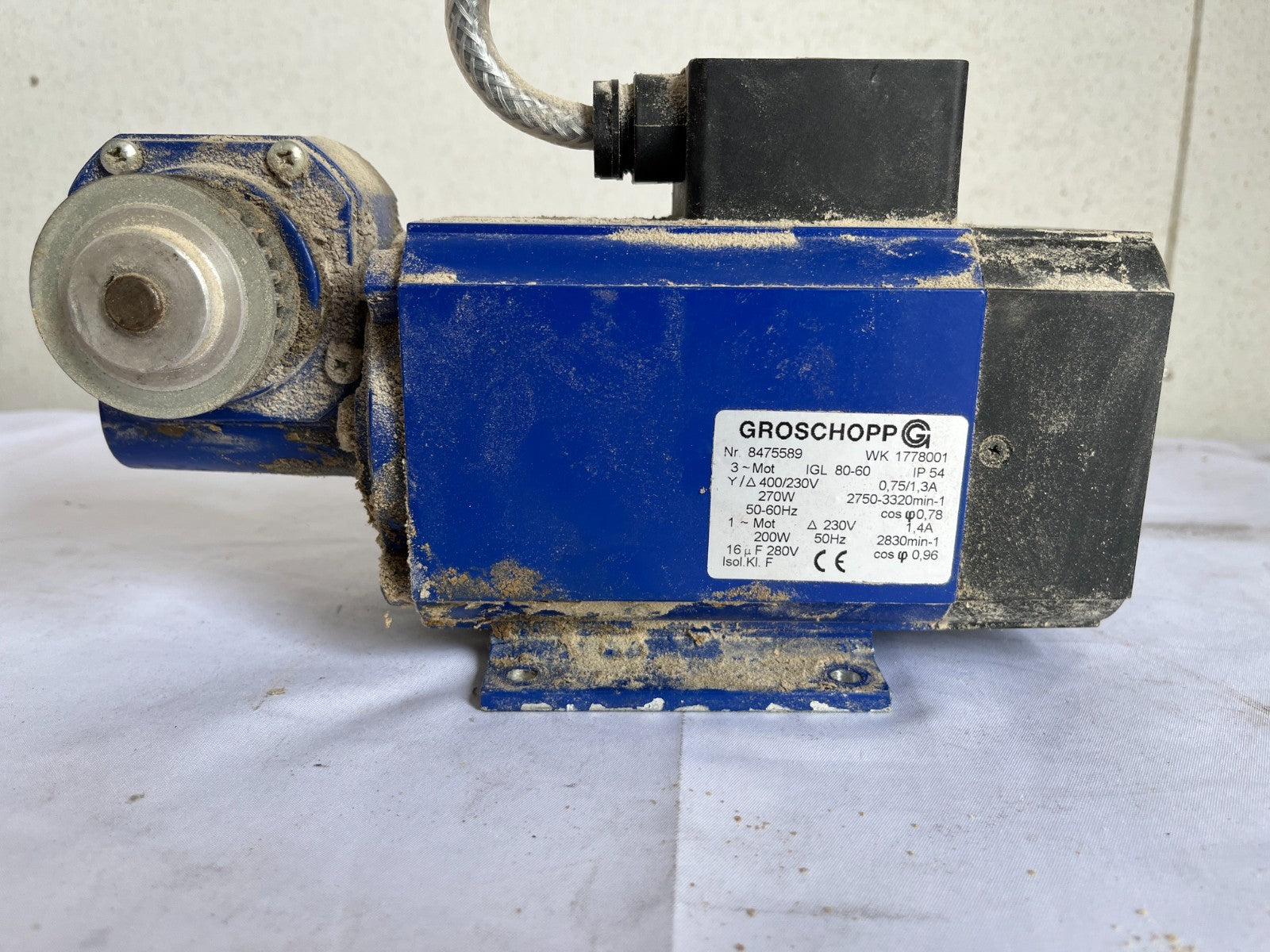

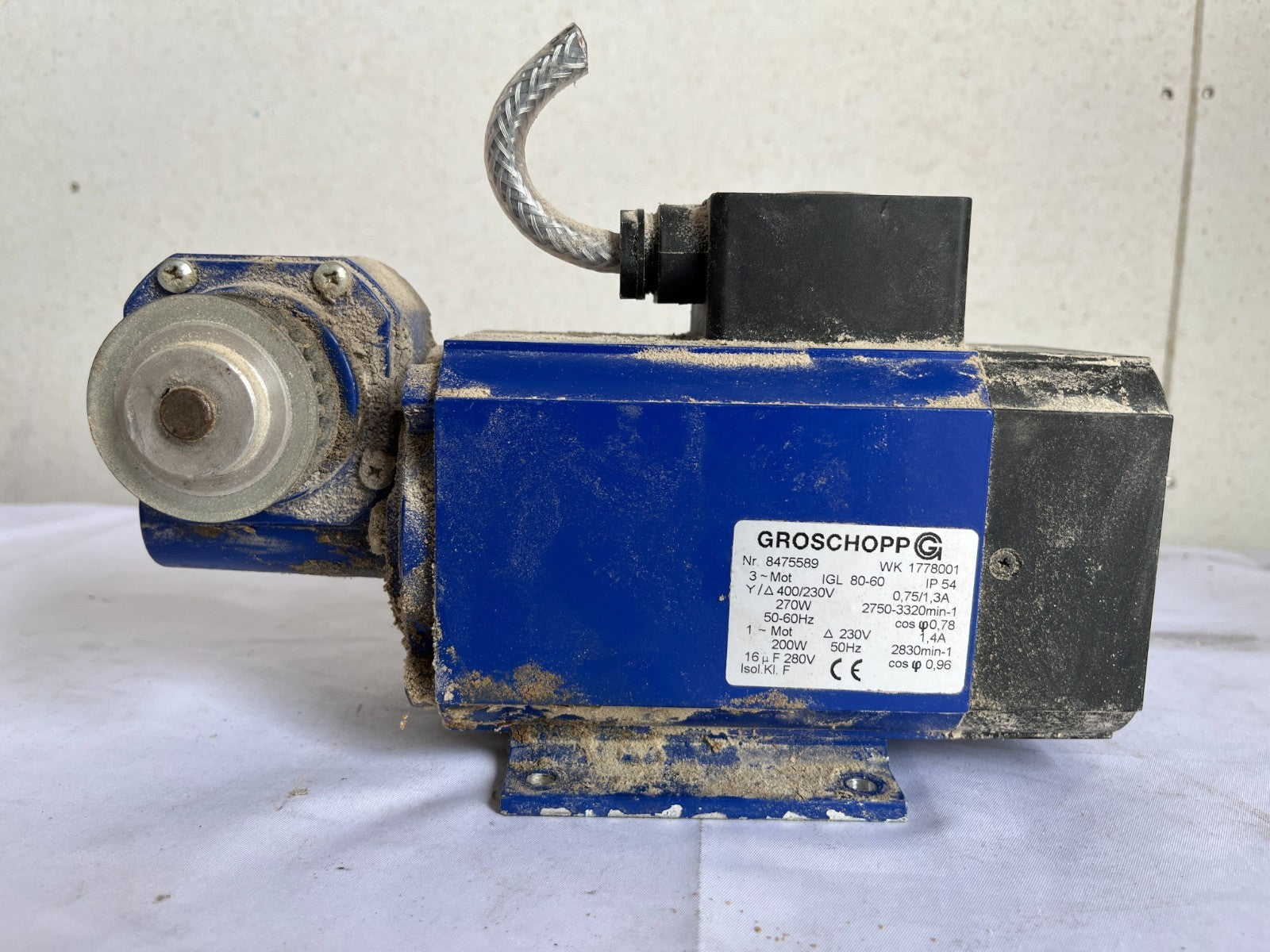

Rated power (3‑phase): 270 W, 50–60 Hz, Y/Δ 400/230 V, 0.75/1.3 A (per nameplate, see photos)
Rated speed range (3‑phase): approx. 2750–3320 min‑1 at motor shaft (gearbox output speed depends on ratio; see pulley/gearbox)
Single‑phase data (also on nameplate): 200 W, Δ 230 V 50 Hz, 4.4 A with 16 μF / 280 V capacitor, cos φ 0.96 (Steinmetz connection)
Protection class: IP54
Insulation class: F

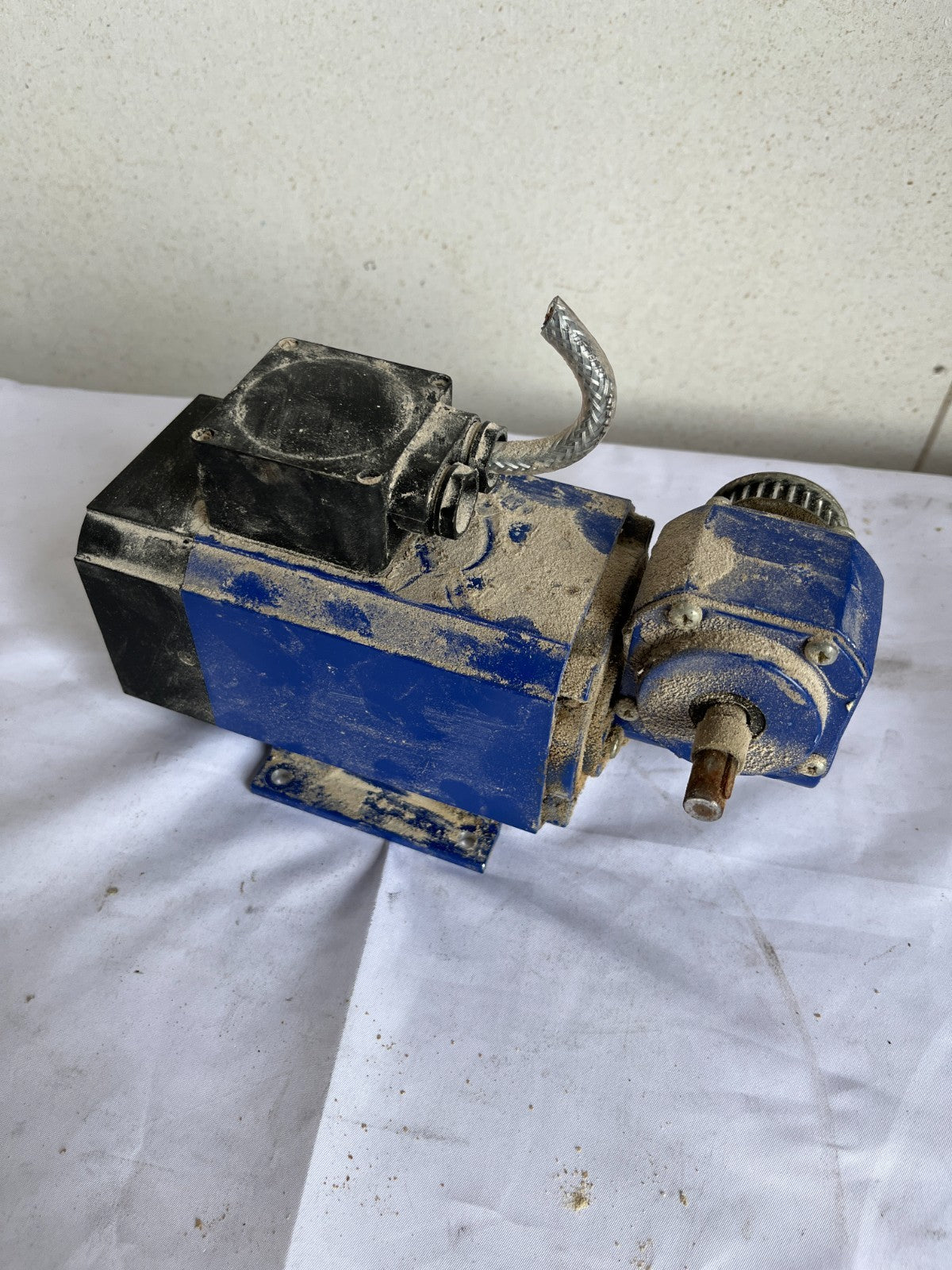

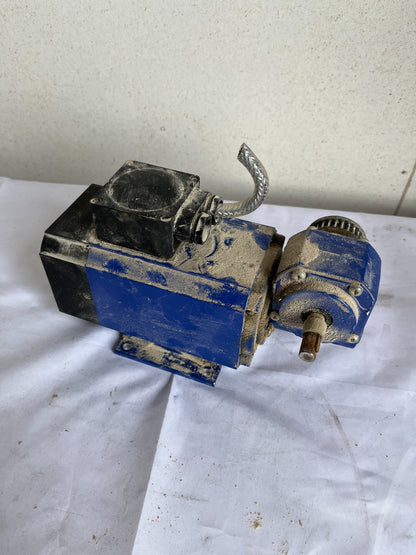

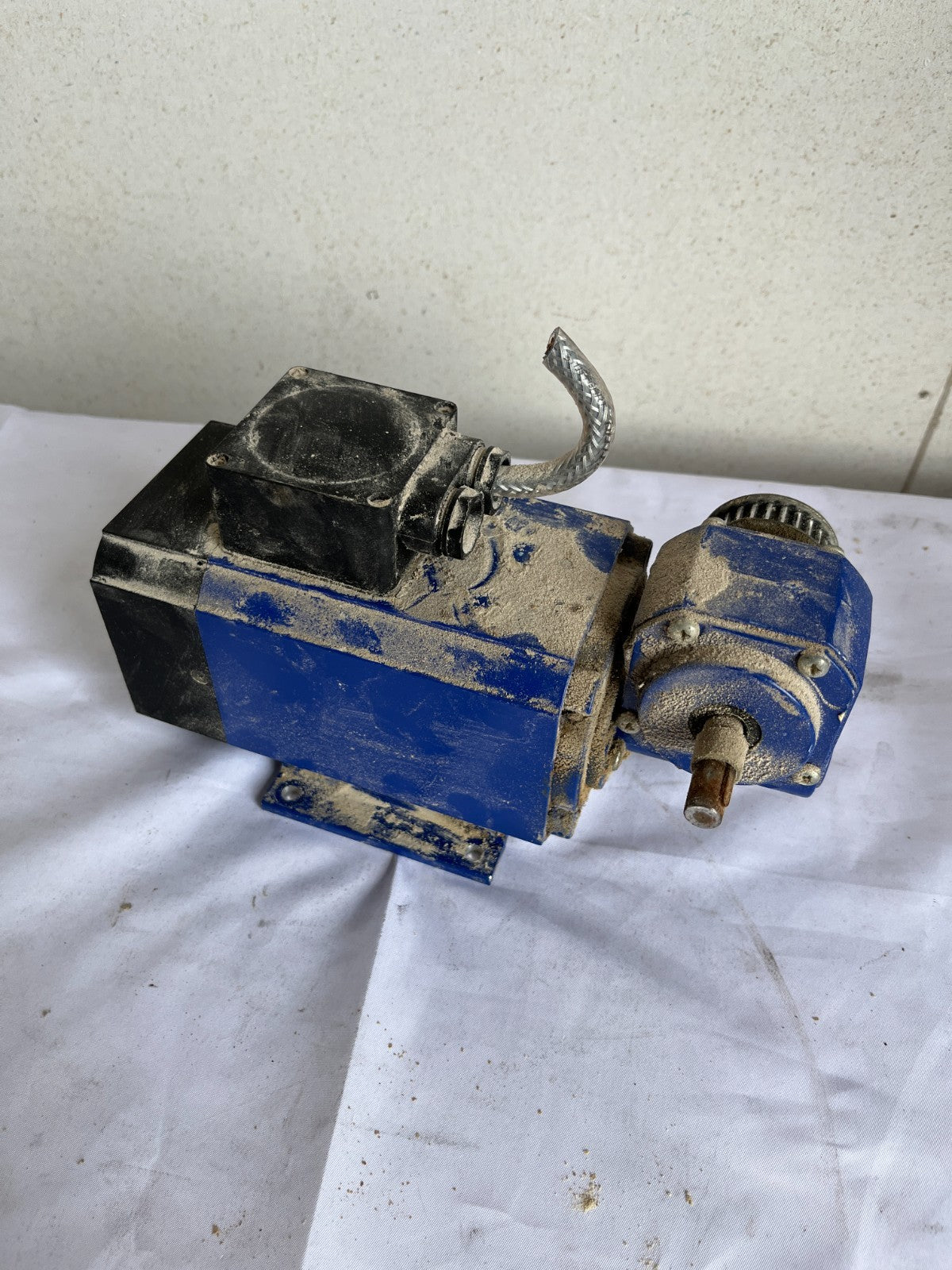

Construction: Blue foot‑mount housing with attached worm gearbox and output shaft with small pulley

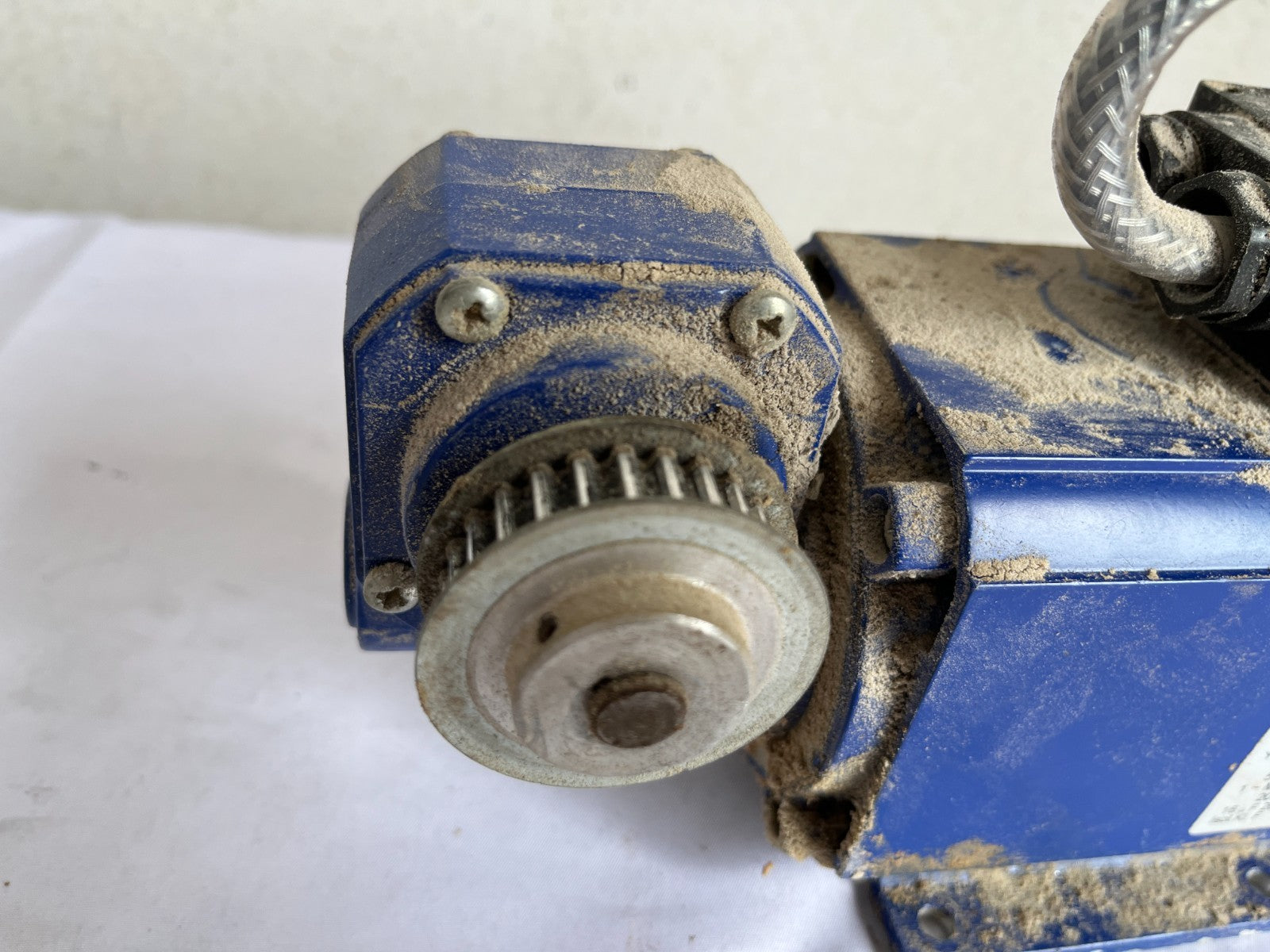

Extras included: Existing pulley on output shaft and flexible metal‑sheathed cable stub as shown
Used, removed from service in a working machine

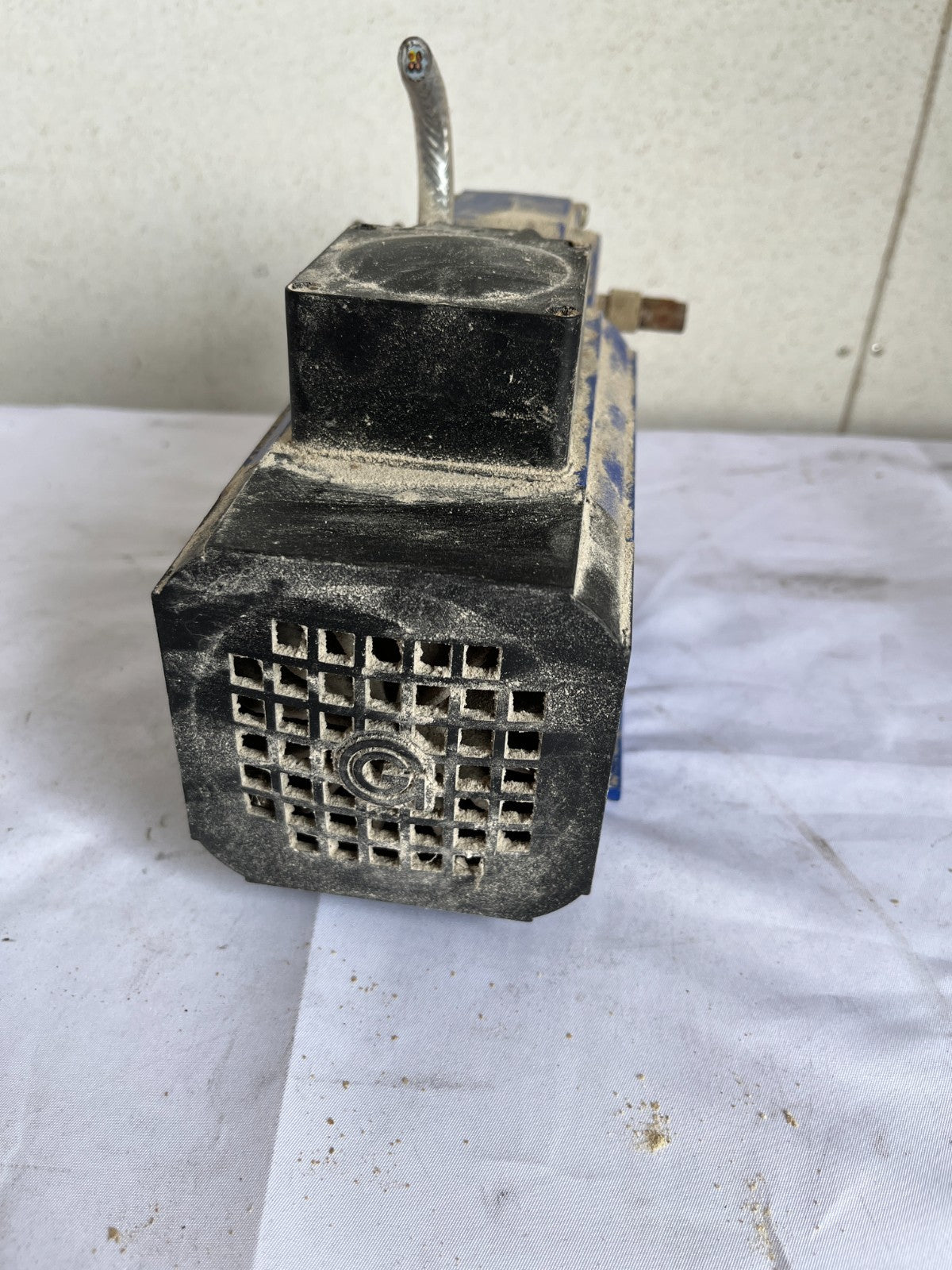

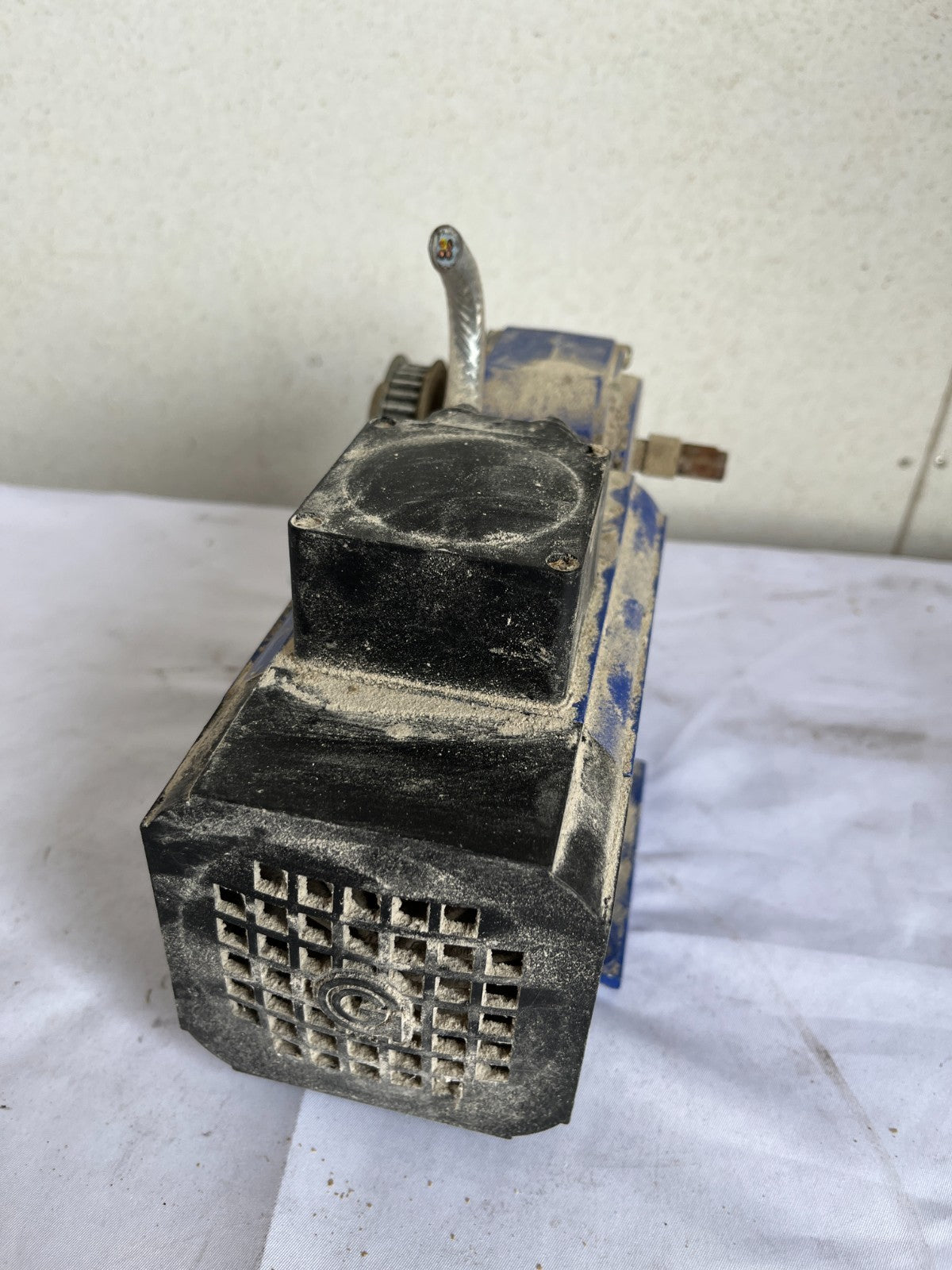

Motor and gearbox are dusty and show dried product residue, scratches and paint wear on housing and base

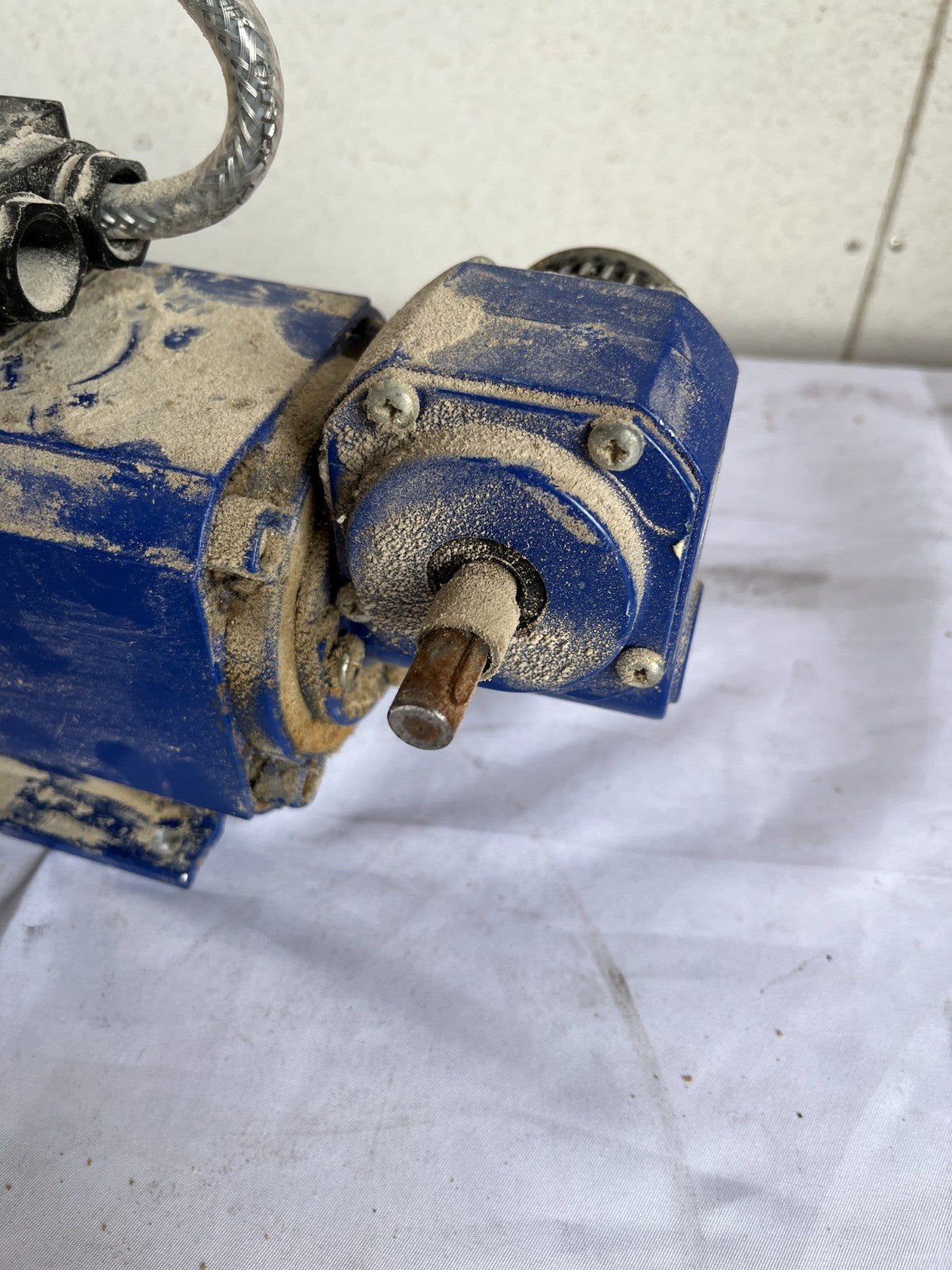

Output shaft turns by hand with normal resistance; no obvious play felt in gearbox
Cable cut close to entry; buyer must re‑terminate and provide appropriate protection and capacitor (for single‑phase use)
No tests under load performed by seller; sold as used, working when removed, without further guarantee
Ideal as a replacement motor/gear unit for machines originally fitted with a Groschopp IGL 80‑60 or for projects needing a compact ~270 W IP54 AC gear motor.
Exact gearbox ratio and output speed are not readable from the photos; buyers needing precise data should confirm via the gearbox type tag or Groschopp documentation based on the WK/serial number on the plate.
Installation, wiring (3‑phase or Steinmetz single‑phase) and overload protection must be carried out by a qualified electrician according to local regulations.
