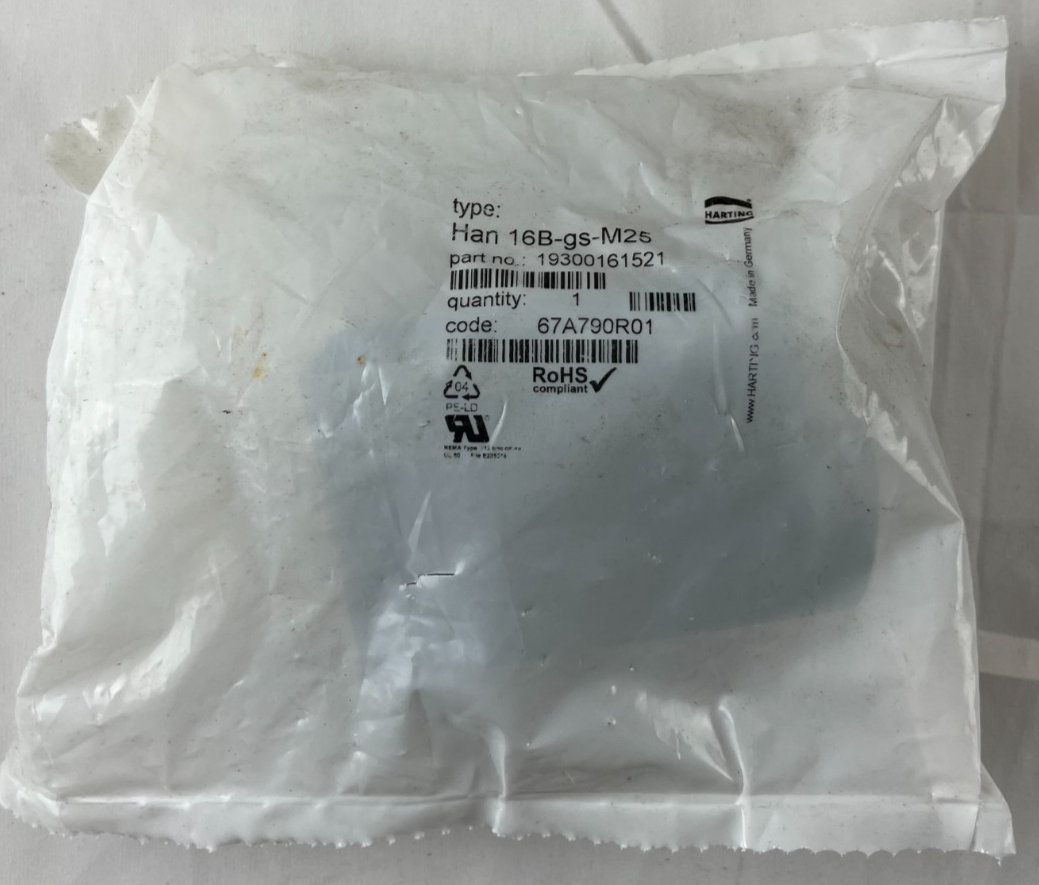

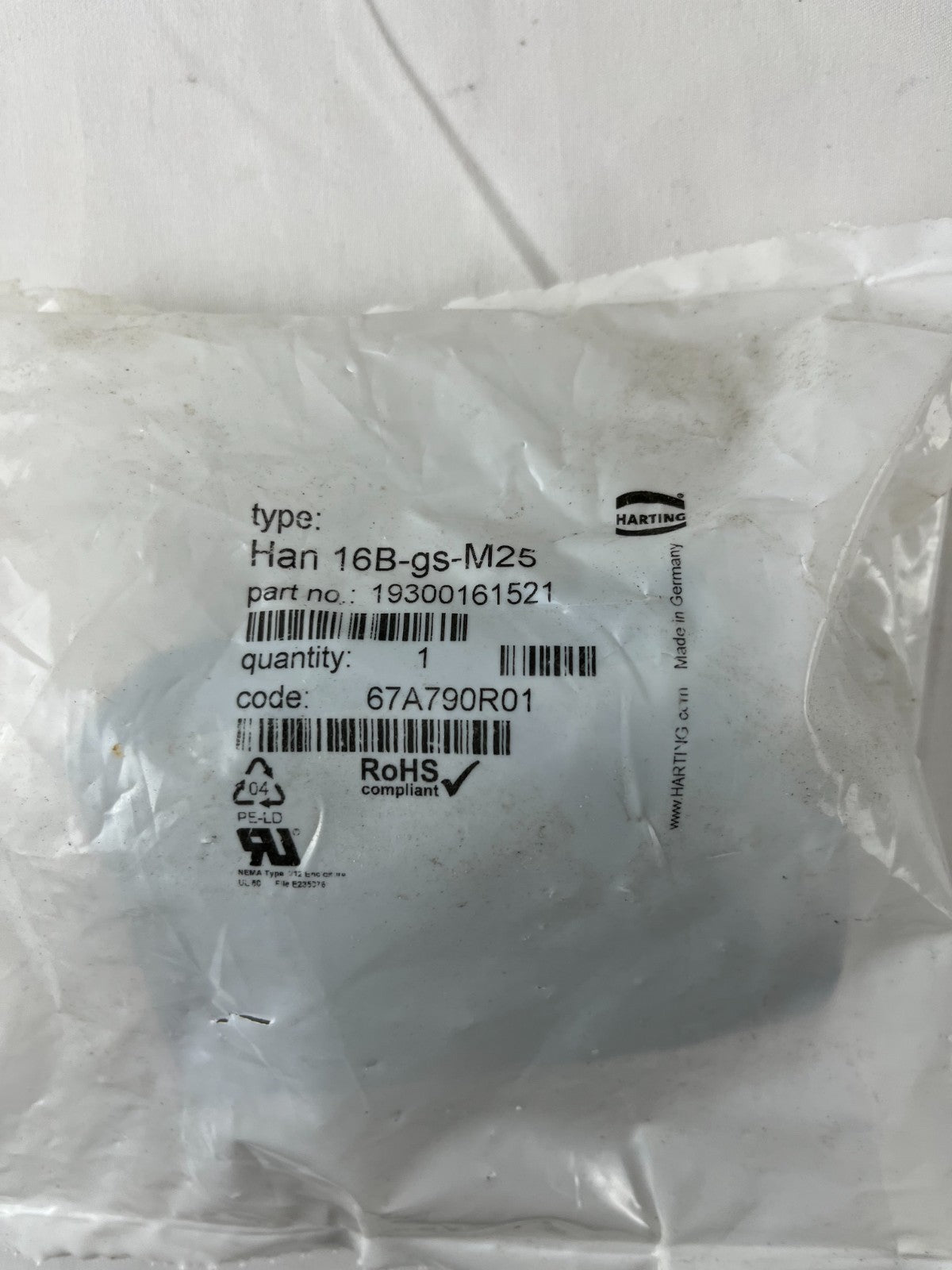

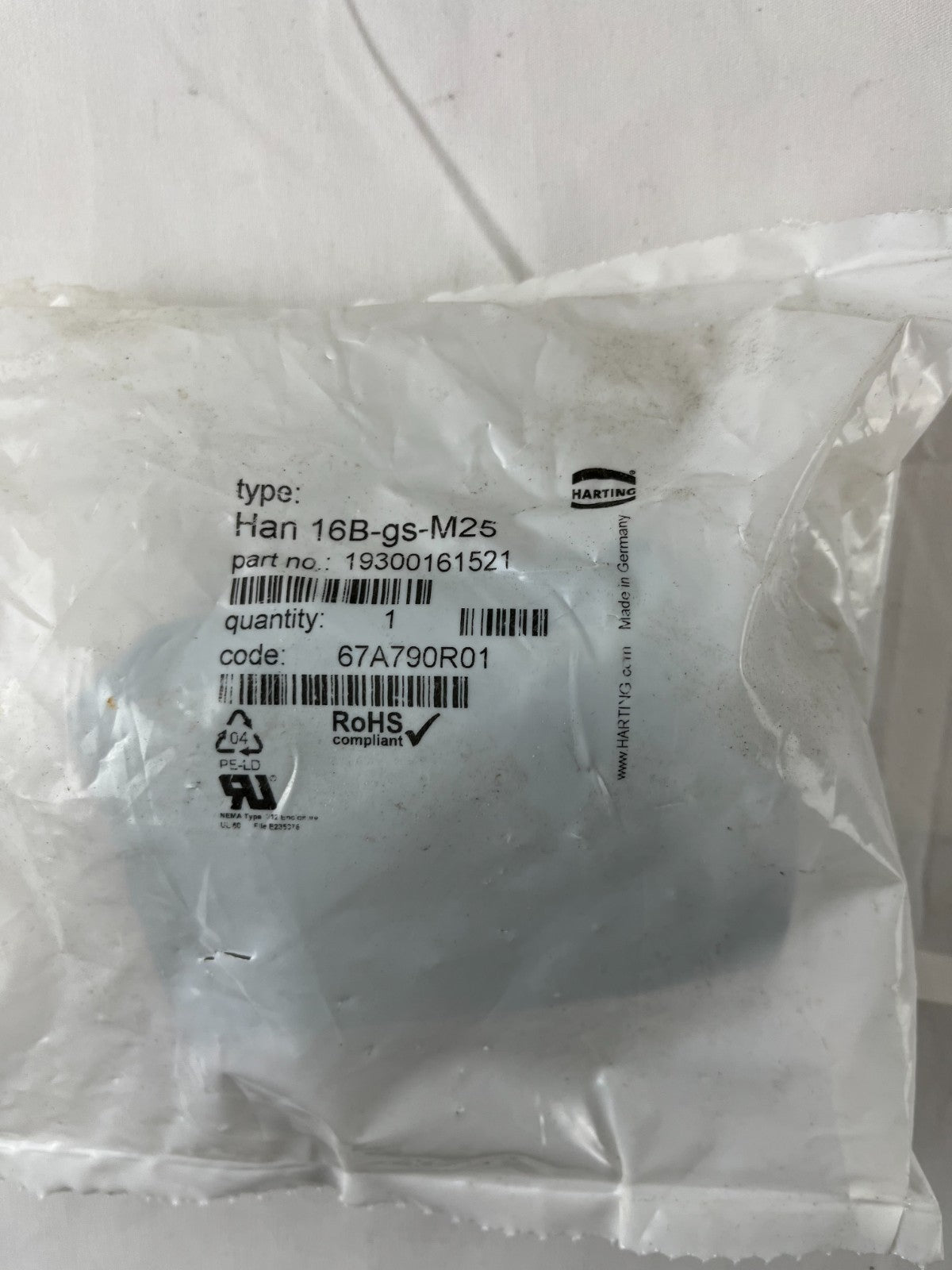

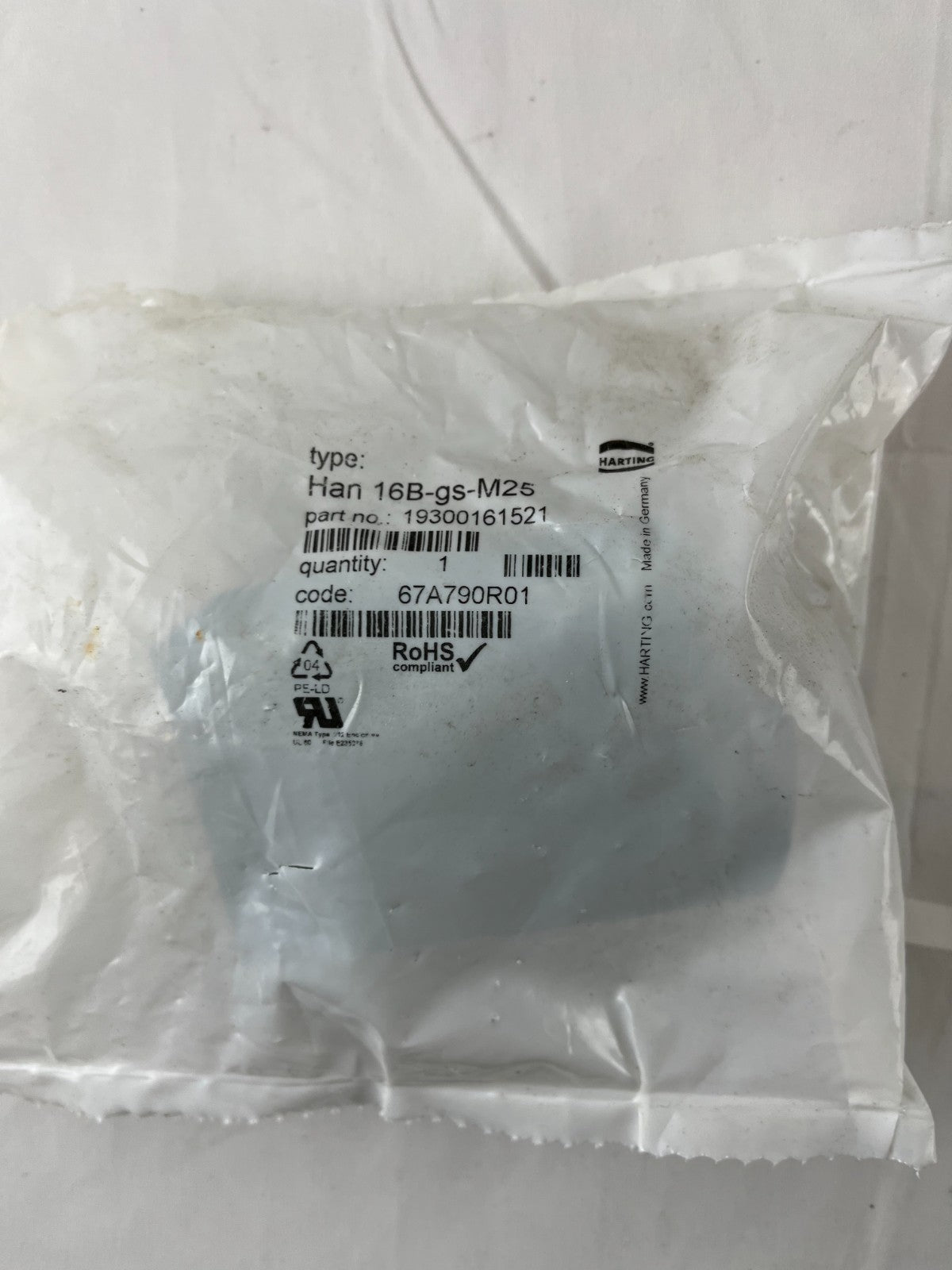

Brand New Harting Han 16B-gs-M25 Industrial Connector Housing - Sealed Package
-
Model: Han 16B-gs-M25
-
Part Number: 19300161521
-
Manufacturer: Harting (Made in Germany)
-
Order Code: 67A790R01
-
Type: Grommet housing (Tüllengehäuse)
-
Series: Han® B
-
Size: 16 B
Construction Specifications:
-
Construction Type: Low profile (low construction)
-
Mounting Type: Hood/cover housing
-
Cable Entry: Side entry, 1x M25 threaded gland
-
Cable Gland: M25 metric thread
-
Cable Clamping Range: 9.0mm - 17.0mm diameter
-
Locking Type: Double locking lever (compatible with 2-lever system)
Material & Protection:
-
Housing Material: Aluminum die-cast (Al) with powder coating
-
Color: RAL 7037 (dust grey)
-
Sealing Material: NBR rubber
-
Protection Class: IP65/IP67
-
NEMA Rating: Type 4/4X/12
-
Operating Temperature: -40°C to +125°C
Standards & Approvals:
-
Mating Cycles: ≥500 cycles
-
UL/CSA Approved: Yes
-
CE Compliant: Yes
-
DNV GL Certified: Yes (marine applications)
-
RoHS Compliant: Yes
-
IEC 61984: Connector standard compliant
-
EN 45545-2: Railway vehicle fire protection certified
Features:
-
Heavy-Duty Metal Housing: Rugged aluminum die-cast construction for industrial environments
-
Side Cable Entry: M25 cable gland for lateral cable routing
-
IP65/IP67 Protection: Excellent dust and water ingress protection
-
High Temperature Range: Suitable for demanding environments up to 125°C
-
Marine Certified: DNV GL approval for maritime applications
-
Cross Bracket Design: Secure mounting with cross bracket
The Han 16B-gs-M25 grommet housing is part of Harting's industrial heavy-duty connector system, providing reliable connections for industrial automation, machinery, robotics, railway applications, and marine equipment.
Applications: Industrial control cabinets, automation systems, machine tools, robotics, railway equipment, marine installations, food processing equipment, pharmaceutical machinery, and general industrial harsh environment connections.

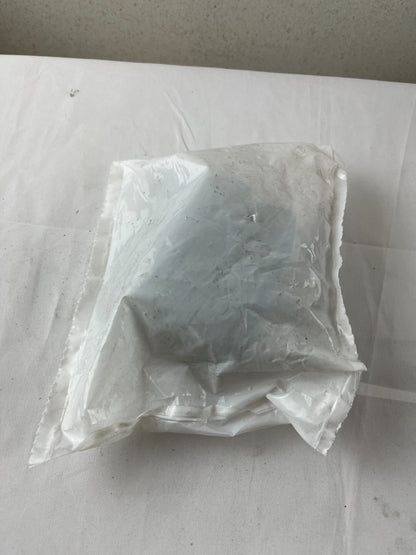

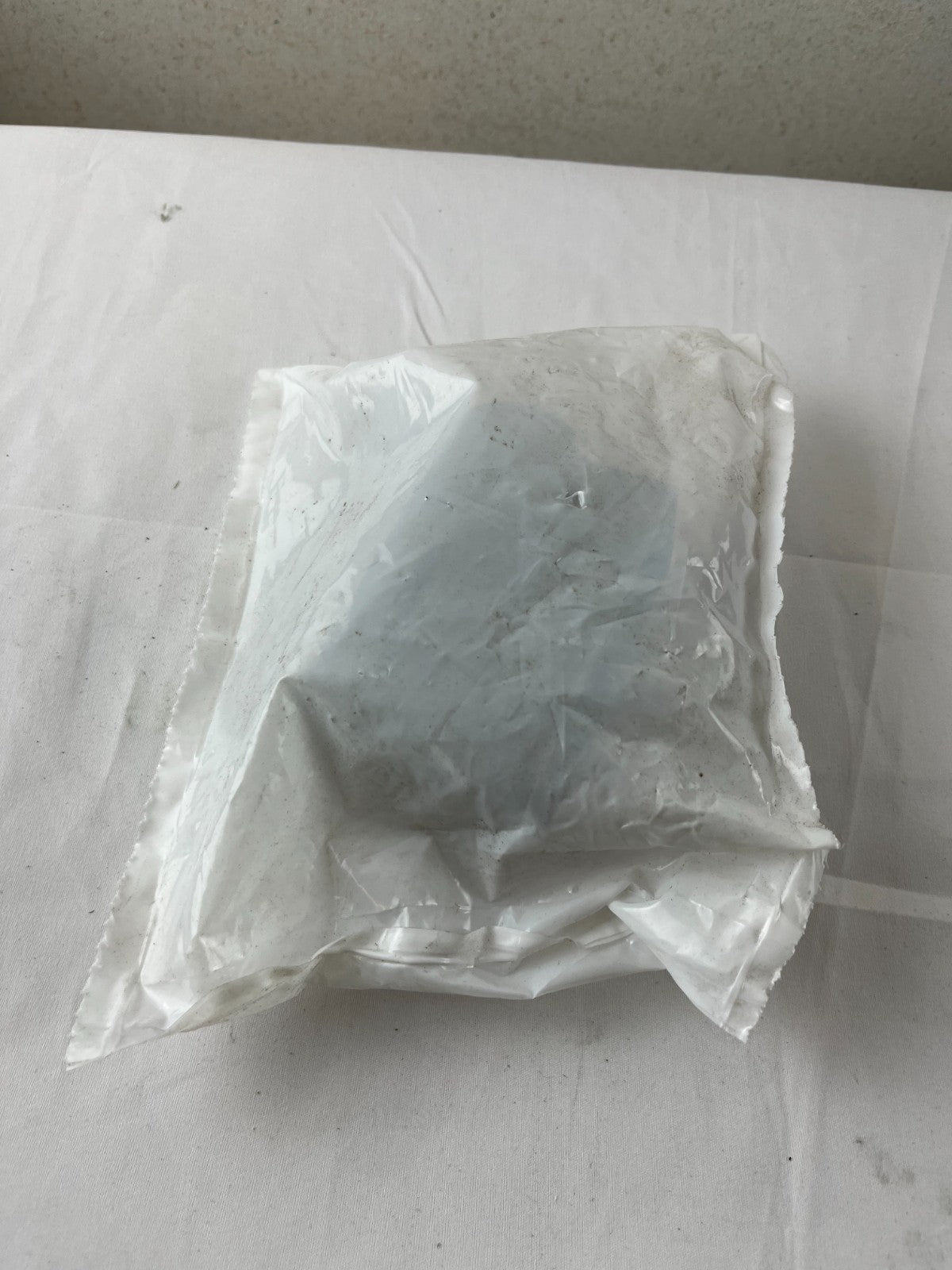

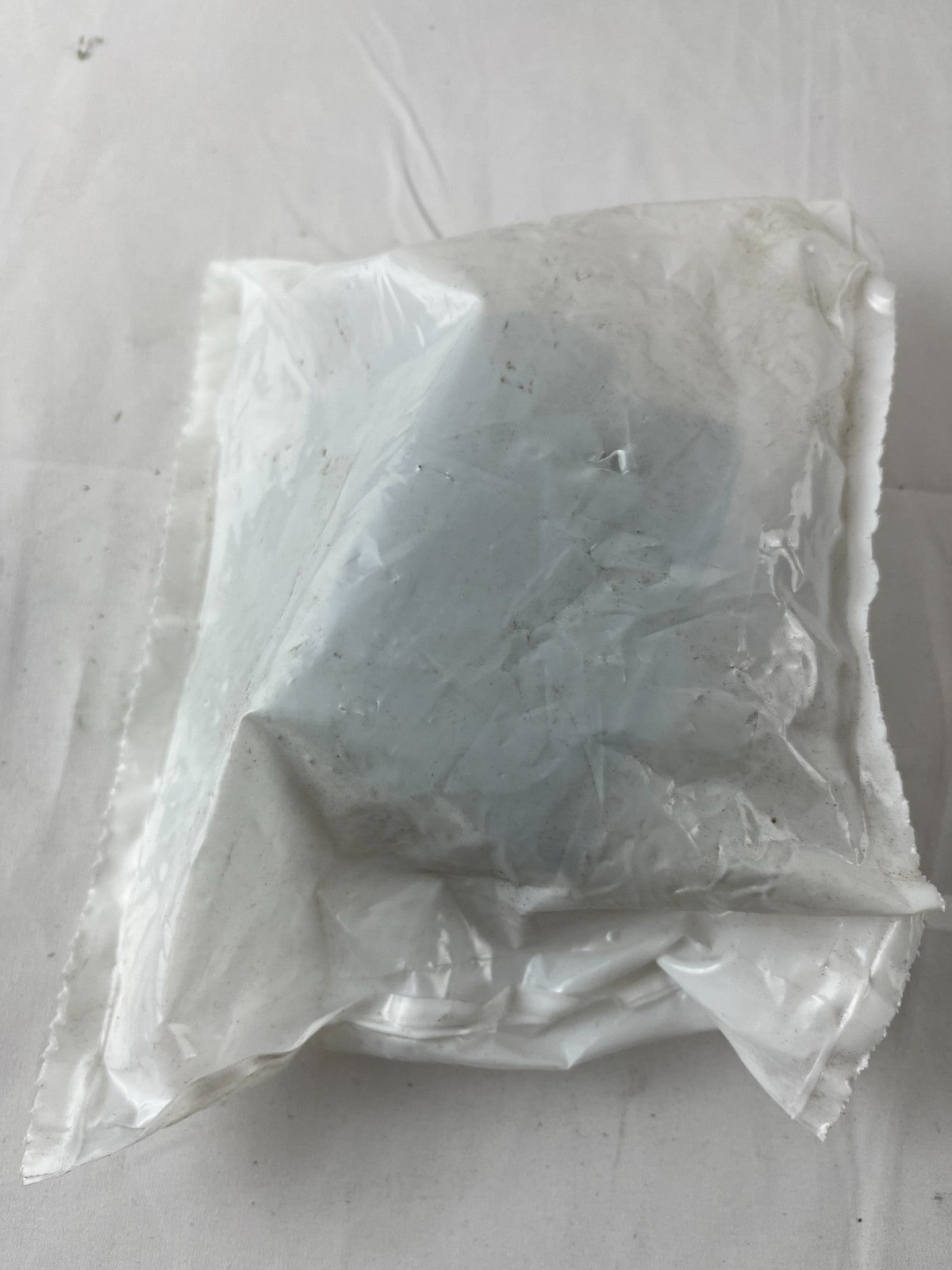

Condition: Brand New, Factory Sealed, Made in Germany
