Harting Han 7D-F Quick Lock 09210072732 Female Insert 7+PE 10A 250V New 10x

Shipping includes tracking info worldwide. Best regards Klaus KLJ Trading.

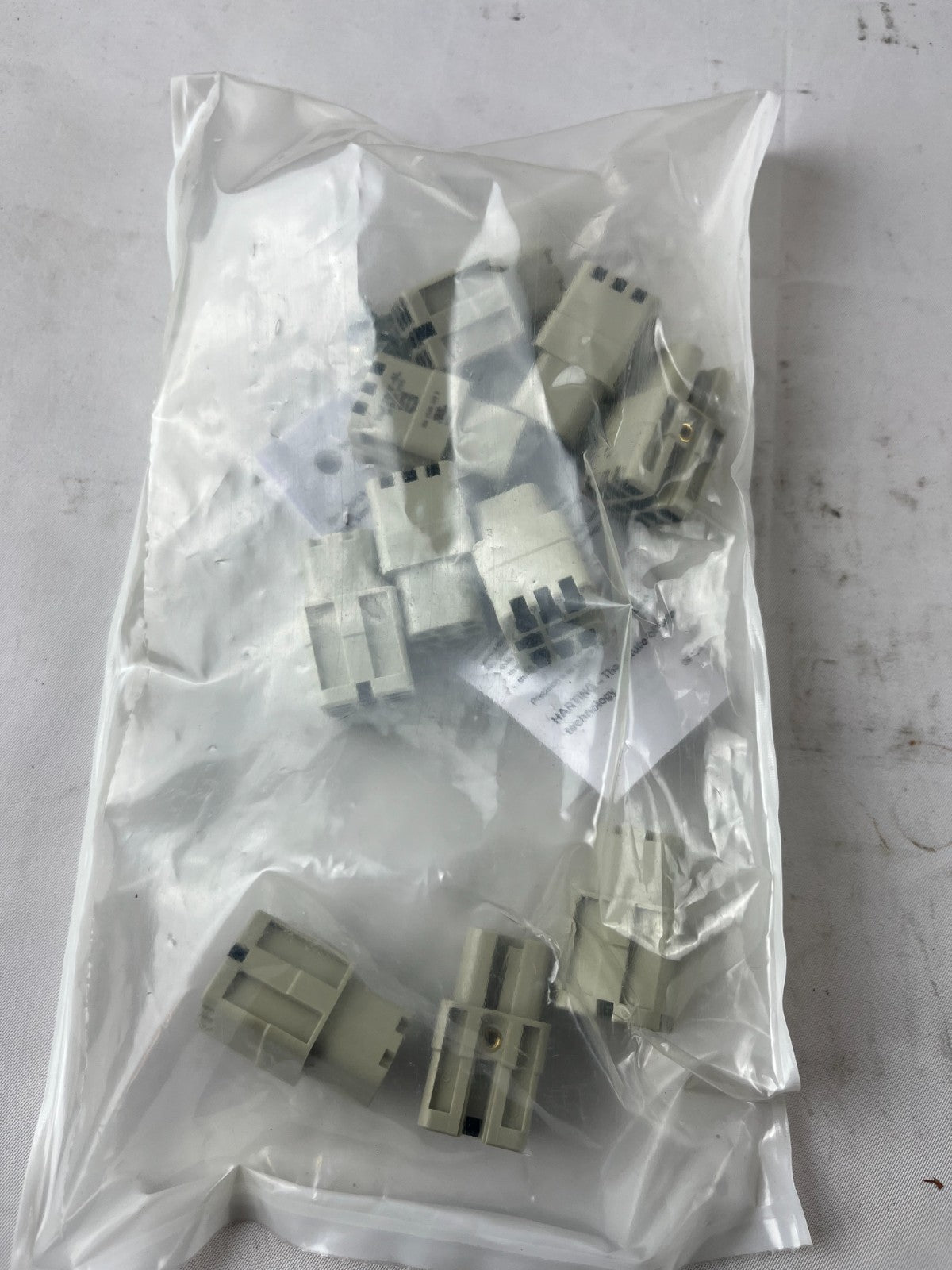

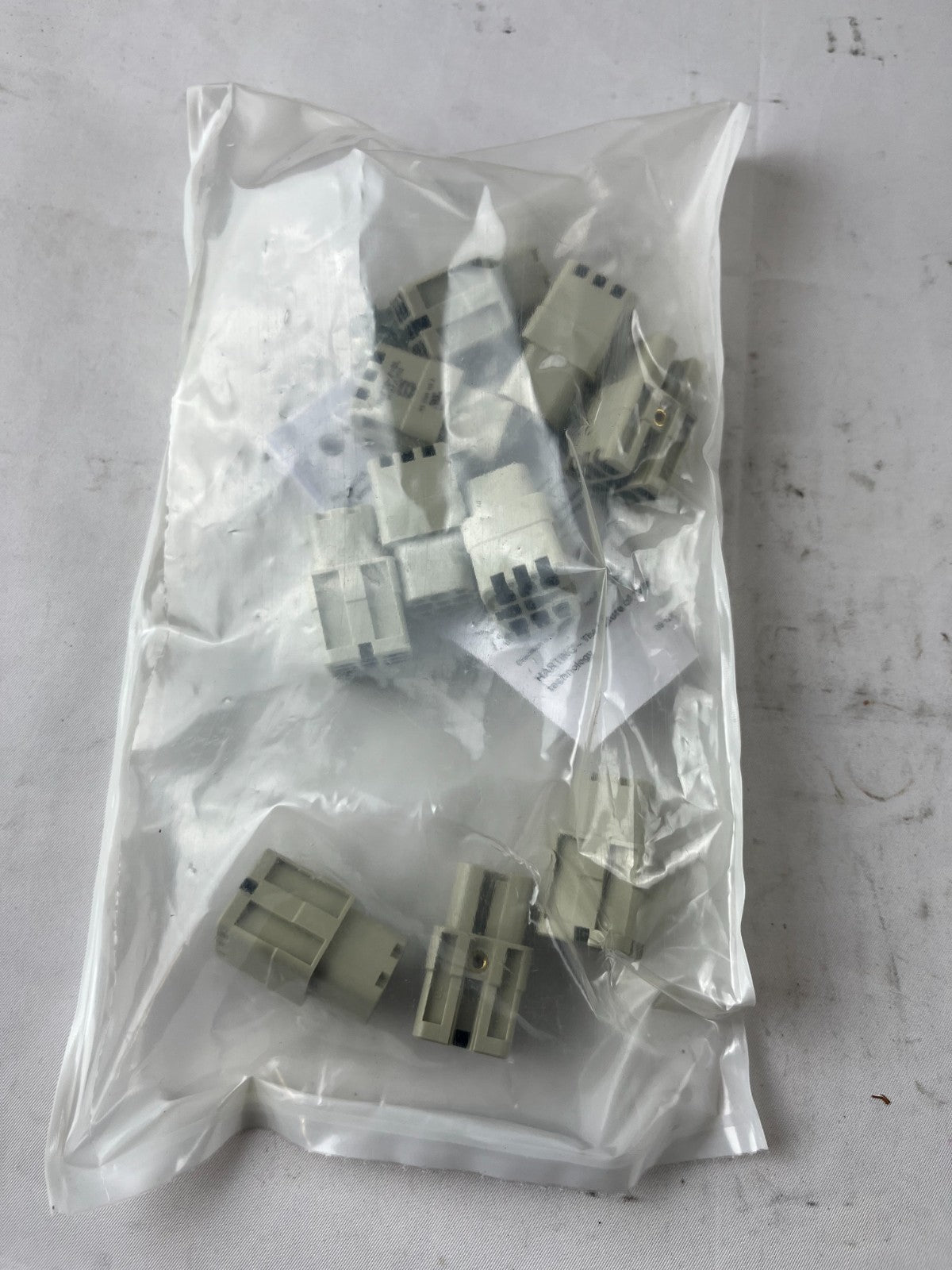

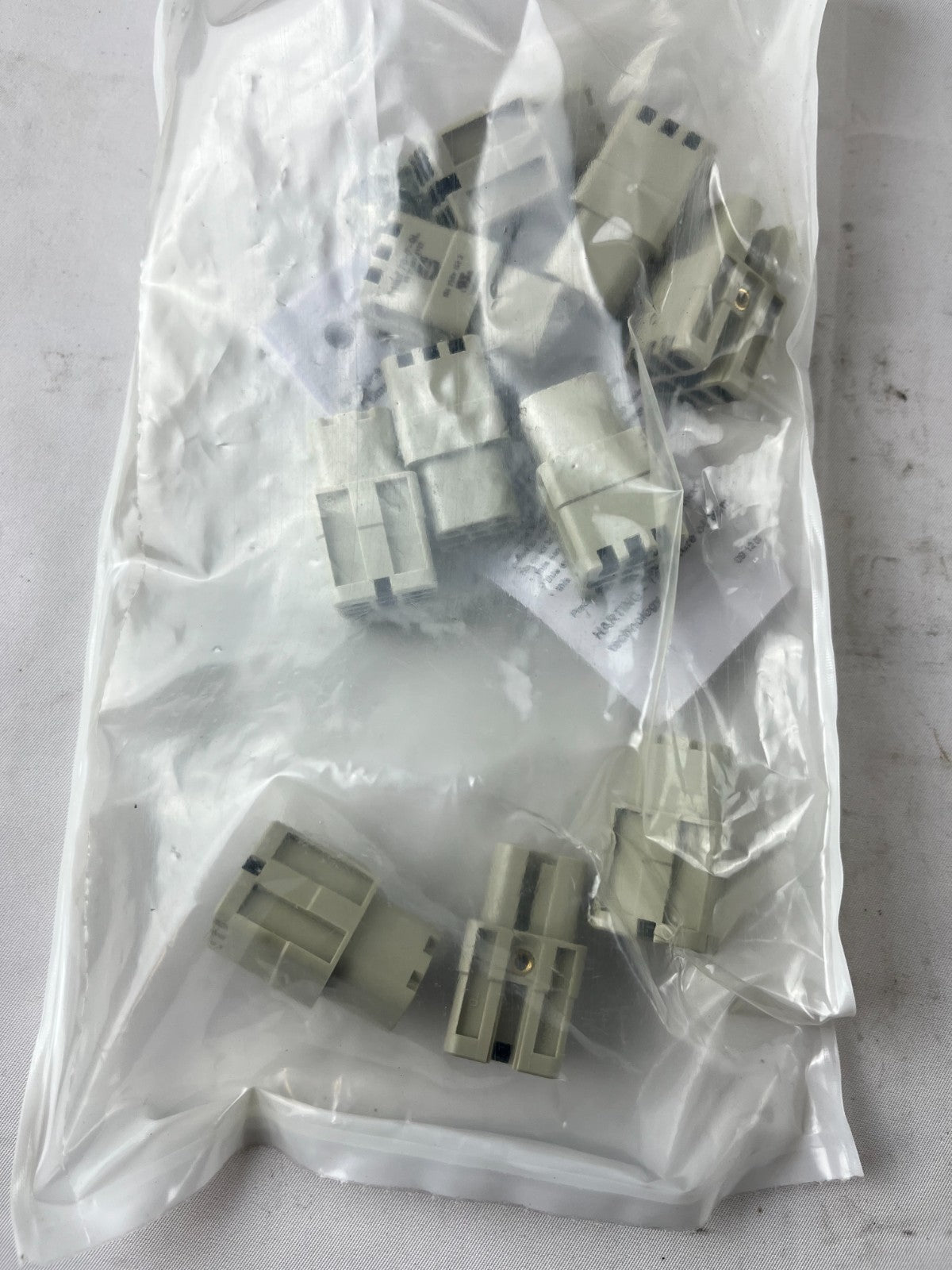

Factory bag of 10 Harting Han 7D-F Quick Lock female inserts, part number 09210072732, in new unused condition. These heavy-duty connector inserts provide 7+PE contacts with Han-Quick Lock termination for 0.3–1.5 mm² conductors.

Item details

• Brand: Harting

• Type / Series: Han 7D-F Quick Lock, Han D series insert

• Part number (MPN): 09210072732 / 09 21 007 2732

• Contact configuration: 7 + PE, female socket insert

• Termination method: Han-Quick Lock termination, tool-free clamping

• Wire size range: 0.3–1.5 mm² (approx. 22–16 AWG)

• Rated current: 10 A

• Rated voltage: 250 V (IEC), up to 600 V UL/CSA per datasheet

• Connector size: Size 3A insert

• Housing compatibility: For use in matching Han D / Han 7D hoods and housings, only for thermoplastic housings according to Harting notes; buyer must verify housing compatibility

• Standards / approvals: RoHS compliant, designed according to IEC 60664-1 and IEC 61984 (per Harting datasheet)

• Country of origin: Romania (per datasheet; bag shows Made in Germany branding for Harting)

• Quantity in this lot: 10 inserts (factory bag marked quantity 10)

Condition

• New, never used inserts

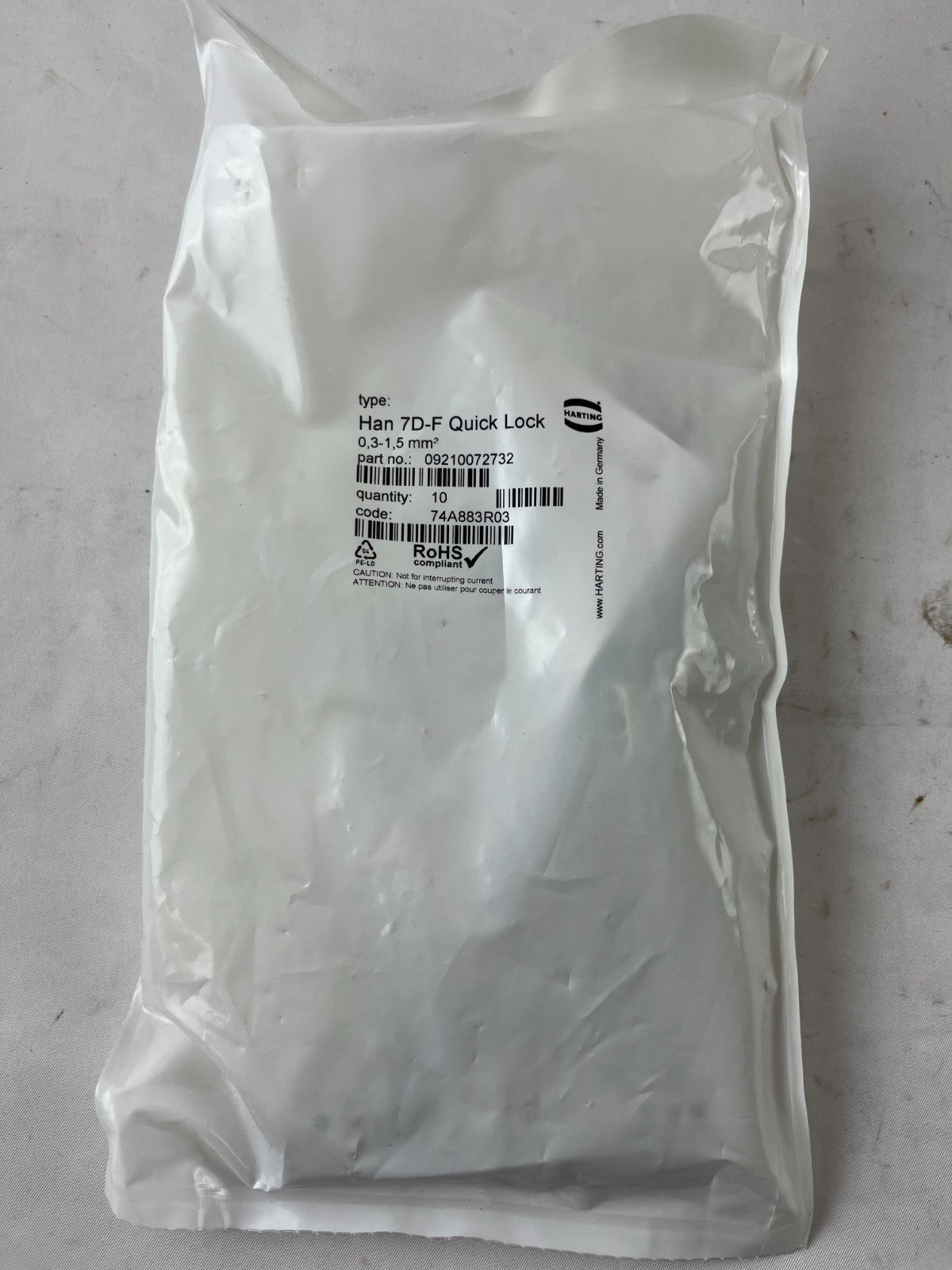

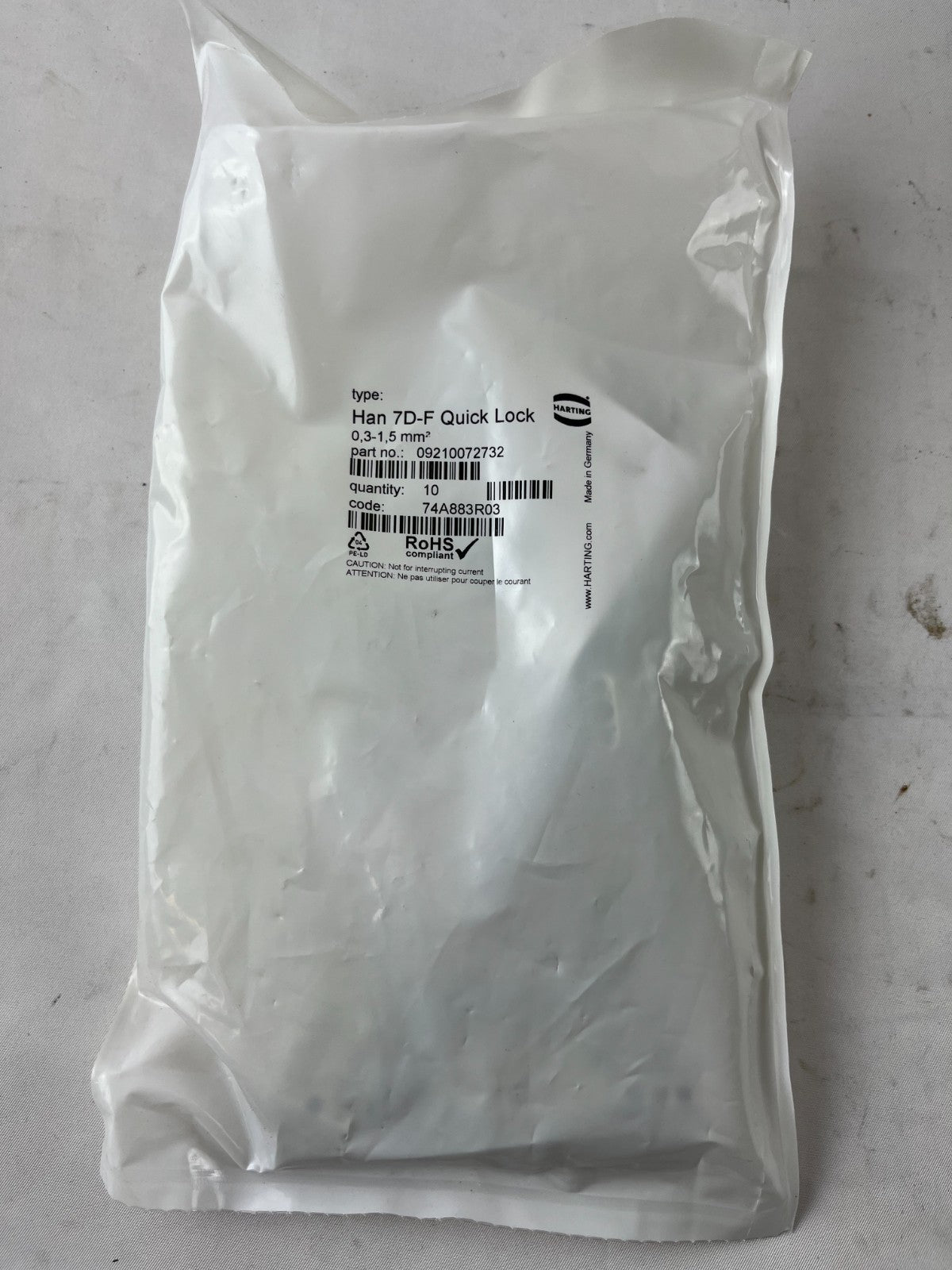

• Supplied in original sealed Harting manufacturer bag

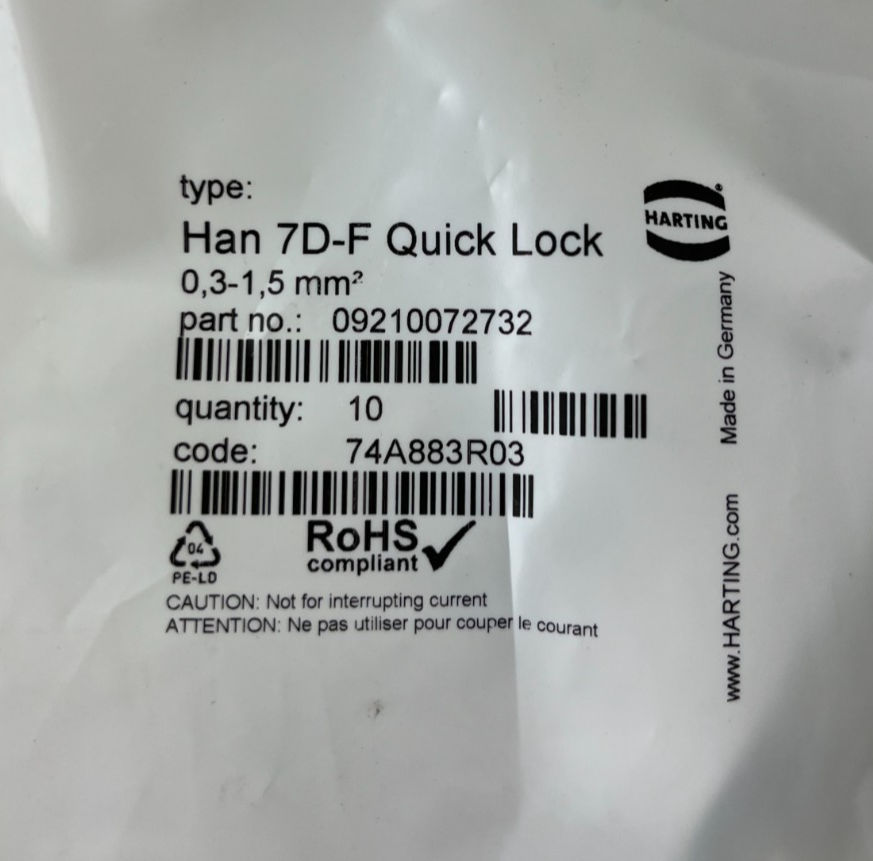

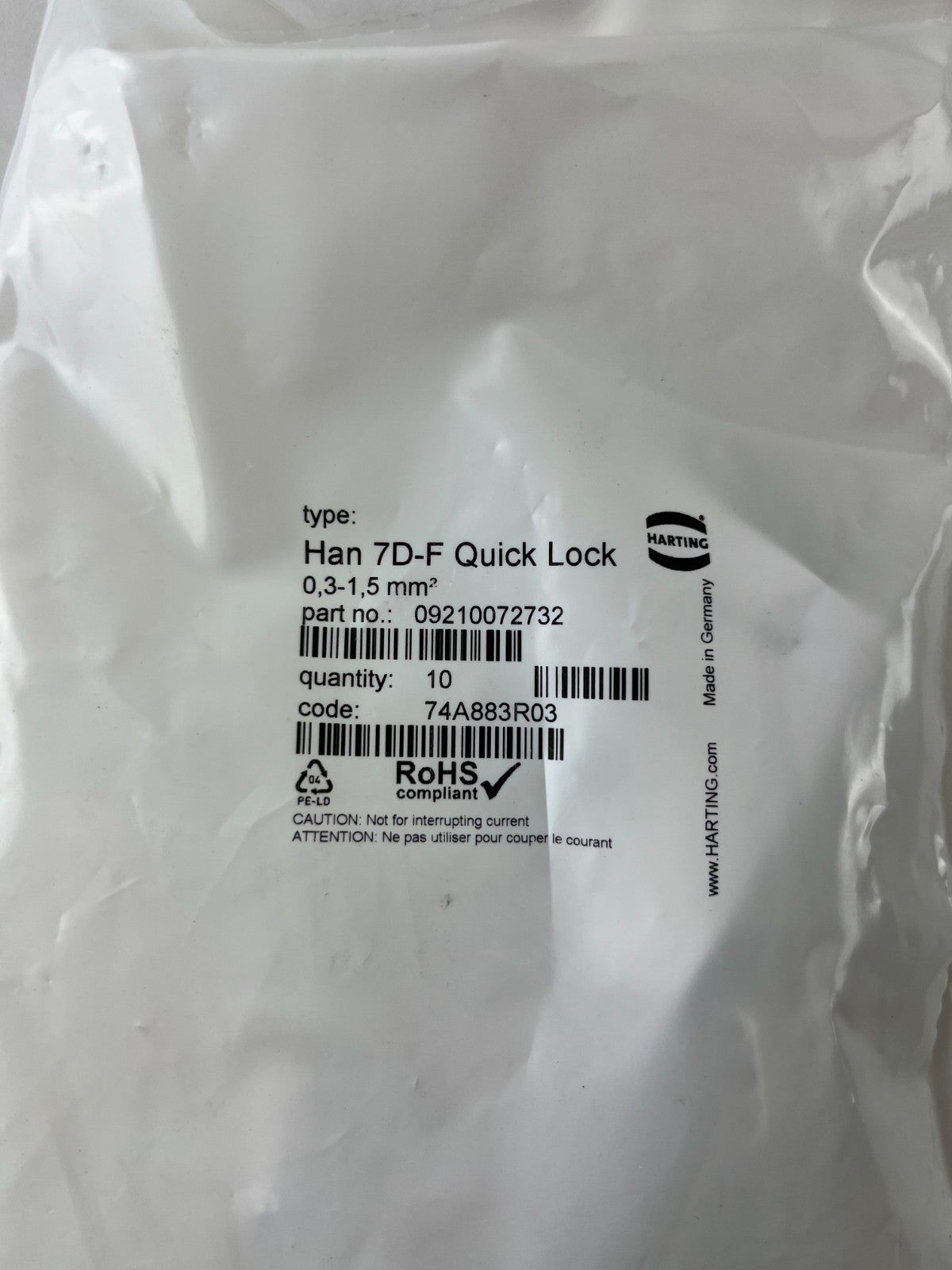

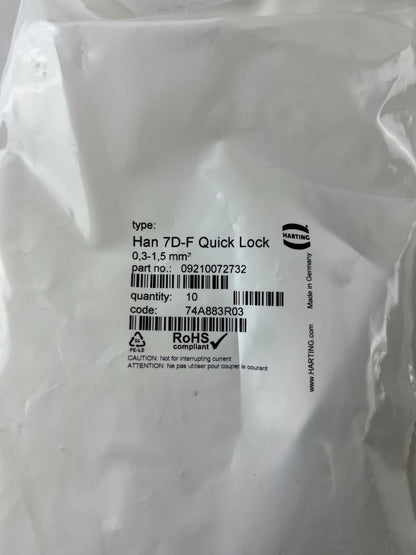

• Bag shows light storage creasing and minor marks but no tears or resealing

• Inserts appear clean with no signs of installation or damage visible through the packaging

Notes

• Technical data above is summarized from the Harting product information for 09210072732; for full electrical and mechanical specifications, see the original datasheet or product page.

• Buyer should confirm compatibility with existing Han housings (size 3A) and application requirements before purchase.

• Not for interrupting current; intended for use in properly designed connector systems. (Warning also printed on the bag.)
