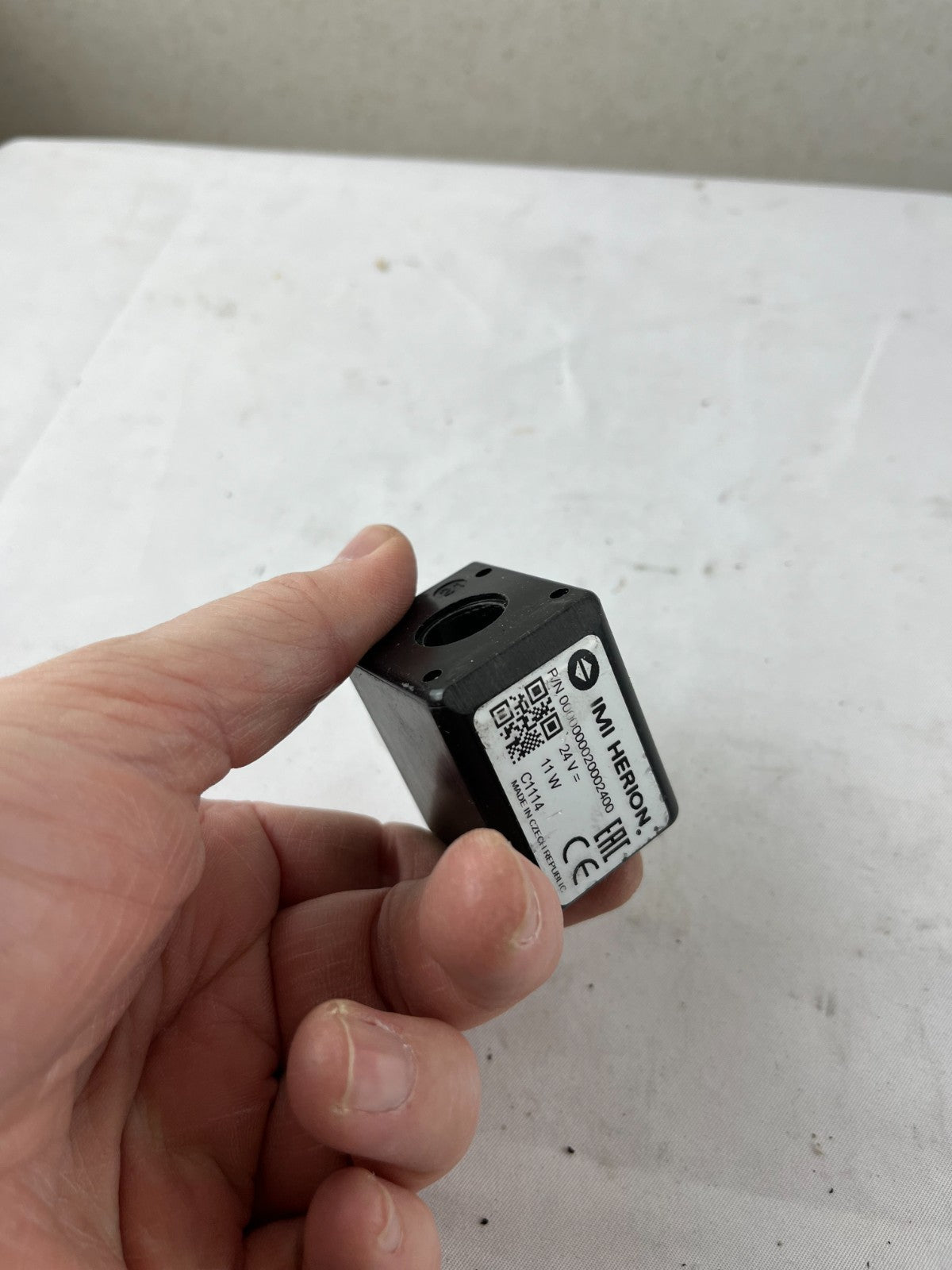

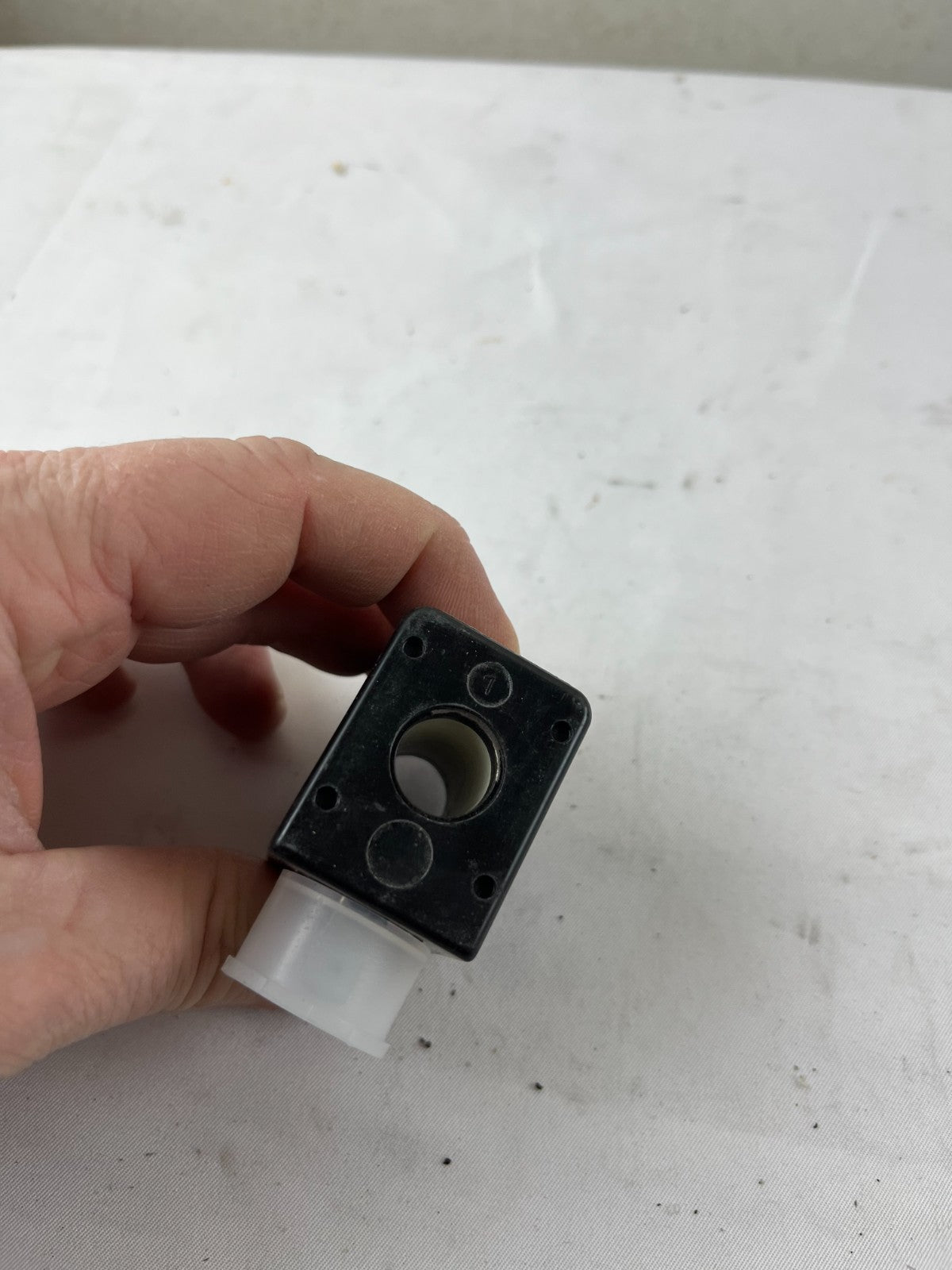

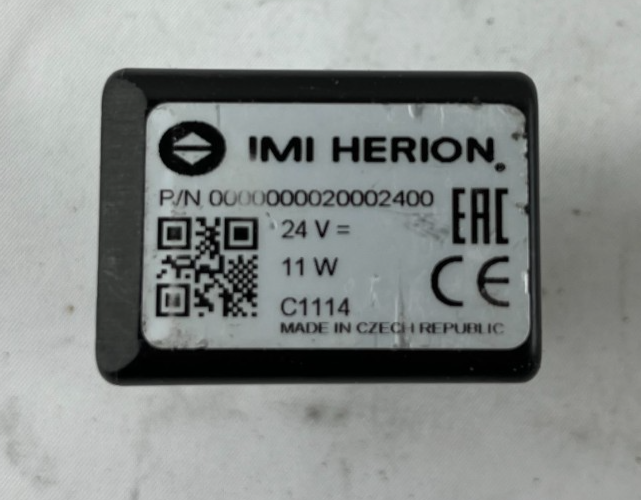

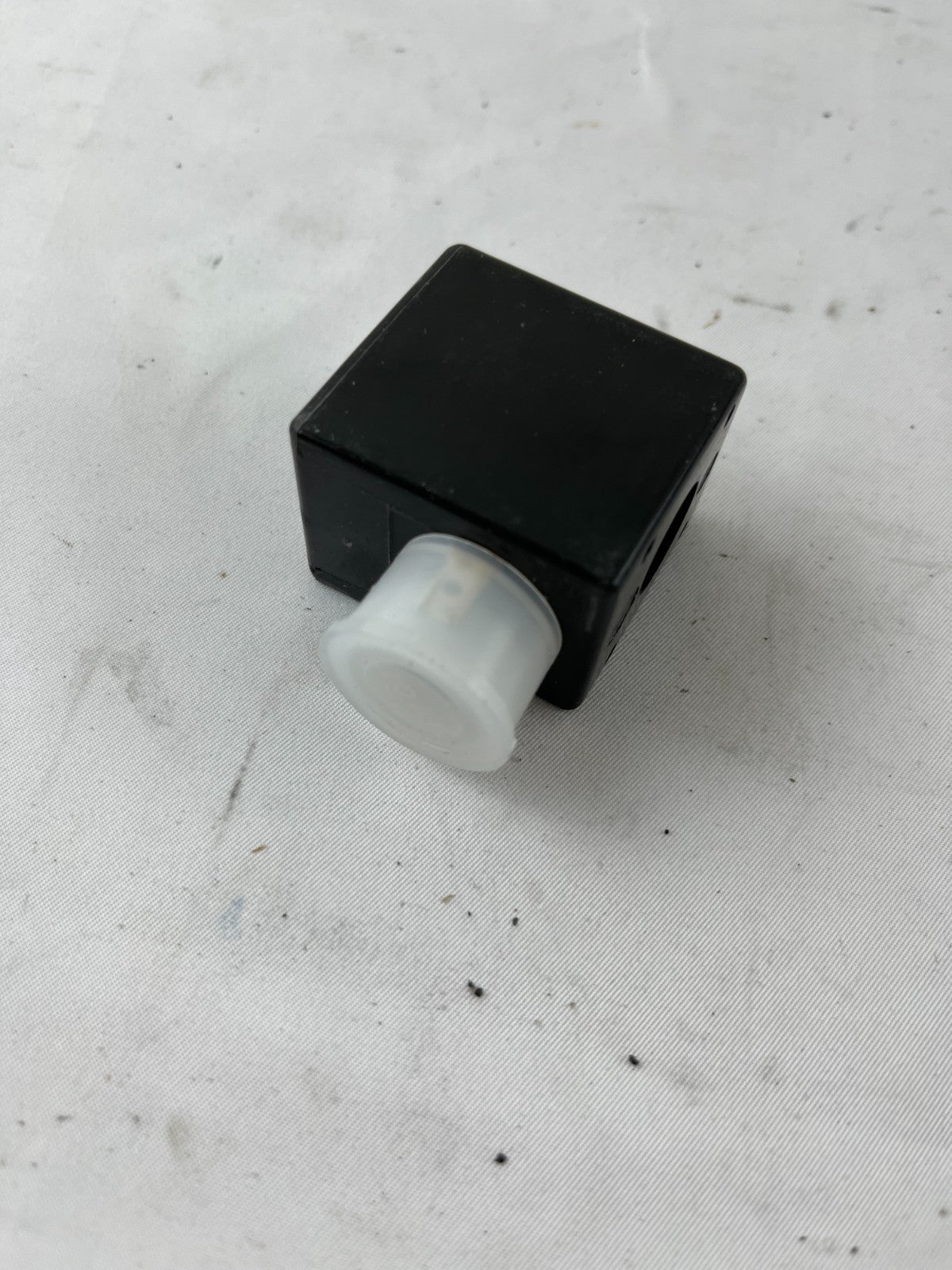

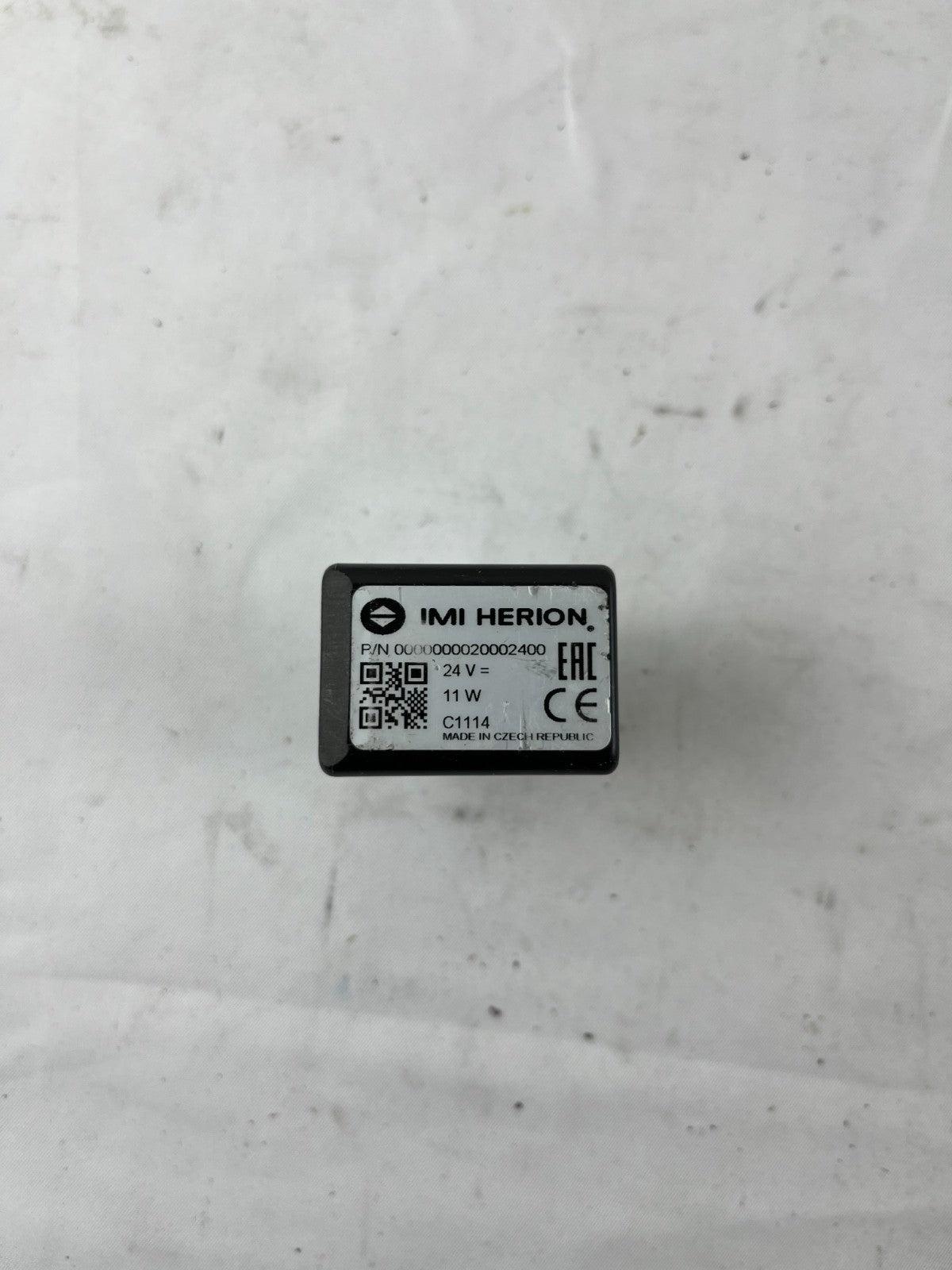

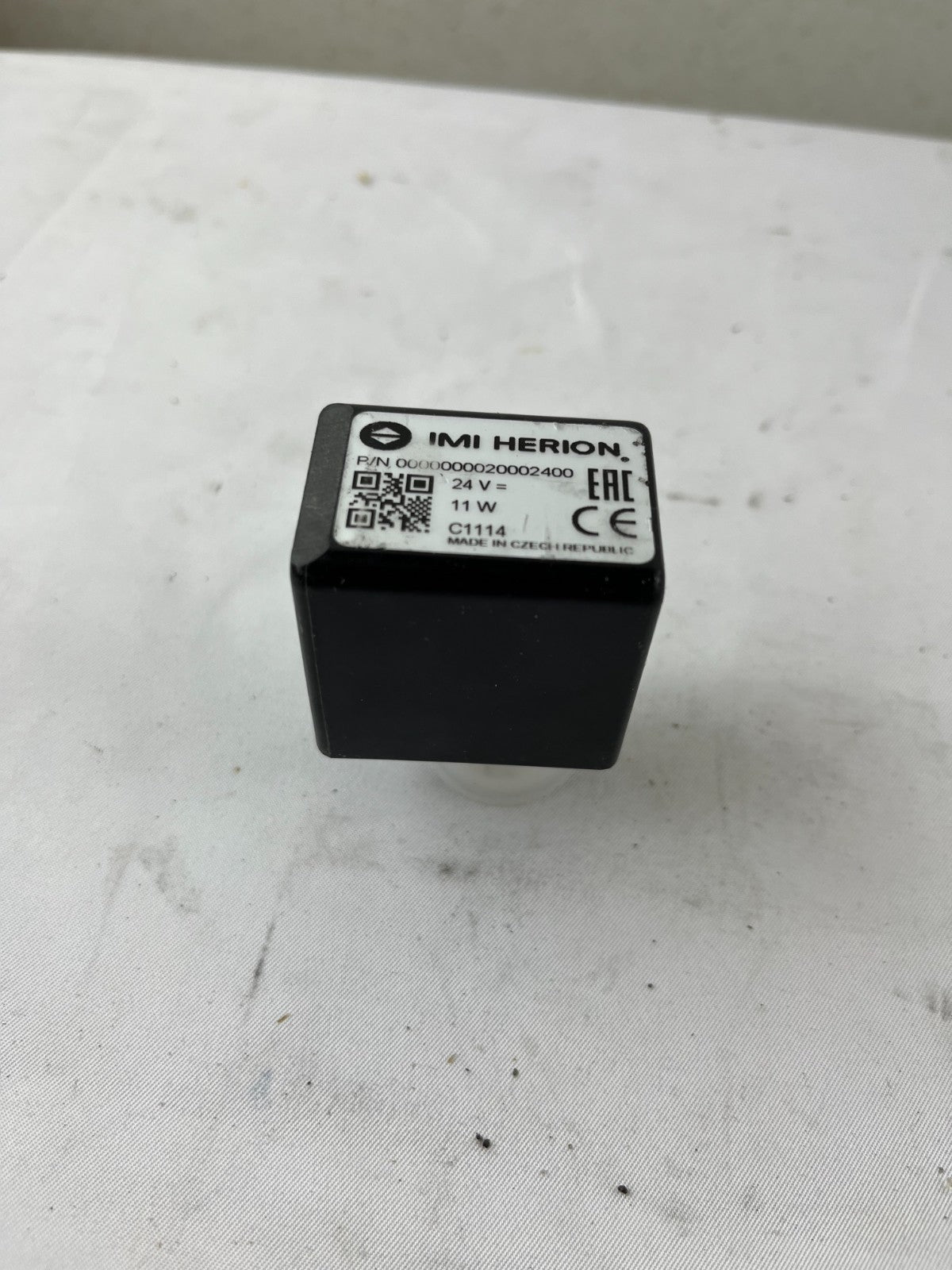

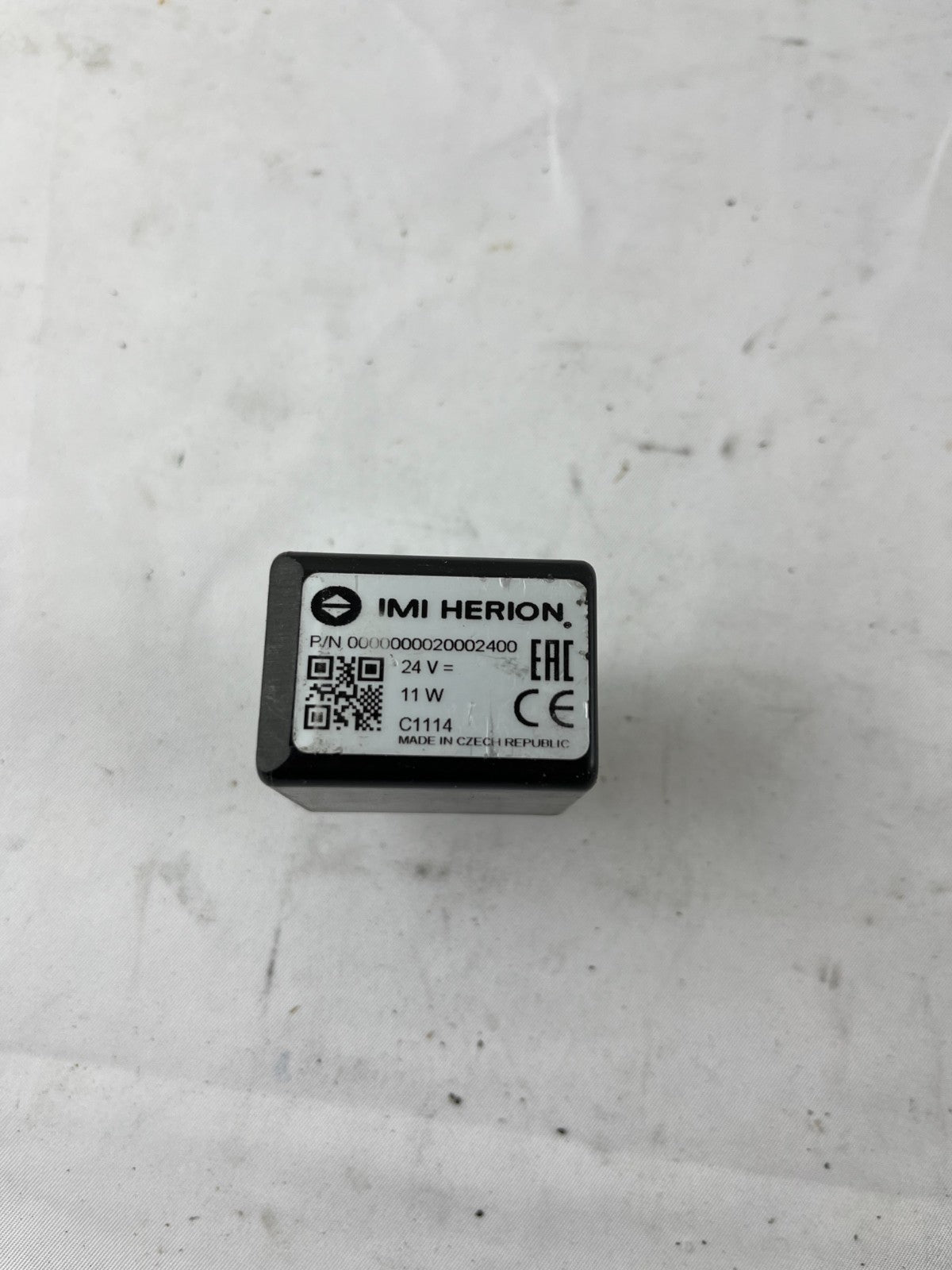

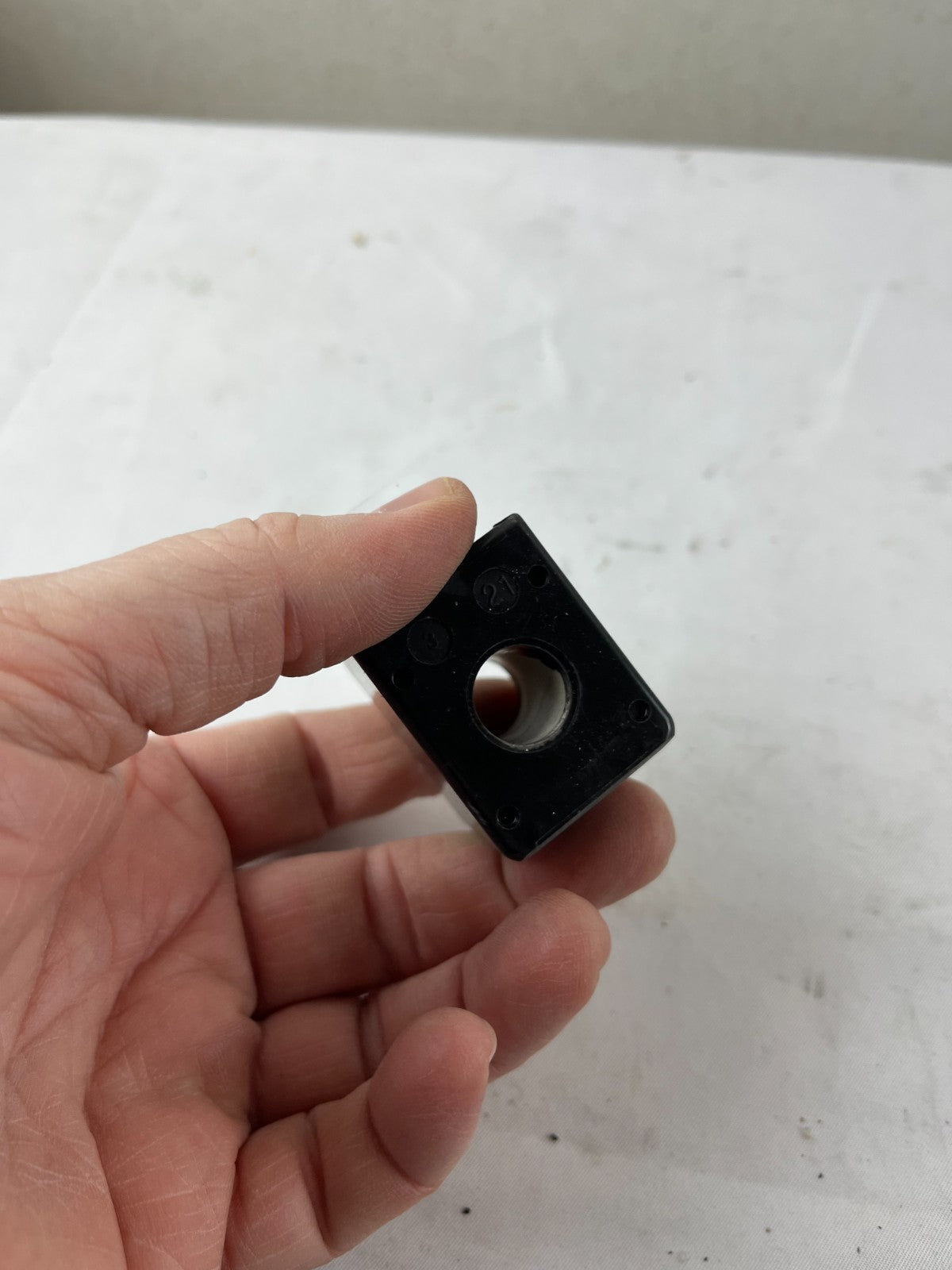

IMI Herion 0000000020002400 Solenoid Coil 24V DC 11W DIN IP65 NEW

Name: IMI Herion 0000000020002400 Solenoid Coil 24V DC 11W DIN IP65 NEW
Brand: IMI Herion
SKU: Garage Reol 1B Kasse 3
Price: 225.00 DKK
Availability: InStock

225,00 DKK

Sale Sold out

Taxes included. Shipping calculated at checkout.

4 in stock

Brand & Model
- Manufacturer: IMI Herion (Norgren Group), Czech Republic
- Part Number: 0000000020002400
- Coil Code: C1114
- Model Type: Replacement solenoid coil for directional control valves
- Condition: New, unused, fully functional
- Made in Czech Republic
Technical Specifications
- Operating voltage: 24V DC
- Power consumption: 11W
- Coil bore diameter: 13mm
- Operating temperature range: -25°C to 60°C (-13°F to 140°F)
- Maximum fluid temperature: 80°C (176°F)
- Protection rating: IP65 with connector attached
- Weight: 0.14 kg (0.35 lbs)
Dimensions
- Length: 40mm (1.57 inches)
- Width: 22mm (0.87 inches)
- Height: 30mm (1.18 inches)
- Compact design for space-constrained installations
Connector Features
- Connection type: DIN Form A connector (standard plug)
- Quick-connect design for easy replacement
- Integrated rectifier on AC versions (DC coil has direct connection)
- Positive locking mechanism prevents accidental disconnection
- Gold-plated contacts for reliable electrical connection
Compatibility
- Compatible with IMI Herion Series 95000 2-way valves (2mm to 6mm orifice)
- Compatible with IMI Herion Series 96000 3-way valves (2mm to 4mm orifice)
- Compatible with IMI Herion Series 97000 4-way and 5-way valves
- Universal replacement coil for multiple valve configurations
- Can be used with brass or stainless steel valve bodies
Features & Applications
- Fast switching times for responsive pneumatic control
- Low power consumption reduces heat generation
- Integral protection against voltage spikes and surges
- Suitable for neutral gases and liquid fluids
- CE marked for European compliance
- EAC certified for use in Russia and Customs Union countries
- Ideal for industrial automation, packaging machinery, pneumatic systems
- Used in factory automation, material handling, process control applications
Additional Information
- No special tools required for installation
- Replacement takes only minutes with standard coil removal procedure
- Compatible with various seal materials: NBR, FKM, EPDM, PTFE
- Coil can be mounted in any position (preferably upright)
- RoHS compliant, lead-free construction
- Includes installation instructions
