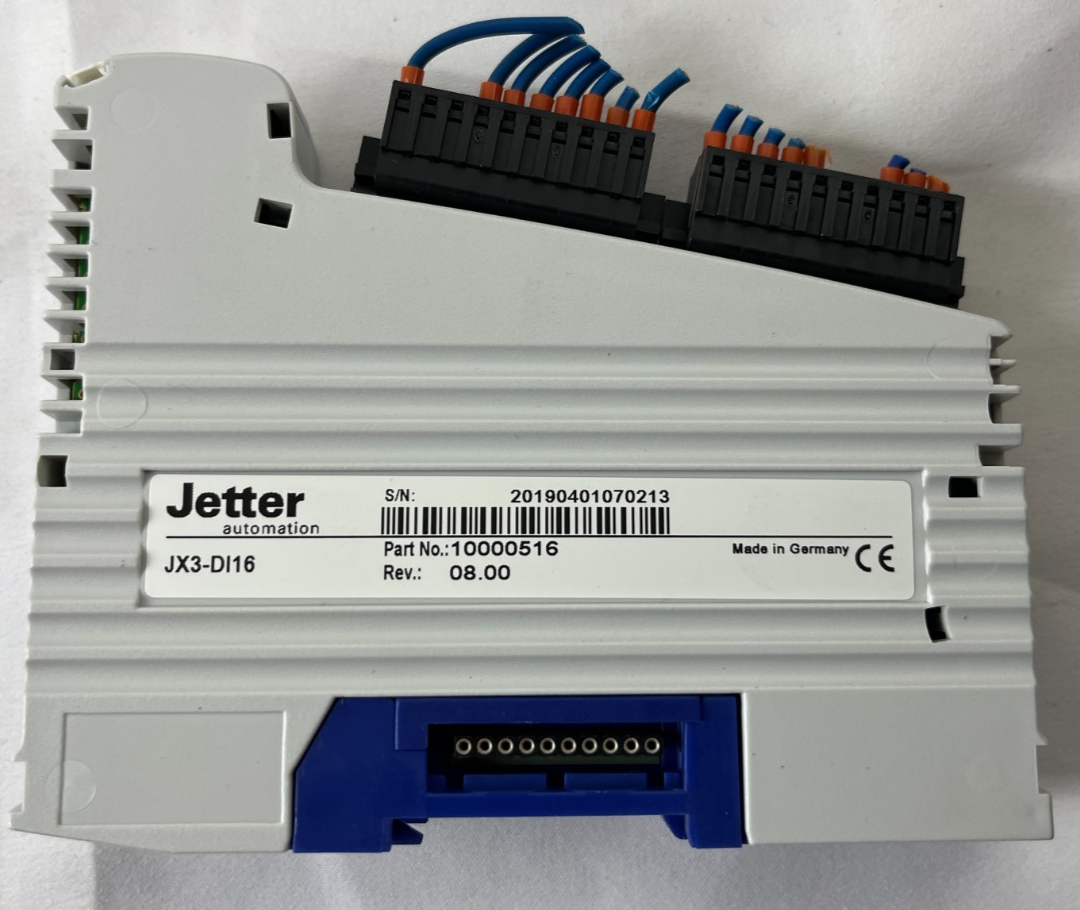

Jetter JX3-DI16 Digital Input Module 10000516 16 Channel 24VDC PLC Used Spare

Shipping includes tracking info worldwide. Best regards Klaus KLJ Trading.

Jetter JX3-DI16 digital input expansion module with 16 digital input channels for connecting sensors, 24V DC operation, pulled from fully functional automation system.

Item details

• Brand: Jetter Automation (now Bucher Automation)

• Model: JX3-DI16

• Part number: 10000516

• Serial number: 20190401070213

• Revision: 08.00

• Type: Digital input expansion module for JX3 system bus

• Digital inputs: 16 channels, 24V DC, PNP

• Input current: 2.8-4.3 mA per input

• Input features:

  • Digital input filters for noise immunity

  • Pulse stretching for fast signal capture

  • Counting functionality up to 3 kHz

  • 32-bit value range for counters

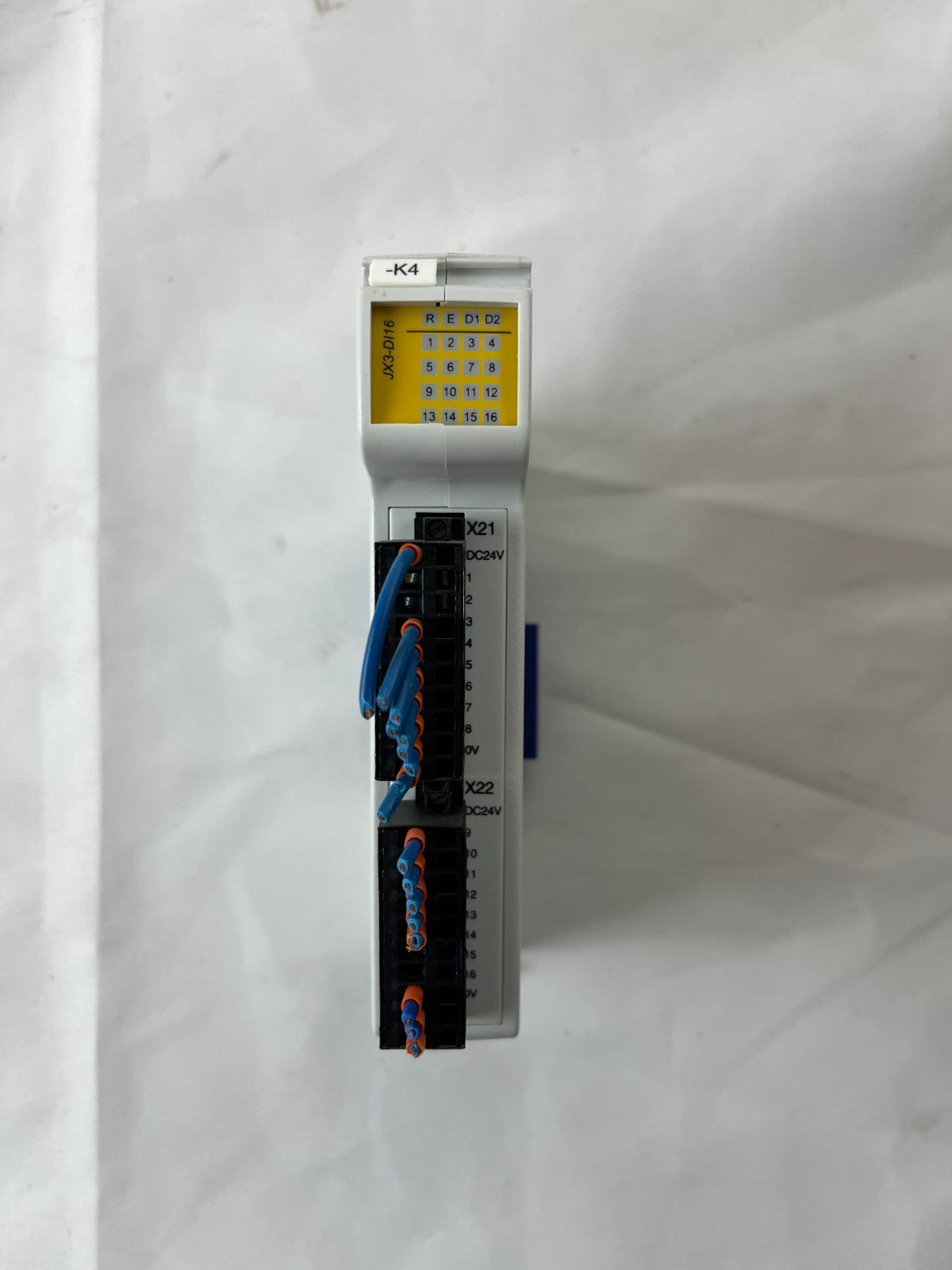

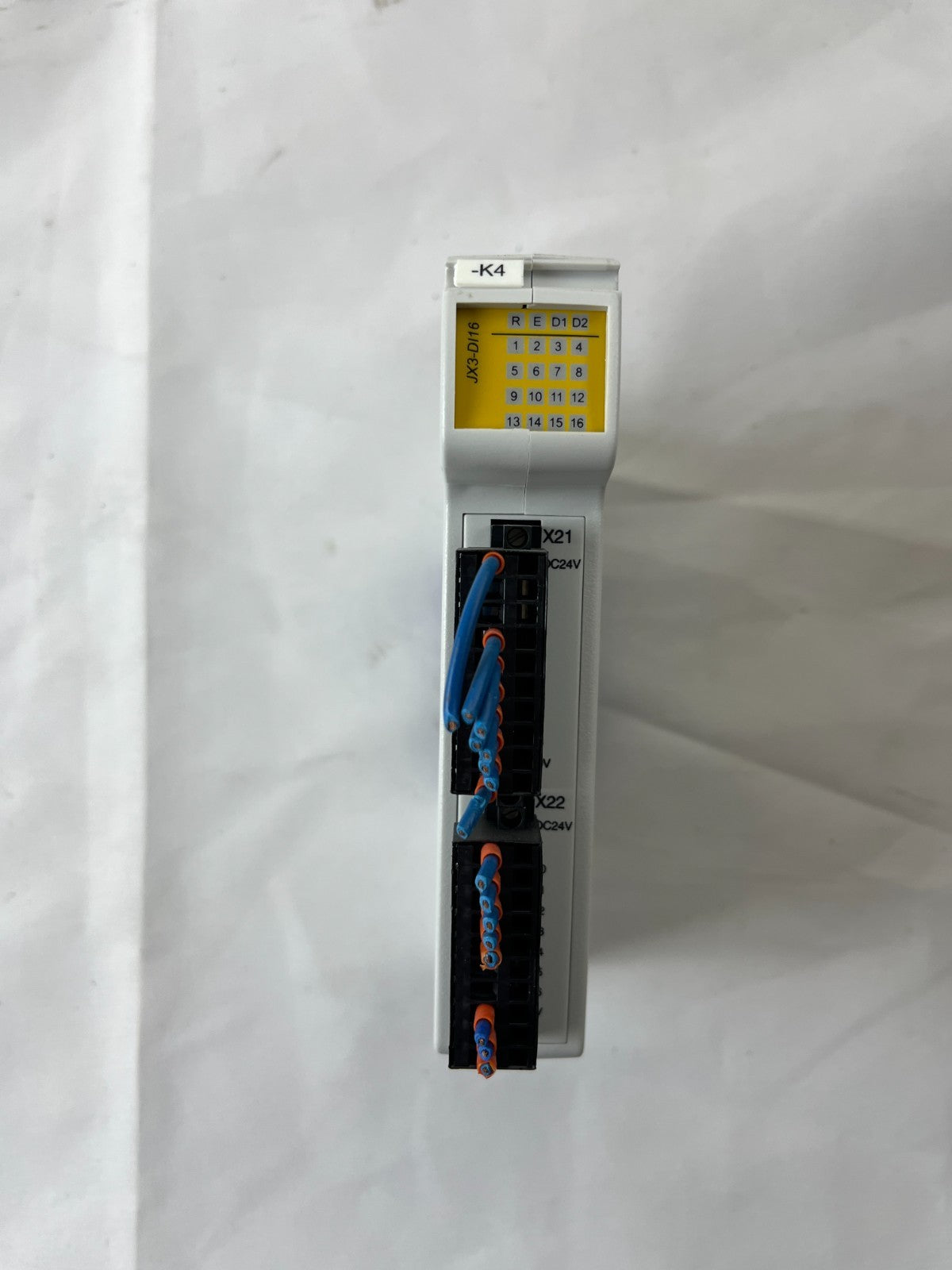

• Terminal connectors: Two terminal blocks for inputs and power

• Current consumption: 55 mA from system bus

• Nominal power: 563 mW

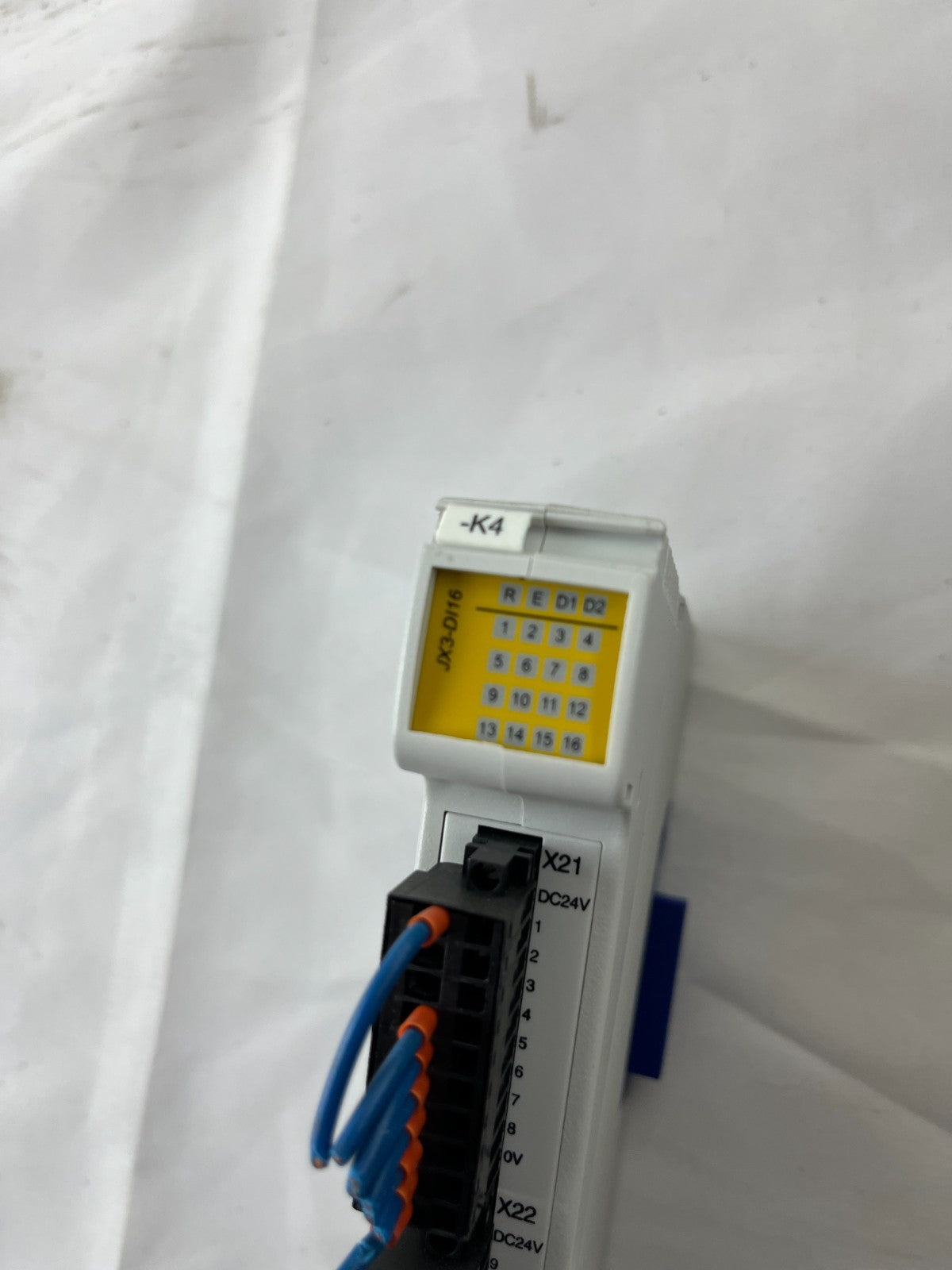

• Status indicators: LEDs for monitoring communication and power supply

• System compatibility: Connects to all JX3 system bus controllers (JC-340, JC-350, JC-360, JC-365 series)

• Module width: Ultra-slim 25mm profile

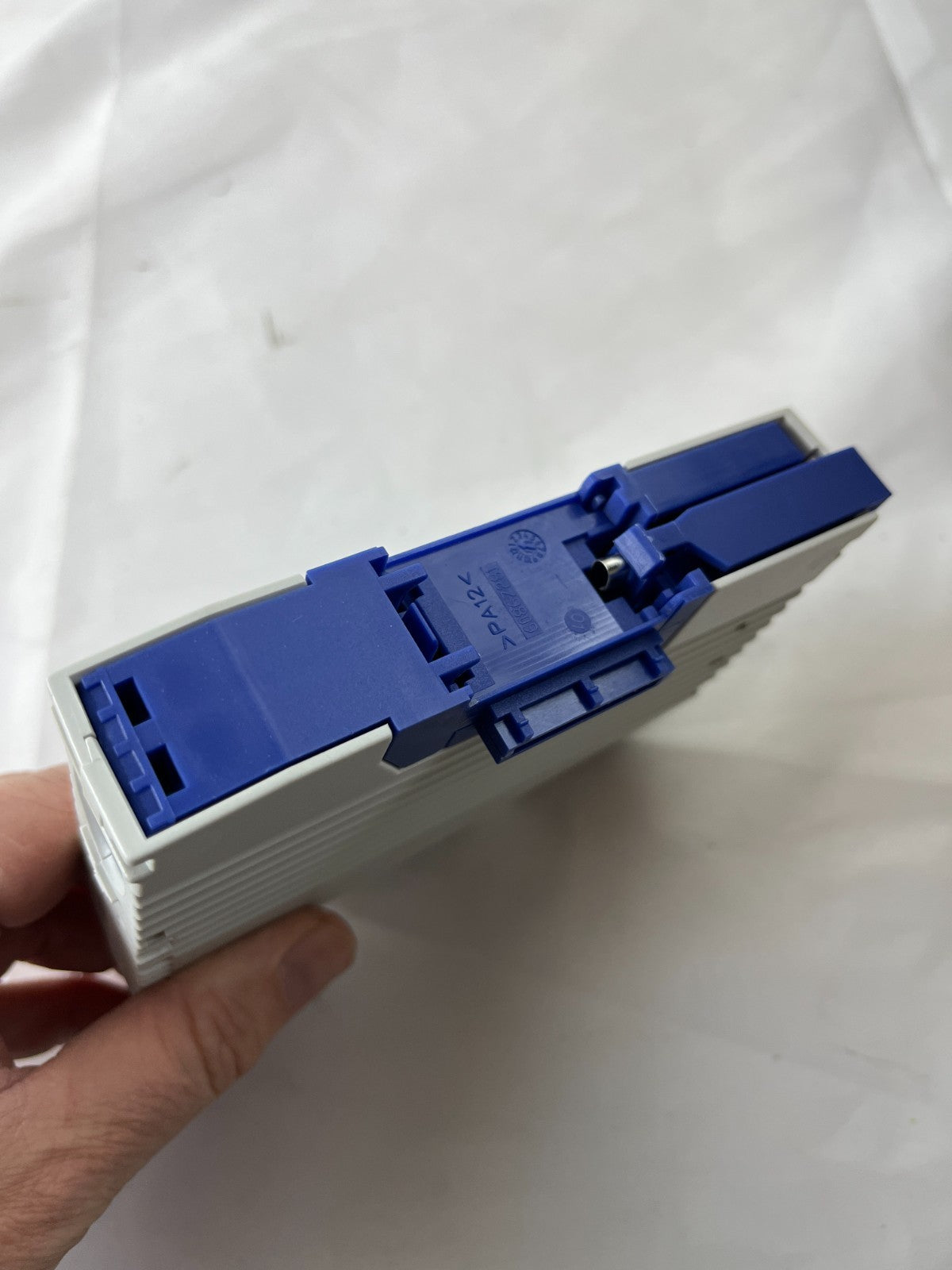

• Mounting: Standard 35mm DIN rail with blue snap-fit clips

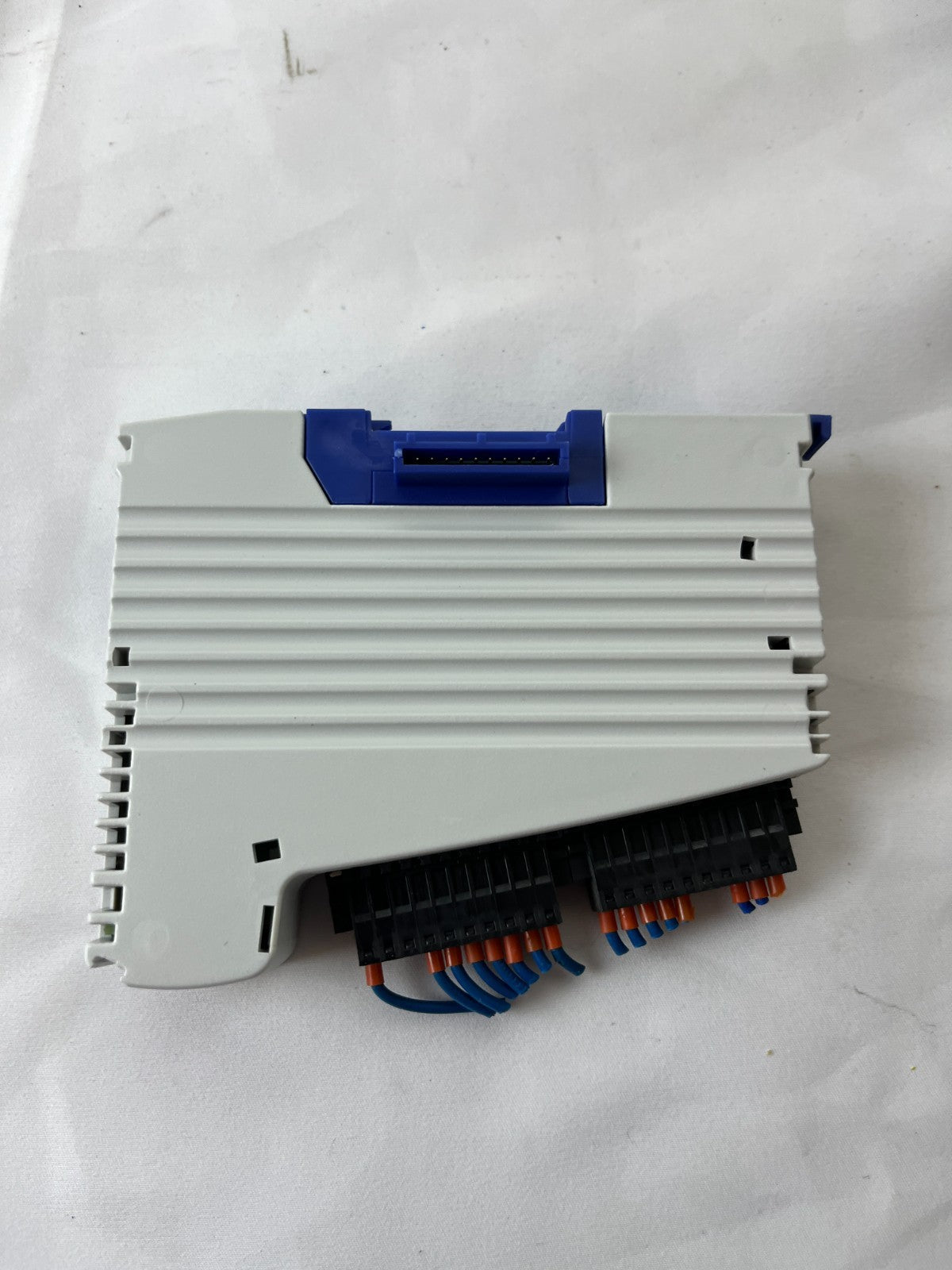

• Housing: Ruggedized plastic with ventilation ridges for heat dissipation

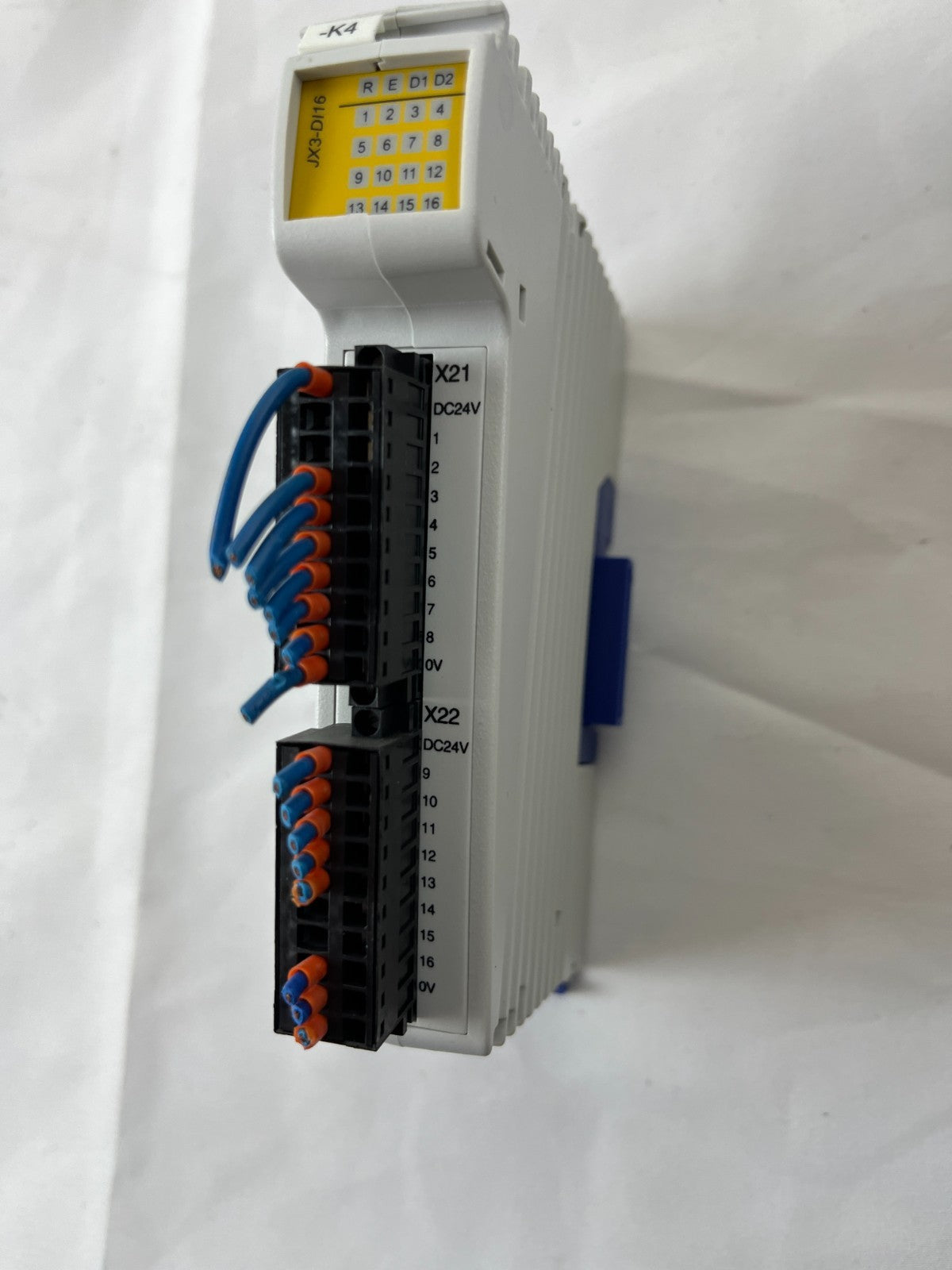

• Connectors: Spring-loaded PUSH-IN terminals for tool-free wiring

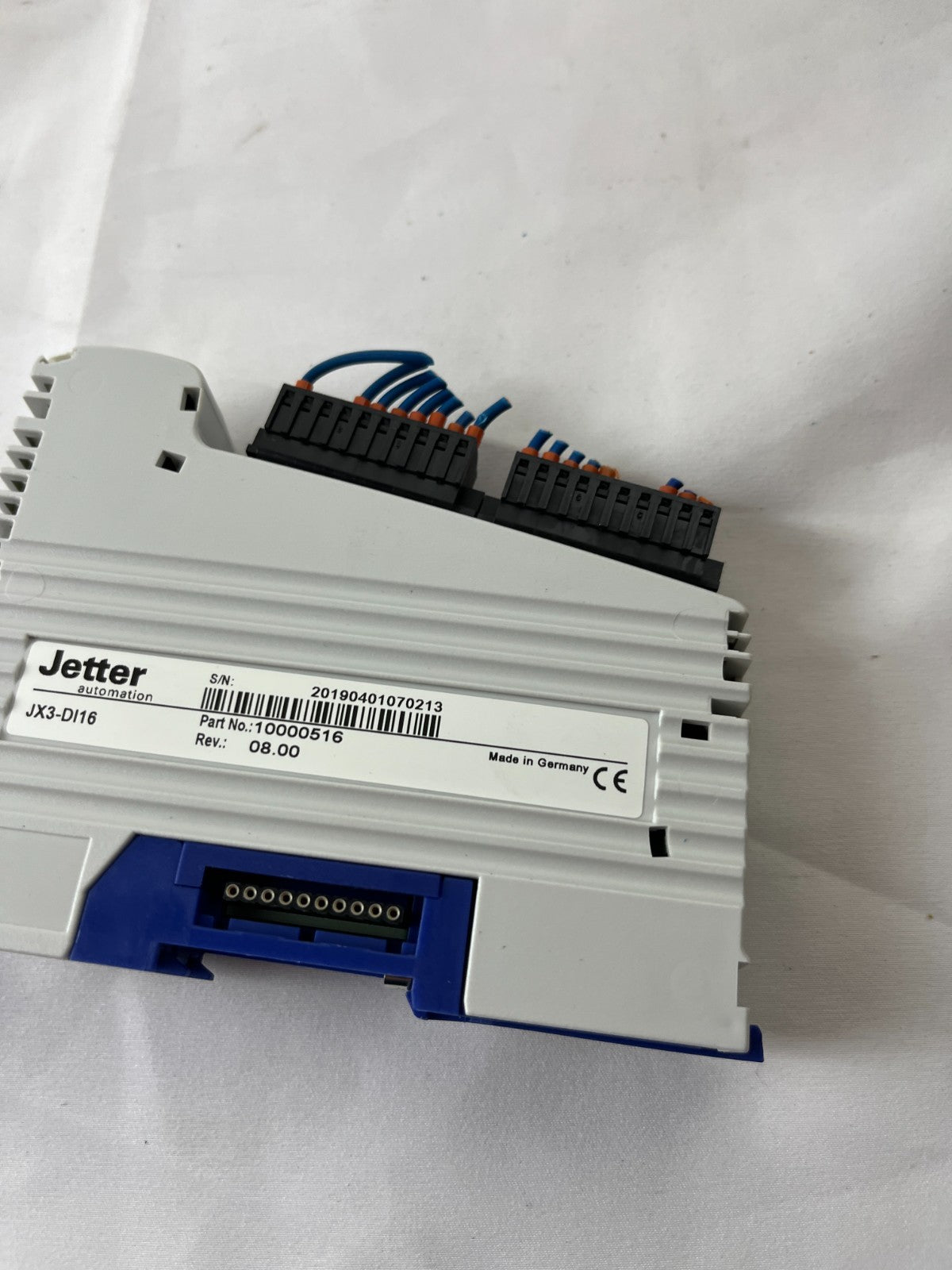

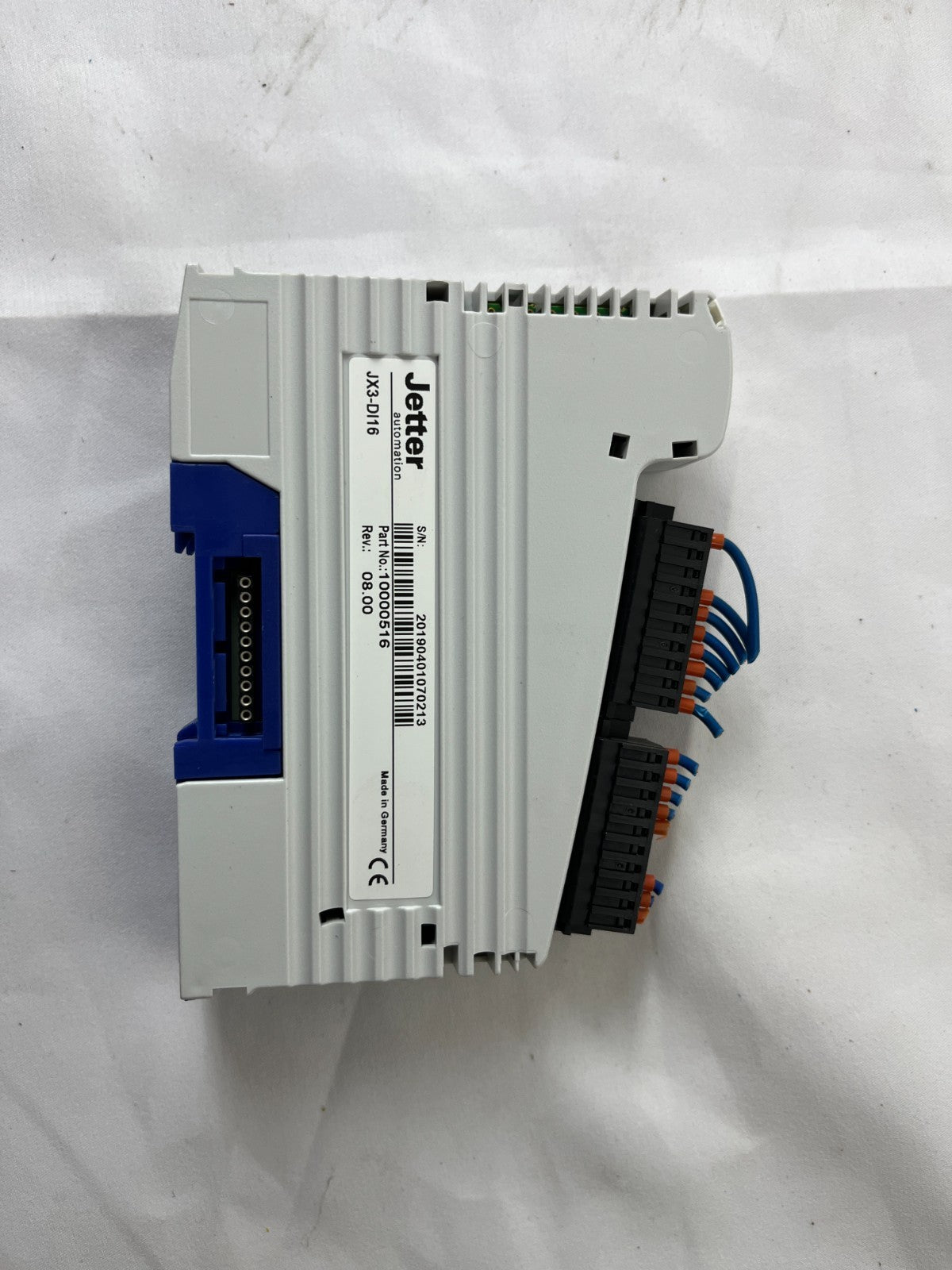

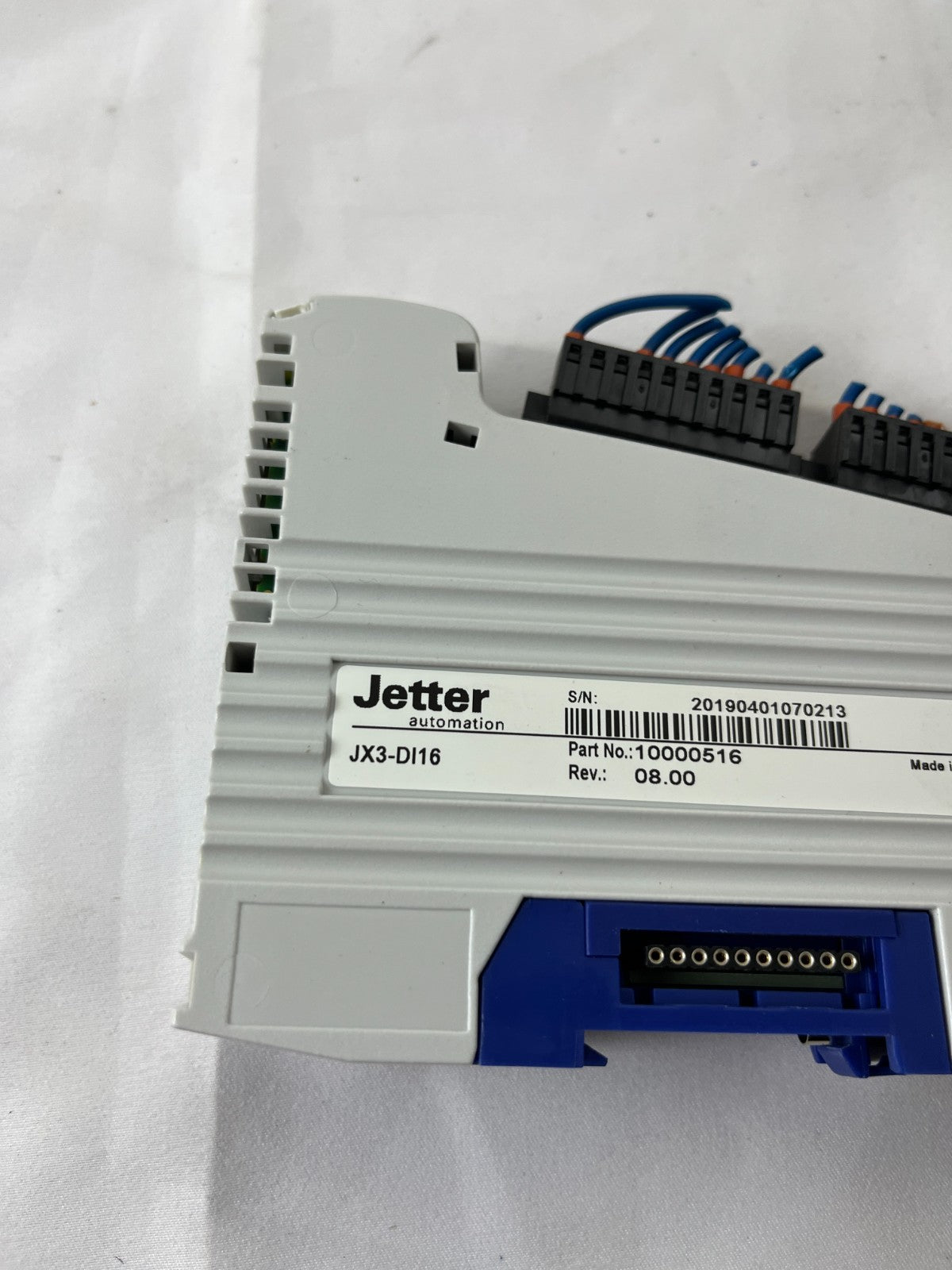

• Backplane connector: Blue 10-pin connector for JX3 system bus

• Certifications: CE marked

• Manufactured: Germany, April 2019

Condition

• Used, working condition – removed from operational automation system

• Clean white housing in excellent condition

• All terminal blocks intact and functional

• Pre-wired with blue and orange cables attached

• DIN rail mounting clips secure and functional

• Blue backplane connector intact

• Ventilation ridges clean and unobstructed

• No cracks, damage, or missing components

• No original packaging or documentation

Notes

This JX3-DI16 module was extracted from a working Jetter automation system during equipment upgrade. The module serves as a decentralized input expansion for connecting 24V DC PNP sensors such as proximity switches, photoelectric sensors, limit switches, and push buttons to Jetter JetControl PLC systems. All 16 inputs feature digital filtering to eliminate electrical noise and pulse stretching to reliably capture fast input signals. The counting feature allows inputs to function as high-speed counters up to 3 kHz for applications like encoder feedback or product counting. The ultra-slim 25mm design provides 16 I/O points in minimal space, making it ideal for compact control panel layouts. Connects via backplane bus to other JX3 modules and JetControl controllers. Compatible with Bucher/Jetter Automation Studio software for configuration and diagnostics. Ideal for machine control applications requiring distributed inputs close to sensors and field devices. Optional plug-in field wiring terminals available separately.
