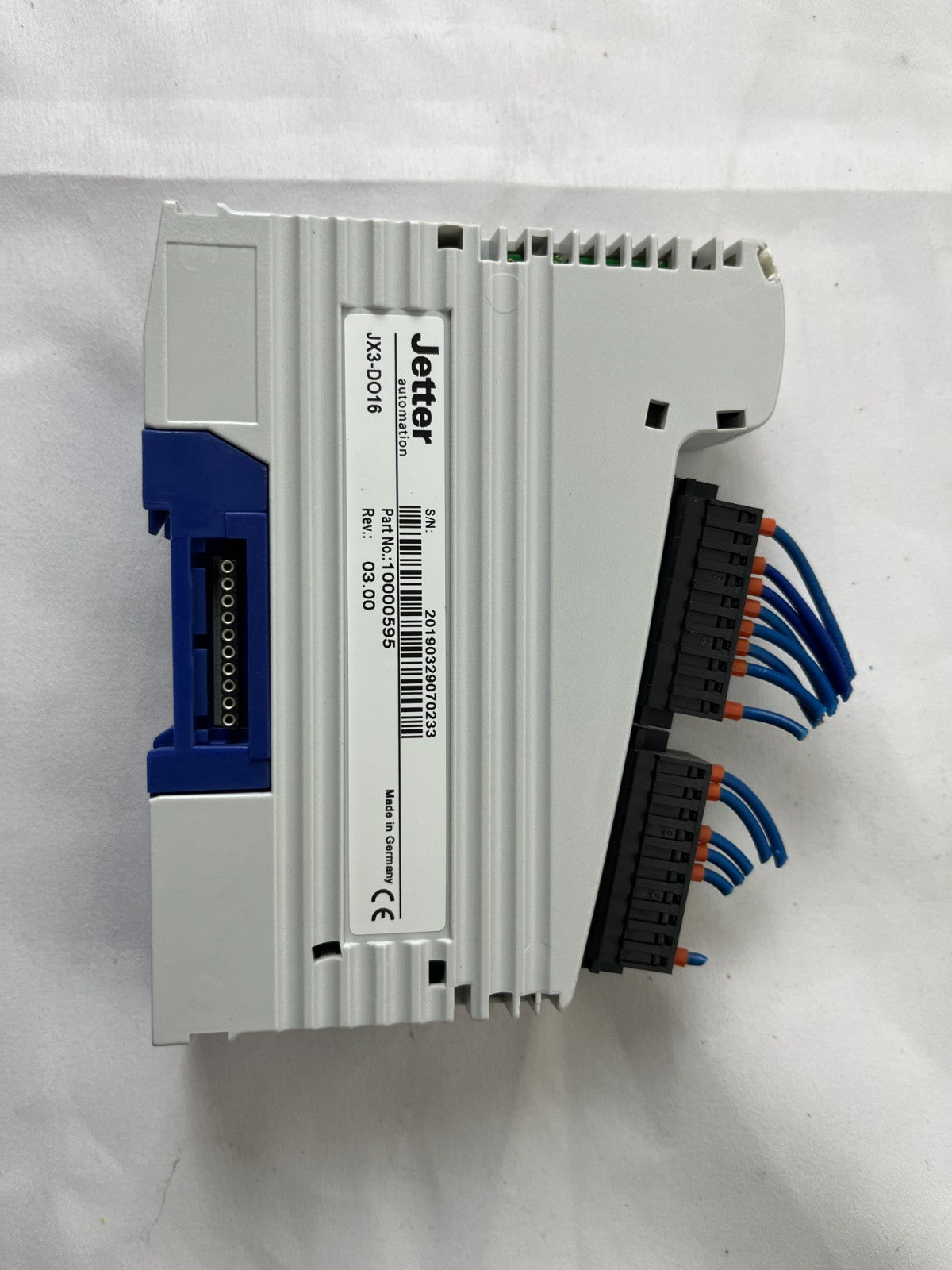

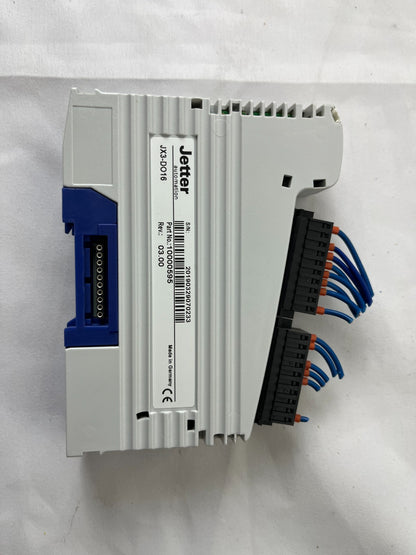

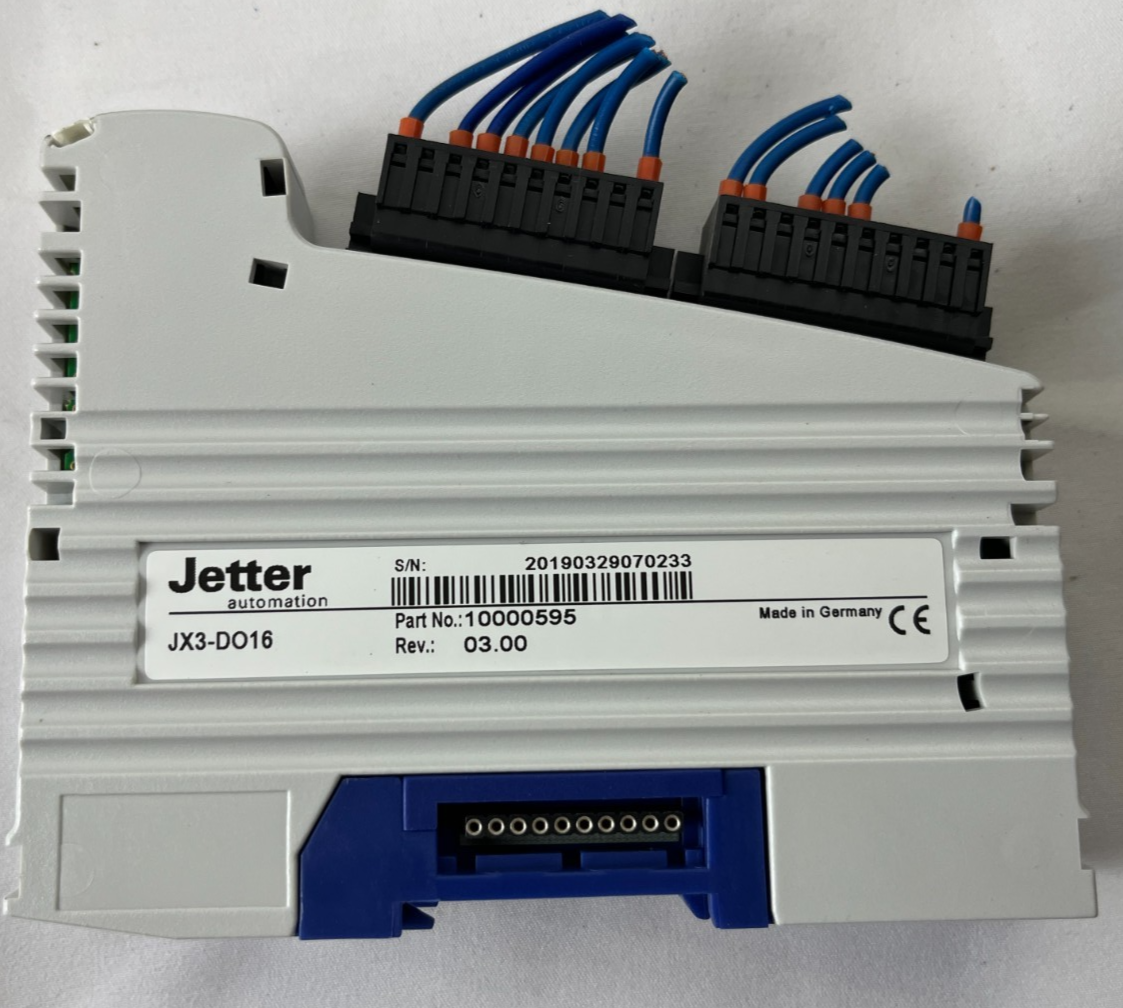

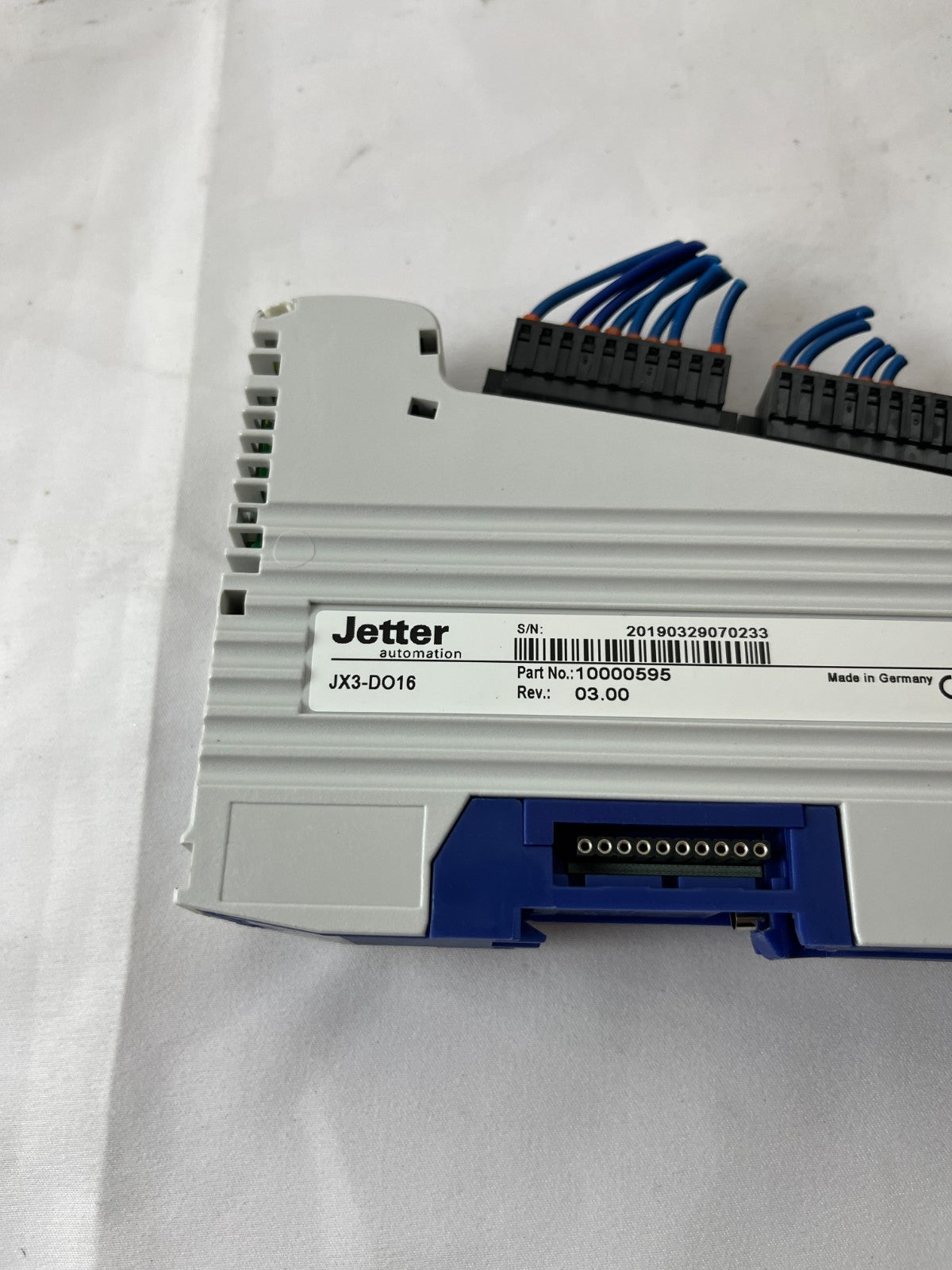

Brand: Jetter Automation (now Bucher Automation)
-
Model: JX3-DO16
-
Part number: 10000595
-
Serial number: 20190329070233
-
Revision: 03.00
-
Type: Digital output expansion module for JX3 system bus
-
Digital outputs: 16 channels, 24V DC switching
-
Output current: 0.5A per channel typical
-
Total current: 4.0A maximum per connector block
-
Connector X31: DC 24V 4.0A (outputs 1-8 + 0V)
-
Connector X32: DC 24V 4.0A (outputs 9-16 + 0V)
-
Output type: PNP transistor outputs, short-circuit protected
-

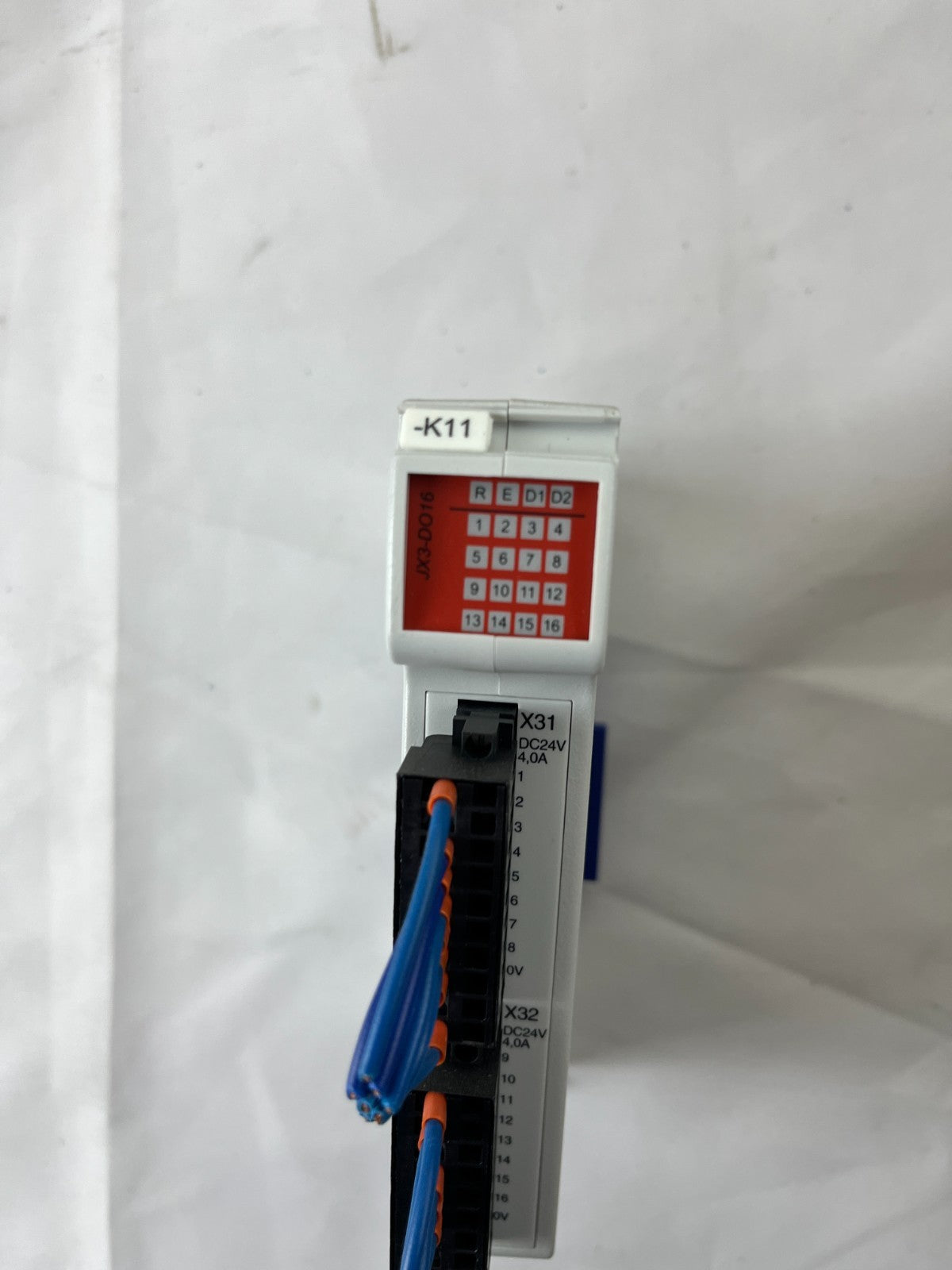

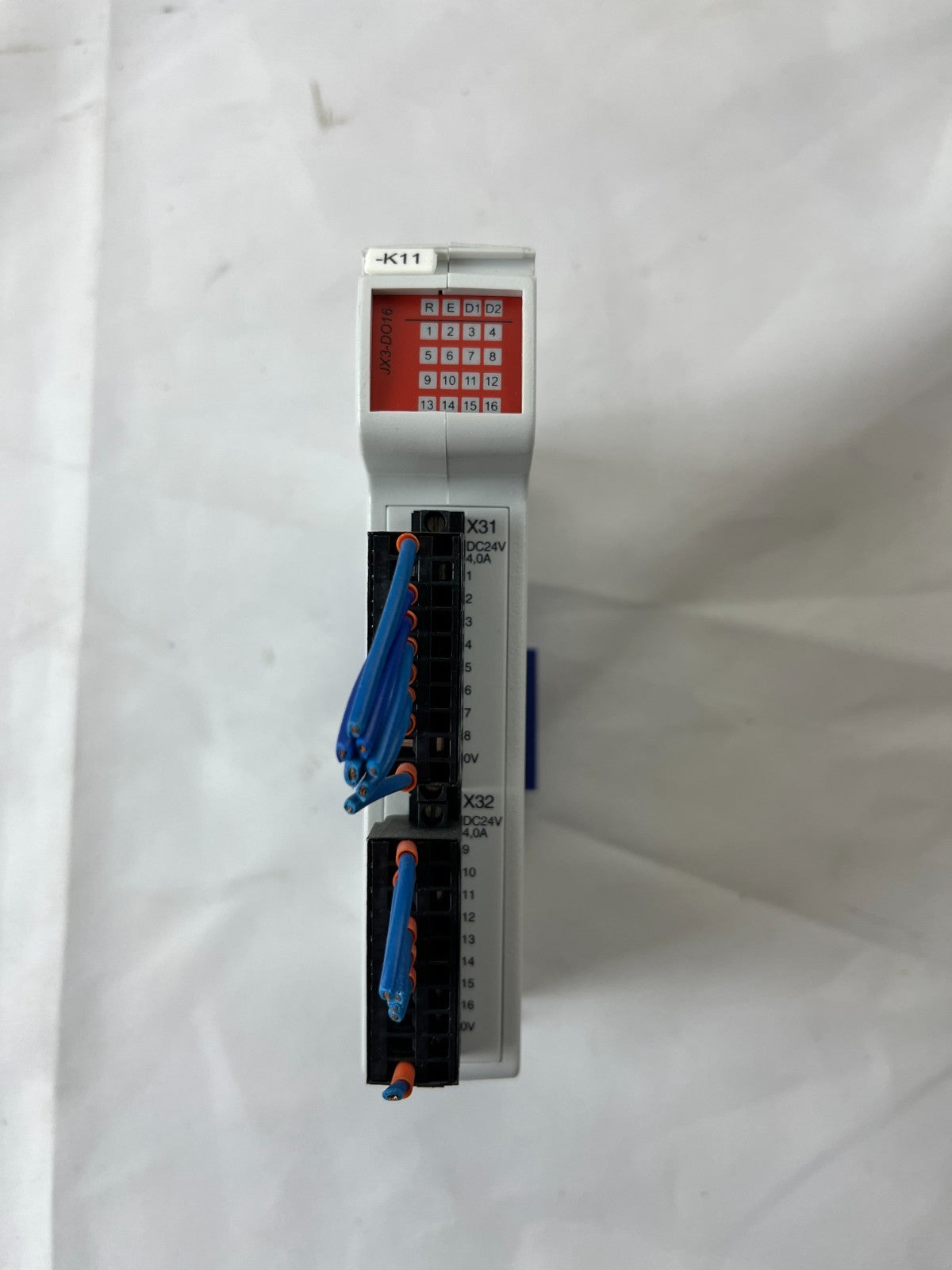

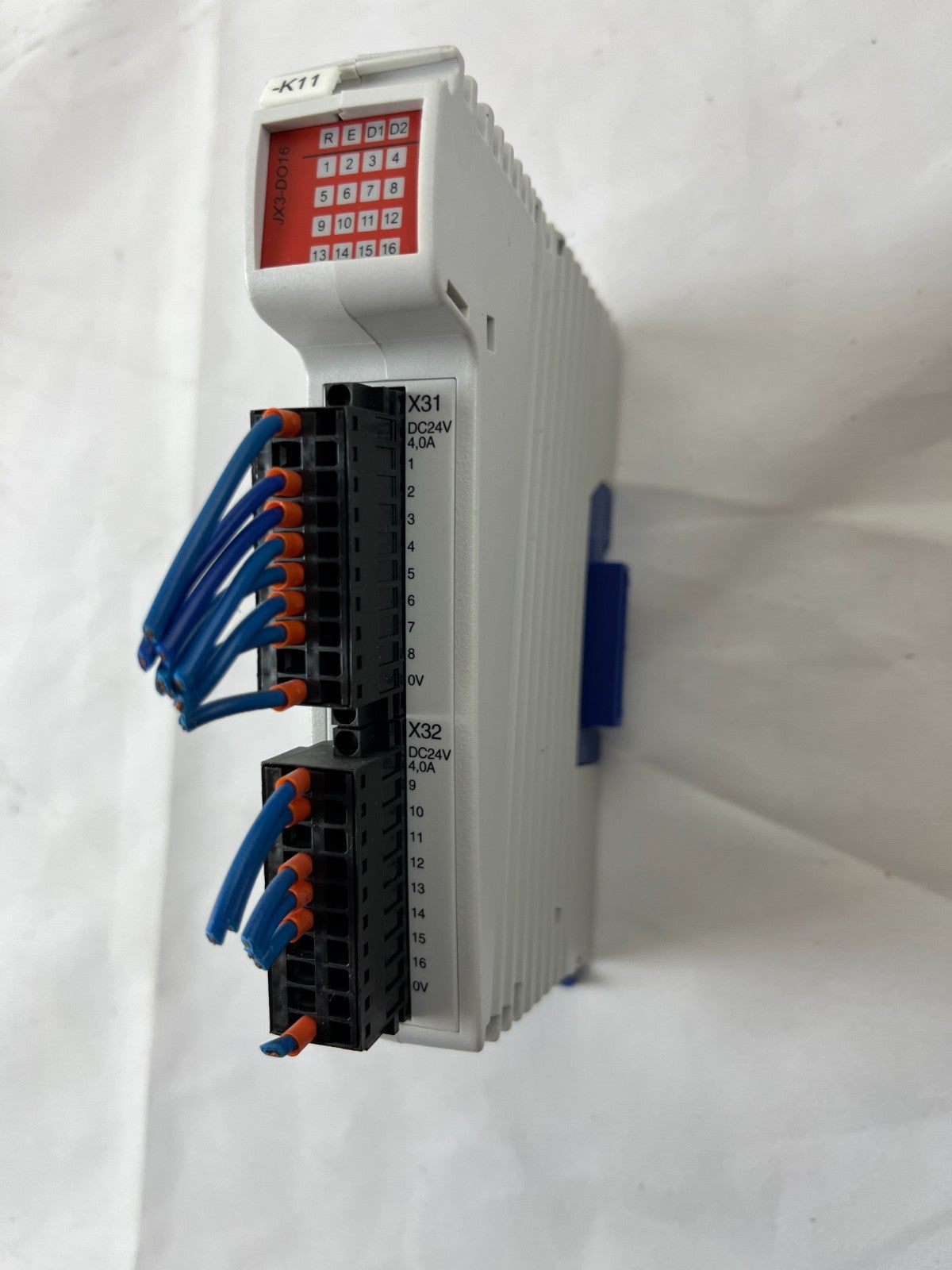

Status display: 16-position LED array with red indicator window showing individual output states
-
LED indicators: Individual status LEDs for each of 16 outputs plus diagnostic indicators (E, D1, D2)
-
Features:
-
Automatic addressing on JX3 bus
-
Short-circuit protection on all outputs
-
Overload and overtemperature protection
-
System compatibility: Connects to all JX3 system bus controllers (JC-340, JC-350, JC-360, JC-365 series)
-
Module width: Ultra-slim 25mm profile
-

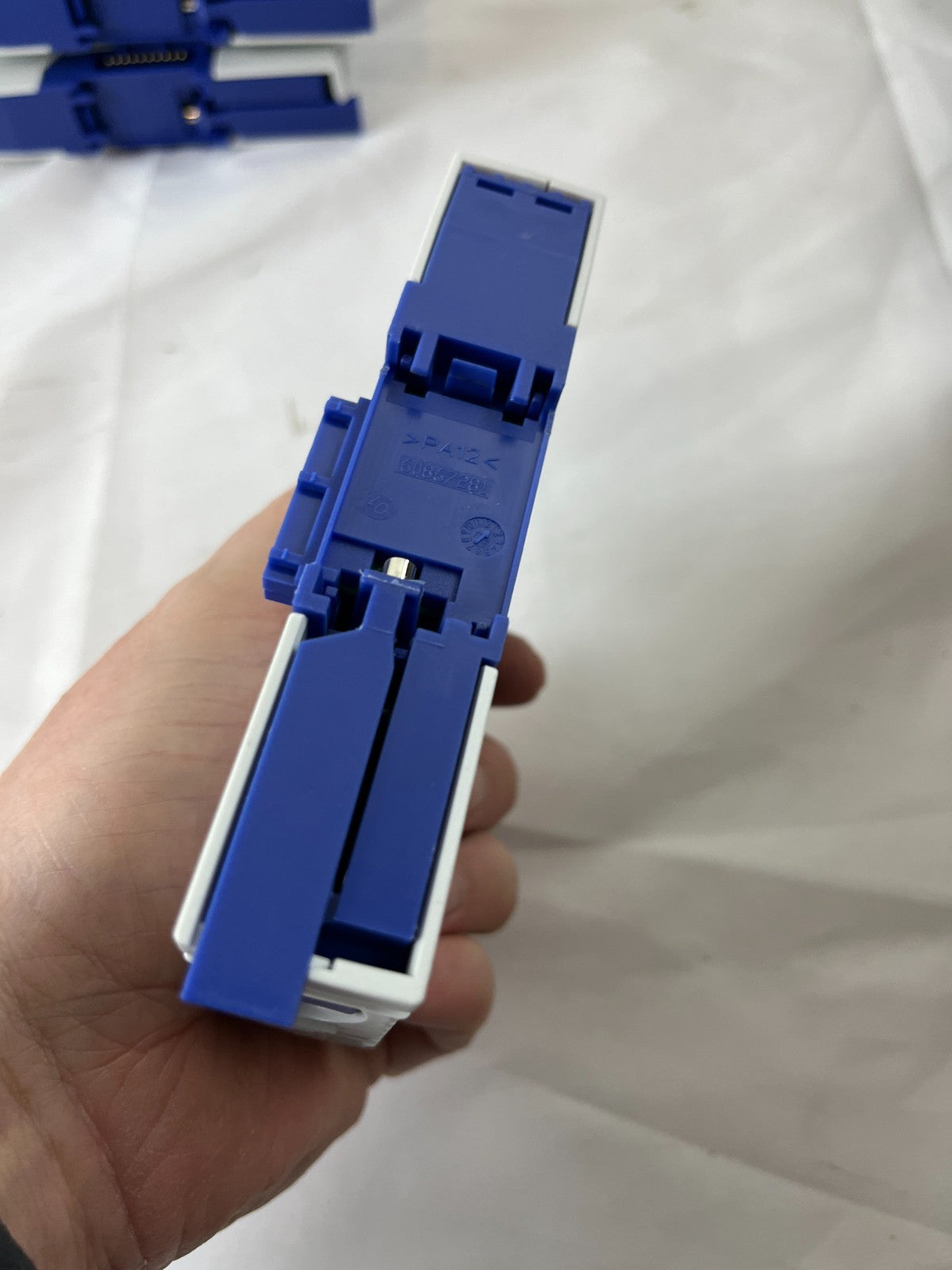

Mounting: Standard 35mm DIN rail with blue snap-fit clips
-
Housing: Ruggedized plastic with ventilation ridges for heat dissipation
-
Connectors: Spring-loaded terminals for tool-free wiring
-
Certifications: CE marked
-

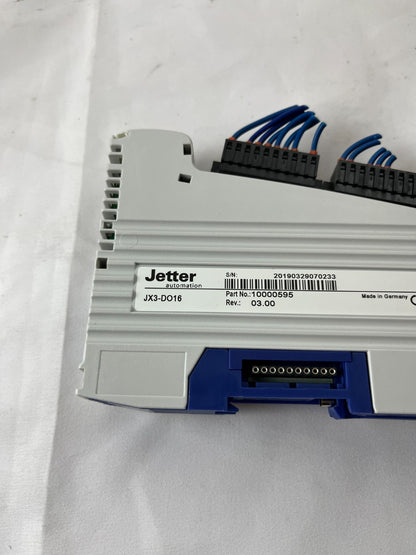

Custom labeling: "-K11" identification label
-
Manufactured: Germany, March 2019
-

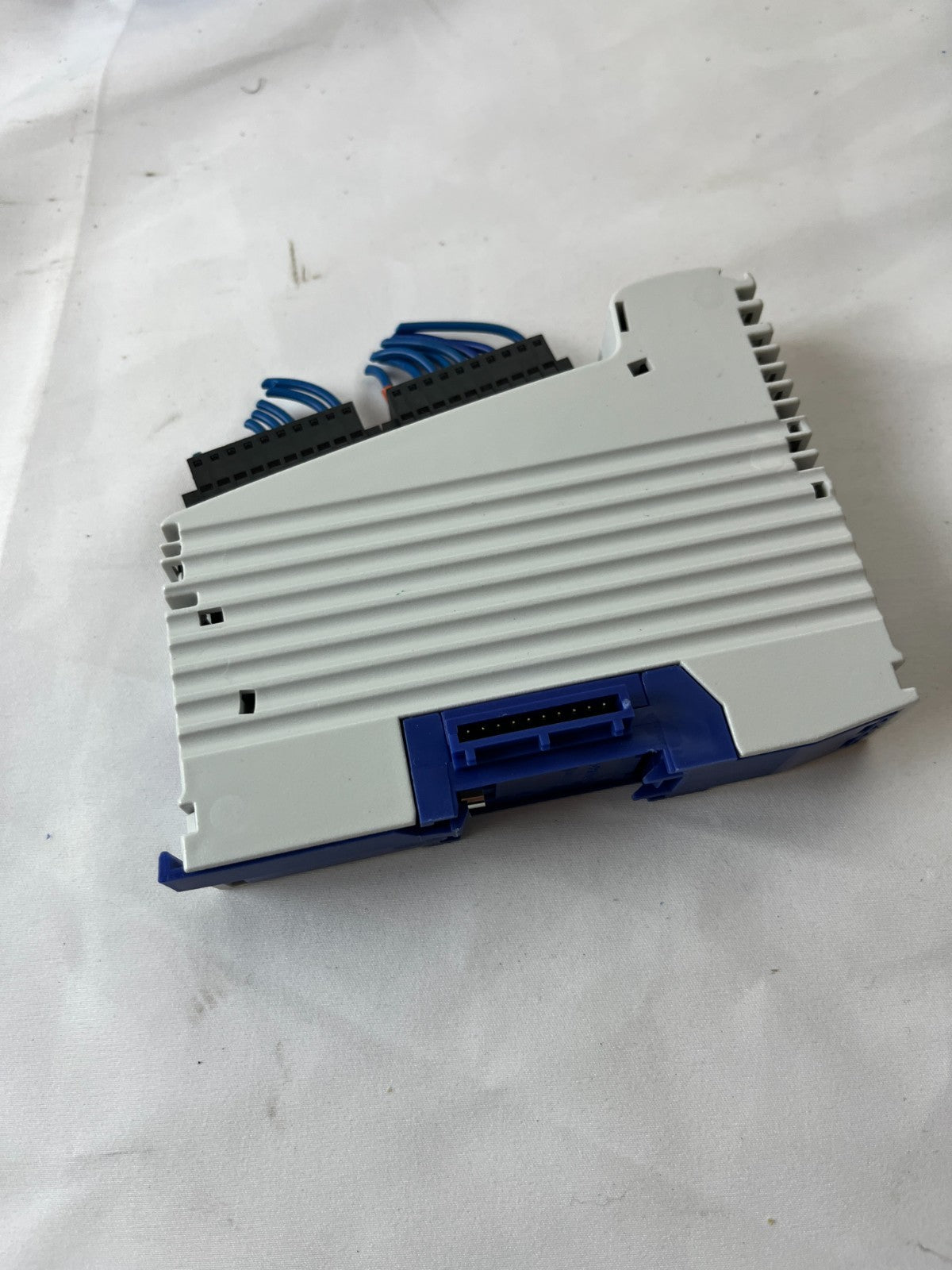

Used, working condition – removed from operational automation system
-

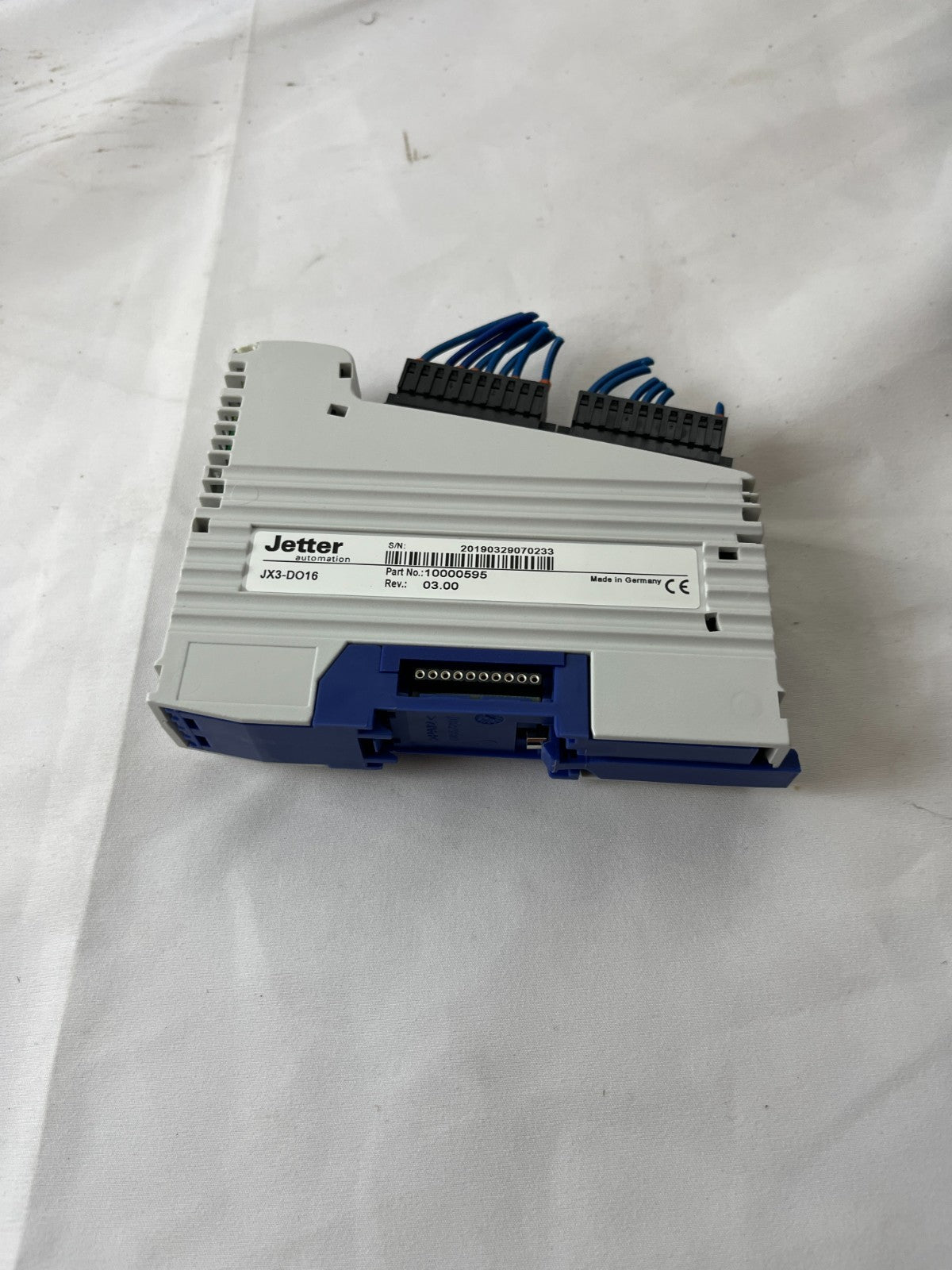

Clean white housing in excellent condition
-
All connector blocks intact and functional
-
LED status window clear and undamaged
-
Pre-wired with blue and orange cables attached to both X31 and X32 connectors
-
DIN rail mounting clips secure and functional
-
Blue backplane connector intact
-
Custom identification label "-K11" applied (removable if desired)
-
Ventilation ridges clean and unobstructed
-
No cracks, damage, or missing components
-
No original packaging or documentation
