Klöckner Moeller DIL1AM three‑pole motor contactor rated up to around 18.5 kW at 400 V AC‑3. New, never used unit supplied in original Moeller box with 230 V 50 Hz / 240 V 60 Hz AC coil.
-
Brand: Klöckner Moeller (Eaton Moeller)
-
Model: DIL1AM (printed on box and front of contactor)
-
Type: 3‑phase IEC motor contactor with screw terminalscontrolparts+1
-
Main contacts: 3 NO power poles (L1–L3 / T1–T3, marked on front)scemosystems+1
-
Rated current: approx. 55 A continuous (frame size 1)klocknermoeller+1
-
Motor rating: AC‑3 18.5 kW at 400 V (typical for DIL1AM series)axxacnc+1
-
Coil voltage: 230 V 50 Hz / 240 V 60 Hz AC (printed on box label)plcsweden+1
-
Rated operational voltage: up to 690 V AC for main circuit (see series data)scemosystems+1
-
Mounting: DIN‑rail/surface mount, compact block design with top and bottom terminalsfarnell+1
-
Country of manufacture: Made in Germany (printed on box).
-
Typical applications: Three‑phase motor starters, pumps, fans, compressors, and general power switching in industrial panels.
-
New, never used industrial surplus.
-

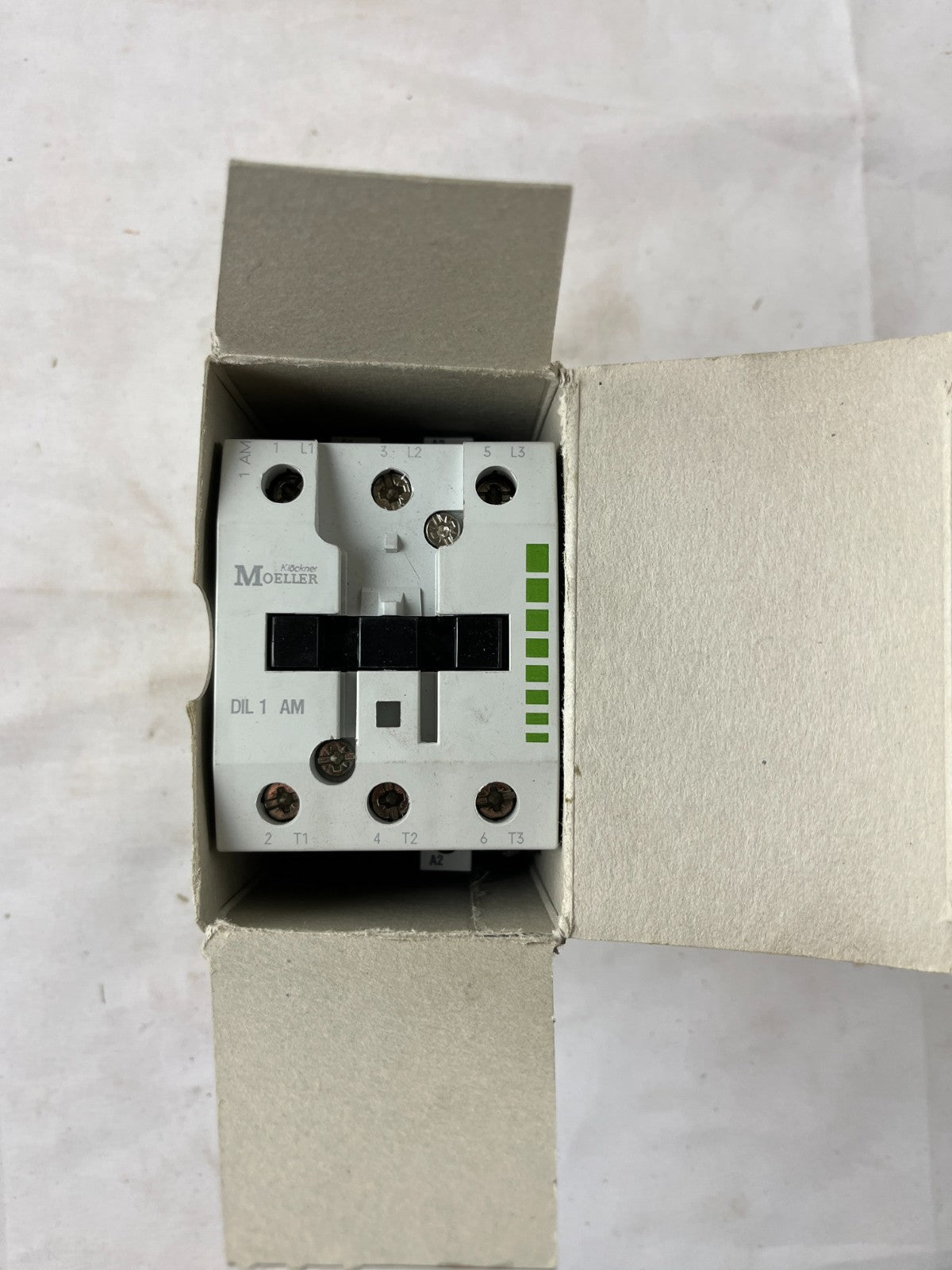

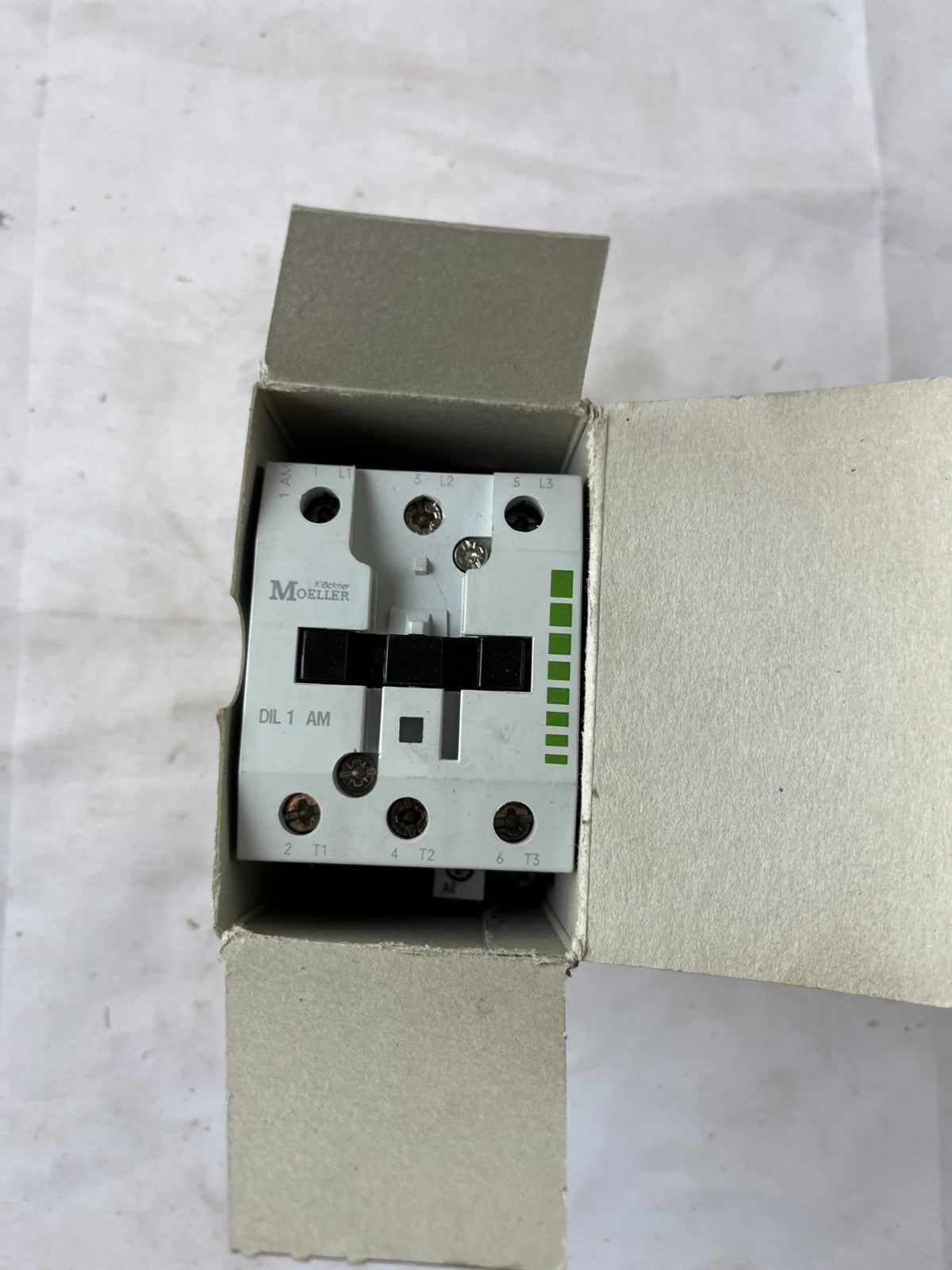

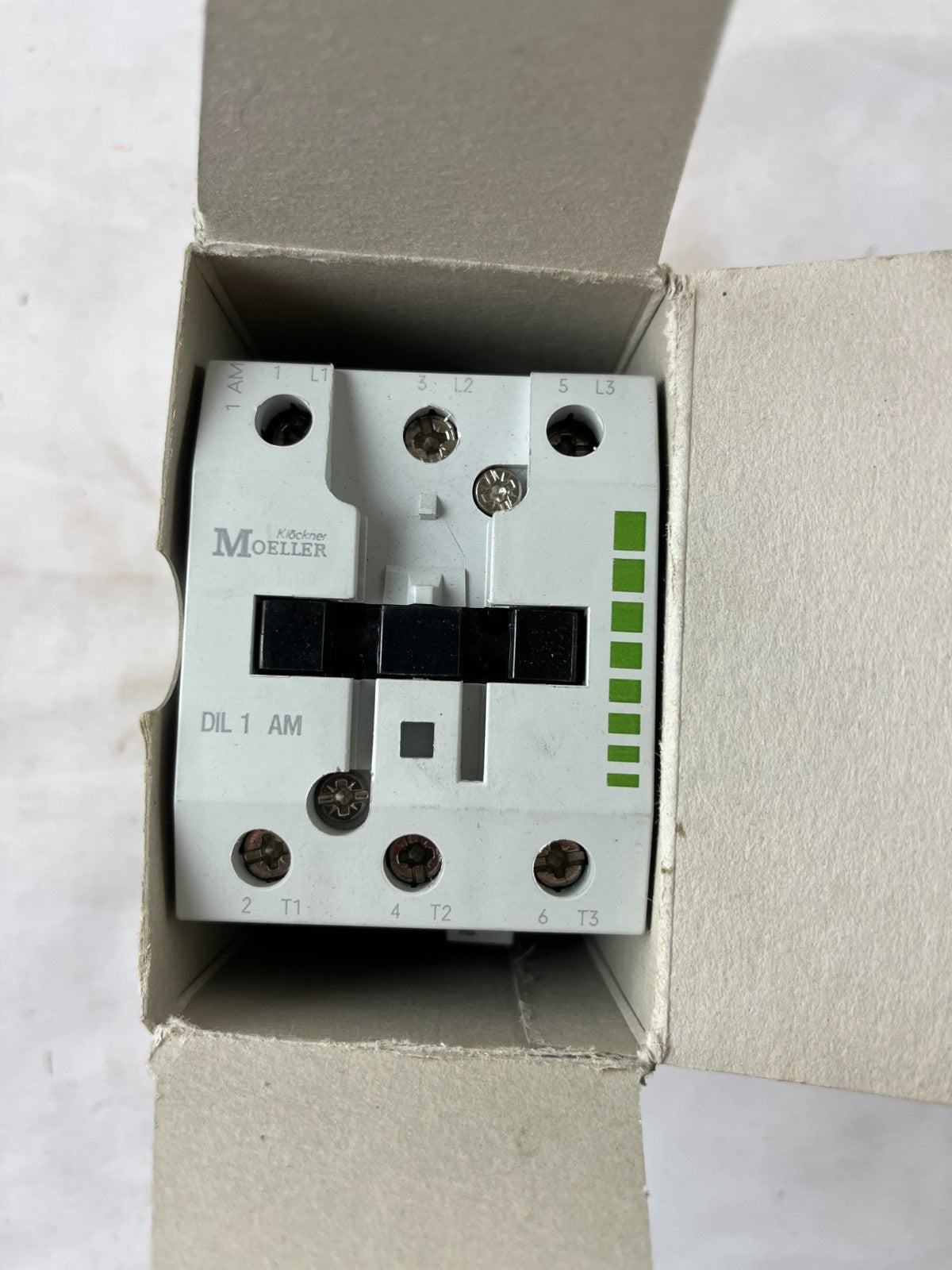

Contactor appears clean with no signs of wiring on terminals; screws show no tool marks.
-

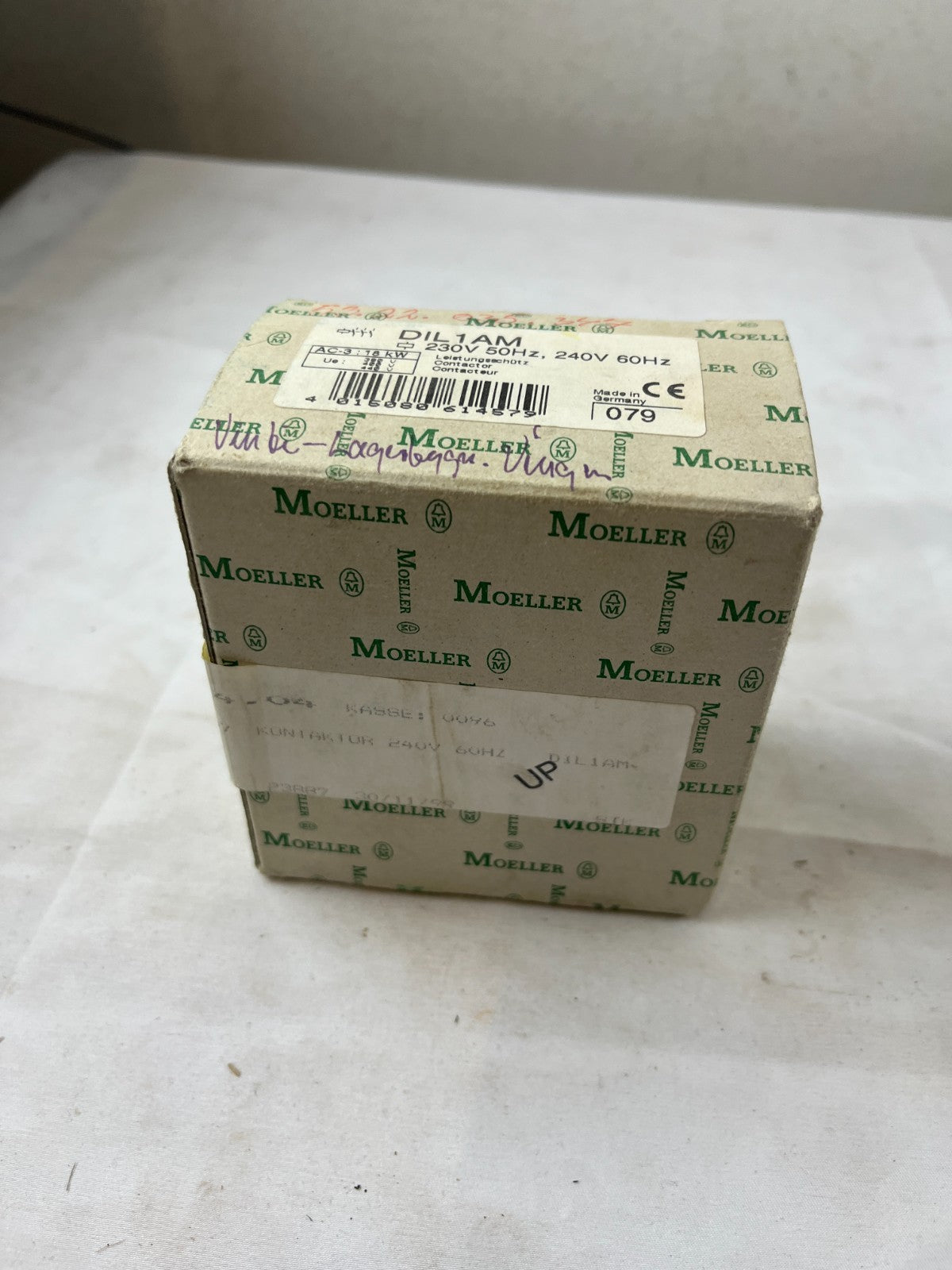

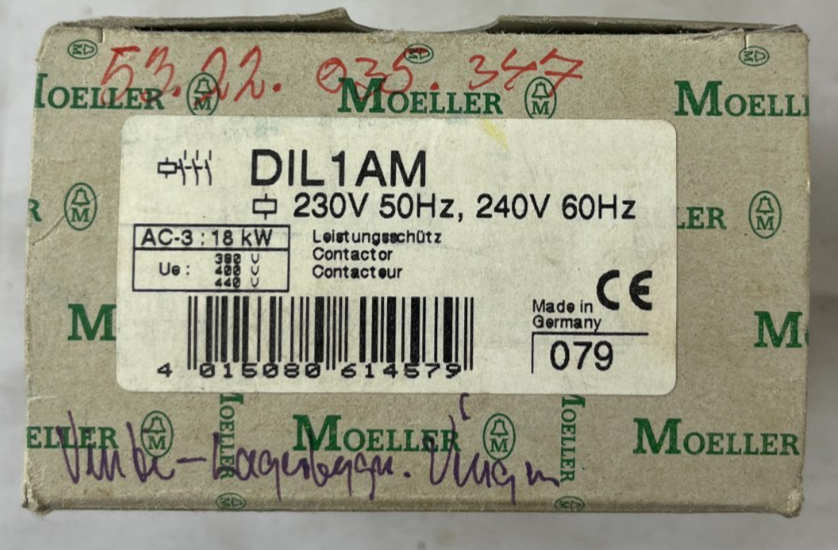

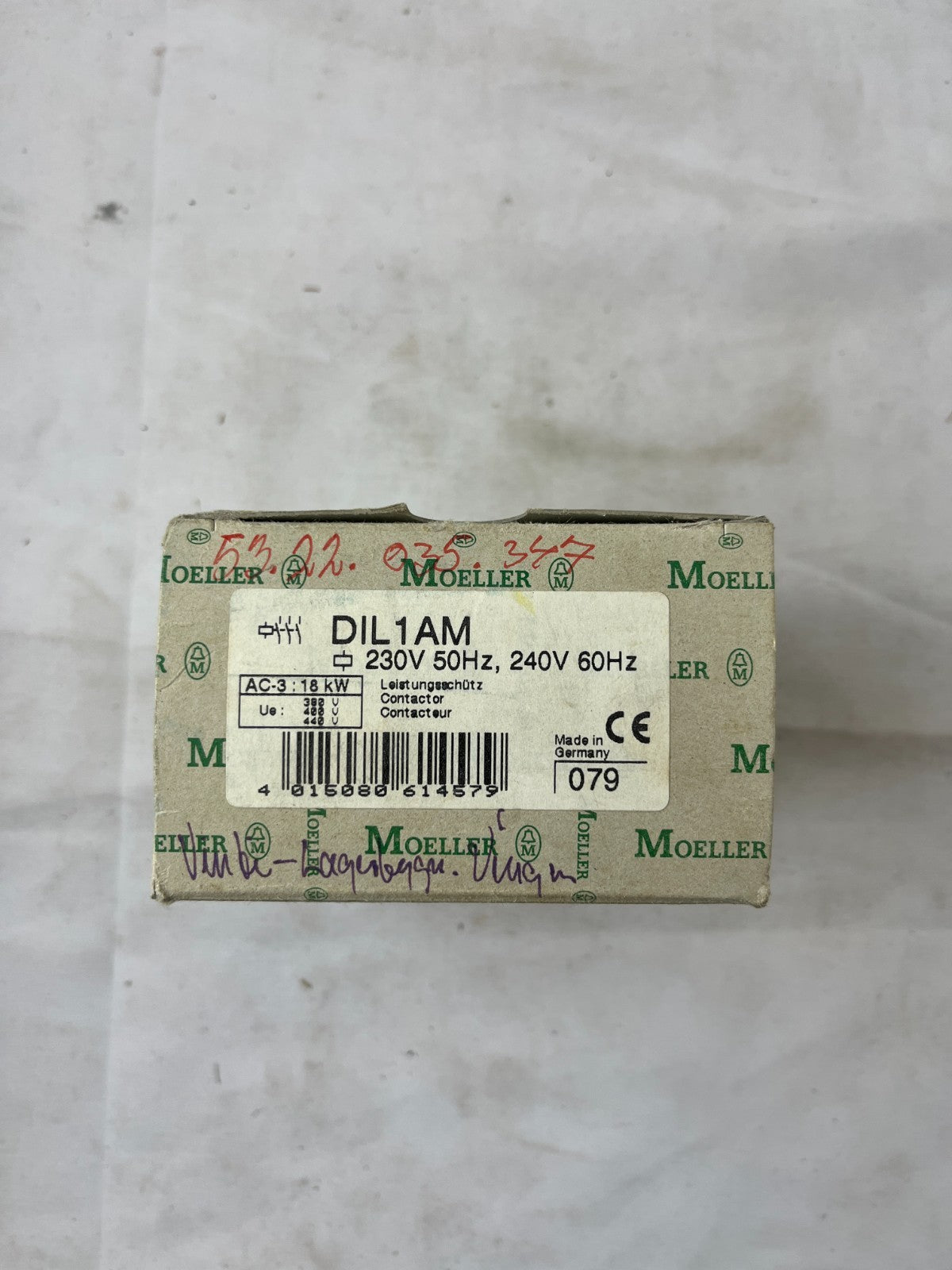

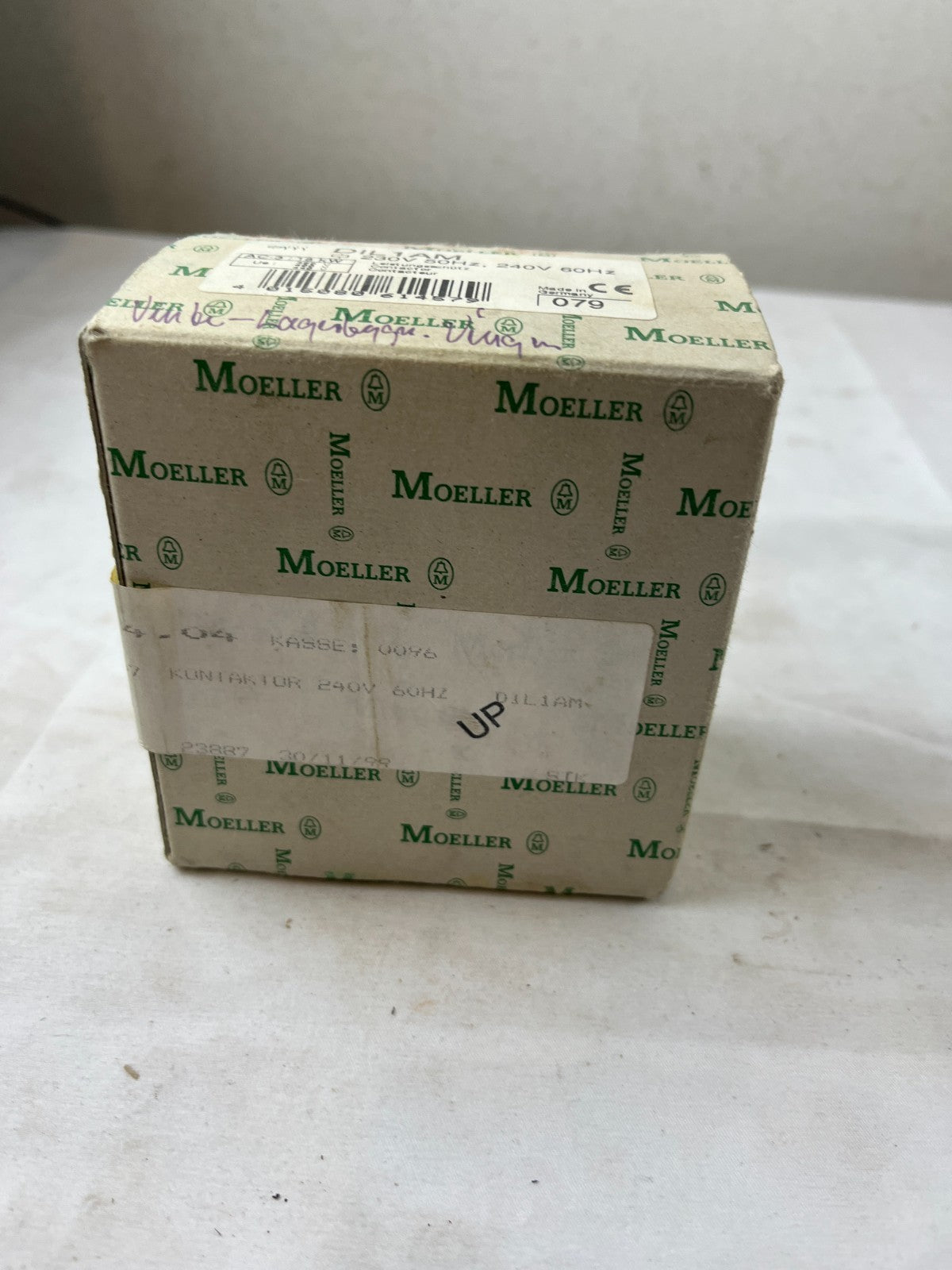

Original Moeller carton present; box has writing and minor storage wear but remains structurally sound.
-
Sold as‑is but visually confirmed to be unused.
-
This is an AC‑operated contactor; ensure your control voltage is 230/240 V AC at the stated frequency before installation.
-
Auxiliary contact blocks (e.g., 22DILM) are not included; only the base DIL1AM contactor is supplied.controlparts+1
-
Professional installation is recommended to ensure correct coordination with overload relays and compliance with IEC/EN standards.
