Model: JetNet 2005

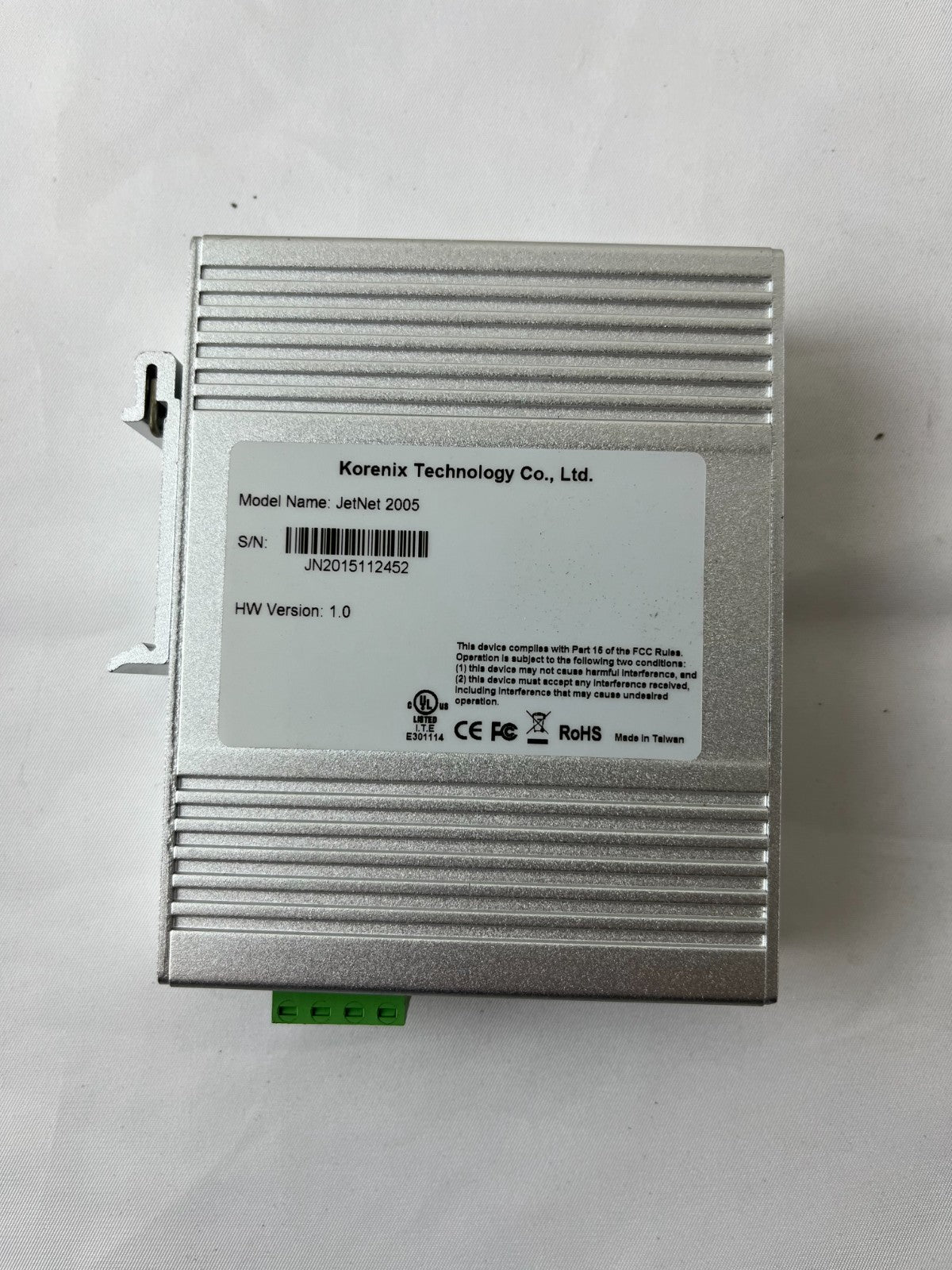

Serial Number: JN2015112452
Hardware Version: 1.0

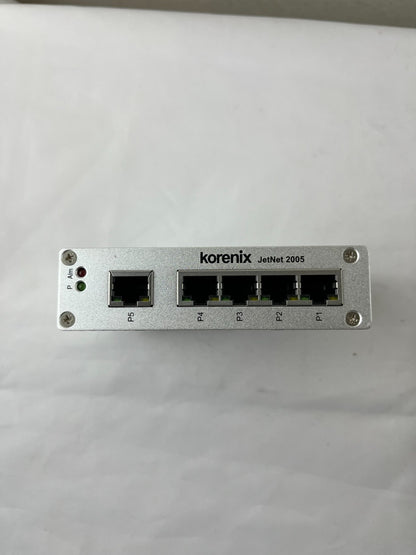

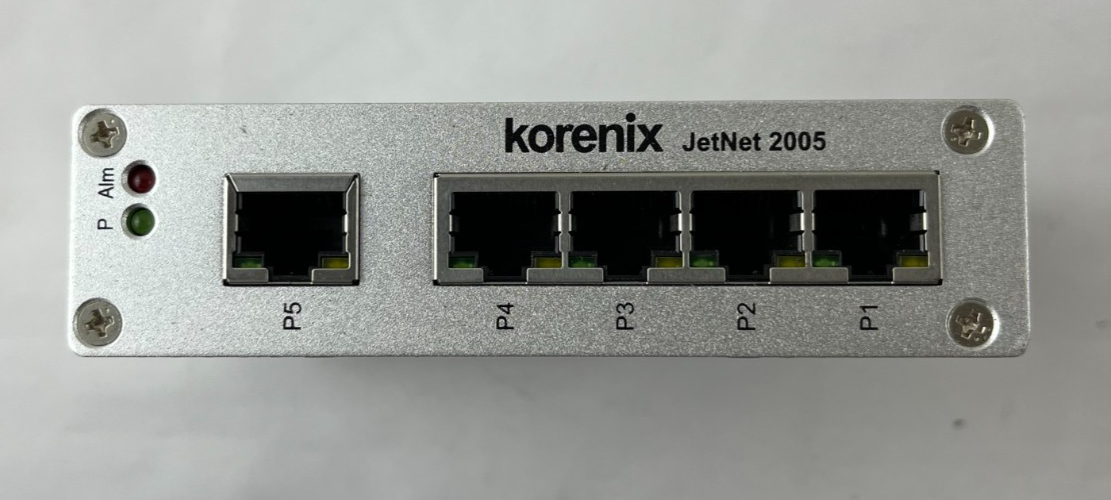

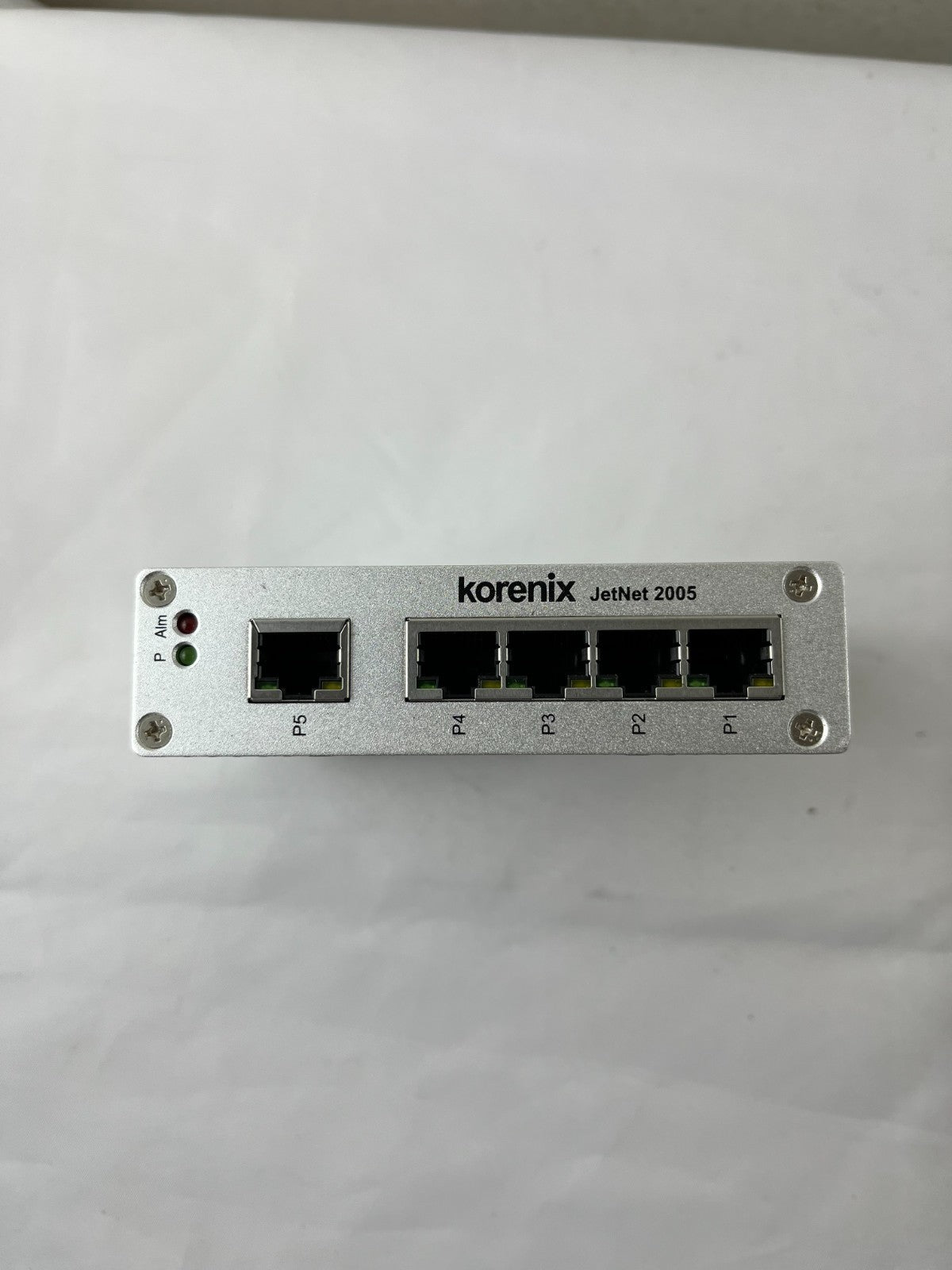

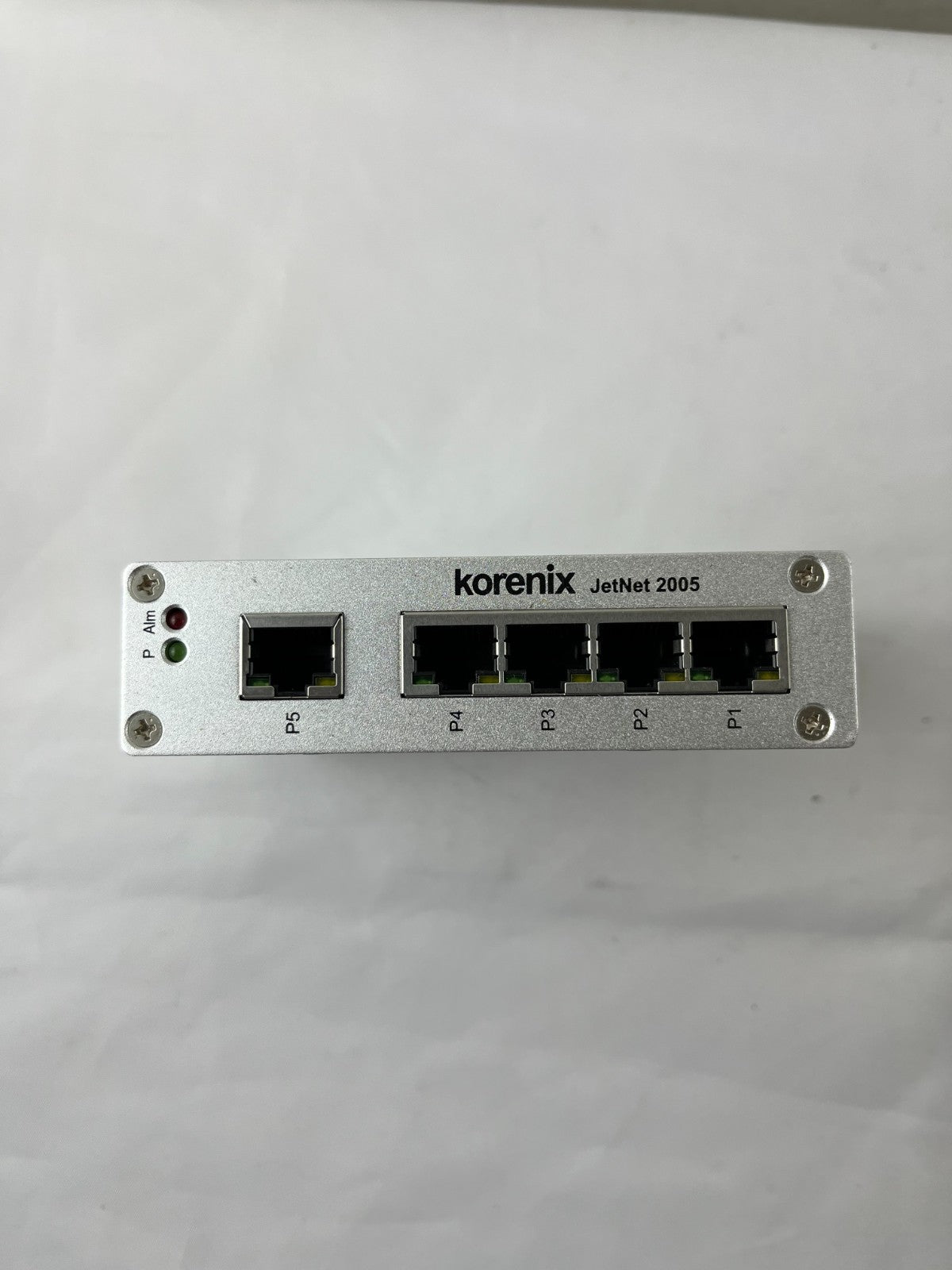

Ports: 5 × 10/100Base-TX RJ45 with Auto MDI/MDI-X and Auto-Negotiation
Switch Fabric: 3.2Gbps with Store-and-Forward technology

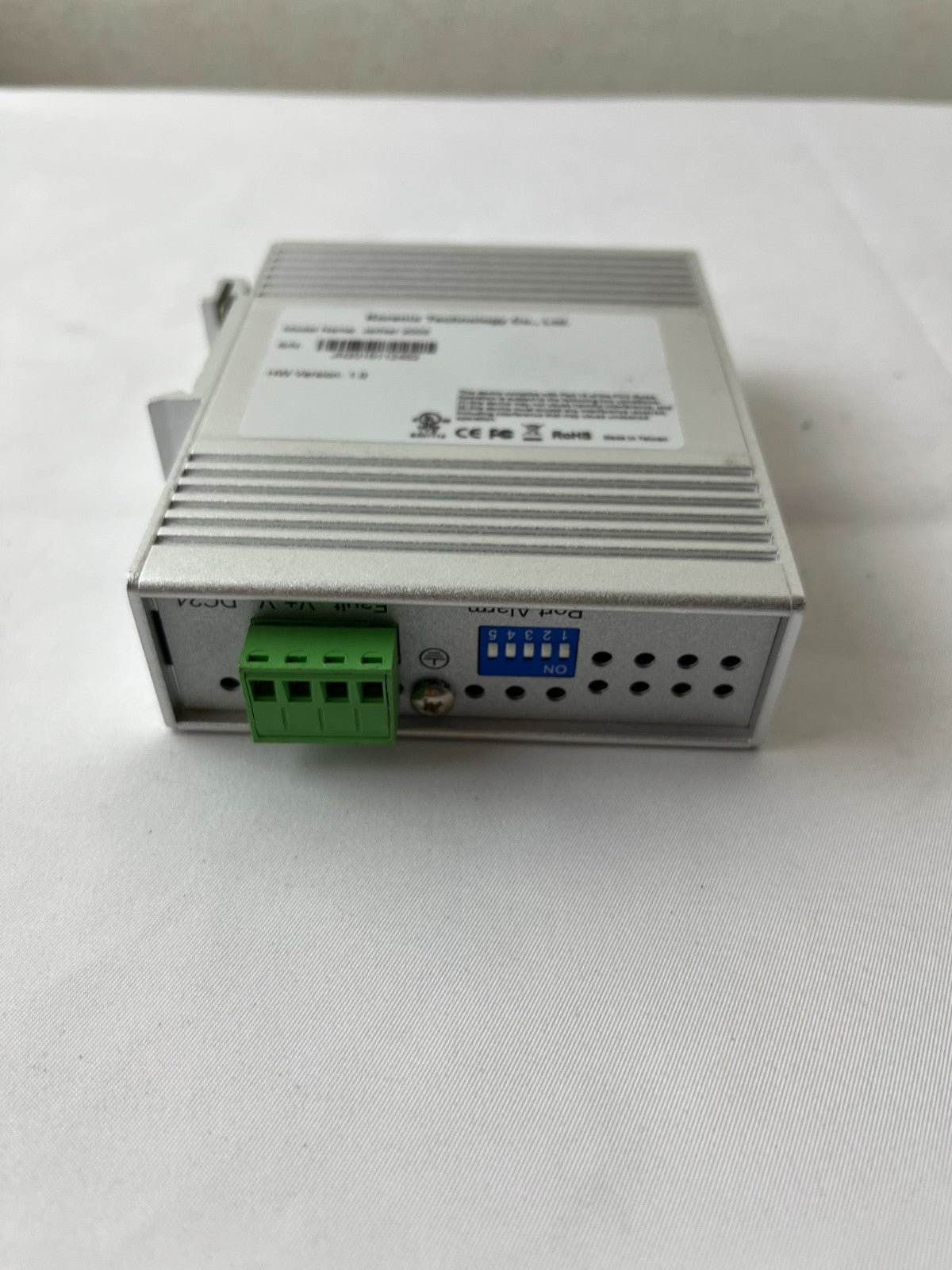

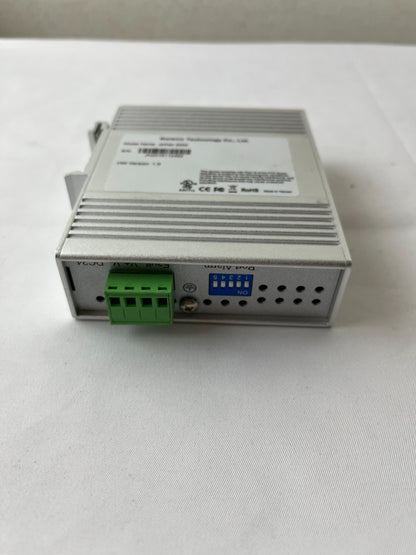

Power Input: 18-32V DC via terminal block
Power Consumption: 3.0 Watts @ 24V DC
Operating Temperature: -25°C to 70°C (-13°F to 158°F)
Protection Rating: IP31 (dust and water resistant)
Relay Output: Port link-down alarm via DIP switch

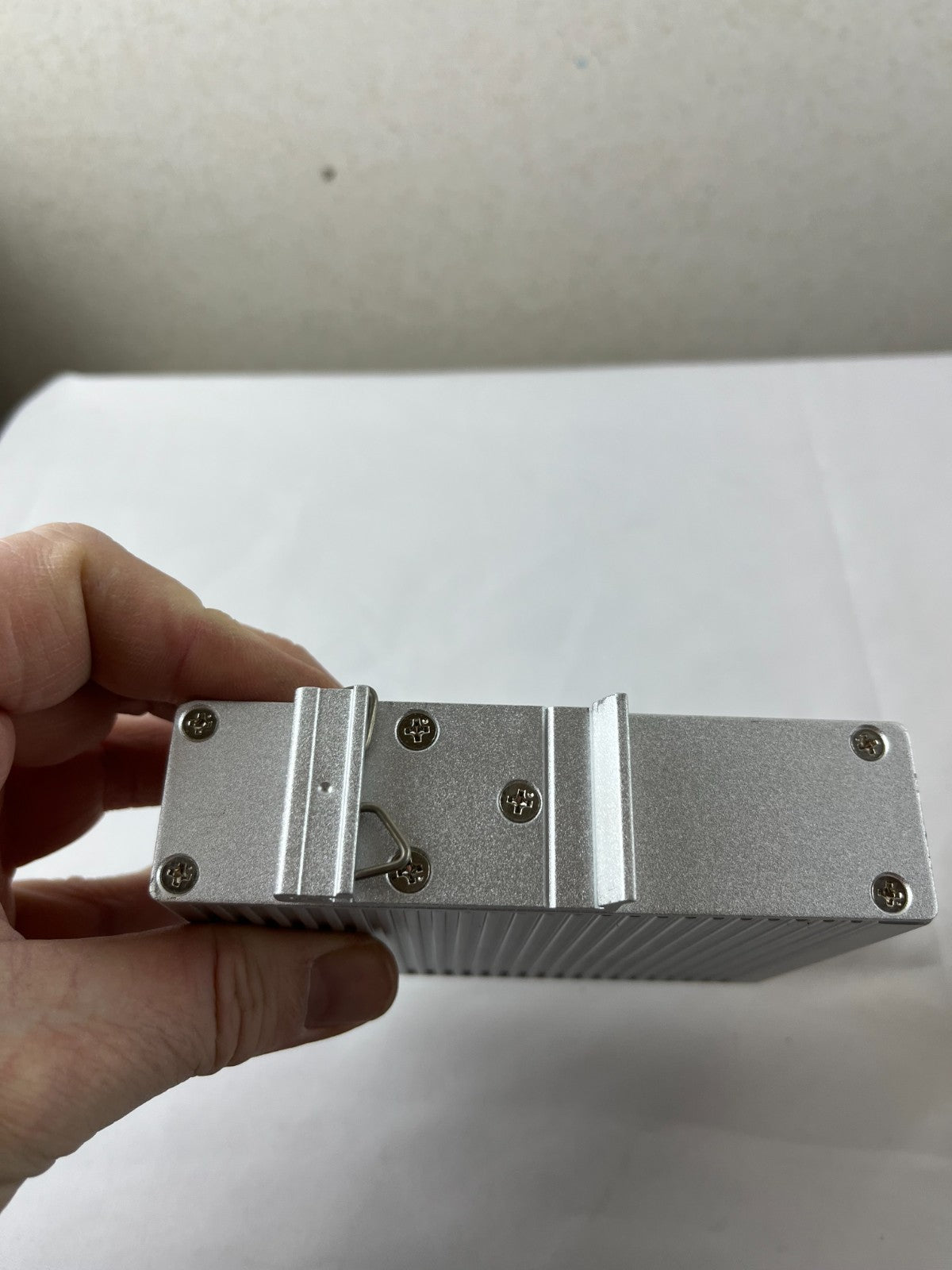

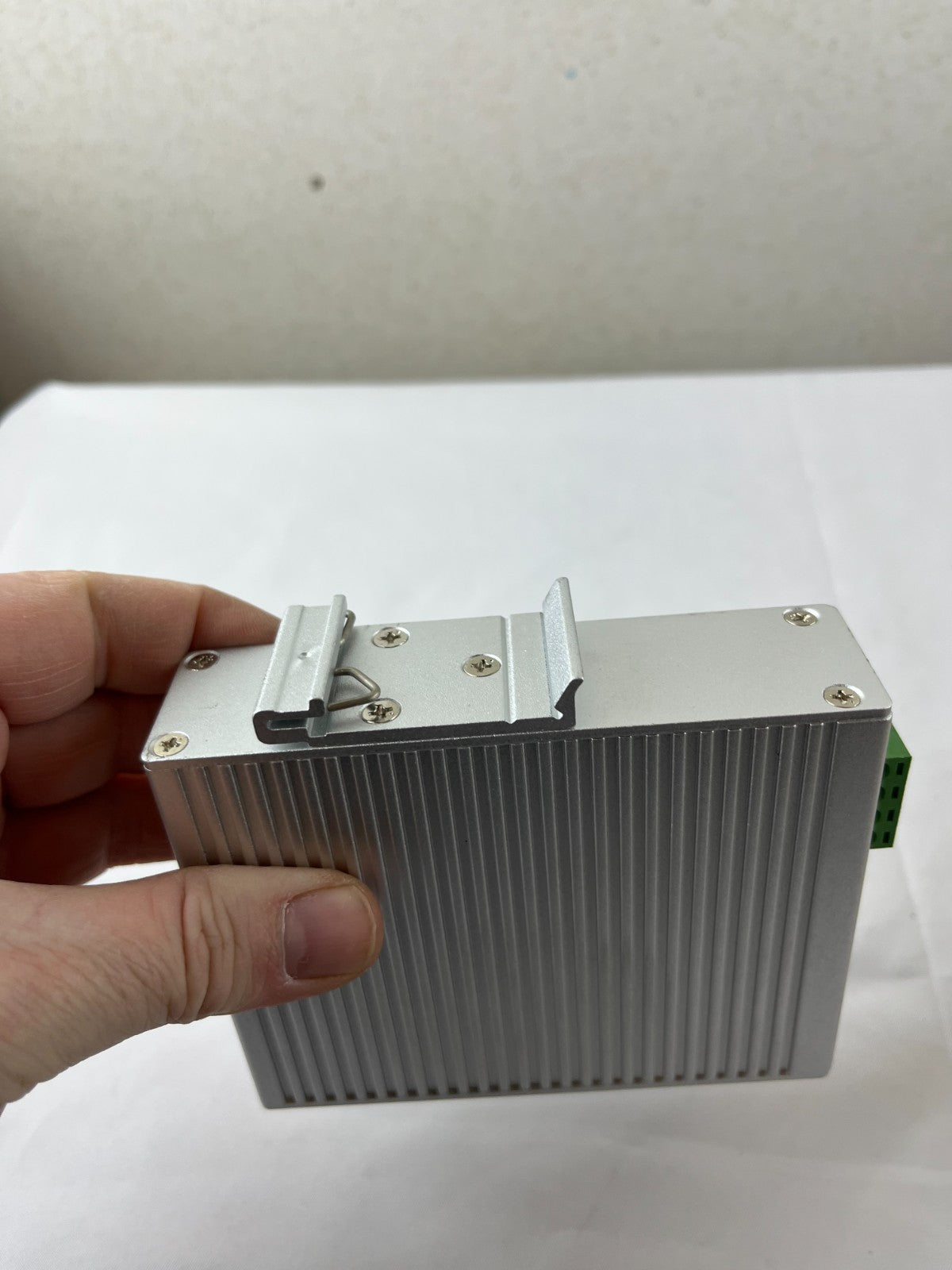

Mounting: DIN-rail or wall mount

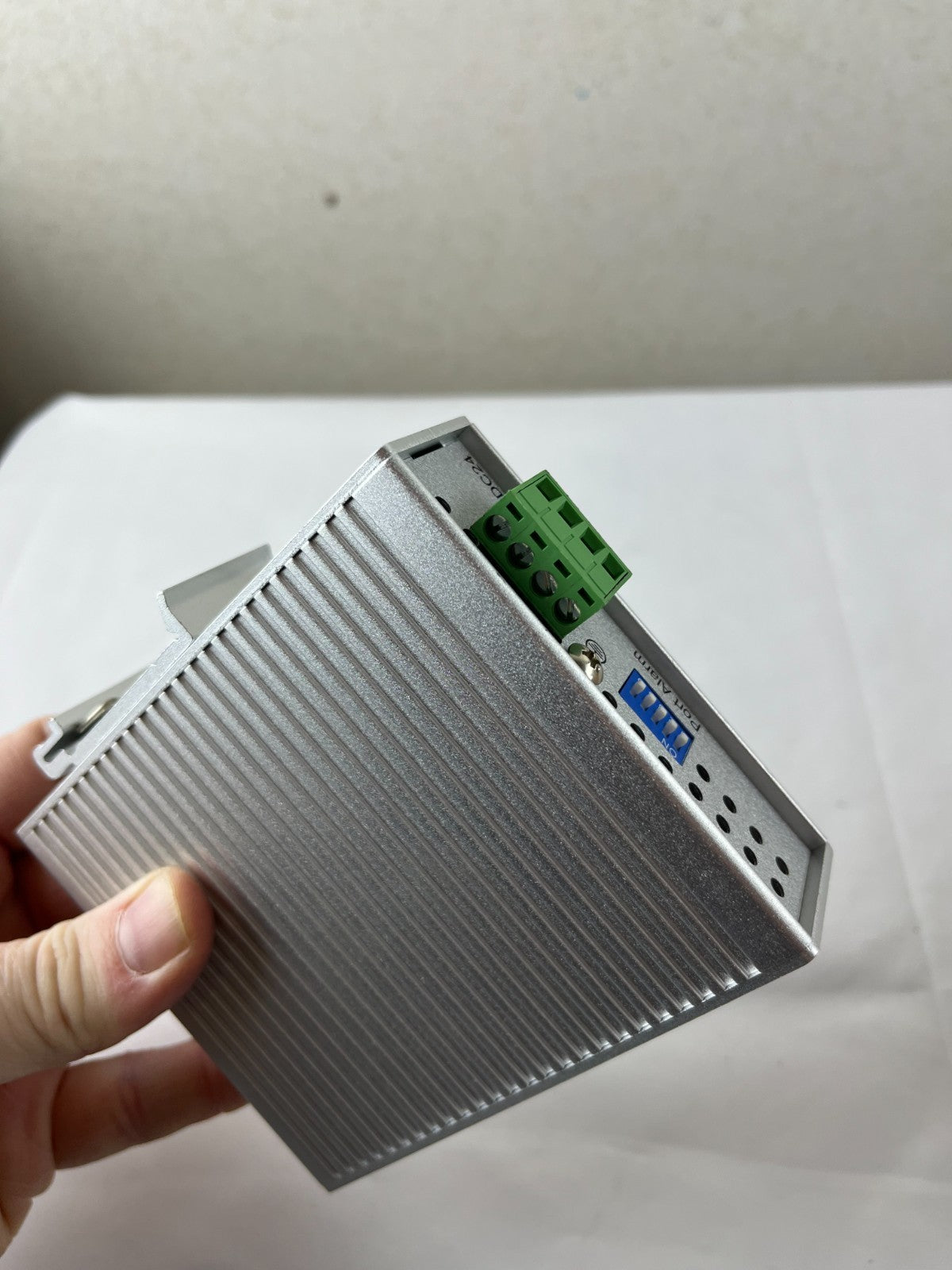

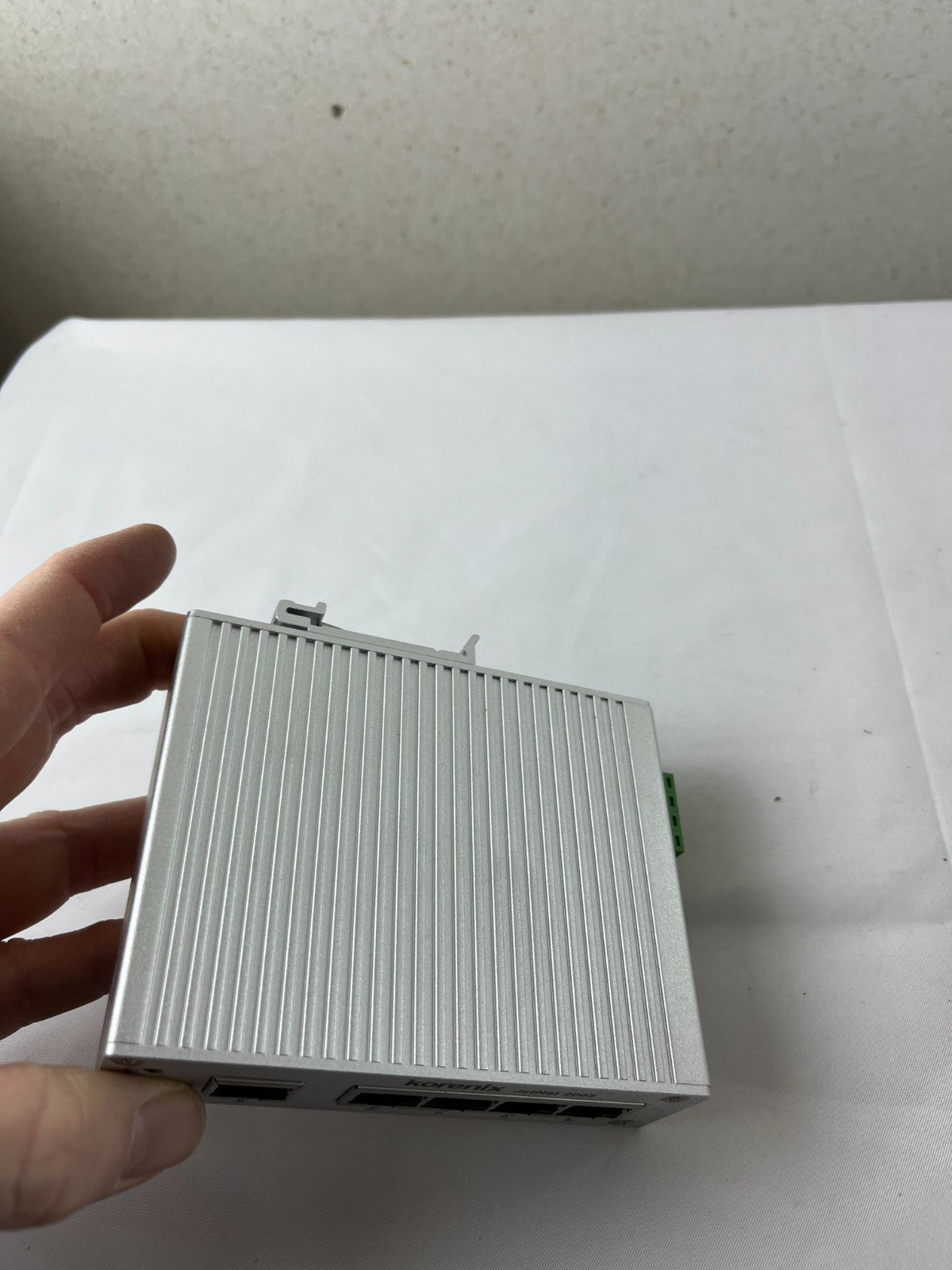

Housing: Industrial-grade aluminum with heat sink fins

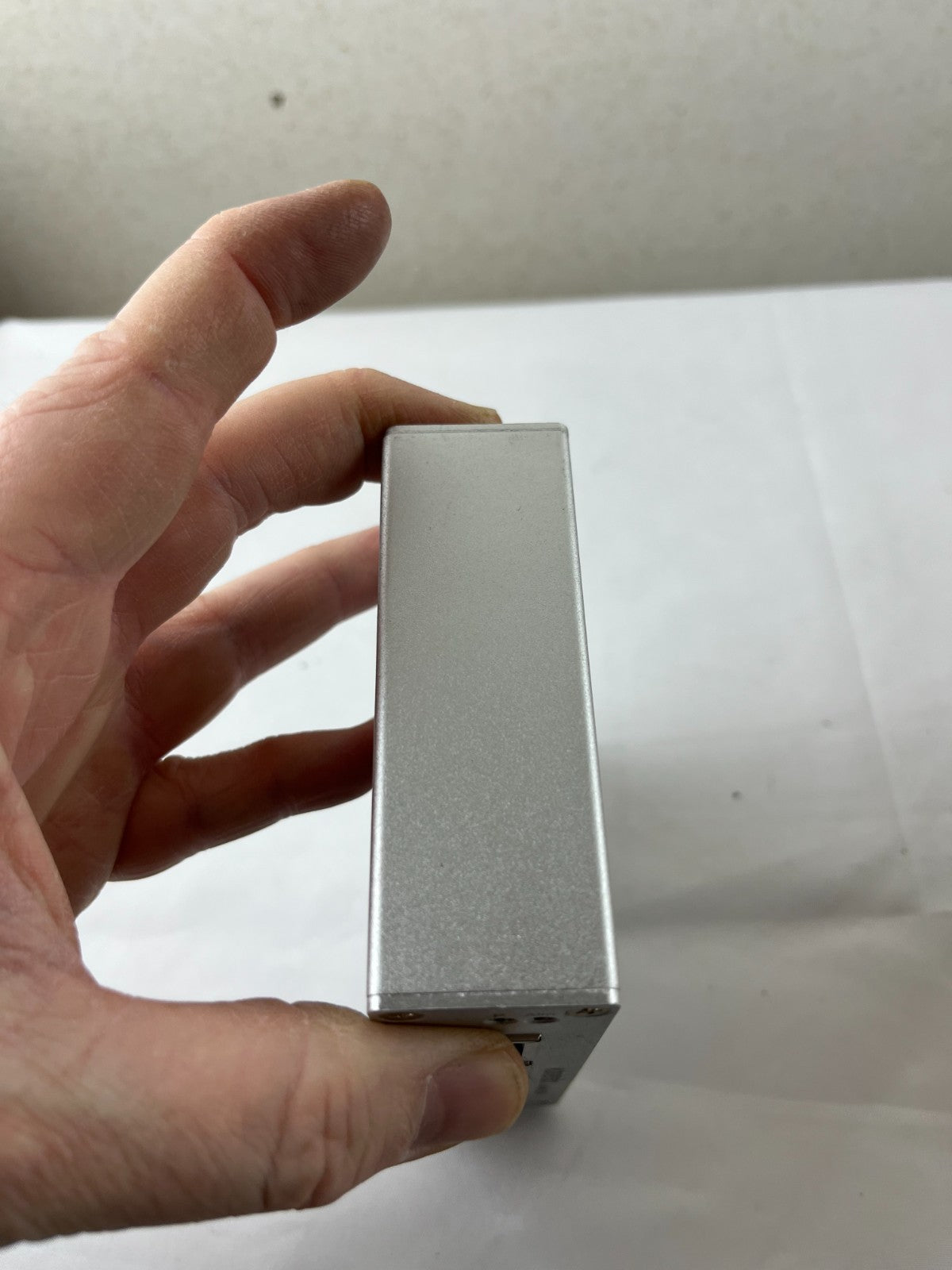

Dimensions: Compact slim design for space-saving installations
LED Indicators: Power (green), Fault (red), Port Link/Activity status
Certifications: UL508, CE, FCC, RoHS
Country of Origin: Made in Taiwan
MTBF: 818,646 Hours
This unmanaged plug-and-play industrial switch requires no configuration and immediately starts operating upon power-up. Perfect for factory automation, process control, building automation, and other harsh environment applications requiring reliable networking. The fanless design ensures silent operation and long-term reliability.
