Used Lot of 4 Omron D4DS-1AFS Safety Door Switches - Tested Working

This bundle includes 4 matching Omron D4DS-1AFS compact safety door switches in used, tested working condition. Perfect for spare parts, maintenance stock, or equipment refurbishment projects requiring reliable safety interlocking.​

Bundle Contents

4x Omron D4DS-1AFS:

• Model: D4DS-1AFS​​

• Part Numbers: 09X3Z4 (3 units) and 01X3Z4 (1 unit)​

• Manufacturer: Omron Corporation​

• Made in: Japan​

• Series: D4DS compact safety door switch​

Components Included:

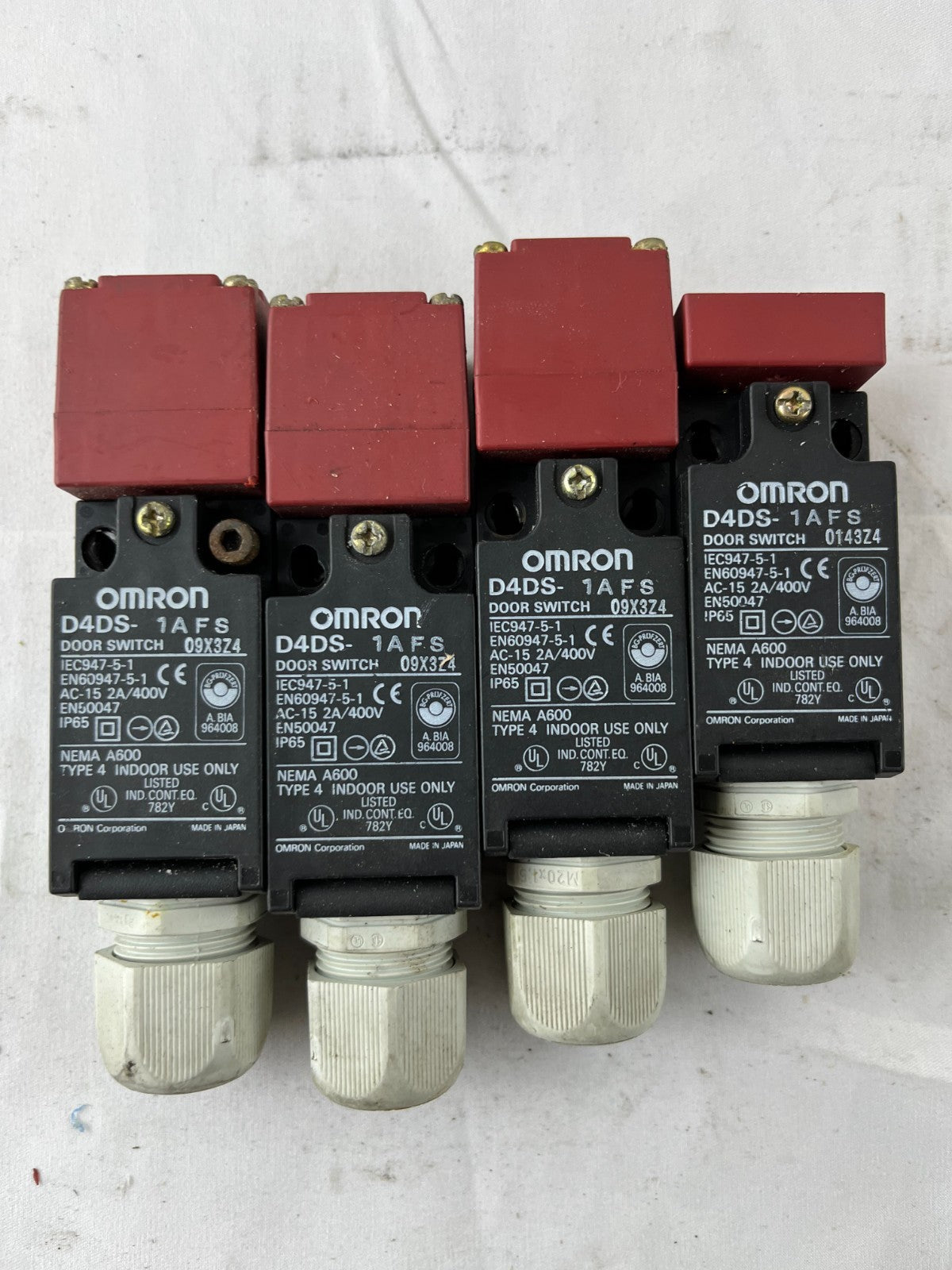

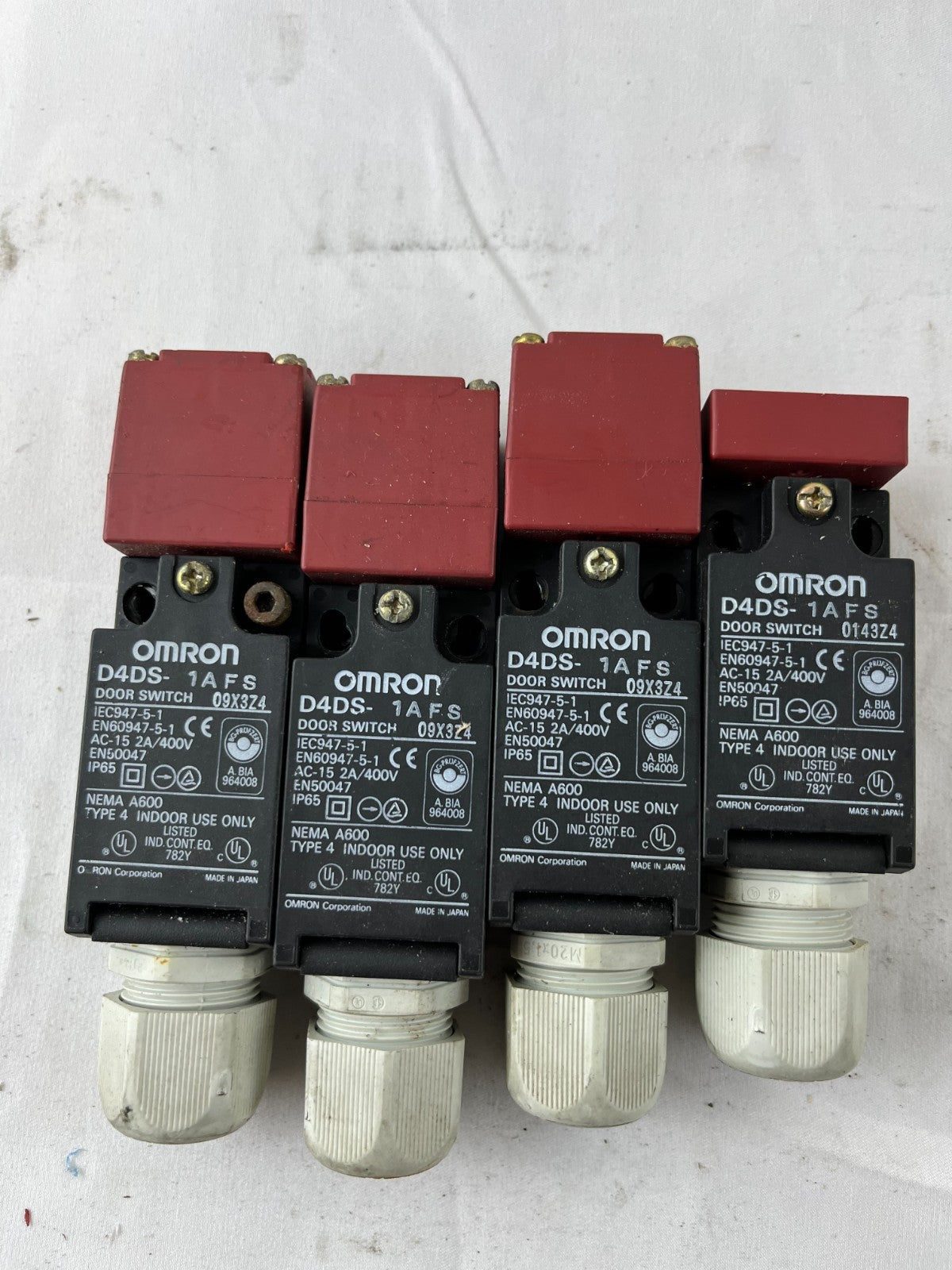

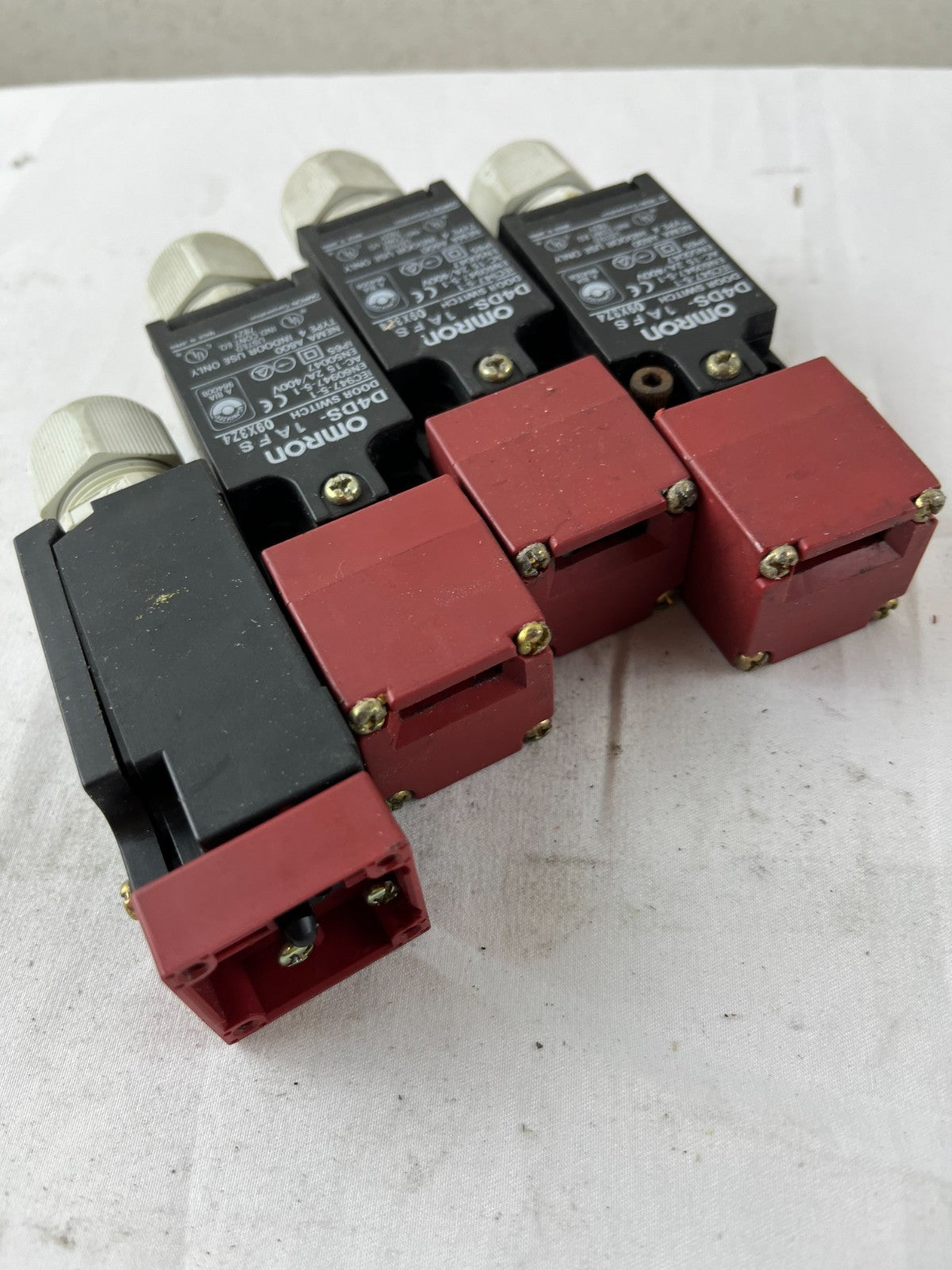

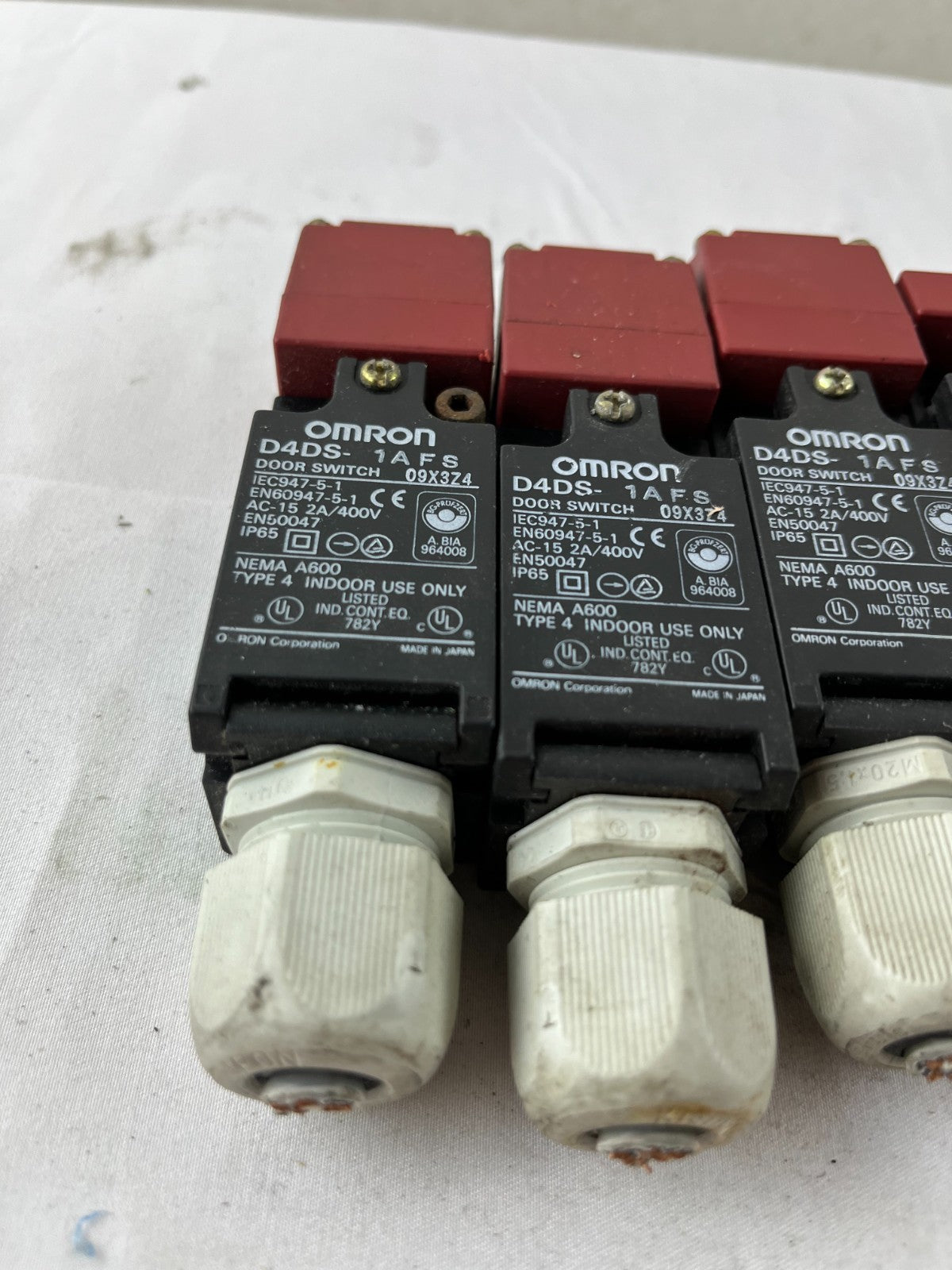

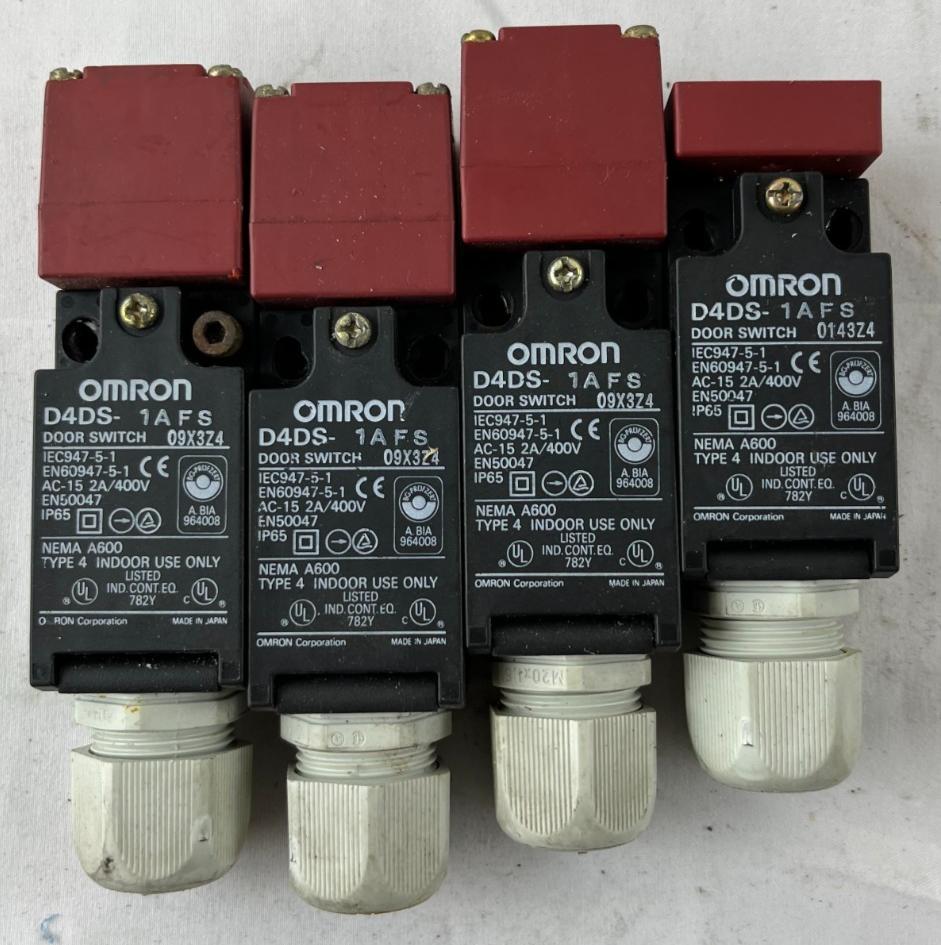

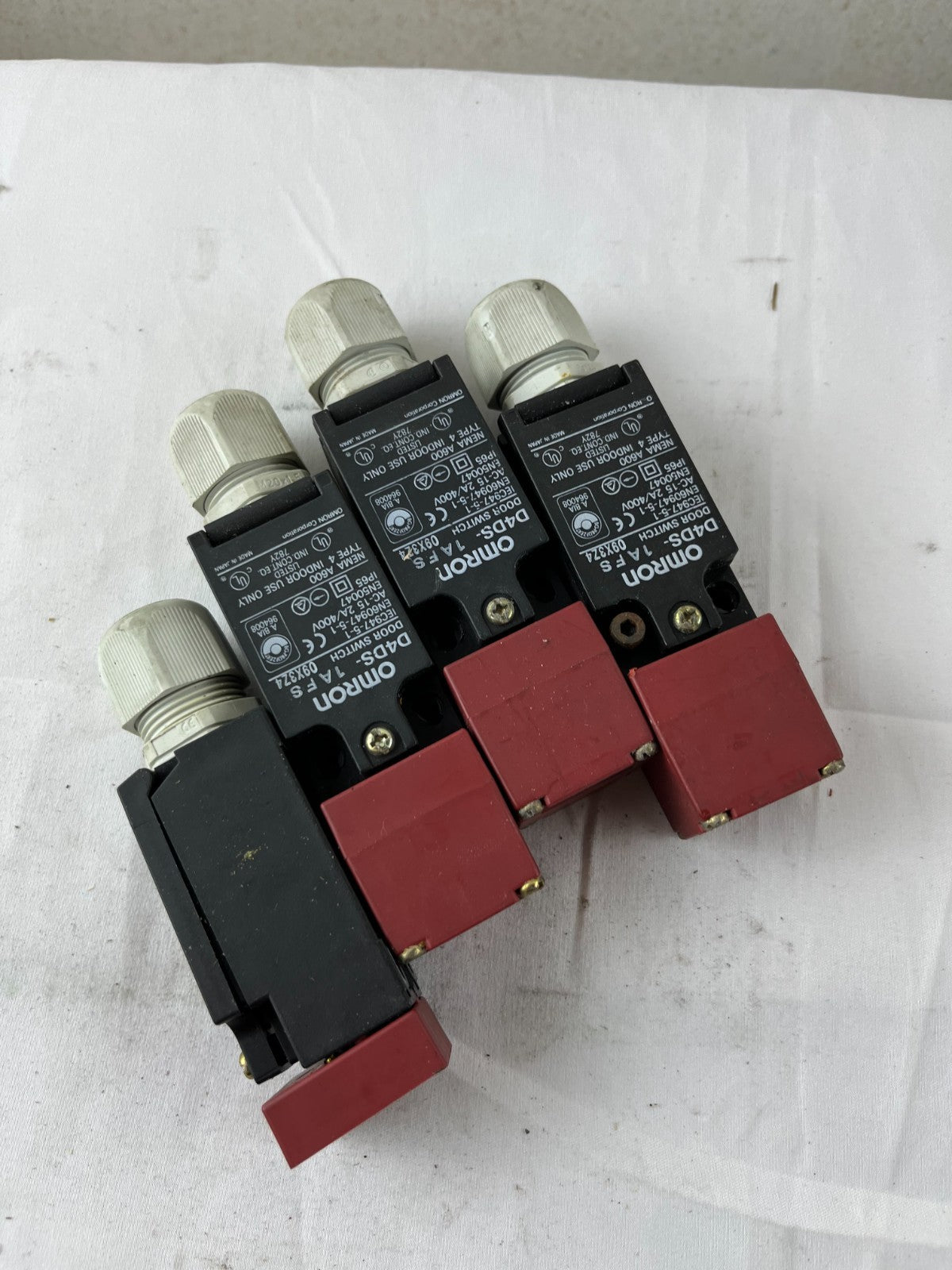

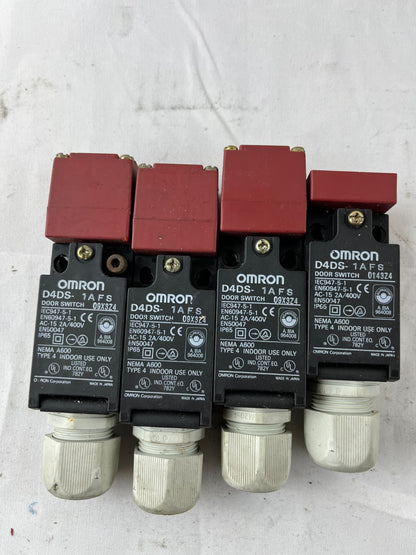

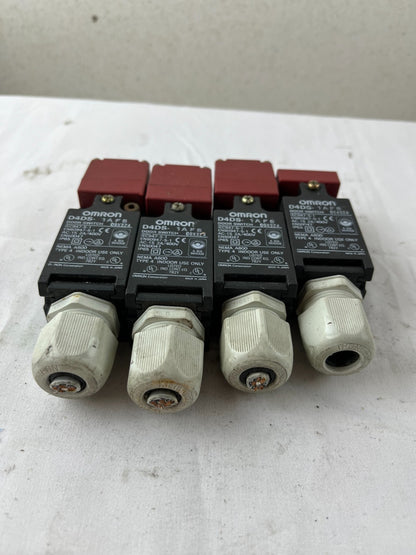

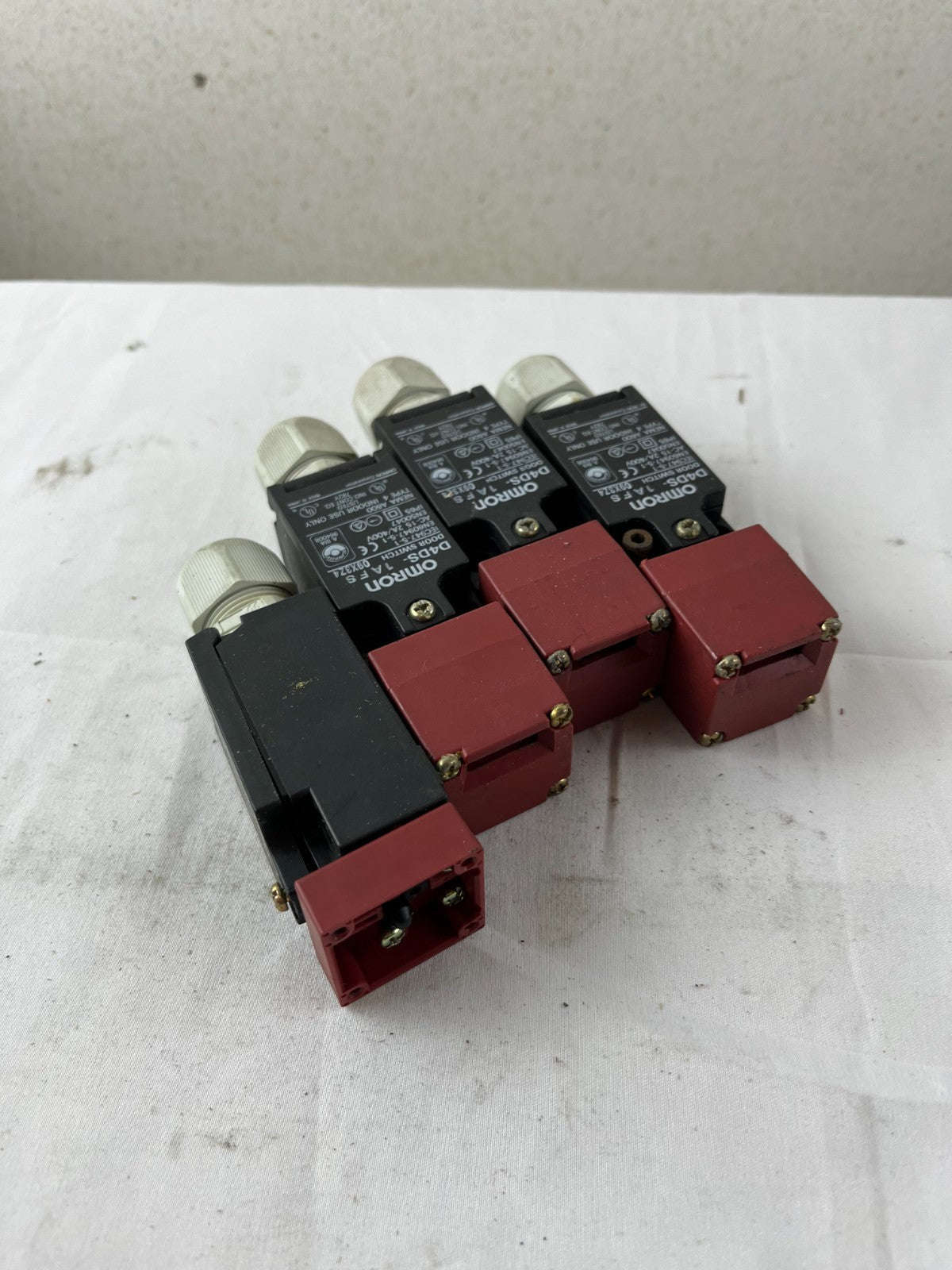

• 4x D4DS-1AFS switch bodies with red actuator heads​

• Multiple gray cable glands installed​

• IP65/IP67 protection​

Omron D4DS Specifications

Safety Compliance:

• Standards: IEC947-5-1, EN60947-5-1​​

• CE marking conforming​

• Certifications: UL Listed, CSA, BIA, SUVA approved​

• NEMA A600 Type 4 Indoor Use Only​

• Listed to IND. CONT. EQ. 7821​

• Protection Class: Class II (double insulation) - no ground required​

• Direct opening mechanism (⊕ mark on switch)​

Electrical Ratings:

• Voltage Rating: AC-15 2A/400V​​

• Alternative Rating: EN50047​

• Contact Configuration: 1NC/1NO (1AFS designation)​

• Electrical Life: 150,000 operations min. (10A resistive load at 250 VAC)​

• Contact Gap: 2 x 2 mm minimum​

• Contact Resistance: Low-resistance gold-plated contacts​

• Minimum Applicable Load: Low current/voltage compatible​

Mechanical Construction:

• Enclosure Protection: IP65 (body), IP00 (keyhole)​

• Operating Temperature: -30°C to +70°C (with no icing)​

• Vibration Resistance: 10 to 500 Hz, 0.75mm single amplitude​

• Shock Resistance: Destruction 1,000 m/s² min., Malfunction 300 m/s² min.​

• Actuator: Five-direction operation key​

• Head Mounting: Four directional mounting positions​

• Key Insertion Force: 14.71 N maximum​

• Key Extraction Force: 29.42 N maximum​

Operating Characteristics:

• Operating Speed: 0.1 m/s to 0.5 m/s​

• Operating Frequency: 30 operations/minute maximum​

• Direct Opening Force: 58.84 N minimum​

• Direct Opening Stroke: 10 mm minimum​

• Pre-travel (PT): 6±3 mm​

• Total Travel (TT): 28 mm​

Installation:

• Cable Entry: Conduit models with 1/2-14NPT or metric threads​

• Terminal Type: Screw terminals for reliable field wiring​

• Plunger: O-ring sealed​

• Mounting: Use one-way rotational screws for tamper resistance​

Direct Opening Mechanism

The D4DS incorporates a direct opening mechanism that forcibly separates NC contacts even if they are welded, ensuring fail-safe operation for safety applications. The ⊕ symbol on the switch indicates this safety feature required for compliance with EN standards.​

Condition Notes

• Used Working Condition - removed from operational equipment

• All switches tested and confirmed functional

• Shows normal industrial wear and usage marks​

• Some paint wear on red actuator heads​

• Minor surface scratching and mounting marks​

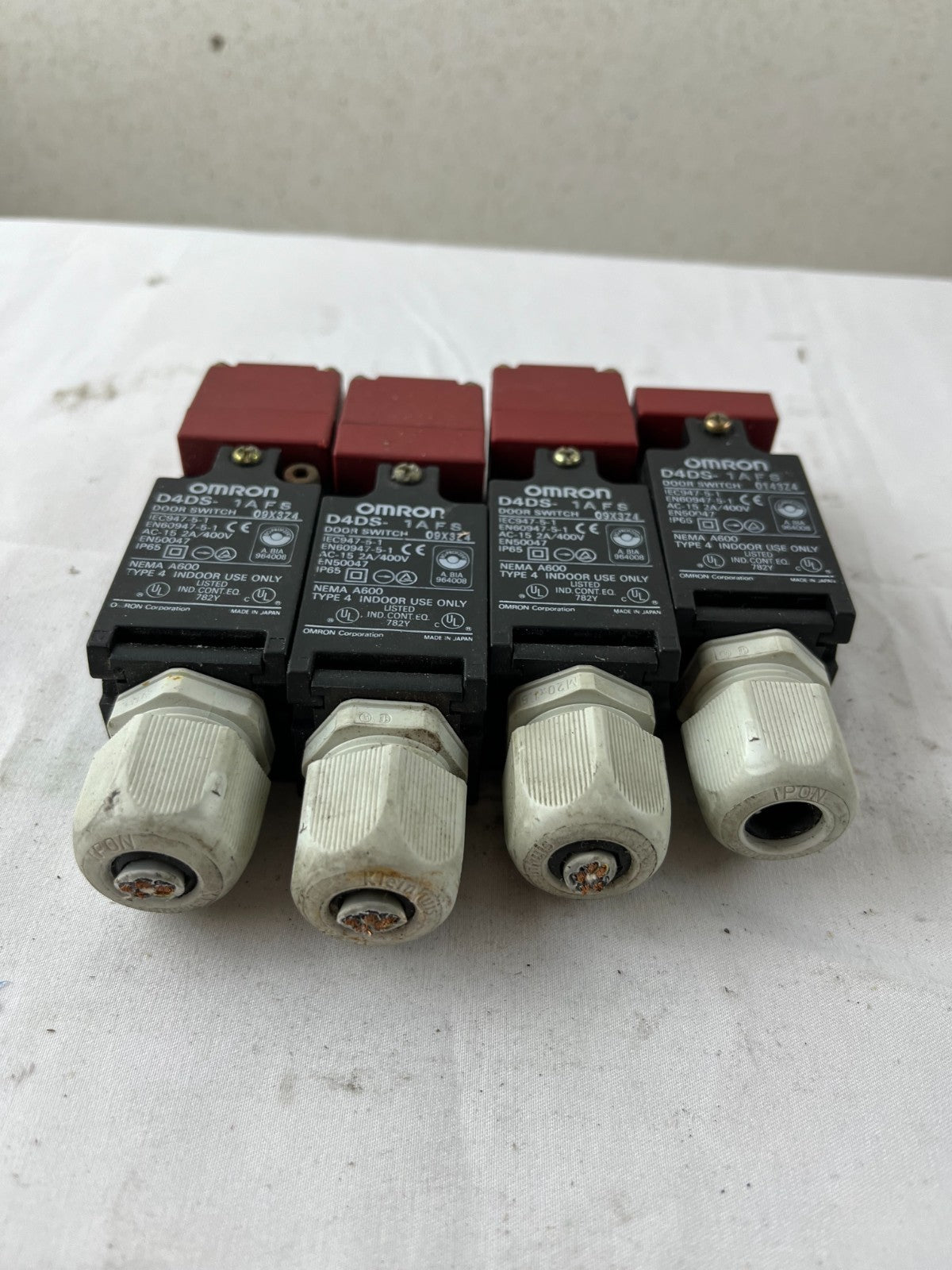

• Gray cable glands included with units​

• Matching set with 3x 09X3Z4 and 1x 01X3Z4 variants

• Clean internal contacts, electrically tested

​
