Mimaki G5HDC PCB B Assy E400919-01 | Tested Used | Genuine Printer Spare Part

Mimaki G5HDC PCB B Assy E400919-01 | Tested Used | Genuine Printer Spare Part

All the best /Klaus

For sale is a genuine Mimaki G5HDC PCB B Assembly (Part No. E400919-01), professionally removed from a working environment. This OEM board is specifically designed for use with Mimaki industrial inkjet printers, such as the JFX200, JFX500, TS500, UJV500, and compatible models. The part is in tested, used condition—fully functional and visually inspected, ready for installation.

Key Features & Technical Specifications

• Brand: Mimaki

• Model: G5HDC PCB B Assy

• Part Numbers: E400919-01, MP-M026406

• Condition: Used, tested working (see detailed photos)

• Compatibility: Confirmed to fit JFX200, JFX500, TS500, Tx500, UJV500; please verify suitability for your printer before purchase

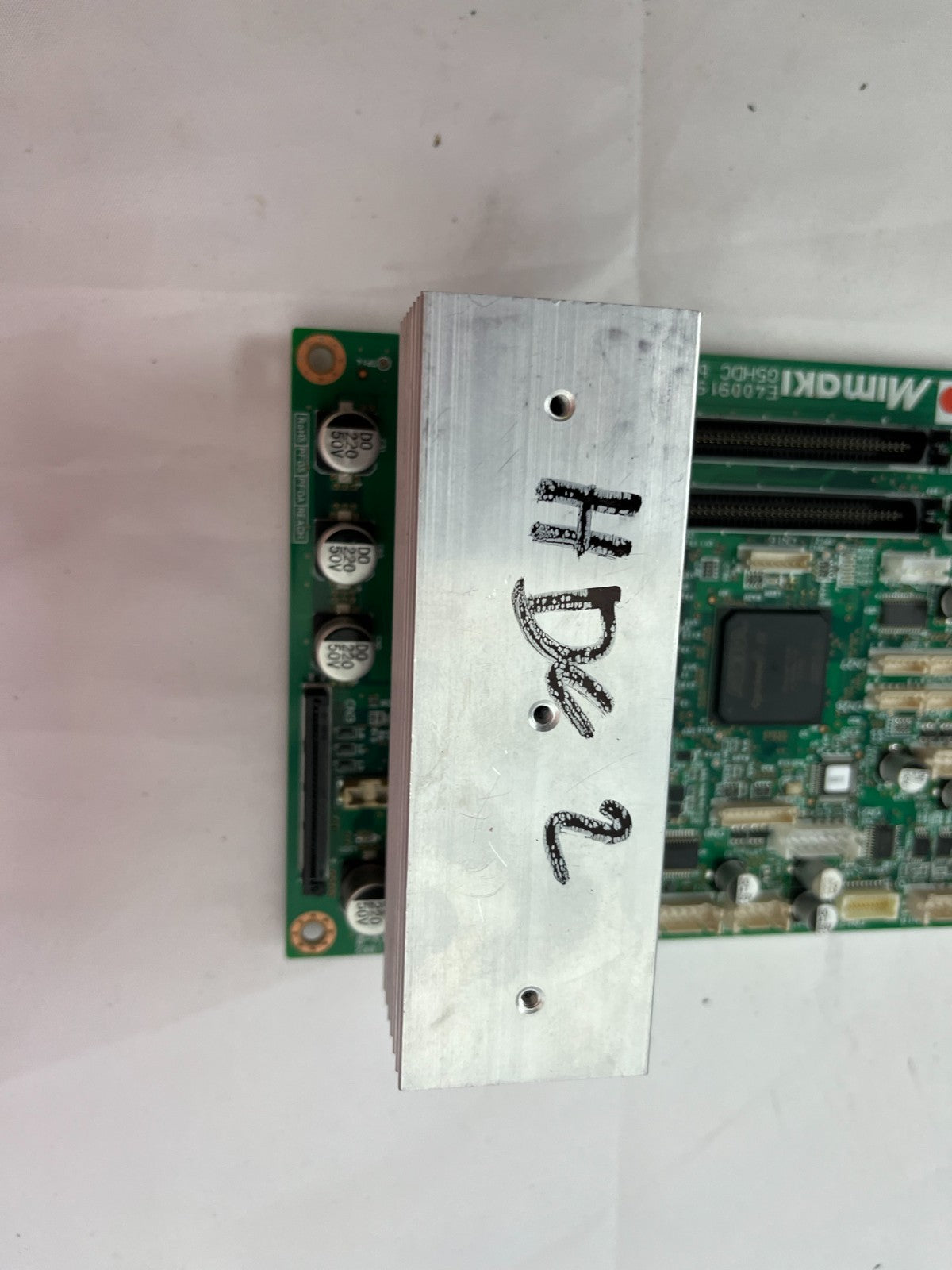

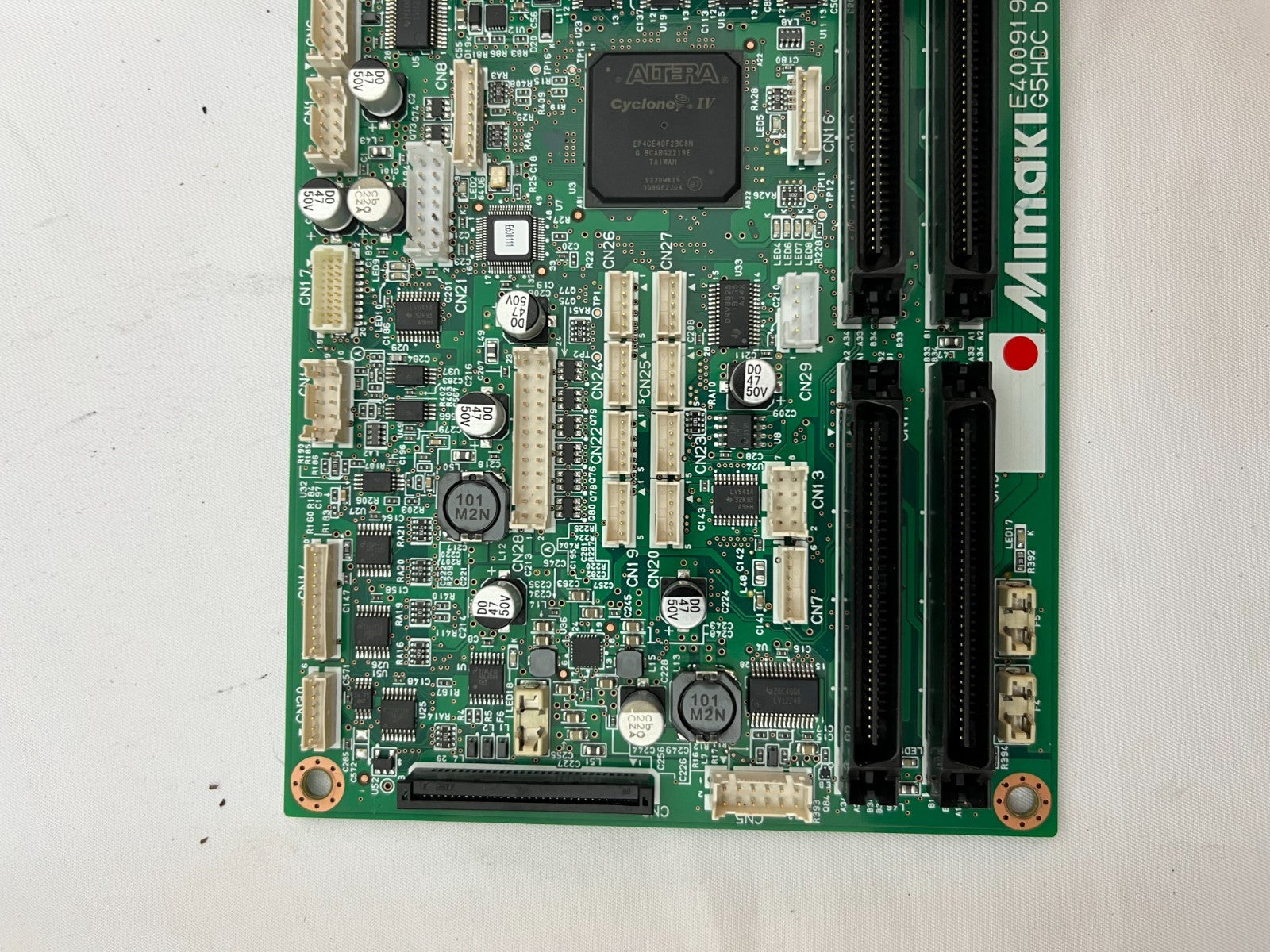

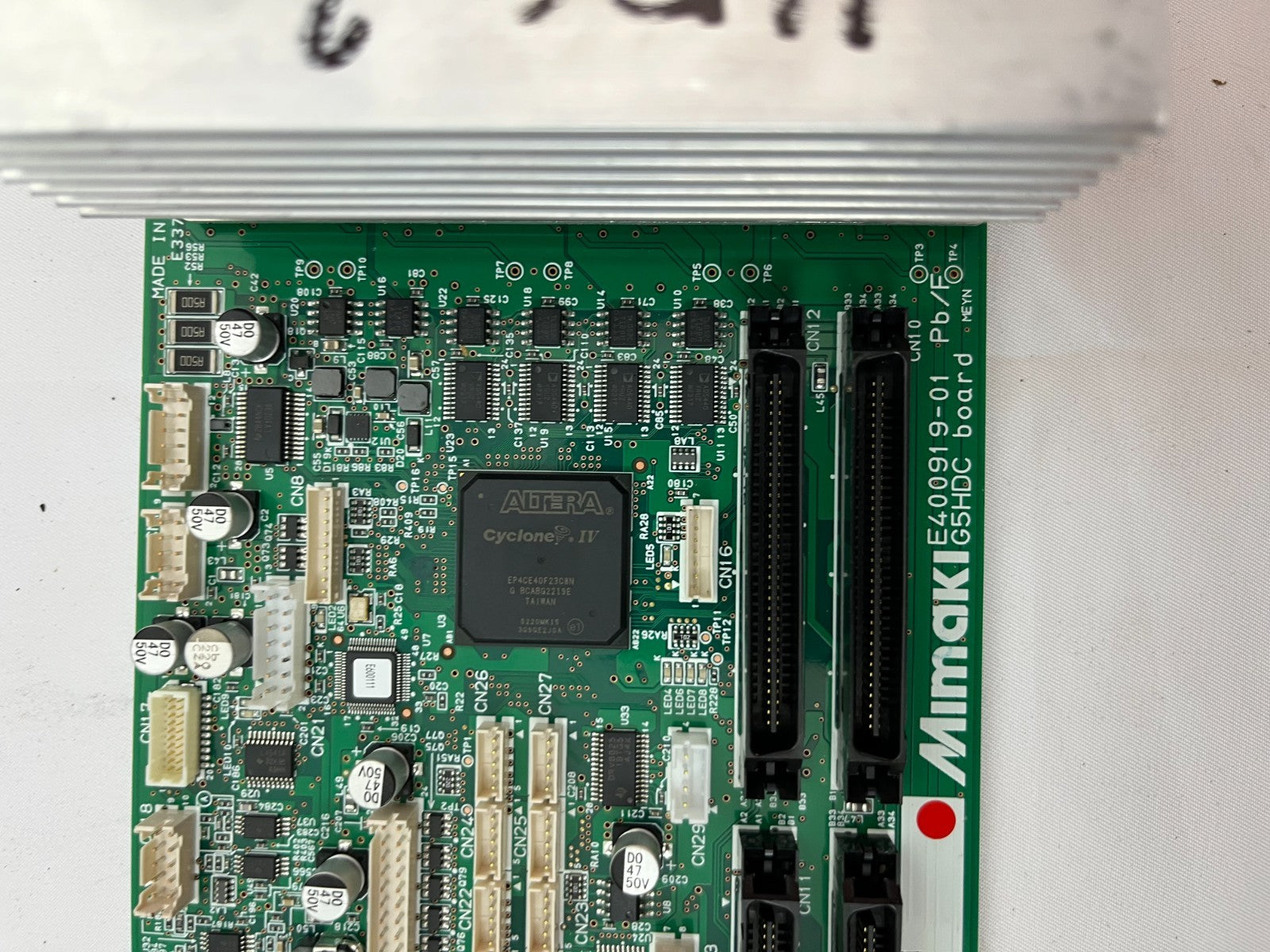

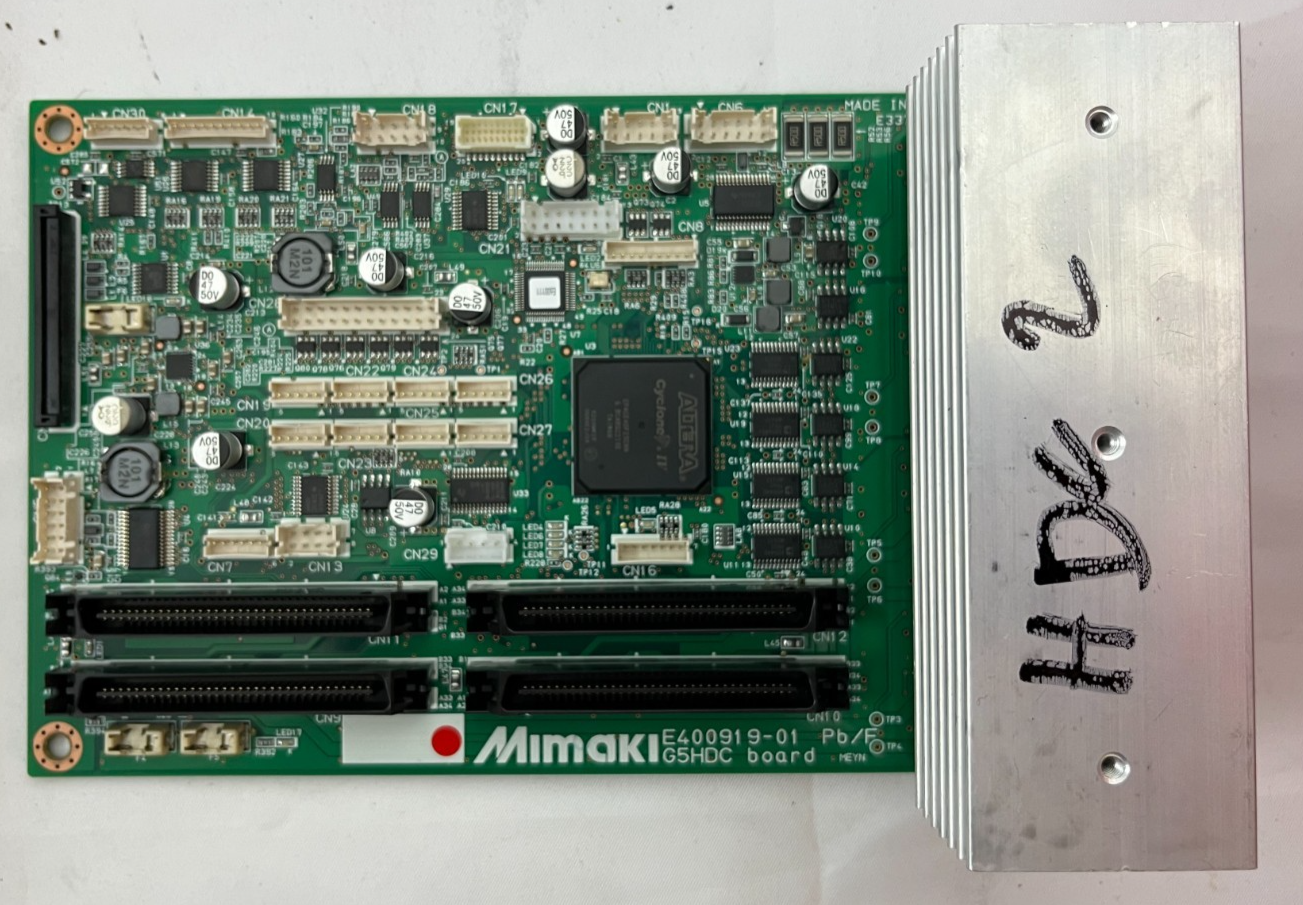

• Notable Components: Features factory-installed heatsink and Altera Cyclone IV FPGA for high-speed/printer control

• Typical Applications: This board is responsible for managing printhead drive and communication within large-format Mimaki printers, ensuring optimal performance and reliability in demanding production environments

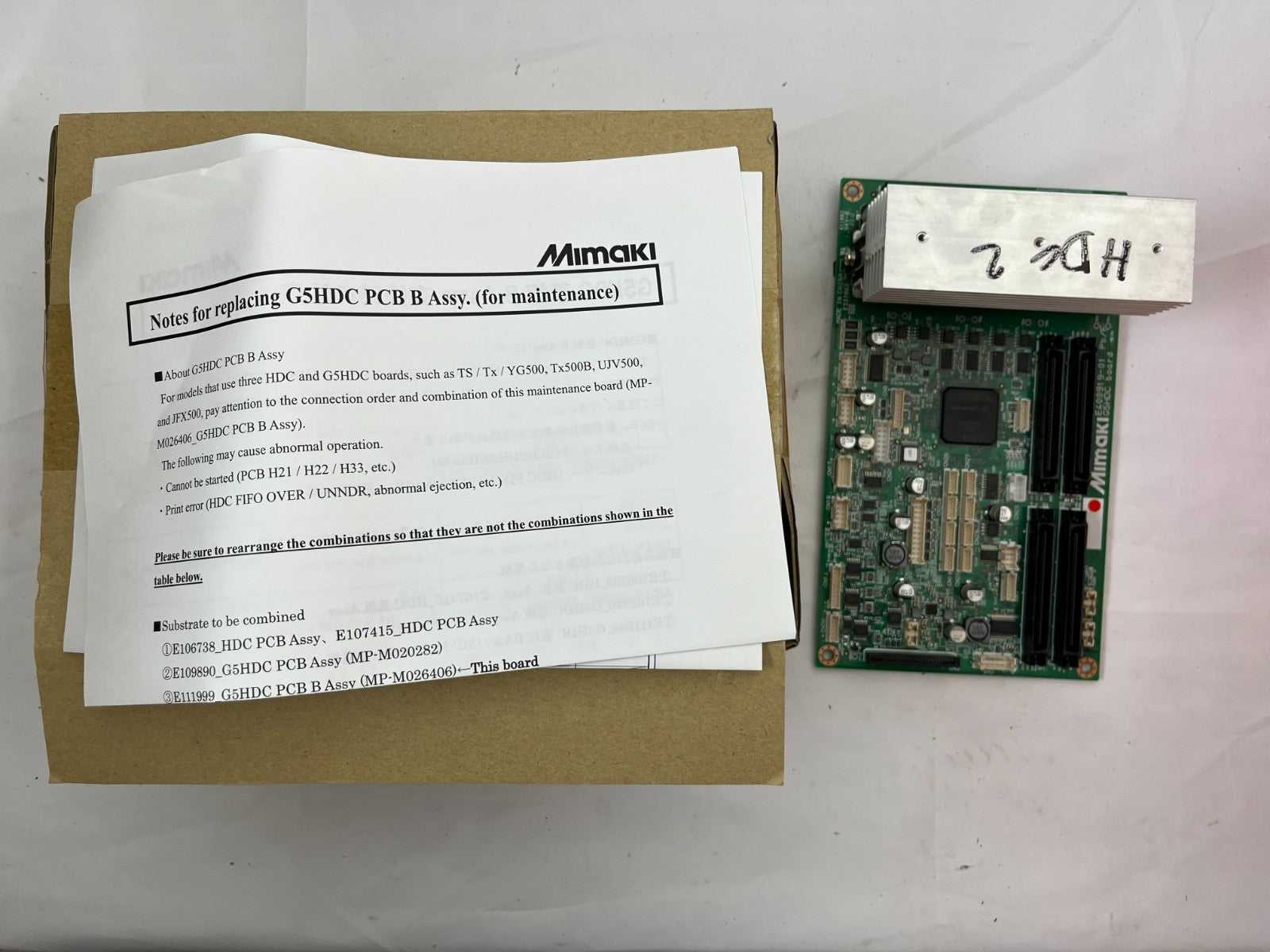

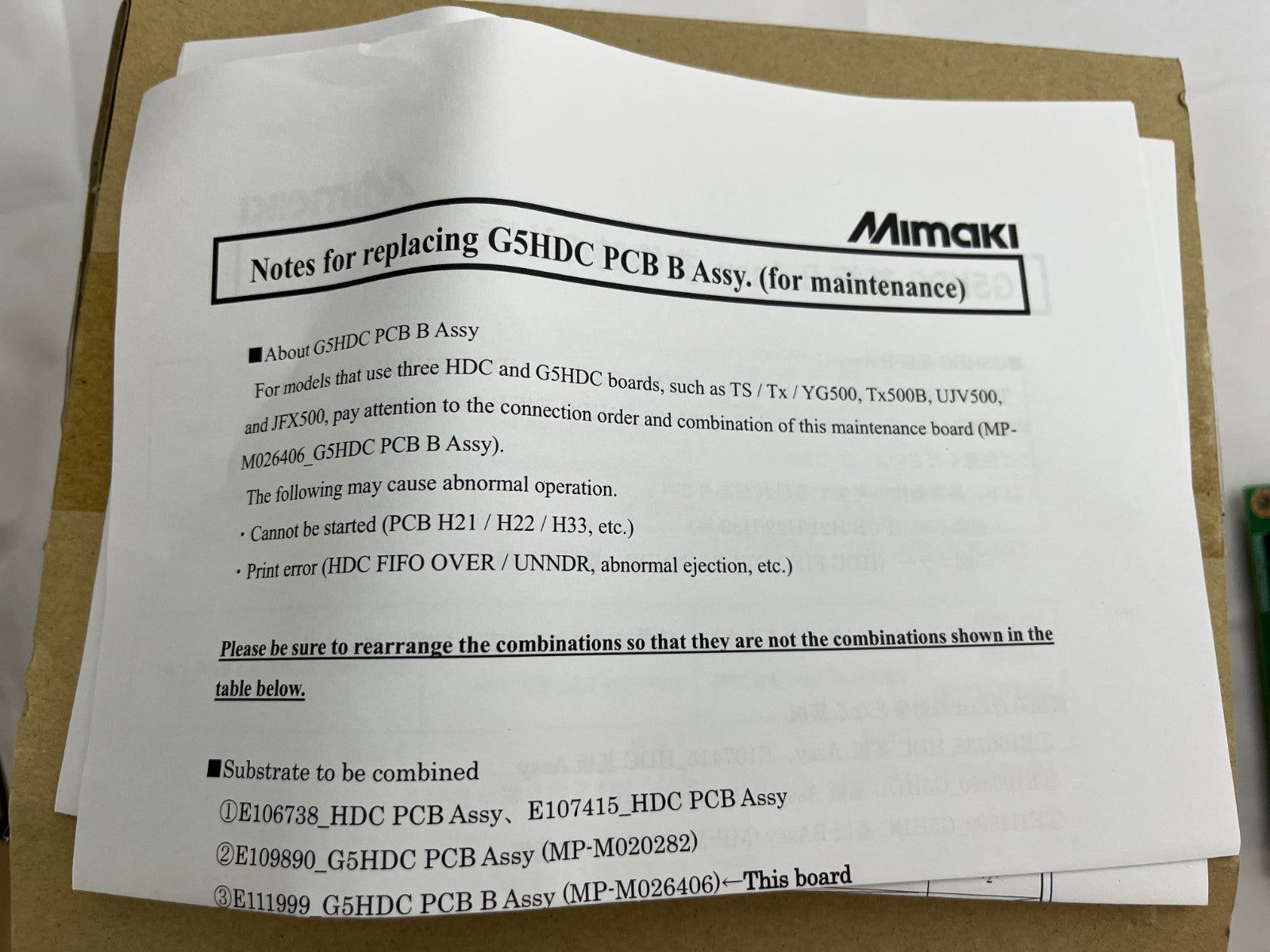

• Maintenance Note: When installing, pay close attention to connection order and board combinations, especially in systems with multiple HDC/G5HDC boards, as highlighted in official Mimaki maintenance documentation (see photo)

• Included: Board only; no additional accessories or cables

Why Buy This Unit?

• Original Mimaki part—avoids compatibility risks with third-party boards

• Fully tested and removed from a functioning setup, reducing installation downtime

• Ideal for field technicians, print shop operators, and industrial users looking to maximize printer uptime and productivity

Condition & Photos

• Used but in clean, working condition—minor marks consistent with handling and previous installation

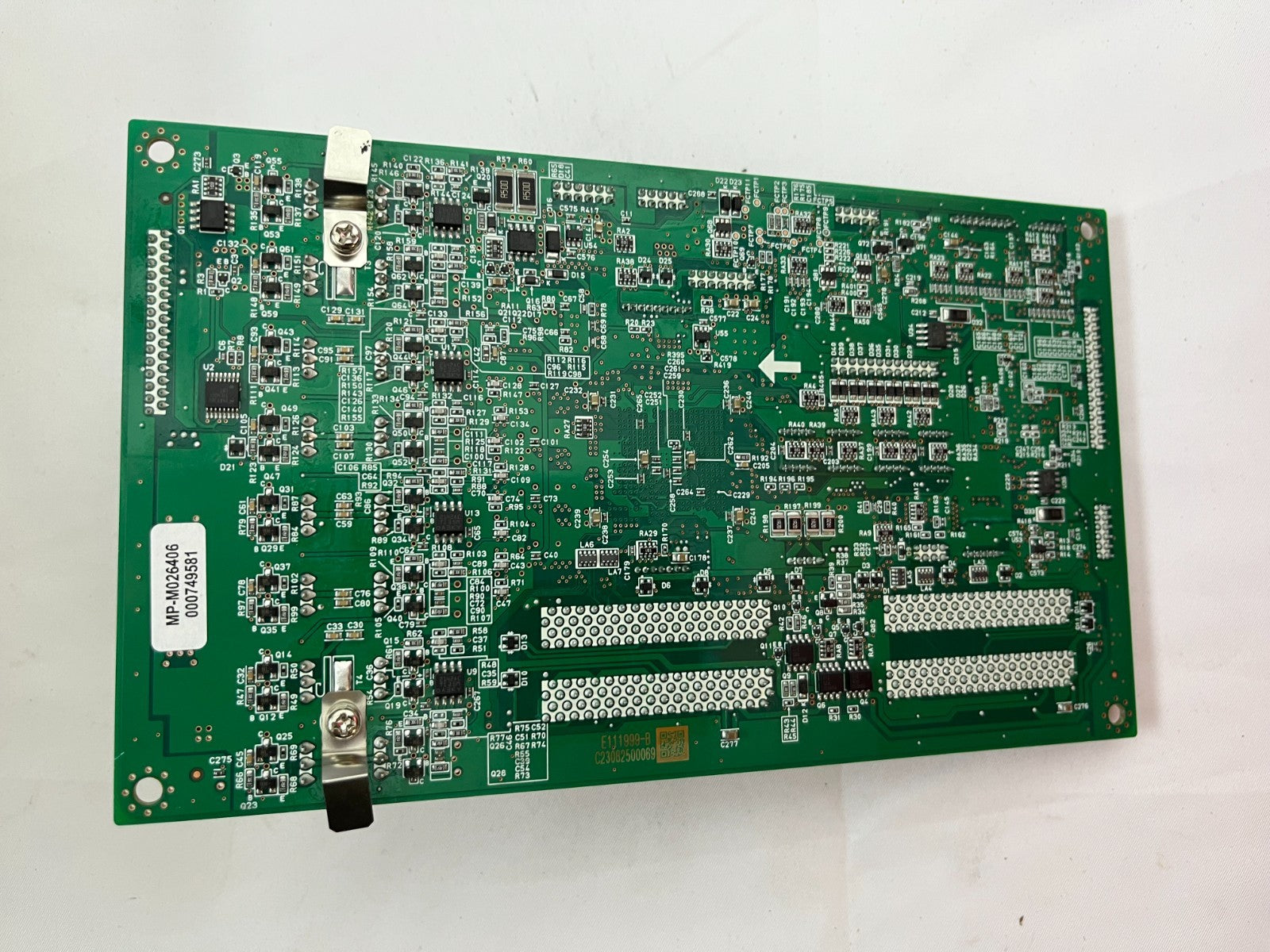

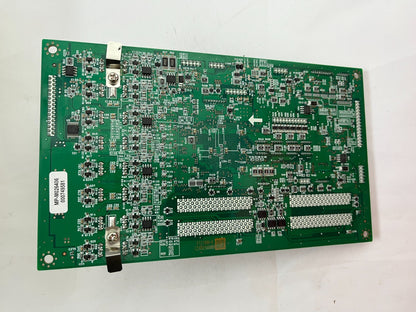

• Please review detailed photos for exact item condition
