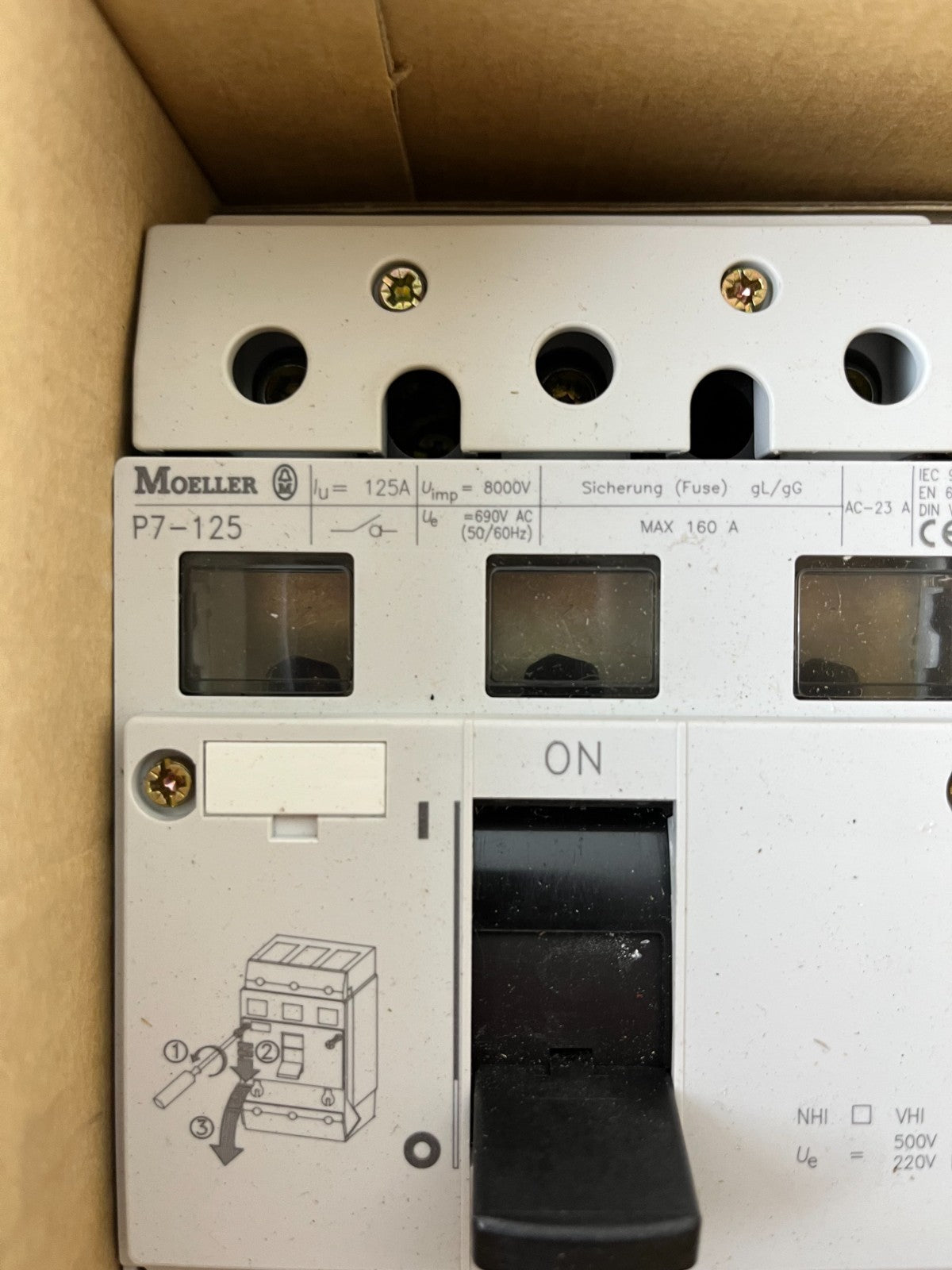

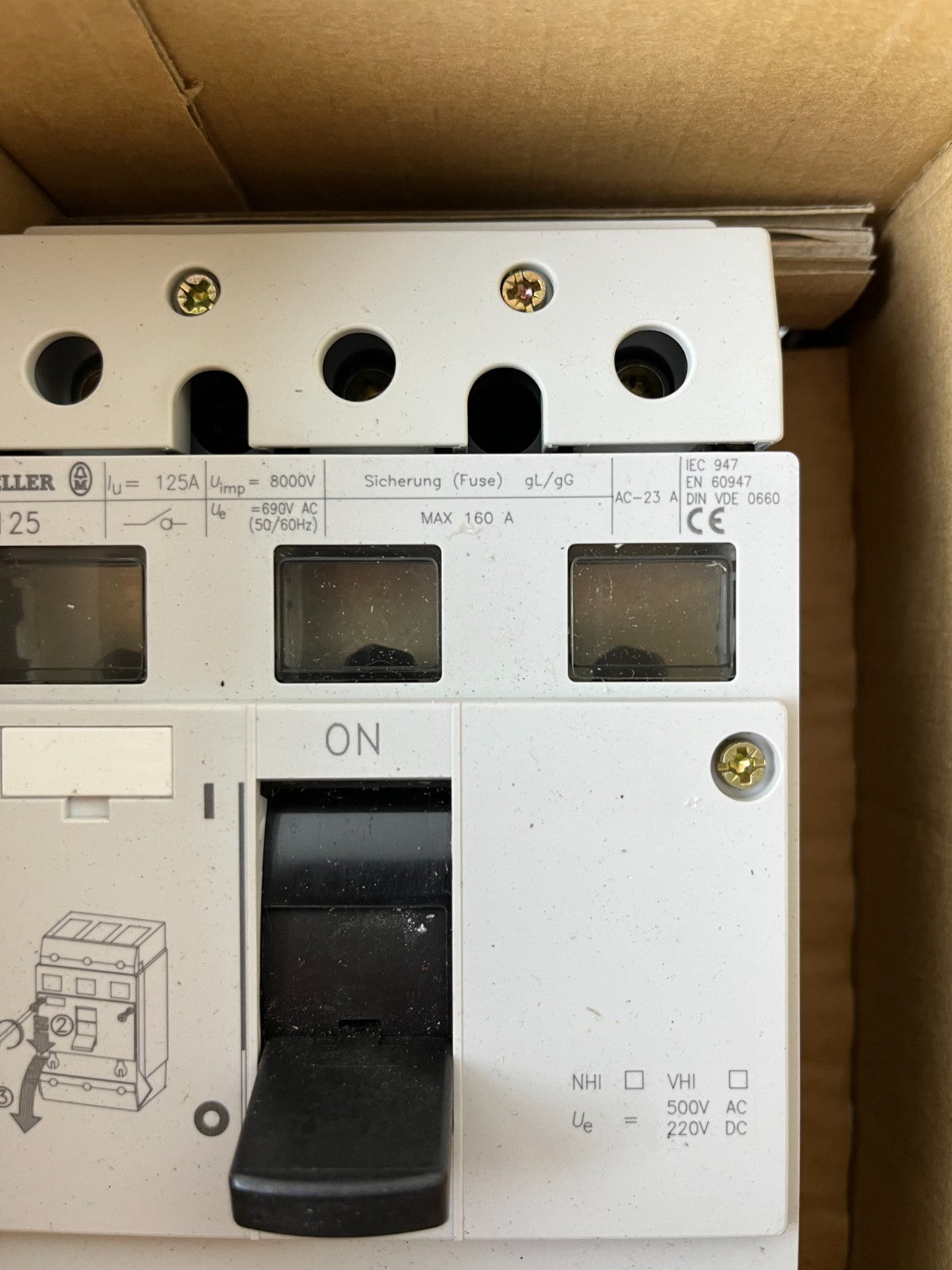

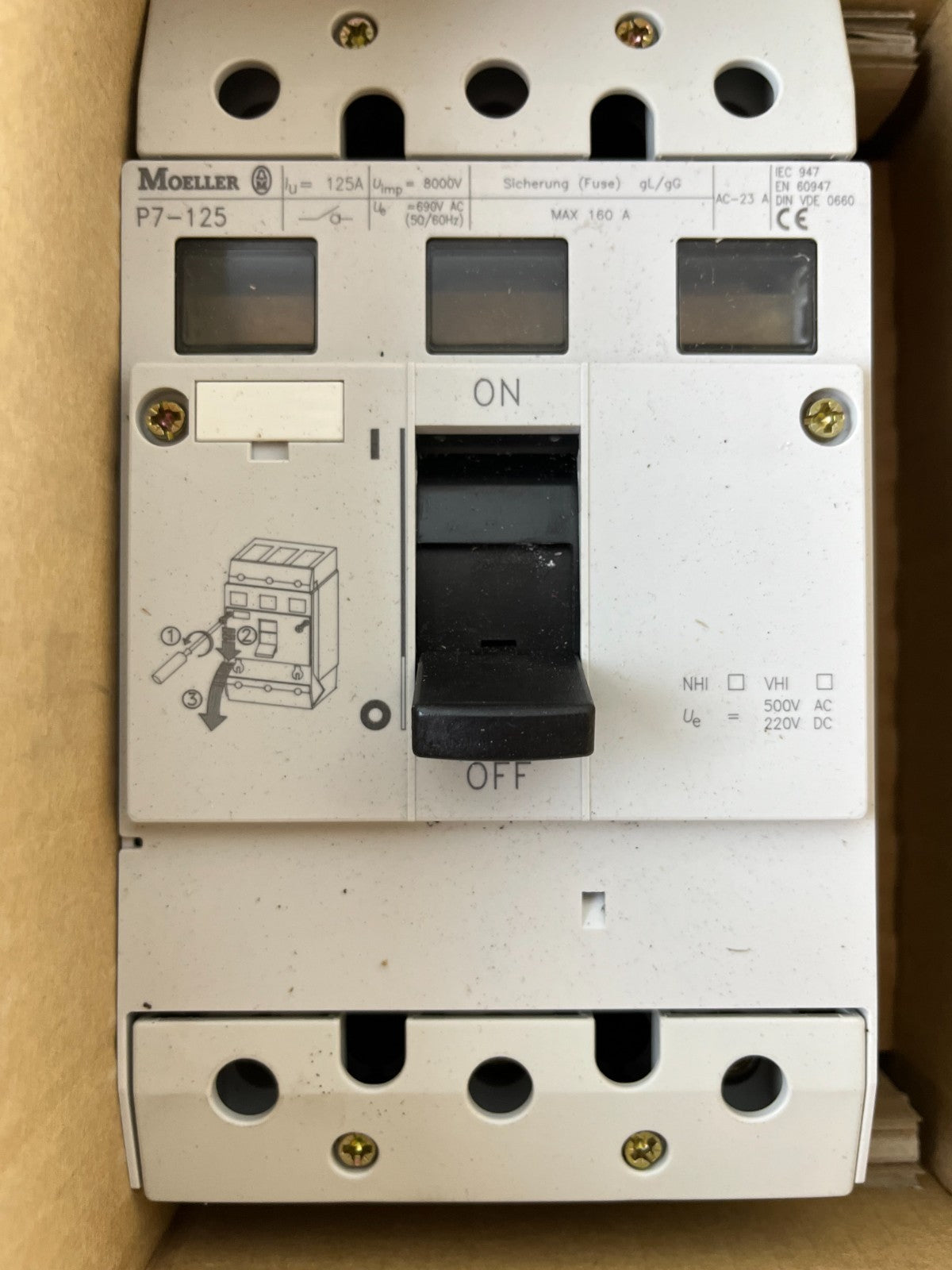

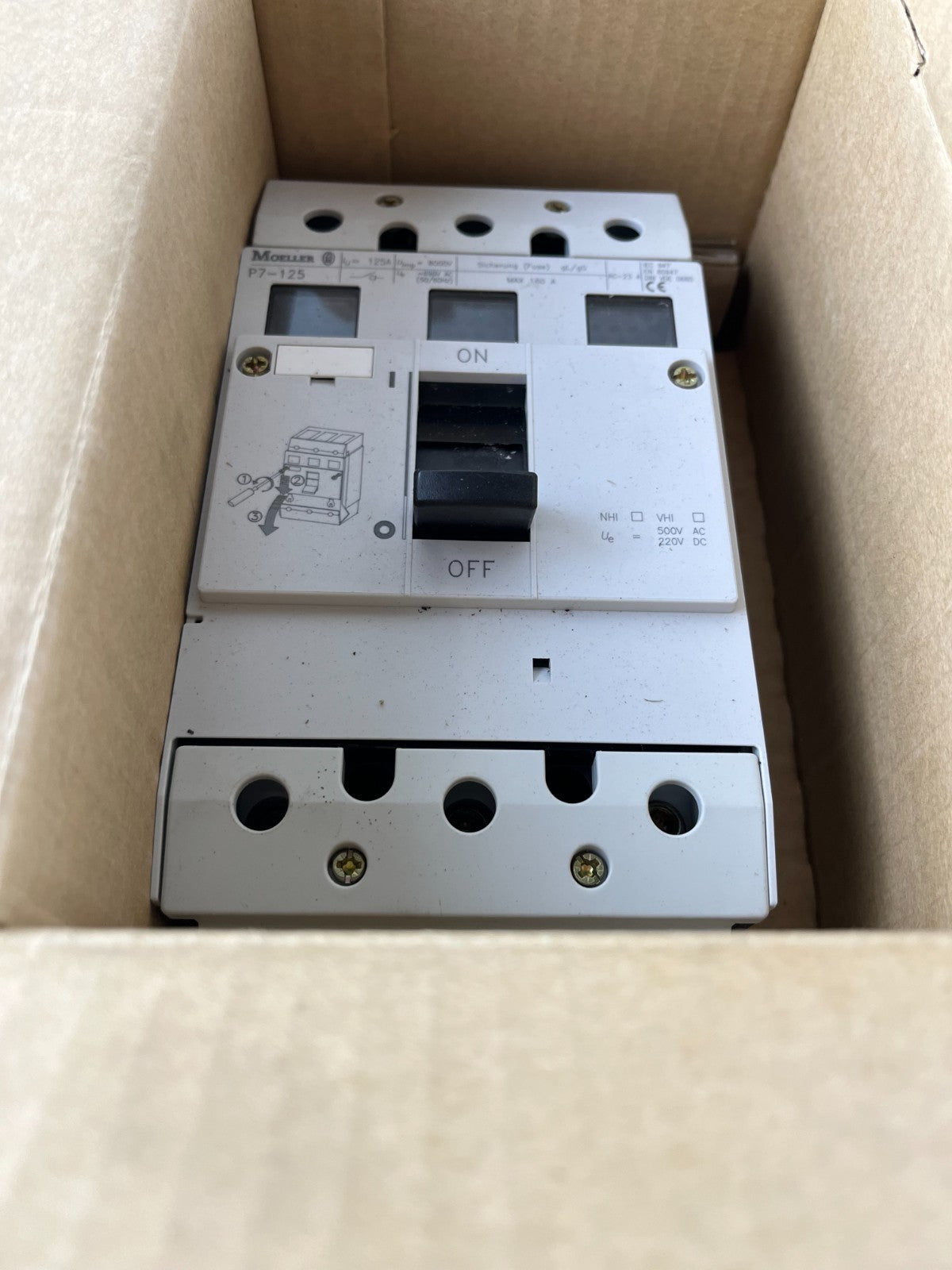

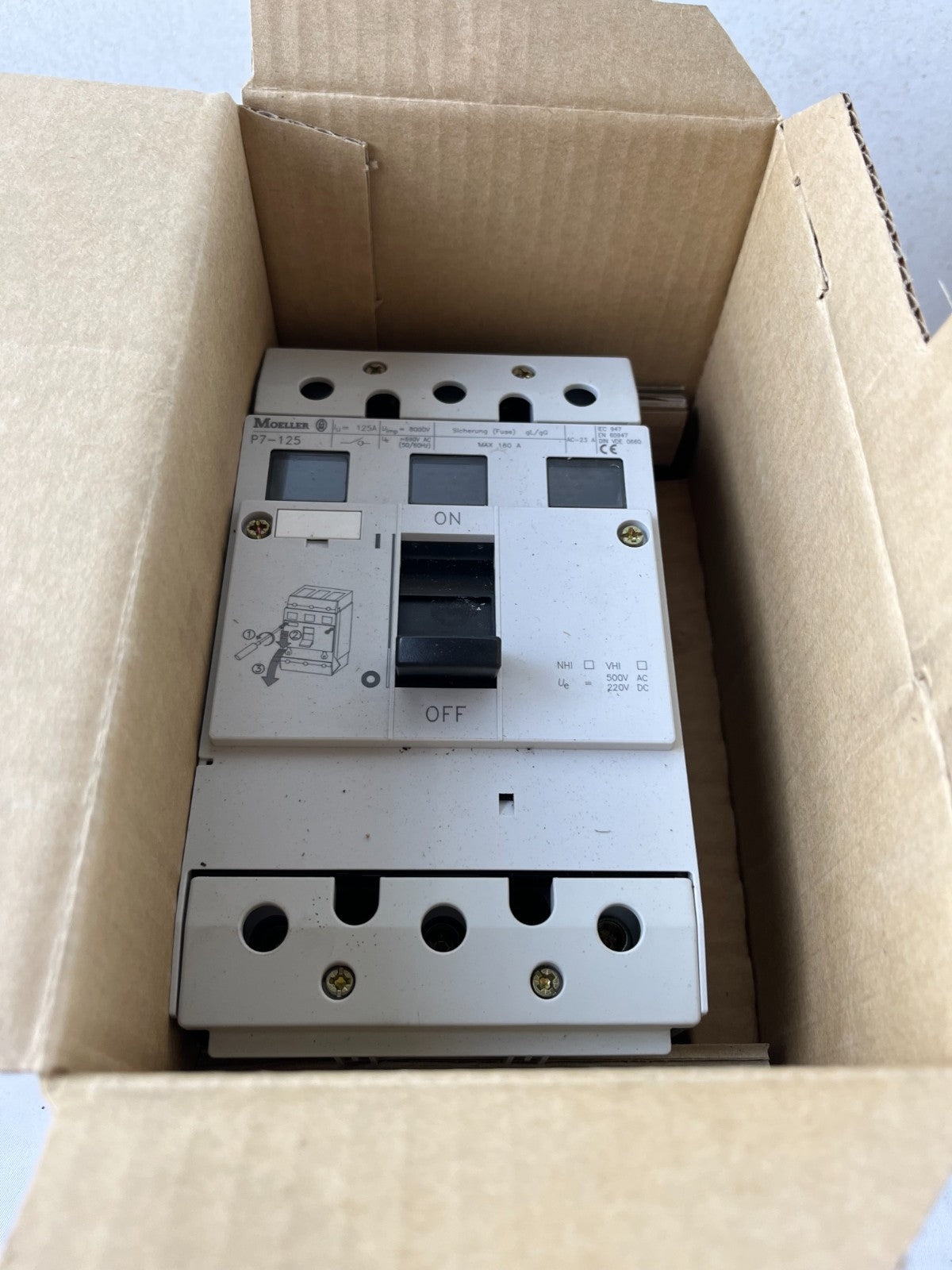

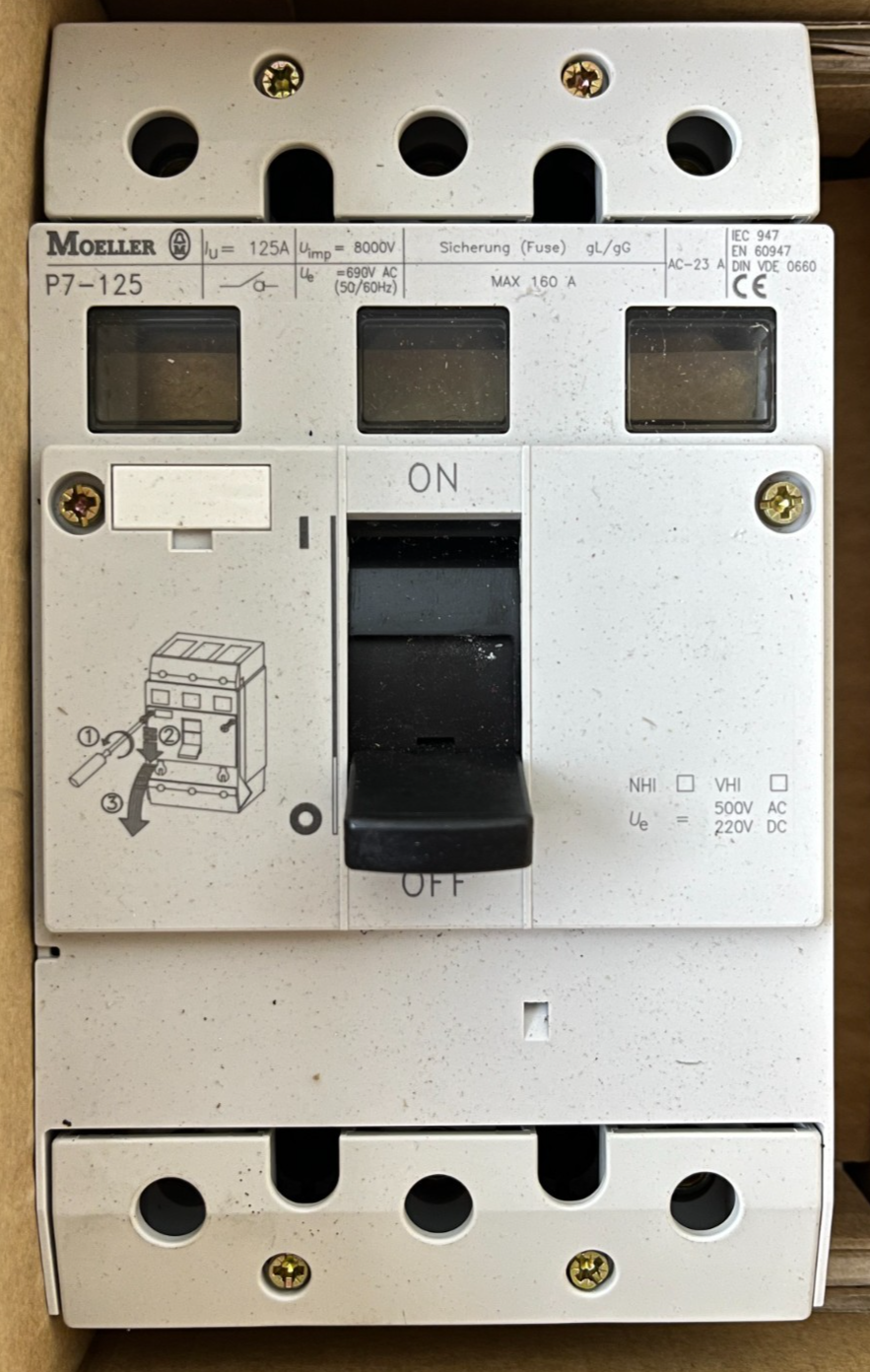

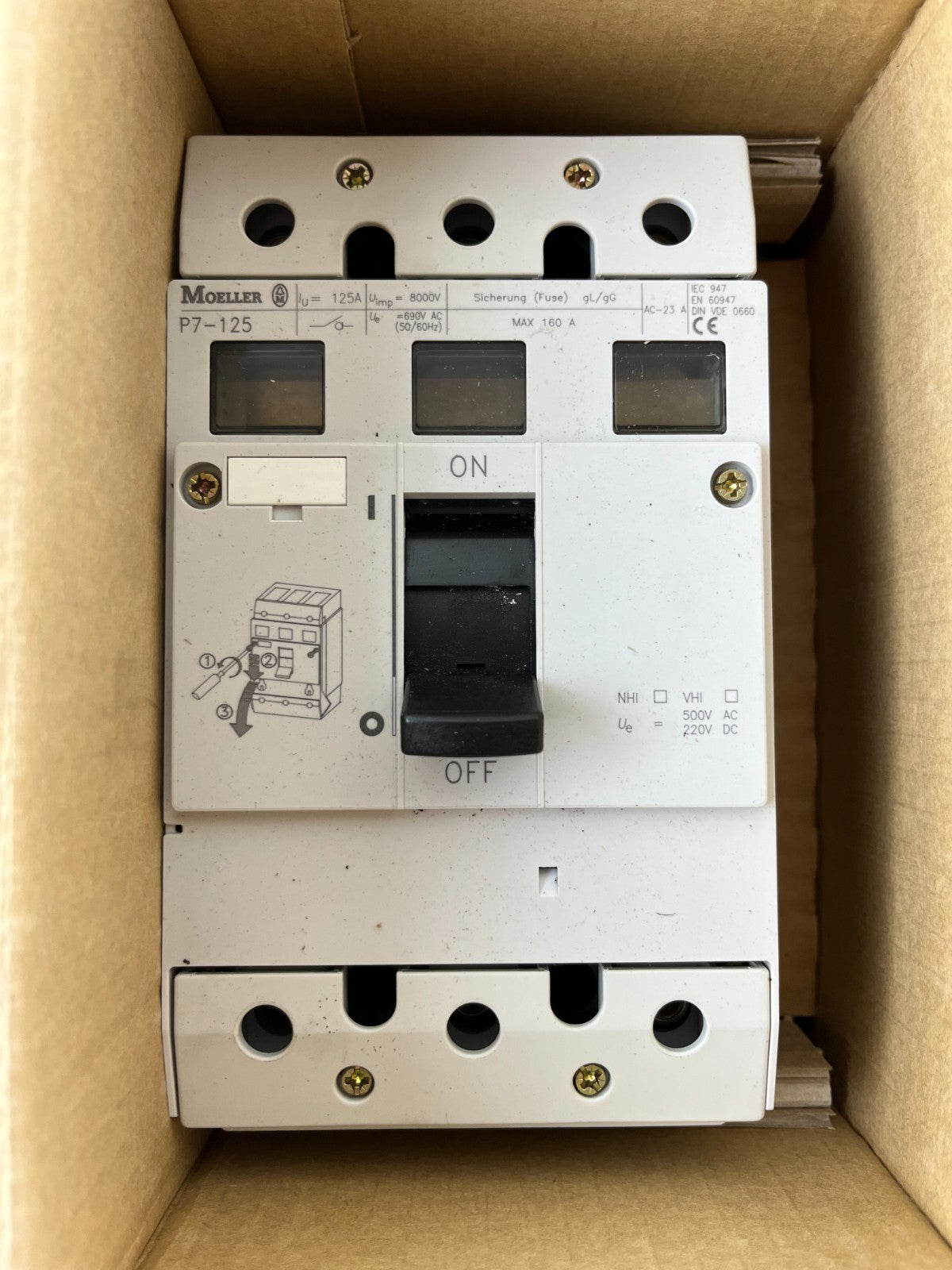

Model: P7-125
-
Manufacturer: Moeller (now Eaton)
-

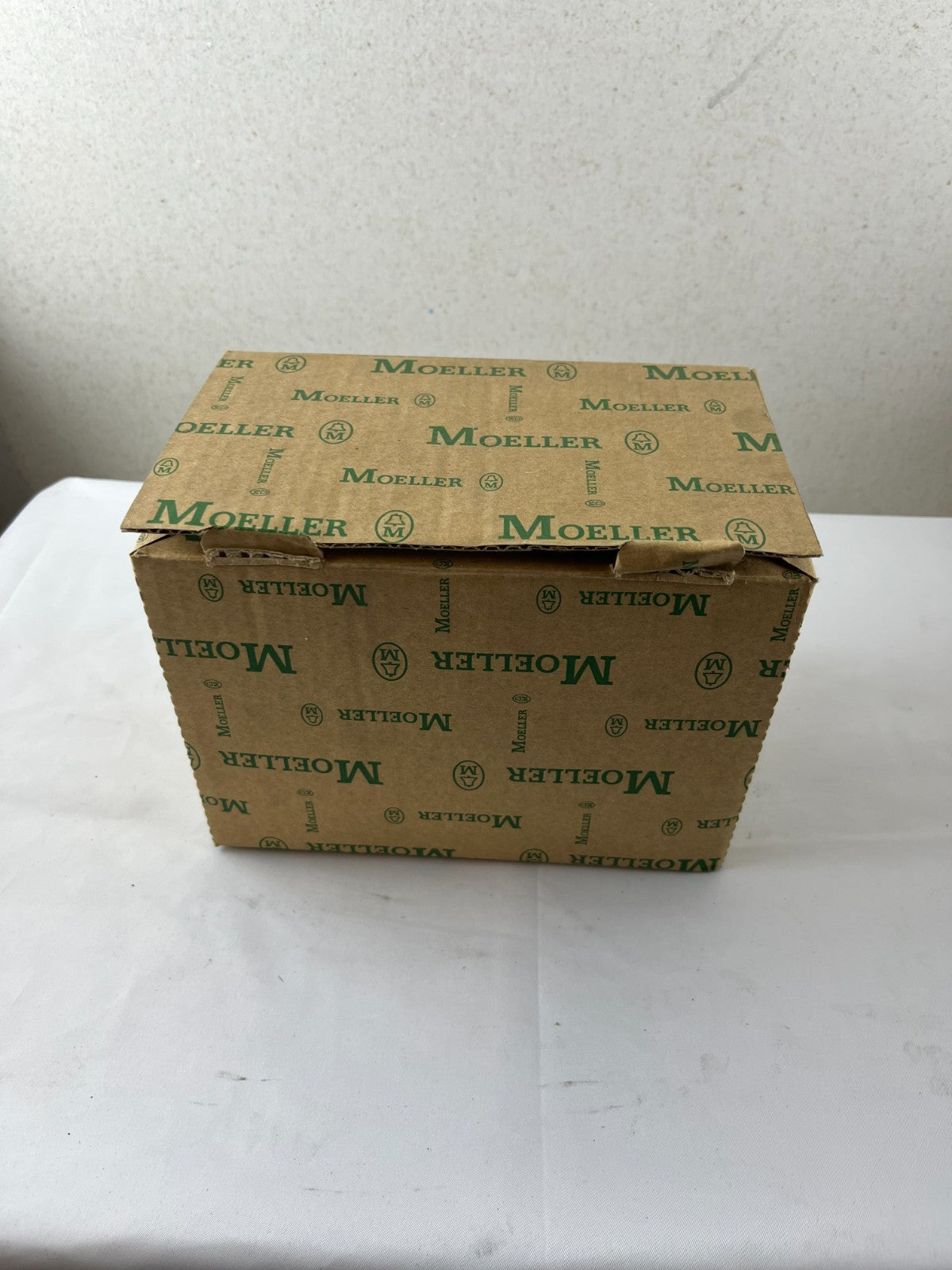

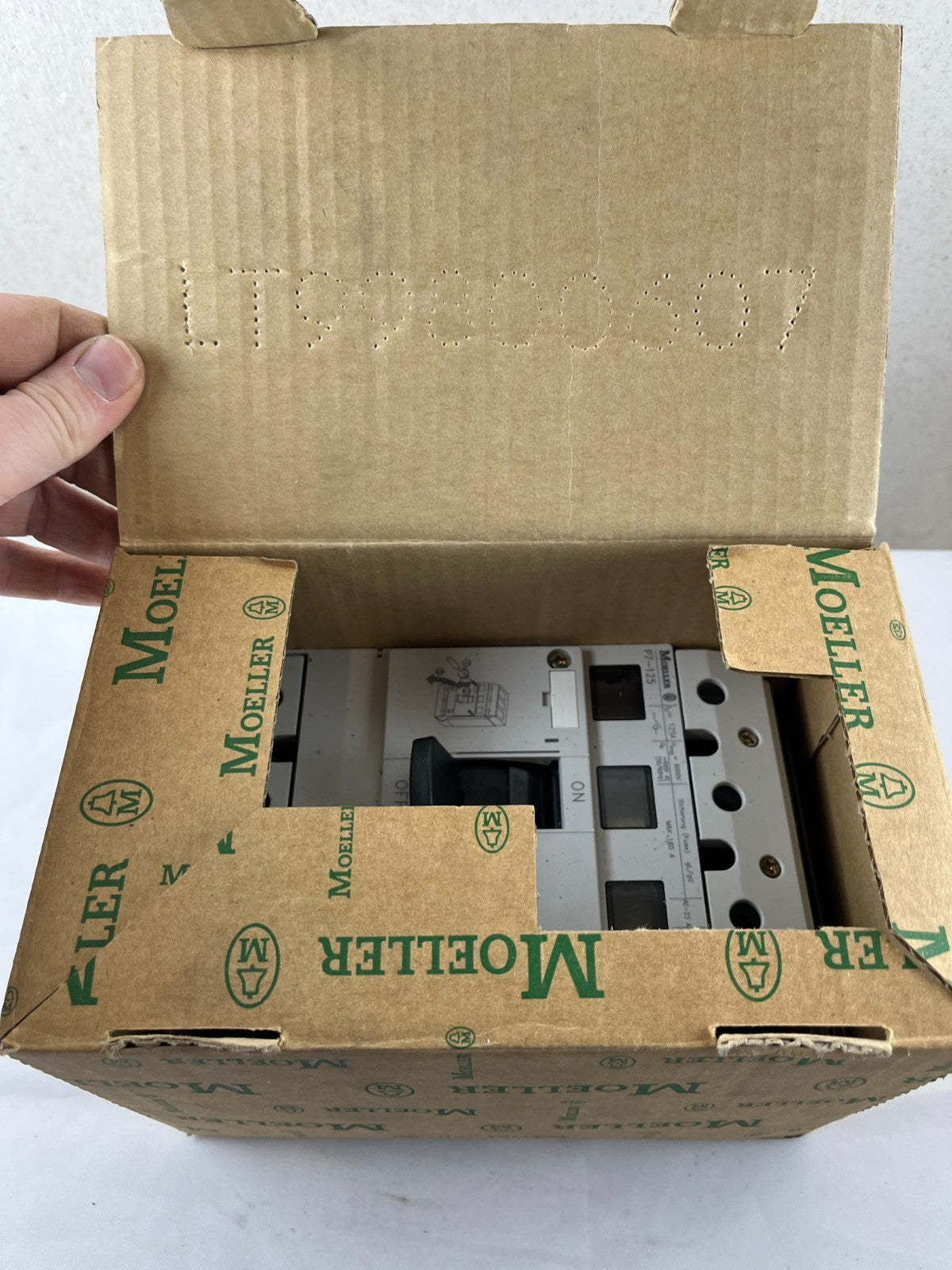

Lot Code: 11C080637 (visible on box)
-
Type: Molded case load break switch / main switch disconnector
-
Poles: 3-pole
-
Rated Continuous Current (Iu): 125A
-
Operational Voltage (Ue): Up to 690V AC (50/60Hz)
-
Impulse Withstand Voltage (Uimp): 8000V
-
Standards: IEC 947, IEC 60947, EN 60947
-
Fuse Coordination: gL/gG (Class gL or gG fuses)
-
Maximum Short-Circuit Protection: Up to 160A
-
Mounting: Front-mounting with bolt-on terminals
-
Main Switch Characteristics: According to IEC/EN 60204-1
-
Isolating Characteristics: According to IEC/EN 60947-3
-
Operating Mechanism: Manual rotary handle with ON/OFF indication
-
Weight: Approximately 1.5 kg
-
EAN: 4015080490609
-
Article Number: 049060
-
Standards: CE marked, IEC 947, DIN VDE 0660
-
Main Switch/Disconnector: Designed for safe manual disconnection and isolation of electrical circuits
-
Industrial Grade: Robust molded case construction for demanding industrial environments
-
High Voltage Rating: 690V AC capability makes it ideal for European industrial systems and high-efficiency power distribution
-
Load Break Capability: Rated for uninterrupted operation at 125A with safe load disconnection
-
Emergency Stop Function: Can be configured for emergency switching applications
-
Maintenance Switch: Ideal for maintenance isolation and manual override applications
-
Universal Application: Suitable for motor control panels, distribution boards, machine control, and industrial power systems
This P7-series switch-disconnector from Moeller (now part of Eaton) represents industrial-grade quality and reliability. The molded case design provides excellent mechanical and electrical protection. The 690V rating makes it perfect for modern energy-efficient systems and European industrial installations. Can be used as a main switch, load break switch, maintenance disconnect, or emergency stop switch depending on configuration.
