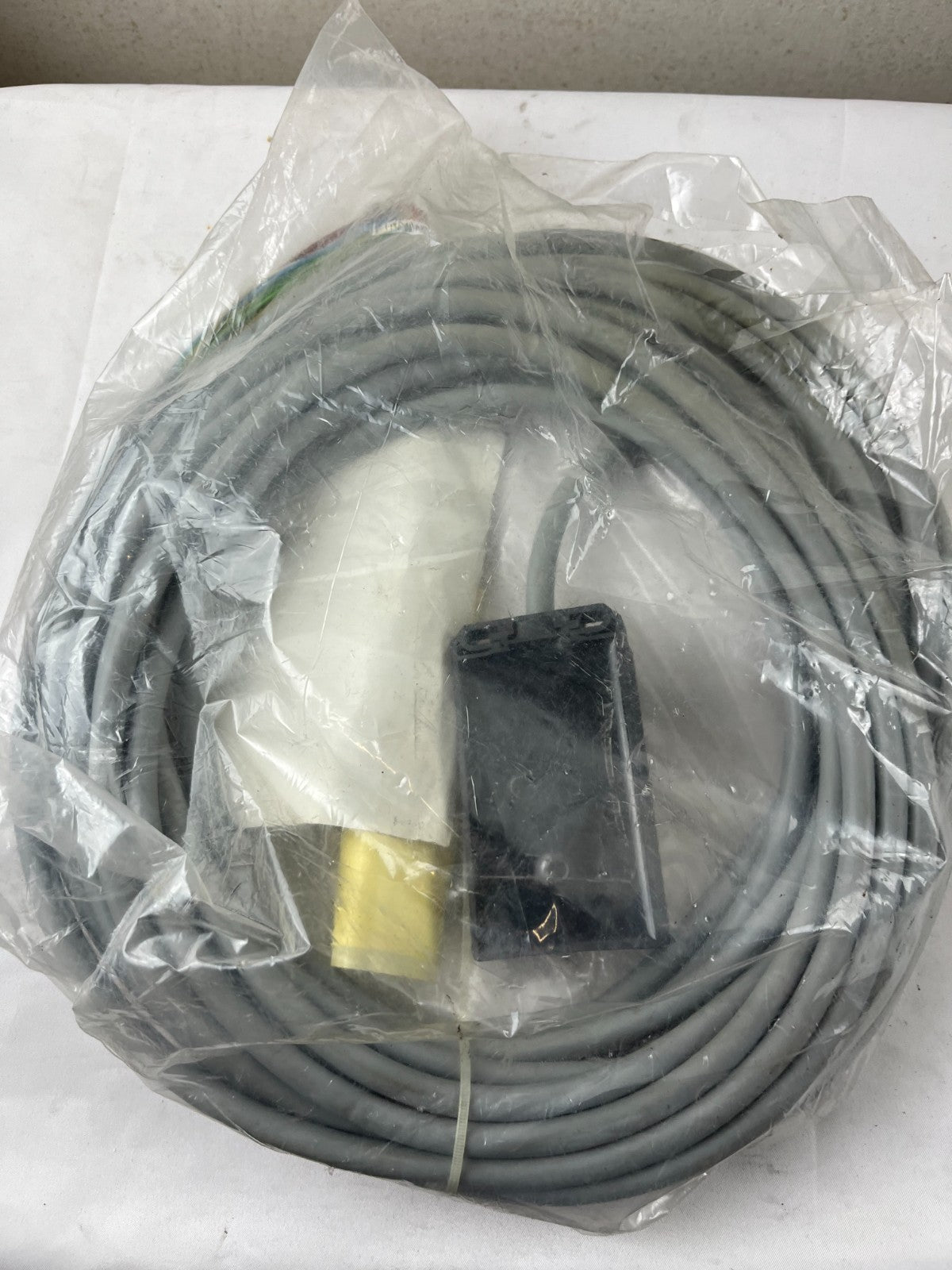

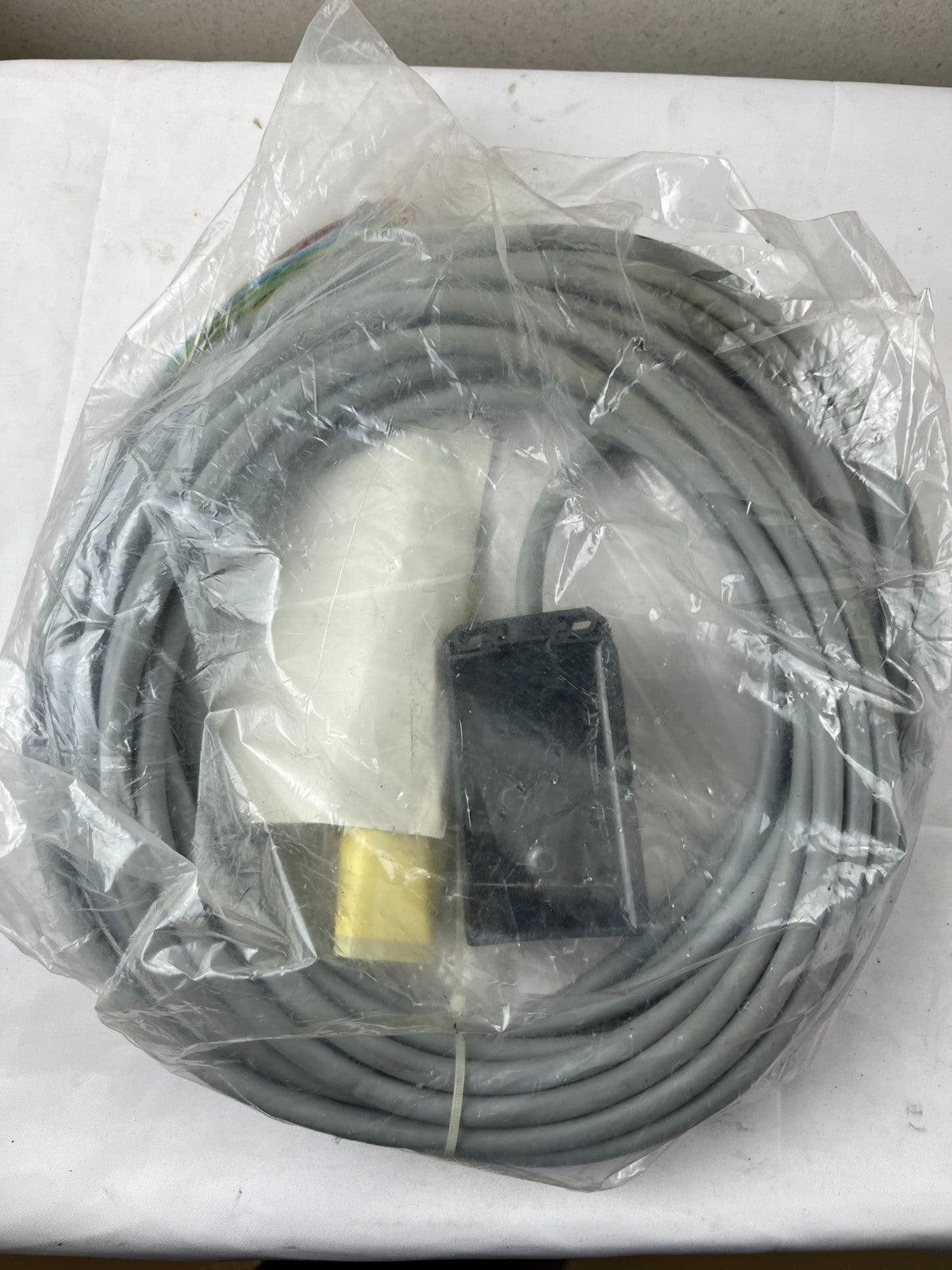

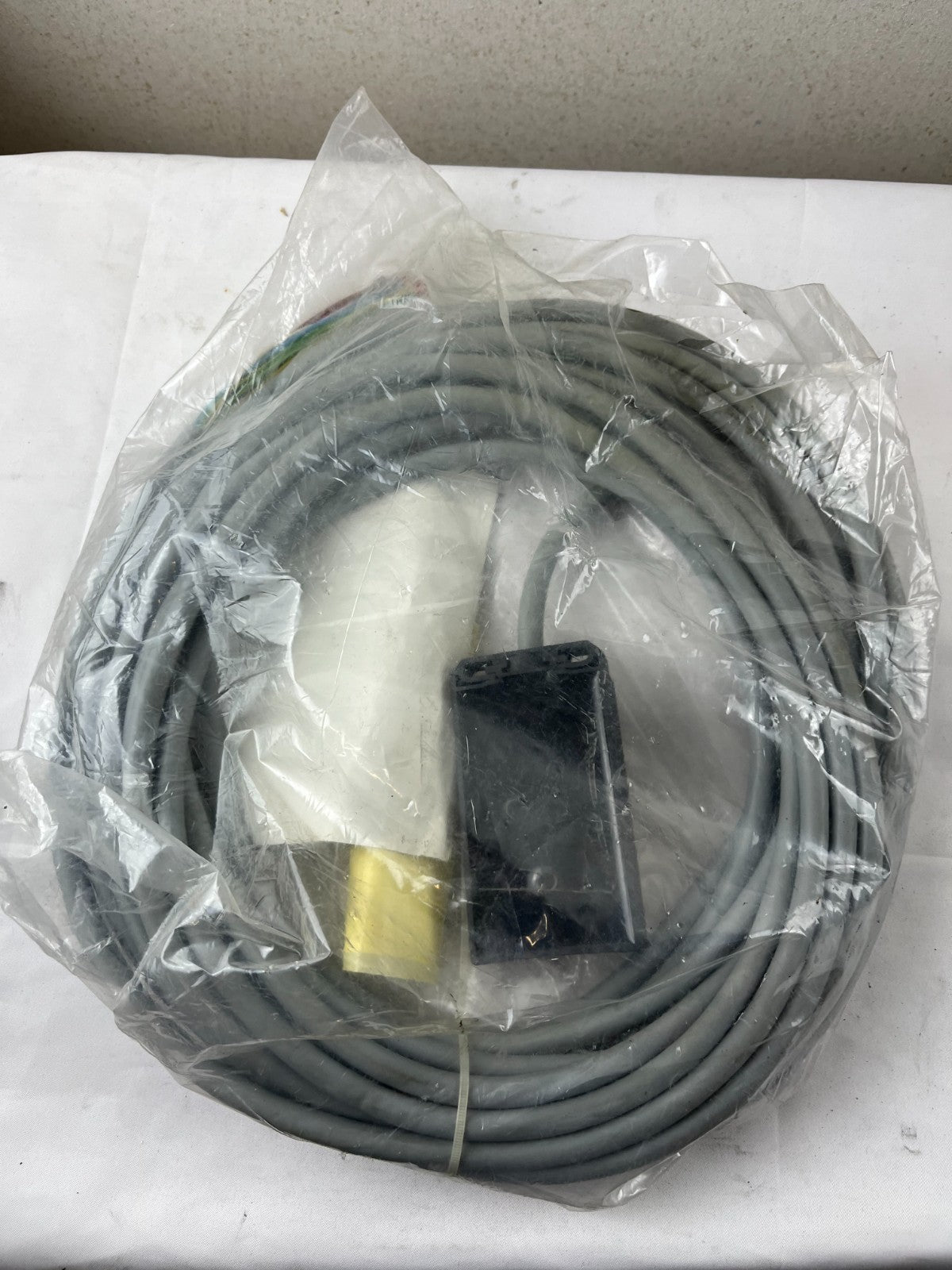

Murr Elektronik 27863 M12 8-Port Distribution Block 24V 16A Passive NEW

Brand & Model

• • • Manufacturer: Murr Elektronik, Germany

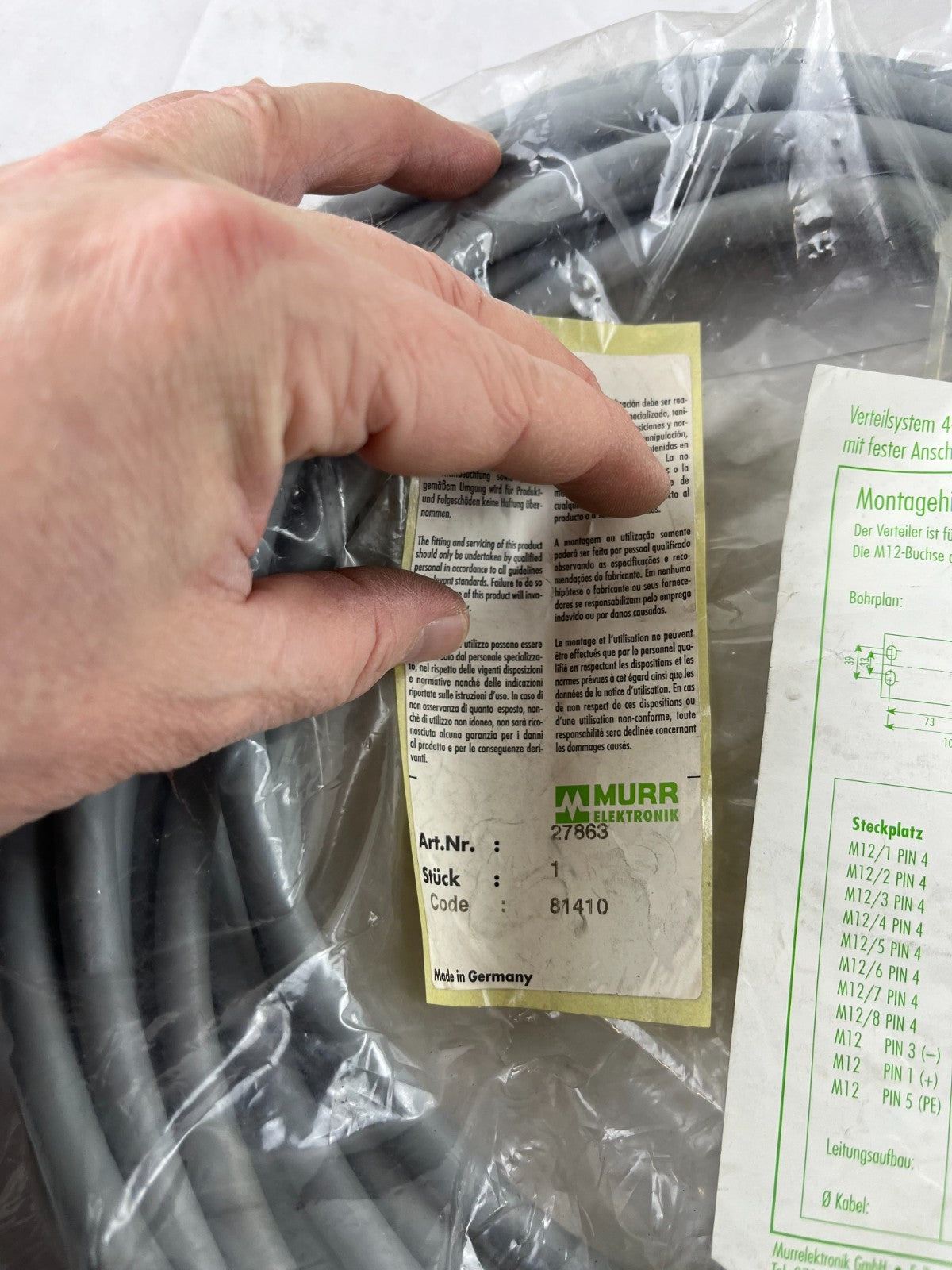

    • Article Number: 27863

    • Product Code: 81410

    • Model Type: M12 8-fach (8-port) passive distribution block

    • Condition: New in sealed package, never used, fully functional

  • Technical Specifications

    • Operating voltage: 24 V AC/DC

    • Total current capacity: 16 A (with 2A max per port for data lines, 4A for power)

    • Connection type: M12 screw-thread female sockets, 4-pin

    • LED current consumption: 10 mA per LED

    • Conductor cross-section (data): 0.35 mm²

    • Conductor cross-section (power): 0.75 mm²

    • Operating temperature: -20°C to +80°C

    • Protection rating: IP65 when plugged and sealed

  • Connection Details

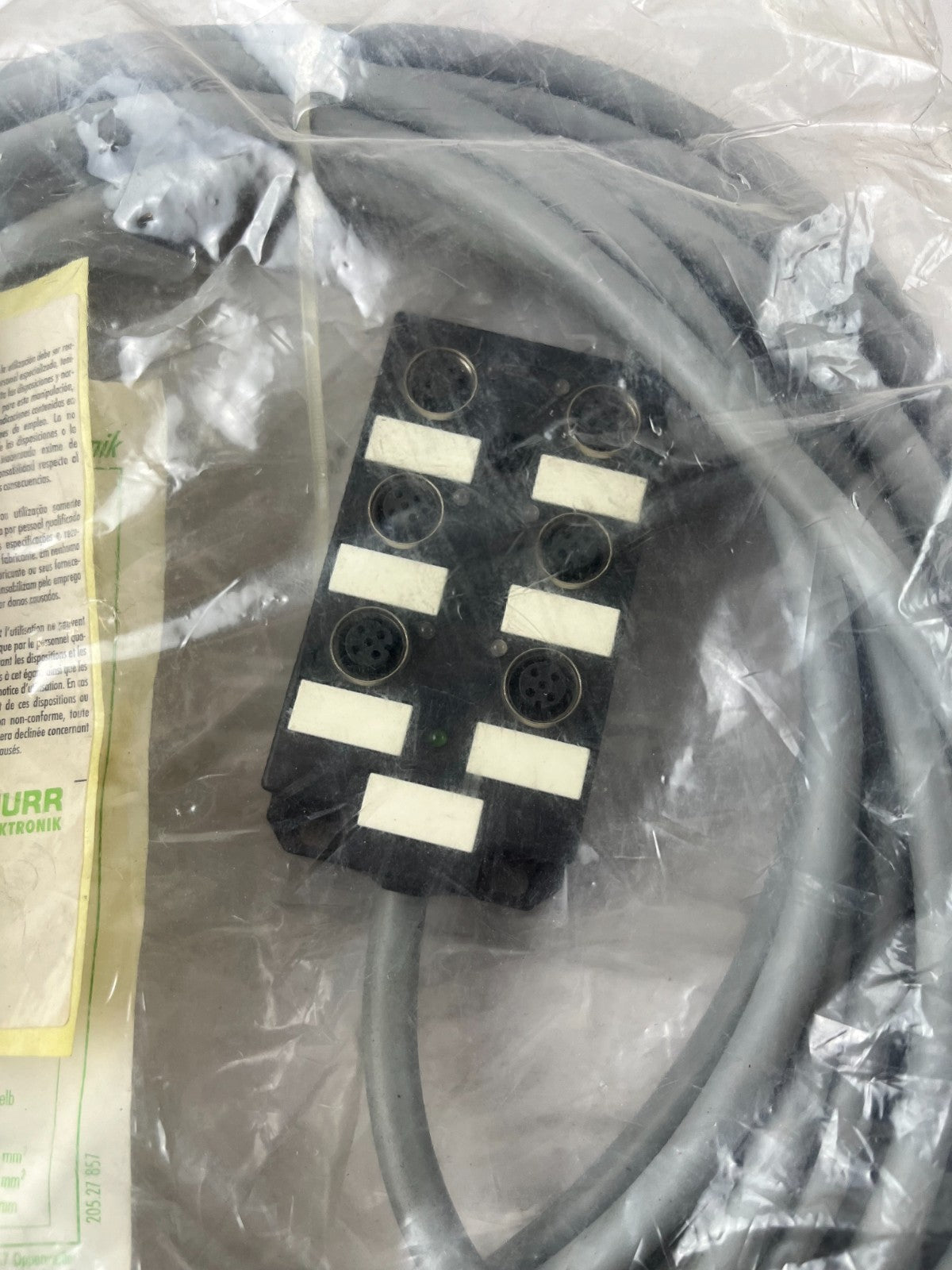

    • 8x M12 female sockets with 4-pin configuration

    • Pre-wired cable with color-coded conductors per VDE standards

    • Cable outer diameter: 8.5mm (signal), 9.1mm (with power cores)

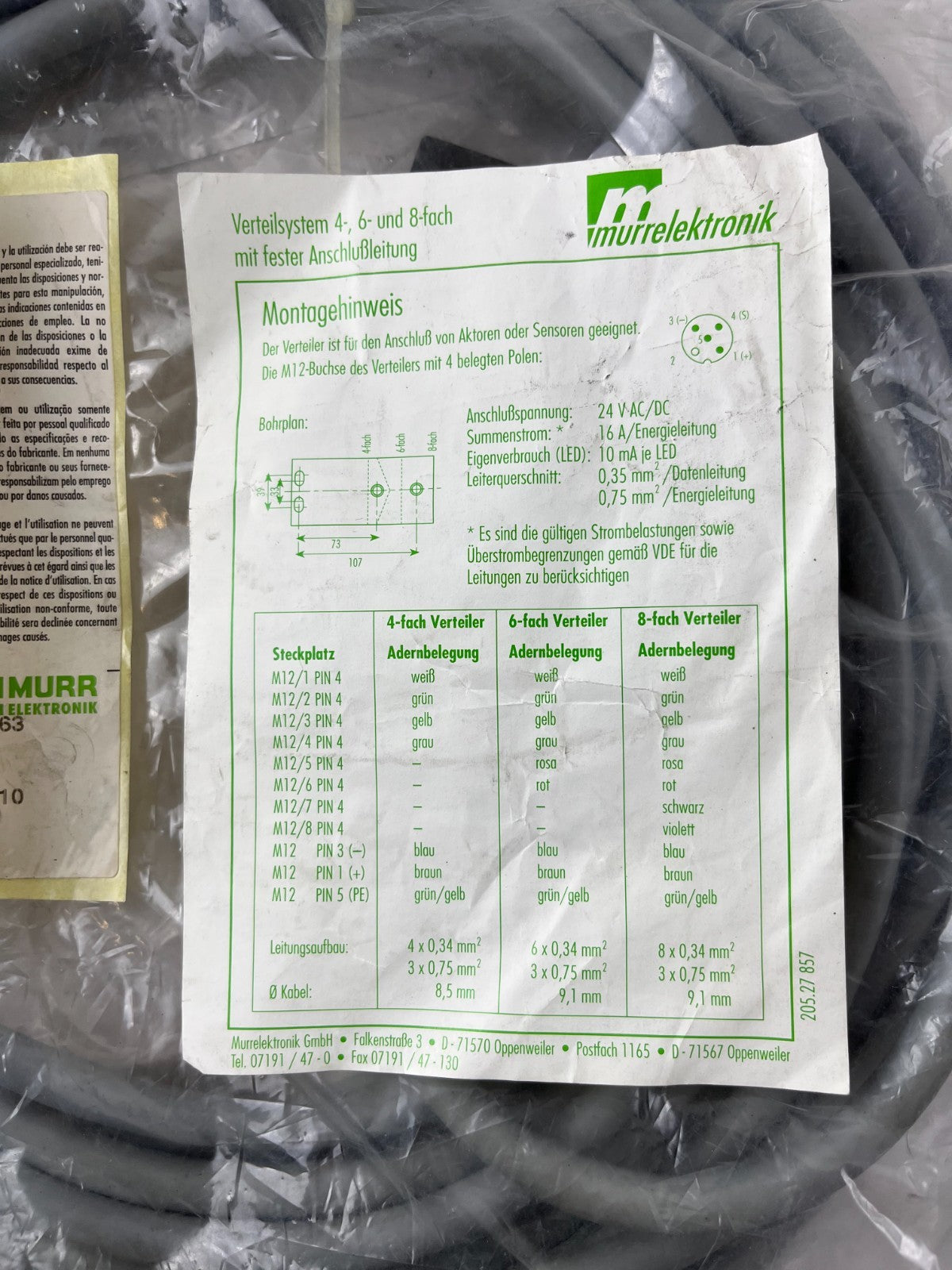

    • Pin assignments clearly labeled on included wiring diagram

    • Standard color coding: Brown (+), Blue (-), White/Green/Yellow/Gray (signal)

  • Features & Applications

    • Passive distribution for sensors and actuators in industrial automation

    • Individual port labeling with numbered position markers (M12/1 through M12/8)

    • Compact design allows dense mounting in control cabinets

    • Pre-assembled construction reduces installation time and wiring errors

    • Suitable for connecting proximity sensors, photoelectric sensors, inductive sensors

    • Ideal for packaging machinery, conveyor systems, automotive assembly lines

    • Made in Germany ensuring high quality standards

  • Additional Information

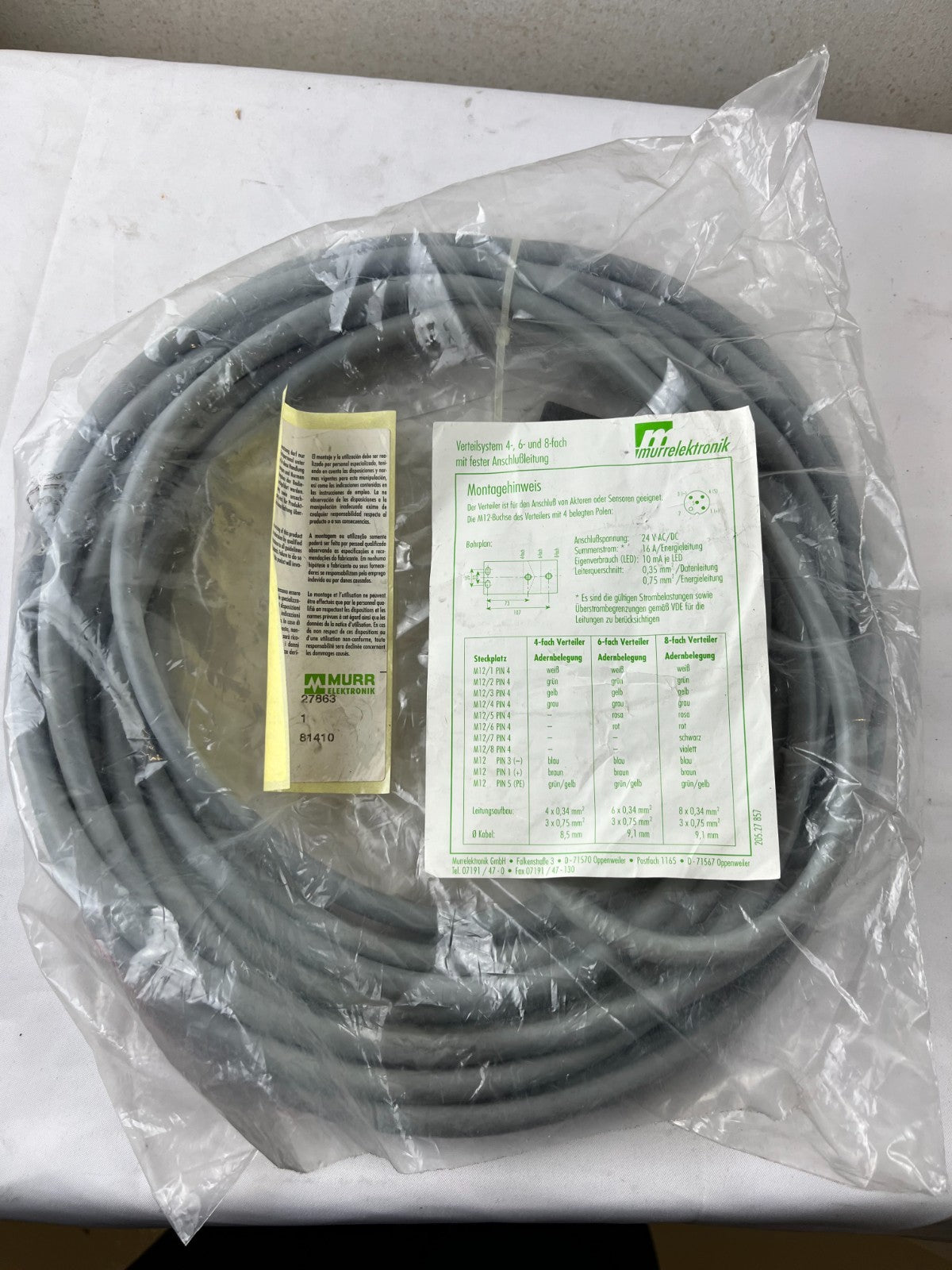

    • Includes comprehensive installation manual in German with wiring diagrams

    • Technical data sheet with dimensional drawings and electrical specifications

    • Housing material resistant to industrial oils, coolants, and cleaning agents

    • Can be mounted using integrated mounting holes or zip-tied to cable trays

    • Compatible with standard M12 4-pin A-coded connectors

    • Long pre-wired cable provides flexibility for cabinet installation
