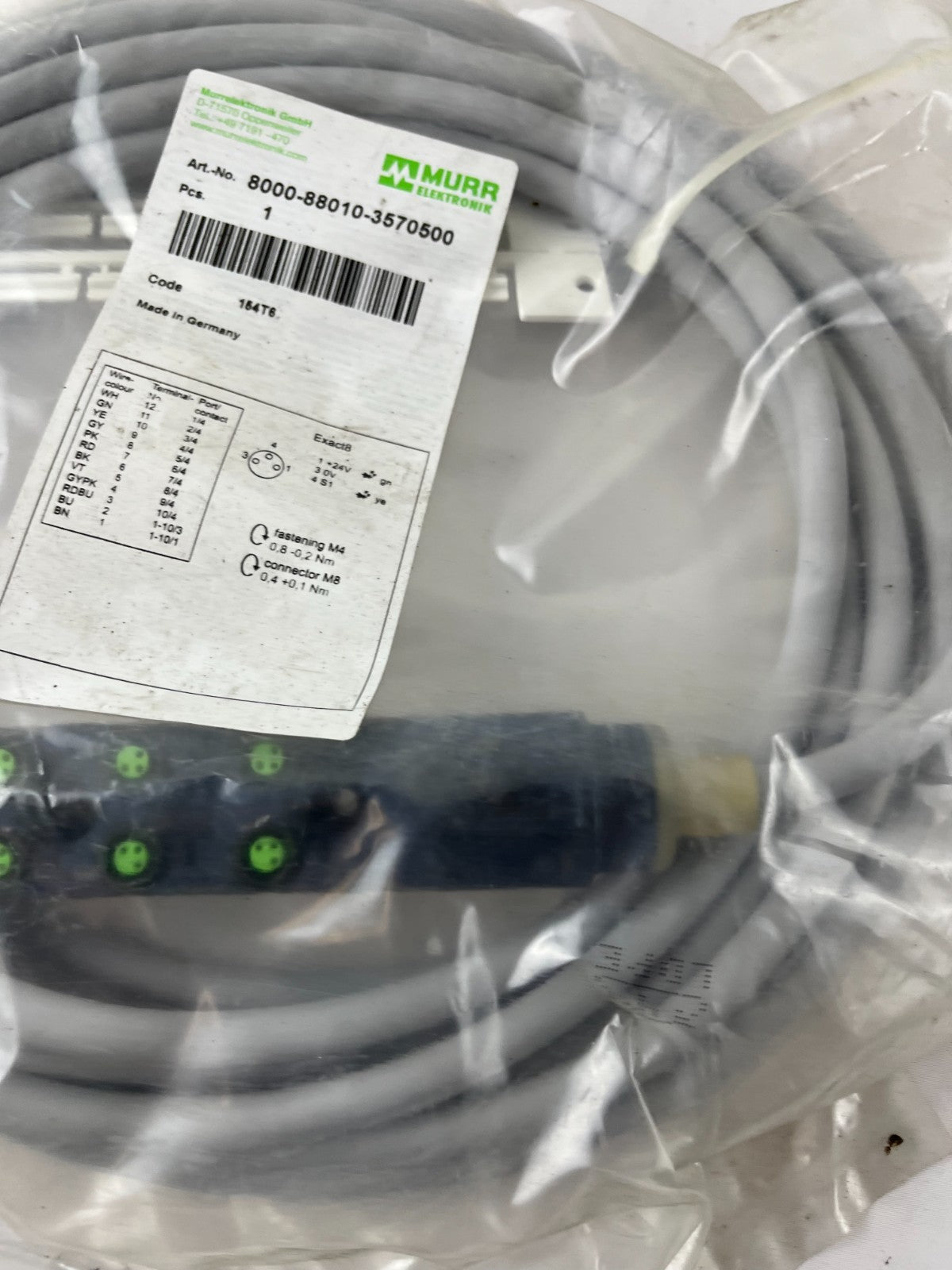

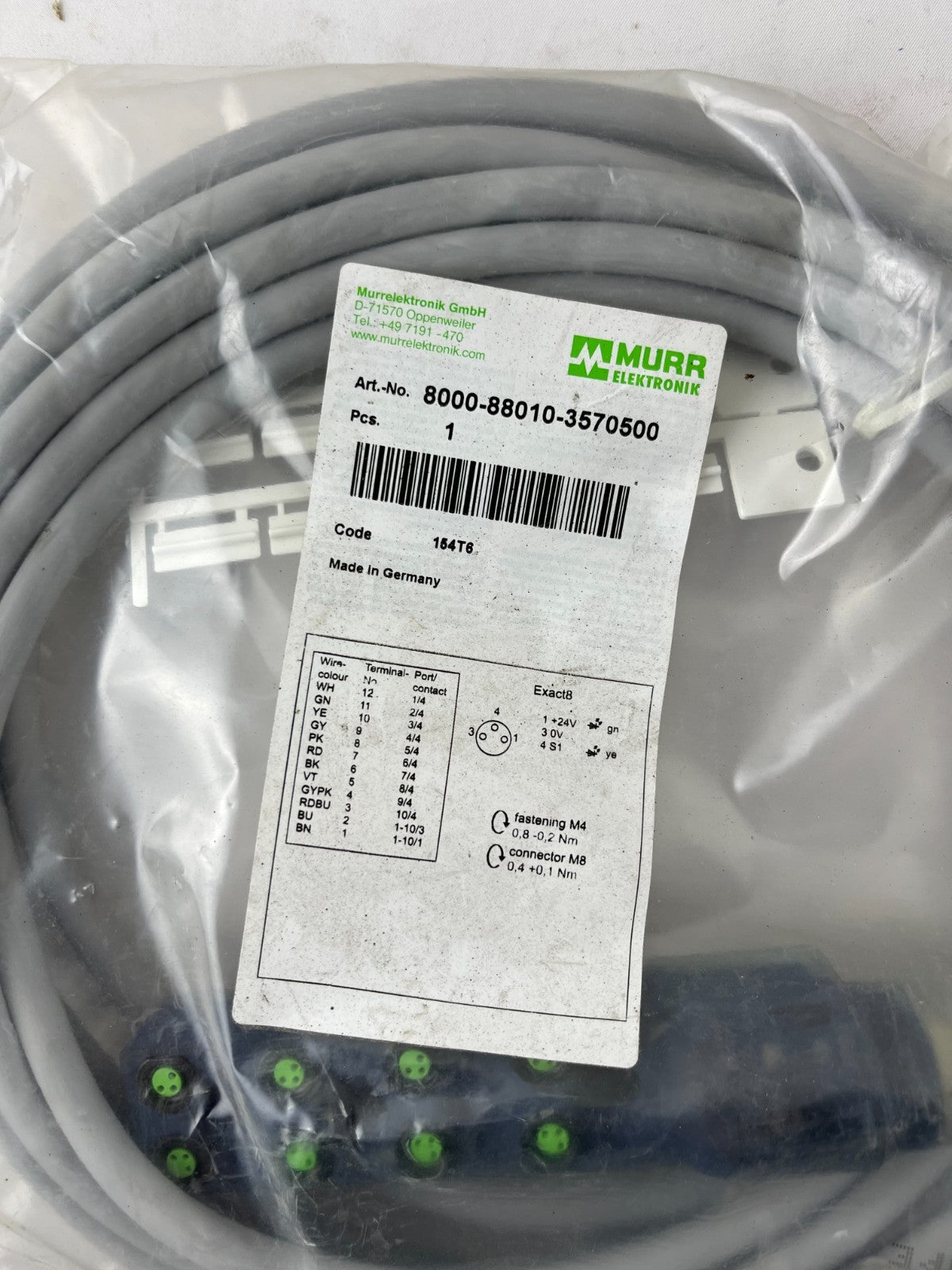

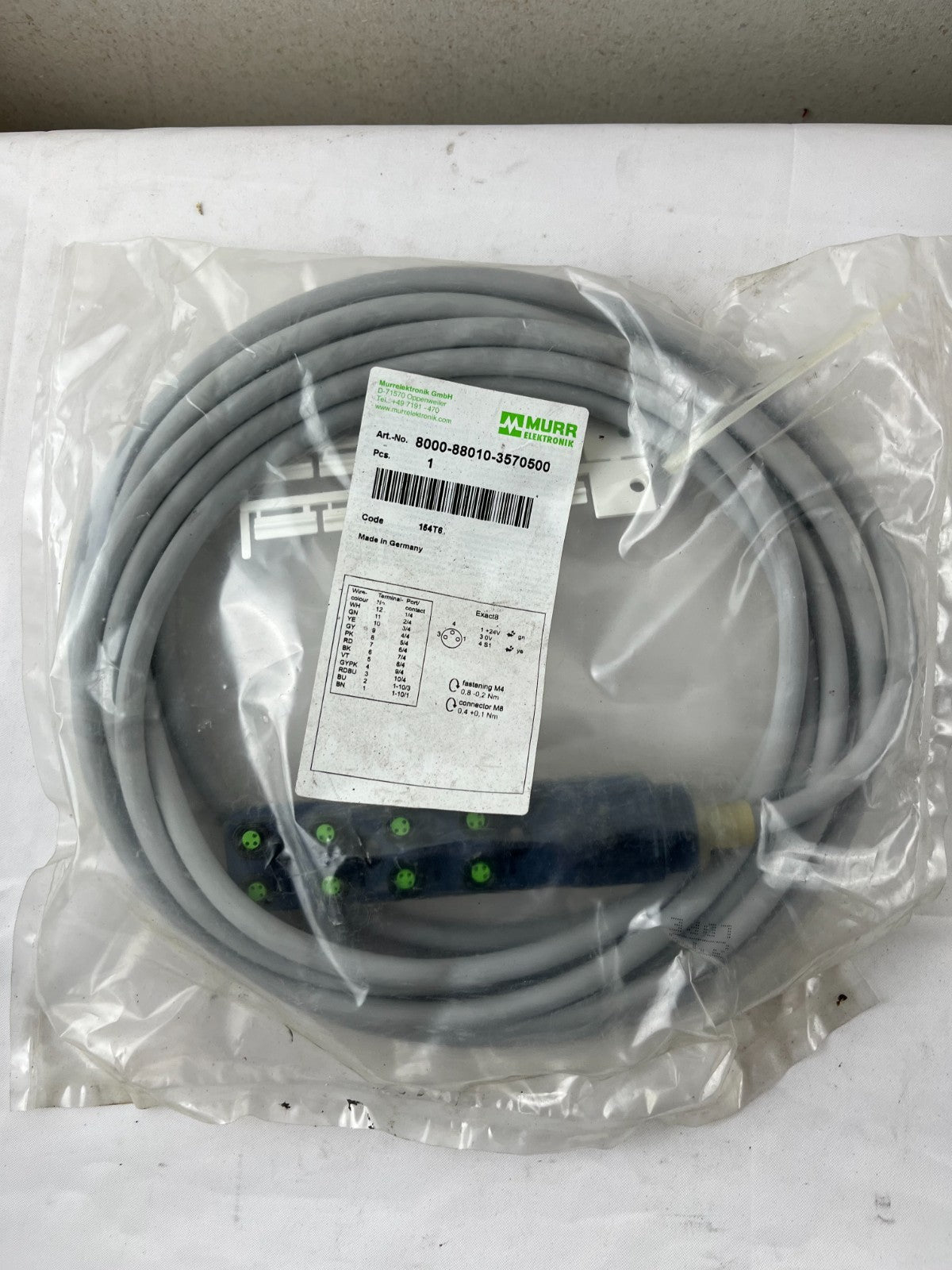

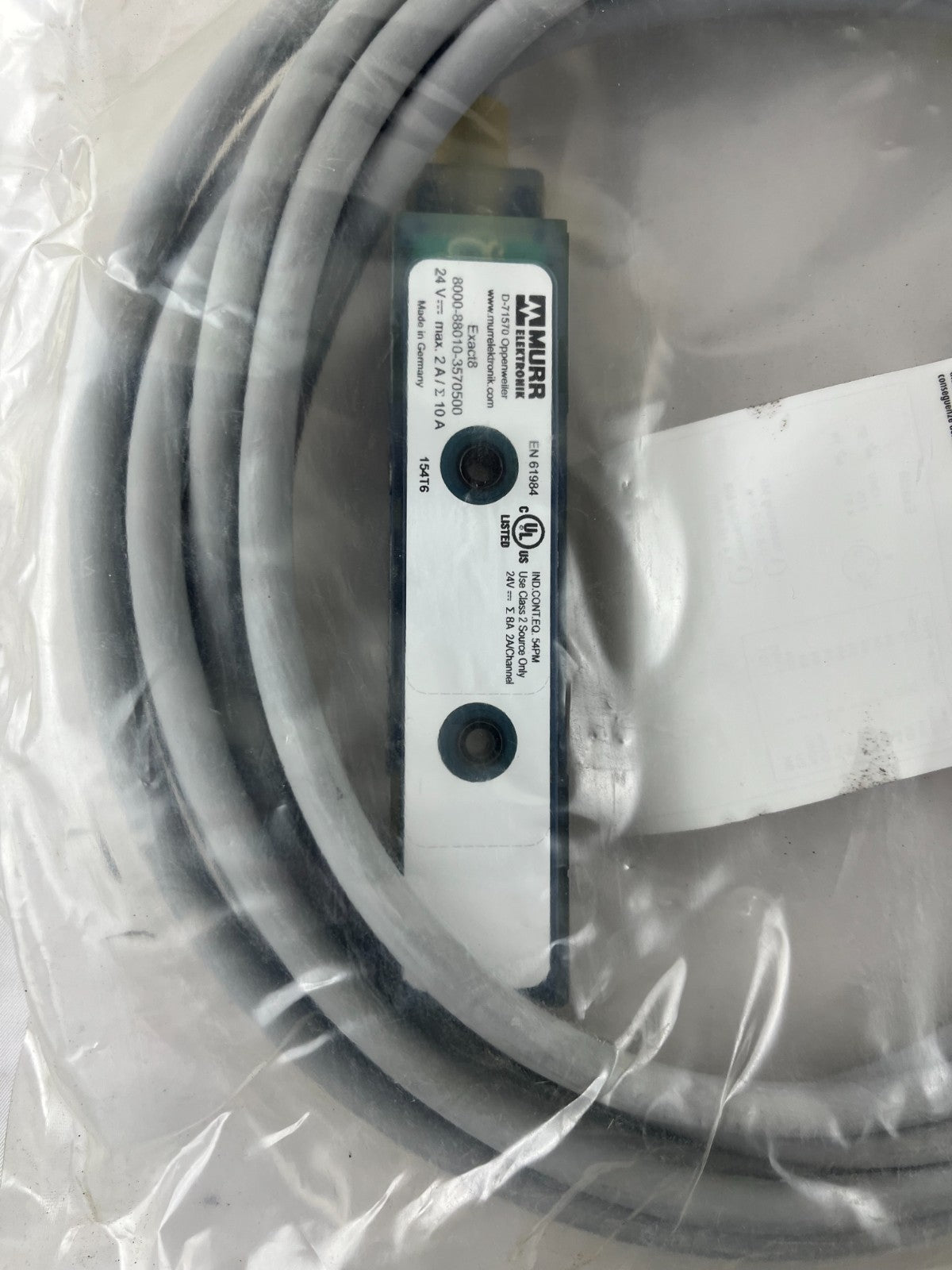

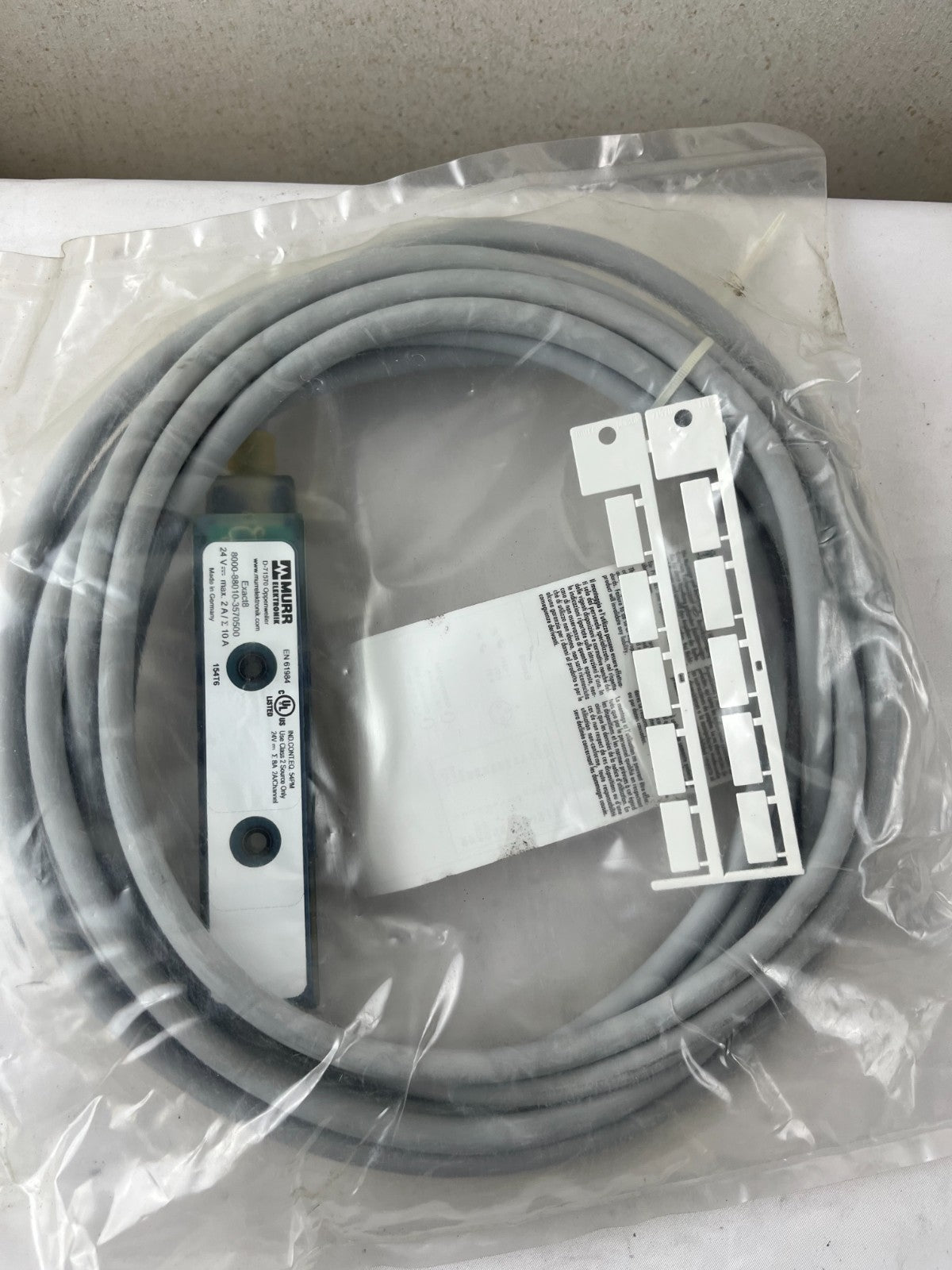

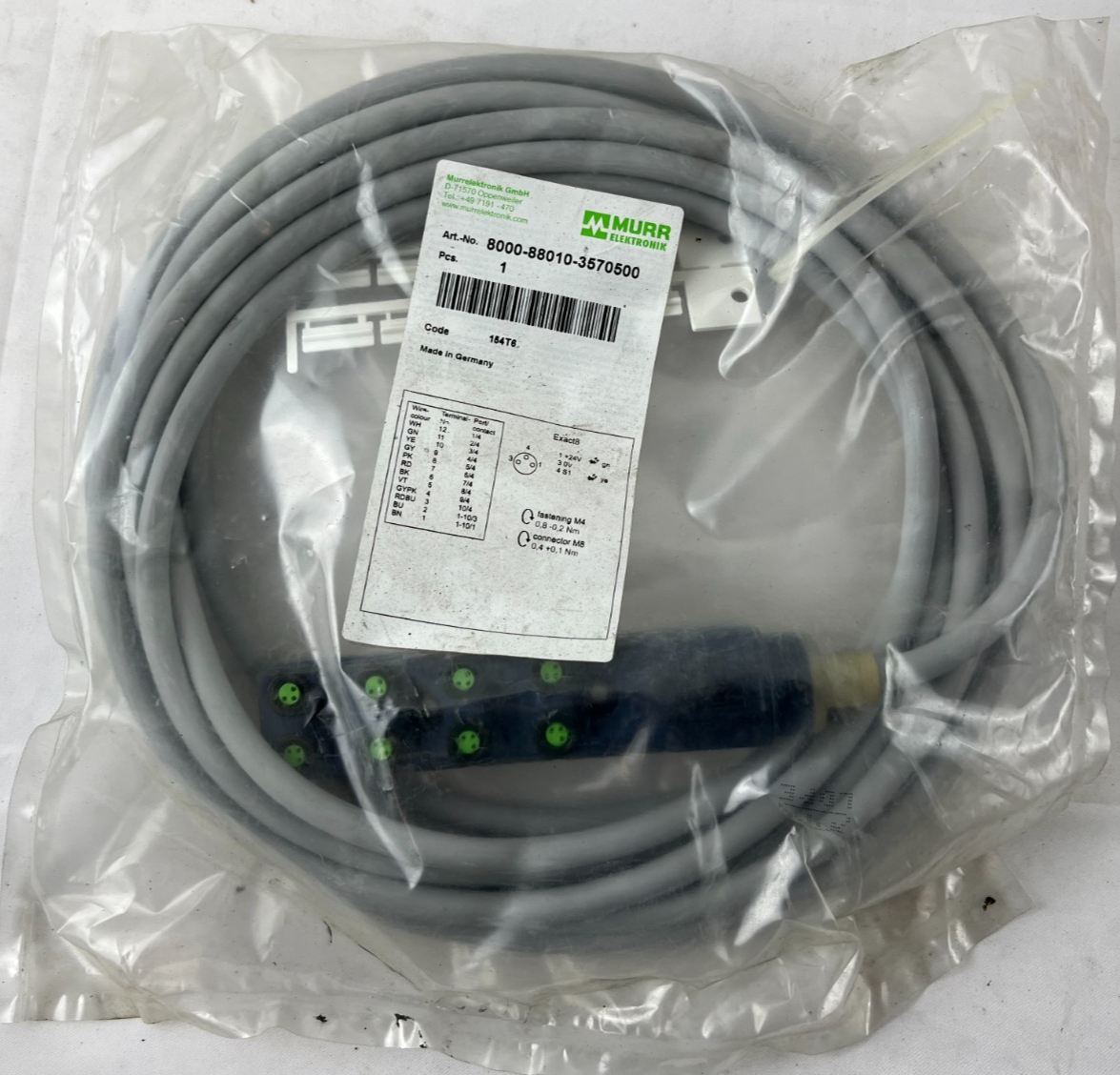

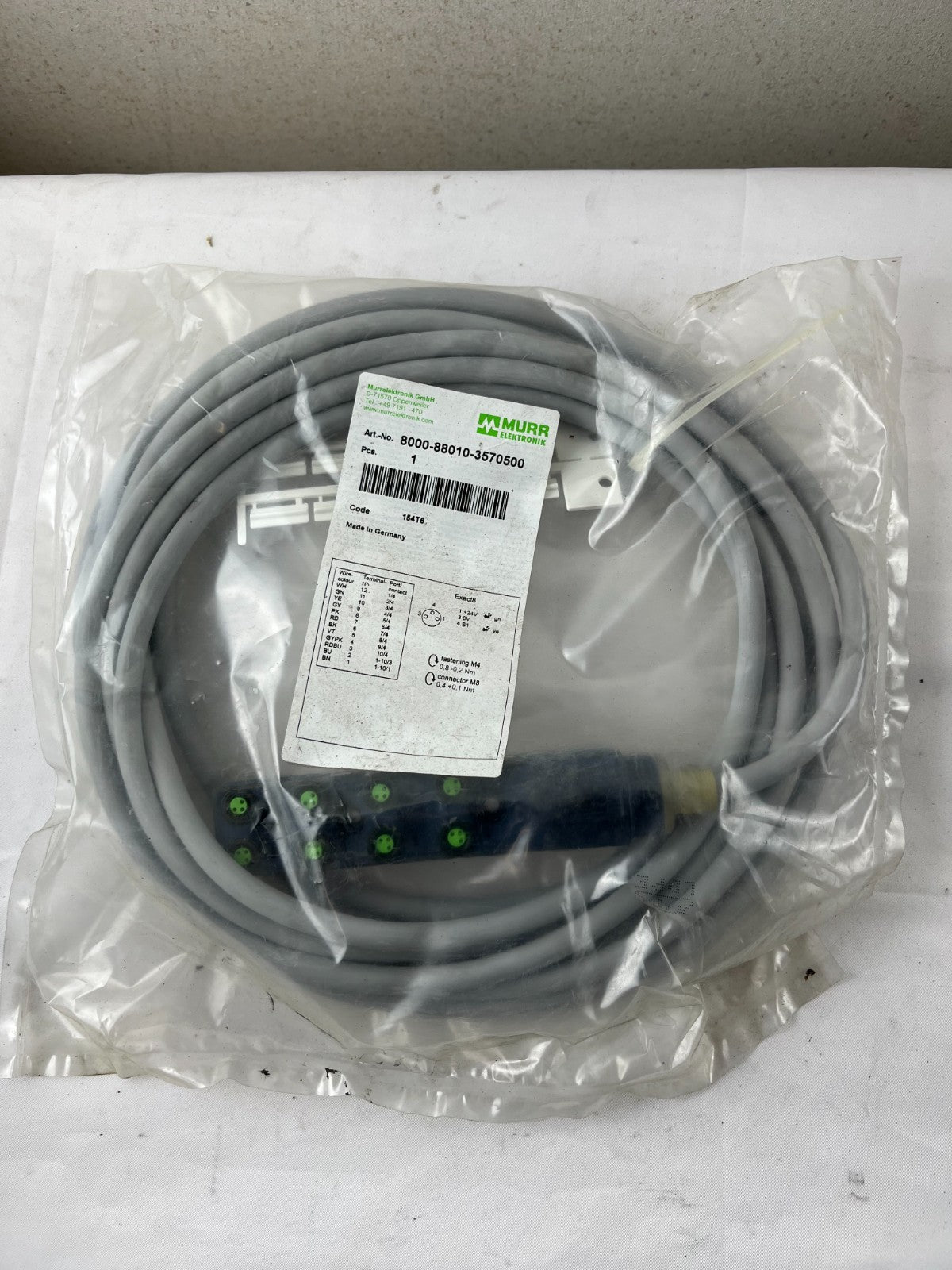

Murr Elektronik exact8 8000-88010-3570500 8-Port M8 Distribution 5m Cable NEW

Murr Elektronik exact8 8000-88010-3570500 8-Port M8 Distribution 5m Cable NEW

- Shipping includes tracking info worldwide. Klaus KLJ Trading

• • • Brand & Model

      • Manufacturer: Murr Elektronik, Germany

      • Series: exact8

      • Article Number: 8000-88010-3570500

      • Model Designation: MVP8N-AN8D357 5.0M

      • Product Code: 164T6

      • Condition: New in sealed package, never used, fully functional

    • Technical Specifications

      • Operating voltage: 24 V DC

      • Current per contact (max): 2 A

      • Total current capacity: 8 A

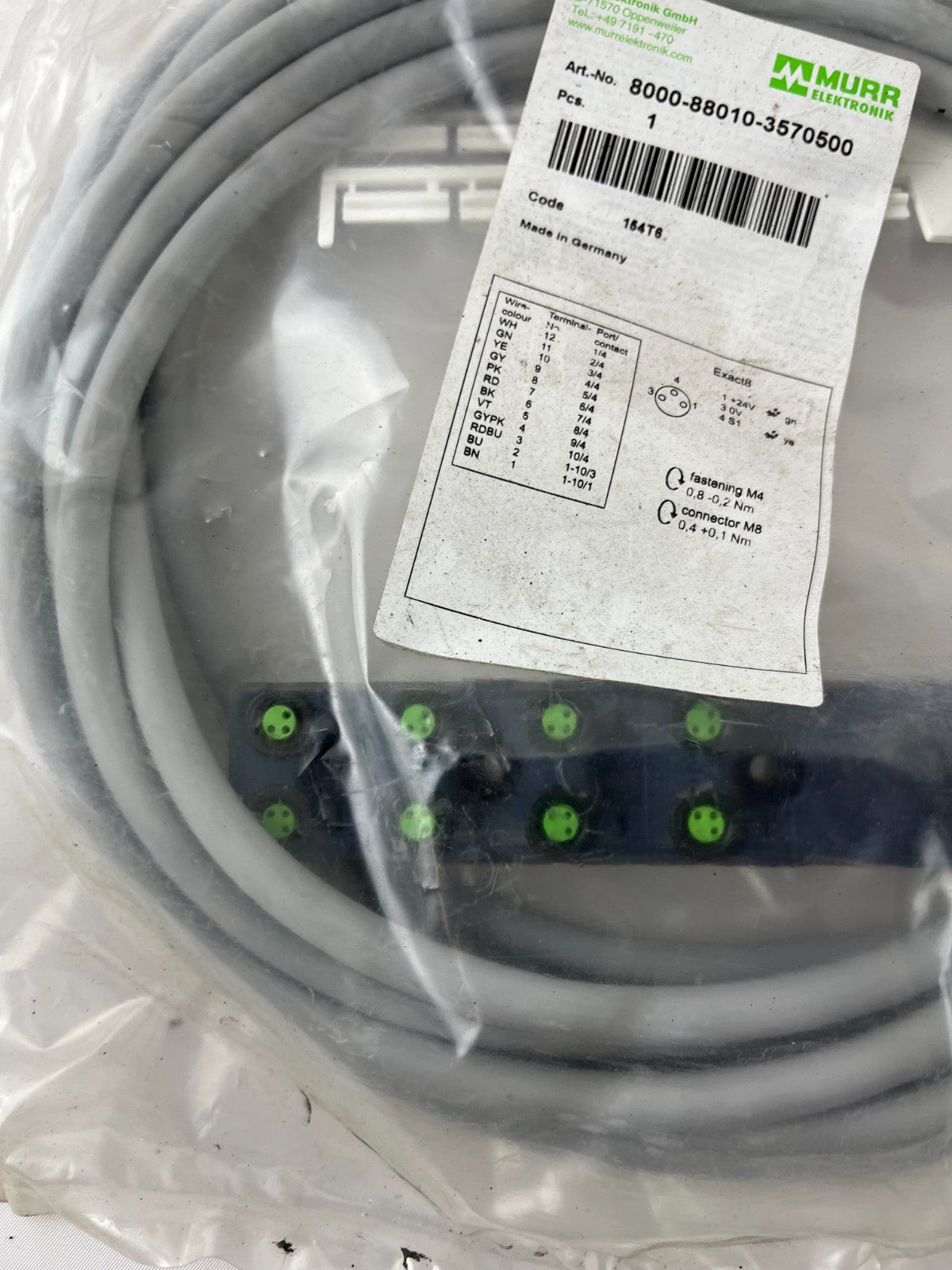

      • Number of ports: 8x M8 female sockets

      • Socket configuration: 3-pole (3-pin)

      • Cable length: 5.0 meters

      • Protection rating: IP65/IP67 when properly connected

      • Operating temperature: -20°C to +80°C

    • Cable Specifications

      • Cable type: PUR/PVC hybrid construction

      • Conductor configuration: 8 x 0.34mm² signal wires + 2 x 0.75mm² power wires

      • Outer diameter: 8.6mm

      • Cable weight: 115.5 g/m

      • Jacket material: PUR (polyurethane) outer, PVC inner

      • Shore hardness: 87 ± 5 Shore A

      • Jacket color: Gray

      • Color-coded wires: Brown, blue, violet, black, red, pink, gray, yellow, green, white

    • Features & Applications

      • Passive distribution system requiring no external power for the module itself

      • 30mm compact width allows installation in confined spaces

      • Plastic housing with excellent resistance to chemicals, oils, and industrial fluids

      • Flame retardant materials meeting IEC 60332-2-2 and UL standards

      • Pre-wired system eliminates field assembly errors and saves installation time

      • Ideal for valve islands, pneumatic controls, proximity sensors, photoelectric sensors

      • Suitable for factory automation, packaging machinery, conveyor systems

      • Can be surface mounted or installed on DIN rail with appropriate accessories

    • Additional Information

      • Country of origin: Germany

      • Weight: 0.688 kg

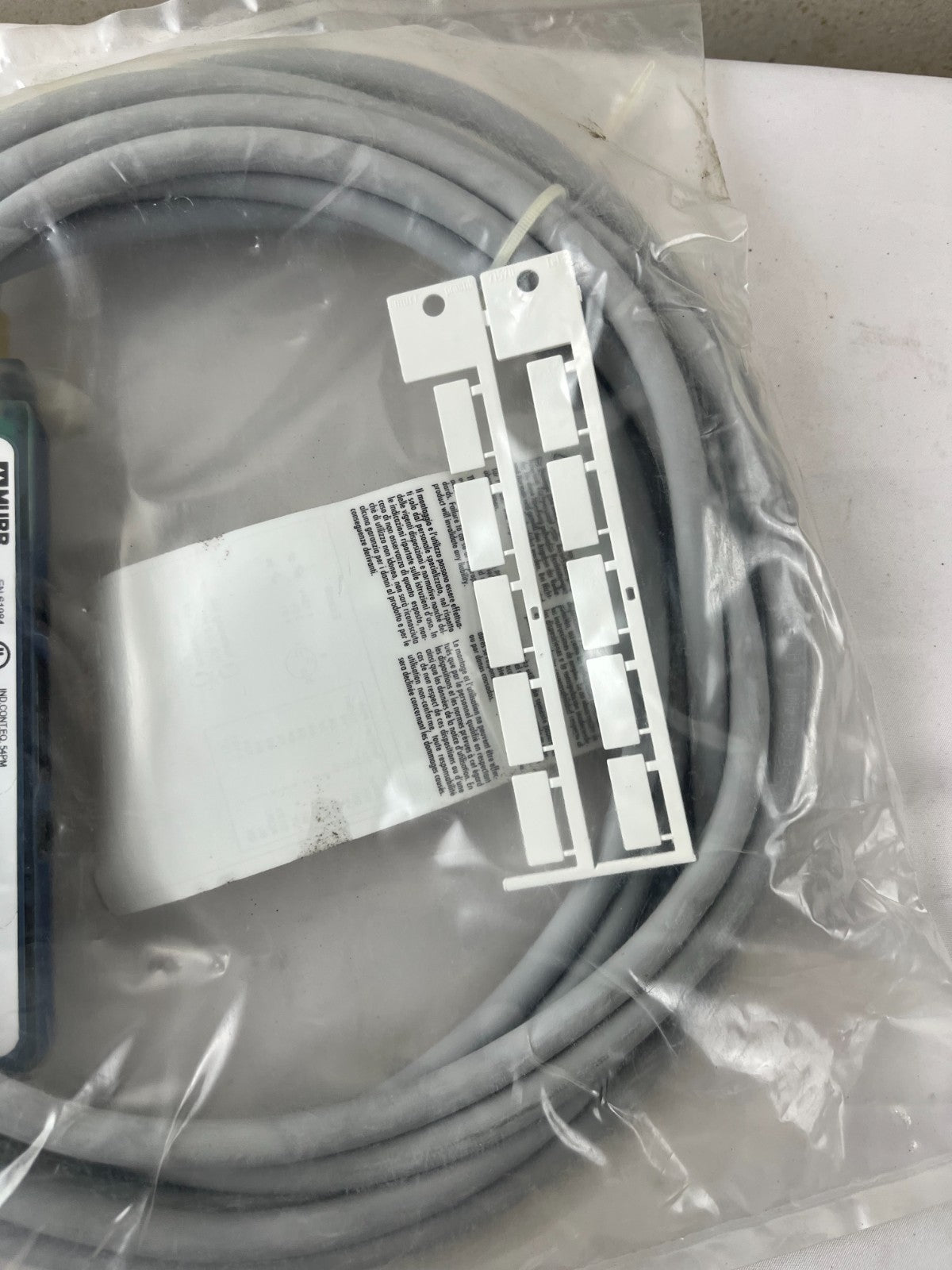

      • Includes mounting hardware and port identification labels

      • Cable suitable for both fixed installation and limited dynamic applications

      • Bending radius (fixed): 5x outer diameter; (dynamic): 10x outer diameter

      • Rated for 2 million bending cycles in cable track applications

      • Lead-free, cadmium-free, CFC-free, silicone-free materials

      • UL/cURus certified for North American applications
