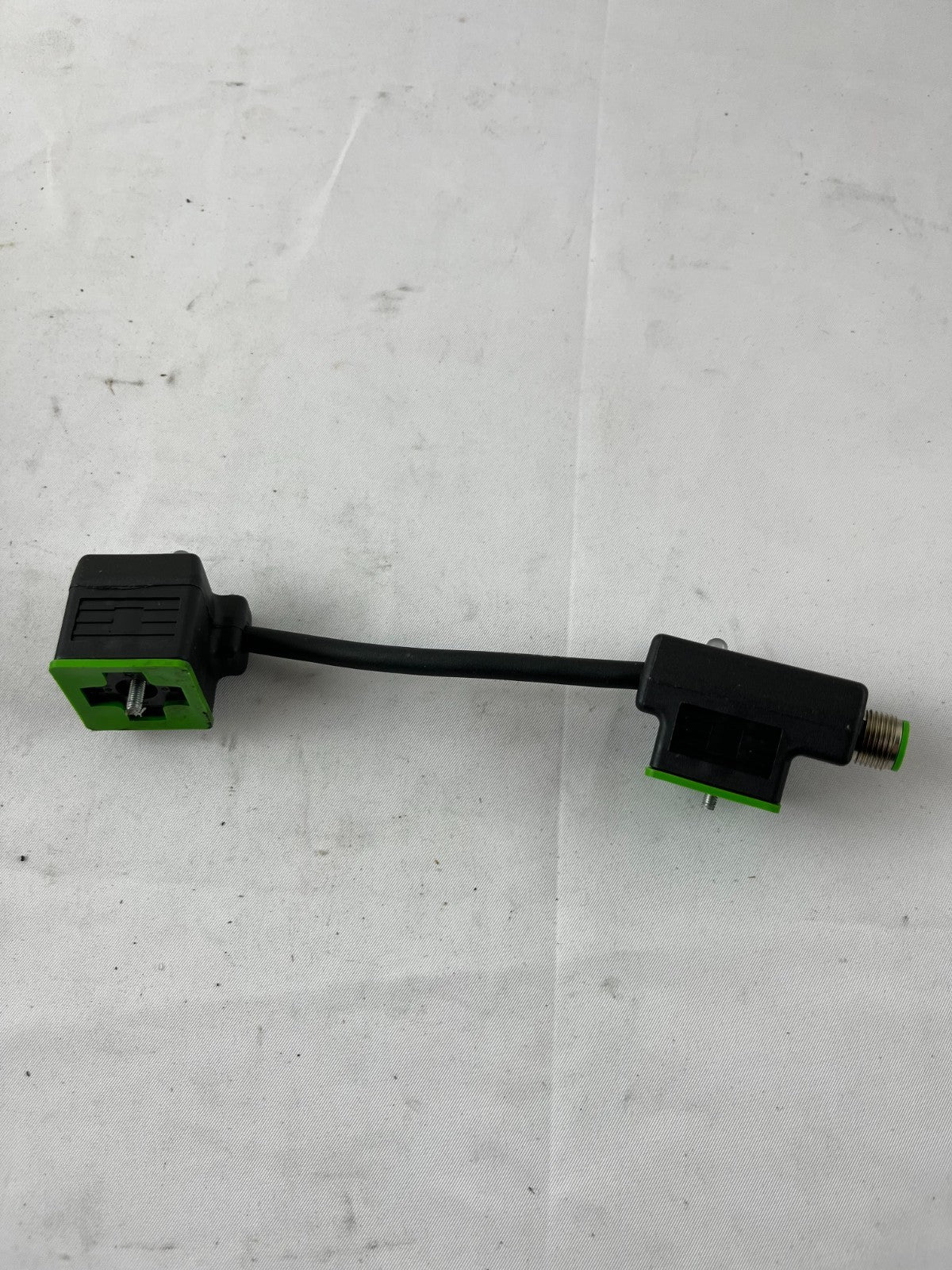

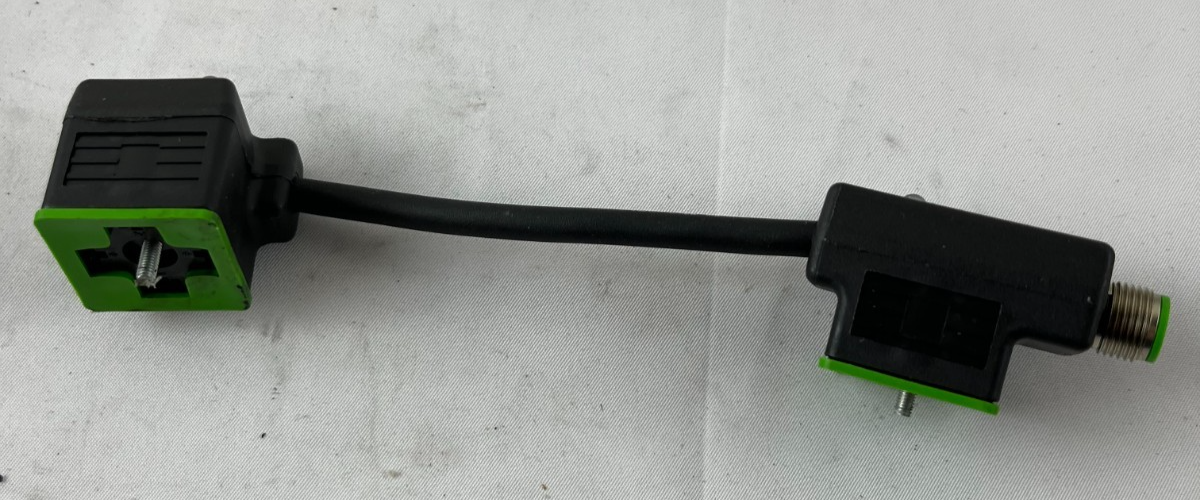

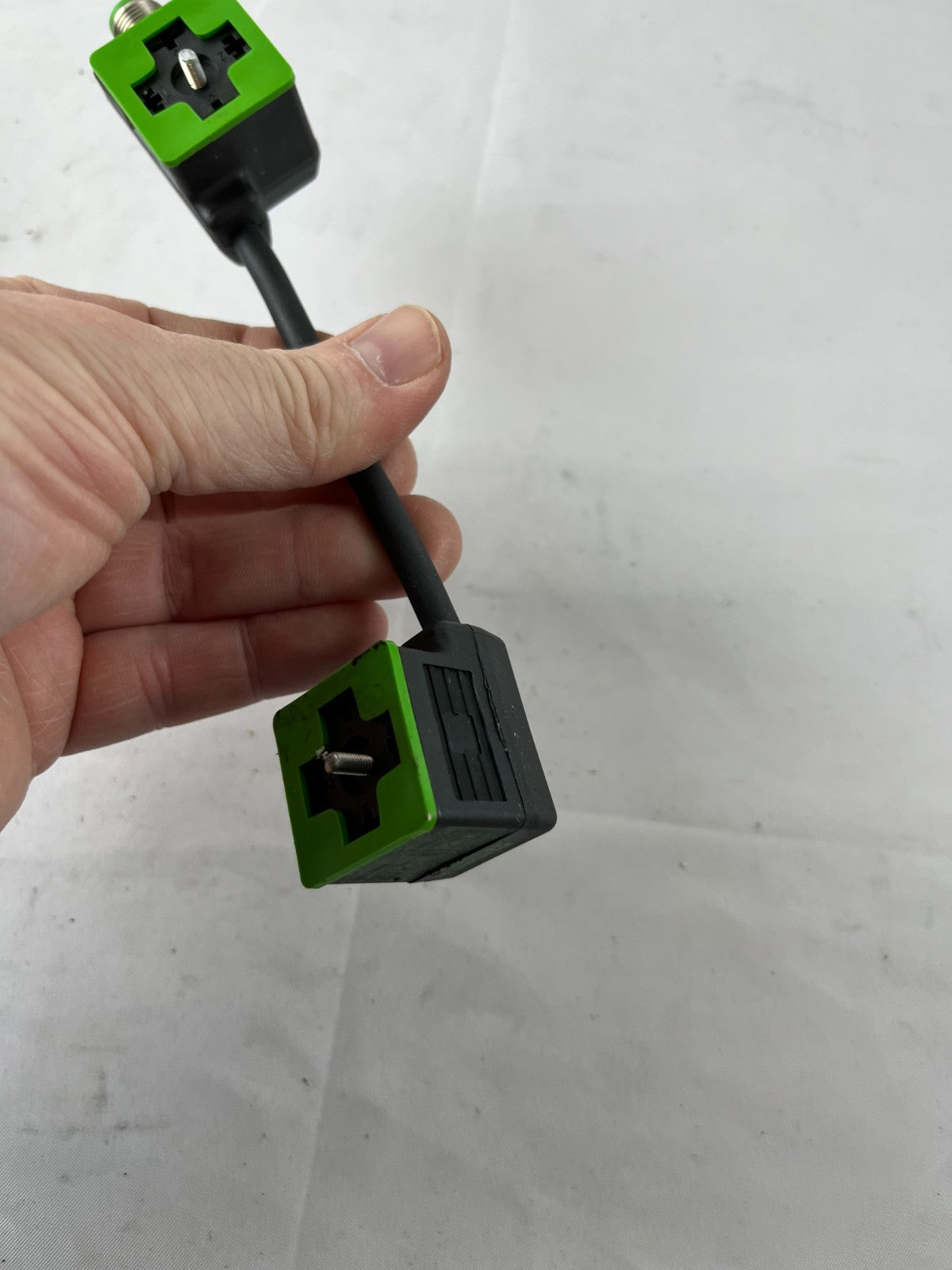

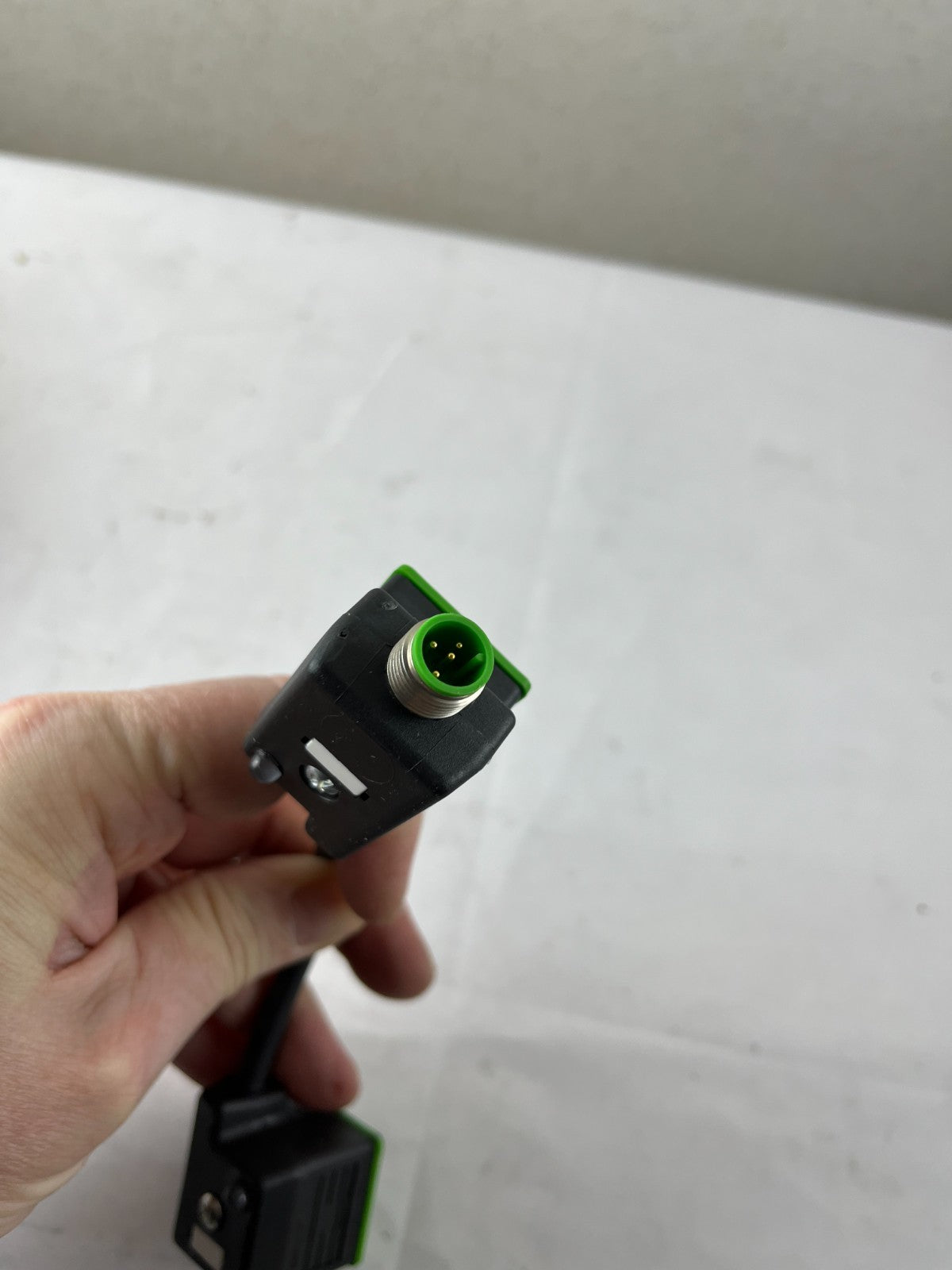

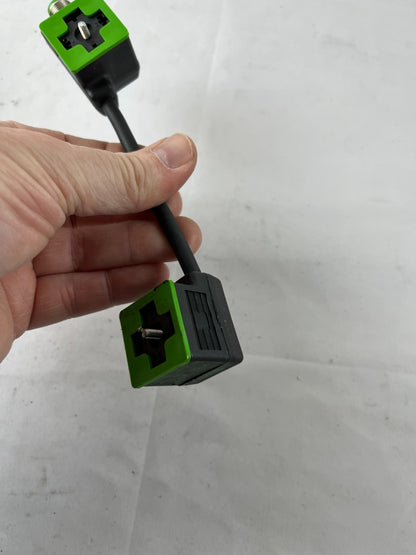

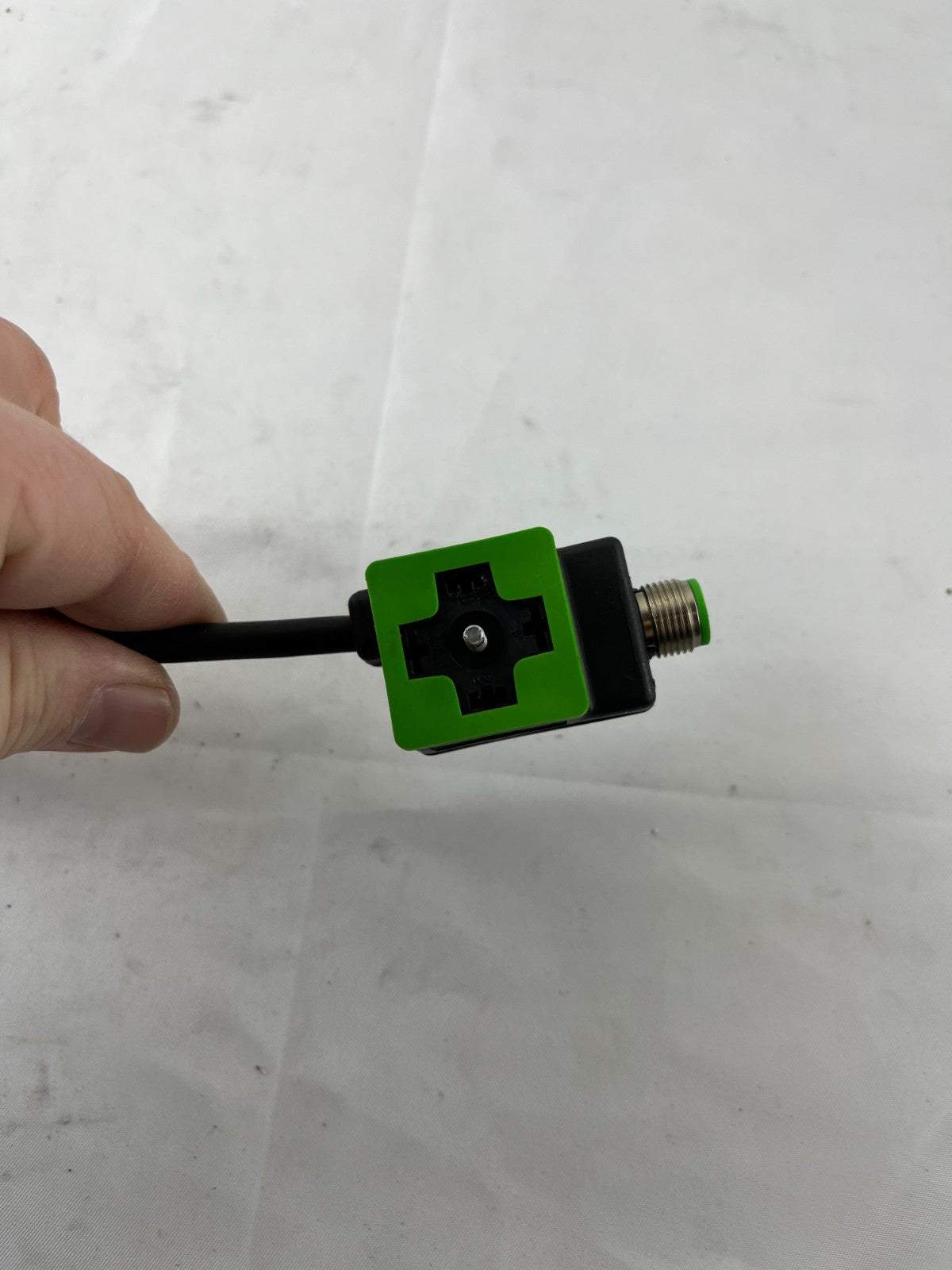

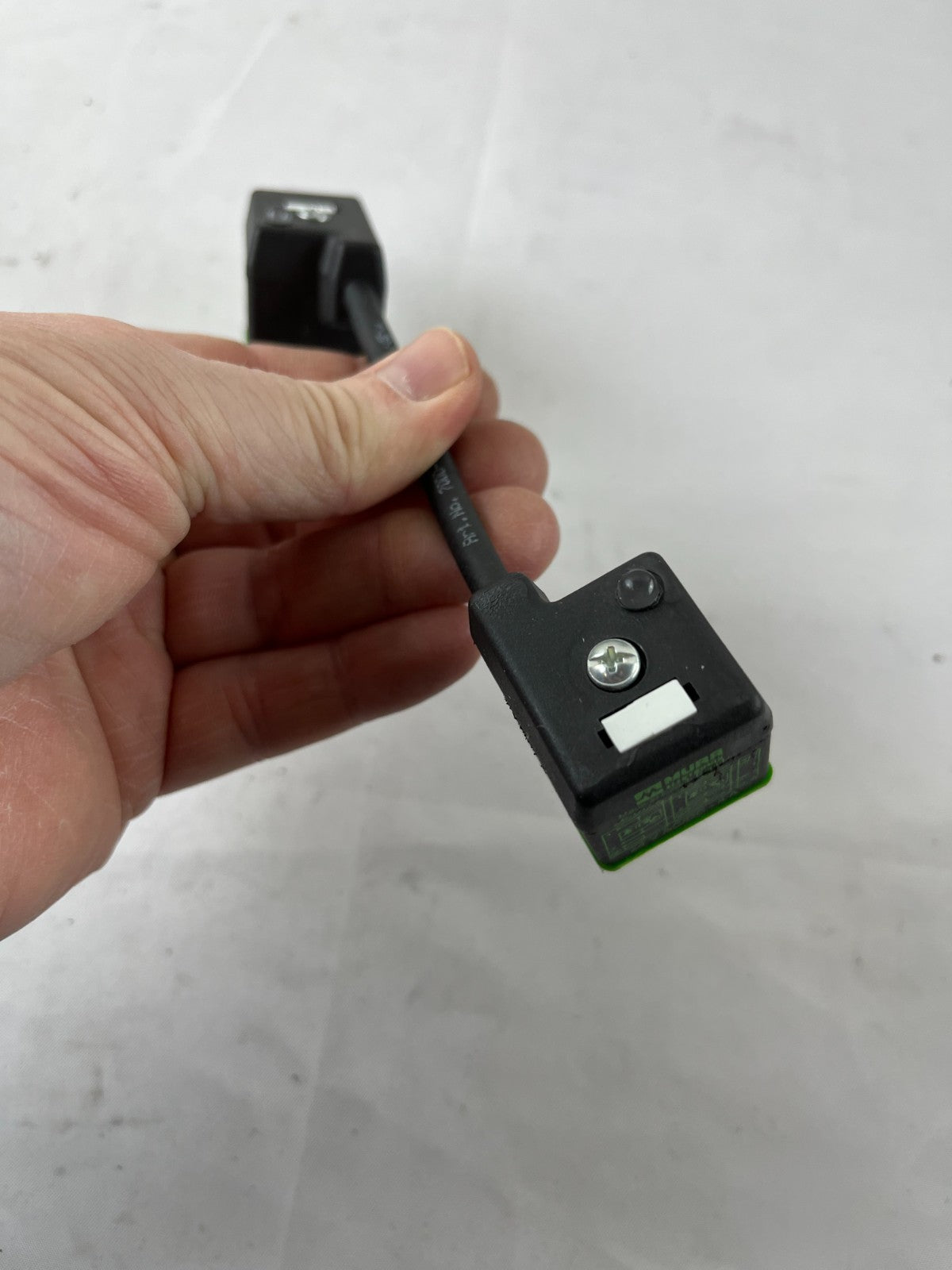

Murr Elektronik MSUD Double Valve Connector Cable 24V AC/DC 4A Form A Czech NEW

Murr Elektronik MSUD Double Valve Connector Cable 24V AC/DC 4A Form A Czech NEW

- Shipping includes tracking info worldwide. Klaus KLJ Trading

• Brand & Model

  • Manufacturer: Murr Elektronik, Czech Republic

  • Model: MSUD Double Valve Connector

  • Type: Dual valve plug cable assembly with LED indicators

  • Standard: DIN EN 175301-803 Form A (ISO 4400)

  • Condition: New, never used, fully functional

  • Made in Czech Republic

• Technical Specifications

  • Voltage rating: 24V AC/DC universal

  • AC voltage tolerance: Plus or minus 20 percent

  • DC voltage tolerance: Plus or minus 25 percent

  • Current rating: 4A maximum per valve connector

  • Number of valve connections: 2 independent valve plugs

  • Contact area: Form A 18mm pin spacing (27 x 27 mm)

  • Protection rating: IP65 when properly connected

• Cable Construction

  • Cable type: PUR or PVC insulated multi-conductor

  • Conductor cross-section: 4 x 0.75 mm² typical

  • Cable color: Black outer jacket

  • Cable length: Appears to be 1.5 to 5 meters based on similar models

  • Bending radius: 5x outer diameter for fixed installation

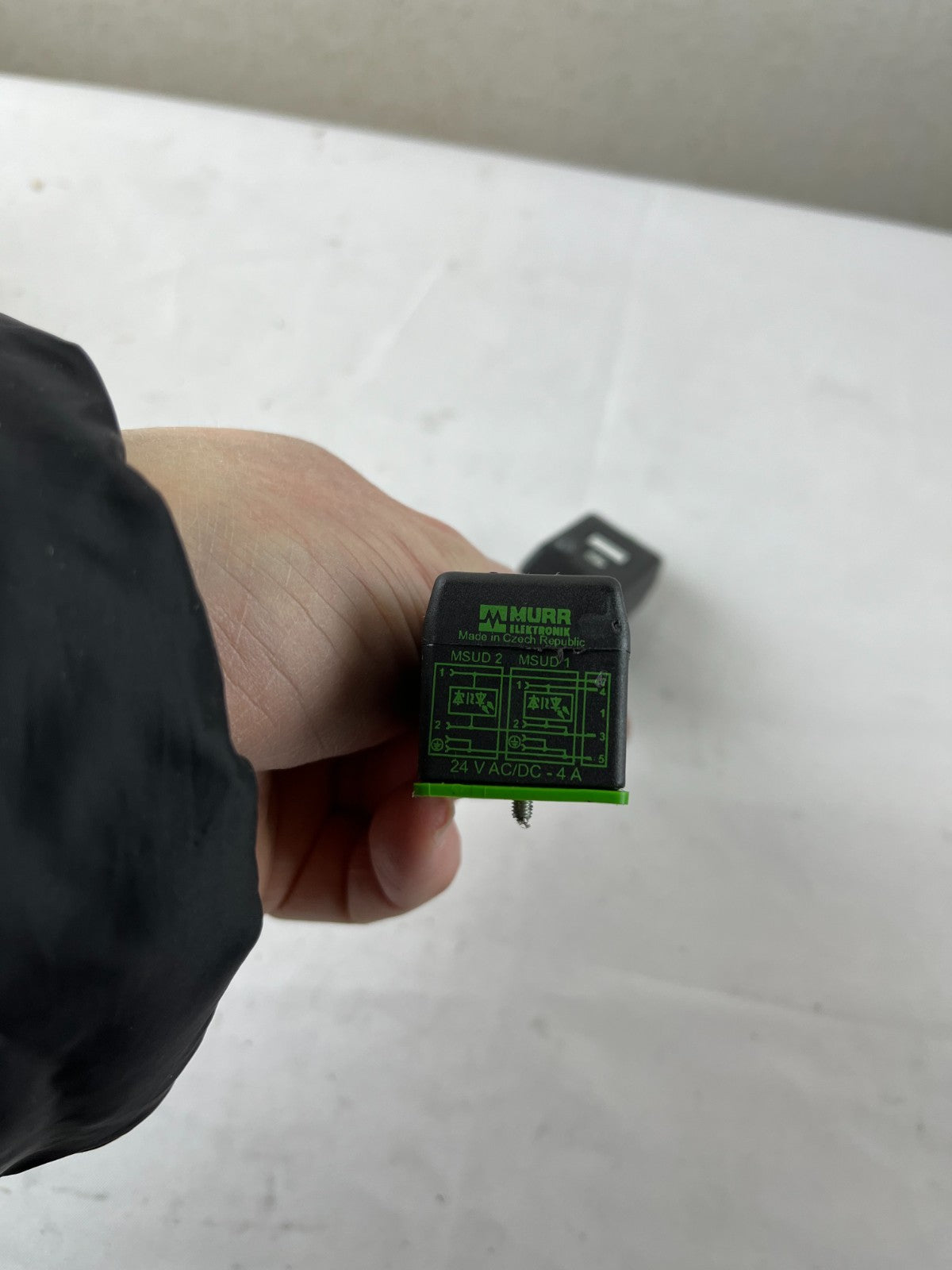

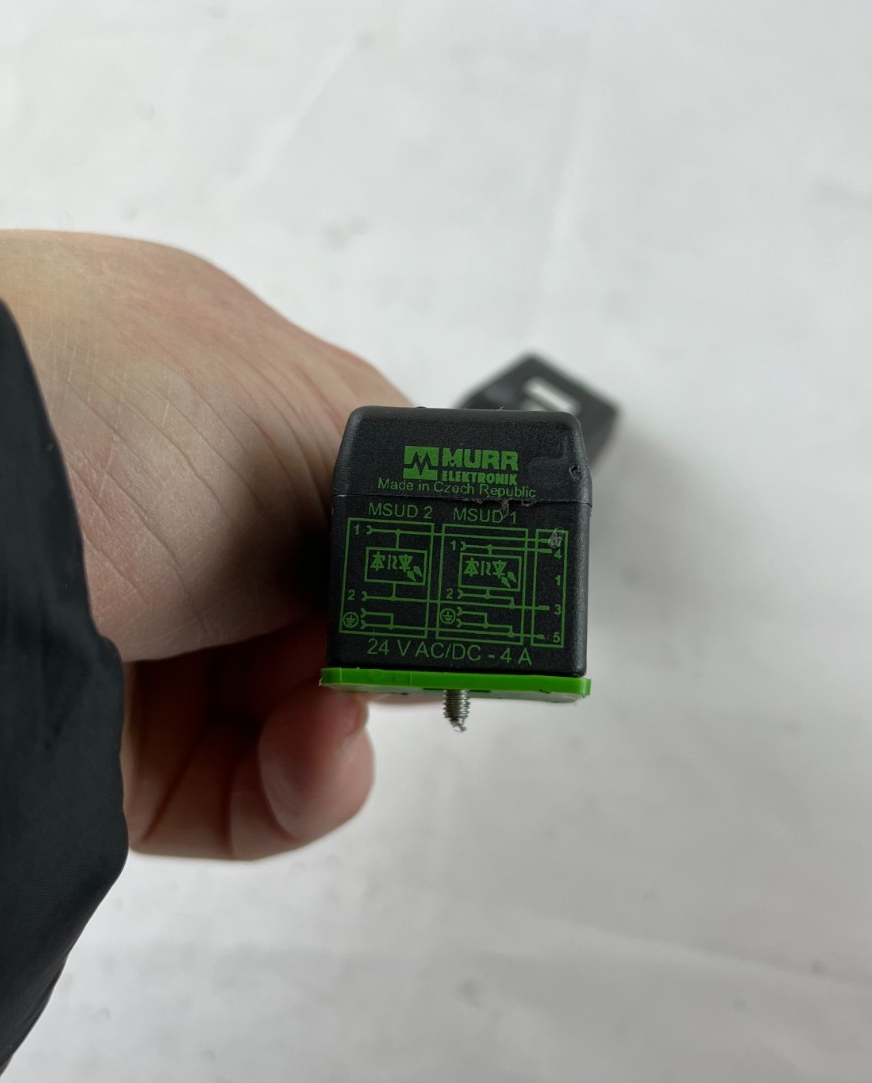

• LED Indicator Features

  • LED type: Green bidirectional light-emitting diodes

  • LED function: Visual indication of voltage presence on each coil

  • LED housing: Bright green translucent frames for high visibility

  • Individual LED for each valve: MSUD 1 and MSUD 2 independently monitored

  • Electrical protection: Integrated Z-diodes for voltage spike protection

• Wiring Configuration

  • Pin 1: Positive supply (brown wire typical)

  • Pin 2: Negative/ground (blue wire typical)

  • Pin 3: Protective earth (green/yellow typical)

  • Parallel wiring: Both valves share common power supply

  • Contact material: Gold-plated copper pins for reliable conductivity

• Housing Construction

  • Material: Polyamide (PA) glass-fiber reinforced plastic

  • Housing color: Black with bright green LED indicator frames

  • Mounting: 90-degree cable exit for space-saving installation

  • Locking mechanism: Internal screw lock prevents accidental disconnection

  • Operating temperature: -10°C to +60°C

  • Storage temperature: -25°C to +70°C

• Compatibility

  • Compatible with Murr Form A 18mm valve coils and connectors

  • Works with standard EN 175301-803 Form A solenoid valves

  • Suitable for ASCO, Parker, Festo, Norgren, Bosch Rexroth valves with Form A interface

  • Universal replacement for double valve connector applications

  • Ideal for valve manifolds requiring dual independent control

• Features & Applications

  • Dual valve control from single cable reduces wiring complexity

  • Independent LED indicators for each valve simplify troubleshooting

  • Space-saving double connector design reduces cabinet space requirements

  • 90-degree cable exit allows horizontal or vertical mounting

  • Ideal for pneumatic valve islands, hydraulic manifolds, process control

  • Common in factory automation, packaging machinery, material handling

  • Perfect for applications requiring synchronized or sequential valve operation

• Additional Information

  • CE marked for European compliance

  • cCSAus certified for North American markets

  • RoHS compliant, lead-free construction

  • Pre-wired design eliminates field wiring errors

  • Robust construction withstands industrial vibration and temperature cycling

  • Green LED frames easily distinguished from red indicators in mixed systems

  • Screw-lock connection ensures vibration-resistant mounting
