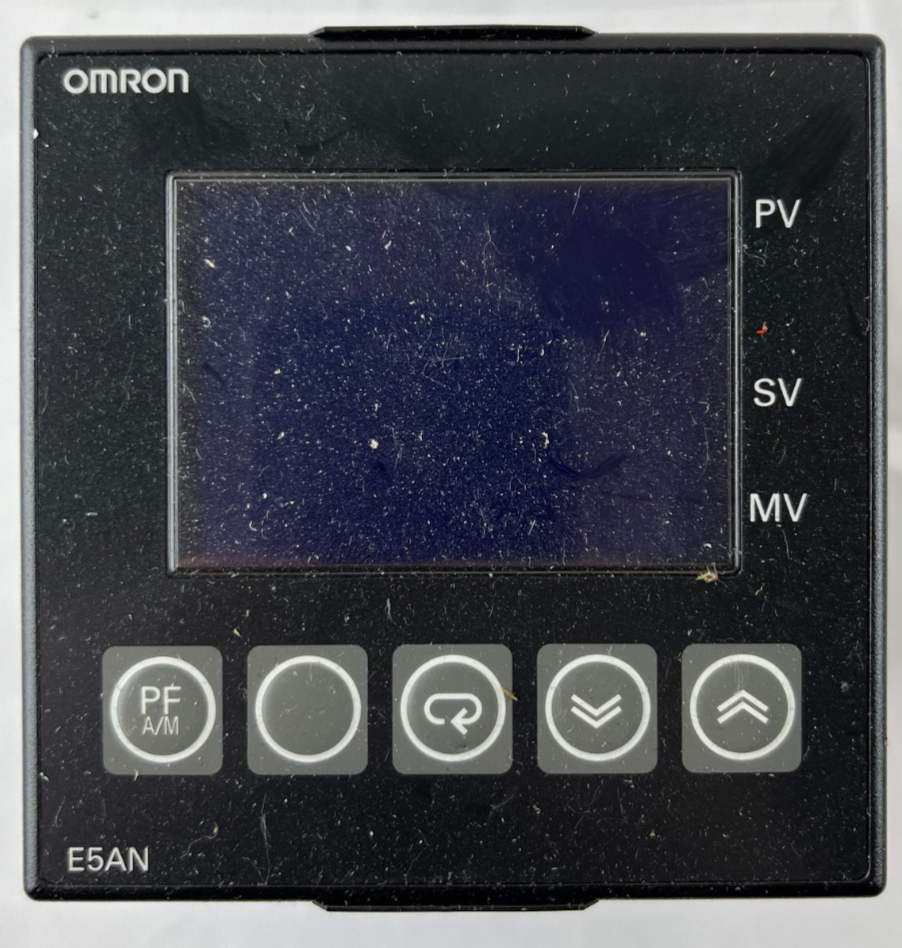

Omron E5AN-Q3HMT-500-N Digital Temperature Controller PID 96x96mm 3-Output USED

Omron E5AN-Q3HMT-500-N Digital Temperature Controller PID 96x96mm 3-Output USED

- Shipping includes tracking info worldwide. Klaus KLJ Trading

Used Omron E5AN Series Digital Temperature Controller - Removed from Working Equipment

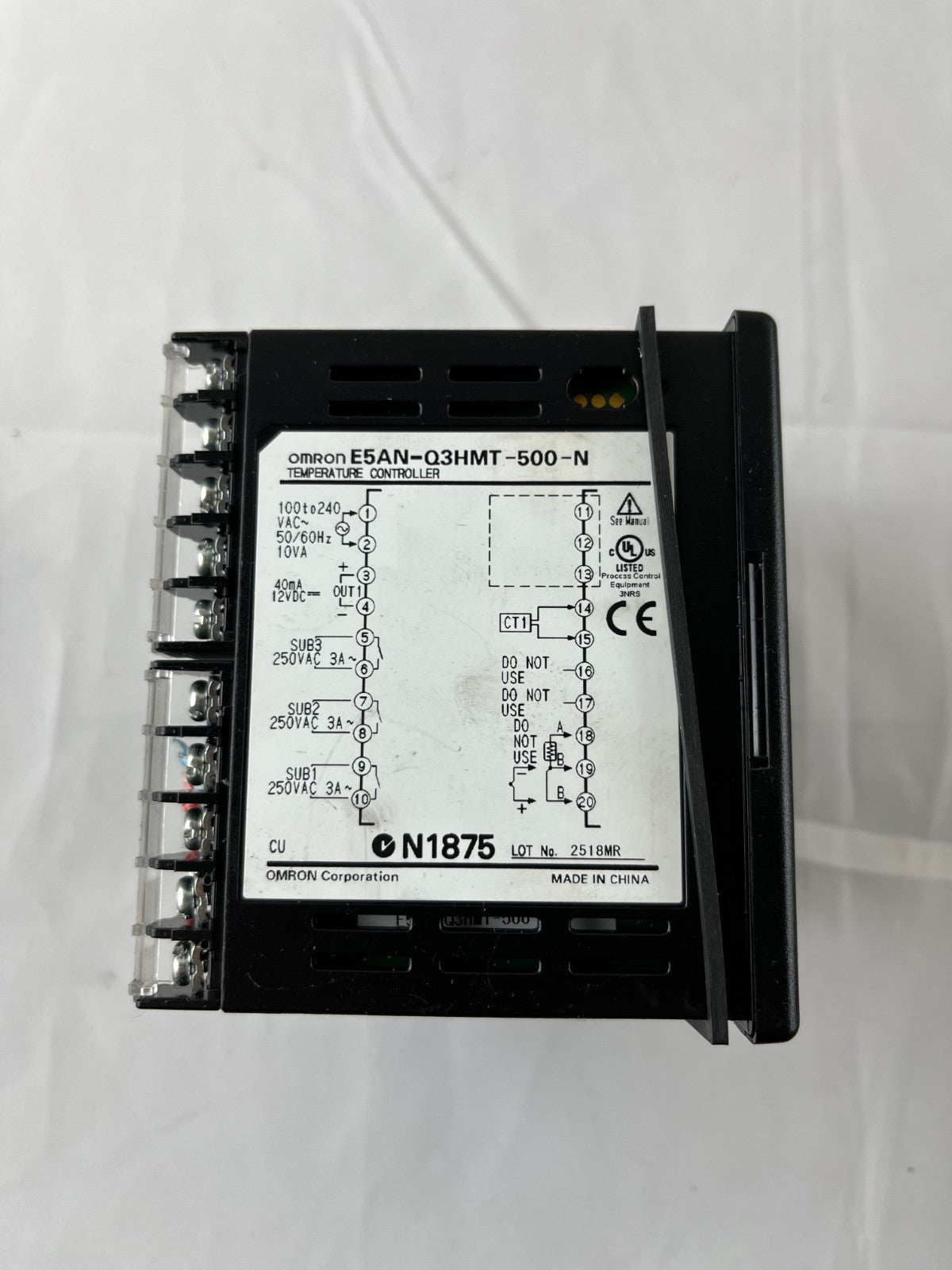

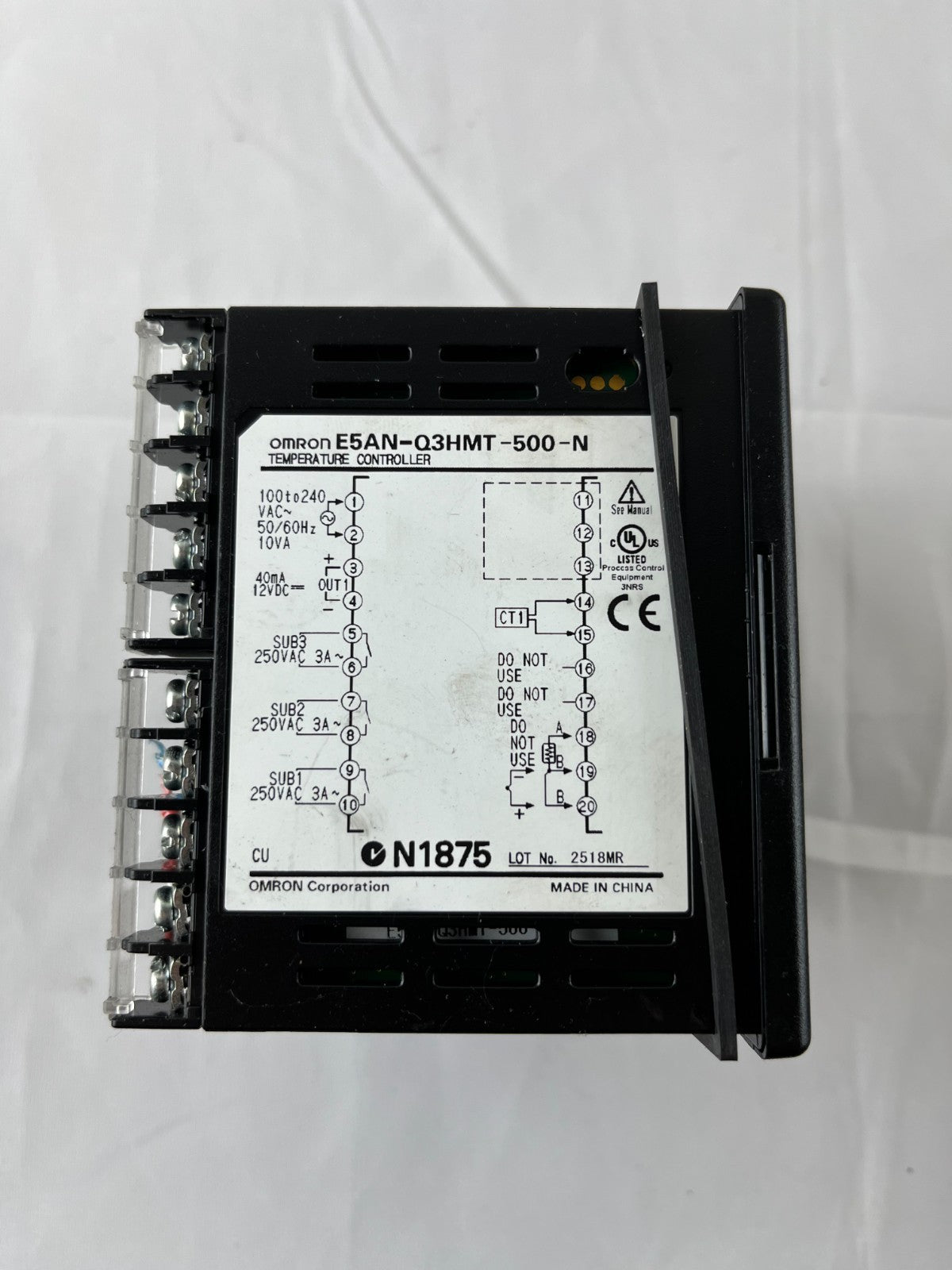

• Model: E5AN-Q3HMT-500-N

• Lot Number: 2518MR (Made in China)

• Manufacturer: Omron

• Series: E5AN Basic Temperature Controller​

• Size: 96 × 96mm (1/4 DIN) panel cutout​

• Display: 3-level digital display (PV/SV/MV) with 5 digits for PV and SV, 4 digits for MV​

• Control Method: PID control with auto-tuning (AT) and self-tuning (ST)​

• Input Type: "HMT" indicates universal thermocouple/RTD input​

  • Supports K, J, T, E, R, S, B, N, W, L, U, PL II thermocouples

  • Also supports Pt100/JPt100 platinum resistance thermometers

• Outputs: 3 dedicated outputs (Q3 designation)​

  • Control output 1: Relay output​

  • Output 2 & 3: Additional control/alarm outputs​

• Model Suffix: "HMT" indicates heating/cooling control with multi-output capability​

• Power Supply: 100-240VAC 50/60Hz 10VA​

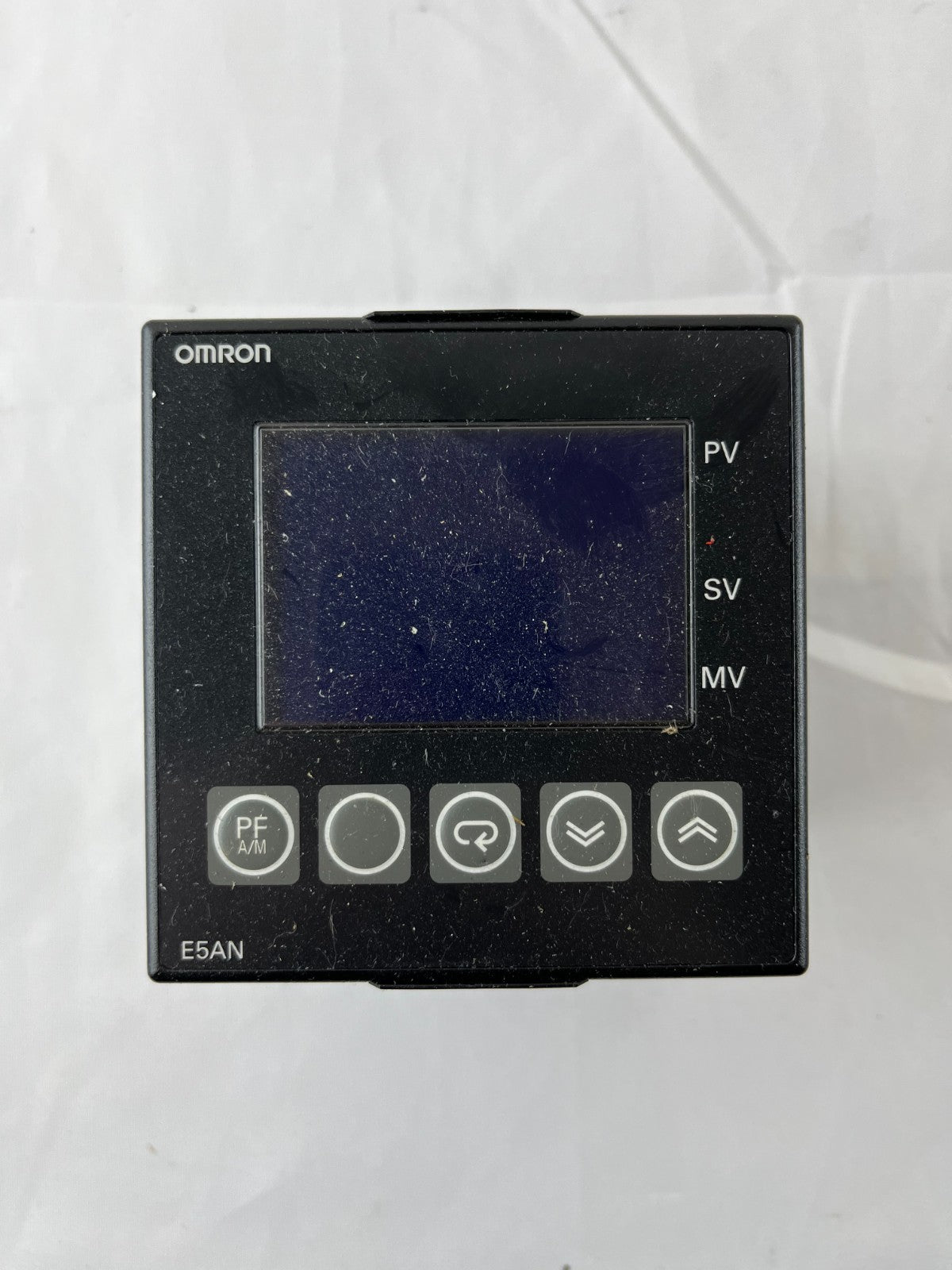

• Front Panel Buttons: 5-button interface (PF A/M, mode, reset, down, up) for easy programming

• Terminal Cover: -500-N suffix indicates supplied with terminal cover and N-type certification​

• Indication Accuracy: Enhanced accuracy for improved temperature control​

• Operating Temperature: -10°C to +55°C​

• Certifications: CE, UL, JNRS certified

• Lot Code: N1875

Features:

• Universal Input: Accepts multiple thermocouple and RTD types without hardware changes​

• 3 Outputs: Provides dedicated control and alarm outputs for complex temperature control applications​

• Heating/Cooling Control: "HMT" model supports both heating and cooling control for precise temperature management​

• 3-Level Display: Simultaneous display of process value, setpoint, and manipulated variable​

• Large 96×96mm Display: Easy-to-read display for industrial environments​

• PID Auto-Tuning: 40% and 100% AT options optimize control parameters​

• Advanced Functions: Bank switching (8 banks), heater burnout detection, SP ramp, MV limiter, and preventive maintenance functions​

• Relay Output: Robust relay control output for direct load switching​

• Run/Stop Function: External control capability with protection functions​

The Omron E5AN series represents enhanced basic temperature control with 96×96mm format, improved indication accuracy, and preventive maintenance functions. The 3-output configuration allows for sophisticated control schemes with alarm and auxiliary functions.​

Applications: Industrial ovens, furnaces, heat treatment, plastic molding, packaging machinery, food processing equipment, environmental chambers, laboratory equipment, semiconductor processing, and heating/cooling control systems requiring multiple outputs.

Condition: Used, Removed from Working Equipment, Good Condition
