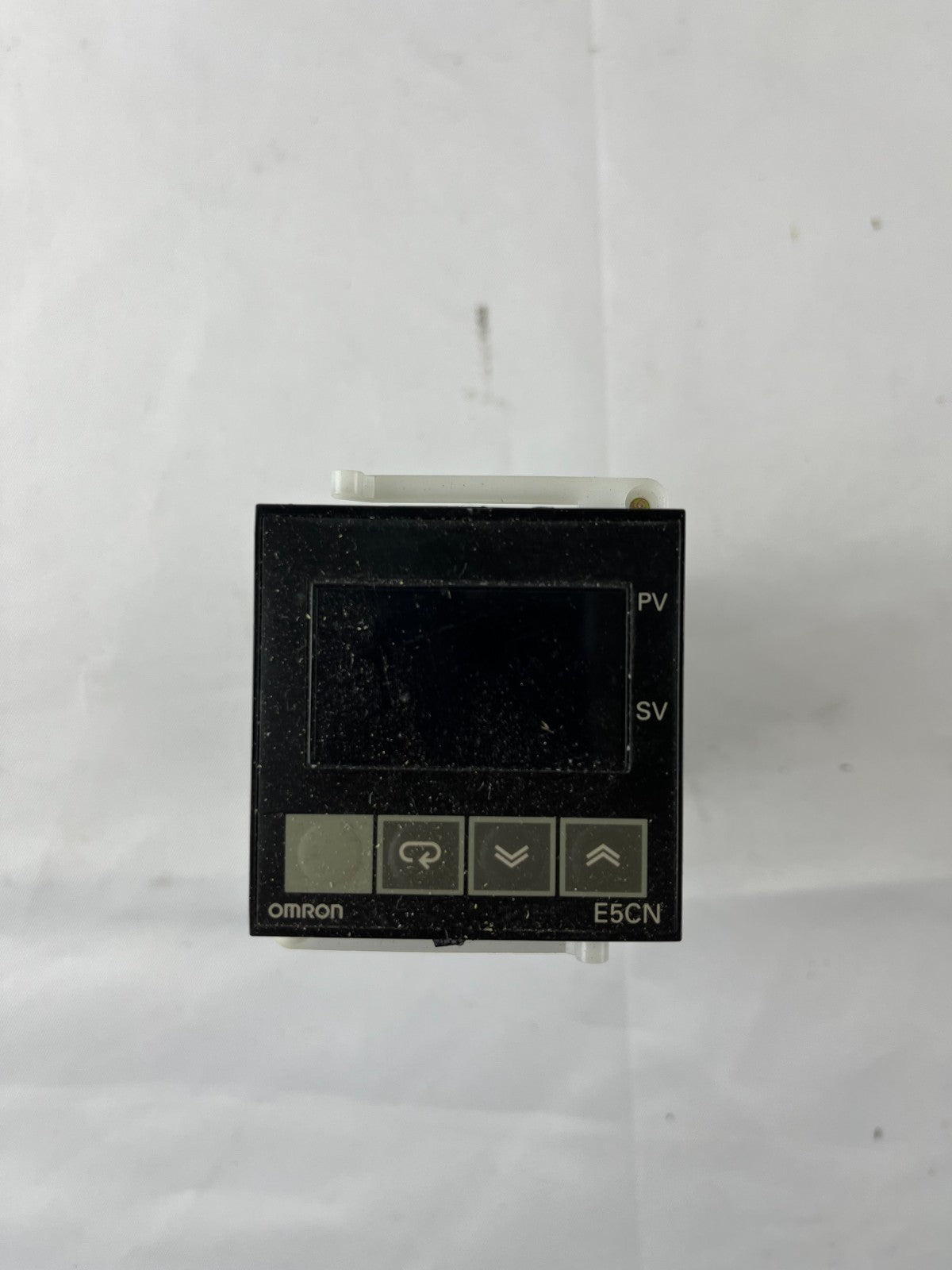

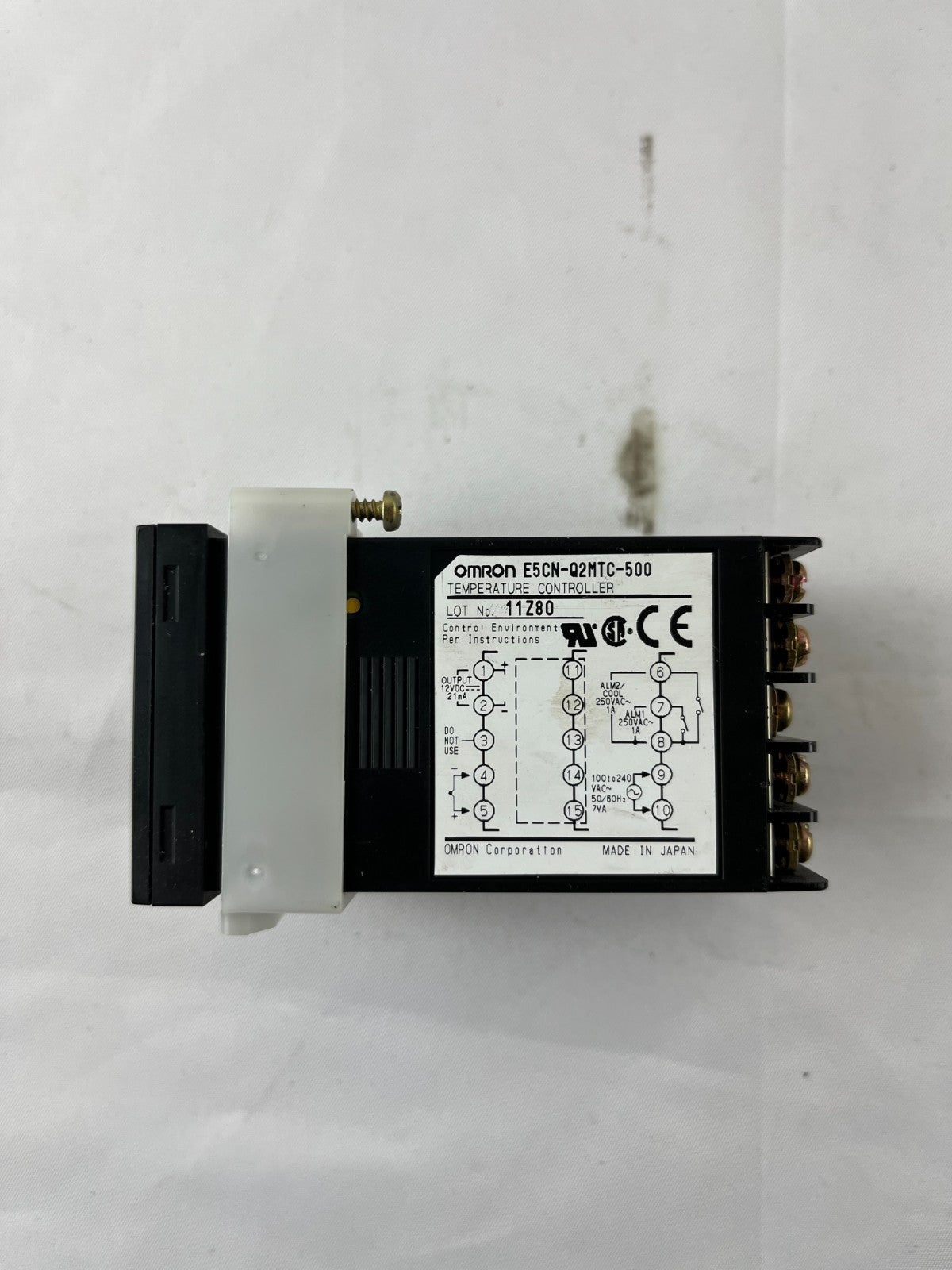

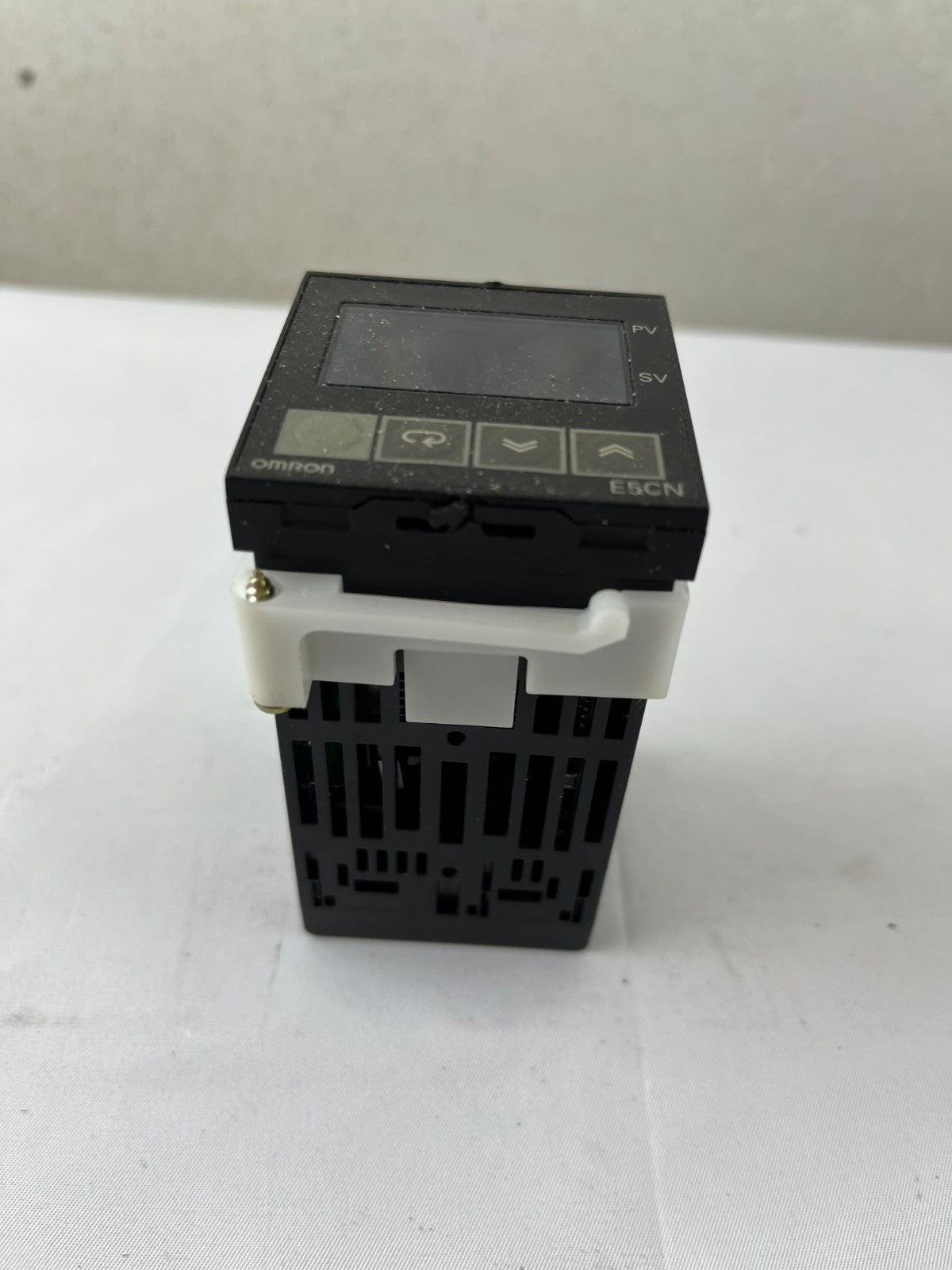

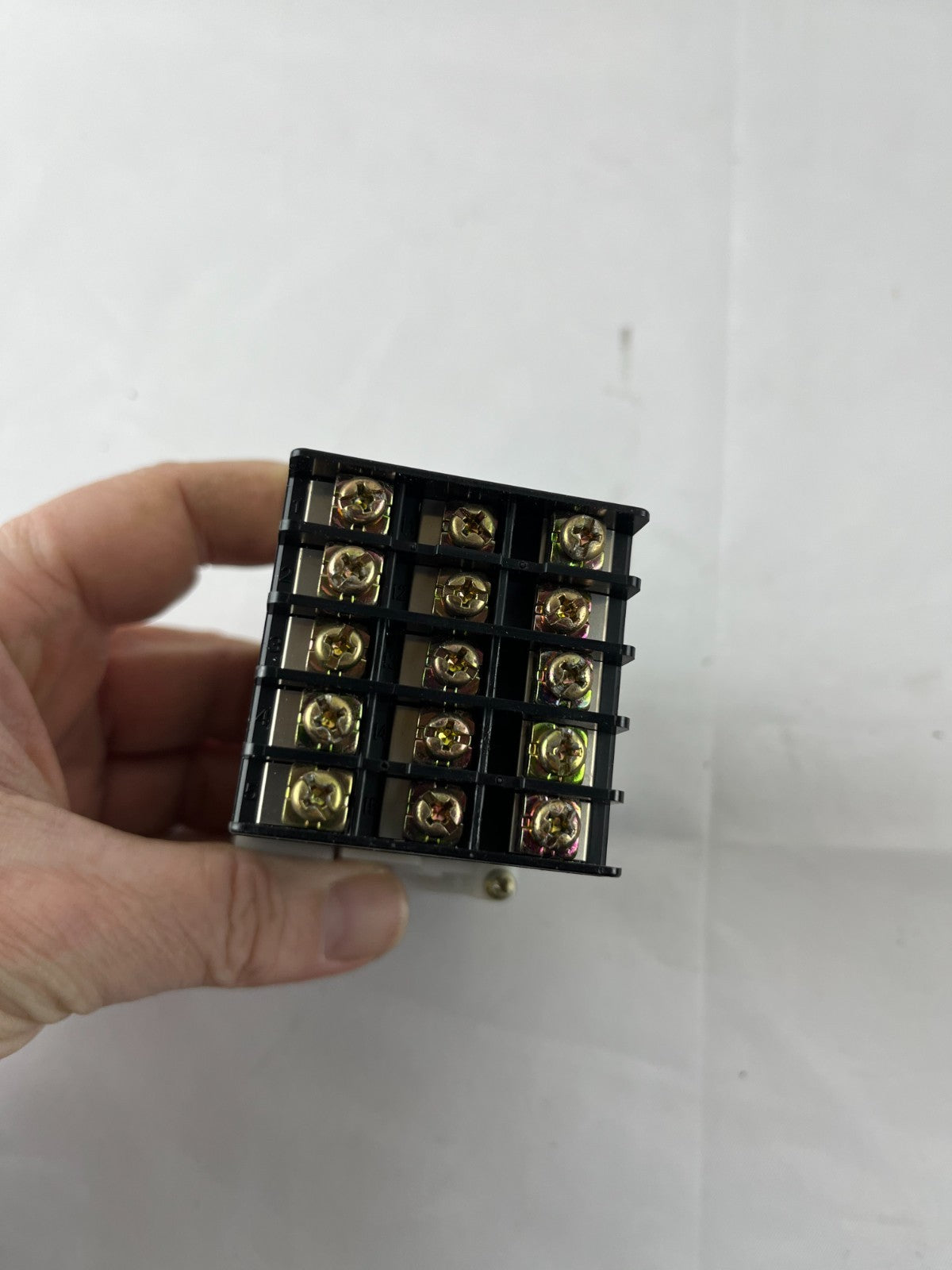

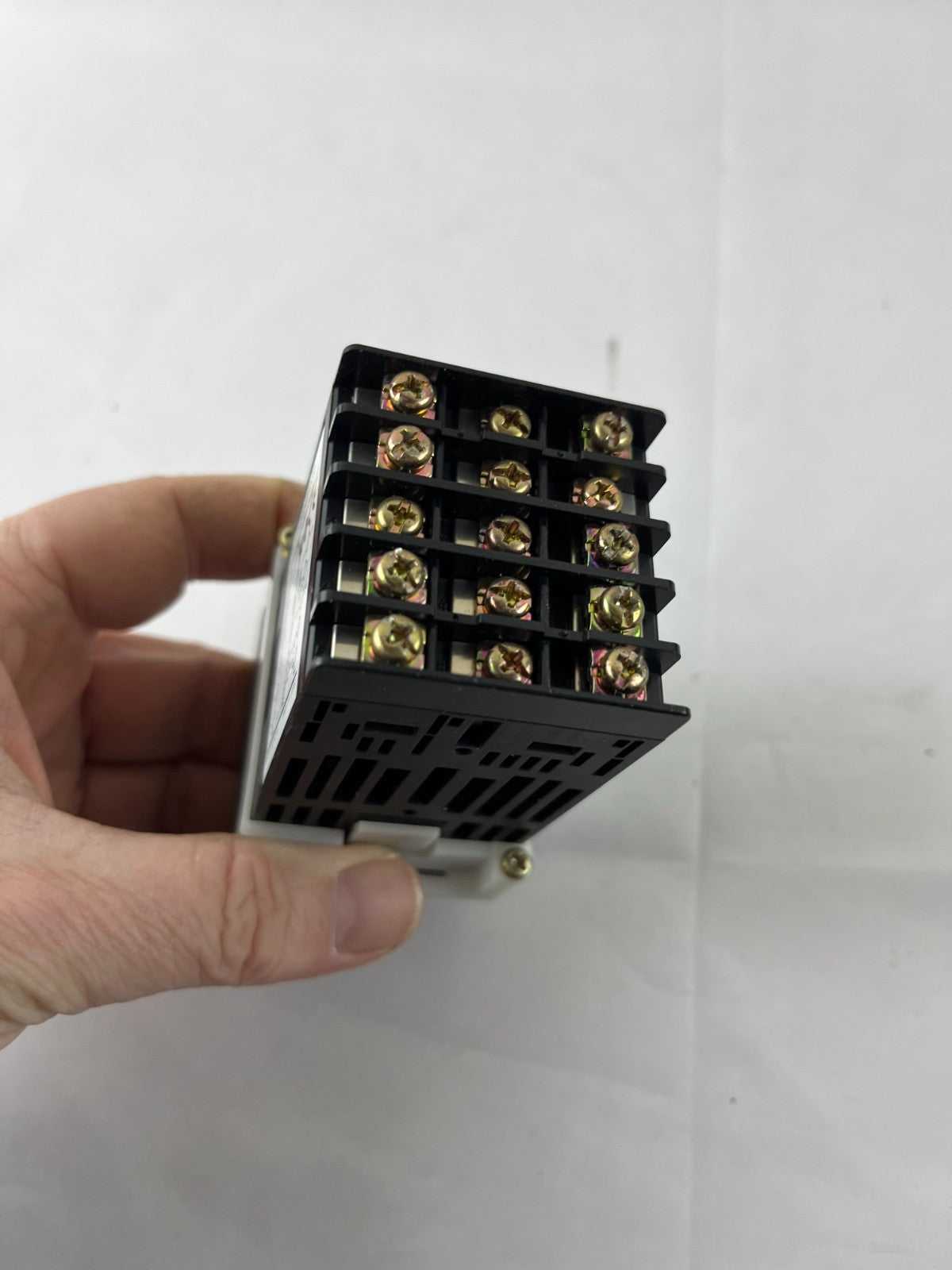

Model: E5CN-Q2HTC-500
-

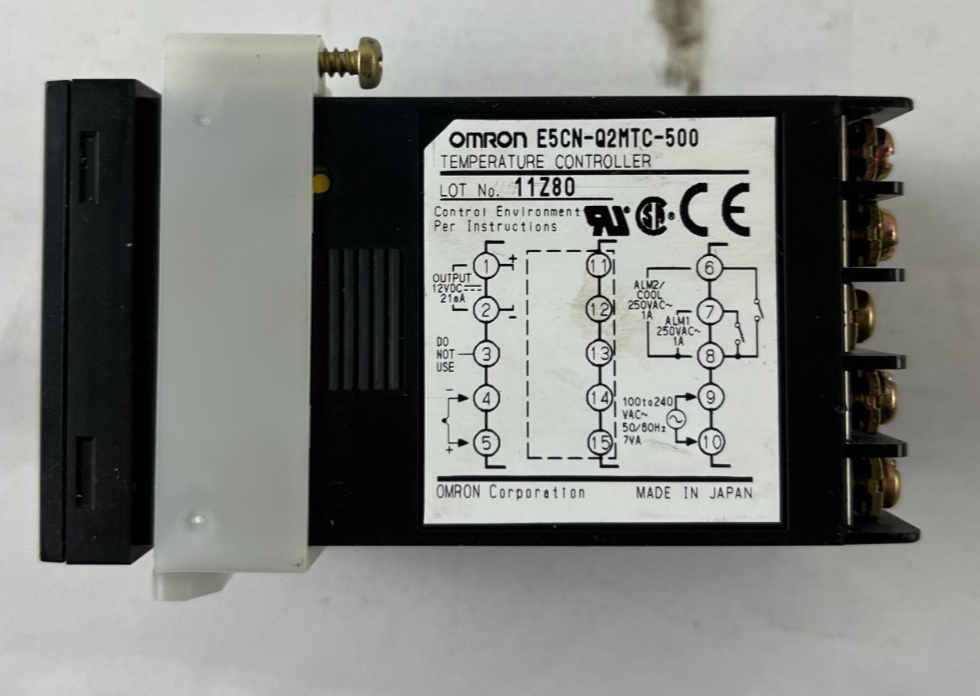

LOT Number: 11280
-
Panel Size: 48 × 48 mm (1/16 DIN)
-

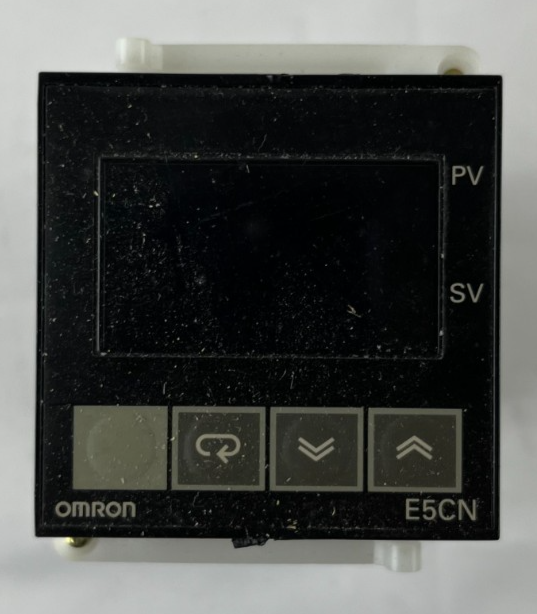

Display: Dual 11-segment digital LCD (PV: 11mm, SV: 6.5mm character height)
-
Input Types: Universal - Thermocouple (K/J/T/E/L/U/N/R/S/B/W/PL II), Platinum RTD (Pt100/JPt100)
-
Temperature Range: -200°C to 2,300°C (depending on sensor type)
-
Control Mode: ON/OFF or 2-PID control with auto-tuning
-
Power Supply: 100-240 VAC, 50/60 Hz (85-110% operating range)
-
Power Consumption: 7.5 VA max
-
Control Output: Relay output (SPST-NO, 250 VAC, 3A resistive load)
-
Heater Burnout Detection: Built-in with current transformer monitoring (0.1-49.9A range)
-
Auxiliary Outputs: 2 × alarm relay outputs (250 VAC, 3A)
-
Event Inputs: 2 × programmable inputs
-
Accuracy: ±0.5% or ±1°C (whichever is larger) ±1 digit
-
Sampling Period: 500 ms
-
Panel Depth: 78 mm
-
Operating Temperature: -10°C to 55°C
-
Front Panel Protection: IP66 (NEMA4X)
-
Features: Auto-tuning, self-tuning, multi-SP (4 setpoints), heater burnout alarm, SSR failure detection, SP ramp, key protection, manual output control, loop burnout alarm
-
Memory: Non-volatile memory (1,000,000 write cycles)
-
Certifications: UL, CSA, CE
-
Country of Origin: Made in Japan
This advanced temperature controller offers precise PID control with intelligent auto-tuning. The heater burnout detection feature monitors heater current and triggers an alarm if the current falls below the set threshold, protecting against heater failure. The large LCD display ensures excellent visibility. Perfect for industrial heating, plastic molding, food processing, and other applications requiring reliable temperature control with safety monitoring.
