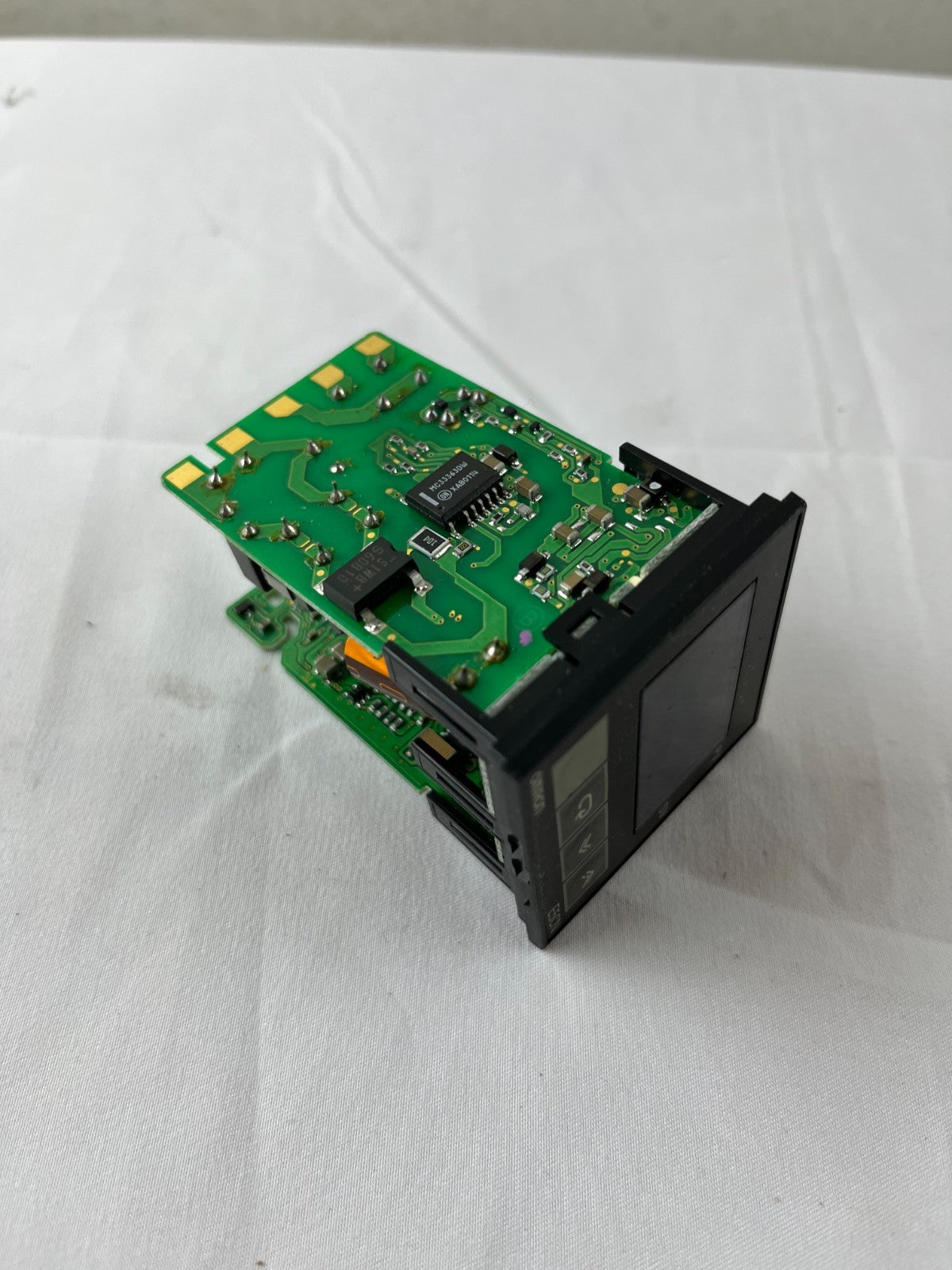

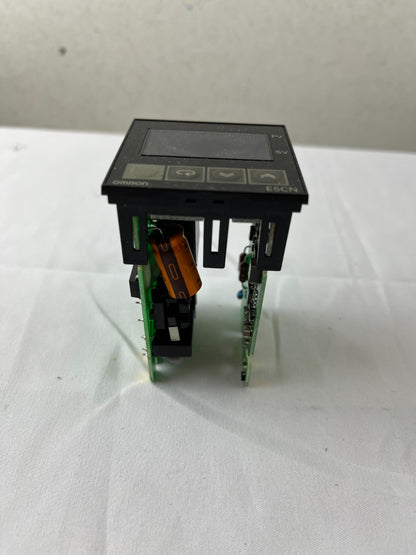

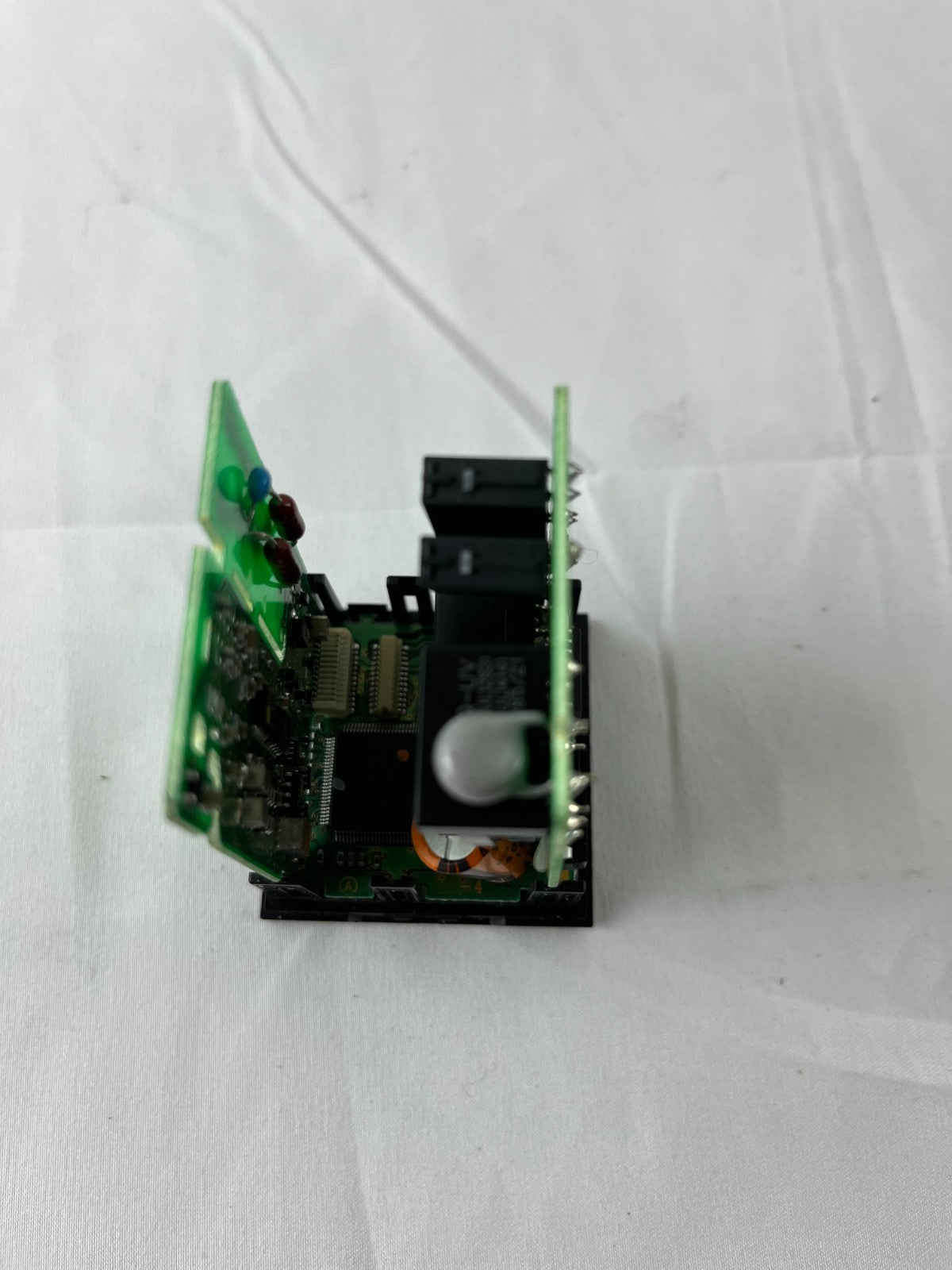

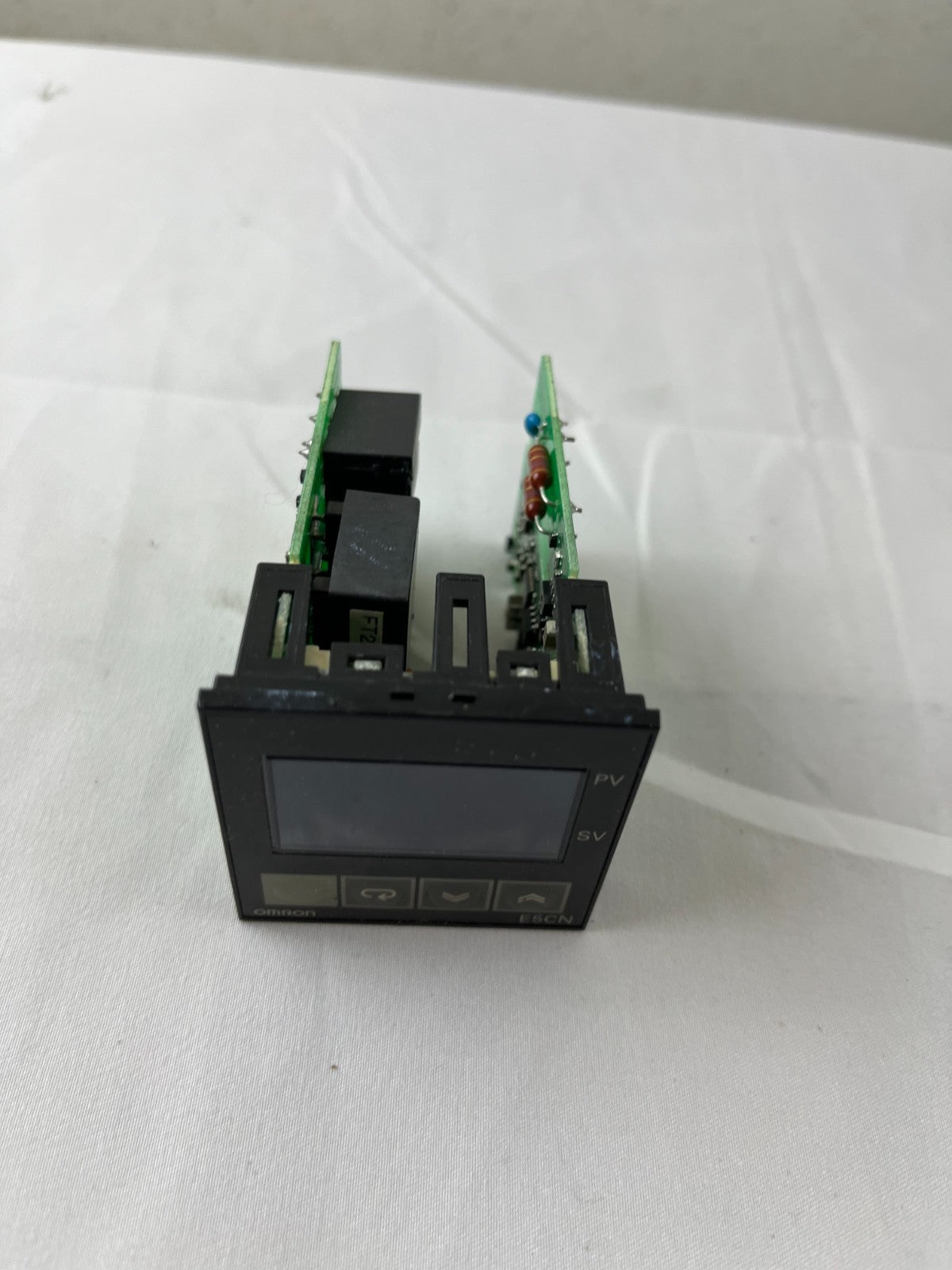

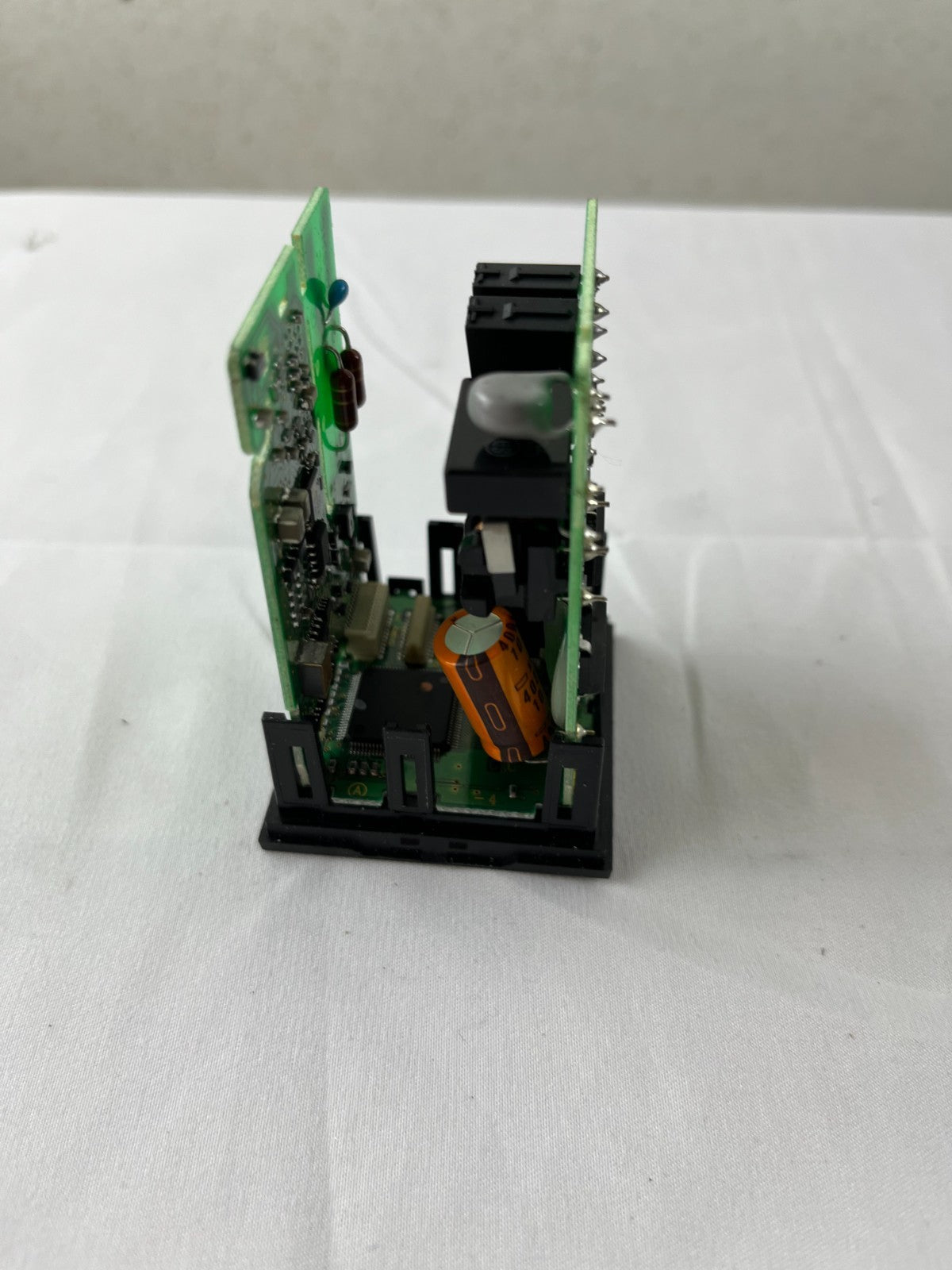

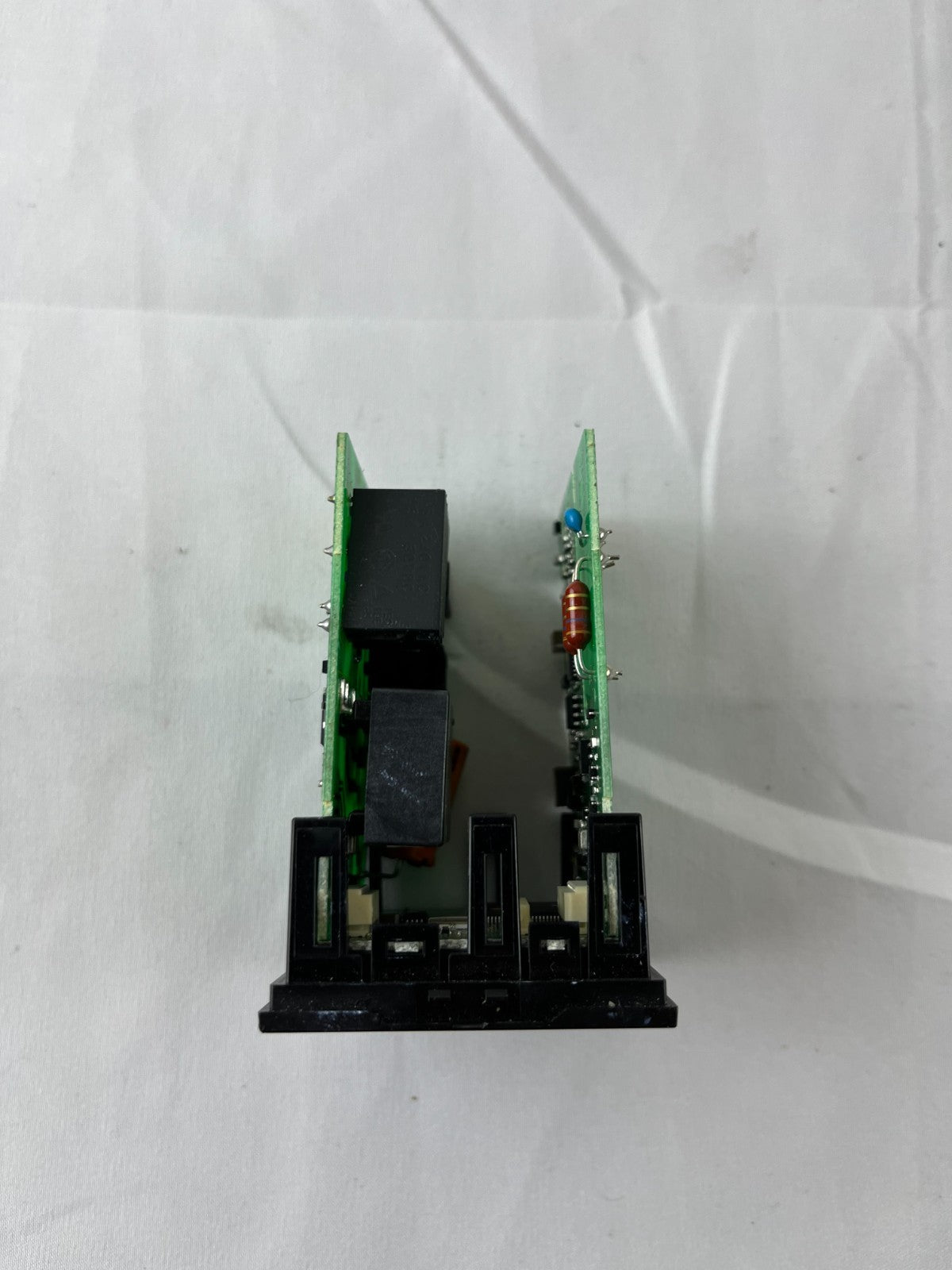

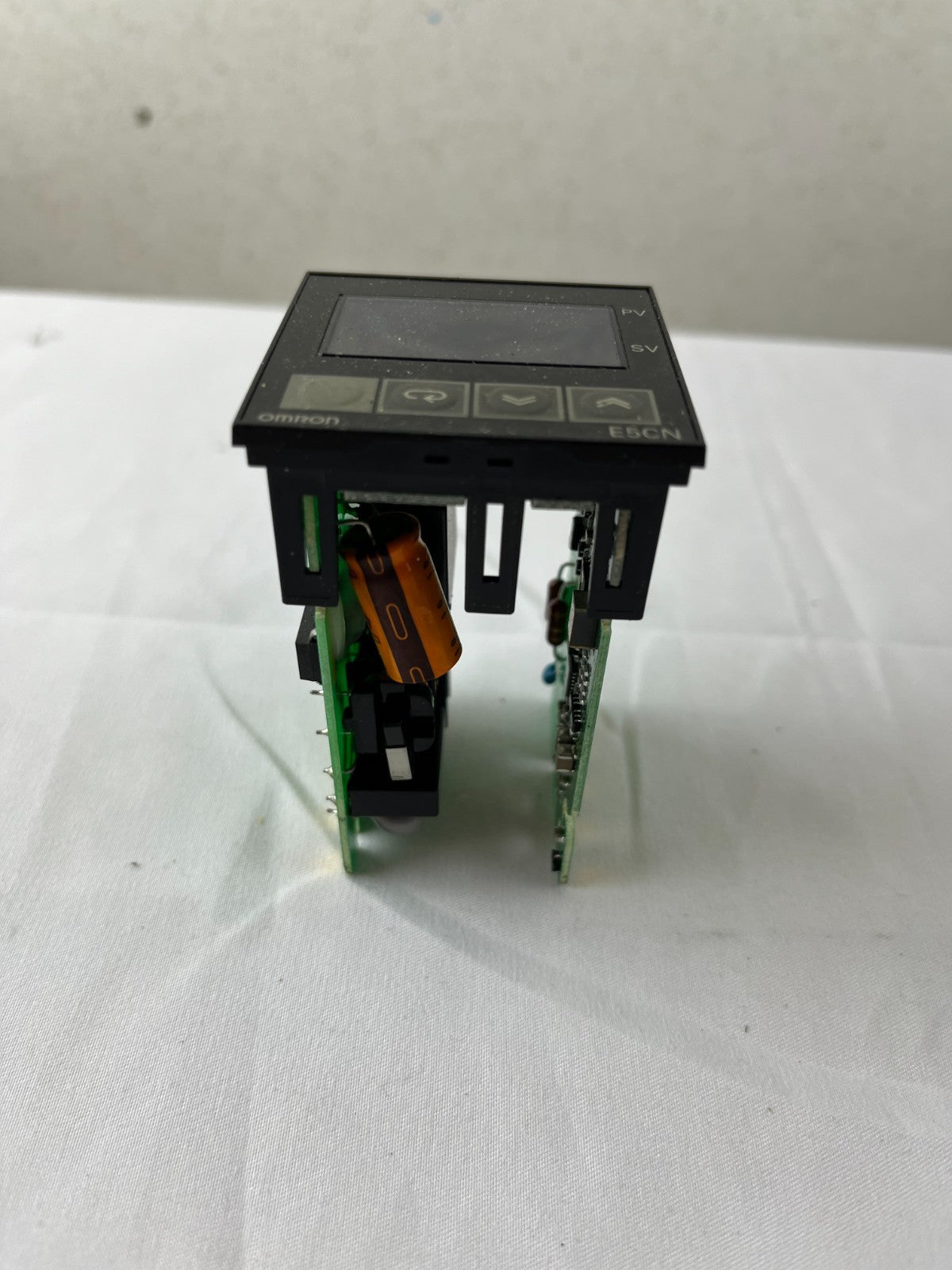

Omron E5CN-Q2HTC-500 Digital Temperature Controller PID 48x48mm Thermocouple NEW

Brand New Omron E5CN Series Digital Temperature Controller - Never Used

• Model: E5CN-Q2HTC-500

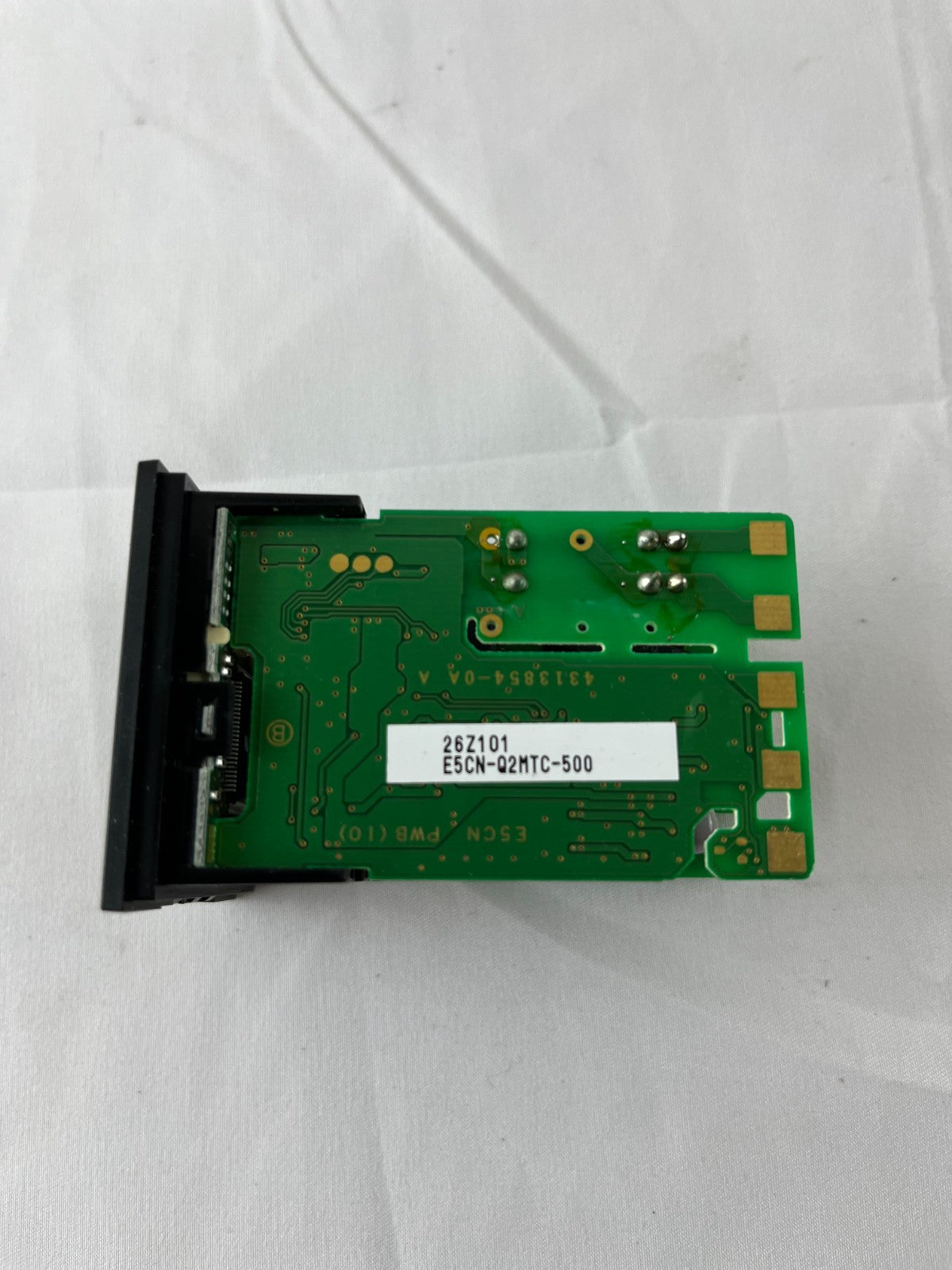

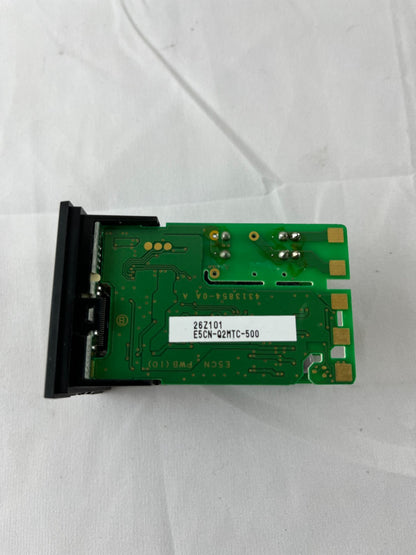

• Label: 26Z101

• Manufacturer: Omron

• Series: E5CN Basic Temperature Controller

• Size: 48 × 48mm (1/16 DIN) panel cutout

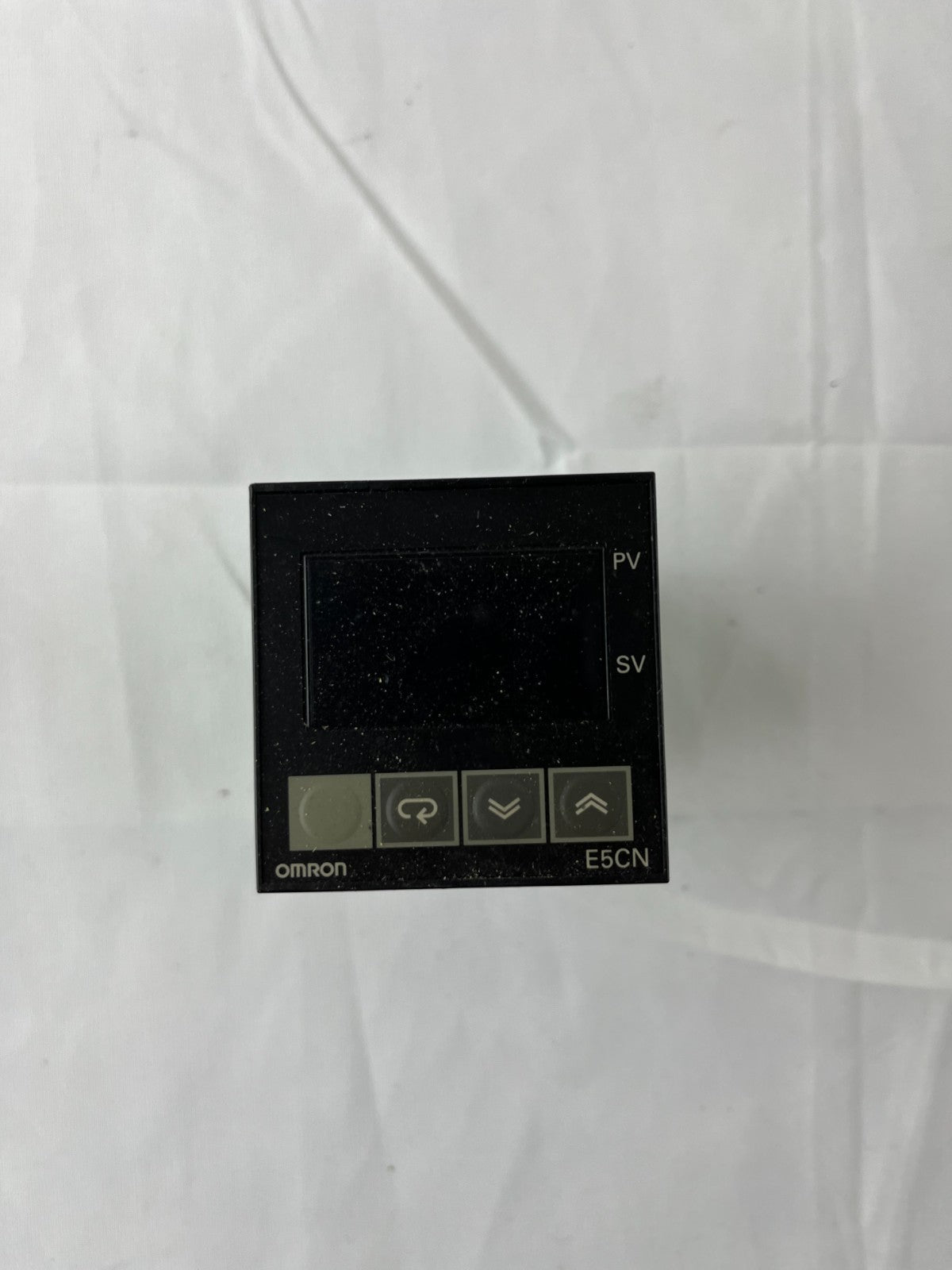

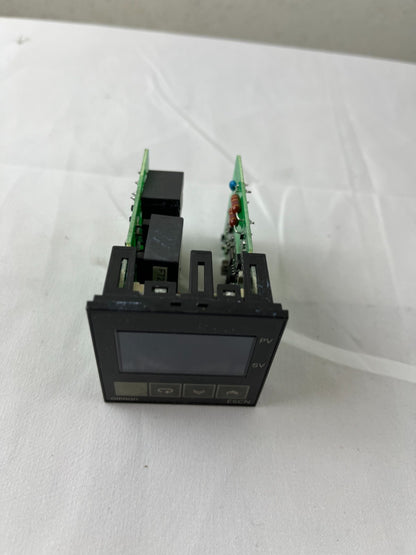

• Display: Dual digital display (PV/SV) with clear indication

• Control Method: ON/OFF control or 2-PID control with auto-tuning (AT) and self-tuning (ST)

• Input Type: Universal thermocouple input

  • Supports K, J, T, E, R, S, B, N, W, L, U, PL II thermocouples

  • Also supports Pt100/JPt100 platinum resistance thermometers

  • Analog input: 0-50mV capable

• Temperature Range: Varies by sensor type (e.g., K: -200 to 1300°C)

• Outputs: 2 outputs (Q2 designation indicates 2-output model)

  • Model suffix "HTC" indicates heating/cooling control capability

• Indication Accuracy: ±0.5% of indicated value or ±1°C (whichever greater) ±1 digit max

• Power Supply: 100-240VAC 50/60Hz (based on standard E5CN specs)

• Control Loops: 1 control loop

• Operating Temperature: -10°C to +55°C

• Front Panel: IP66 protection when properly mounted

• Terminal Cover: -500 suffix indicates supplied with E53-COV10 terminal cover

Features:

• Universal Input: Accepts multiple thermocouple types without requiring hardware changes

• Heating/Cooling Control: "HTC" model supports both heating and cooling control for precise temperature management

• PID Auto-Tuning: Automatic parameter tuning optimizes control performance for specific applications

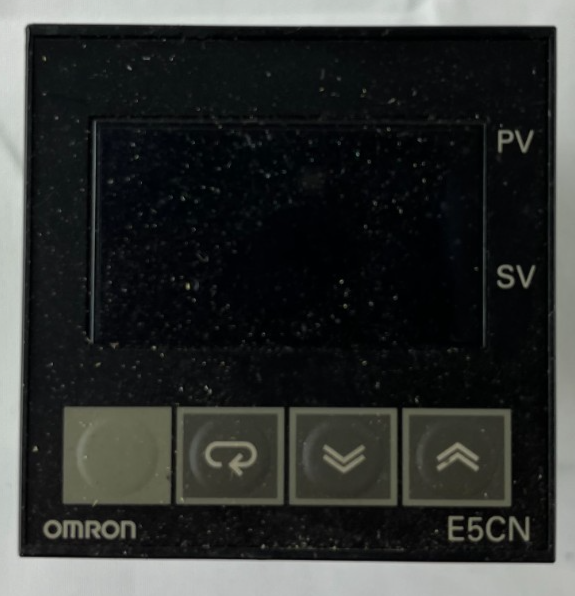

• Dual Display: Simultaneous display of process value (PV) and set value (SV)

• Compact Design: Space-saving 48×48mm panel mount fits standard 1/16 DIN cutouts

• Front Panel Programming: Simple 4-button interface for configuration

• Alarm Functions: 2 alarm outputs for over/under temperature warnings

• High Accuracy: ±0.5% indication accuracy ensures reliable temperature control

• Wide Applicability: Suitable for plastics, packaging, food processing, and general industrial heating/cooling

The Omron E5CN series represents enhanced basic temperature control with improved indication accuracy and preventive maintenance functions. The universal input design eliminates the need for different models for different sensor types, simplifying inventory and installation.

Applications: Industrial ovens, furnaces, heat treatment, plastic molding, packaging machinery, food processing equipment, environmental chambers, laboratory equipment, semiconductor processing, and general heating/cooling control systems.

Condition: Brand New, Never Used
