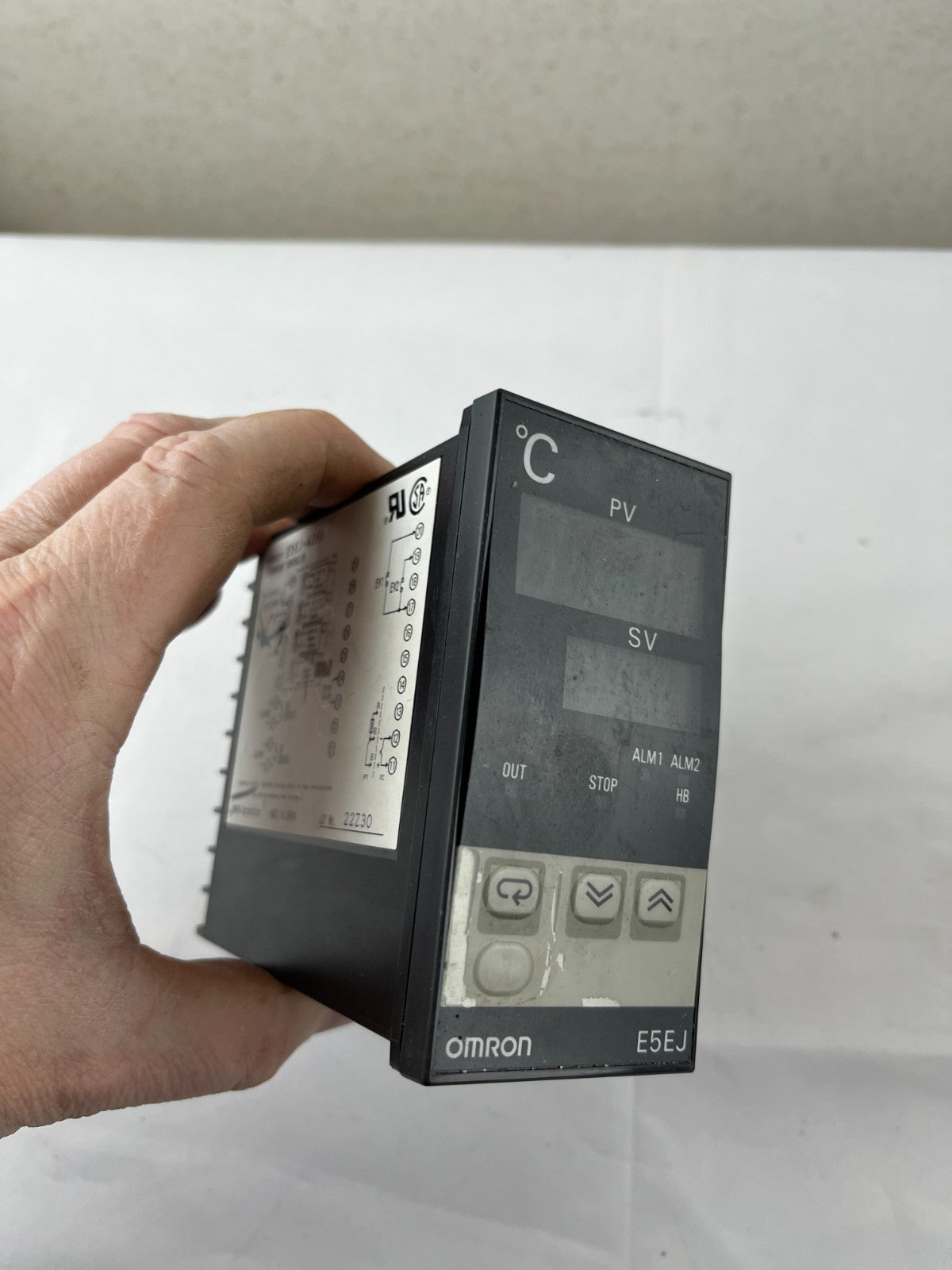

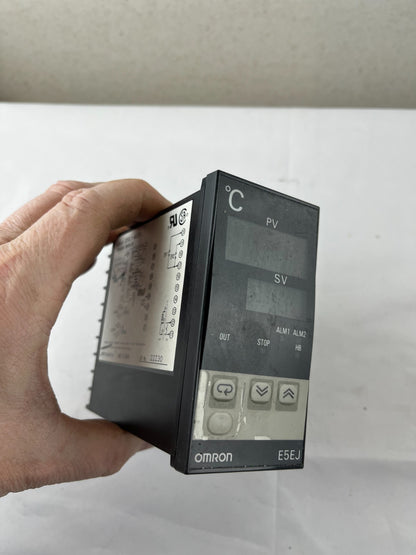

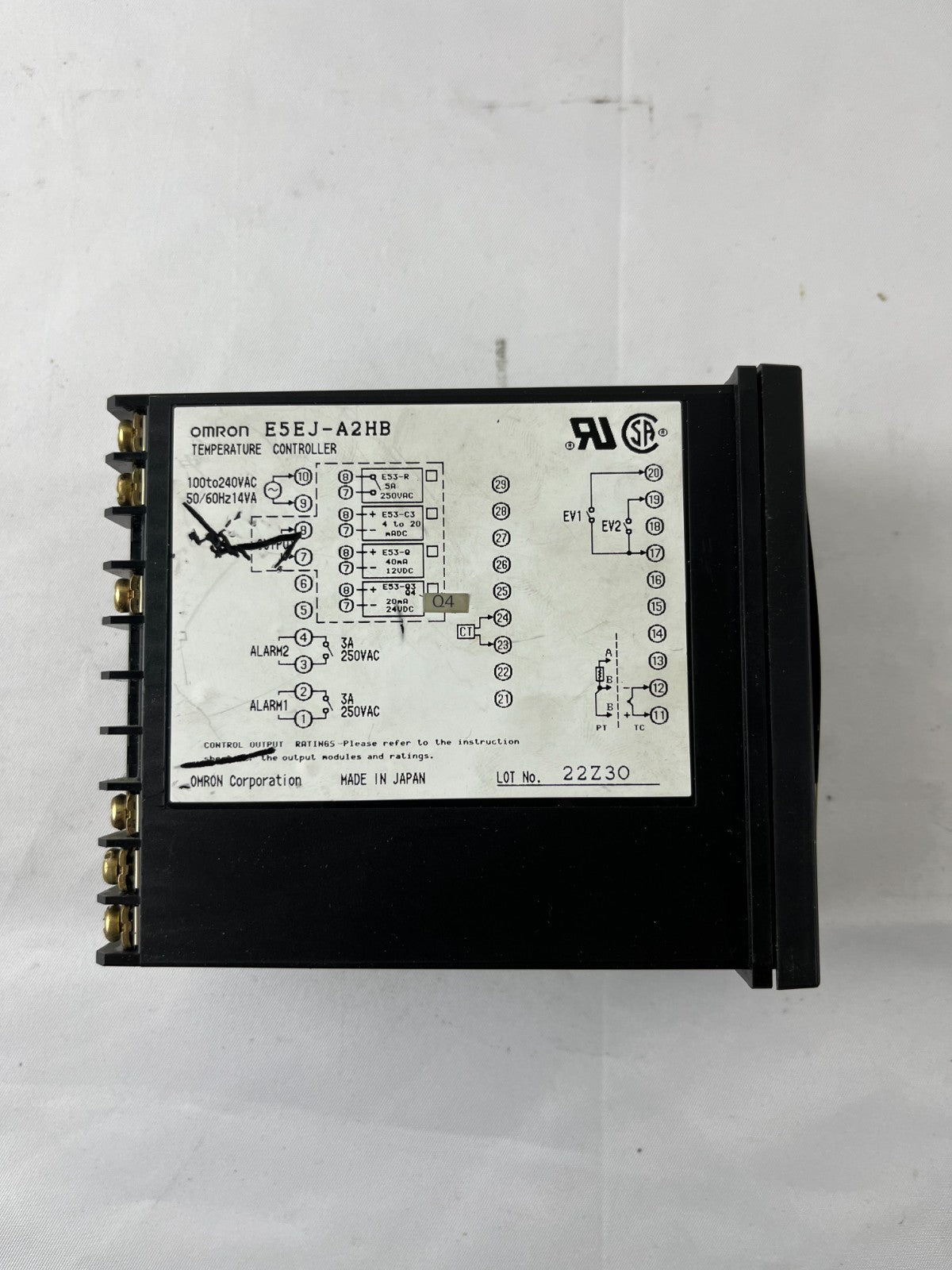

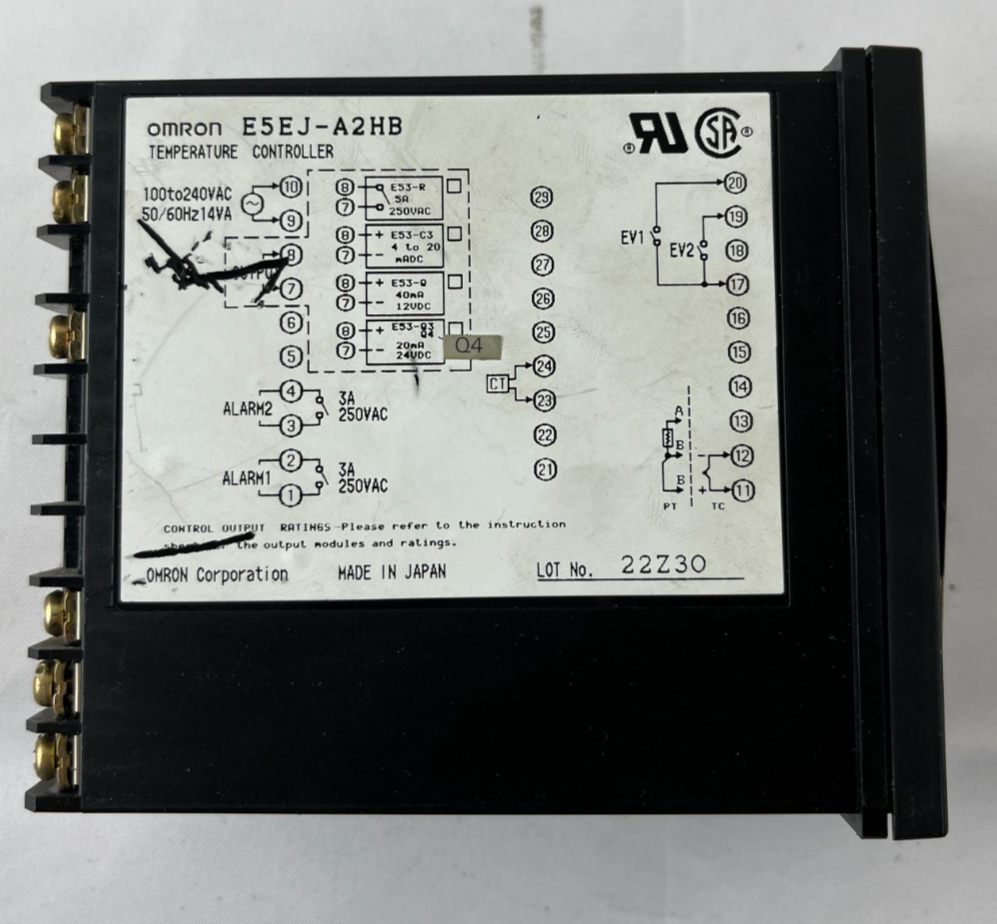

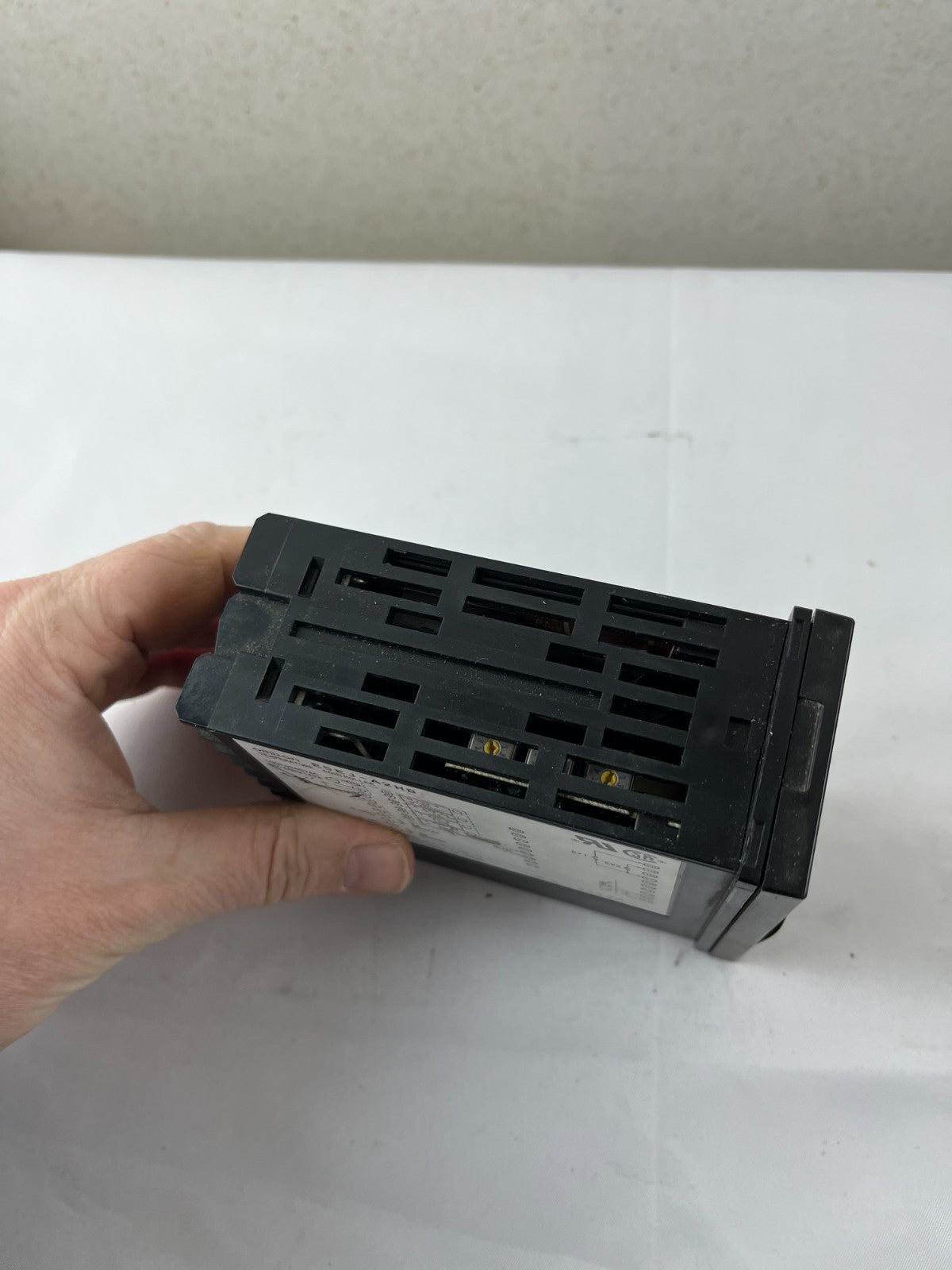

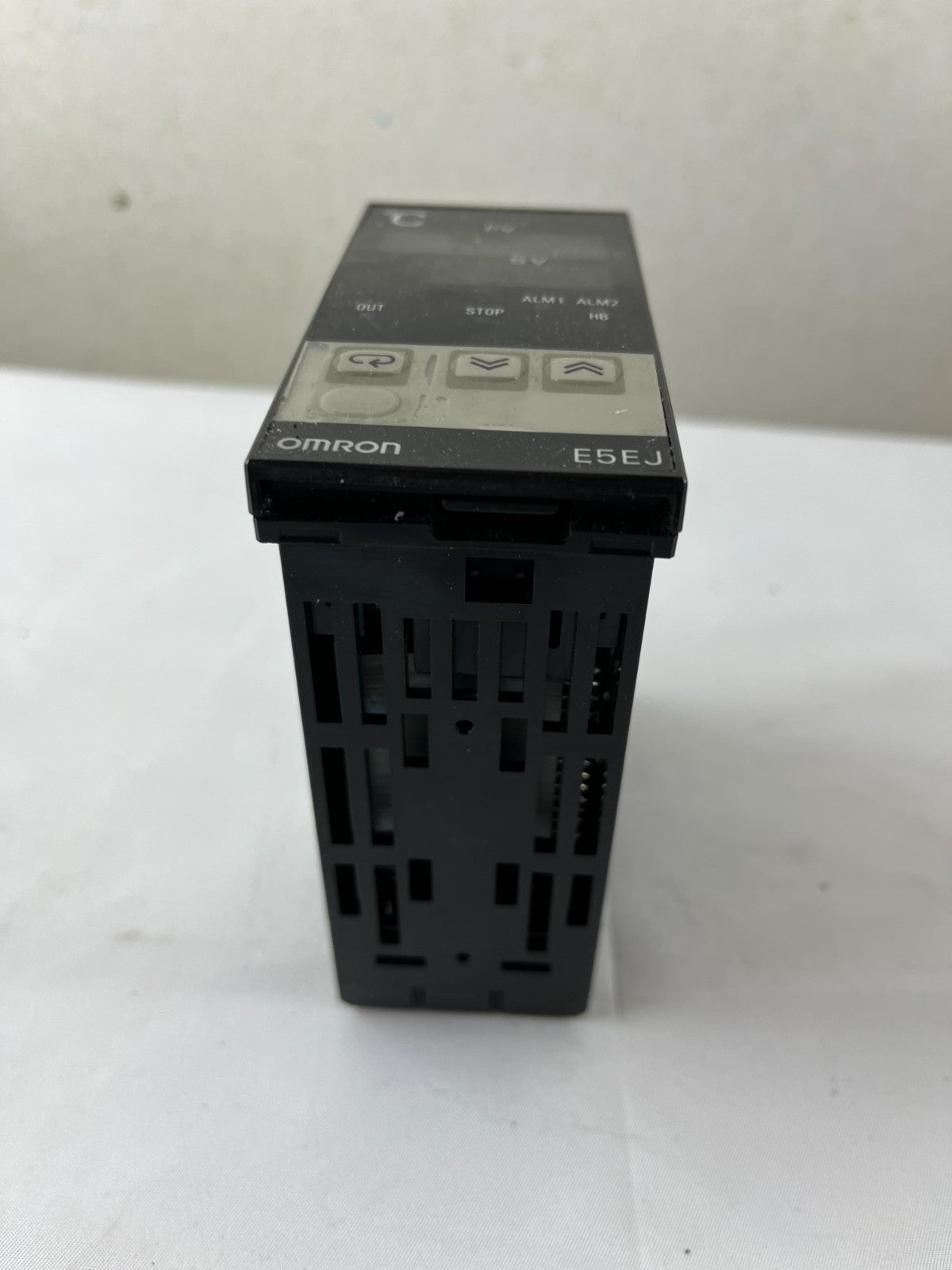

Model: E5EJ-A2HB
-
LOT Number: 22Z30
-
Panel Size: 48 × 96 mm (1/8 DIN)
-

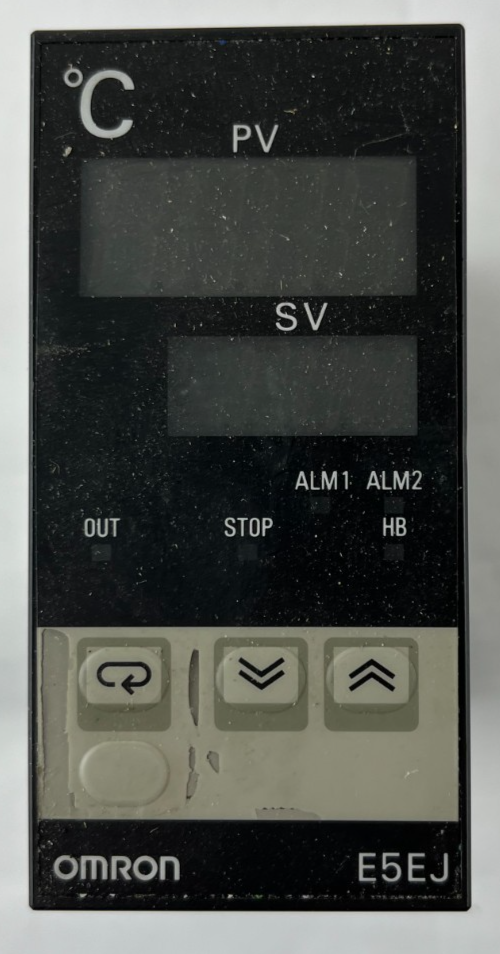

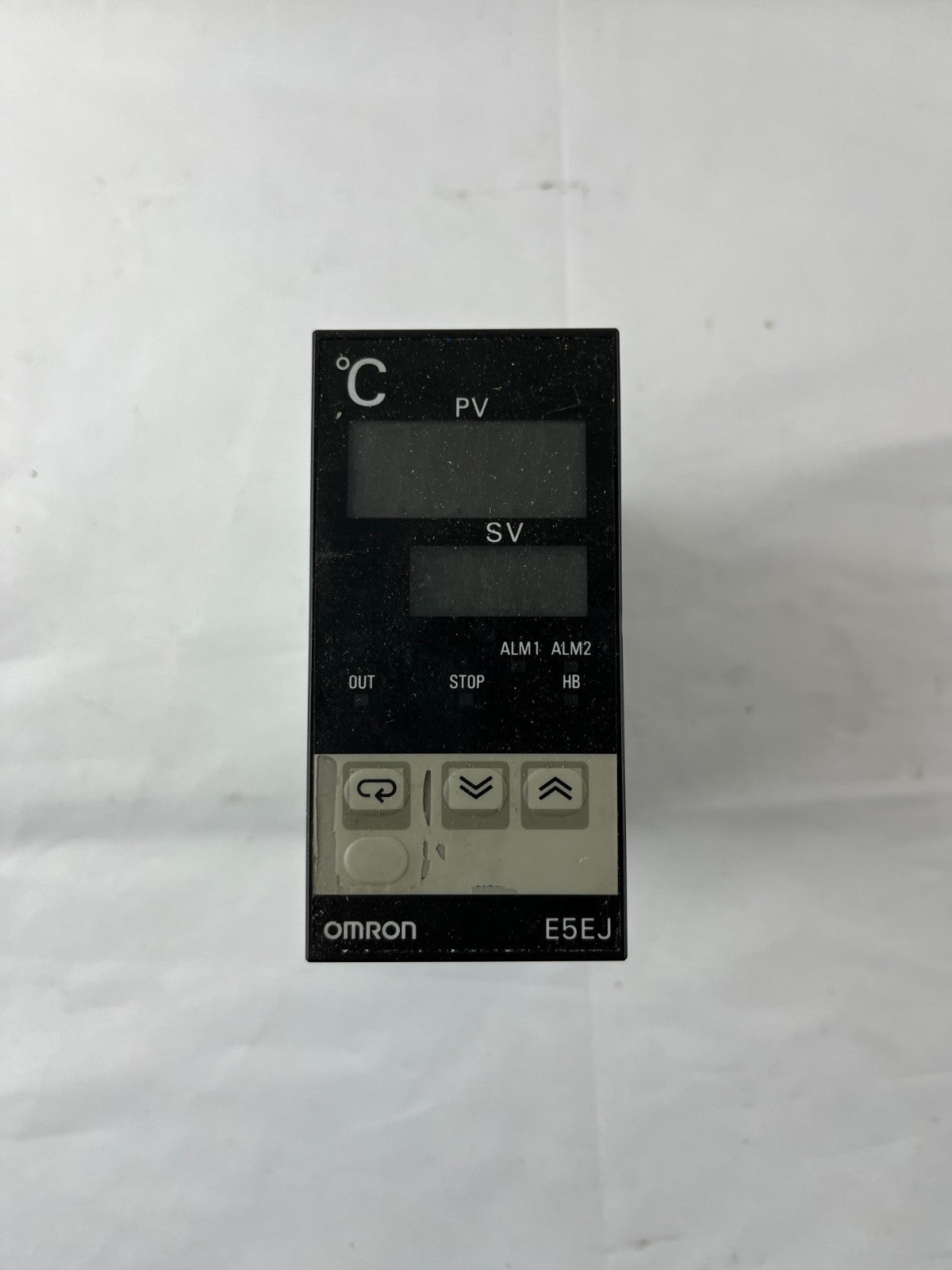

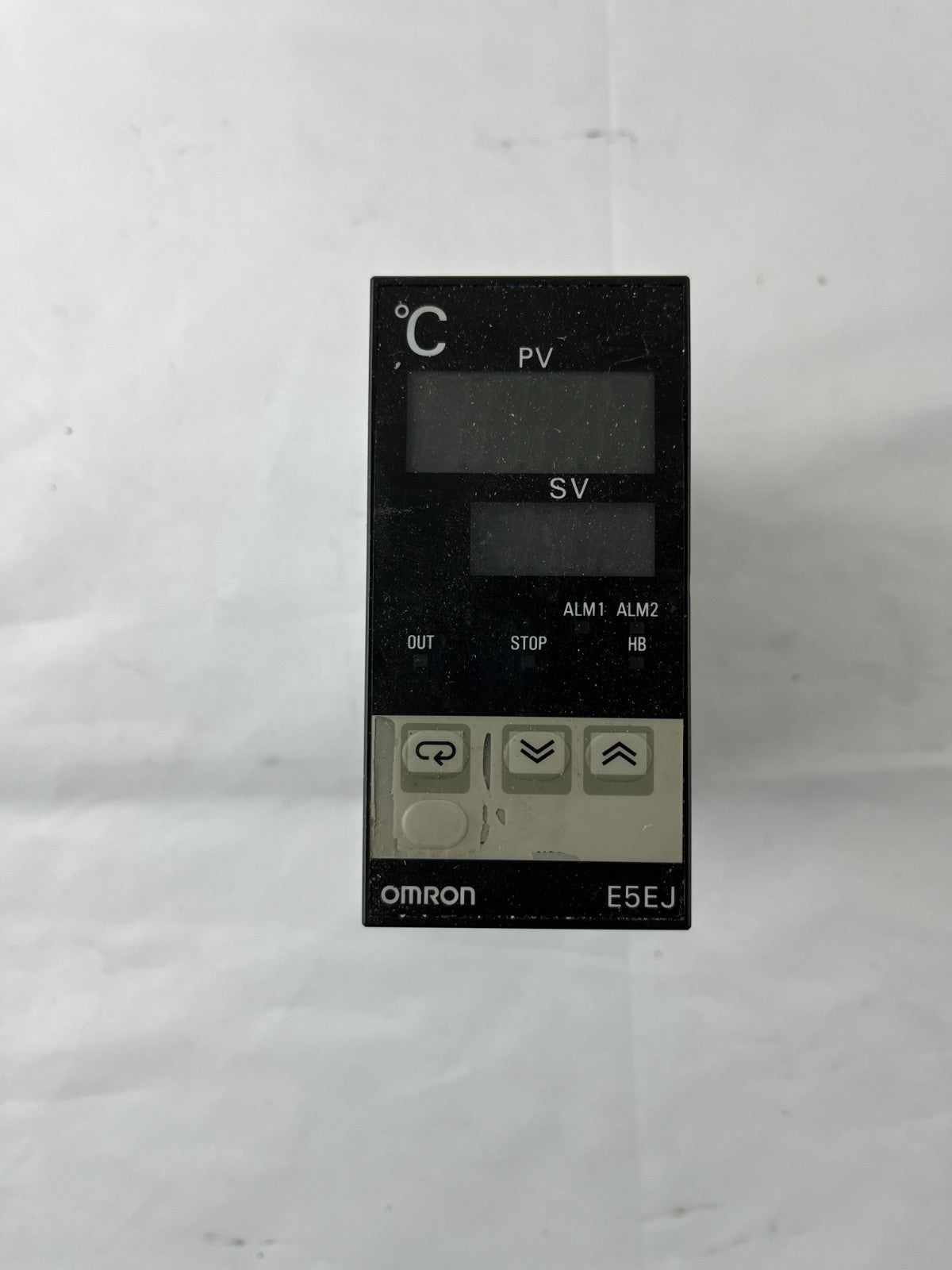

Display: Dual digital LCD display (PV: Red 14mm, SV: Green 9.5mm character height)
-
Input Types: Universal - Thermocouple (K/J/T/L/U/N), Platinum RTD (JPt100/Pt100)
-
Temperature Range: -199.9°C to 1,300°C (depending on sensor type)
-
Control Mode: ON/OFF or 2-PID control with fuzzy self-tuning and auto-tuning
-
Power Supply: 100-240 VAC, 50/60 Hz (85-110% operating range)
-
Power Consumption: 10-14 VA (depending on voltage)
-
Control Output: Relay output (SPST-NO, 250 VAC, 3A)
-
Heater Burnout Detection: Built-in with current transformer (0-50A monitoring range)
-
Auxiliary Outputs: 2 × alarm relay outputs (250 VAC, 3A)
-
Event Inputs: 2 × programmable inputs for Run/Stop and SP selection
-
Accuracy: ±0.5% or ±1°C (whichever is larger) ±1 digit
-
Sampling Period: 500 ms
-

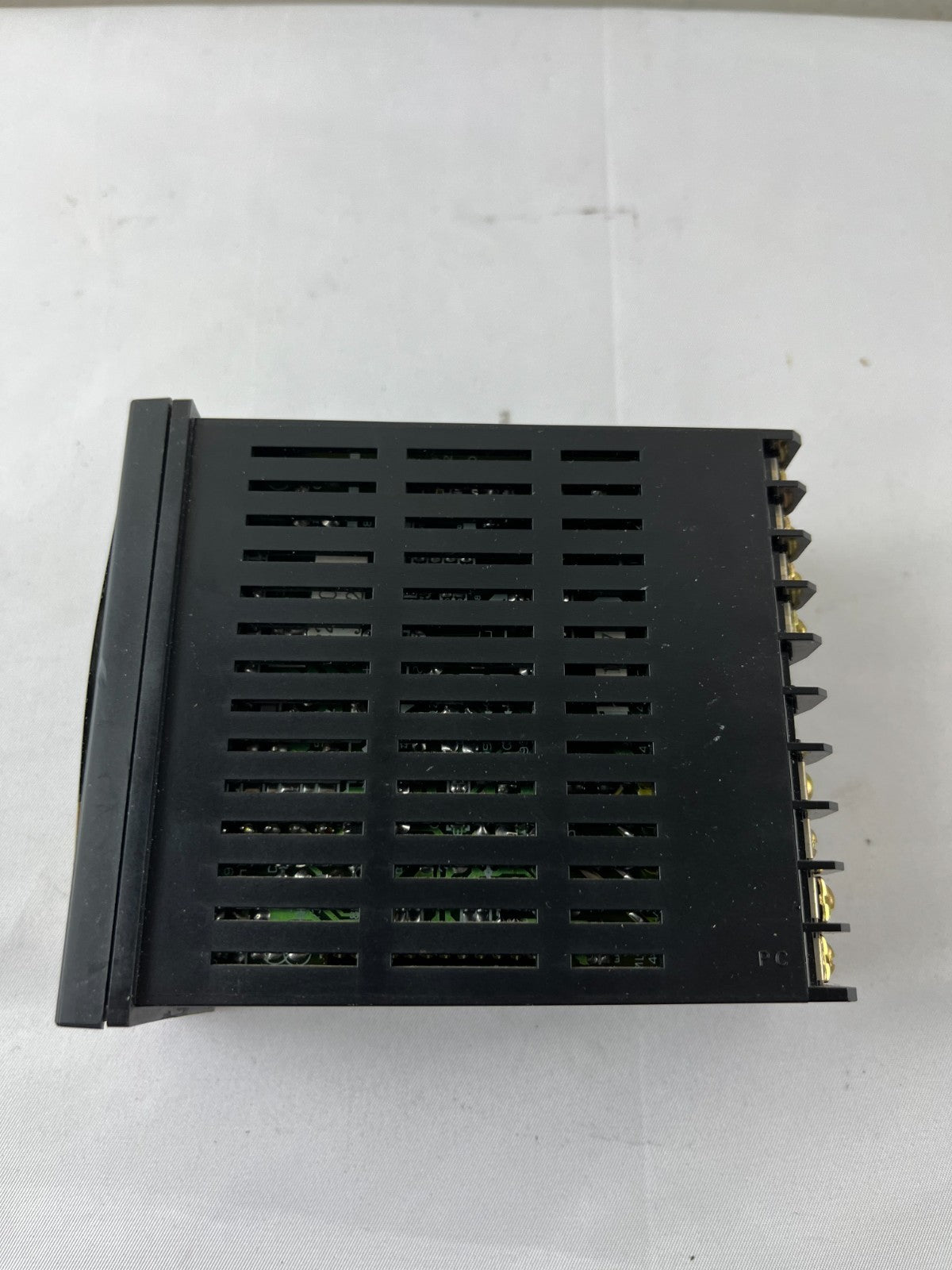

Panel Depth: 112 mm
-
Operating Temperature: -10°C to 55°C
-
Front Panel Protection: IP54
-
Features: Fuzzy self-tuning, auto-tuning, dual set points, Run/Stop operation, heater burnout alarm, key protection, field-selectable inputs, direct/reverse operation
-
Memory: Non-volatile memory (100,000 write cycles)
-
Certifications: UL, CSA, CE
-
Country of Origin: Made in Japan
This advanced temperature controller features fuzzy adaptive tuning that continuously monitors and optimizes PID control based on current process conditions. The heater burnout detection monitors heater current and provides early warning of heater failure. The 48×96mm standard DIN size provides a larger display than 48×48mm models while maintaining compact panel integration. Perfect for industrial heating, plastics processing, packaging, and process control applications requiring reliable temperature management with safety monitoring
