Omron E5EN-R3GMT-500 Digital Temperature Controller PID 48x96mm 3-Output Japan

Omron E5EN-R3GMT-500 Digital Temperature Controller PID 48x96mm 3-Output Japan USED

- Shipping includes tracking info worldwide. Klaus KLJ Trading

Used Omron E5EN Series Digital Temperature Controller - Removed from Working Equipment

• Model: E5EN-R3GMT-500

• Lot Number: 3036QR (Made in Japan)

• Manufacturer: Omron

• Series: E5EN Basic Temperature Controller (48 × 96mm slim type)​

• Size: 48 × 96mm (1/8 DIN) slim panel cutout​

• Panel Depth: 79.2mm​

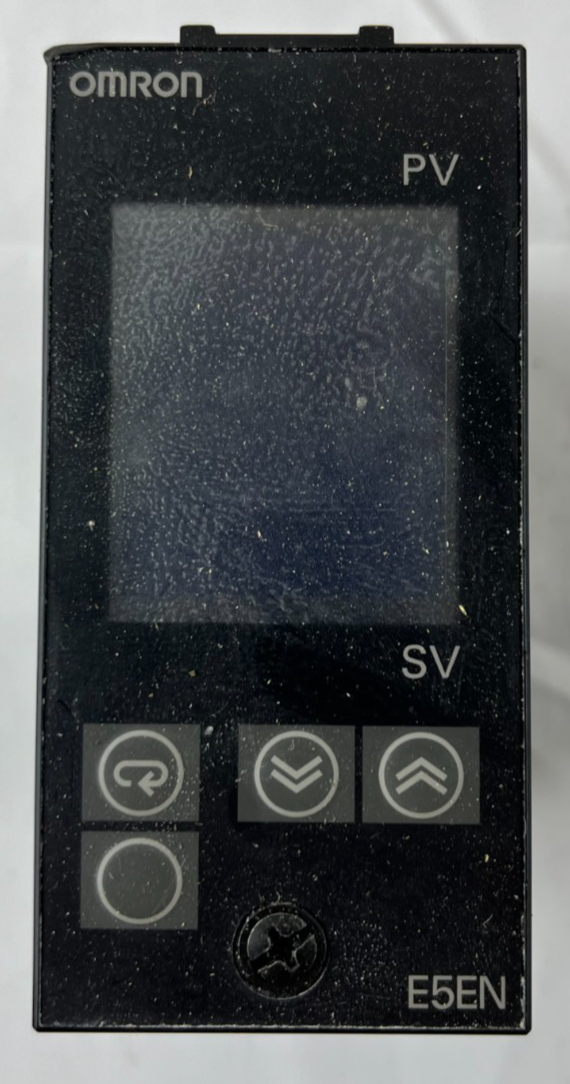

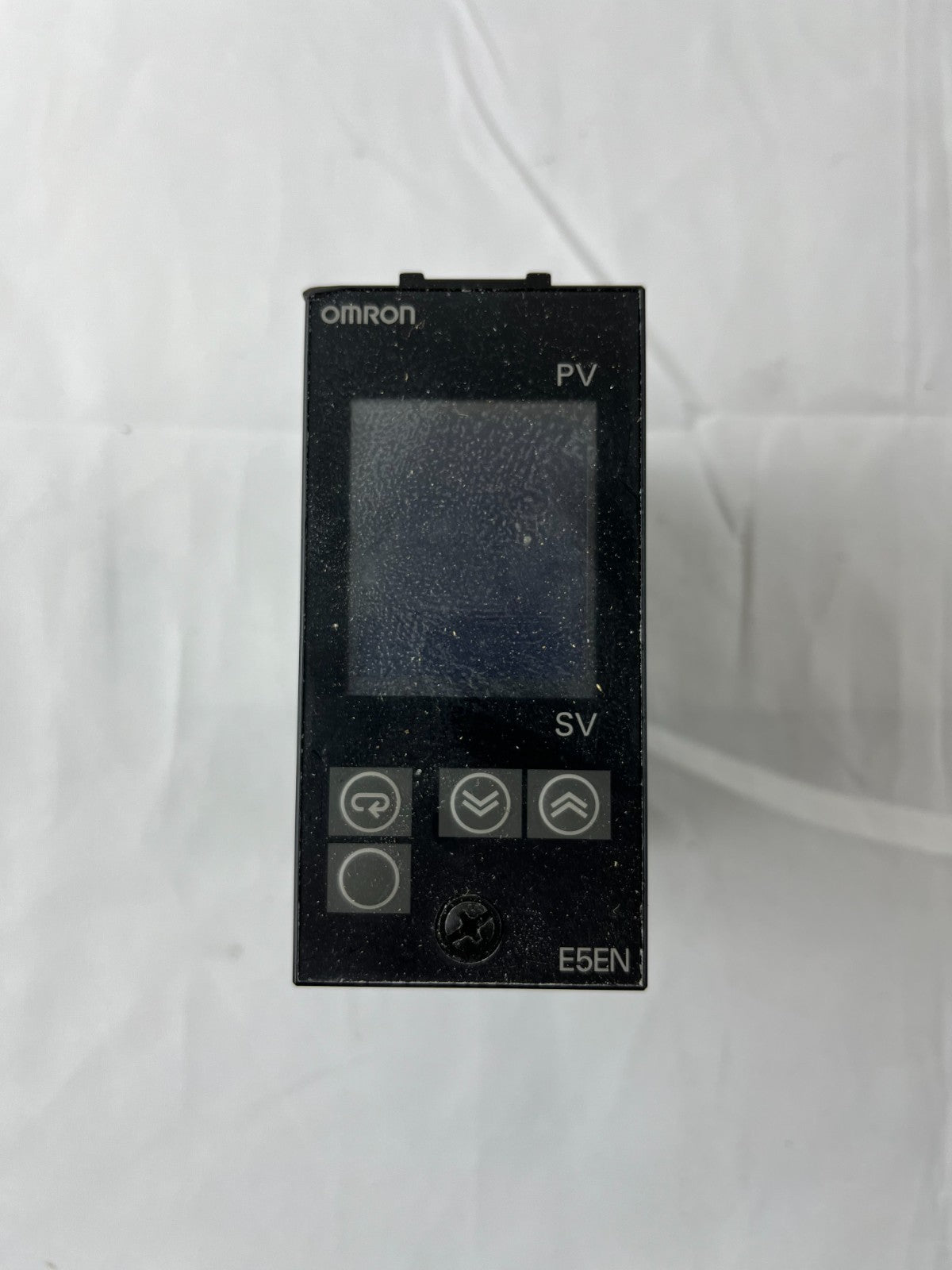

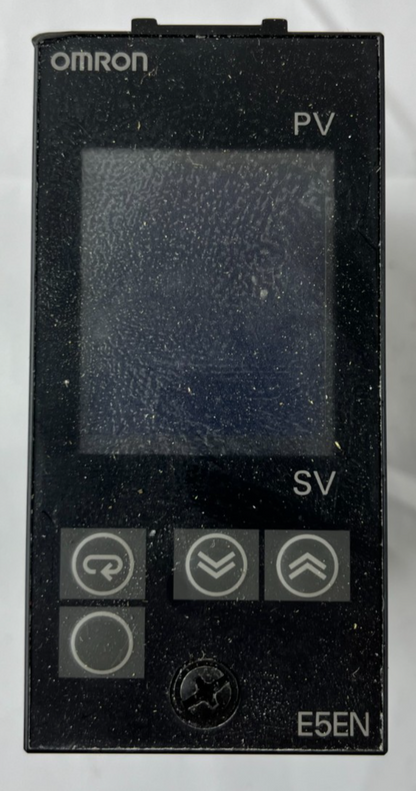

• Display: 3-level digital display (PV/SV/MV) with 4-digit segments​

  • Character height: PV: 11.8mm, SV: 8.1mm, MV: 5.8mm​

• Control Method: PID control with auto-tuning (AT) and self-tuning (ST)​

• Input Type: "GMT" indicates universal thermocouple/RTD input​

  • Supports K, J, T, E, R, S, B, N, W, L, U, PL II thermocouples​

  • Also supports Pt100/JPt100 platinum resistance thermometers​

  • Temperature range: -200 to +2300°C (Thermocouple), -200 to +850°C (RTD)​

• Outputs: 3 relay outputs (R3 designation)​

  • Control output 1: Relay 5A 250VAC​

  • Outputs 2 & 3: Alarm relays 3A 250VAC​

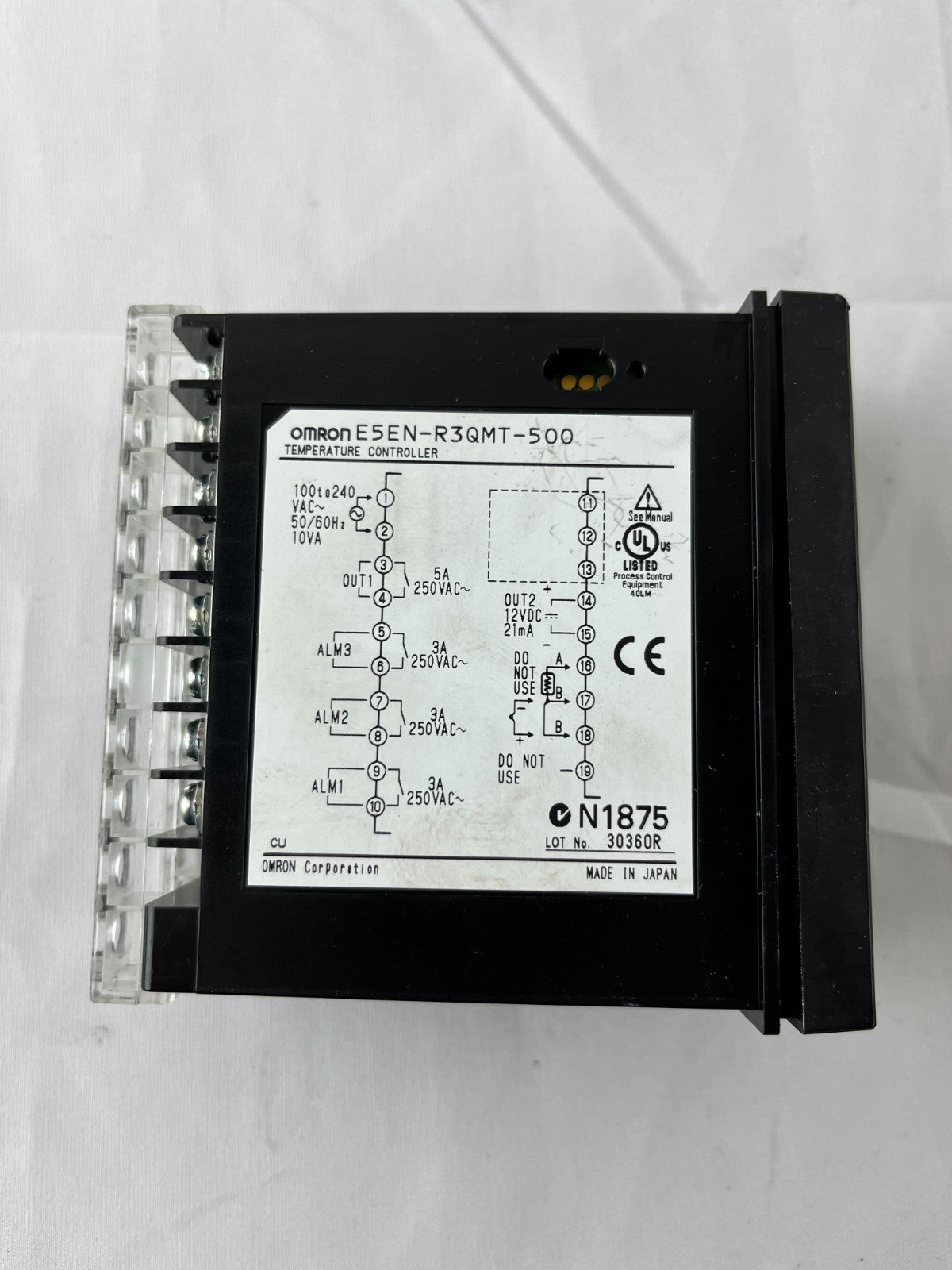

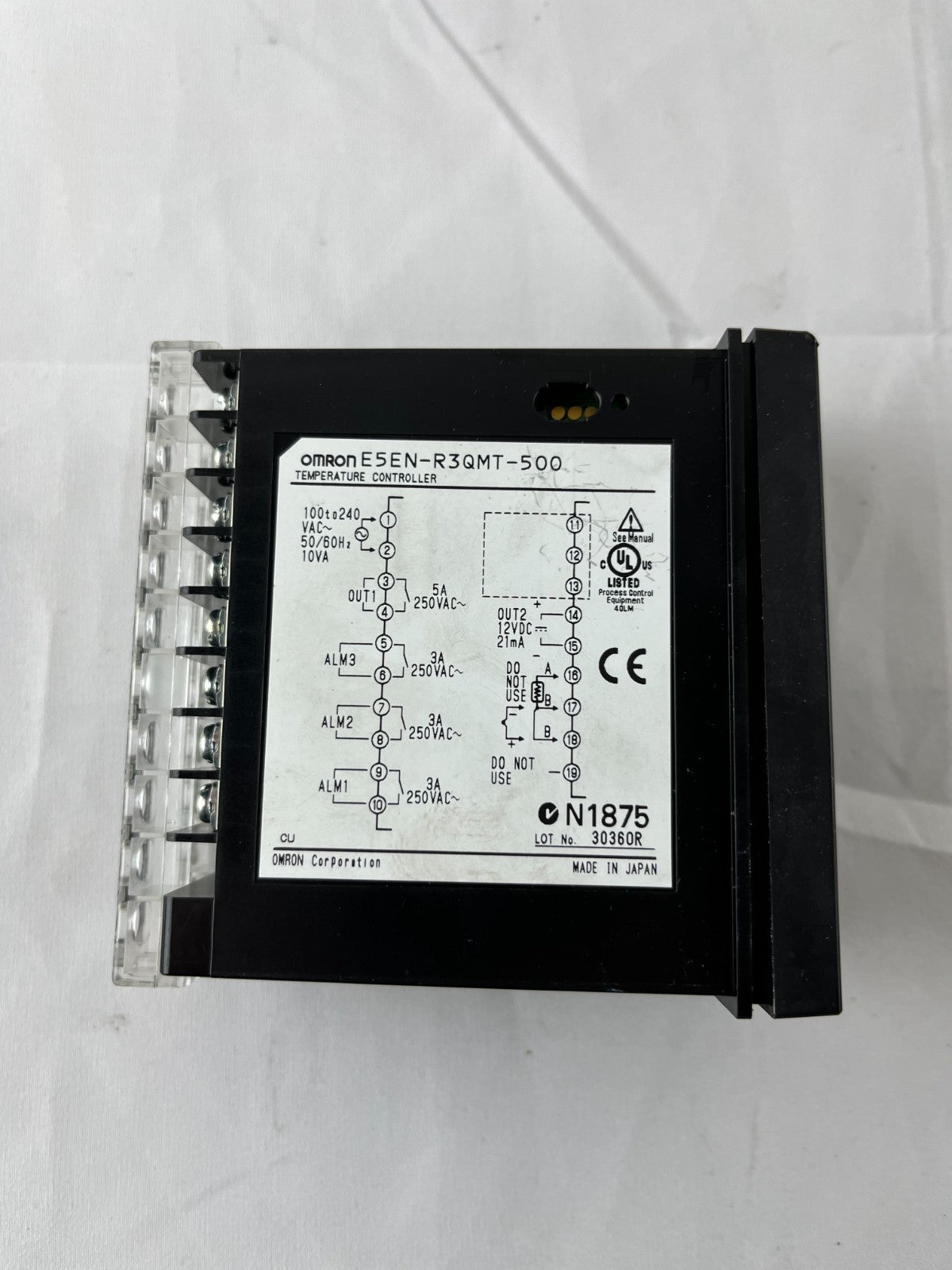

• Output 2: 12VDC 21mA transmit output visible on label

• Model Suffix: "GMT" indicates heating/cooling control with multi-output capability​

• Power Supply: 100-240VAC 50/60Hz 10VA​

• Front Panel Buttons: 4-button interface (reset, mode, down, up) plus PF key for programmable functions​

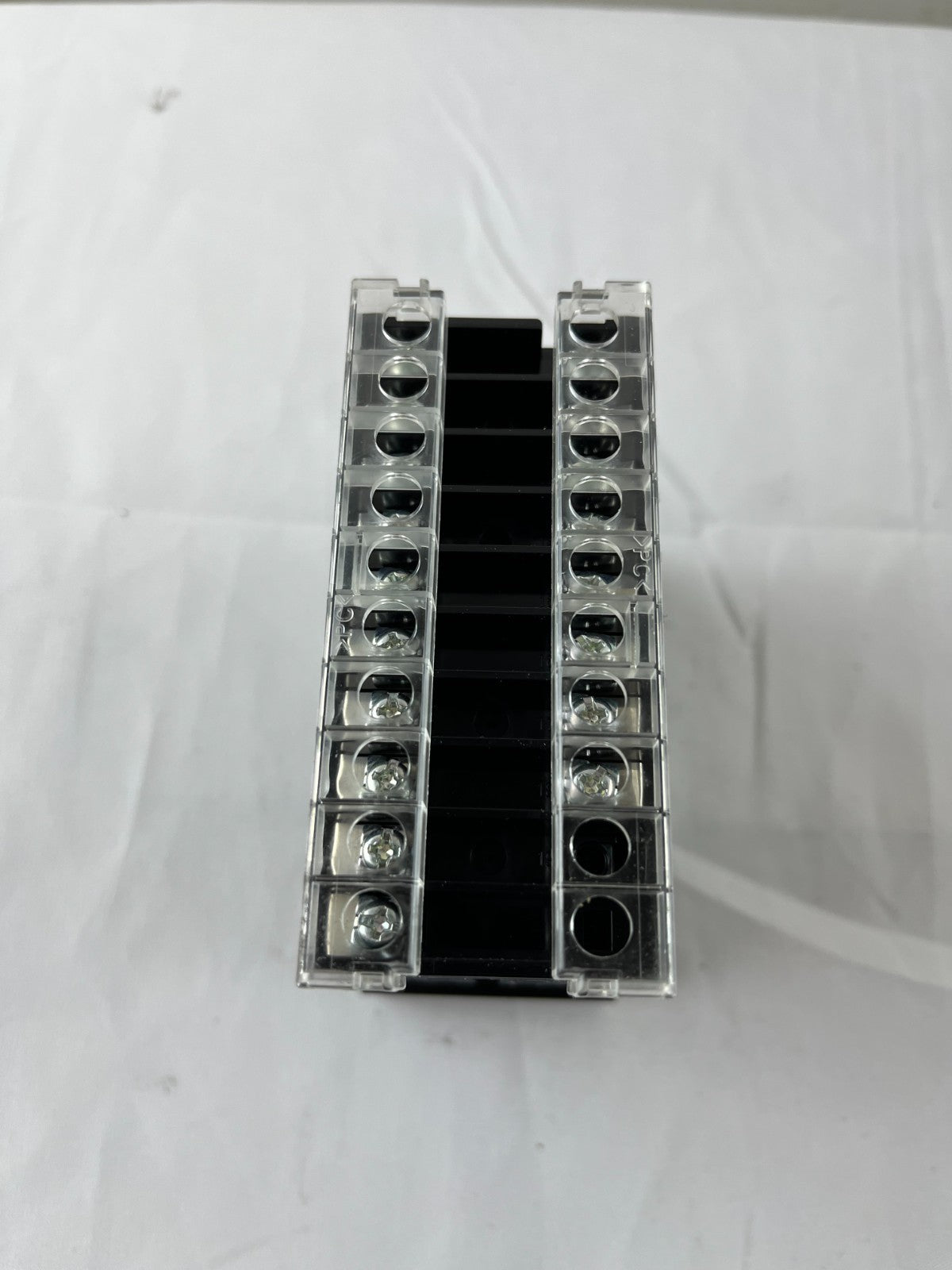

• Terminal Cover: -500 suffix indicates supplied with terminal cover​

• Indication Accuracy: ±0.3% of PV for thermocouple input​

• Operating Temperature: -10°C to +55°C​

• Certifications: CE, UL, N1875 certified

• Weight: Approx. 260g controller + 100g mounting bracket​

Features:

• Universal Input: Accepts multiple thermocouple and RTD types without hardware changes​

• 3 Relay Outputs: Provides dedicated control and alarm outputs for sophisticated temperature control​

• Heating/Cooling Control: "GMT" model supports both heating and cooling control for precise temperature management​

• 3-Level Display: Simultaneous display of process value, setpoint, and manipulated variable​

• Slim 48×96mm Design: Space-saving 1/8 DIN format ideal for panel space optimization​

• Enhanced Accuracy: ±0.3% indication accuracy (improved from previous ±0.5%)​

• Advanced Functions: PF programmable key, heater burnout detection, preventive maintenance functions, control output ON/OFF count alarm, PV change rate alarm​

• IP66 Front Panel: Robust protection when properly mounted​

• Made in Japan: High-quality Japanese manufacturing ensures reliability

The Omron E5EN series represents enhanced basic temperature control in slim 48×96mm format with improved indication accuracy and preventive maintenance functions. The 3-output configuration allows for sophisticated control schemes with alarm and auxiliary functions.​

Applications: Industrial ovens, furnaces, heat treatment, plastic molding, packaging machinery, food processing equipment, environmental chambers, laboratory equipment, semiconductor processing, and heating/cooling control systems requiring compact controllers with multiple outputs.

Condition: Used, Removed from Working Equipment, Good Condition
