Omron E6C2-CWZ5B Rotary Encoder 1000 P/R 12–24 VDC Incremental Used

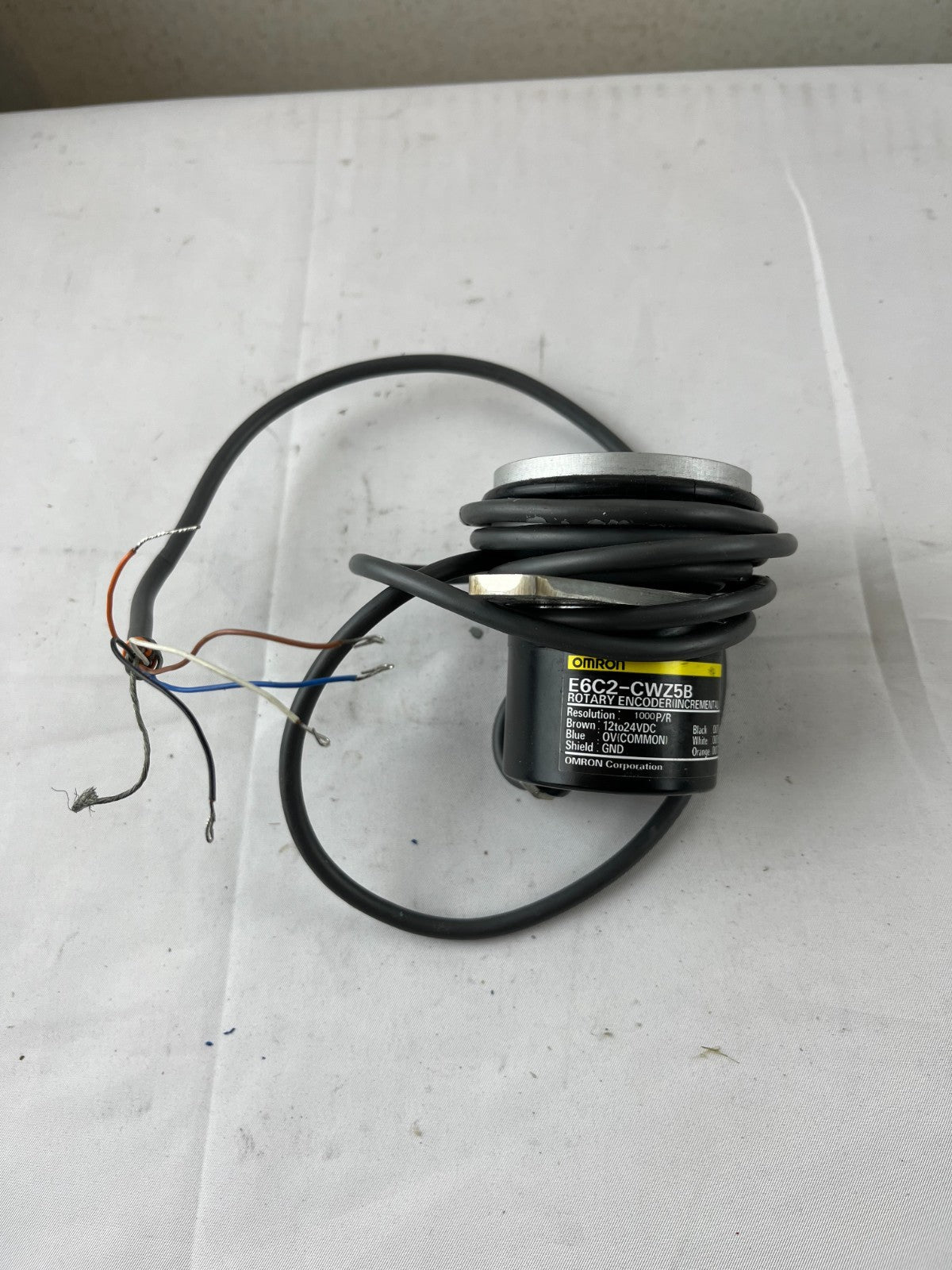

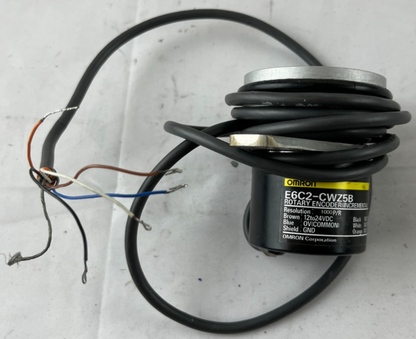

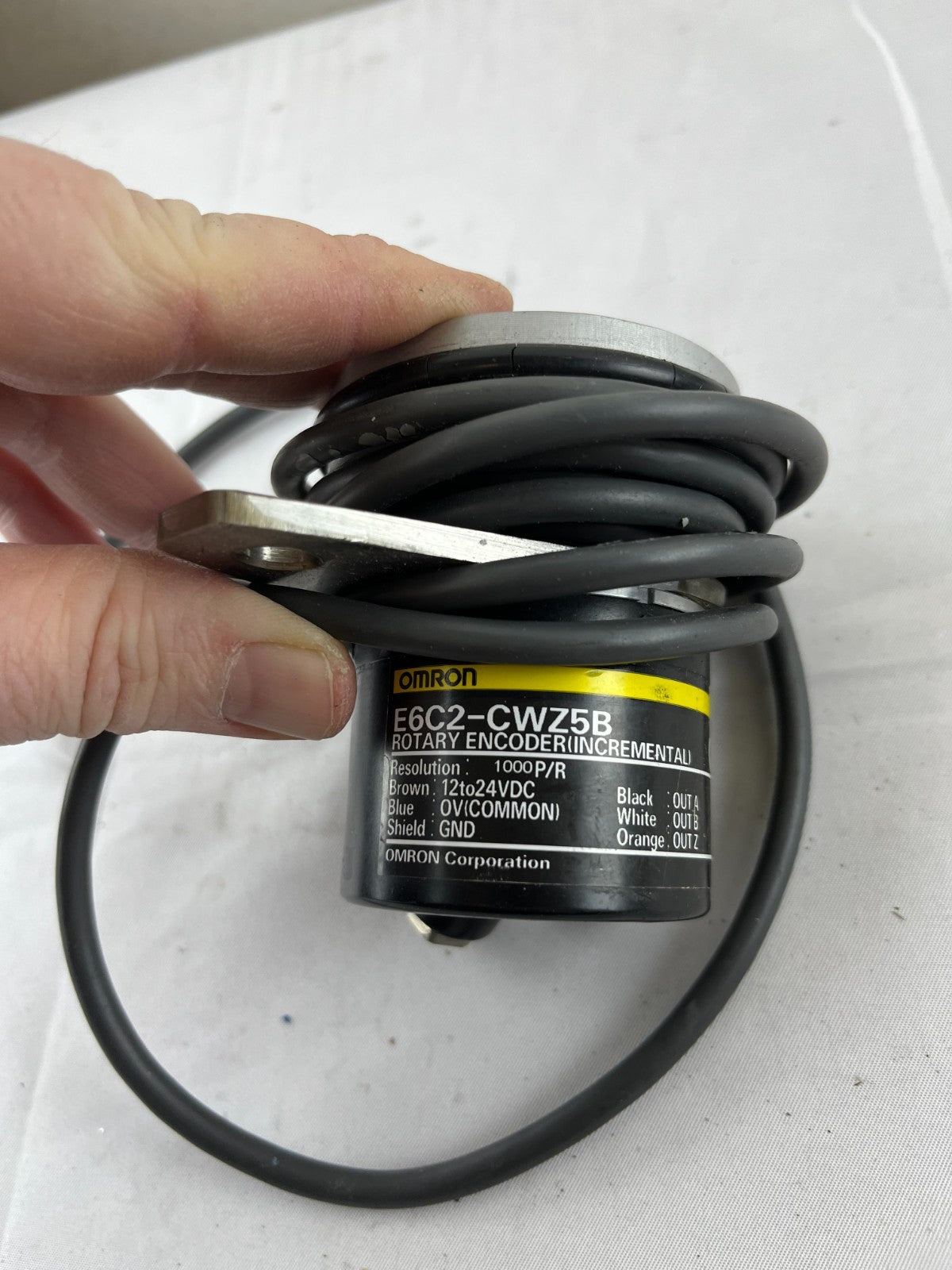

Omron E6C2-CWZ5B rotary encoder, incremental type, 1000 pulses per revolution, in good used working condition with flying lead cable as shown in the photos.

Item details

• Brand: Omron

• Model: E6C2-CWZ5B

• Type: Incremental rotary encoder

• Resolution: 1000 P/R (pulses per revolution)

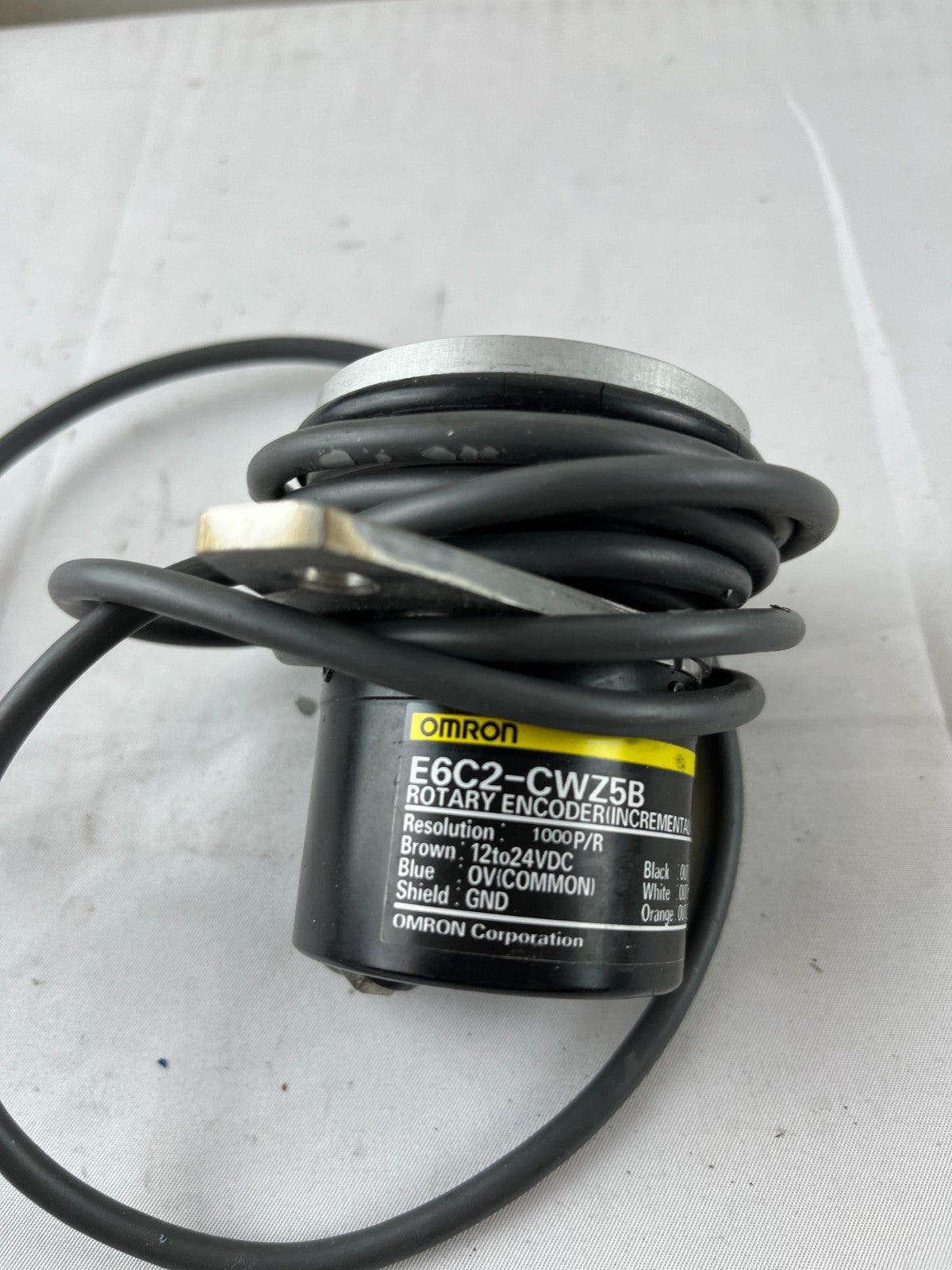

• Supply voltage: 12 to 24 VDC (brown lead)

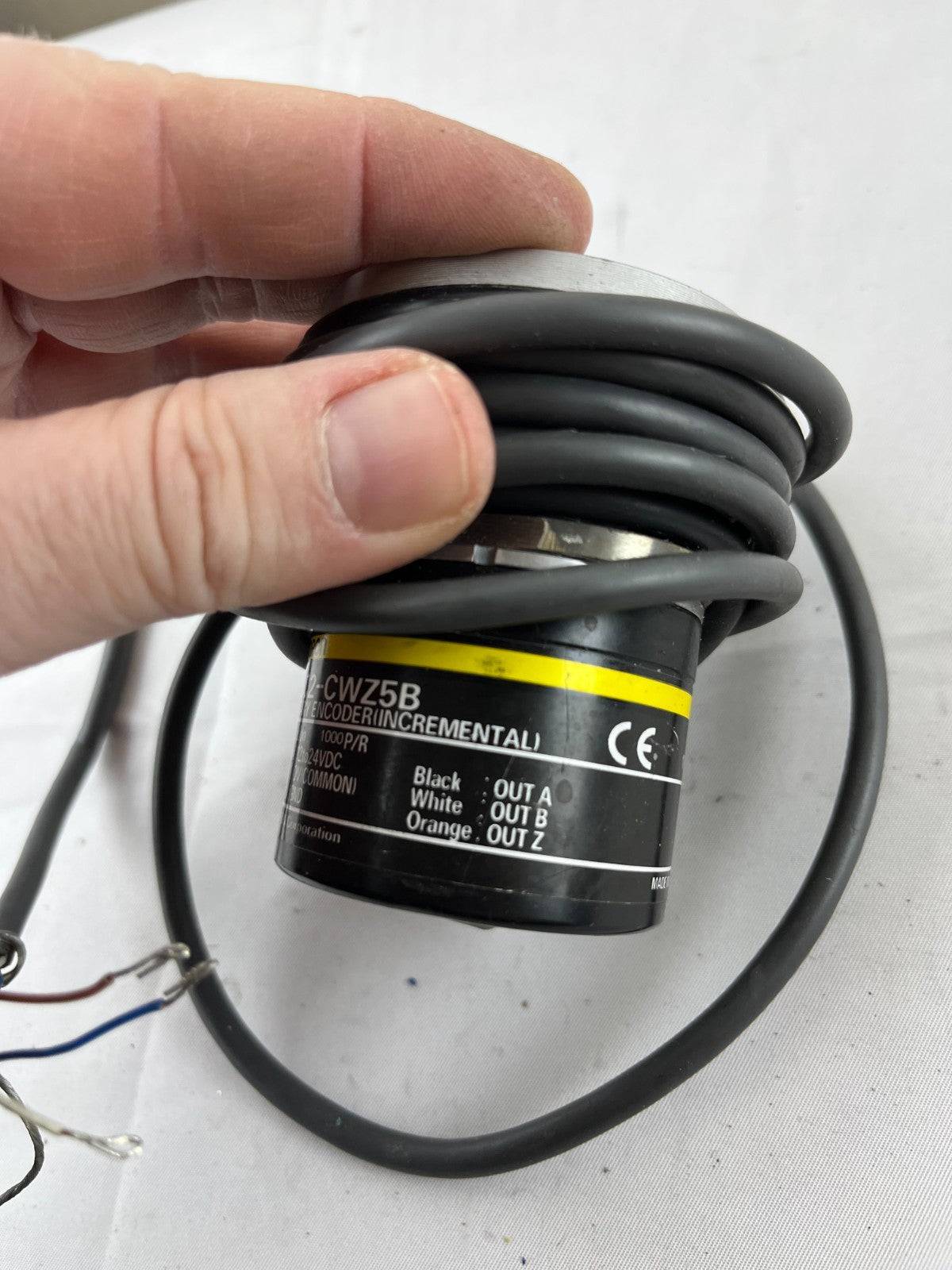

• Outputs: A, B, Z channels on black, white, and orange leads (open-collector type; see label for details)

• Common / ground: OV common on blue lead, shield to GND

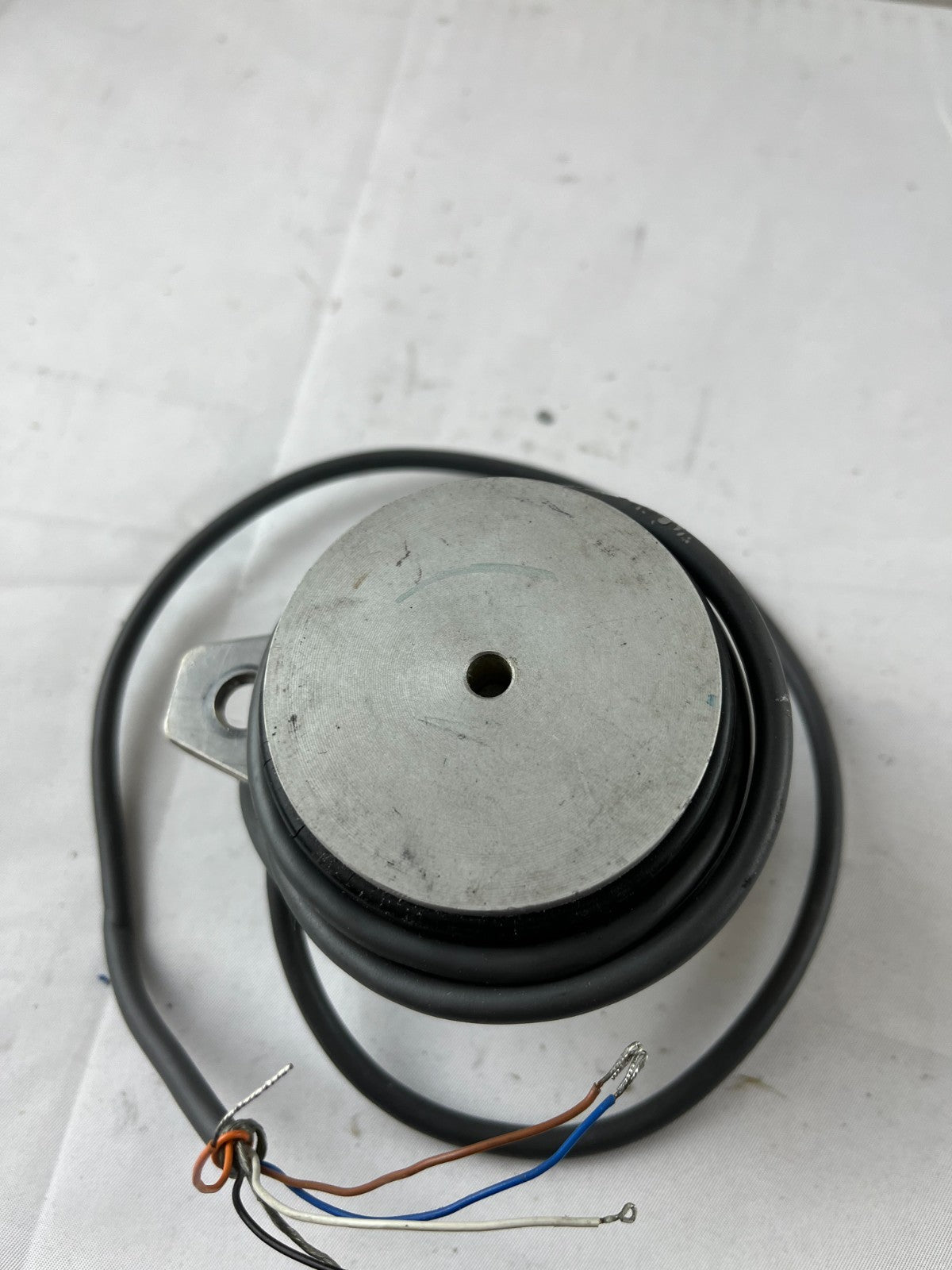

• Construction: Shaft-through top hub with mounting bracket and integral cable

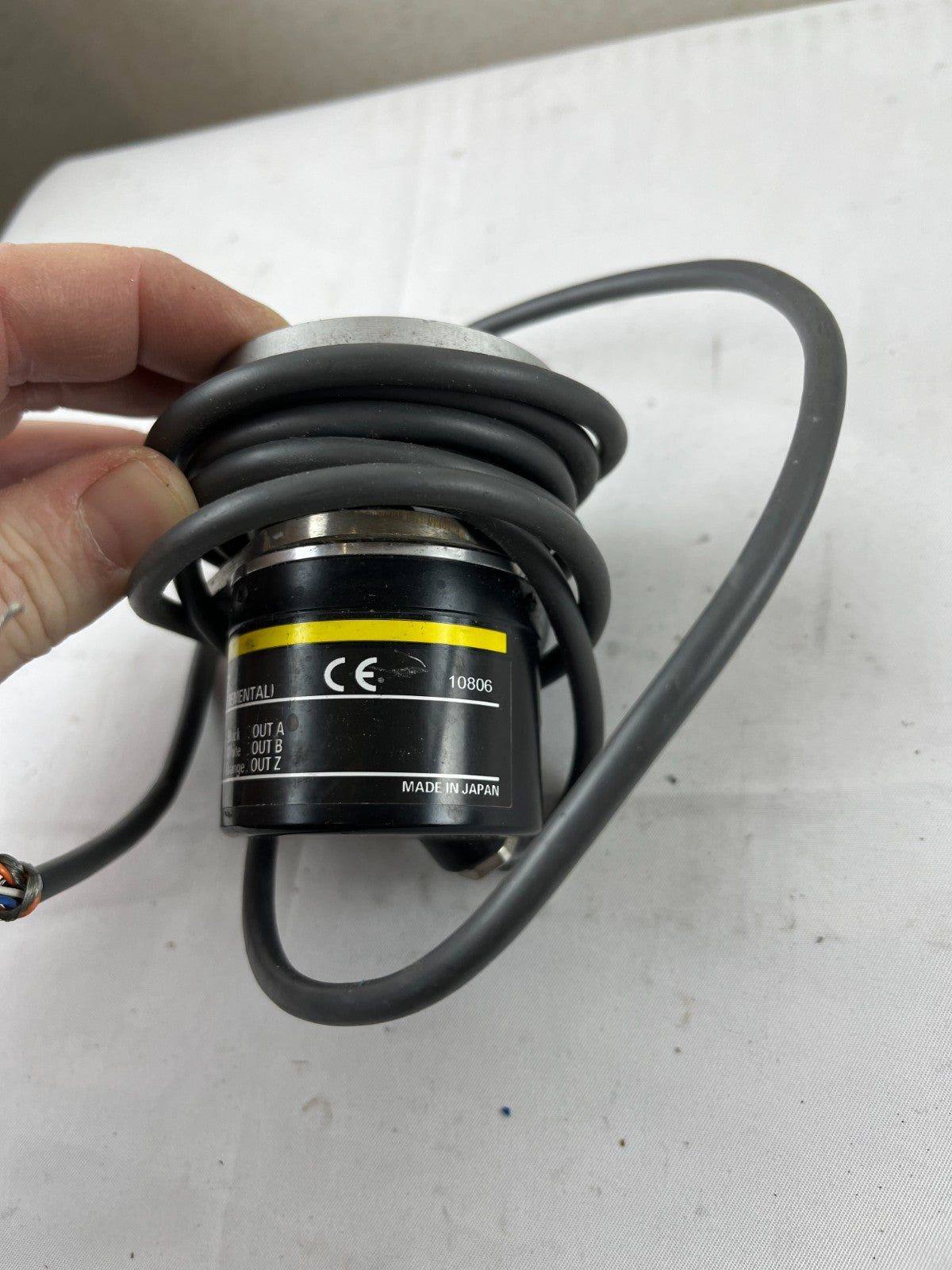

• Markings/approvals: CE mark visible on housing

• Country of origin: Made in Japan

• For full electrical and mechanical specifications, please see the photos/label.

Condition

• Used rotary encoder, removed from service in working order.

• Tested: Marked as good working condition but not recently bench-tested in this sale.

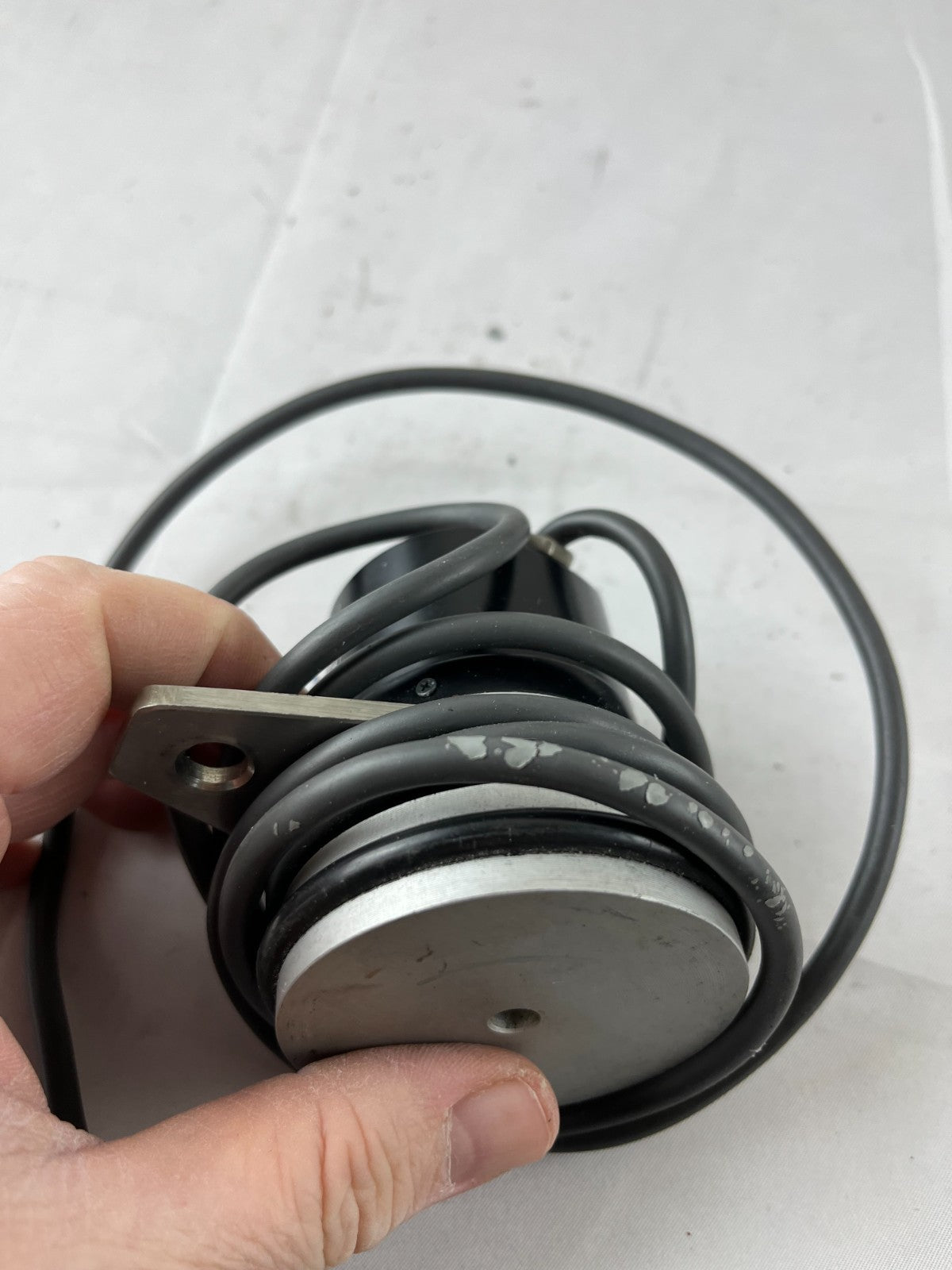

• Cosmetics: Light scuffs and small paint/finish marks on the top hub and housing from previous mounting and handling.

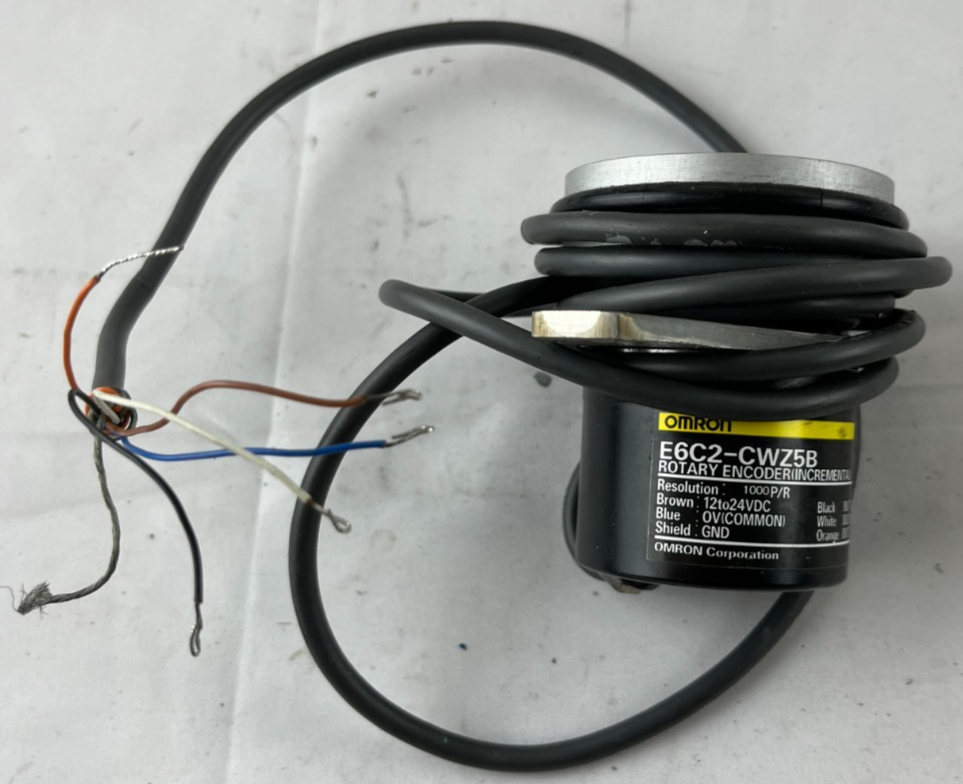

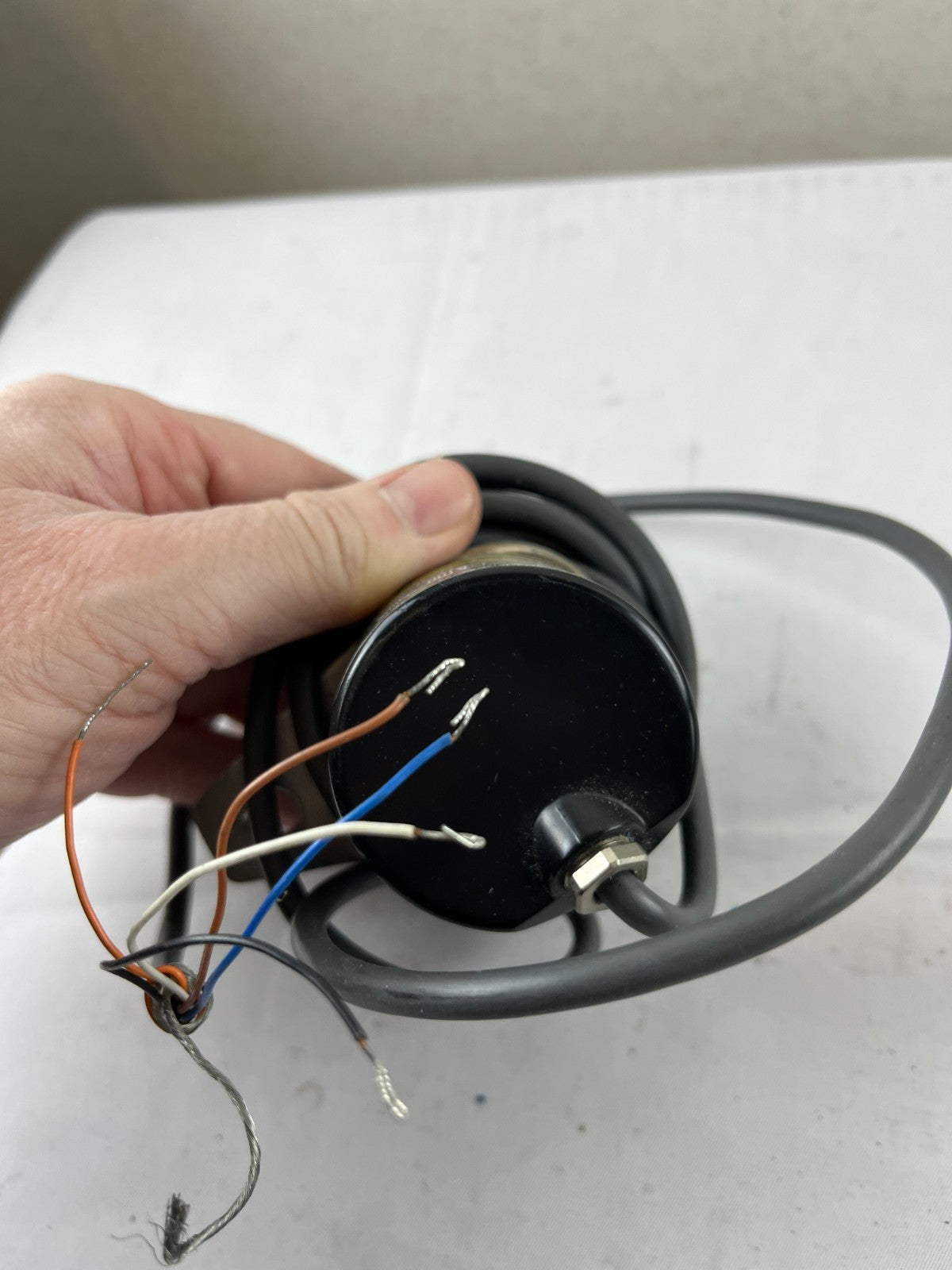

• Leads: Cable ends are cut/stripped; some conductors are shortened and will need to be re-terminated.

• Packaging: Will be shipped in generic protective packaging, not in original Omron box.

Notes

• Includes attached mounting tab/bracket as pictured.

• Ideal as a replacement encoder for existing machinery using the Omron E6C2-CWZ5B 1000 P/R model; buyer should verify compatibility with their drive/controller before purchase.

• See all photos for label information, wiring colors, and cosmetic condition; what is shown is exactly what you will receive.
