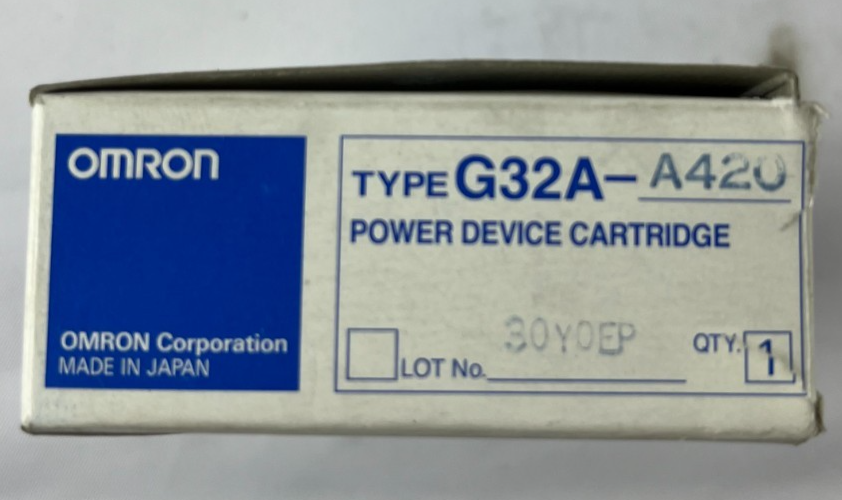

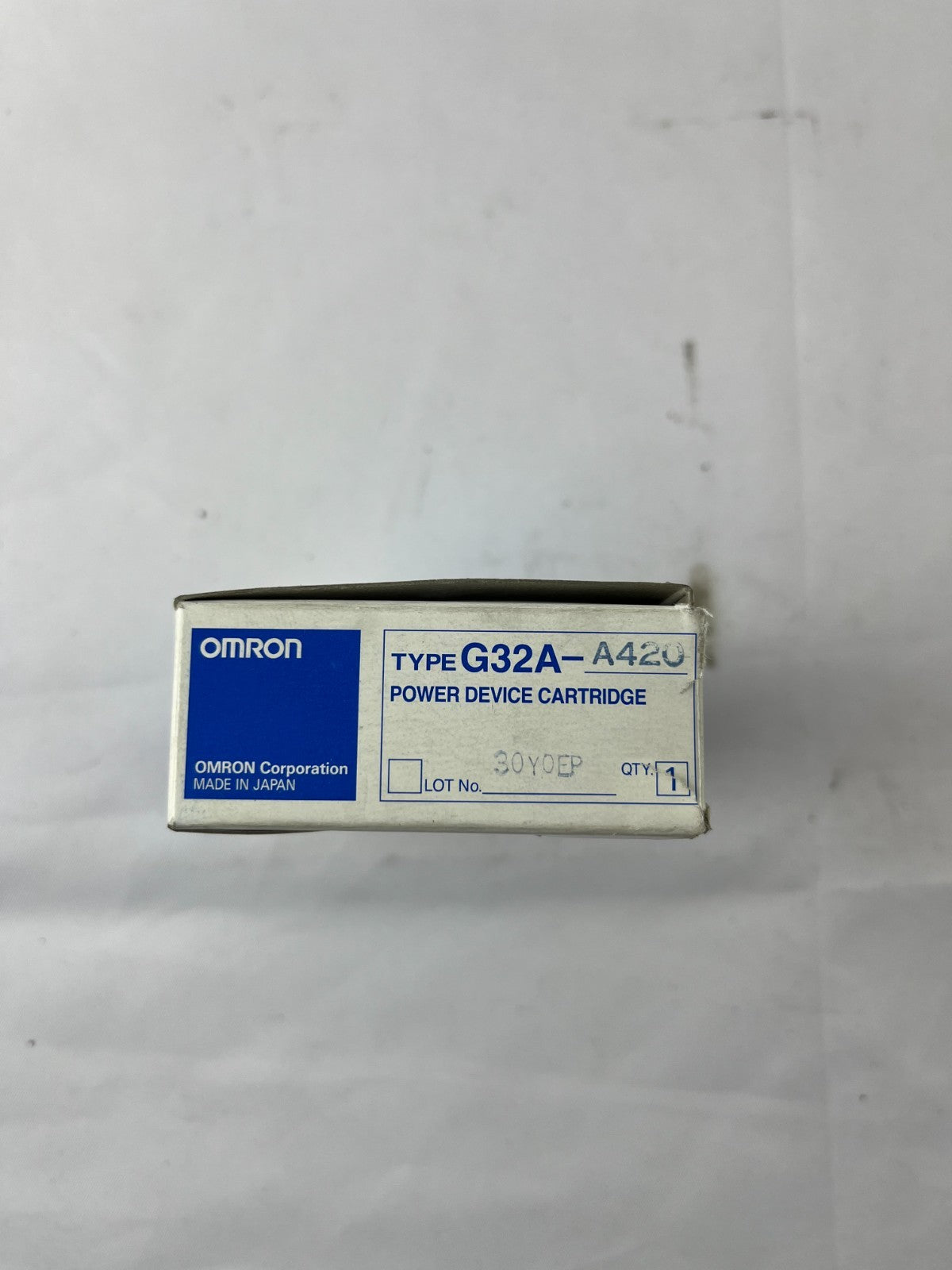

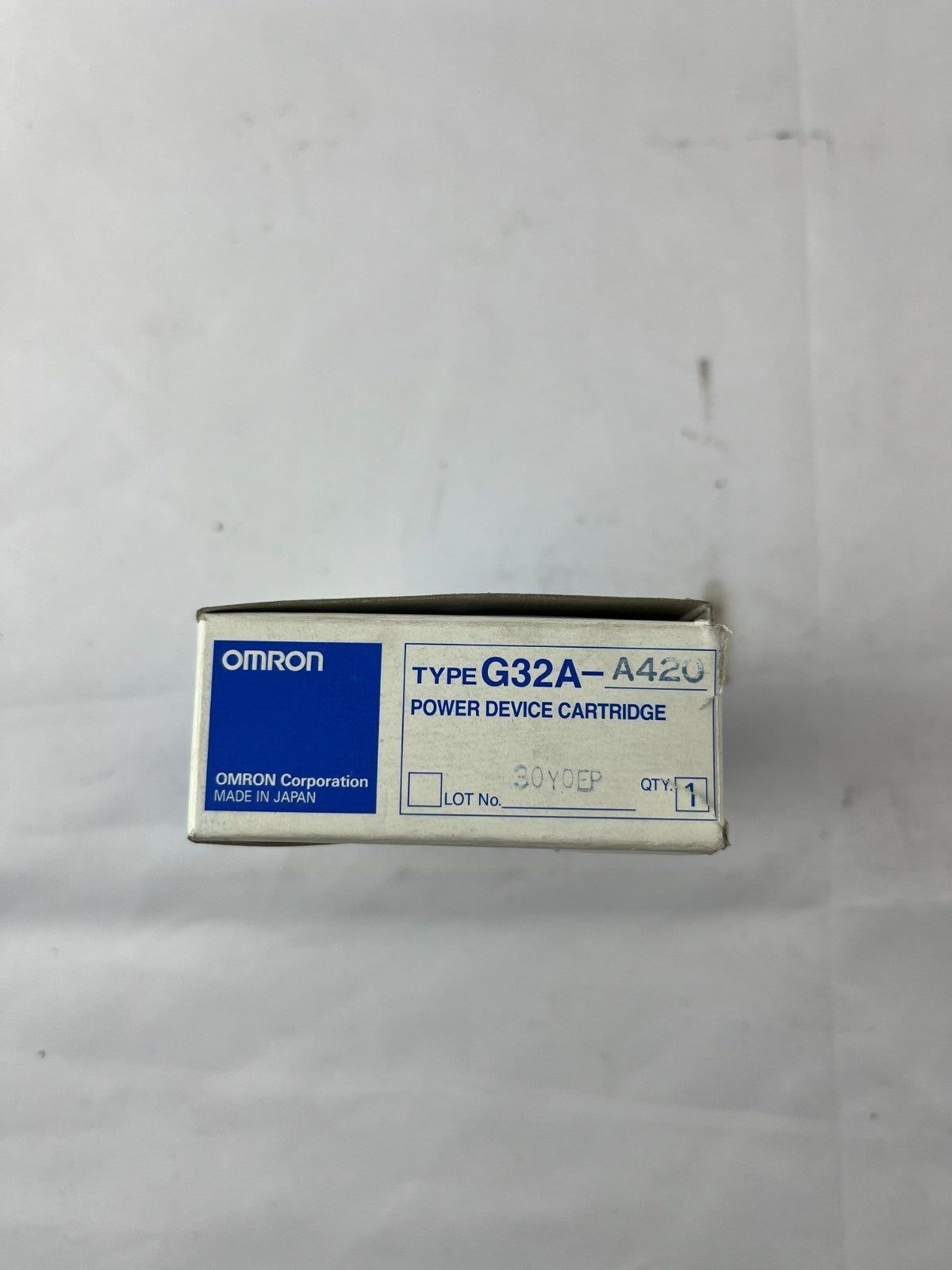

Model: G32A-A420
-
LOT Number: 30Y0EP
-
Applicable SSR: G3PA-420B-VD
-
Type: Replaceable power element cartridge (Triac unit)
-
Load Voltage: 200 to 400 VAC (50/60 Hz)
-
Operating Voltage Range: 180 to 440 VAC
-
Rated Load Current: 20A at 30°C
-
Current Range: 0.5 to 20A
-
Input Control Voltage: 12 to 24 VDC
-
Input Voltage Range: 9.6 to 30 VDC
-
Input Current: 7 mA max
-
Surge Current: 220A (60 Hz, 1 cycle)
-
Peak Blocking Voltage: 1,000V (VDRM)
-
Output ON Voltage Drop: 1.8V RMS max
-
Zero Cross Function: Equipped
-
Operate Time: 1/2 of load power cycle + 1 ms max
-
Features: DIN rail or surface mounting, finger protected terminals, LED input status indicator, integrated heat sink
-
Protection: 4,000V dielectric strength between input and load
-
Certifications: UL, CSA, VDE (reinforced insulation)
-
Country of Origin: Made in Japan

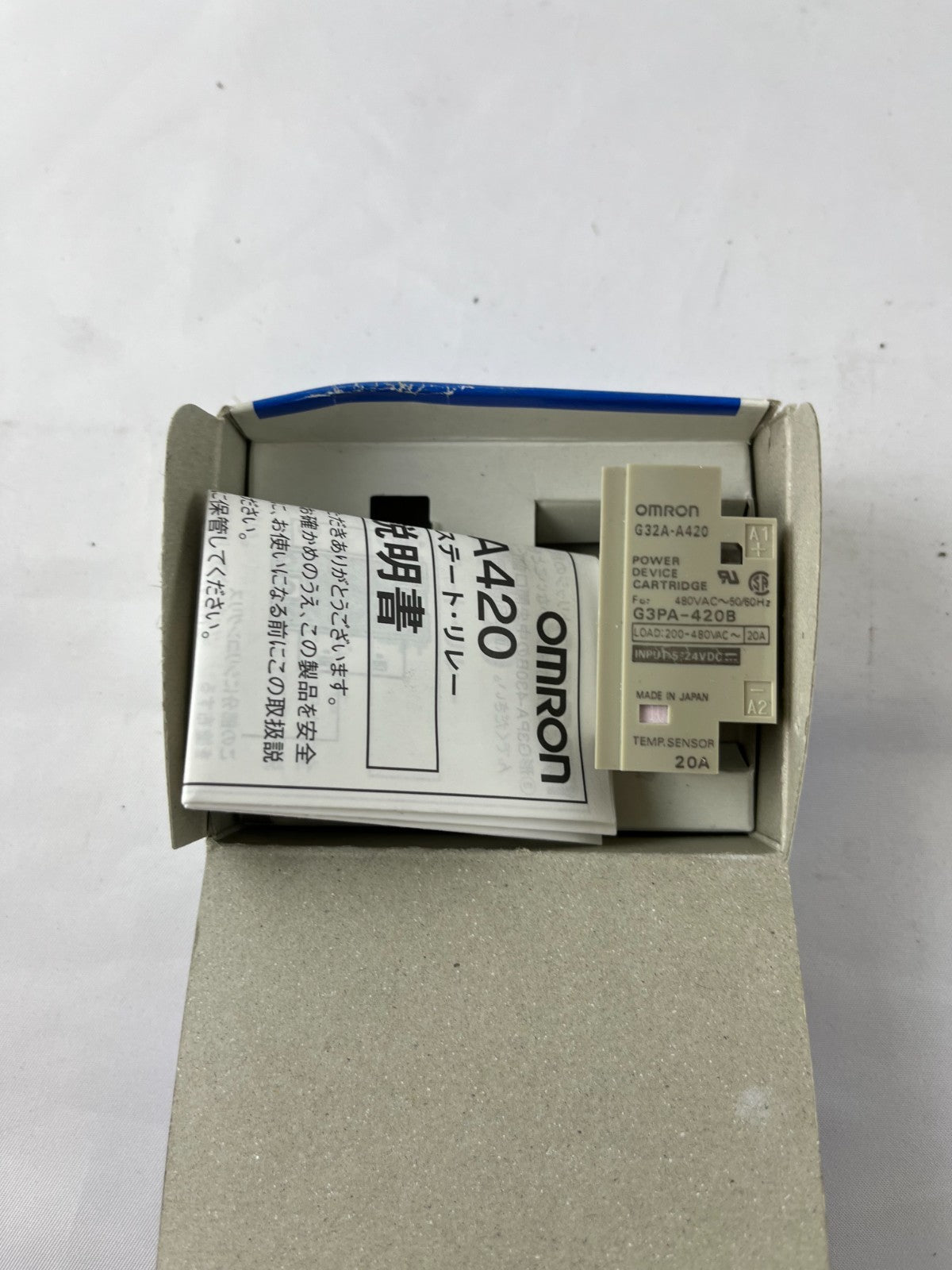

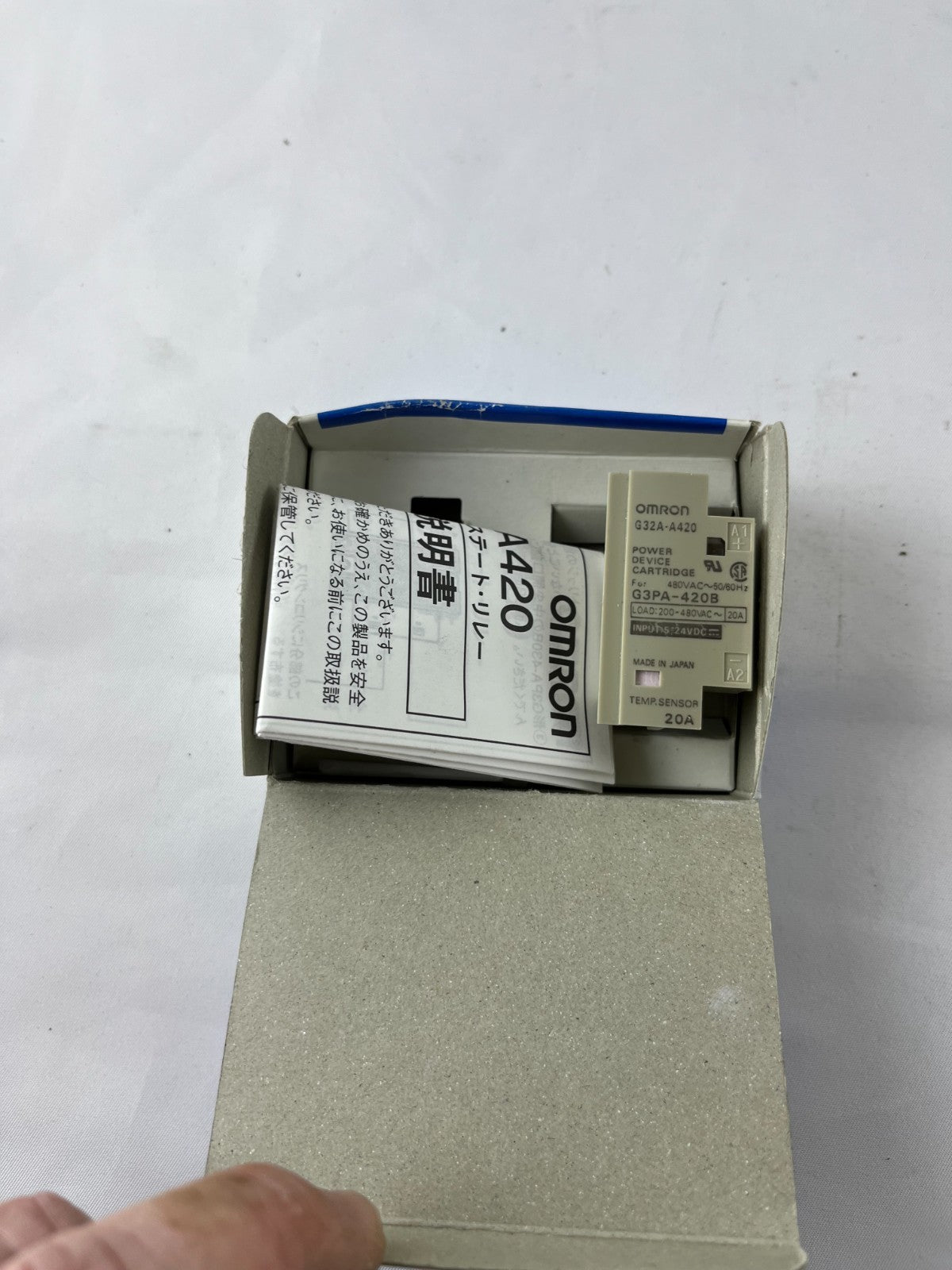

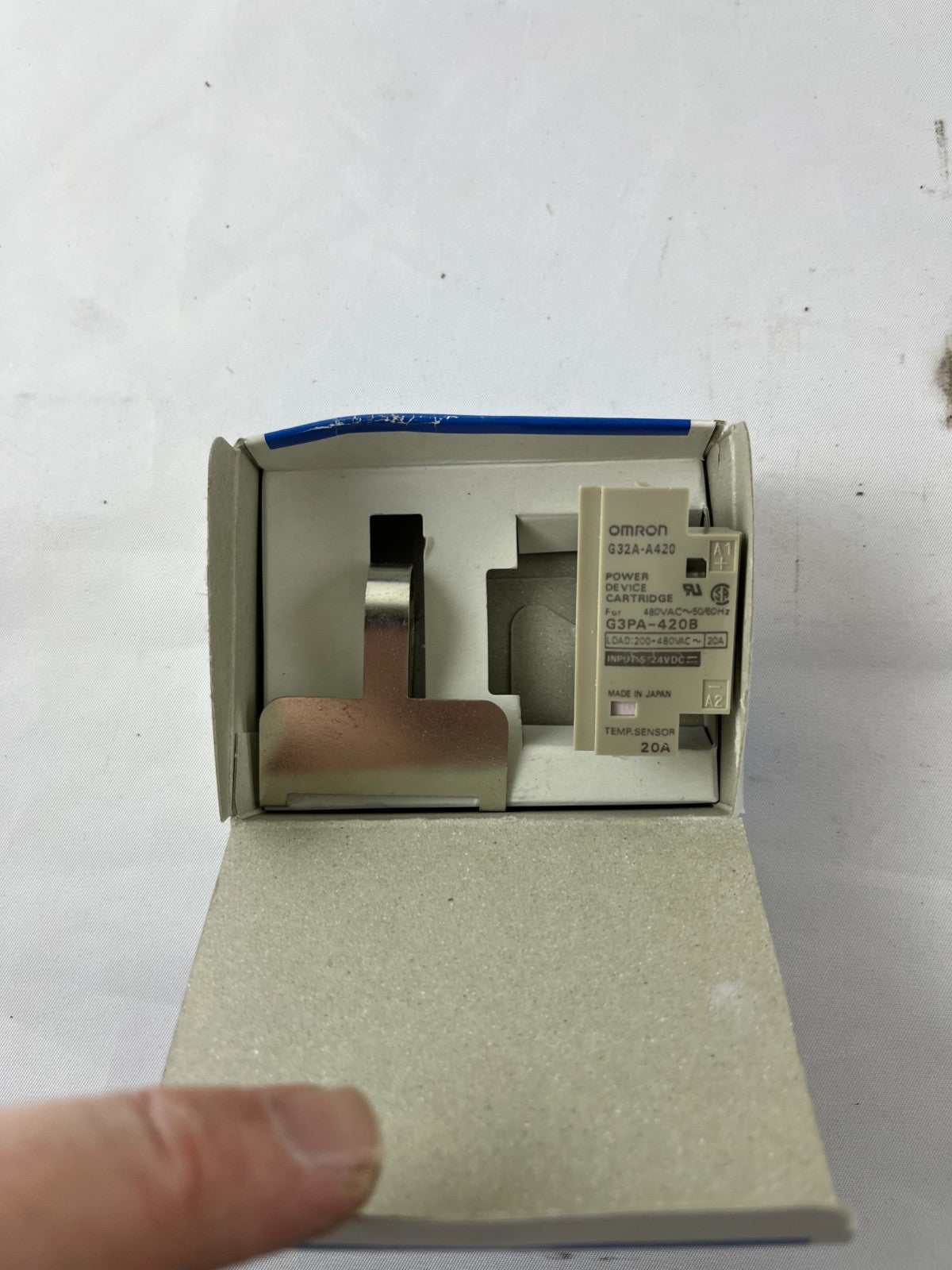

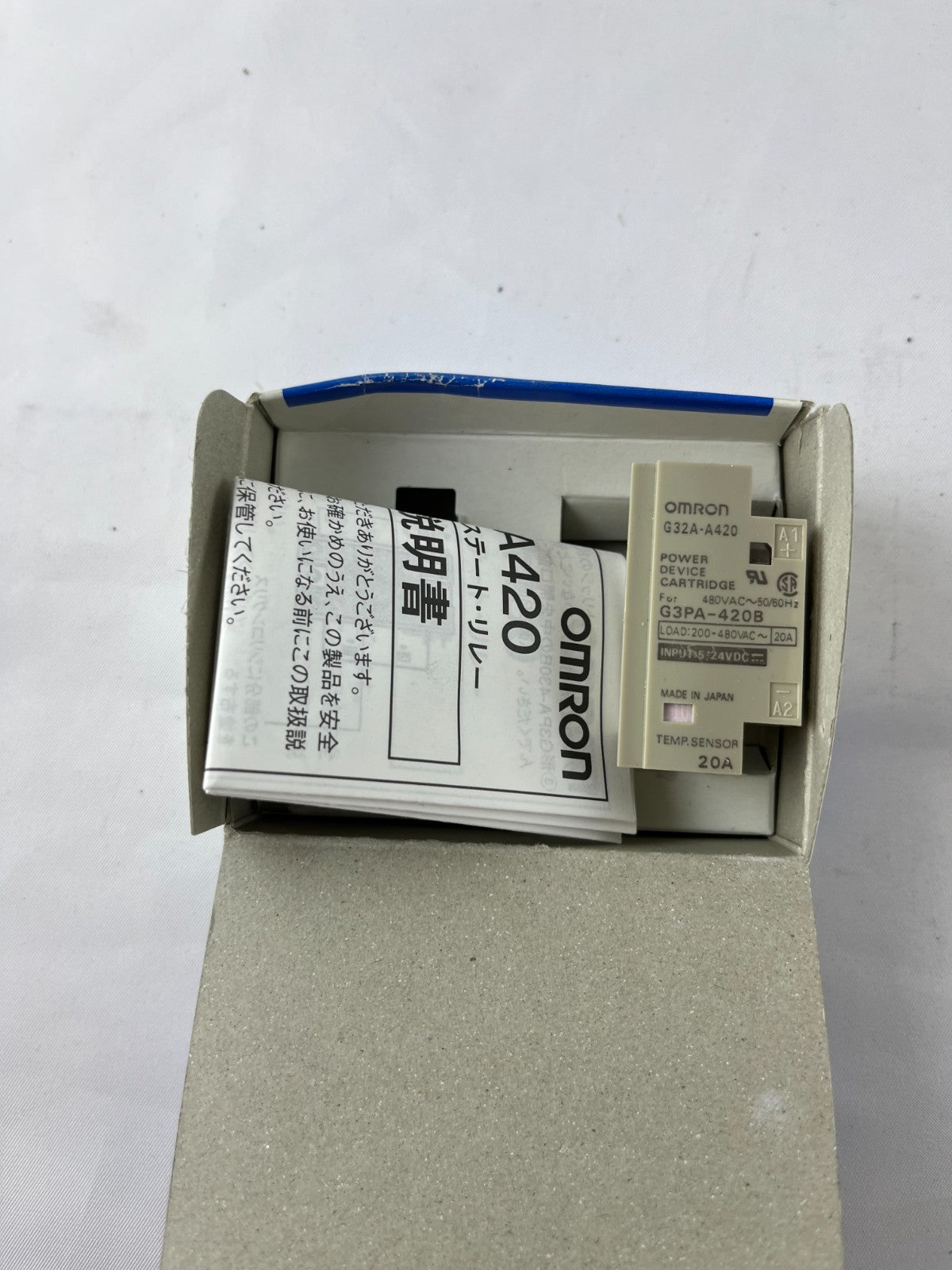

This is a replacement power device cartridge for the Omron G3PA series DIN-rail mounted solid state relays. The cartridge design allows easy field replacement of the triac power element without disconnecting wires from the base unit. When the built-in temperature indicator changes from pink to red, it signals potential malfunction requiring cartridge replacement. The ultra-slim design includes an integrated heat sink for efficient thermal management. Perfect as a spare part or replacement for G3PA-420B SSR units in industrial heating, motor control, and power switching applications.
