Brand: Omron Corporation, Japan.

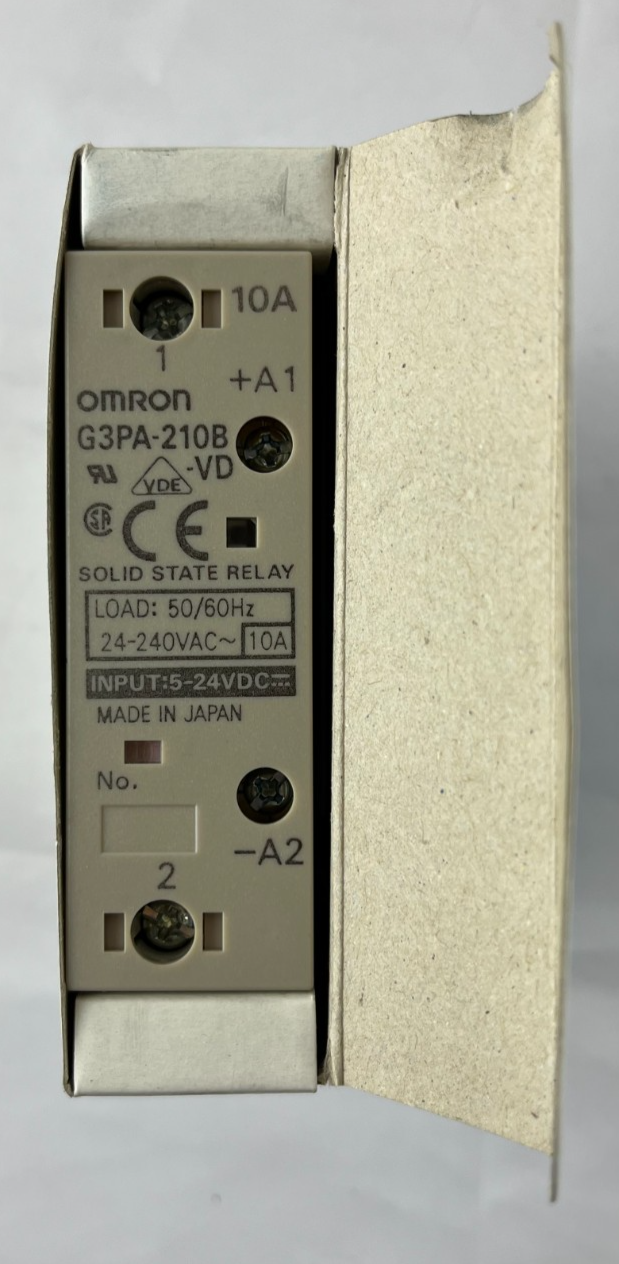

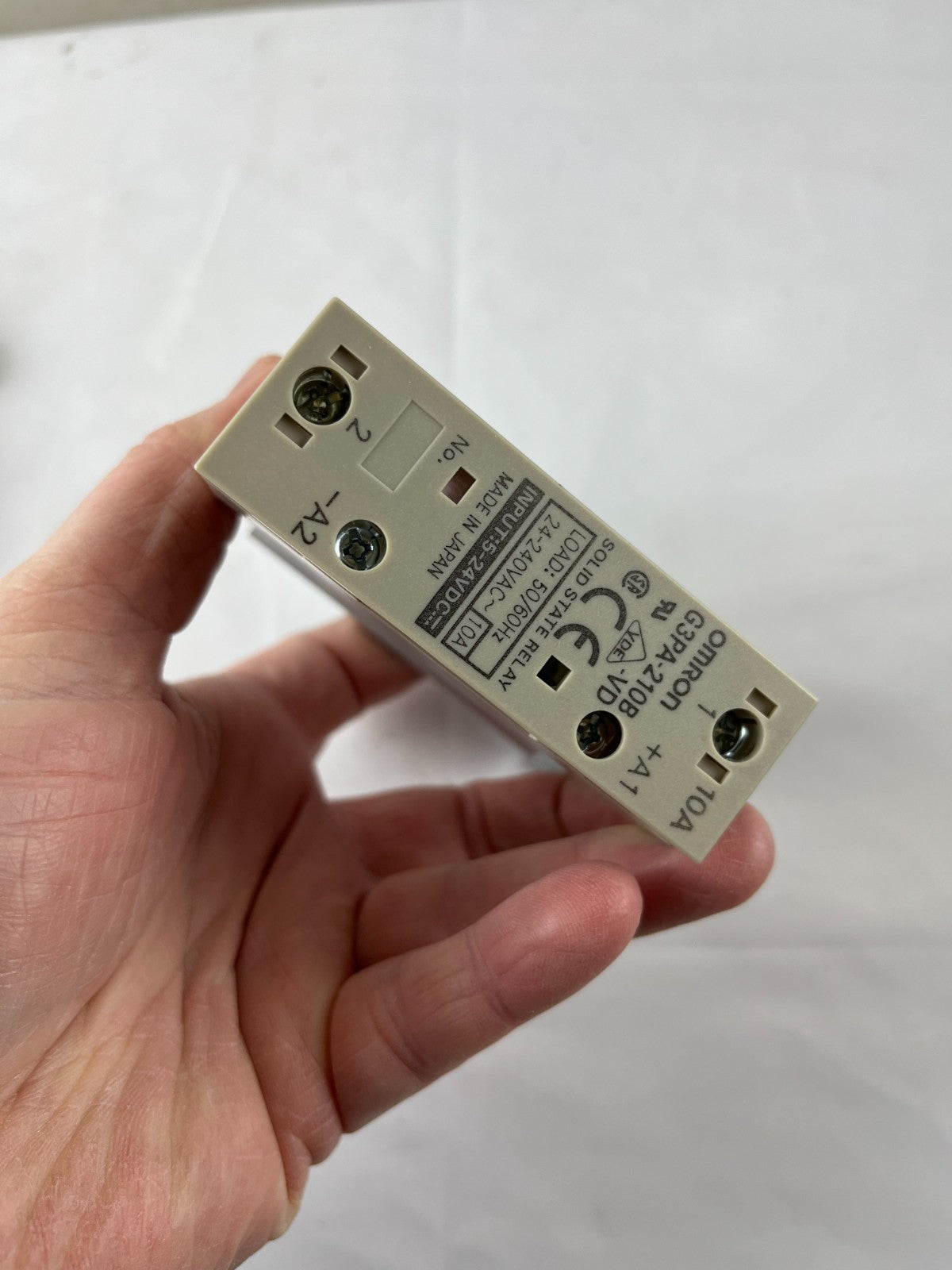

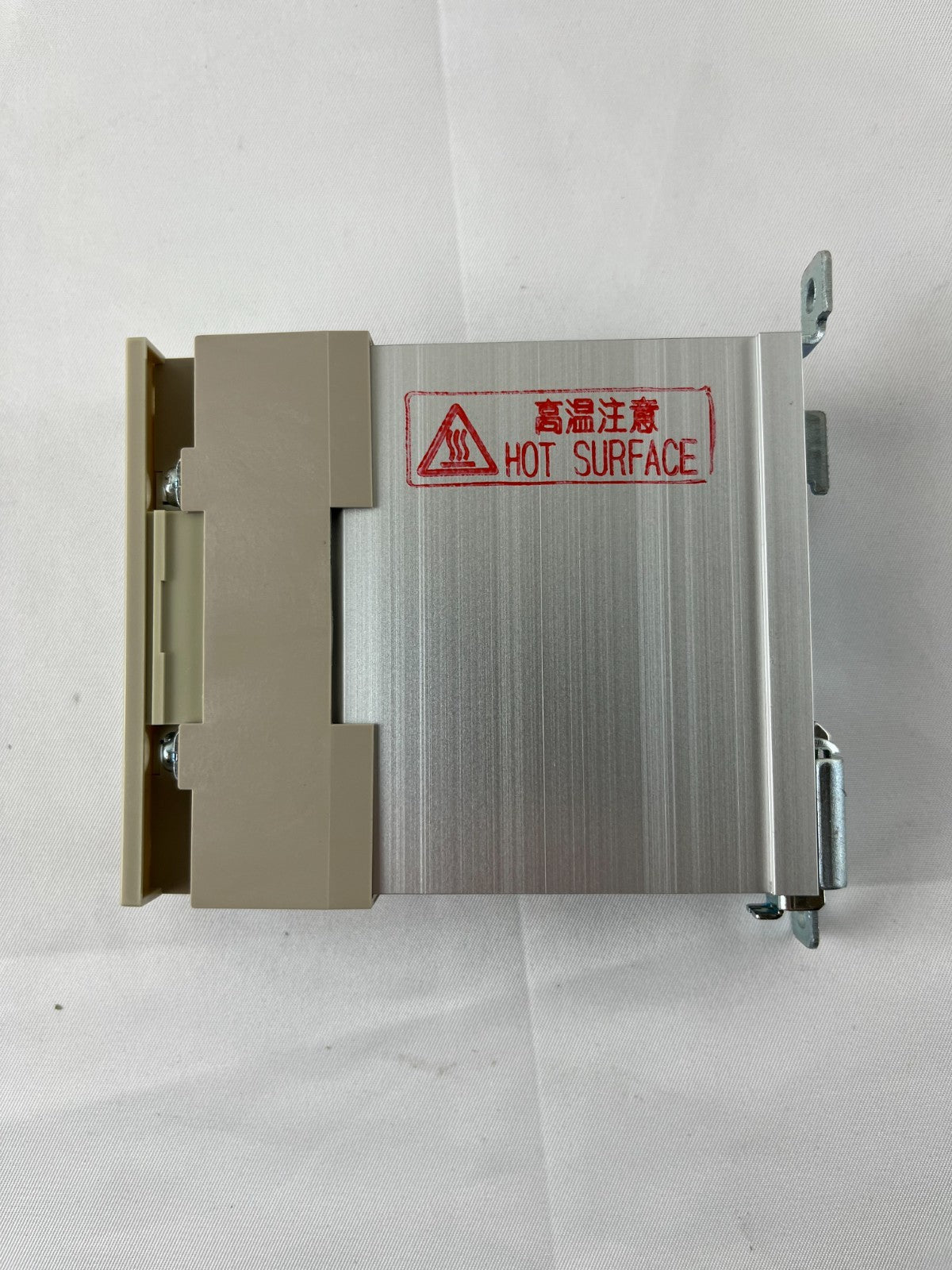

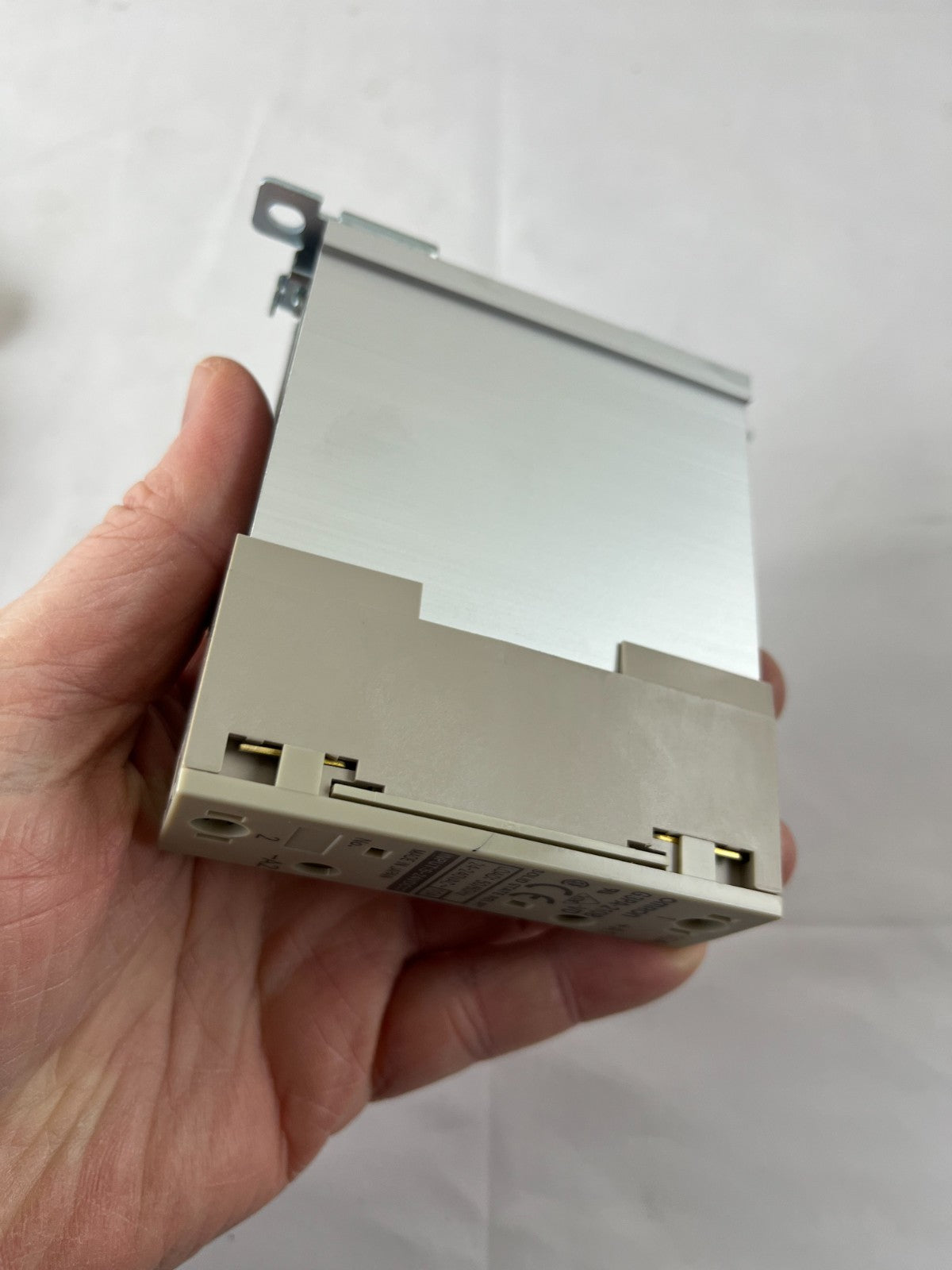

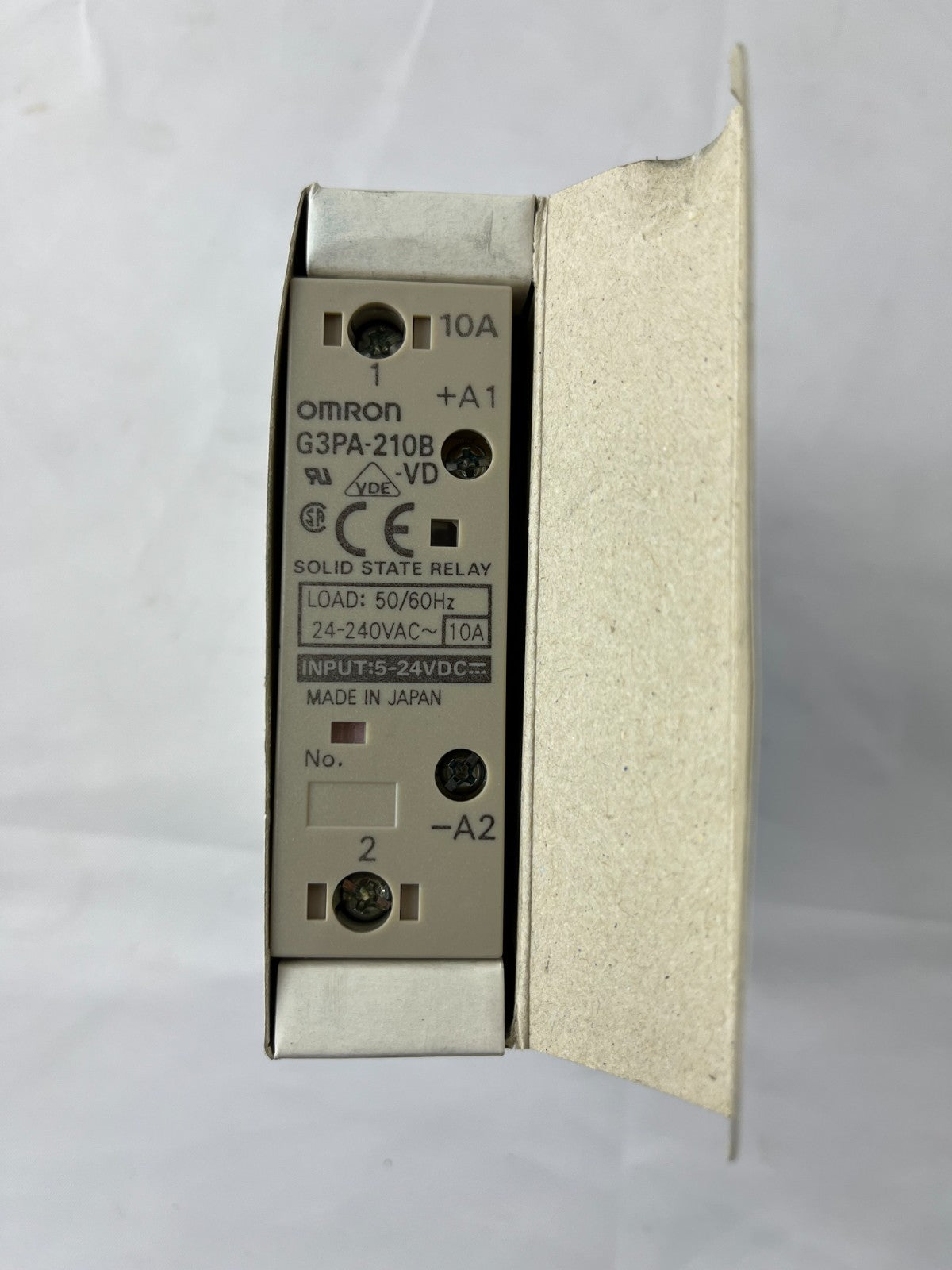

Model: G3PA‑210B‑VD single‑phase power solid state relay, compact panel/DIN‑rail module from the Omron G3PA series.

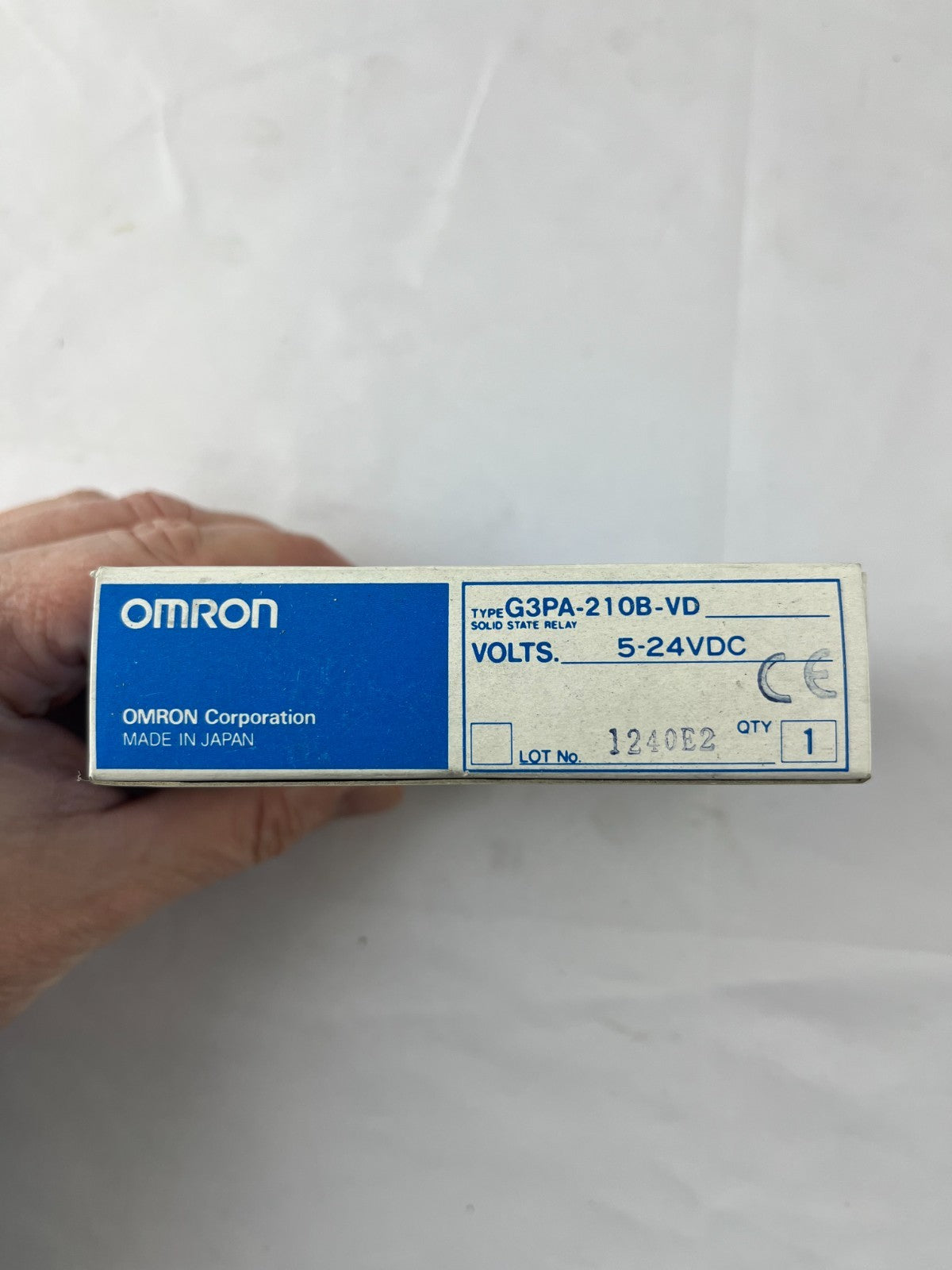

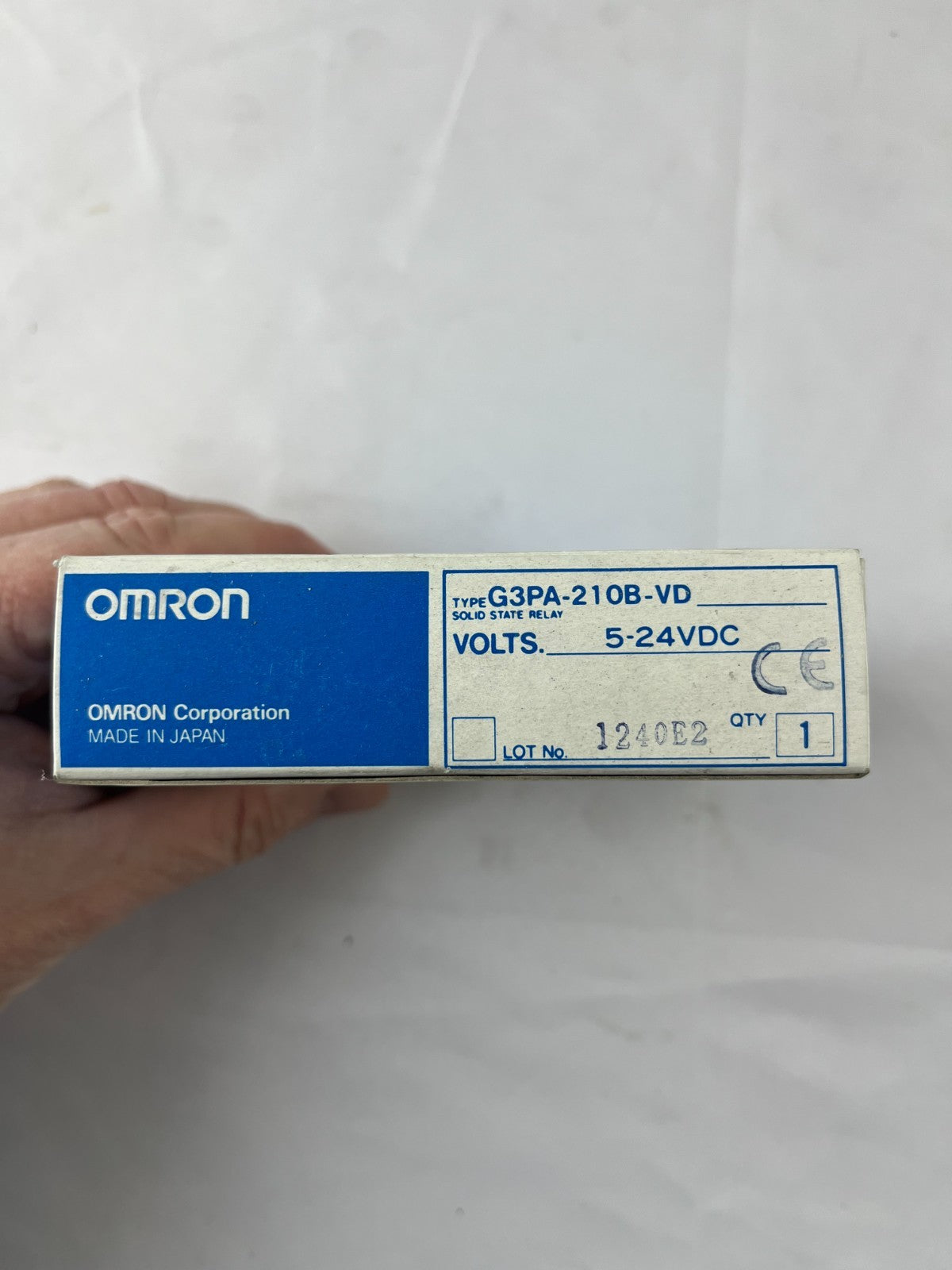

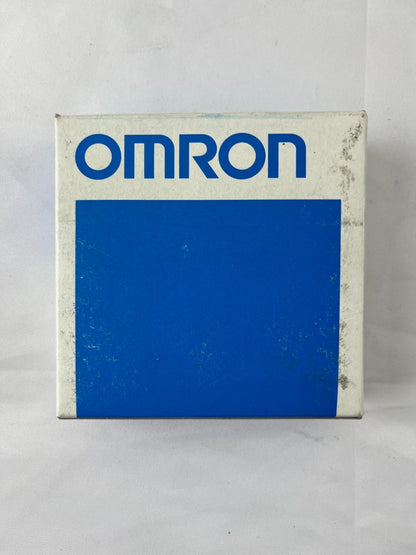

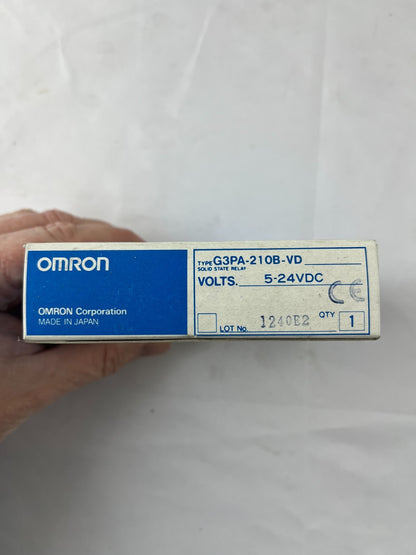

Condition: New old stock / never used. Relay has only been removed from the original Omron box for inspection and photos; terminals show no signs of wiring, and the body is clean. Outer box has storage marks and discoloration from long‑term shelf life, but this does not affect function.
-
Function: Solid state relay, SPST‑NO (1 Form A), zero‑cross switching
-
Rated load: 10 A at 24–240 Vac, 50/60 Hz
-
Load voltage range: approximately 19–264 Vac (see datasheet for details)
-
Control (input) voltage: 5–24 VDC, typical input current around 7 mA
-
Insulation: 4 kVAC dielectric strength between input and output, optical isolation
-

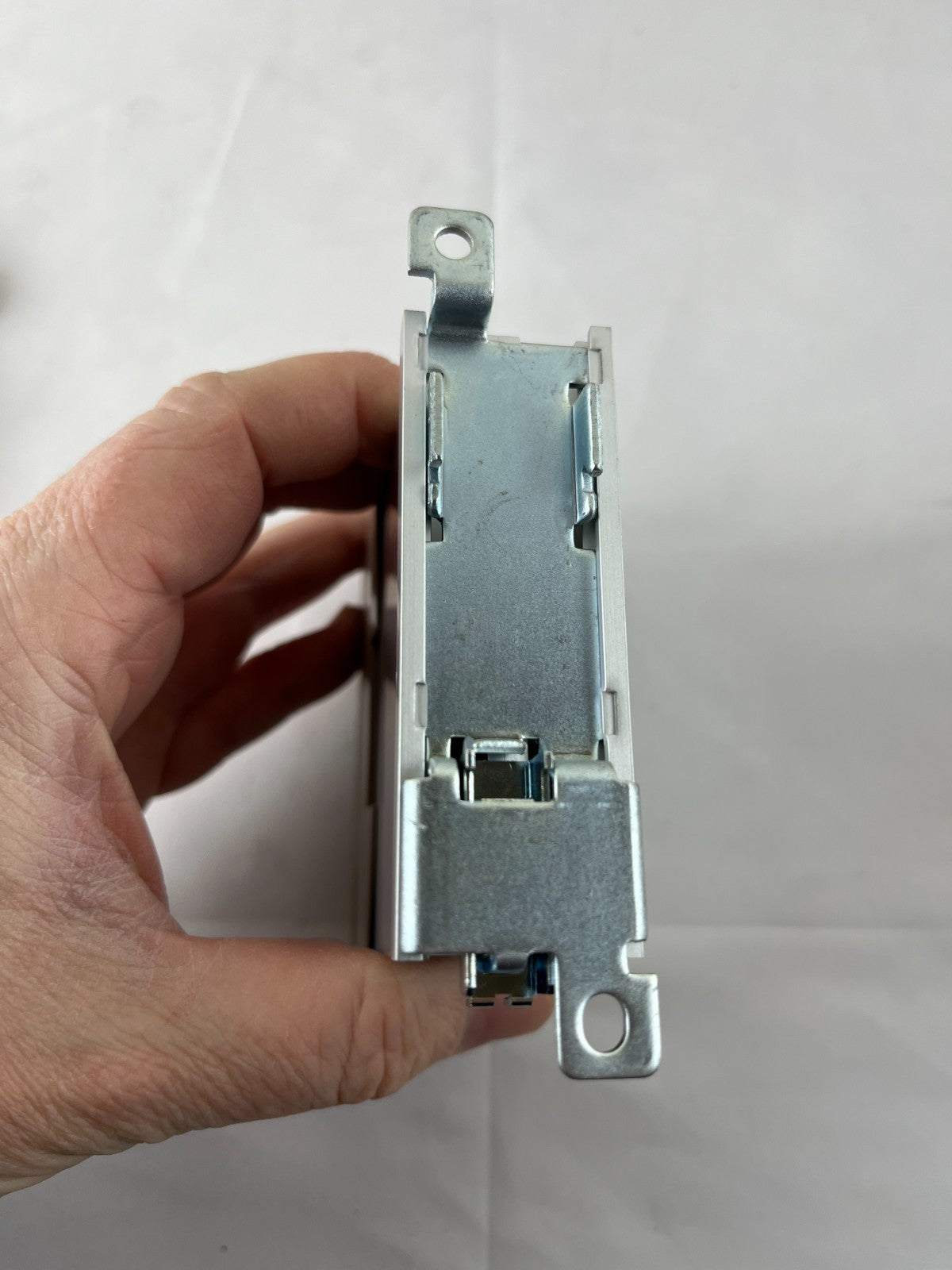

Mounting: DIN‑rail snap‑on or screw‑mount, screw terminals for load and control connections
-
Features: Replaceable power cartridge (G32A series), operation LED indicator, finger‑safe design when used with recommended covers.
-
Reliable solid state design with no mechanical contacts, ideal for high‑frequency switching and long service life.
-
Zero‑cross turn‑on reduces electrical noise and stress on connected loads such as heaters, lamps, and motors.
-
Compact footprint with DIN‑rail mounting makes it easy to integrate into existing control panels or OEM machinery.
-
Industrial process heating, temperature control, and packaging equipment.
-
Switching of resistive heaters, solenoids, and general AC loads from PLCs or low‑voltage control circuits.
-
Suitable for both professional MRO/automation users and advanced hobby or lab projects needing a 10 A AC solid state relay.
This unit is ideal for buyers looking for a quality Japanese‑made Omron SSR for reliable AC load control with low‑voltage DC logic input. Please verify compatibility using the official G3PA‑210B‑VD datasheet and ensure adequate heatsinking and installation according to Omron’s guidelines
