Omron R88M-G40030H-BS2 AC Servo Motor 400W 200V 3000rpm G-Series w/ Brake NEW

Omron R88M-G40030H-BS2 AC Servo Motor 400W 200V 3000rpm G-Series w/ Brake NEW

- Shipping includes tracking info worldwide. Klaus KLJ Trading

Omron R88M-G40030H-BS2 is a compact G-Series AC servo motor designed for precise motion control and optimized to work with Omron G-Series/SmartStep 2 servo drives such as the R88D-GN04H-ML2. This unit is factory new, never used, supplied in the original Omron box with protective wrapping, pre-installed power/encoder cable and documentation.

Item details

• Brand: Omron Industrial Automation

• Model: R88M-G40030H-BS2 AC Servo Motor

• Series: G-Series / SmartStep 2 compatible

• Rated output power: 400 W (0.4 kW)

• Rated speed: 3000 r/min

• Rated torque: 1.3 Nm; peak torque up to approx. 3.67 Nm for short-term acceleration.

• Rated voltage: 200–230 V AC, 3-phase

• Encoder type: incremental encoder, 13‑bit resolution (about 8192 pulses).

• Shaft: straight shaft with key and tap

• Brake: integrated holding brake (BS2 version) for vertical axis or safety-critical applications.

• Approx. motor mass: around 1.5 kg.

• Includes: factory-fitted power/encoder cable with connectors and original Omron manual in multi-language format.

Features and benefits

• High dynamic performance with peak torque up to three times rated torque, ideal for fast indexing and positioning tasks.

• Compact 400 W frame reduces panel and machine footprint while maintaining high torque density.

• Integrated brake provides secure holding when power is removed, suitable for Z‑axes, lifts, or safety stop requirements.

• Designed for seamless pairing with Omron G-Series servo drives (MECHATROLINK-II or analog/pulse), simplifying commissioning and tuning.

Condition and packaging

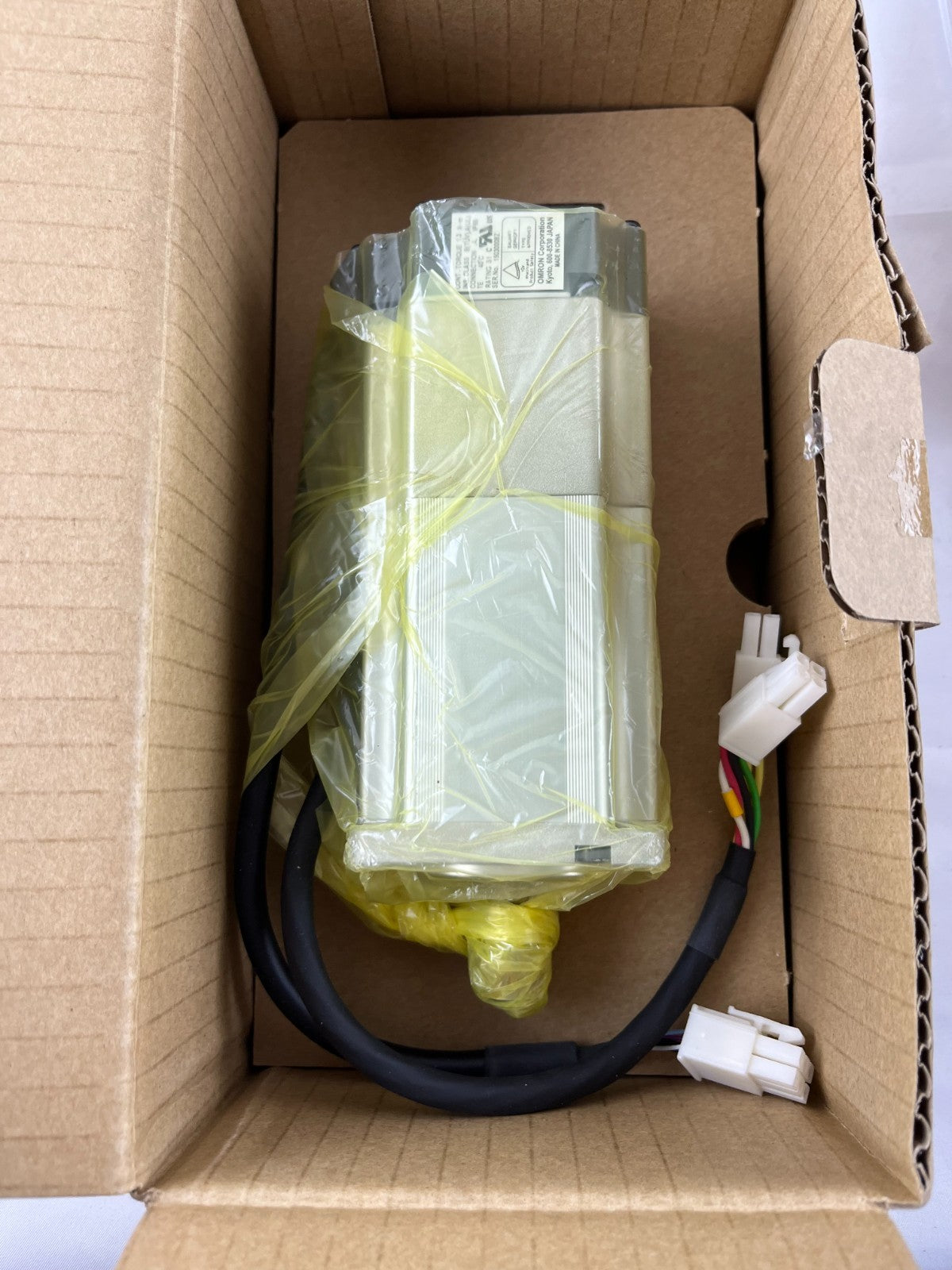

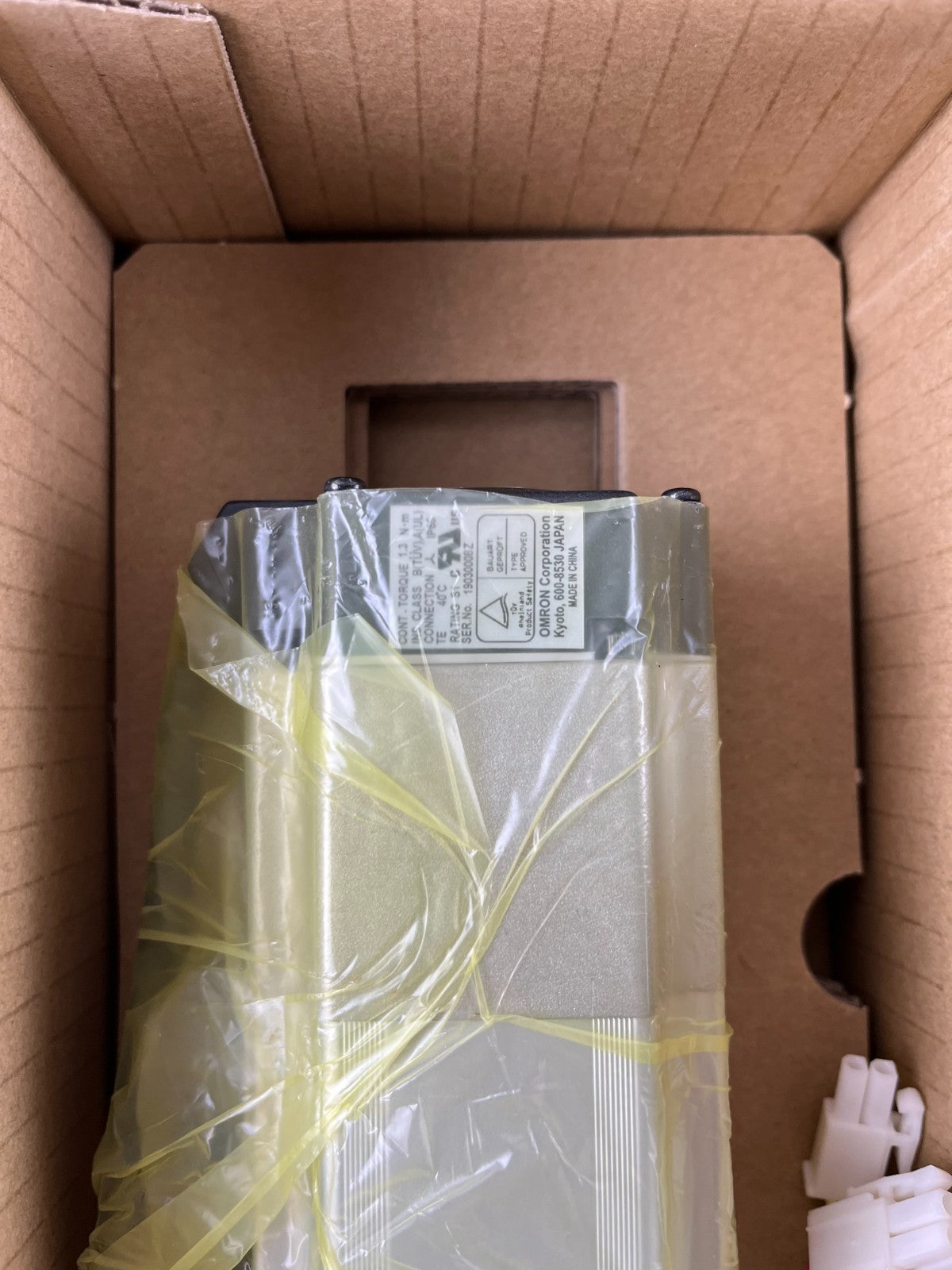

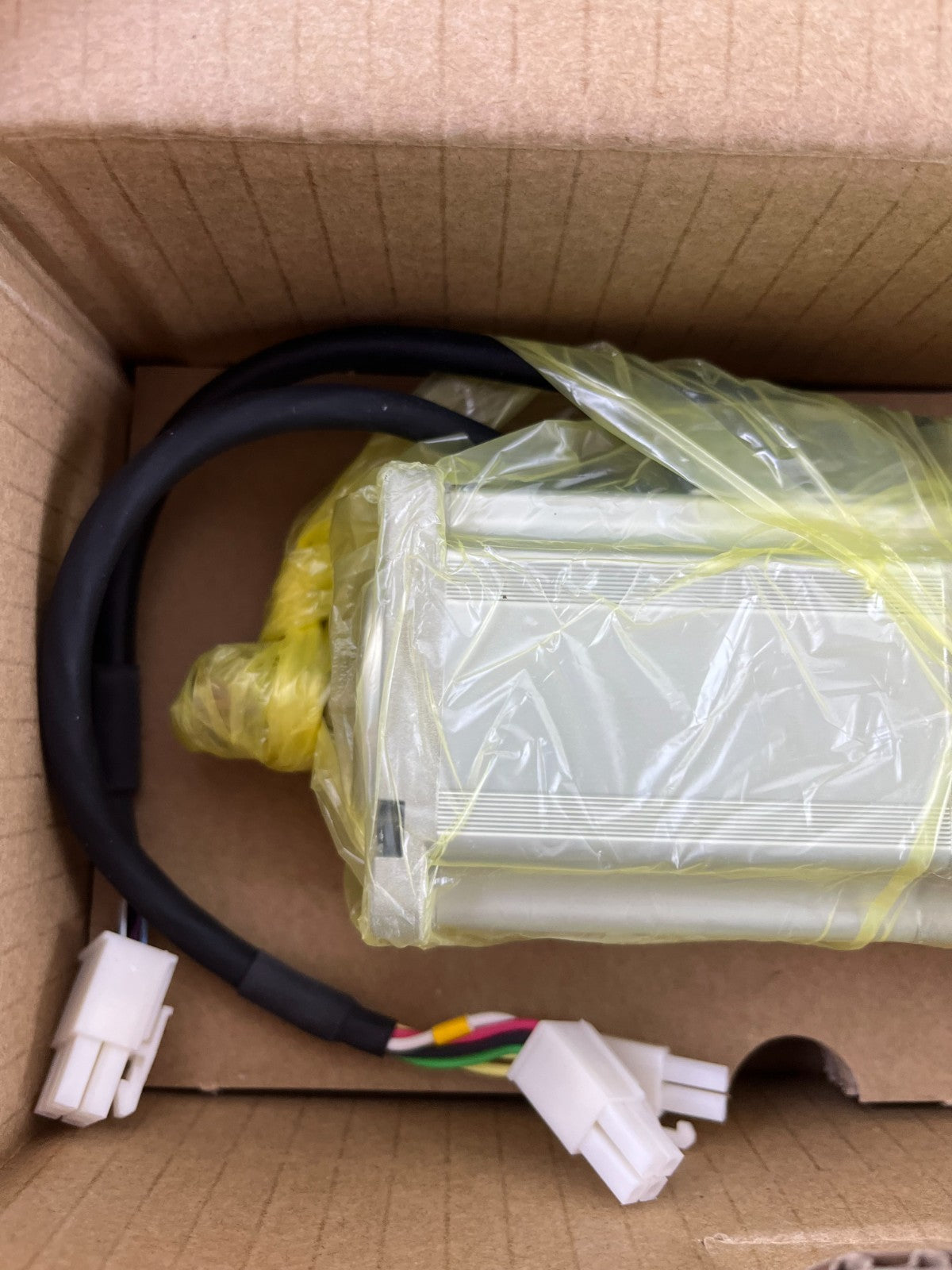

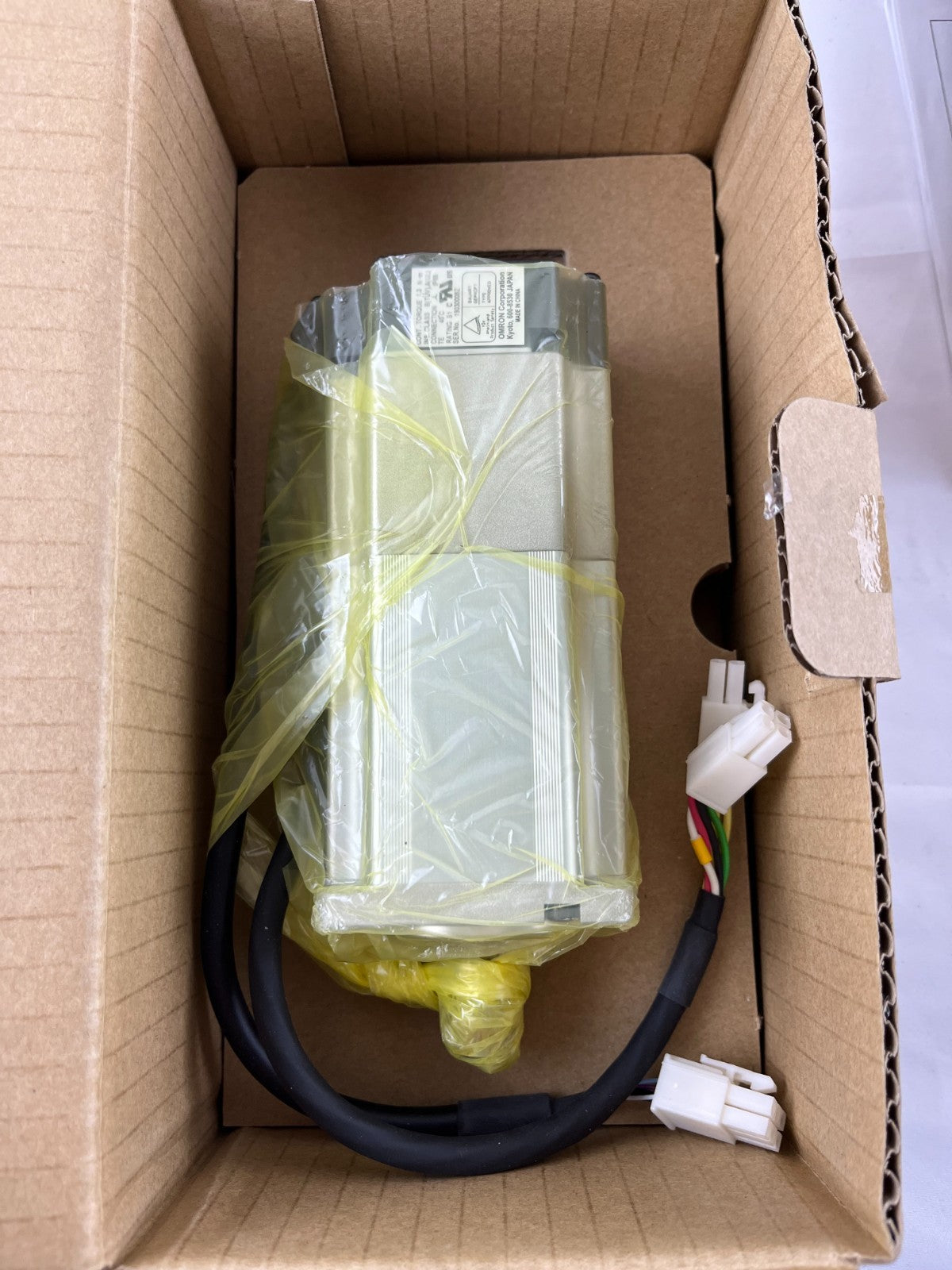

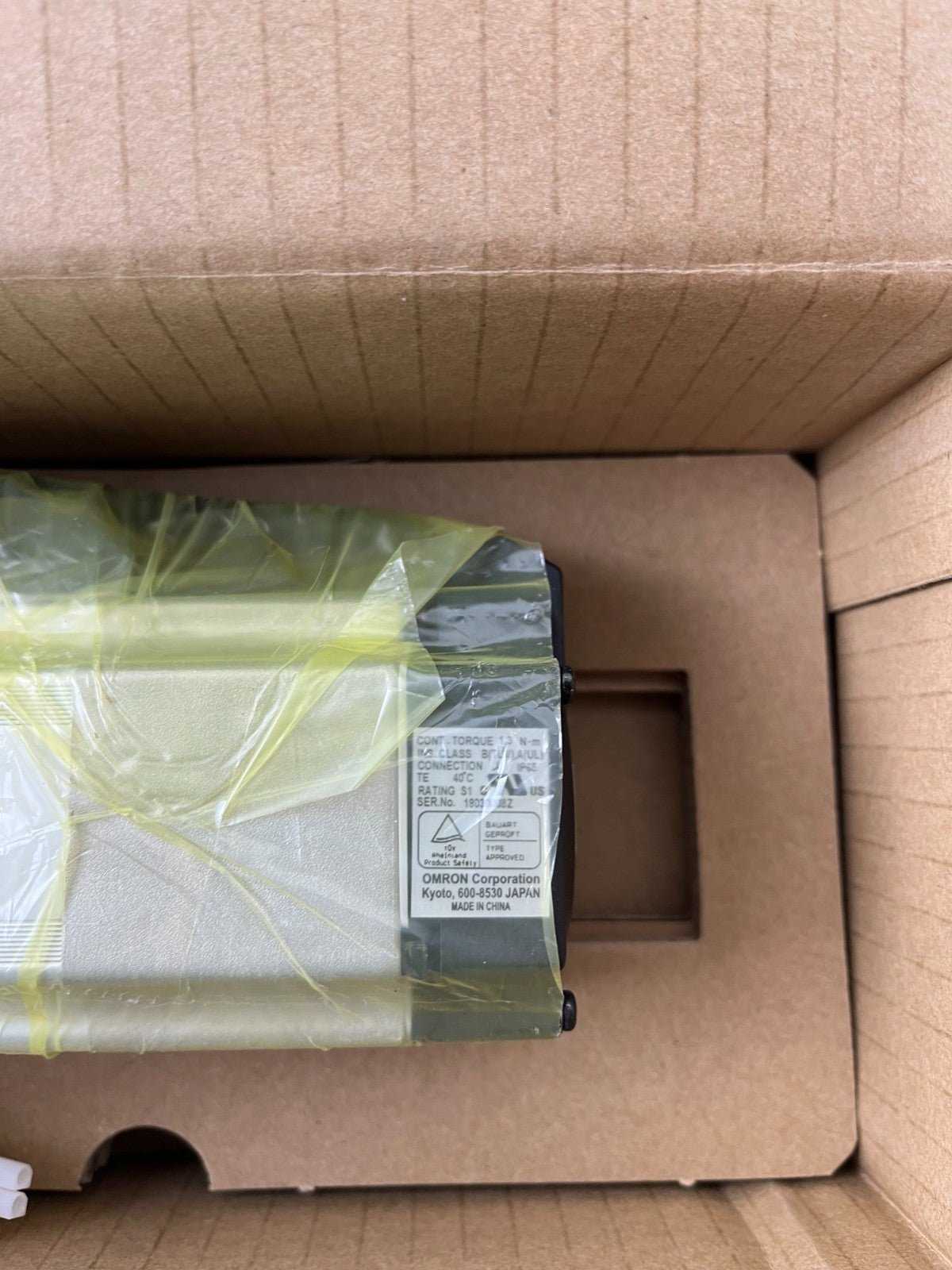

• Condition: New, never installed; motor remains in original plastic wrap with pristine connectors and housing.

• Original Omron cardboard box and factory documentation are included and will be shipped in an additional protective outer carton for safe worldwide delivery.

Typical applications

Well suited for CNC machinery, packaging lines, pick-and-place systems, automated assembly equipment and general industrial automation where a 400 W, 200 V servo axis is required. It is also a direct replacement spare for existing Omron G-Series installations using a 400 W motor with brake and incremental encoder.
