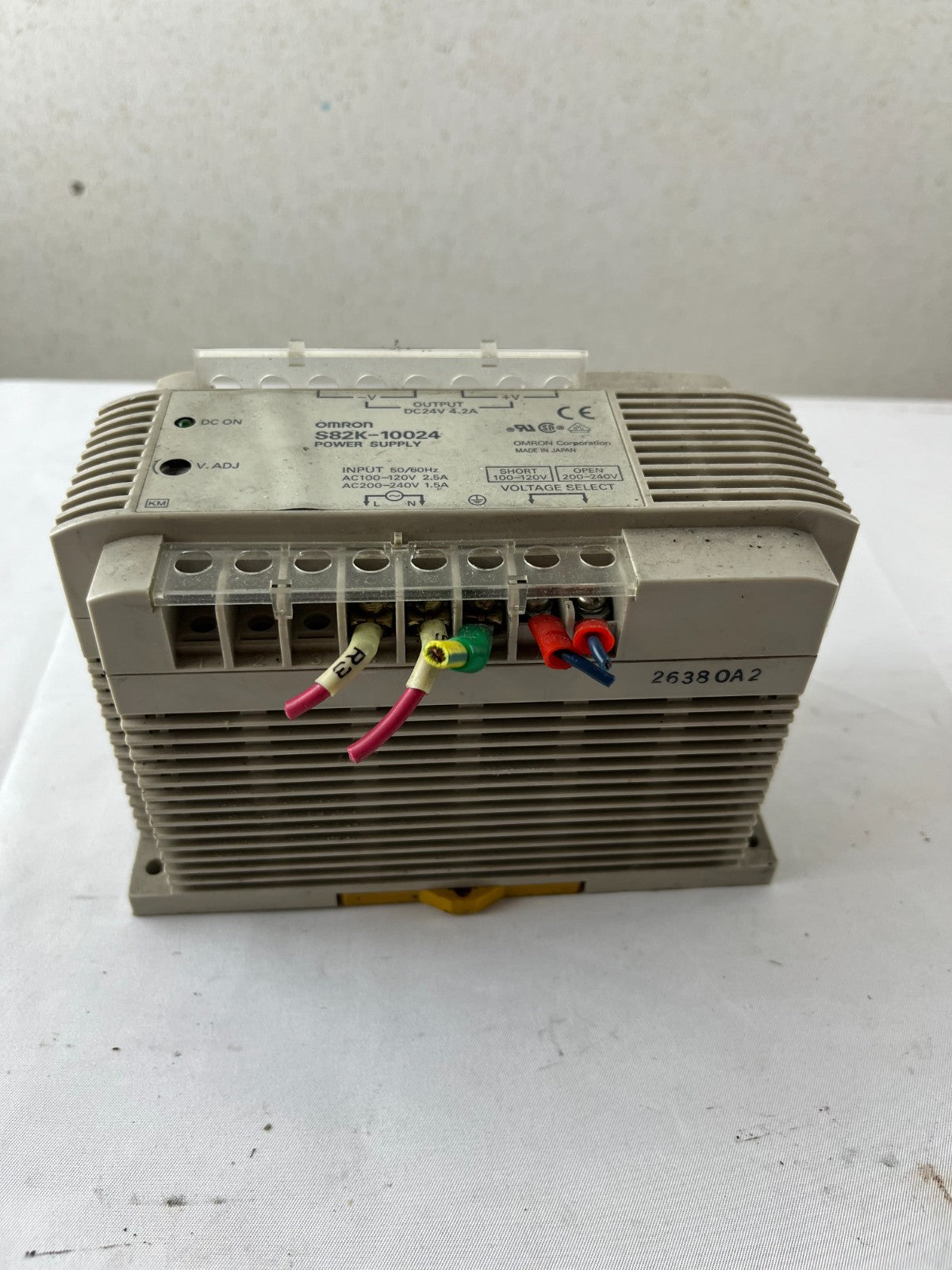

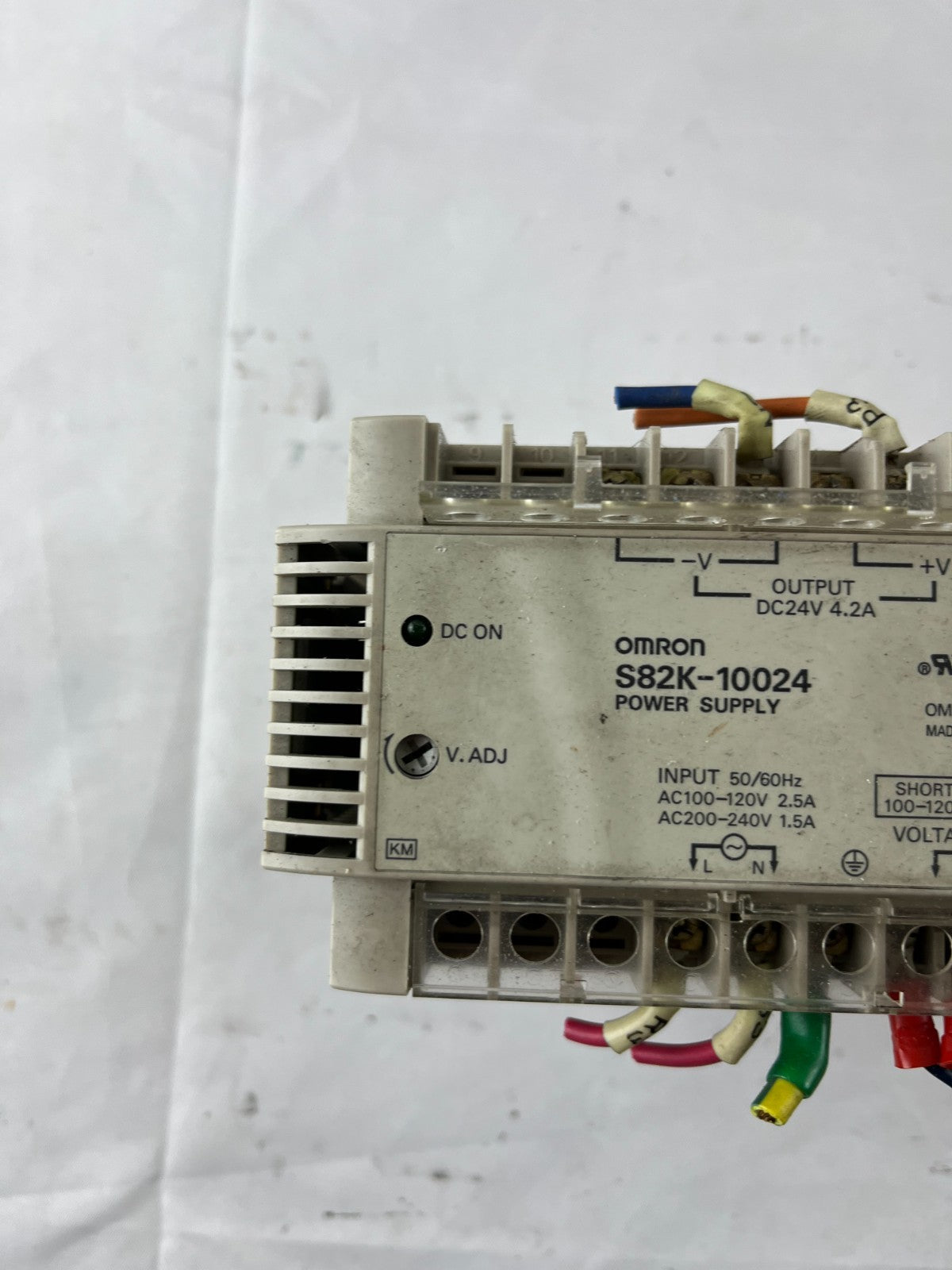

Omron S82K-10024 switching power supply with regulated 24 V DC, 4.2 A output (100 W) for industrial control and automation equipment. Unit is DIN‑rail mountable, wide‑range AC input, and in good working used condition; see photos/label for full specs.
-
Brand: Omron
-
Model: S82K-10024
-
Series: S82K DIN‑rail switching power supply
-
Type: Industrial AC‑DC switch mode power supply, DIN rail mount
-
DC output: 24 V DC, 4.2 A (100 W rated)
-
AC input: 100–120 V AC, 2.5 A / 200–240 V AC, 1.5 A, 50/60 Hz (selectable via voltage‑select short bar)
-

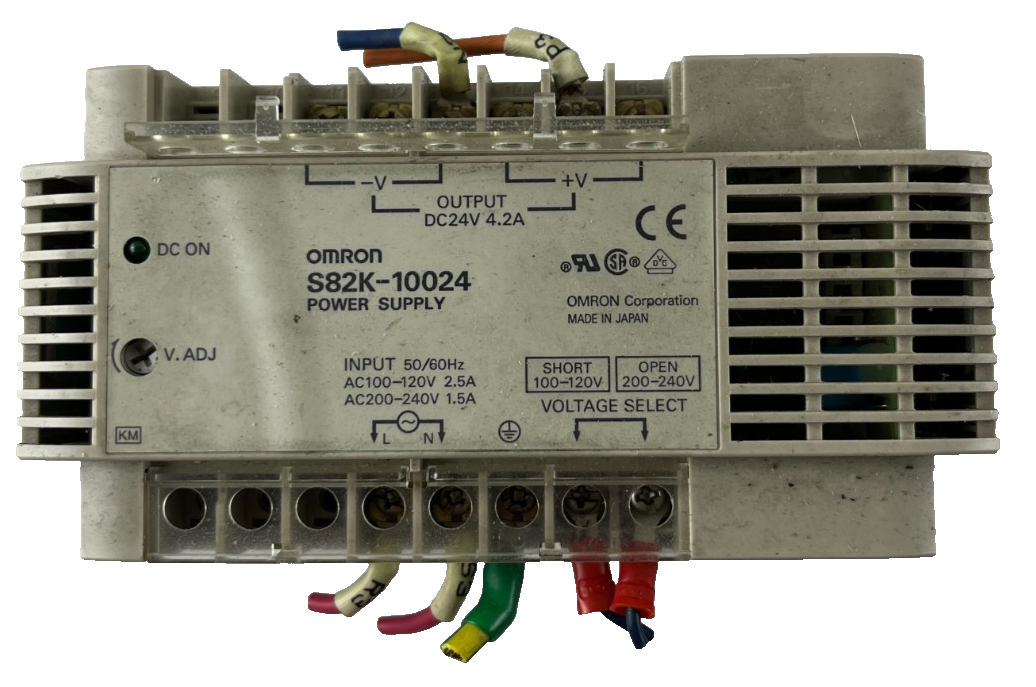

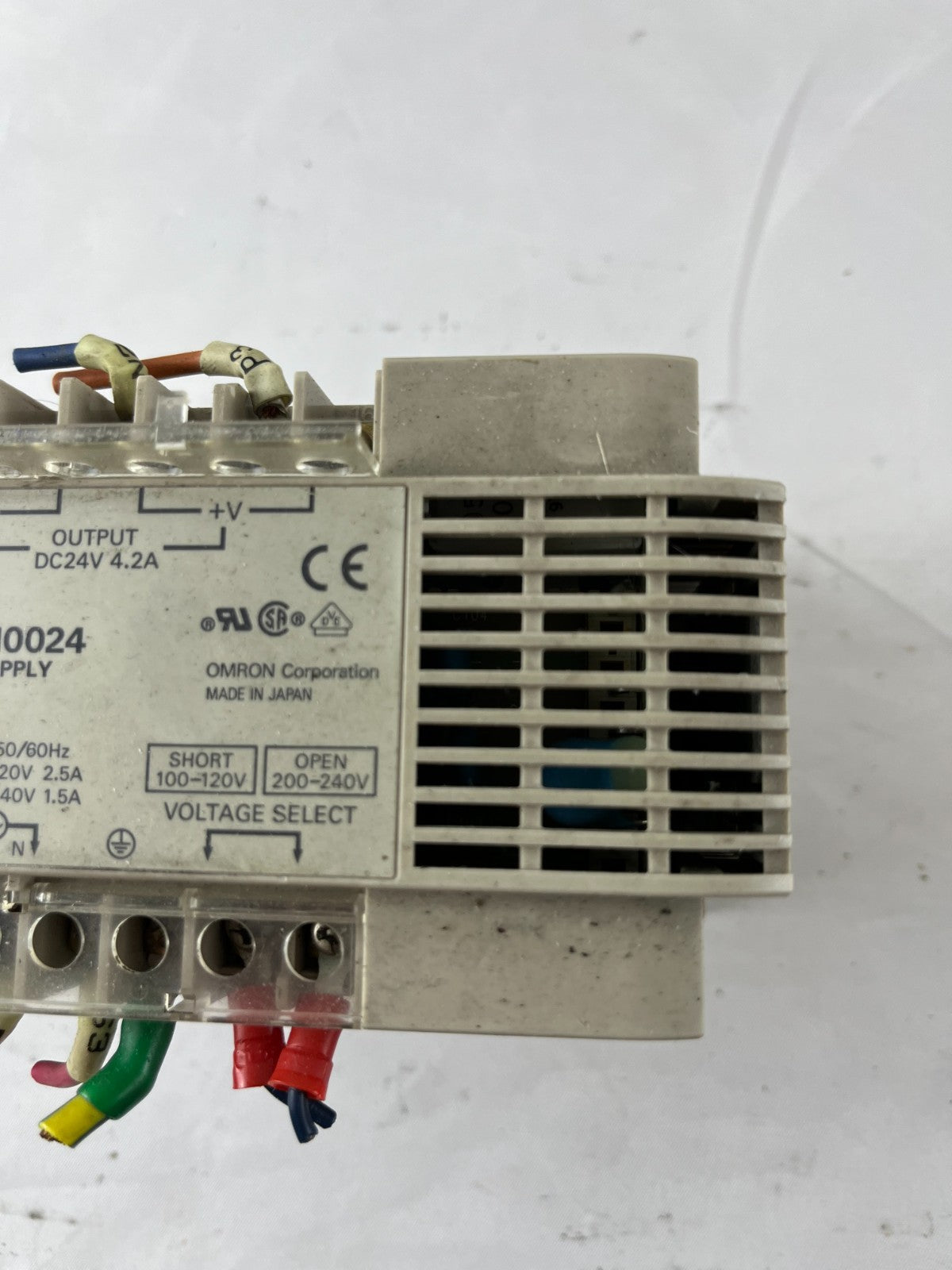

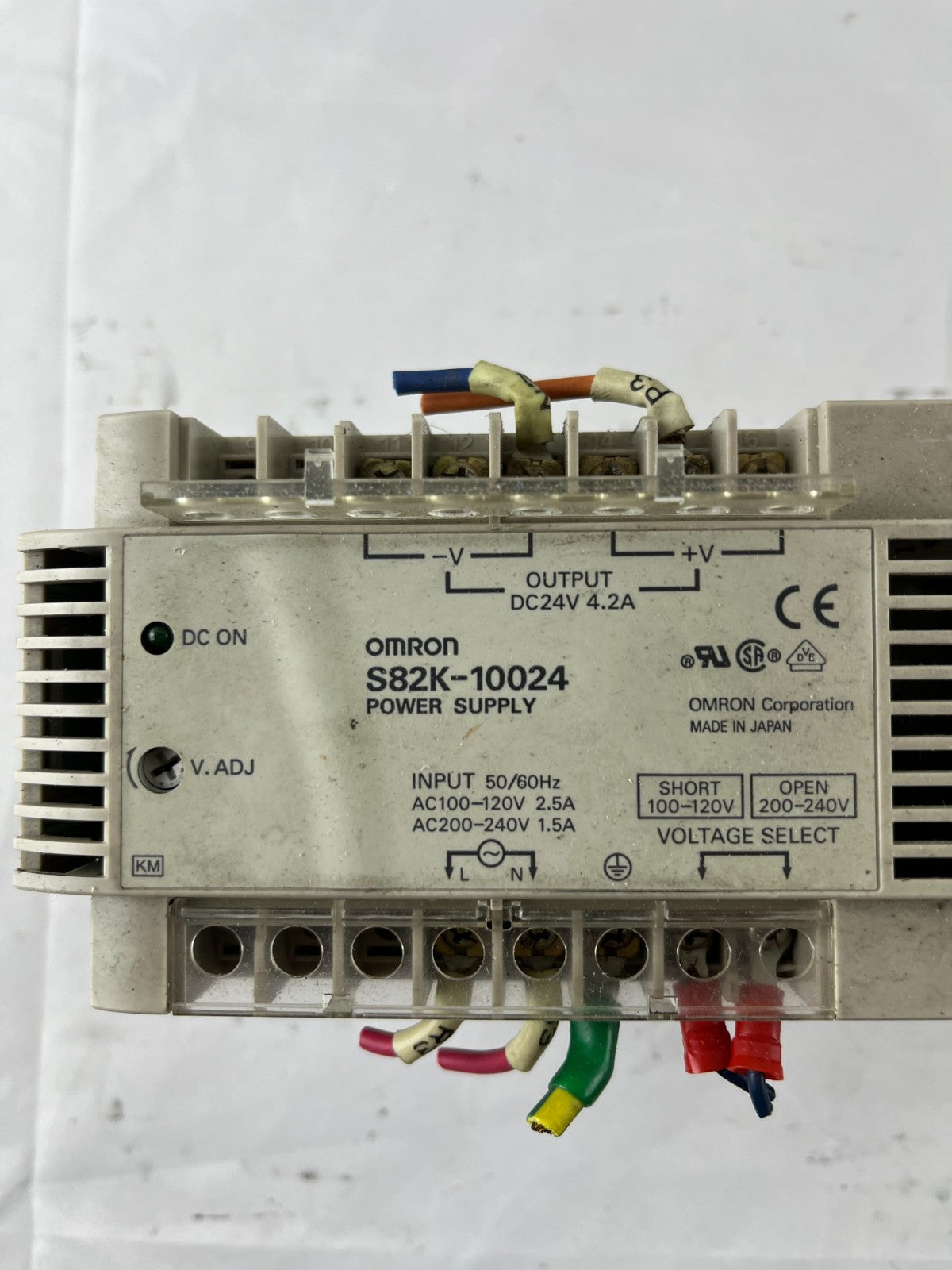

Input selection: Short bar position for 100–120 V, open for 200–240 V (see front “Voltage Select” diagram)
-
Terminals: Front screw terminals for DC output (+V, −V) and AC input (L, N, ground) with some cut wires remaining for reference
-

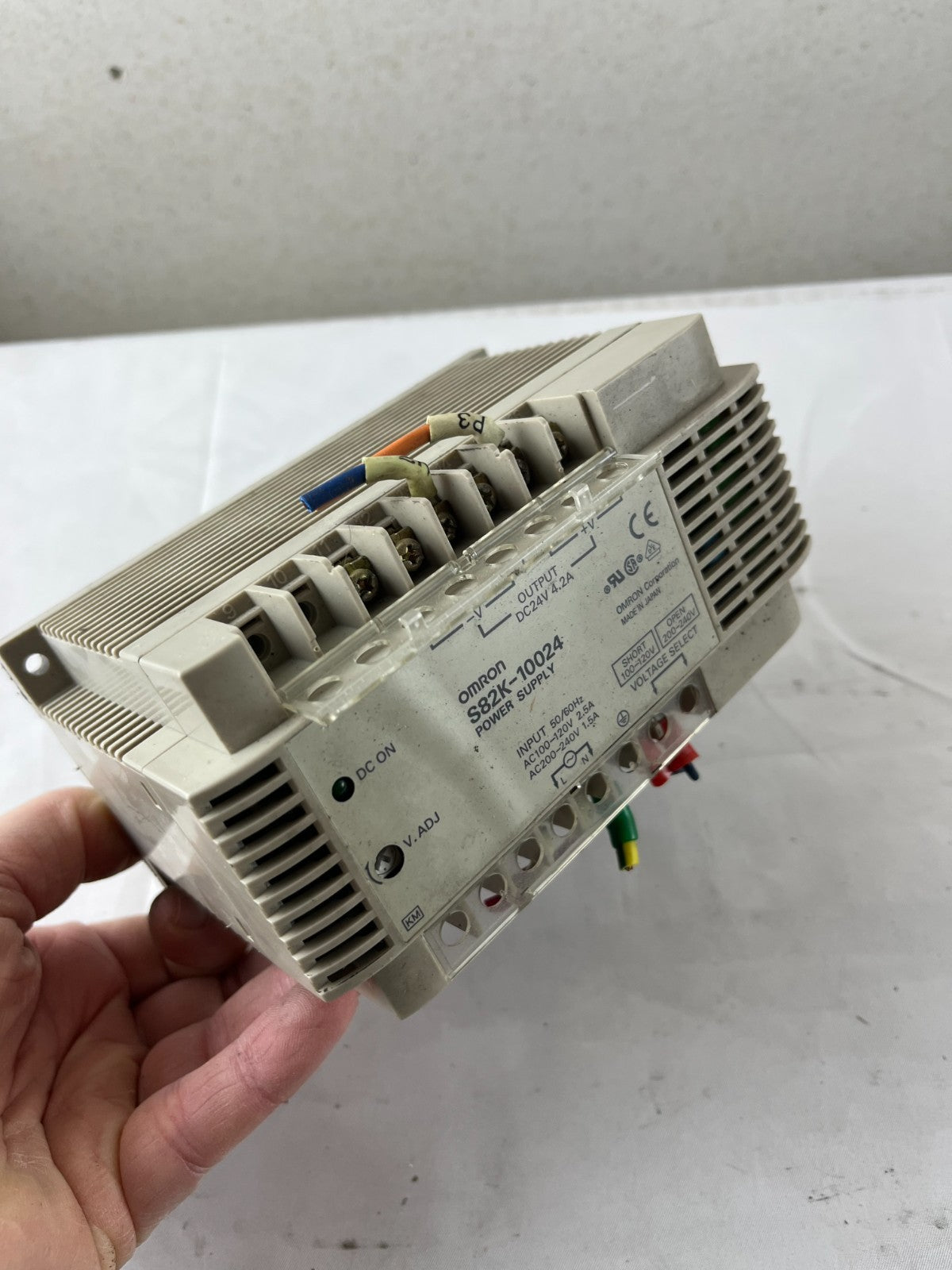

Indicators/adjustments: Green “DC ON” LED and front “V.ADJ” trimmer for fine output voltage adjustment
-

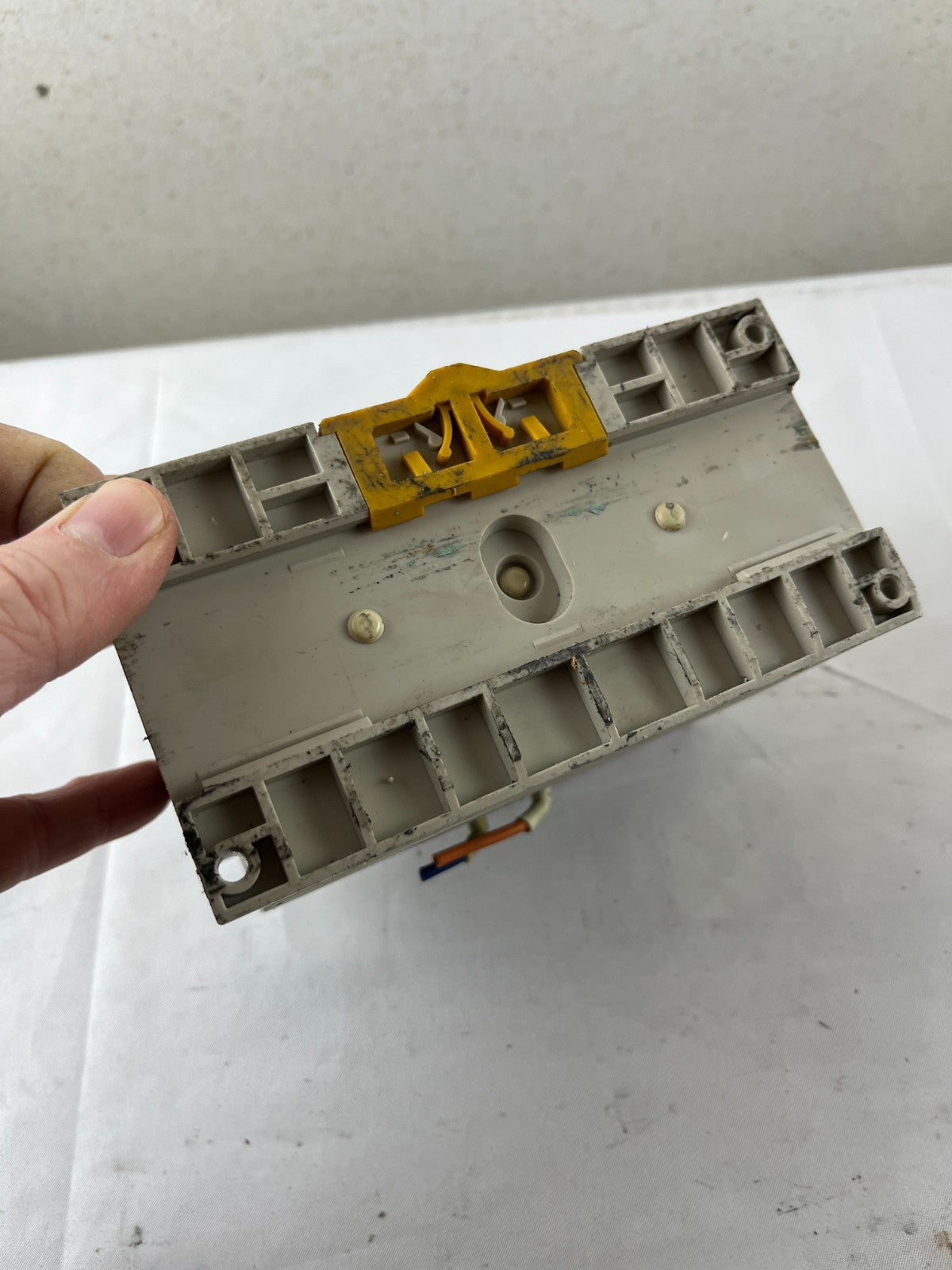

Mounting: Integral DIN rail clip and screw holes on rear for panel mounting
-
Protections: Over‑current, over‑voltage, short‑circuit and brown‑out protection typical of S82K series
-
Country/Region of manufacture: Japan (“Omron Corporation Made in Japan” on label)
-
Approx. body size: around 91 × 75 × 145 mm (H×W×D).
-
Used, in good working condition.
-

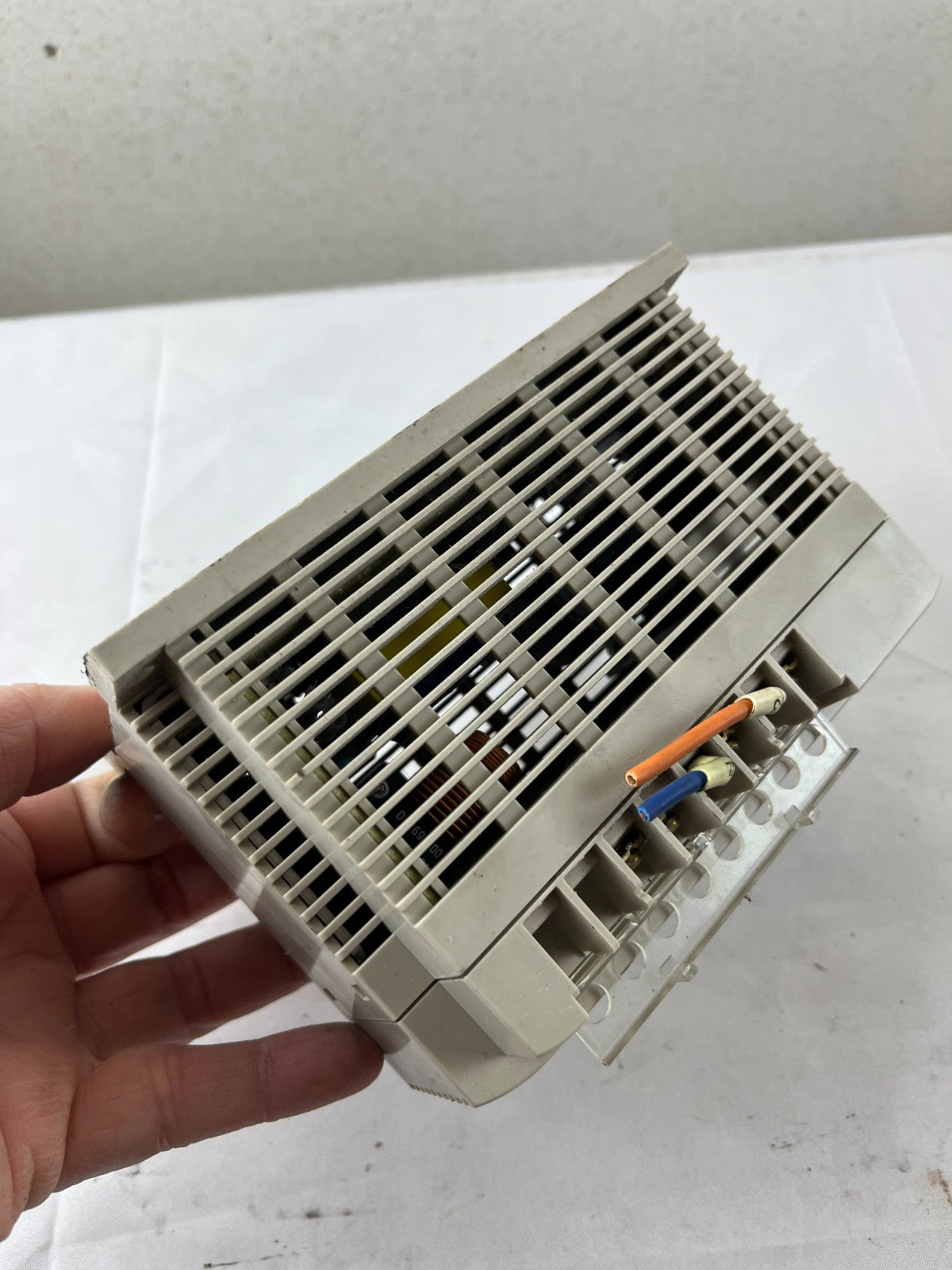

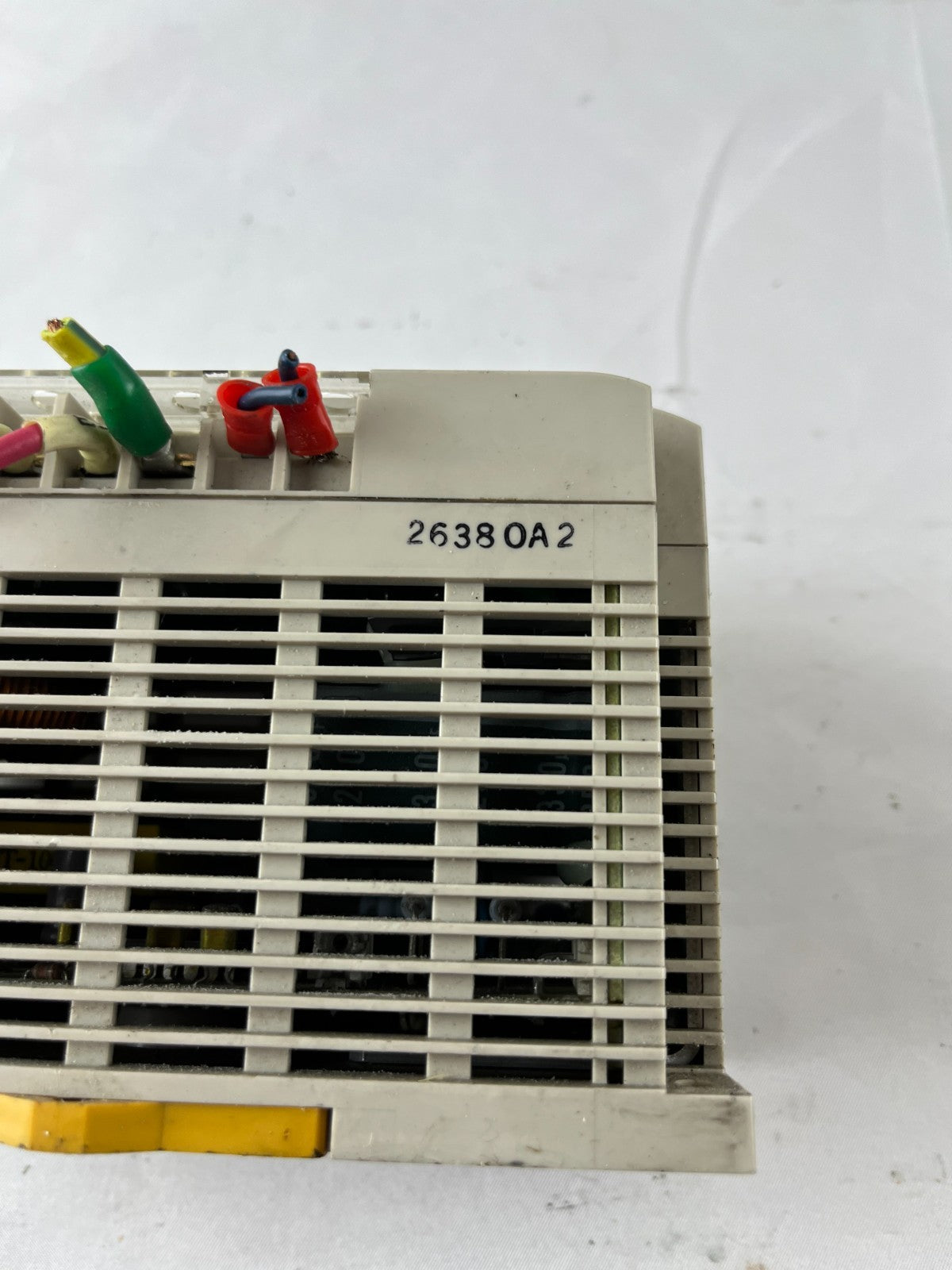

Noticeable cosmetic wear and discoloration on plastic housing from normal panel use; dust and marks present in vents and around terminals (see photos).
-
Terminal strip intact; clear protective cover present; several cut wires left connected to assist rewiring.
-
No original packaging, manuals, DIN rail or additional accessories included.
-
24 V / 4.2 A 100 W model suitable as a main 24 V bus supply for PLCs, I/O modules, sensors and other low‑voltage loads.
-
Part of a discontinued series; useful as a like‑for‑like replacement in existing installations.
-
Buyer must confirm and set the correct input voltage range (100–120 V or 200–240 V) using the short bar before energizing the supply.
-
Professional installation is recommended; sold as a used industrial power supply.
