Panasonic SUNX DP2-22 Digital Pressure Switch 1MPa Analog Out 24VDC NEW Japan

Panasonic SUNX DP2-22 Digital Pressure Switch 1MPa Analog Out 24VDC NEW Japan

- Shipping includes tracking info worldwide. Klaus KLJ Trading

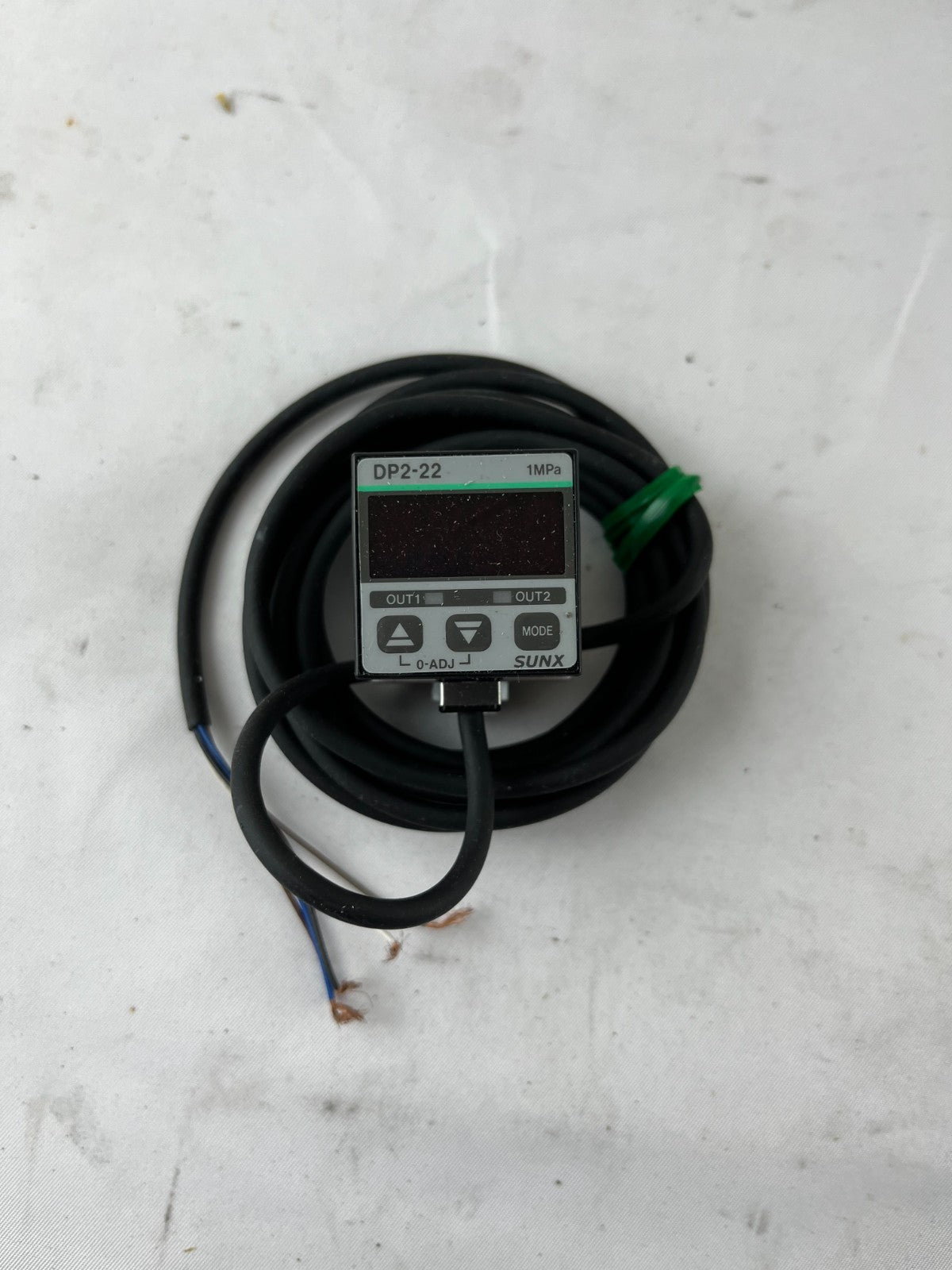

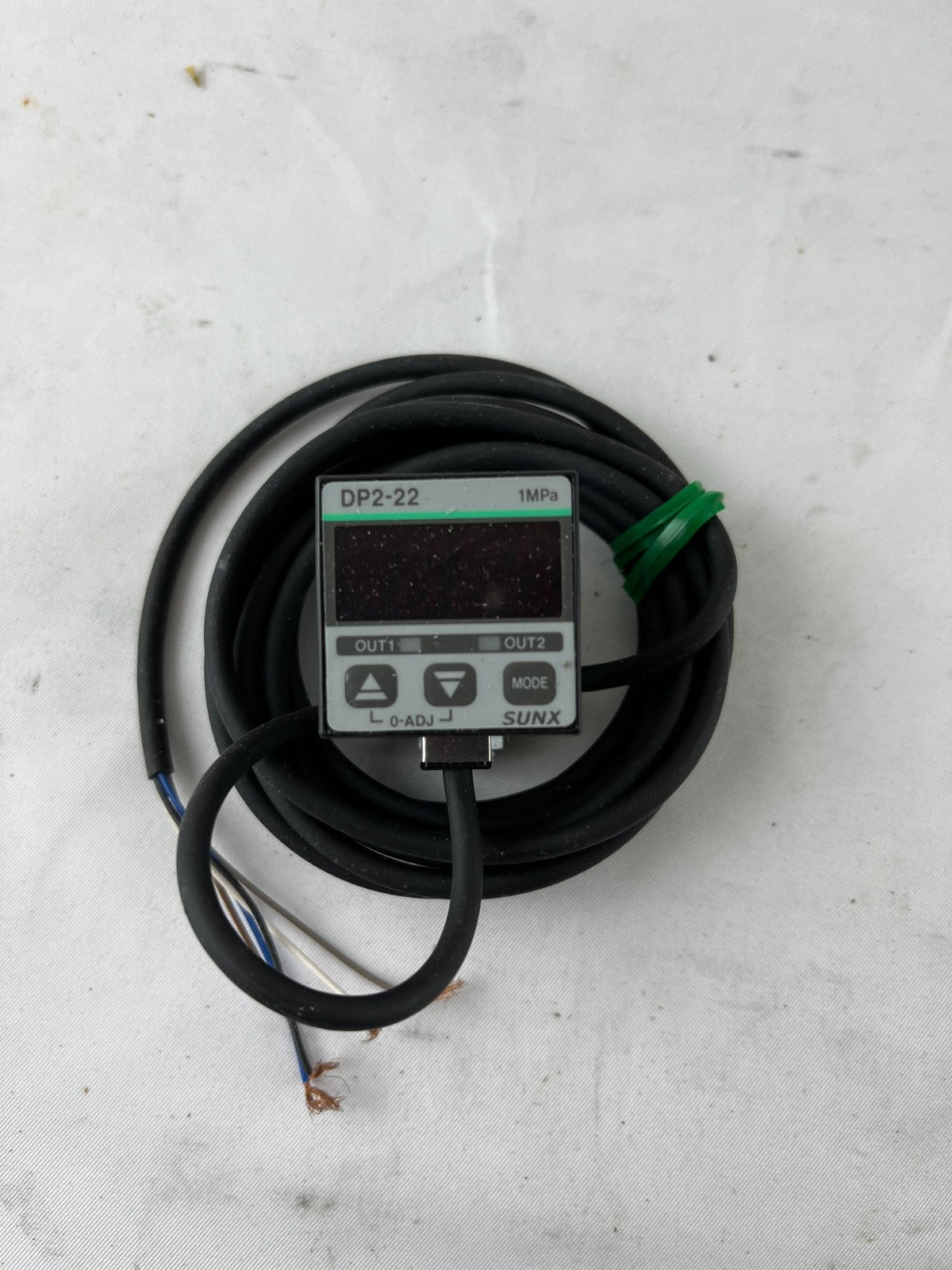

• • Brand & Model

    • Manufacturer: Panasonic Electric Works (SUNX), Japan

    • Model: DP2-22

    • Series: DP2 High-Performance Digital Pressure Sensor

    • Condition: New, never used, fully functional

    • Made in Japan

  • Technical Specifications

    • Pressure type: Gauge pressure

    • Rated pressure range: 0 to 1.000 MPa (0 to 145 PSI)

    • Set pressure range: -0.050 to 1.000 MPa

    • Pressure withstandability: 1.47 MPa (213 PSI)

    • Applicable fluid: Non-corrosive gas

    • Accuracy: Within 1 percent full scale

    • Response time: 2.5 ms or less

  • Electrical Specifications

    • Supply voltage: 12 to 24V DC plus or minus 15 percent

    • Current consumption: 50 mA or less

    • Output type: 2 NPN open-collector transistors

    • Maximum sink current: 100 mA per output

    • Analog output: 1 to 5V DC over rated pressure range

    • Analog linearity: Within 1 percent full scale

    • Output impedance: 1 kilohm approximately

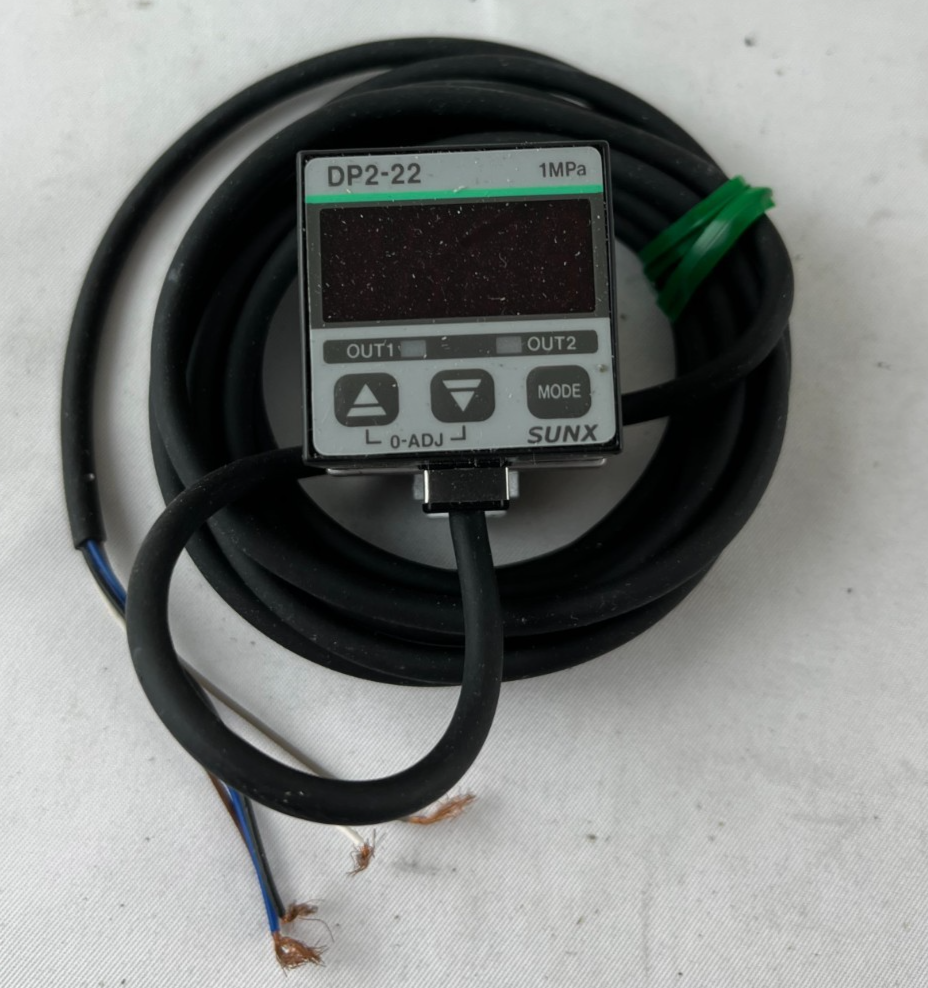

  • Display Features

    • 3.5 digit red LED display with high visibility

    • Selectable units: MPa, bar, kgf per square cm, PSI

    • LED bar graph display in 10 percent steps

    • Sampling rate: 4 times per second

    • Displayable range: -0.050 to 1.000 MPa

  • Output Modes

    • Hysteresis mode for standard switching applications

    • Window comparator mode for range detection

    • Dual output mode for independent threshold control

    • Automatic sensitivity setting mode

    • Programmable via front panel buttons

  • Connection Details

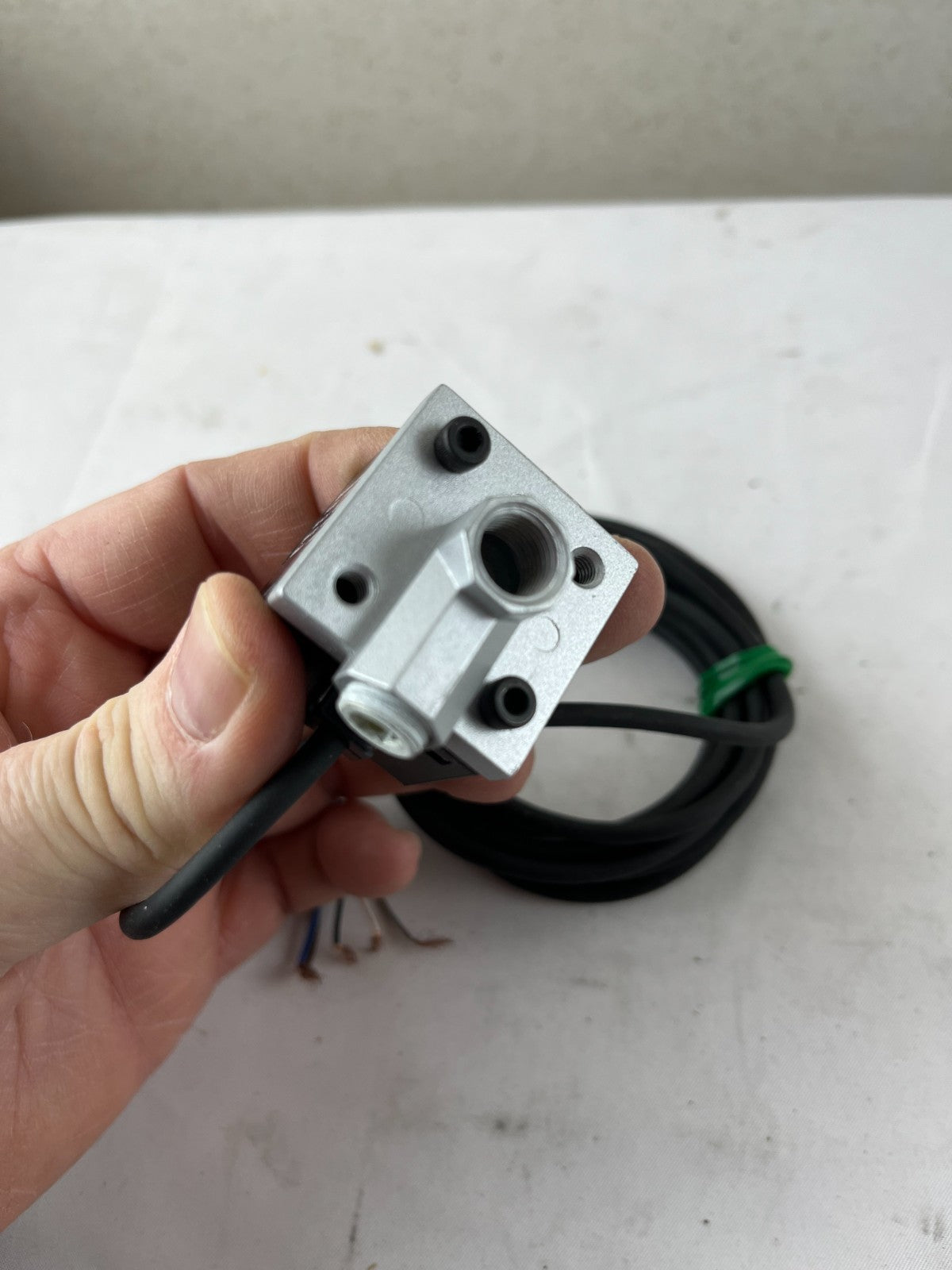

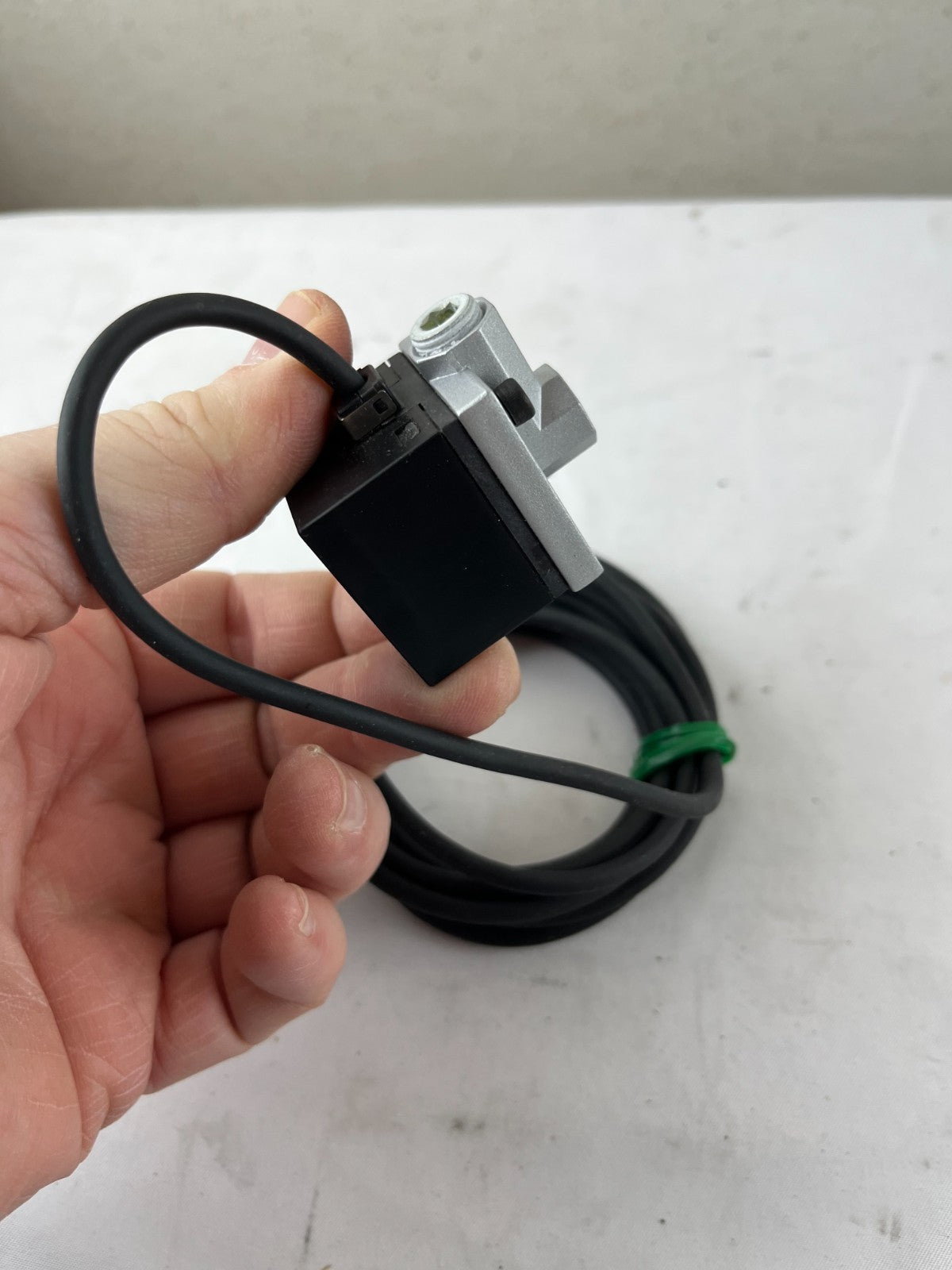

    • Pressure port: Rc (PT) 1 over 8 female thread

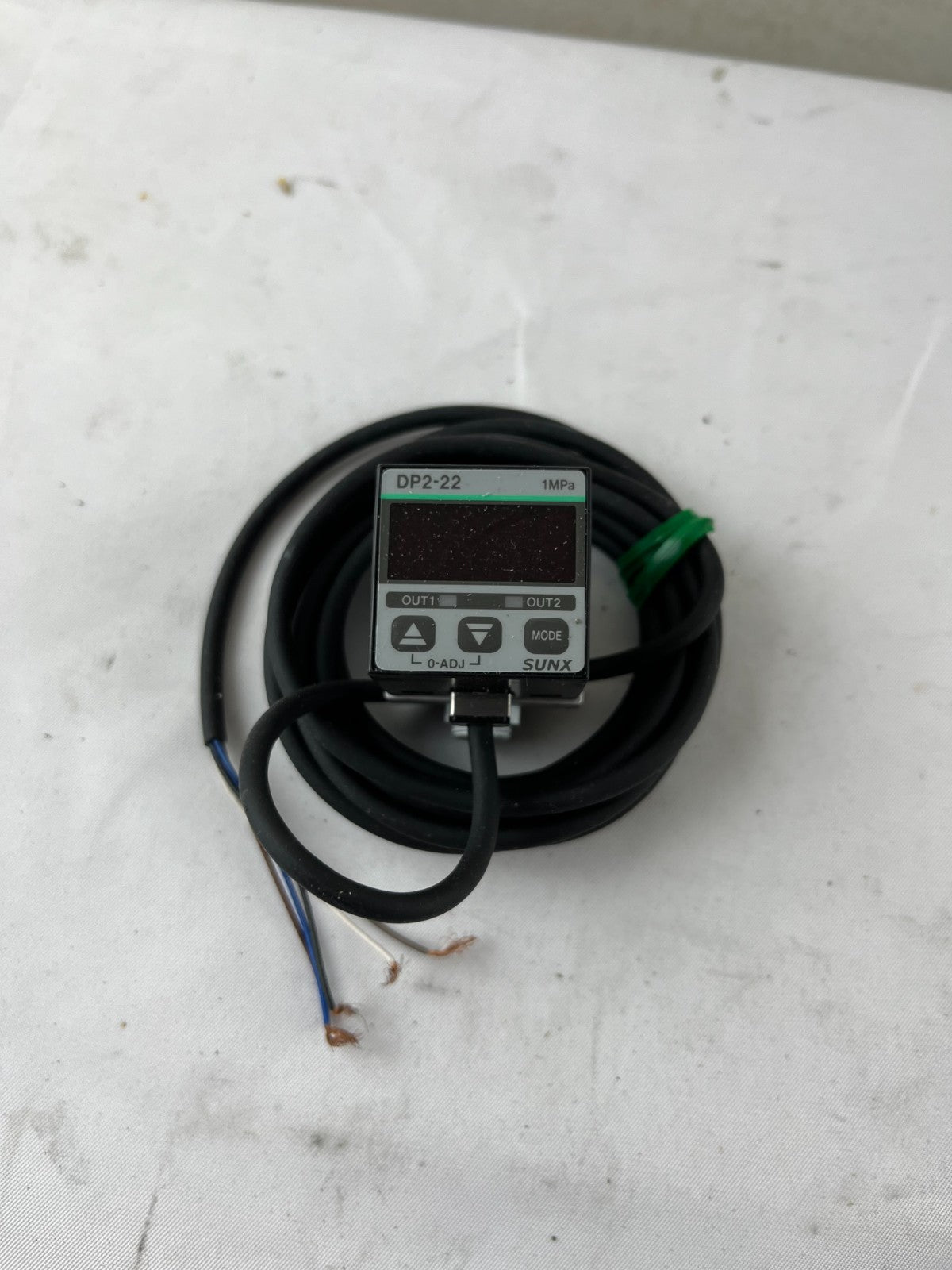

    • Pre-wired cable with color-coded leads

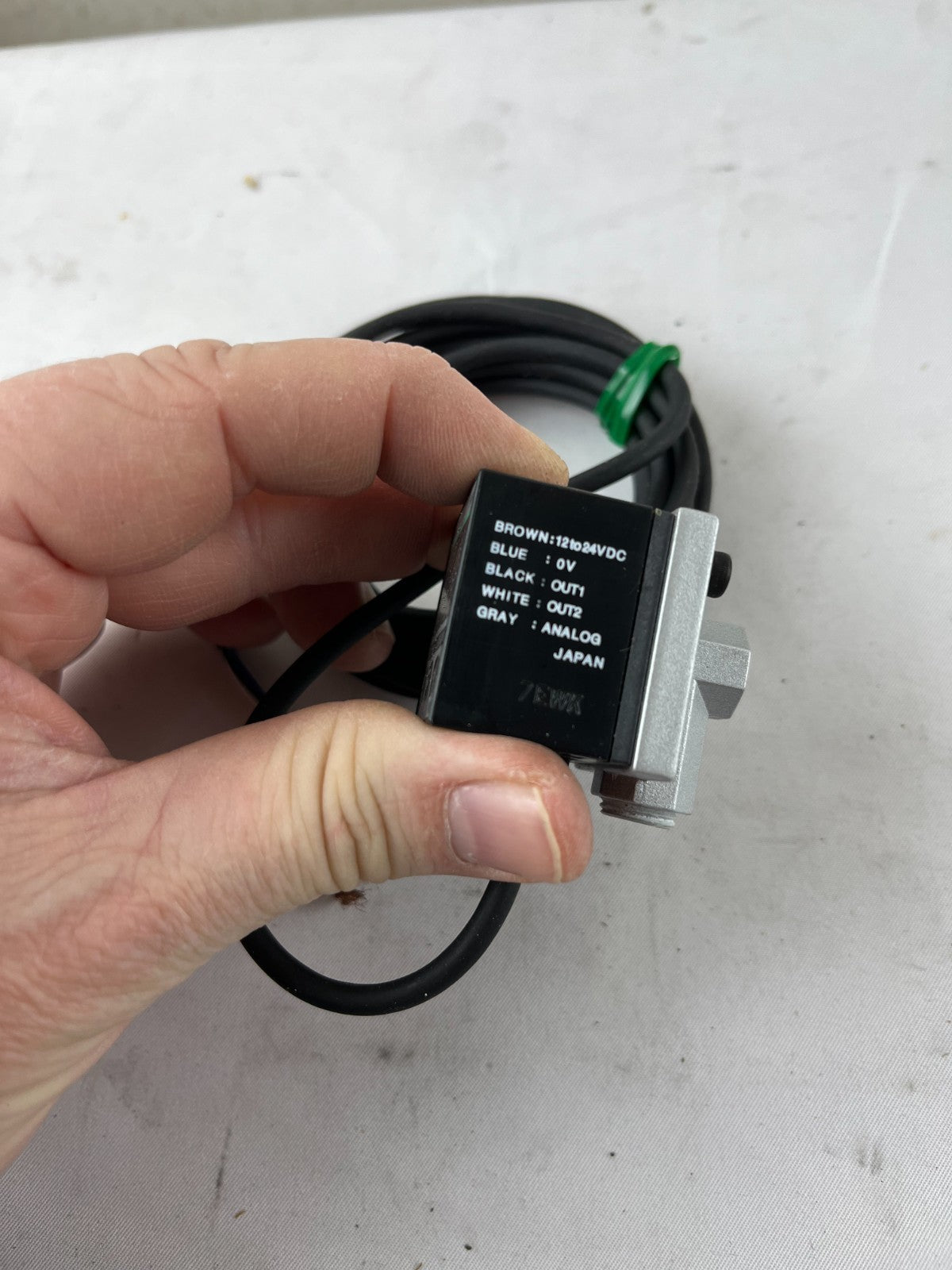

    • Brown: Plus 12 to 24V DC power

    • Blue: 0V ground

    • Black: Output 1

    • White: Output 2

    • Gray: Analog output 1 to 5V

  • Features & Applications

    • Protection rating: IP40 (standard type)

    • Operating temperature: -10 degrees C to plus 50 degrees C

    • Zero-adjust and span calibration functions

    • Settings stored in EEPROM (100,000 write cycles)

    • Compact dimensions: 31.6 x 31.6 x 38.5 mm

    • Weight: 95 grams approximately

    • Ideal for pneumatic systems, compressed air monitoring, leak testing

    • Suitable for factory automation, robotics, process control, pressure testing equipment

  • Additional Information

    • CE marked for European compliance

    • Can be panel mounted with optional bracket MS-DPX-2

    • Compatible with straight bush adapter DPX-03 for male thread connection

    • Front protection cover available as accessory DPX-04

    • Mounting brackets and screws included

    • User manual with wiring diagrams and setup instructions
